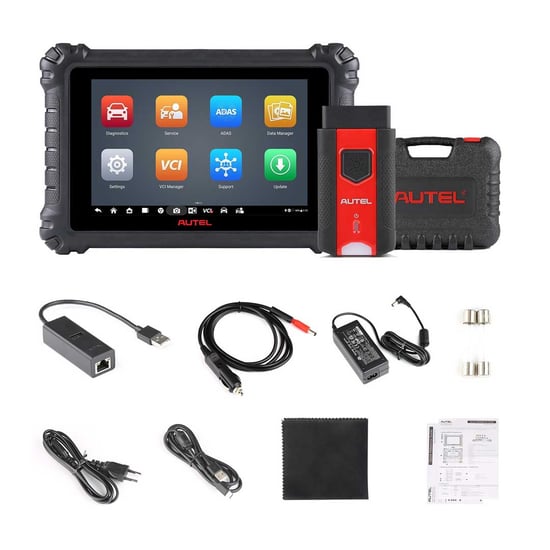

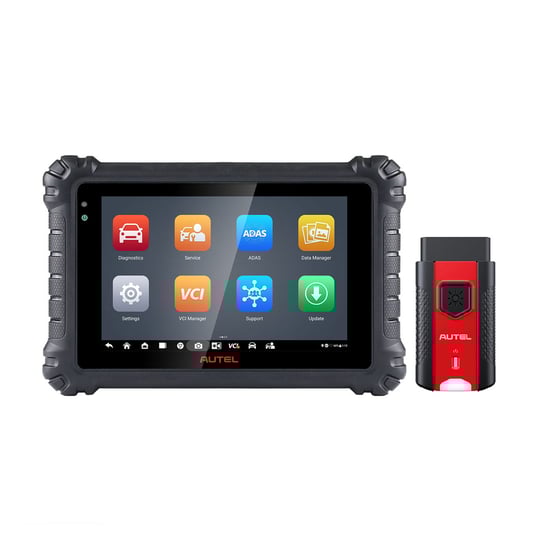

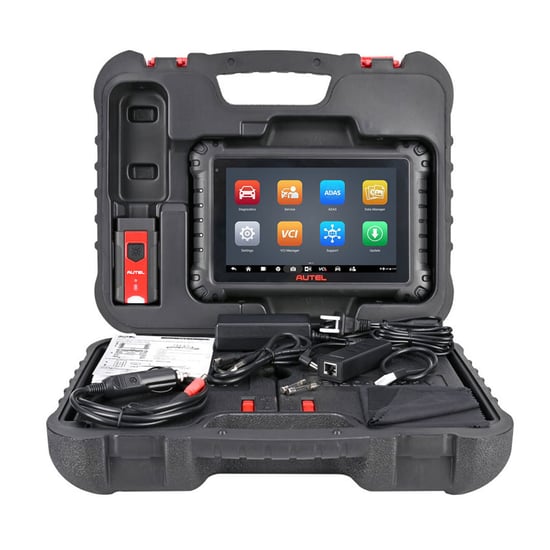

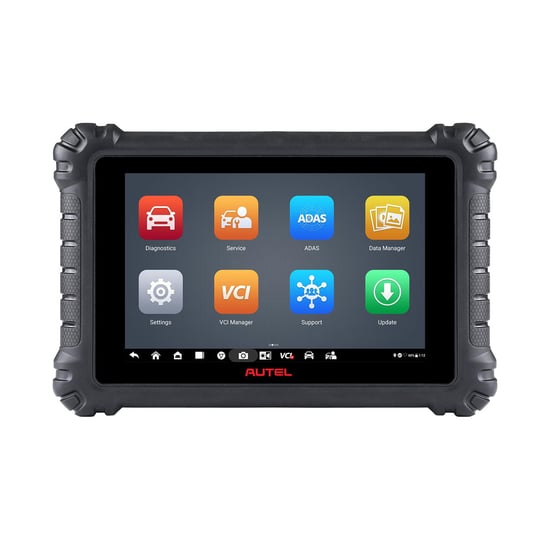

Autel MaxiSYS MS906 Pro Diagnostic Scanner

Autel MaxiSYS MS906 Pro Diagnostic Scanner 2 Years Update Subscription 1 Year Warranty

Product Description:

Key Programming / ECU Diagnostics Tools Diagnostic Tools From Autel with Product Number: MK7346
This Weight Product: 3100g

Autel MaxiSYS MS906 Pro Diagnostic Scanner Specs:

Manufacturer: Autel
Condition: New

Note: 2 Years update subscription is included with the device.
Note: Ip Restriction (works only in India, Middle East and Africa ).

• Advanced diagnostic tablet compatible with U.S., Asian and European vehicle, 1996 and newer
• 8-inch Wireless Touchscreen tablet with Bluetooth-enabled MaxiSYS VCI200
• Octa-Core Processor/128 GB memory / 4 GB RAM
• Performs all system scan with ADAS identification/ Customizable Pre & Post scans
• Read/Erase Codes, View Freeze Frame and Live Data
• Bi-directional control capability including Active test/Performs coding and adaptations
• FCA Access via AutoAuth account/ Battery and Charging System analysis (hardware purchase required)
• ADAS Calibration-capable with software upgrade and Autel Calibration System purchase
• Extensive Service Menu: Quick access to 25 of the most common maintenance tasks

Instead of MS906BT/MK906BT, this 2022 Autel MS906 PRO has newly added various functions for fast and easy car diagnostics & repairs & maintenance.

Please note, the ms906 Pro:
- does not display Topology.
- requires the 16+32 ByPass Cable adapter for Nissan Sentra 2020 and newer models.
- does not include OBD-I adapters.

Hardware:

• 8-inch, 1920 x 1200 high-resolution touchscreen tablet, Samsung Exynos Octa-core processor with 128 GB storage and running Android 7 operating system.
• Long-lasting 11,600 mAh rechargeable battery, 5 MP front camera and 16 MP rear camera.
• MaxiCVI V200 wireless Bluetooth vehicle communication interface supporting the latest communication protocols.

MS906 Pro Software:

• Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles
• AutoScan: Scan all available systems, including ADAS identification
• Read/Erase Codes, View Freeze Frame and Live Data
• Perform Active Tests (bi-directional controls), Coding and Adaptations
• AutoVIN/Scan VIN for rapid vehicle identification
• Perform ADAS (inc. Camera/s, Radar, LiDAR, Night Vision) Systems Calibrations with additional purchase.

New Software Features

• Battery analyzation capability*
• Cloud-based Reports and Data Management
• Remote Expert (coming soon)
• ** with purchase of ADAS calibration frame system and software

Specifications

Full System Diagnostics

The MS906PRO supports four methods for vehicle identification: Auto VIN Scan, Manual VIN Input, Automatic Selection, and Manual Selection, through which you're able to access all the diagnosable ECUs on the vehicle and run diagnostics on the selected system. With the bi-directional control, it's easy and quick for you to identify the problems as the diagnostic tool is able to transmit control commands to operate the vehicle systems and tell you the running conditions.

Bi-Directional Control – Precisely Locate Car Problems

Featuring bi-directional control, this Autel intelligent diagnostic tool – Autel bluetooth scanner MS906 Pro, can output the commands to ECUs, read the ECU data and monitor the operation of the actuators. Through active tests, also called actuator tests, this bi-directional diagnostic scanner can precisely locate the car problems, letting you quickly know whether a specific system, component, or subsystem is functioning properly or not.

• For example, If a fuel pump is not working and leads to ignition failure, it could be a faulty pump, wiring, relay, or command. By turning the fuel pump on and off via the MaxiSys MS906 Pro, you can quickly determine whether it’s a wiring, relay, or pump issue without removing any parts.
• Here are some other examples of active tests, which help you locate faults in the shortest time, saving time on troubleshooting:

1. Cycle the a/c clutch on and off;
2. Switch the interior lights on and off;
3. Active tests for inside mirrors, exterior mirrors (high version only), adaptive headlamp, steering wheel heating, windows, wash/wipe system, horn, reset starter lock, etc.

AutoAuth Access: Bypass SGM in FCA Vehicles

With the 2022 version Autel scan tool MS906Pro, you now have access to the security gateway module on 2017 and newer Fiat Chrysler vehicles, so that the diagnostic tool can clear codes, run bi-directional active tests, actuations, relearns or even IMMO key programming (pulls PIN & write), ADAS calibration assistance etc.

• Autel has made this process very simple to access with 3 simple steps:

1. Authorize: register an AutoAuth account online via diagnostic tablet or computer.
2. Confirm: register your Autel diagnostic scanner under your AutoAuth account. Follow the diagnostic procedures in scanner and log in your AutoAuth account.
3. Access: now you have the immediate authorized gateway access to FCA SGW-equipped vehicles. Note that the diagnostic scanner needs to have the latest software (valid software subscription is required).

Advanced ECU Coding for High-Level Repairs & Customization

Differentiating from MS906, MS906S, MP808K, MP808BT, MP808BT Pro Autel scanner, MS906 Pro automotive diagnostic tool is designed with more complete and advanced ECU coding functions that allow you to refresh the hidden features, customize the OE settings and enhance the vehicle performance.

1) ECU Coding can match the component control modules after repair or replacement and modify the code to finish the personalization. When the code data is lost you can operate the MS906 Pro bi-directional scanner to receive the online data from the server and code the car easily via the Internet to recover the vehicle performance.

2) Personalization Function has enriched the business of repair stores. It can flash the hidden features to Disable some annoying
functions like deactivating the auto start-stop / changing the chimes / deactivating injector buzz sounds etc; and Unlock some high-end functions like auto start-stop / customizing interior lights / changing US-style daytime running lights/ automatic door locking at a particular speed, etc. Suitable for VW and for BMW.

3) for VAG Guided Function gives on-screen OE level operating instruction to simplify the diagnostic process and shorten the diagnostic time. Widely compatible for VW, for Audi, for Skoda, for Porsxxx, etc.
Note: ECU Coding is NOT universally compatible. Please check compatibility with us before purchase.


Like automotive scanner MaxiSys MS908, Autel MS906 Pro has the same advanced ECU Coding, which changes preprogrammed options in the software, allowing you to do high-level repairs or customize cars as needed.

---Online Coding

• empower you to access the online data from the OEM server to do high-level repairs, such as BMW F and E Chassis Coding, Porsche Coding, and VW Online Coding.

---Offline Coding:

• read the code from the original module, and then write the code to the new module, e.g. Ford Offline Adaptation.

---Module Replacement:

• recode/reset/match/initialize adaptive data for certain components after replacing modules; available for Honda, Chrysler, VAG, GM, Peugeot, Citroen, Mitsubishi, Suzuki, etc.

---Refresh Hidden Features:

• activate the hidden features or disable the annoying features; compatible with Toyota, VW, BMW, etc.
• Reinforce the car’s performance:

Note: The ECU coding is not universally compatible and varies depending on the make, year, and model.

33+ Hot Service Functions :

The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. The typical service operation screen is a series of menu driven executive commands. By following the on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions, the system will guide you through the complete performance for various service operations. The most commonly performed service functions include

5 Most Commonly Used Maintenance Functions:

• Oil Reset (support 61 brands): reset the oil life system after oil or oil filter replacements; compatible with VAG, Benz, BMW, GM, etc.
• EPB (support 45 brands): reset the brake pad after replacing the brake pad, servo motors, etc.; compatible with VAG, Benz, BMW, GM, etc.
• TPMS (support 49 brands): reset the tire pressure and turn off the tire pressure fault indicator; compatible with Toyota, Chrysler, VAG, Benz, etc.
• BMS (support 45 brands): reset the battery after replacing battery or battery monitoring sensors; compatible with VAG, Benz, BMW, etc.
• ABS Bleeding (support 44 brands): bleed the brake system; compatible with GM, Ford, Honda, etc.

More Hot & Advanced Maintenance Functions for Fast Maintenance:

• Airbag Reset, DPF Reg., IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Language Change, Headlight Matching, A/F Setting, WIN DR Roof, Odometer, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption, Power Balance, Component Matching, etc.
• Note: Constantly Updating for More & Vary Depending on the Make, Model, and Year.

VAG Guided Function

Autel MS906 Pro comes with the guided function, which offers on-screen instructions to guide you on how to complete some complicated functions, such as steering angle calibration, TPMS reset, and car coding. Just follow the step-by-step guides. This function is available for VW, Seat, Skoda, etc.


IMMO Keys

This OBD2 diagnostic scanner can disable the lost vehicle keys, add new keys, and program the replacement key fob. Note: The IMMO keys function is available for vehicles that come with low-grade anti-theft systems, not intended for the vehicles with advanced IMMO systems.


Expanded Functions (With Additional Purchase)

Autel MS906 Pro, which supports various expanded functions (sold separately), can make its diagnostics much more precise & reliable.

• Compatible with Oscilloscope, such as Autel MP408, to test electrical system.
• Compatible with Digital Inspection Camera/Video Scope, such as Autel MV105/MV108 to examine difficult-to-reach areas normally hidden from sight, like the engine, fuel tank, etc.
• Compatible with Battery Tester, e.g. Autel MaxiBAS BT506, to do battery analysis.

Remote Expert

Developed by Autel, Remote Expert of this Autel smart diagnostic scanner is a cloud-based solution offering connections to experienced experts for your remote programming needs.

• Expert can directly help you from your MaxiSYS tools, such as MS906 Pro, MS909, MS919, MaxiSys Ultra, etc.
• Communicate to the experts through integrated instant messaging and voice;
• Monitor vehicle vitals while programming.

Autel MS906 Pro Vehicle Coverage

Aisa:
for Acura, for Daewoo, for Daihatsu, for Honda, for Hyundai, for Infiniti, for Isuzu, for Kia, for Lexus, for Maruti Suzuki, for Mazda, for Mitsubishi, for Nissan, for SsangYong, for Subaru, for Suzuki, for Toyota, for GTR, for Scion

Europe:
for Benz, for Sprinter, for BMW, for Fiat, for LandRover, for Maserati, for Opel, for Peugeot, for Porsche, for Lancia, for LT3, for Maybach, for Mini, for Seat, for Skoda, for Vauxhall, for Renault, for Saab, for Smart, for Volvo, for Volkswagen, for Abarth, for Alfa, for Audi, for Bentley, for Citroen, for Dacia, for Ford, for Jaguar, for Lambor Ghini

USA:
for GM, for GMC, for Ford, for Chrysler, for Dodge, for Jeep

Autel MaxiSys MS906S vs MS906 Pro vs MS906 Pro TS
