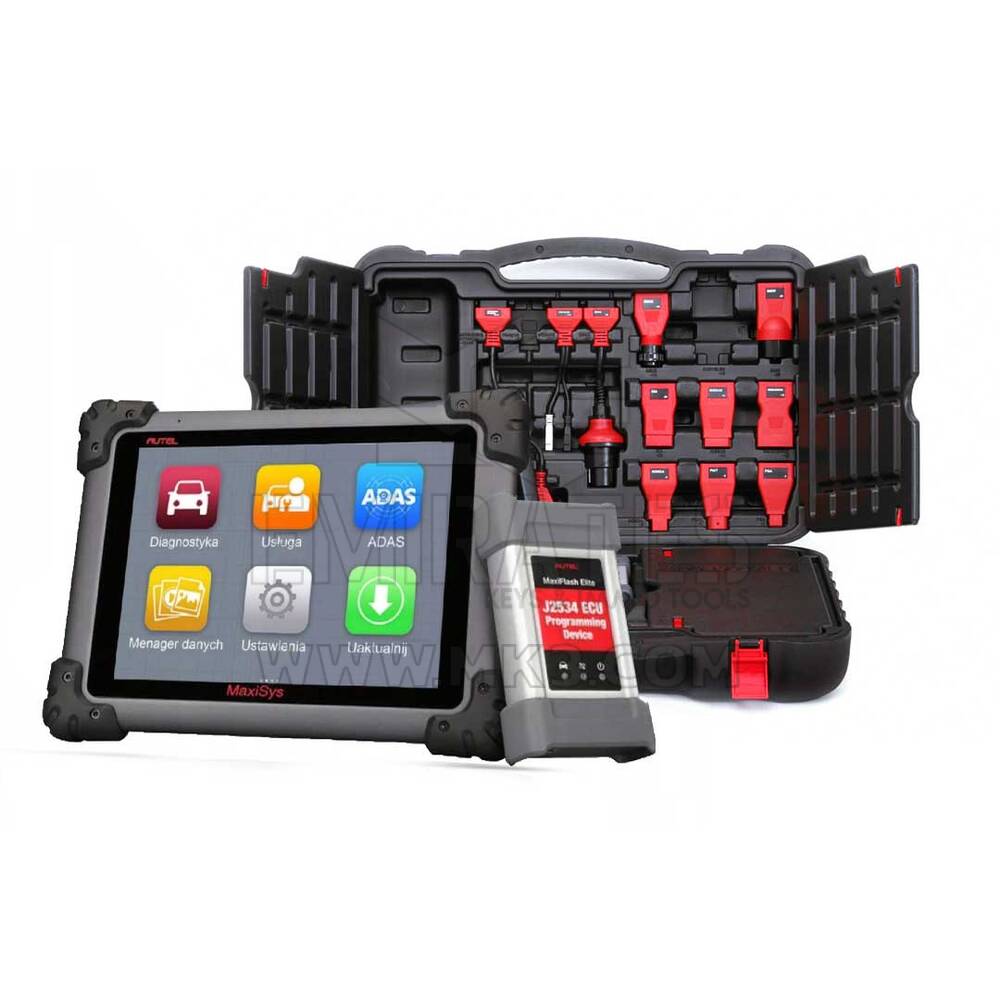

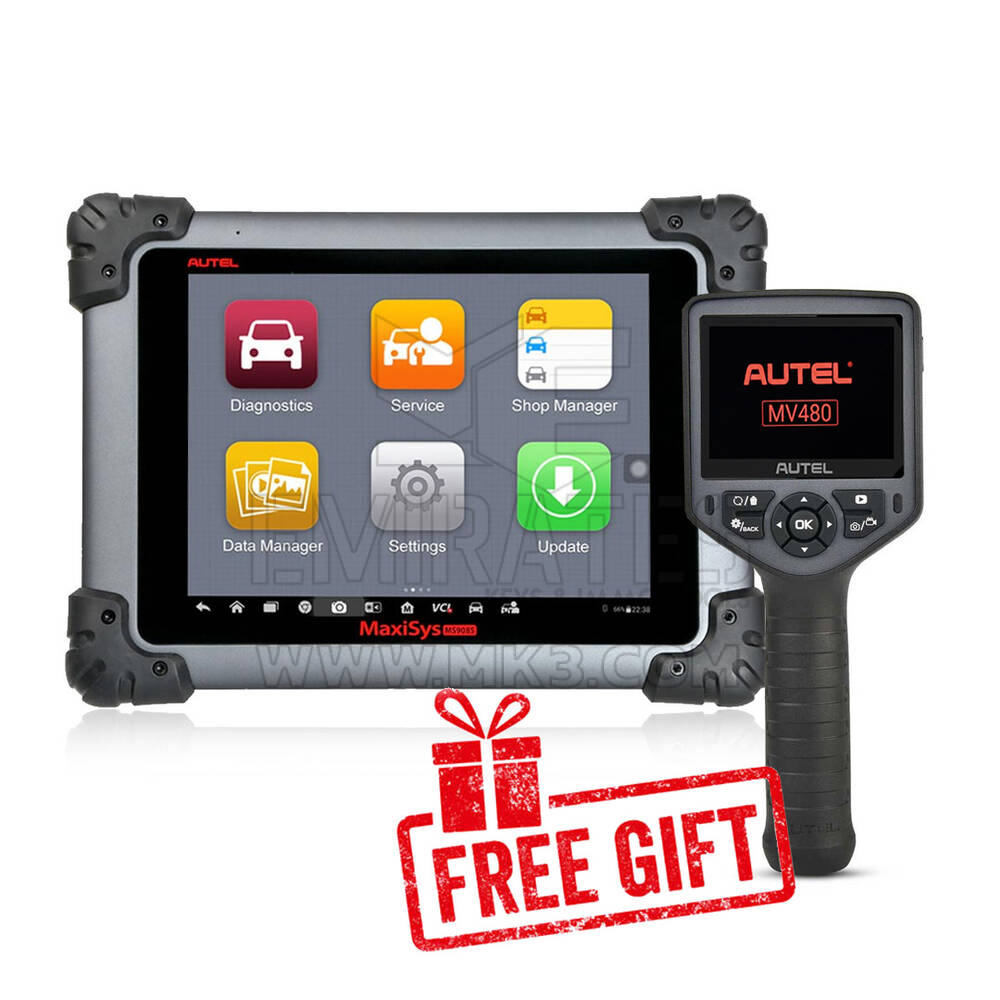

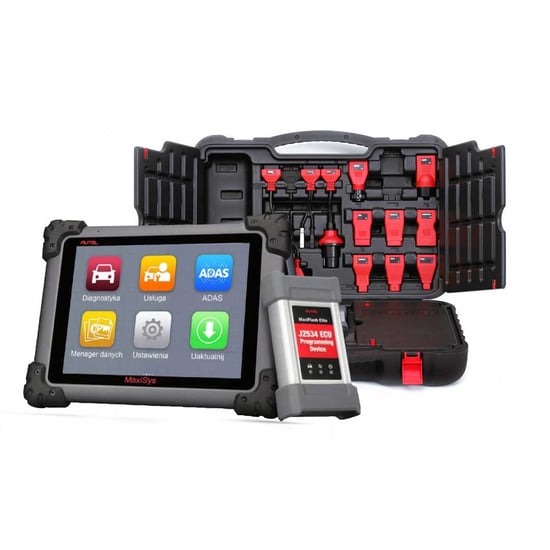

Autel MaxiSys MS908S Pro Diagnostic Tool & MaxiVideo MV480 Videoscope Device

Autel MaxiSys MS908S Pro Diagnostic Tool & MaxiVideo MV480 Videoscope Device

Product Description:

Key Programming / ECU Diagnostics Tools Diagnostic Tools with Product Number: MKON370
This Weight Product: 12500g

Autel MaxiSys MS908S Pro Specs:

Manufacturer: Autel
Condition: New

Note: 2 Years update subscription is included with the device.
Note: Ip Restriction (works only in India, Middle East and Africa ).

 One of the MaxiSys series devices, the MS908SP Diagnostic Platform bases on the revolutionary Android multitasking operating system, utilizes the powerful Cortex A7+A15 six-core processor, and equips with 9.7-inch LED capacitive touch screen. Supporting J2534 ECU Programming Device is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues. MS908S Pro is an ideal tool for a truly trouble-free diagnosis of a maintenance plant by quickly, efficiently and effectively diagnosing automotive faults, managing customer data, and standardizing business processes.


Top 5 Reasons to Get Autel MS908S Pro:

• Active Tests, 30+ Special Functions, All Systems Diagnostics
• Equivalent as MaxiSys Elite/MK908P, but Cost Much Less
• Supports ECU Programming for Specific BMW & Benz
• Advanced ECU Coding Function
• Key Fob Programming Capability

Autel MaxiSys MS908S Pro Features:

1. Extraordinarily powerful Cortex A7+A15 six-core processor
2. 9.7" 2048x1536 LED-backlit glossy Multi-Touch capacitive display with IPS technology
3. Internal reliable 64GB On-board Memory for better performance
4. Built-in 8-megapixel rear camera with autofocus and flashlight
5. The VCI connects to the main unit wirelessly with up to 70 meters working range
6. 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources
7. Unique ergonomic design with rubberized outer protection and a rugged internal housing
8. Open source Android Operating System for fast boot-up and multitasking
9. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
10. Exceptional OE-Level system coverage for all electronic systems
11. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc
12. Loads of bi-directionals (hot functions) and system tests
13. Provides OE-level functionality (varies from model to model) such as: Initialization, Calibrations, Immobilizer (not Toyota/Lexus)?
14. Sometimes the Autel is faster and easier to use than an OE tool
15. PCM or WIN replacement functions on Chrysler
16. Parameter reset on Ford and Mazda
17. Graphical Ford misfire
18. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
19. Built-in rechargeable lithium-polymer battery for up to 7.5 hours of continuous operation
20. Equip with J2534 ECU Programming Device for replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues

Autel MaxiSys MS908S Pro Software Advantage:

1. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
2. MS908SP is Easy and intuitive navigation makes finding what you need simple and fast
3. MS908SP's Open source Android Operating System for fast boot-up and multitasking
4. Displays live data in text, graph, analog and digital gauge for easy data review and analysis
5. Configures display options, sets triggers, records and playbacks results with one touch
6. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Autel MaxiSys MS908S Pro Vehicles Coverage

1. 1. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes, including supercars AUDI, BENZ, BMW, DACIA, EU FORD, Ford, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART, JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE,GM, CHRYSLER, FORD,SUZUKI, KIA, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, NISSAN, MITSUBISHI, LEXUS, INFINITI, HYUNDAI, HONDA, ACCURA, MAZDA.
2. Exceptional OE-Level system coverage for all electronic systems
3. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc
4. Protocols Supported: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN.

Autel MaxiSys MS908S Pro Functions

1. Full System Diagnosis on Various Vehicles

Simply accessing the diagnostic modes via AutoVin or Control Unit, and you' re able to perform diagnosis over all the systems on the vehicle' s ECU in order to locate fault systems and retrieve DTCs.

1. ECU Information – provides the retrieved ECU information in detail.
2. Read Codes – displays detailed information of DTC records retrieved from the vehicle control module.
3. Erase Codes – erases DTC records and other data from the ECM.
4. Live Data – retrieves and displays live data and parameters from the vehicle' s ECU.
5. Active Test – provides specific subsystem and component tests.

2. ECU Programming & ECU Coding:

Autel diagnostic scanner MS908S Pro comes with J2534 ECU programming device & BMW Ethernet Cable(For F-Series Coding & Programming), which is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new Benz/BMW ECUs and fixing software-controlled drivability issues and emission issues, update the computer software on the vehicle to the latest version.

1. Coding: also known as Teach-in Program, Component Adaptation, or something similar, is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.
2. Reprogramming Operations: Downloads new version of software subscription from the online server database through Internet access (this procedure is done automatically when the tablet is connected to the Internet, so there is no need to check for software subscriptions yourself), and reprograms the newest software version to the vehicle's ECU.

NOTE:

• Ensure that the tablet is connected to the Internet before applying the ECU programming function so that the tablet is able to obtain access to the manufacturer's server for update service.
• ECU Programming only for BMW/Mercedes Benz
  The programming function can only be applied through connection with the J2534 programming device, which serves as a PassThru interface to establish communication with and transfer data to the vehicle's ECU. Available programming or coding operations vary by the test vehicle, and only the available operations display in the menu.

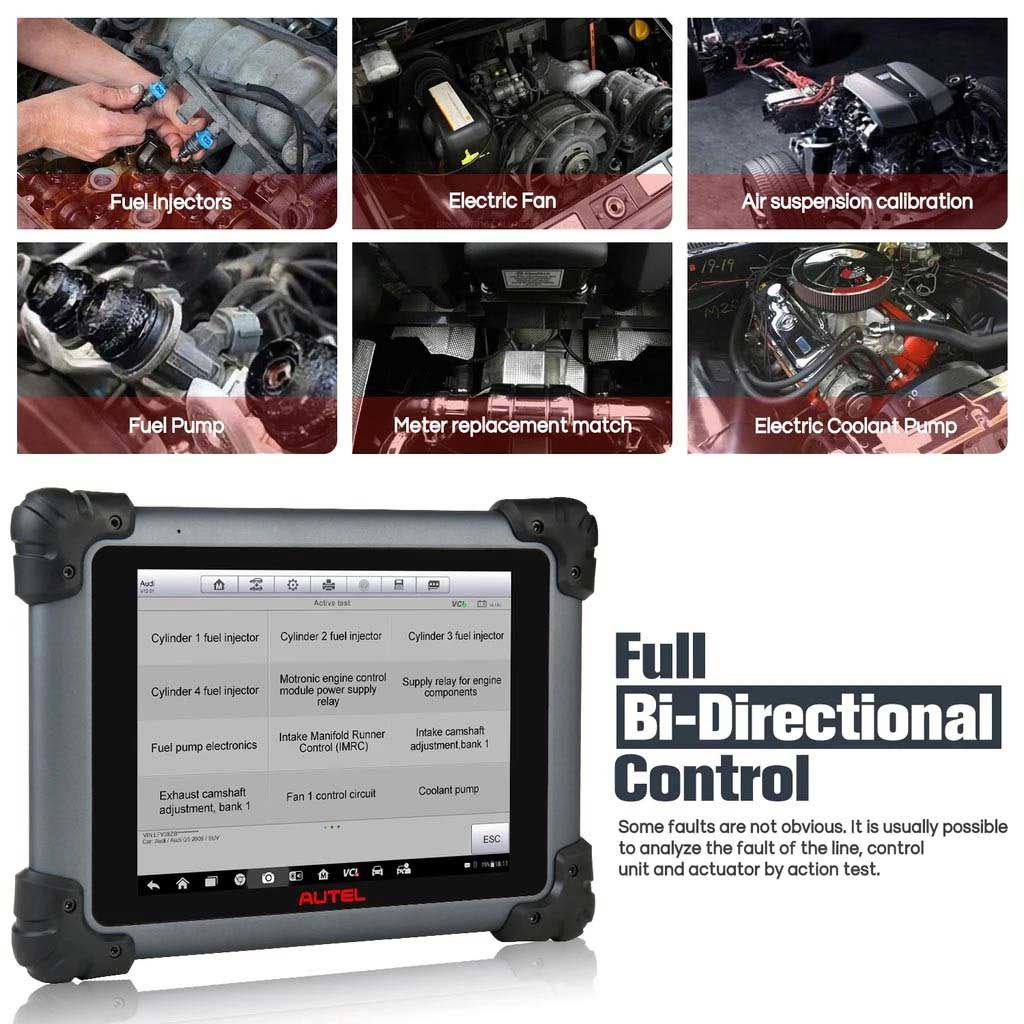

3. Full Bi-Directional Control:

The diagnostic scan tool supports bi-direction control to check the vehicle operating conditions. The bi-directional control of the ECM in the Component Test enables the Ms908s Pro to transmit control commands to operate the vehicle systems.

4. 25+ Special Service Functions

The Service section is specially designed to provide quick access to the vehicle systems for various scheduled service and maintenance tasks includes: Brake Bleed, Oil Reset, EPB, TPMS Sensor Activate, BMS, DPF, Immo Keys, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Lang Change, CHG Tire Size, TEC Learn, ABS/SRS, Cylinder, Turbocharging, Limit, Clutch, Trans Adaption, Airbag Reset, Headlamp(NOT universal, please check the compatibility before order)

1. Oil Reset Service: Allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate.
2. EPB Service: Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
3. SAS Service: Allows you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.
4. DPF Service: Allows you to carry out numerous functions to the Diesel Particulate Filter system.
5. TPMS Service: Allows you to quickly look up the tire sensor IDs from the vehicle' s ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.
   etc.....

5. Additional Features and Functions

To well serve the users, the diagnostic tool is equipped with a rich array of features and functions in addition to the Diagnostic and Service functions, including Remote Desk, MaxiFix, Shop Manager, Digital Inspection, MaxiScope, etc.

1. Remote Desk: With the simple, fast and secure remote control interface, you can receive ad-hoc remote support from Autel' s support center, colleagues, or friends, by allowing them to control your MaxiCOM tablet on their PC via the TeamViewer software.
2. MaxiFix: This is an additional feature in the cloud which enables users to network and access a database of procedures, repair and diagnostic tools. You are able to interact with fellow technicians and share knowledge via MaxiFix.
3. Digital Inspection & MaxiScope: The diagnostic scan tool can also be used in conjunction with the automotive oscilloscope Autel MP408 to perform electrical and electronic circuit testing and monitor signal activity, and it also supports performing a close vehicle inspection with the Autel digital inspection camera MV105/MV108.

Active Tests/Bi-Directional Control

Autel MS908S Pro auto diagnotic tablet comes with bi-directional control capability for specific car systems which allows you to test various systems or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as solenoid tests, pump motor tests, relay, or switch, between two operating states.

ECU Programming for Specific BMW & Benz

Autel MS908S Pro comes with SAE J2534 Pass-Thru (J2534 Programmer) to replace the existing software & firmware and program new ECUs for BMW & Benz vehicles to fix software-controlled drivability issues and emission issues.

NOTE: Please send us VIN number of your BMW, Benz to check compatibility before purchase.

NOTE: Currently, NONE of Autel scan tools can program ECUs for vehicles other than BMW & Benz.

Advanced ECU Coding Function

ECU Coding function allows you to update the computer software on the vehicle to the latest version, recode adaptive data for certain components after making repairs or replacements to improve driving performance, fuel efficiency and reduce power loss. Available coding operations vary by the test vehicle, and only the available operations display in the menu.

NOTE: ECU Programming applies to BMW & Benz vehicles ONLY.

NOTE: ECU Coding is NOT universally compatible. Please check compatibility with us before purchase.

30+ Special Services & Full System Diagnostics

Various scheduled service and maintenance tasks includes: Brake Bleed, Oil Reset, EPB, BMS, DPF, Immo Keys, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Lang Change, CHG Tire Size, TEC Learn, ABS/SRS, Cylinder, Turbocharging, Limit, Clutch, Trans Adaption, Airbag Reset, Headlamp

Transmission Adaptation: Reset the adaptive shifting points in your automatic Transmission Control Unit.

Suspension Calibration: Calibrate the suspension height.

Crankshaft Variation Learn: Enables the computer to compensate for part manufacturing tolerances. To accurately detect an engine misfire throughout the engine RPM range.

SAS Calibration: Perform calibration of the steering angle sensor, which permanently stores the current steering wheel position as straight-ahead in the sensor EEPROM.

Key Programming: Add a new key fob for a family member.

Battery Registration: Register the new battery to the ECU after replacement.

Injector Coding: Coding injectors after replacement.

Key Fob Programming Capability

MS908S Pro key programming tool has the capability to add a new key/key fob to a low immo grade vehicles like Asian cars(Toyota, Honda, Nissan, Hyundai, Kia and etc), American cars like GM, Ford, Chrysler(some cars require a special adapter). NOTE: Key Programming function is NOT universally compatible. Please always send us VIN number to check compatibility before purchase.

However, for BMW, Benz, VW and other high immo grade vehicles, we recommend professional IMMO & Key Programming tools like Autel IM508, IM608.

Auto Scan & Auto VIN Feature

The MaxiSys Ms908s pro auto diagnostic tablet features the latest VIN-based Auto VIN Scan function to identify CAN vehicles in just one touch, which allows the technician to quickly detect vehicles, scan all the diagnosable ECUs on every vehicle and run diagnostics on the selected system.

Note: Auto VIN scan does NOT work on all vehicles. You can always navigate your vehicle through the menu manually to perform diagnostics and special functions.

Diagnostic Data Review, Analysis, and Remote Tech Support

Diagnostic Data Review, Analysis, and Remote Tech Support

Autel MaxiSys MS908S Pro professional scan tool comes with live data function which you can view live data stream and video recording function to record the screen for later review.

When issue occurs while performing diagnostics or special functions, MS908S Pro has Data Manager feature that allows you to upload data Log to Autel server for analysis via Data Manager- Data Logging.

Advanced Configurations + MV108 Add-On:

It supports Autel MaxiVideo MV108 digital inspection camera that connects to the MS908S Pro scanner to inspect hard-to-reach spot like engine system. MS908S Pro is also compatible with Oscilloscope and ADAS software which are not included.

NOTE:
-MS908S Pro is a mature model that has been long used in US workshops and approved by mechanics and auto technicians.
-MS908S Pro can program ECUs on BMW & Benz only. It can NOT program ECUs on any other Brands.

Autel MS908S Pro Features:

1. Extraordinarily powerful Cortex A7+A15 six-core processor
2. 9.7" 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology
3. Internal reliable 64GB On-board Memory for better performance
4. Built-in 8-megapixel rear camera with autofocus and flashlight
5. The VCI connects to the main unit wirelessly with up to 70 meters working range
6. 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources
7. Unique ergonomic design with rubberized outer protection and a rugged internal housing
8. Open source Android Operating System for fast boot-up and multitasking
9. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
10. Exceptional OE-Level system coverage for all electronic systems
11. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc
12. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
13. Built-in rechargeable lithium-polymer battery for up to 7.5 hours of continuous operation
14. Equip with J2534 ECU Programming Device for replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues

What else Autel ms908s Pro can do for you?

• Complete OBD2 generic functions
• Loads of bi-directionals (hot functions) and system tests
• Provides OE-level functionality (varies from model to model) such as: Initialization, Calibrations, Immobilizer (not Toyota/Lexus)
• Sometimes the Autel is faster and easier to use than an OE tool
• PCM or WIN replacement functions on Chrysler
• Parameter reset on Ford and Mazda
• Graphical Ford misfire
• The 908s probably add keys unless OE requires a login to NASTF. If OE requires a pin code / security code, so will Autel. Autel does not pull pin codes
• Continues to work after the update subscription has expired
• No penalty for skipping updates
• Warranty extended with each update subscription renewal

Autel Maxisys Series Comparison List:

 Autel MS908S Pro Specification:

The Autel universe of tools

The ms908s Pro is compatible with Autel add-ons (sold separately): ADAS, MaxiScope, MaxiVideo MV105/MV108

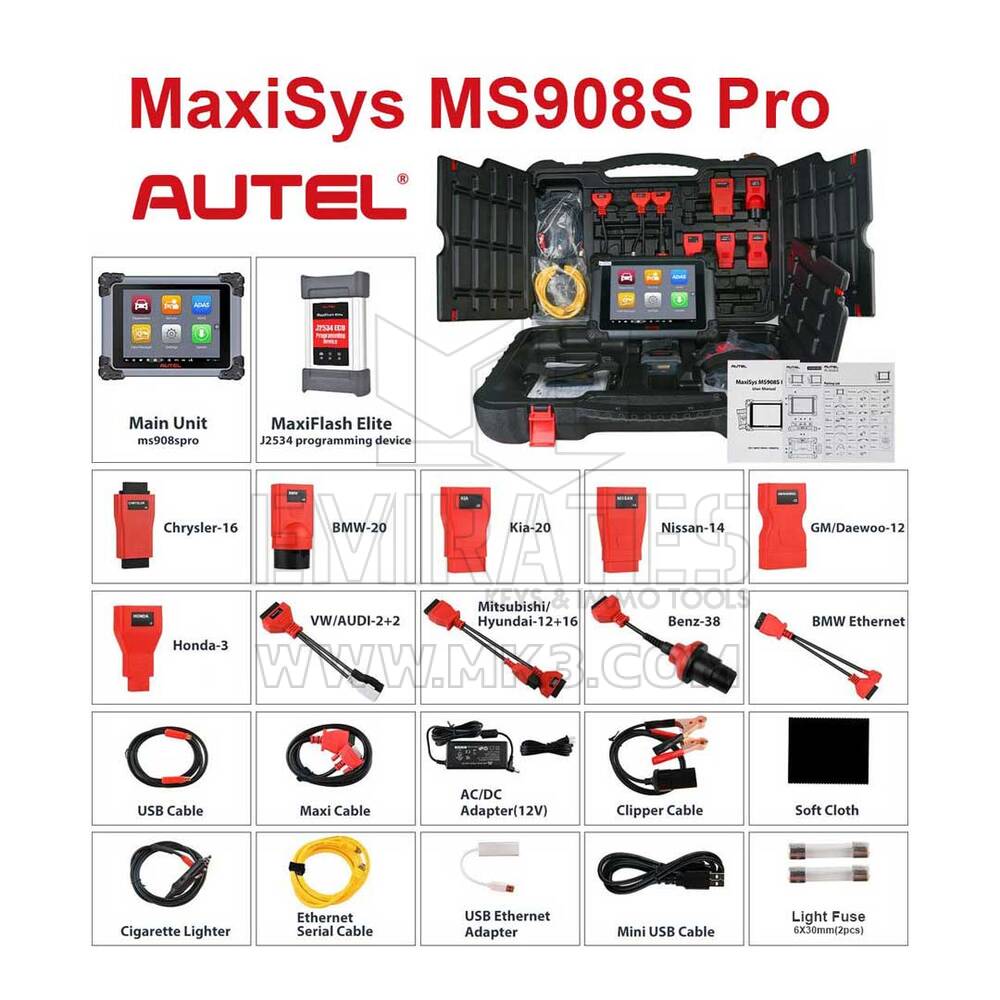

Autel MS908S Pro Accessaries:

• USB Ethernet Adapter
• Standard 2.0 USB Cable
• BMW Ethernet Cable
• Main Cable – 1.5 m in length
• Adapter for Chrysler-16 (America Only)
• Lighter Fuse
• Adapter for GM/Daewoo-12
• Adapter for PSA-2
• Adapter for Fiat-3
• Adapter for BMW-20
• Adapter for Benz-38
• Adapter for Kia-20
• Adapter for Mitsubishi/Hyundai-12+16
• Adapter for Nissan-14
• Adapter for Honda-3
• Cigarette Lighter
• AC/DC External Power Adapter
• Clipper Cable
• Adapter for Benz-14 (for EU only)
• Adapter for VW/AUDI-2+2
• Mini USB Cable
• Ethernet Serial Cable

Autel MaxiVideo MV480 Digital Inspection Videoscope Device 2 Years Update Subscription

Product Description:

Key Programming / ECU Diagnostics Tools Diagnostic Tools From Autel with Product Number: MK7512

Specs:

Manufacturer: Autel
Condition: New

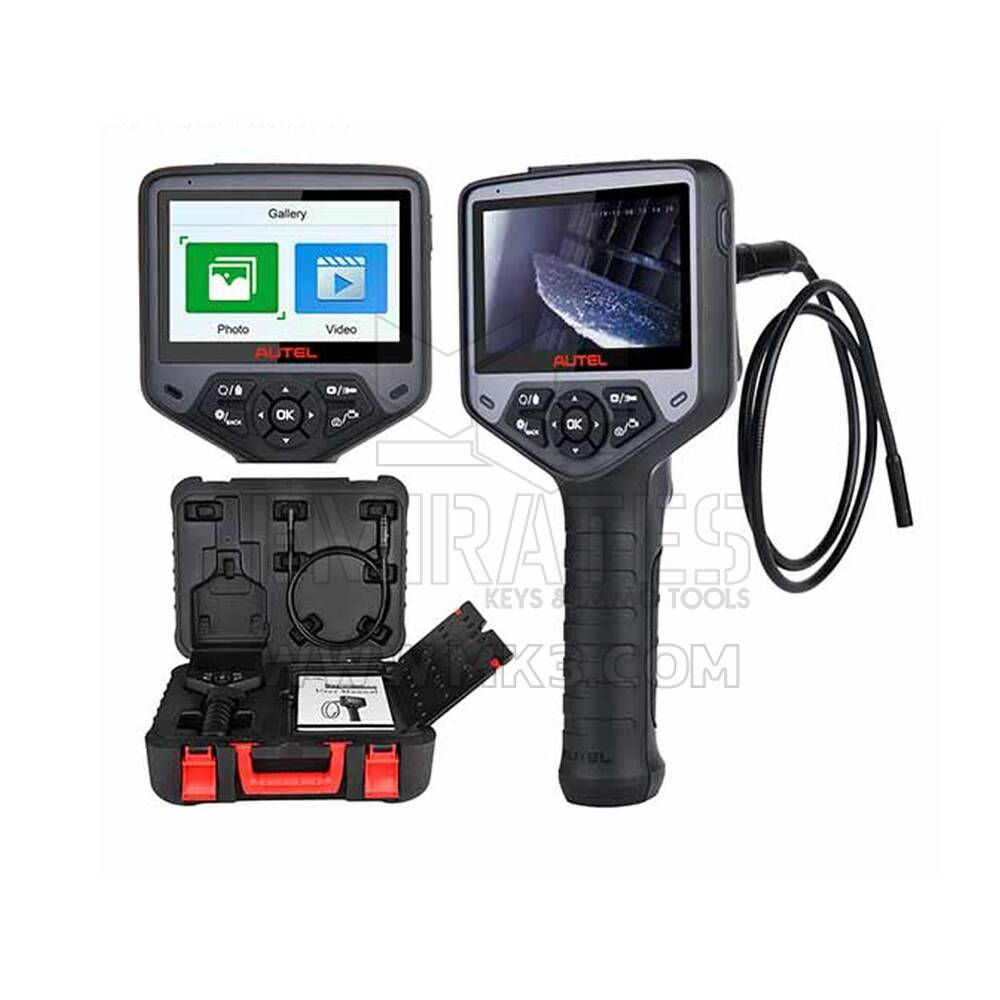

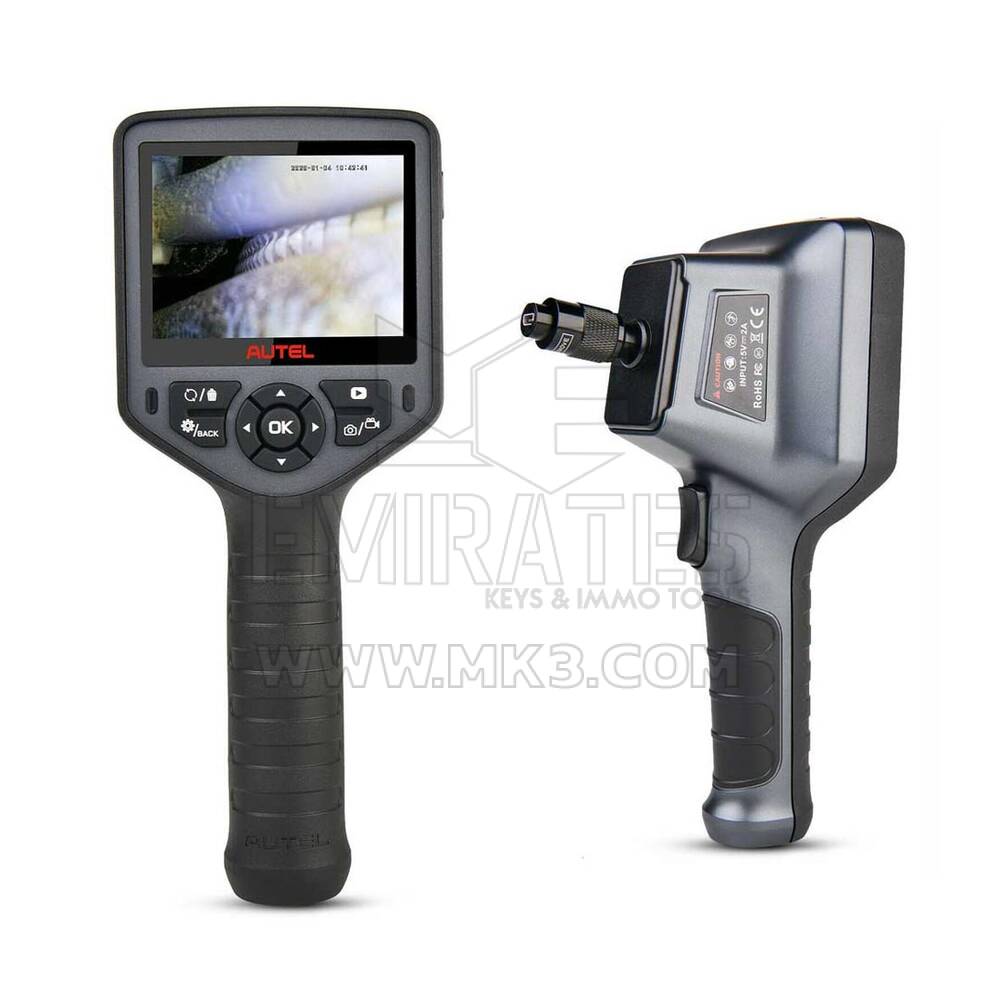

 Autel MaxiVideo MV480, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features dual front and side cameras with 1920×1080 high resolution, a 4.1" 1200×720 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.

The Maxivideo MV480 Digital Videoscope is a professional imaging tool with a display from which it is used to display parts that are difficult to see in vehicles.

The Autel Maxivideo MV480 Digital Videoscope is a self-display professional imaging tool used to display parts that are difficult to see in vehicles.

The MV480 Videoscope, produced by Autel and the latest in the series, allows you to record images in MPEG1 or MPEG2 image formats.

It contains an external SD card so you can transfer the images you have saved to your computer.

You can also play this data through the digital display on the MV480.

Thanks to its dual front and side cameras, it has a wide viewing angle and great features designed to keep you from overlooking all the areas you want to view.

Thanks to its 2600 mAh battery, it offers uninterrupted use for 4 hours.

Why use the Autel MV480 Digital Videoscope?

It is sometimes impossible for us to see every point with the eye in terms of functionality in vehicles and in many areas.

The areas we want to view can be very narrow or difficult to reach.

With the MV480 Videoscope, which comes into play in these areas, you will be able to reach every point and even see the blind spots.

Autel MV480 Properties:

• High-resolution images and videos (1920 x 1080)
• Wide viewing angle for dual front and side cameras
• 1-inch full color LCD display (1200 x720)
• Quick image capture and video recording
• 70 degree field of view for extended viewing angle
• Audio function for detailed review
• Micro HDMI output streams to larger monitors
• Image freeze function (Freeze-Frame)
• Ability to use the screen horizontally / vertically
• Saves and plays images and video clips
• 7x digital zoom camera feature
• Supports up to 8GB Micro SD card (internal) up to 128GB
• Mini USB cable for uploading images and videos (inclusive)
• LED lighting to 10 Levels
• Flashlight for higher visibility in low light environment
• 4-hour continuous use with built-in rechargeable 2600 mAh battery
• 1m (39.4") semi-hard, flexible waterproof cable
• Includes magnet and hook cable accessories
• 8.5 mm (0.33') probe fits many spark plugs
• 5 mm compatible (0.22') camera head (not included)

Autel MV480 Specification

Comparision of MV400 vs MV500 vs MV480 vs MV460 vs MV160

Autel MV480 Product Display:

Autel MV480 Package Content:

1. 1x MV480 main Unit
2. 1x Magnet and Hook
3. 1x Imager Heads and Cable (8.5 mm)
4. 1x User Manual
5. 1x Protective carrying case
6. 1x Micro SD card
7. 1x Charger
8. 1x RS232 Serial Cable
9. 1x Mini USB Cable
