Abrites ZN181 - CAN Gateway Set ( Contains ZN081, CB601, CB602 )

Abrites ZN181 - CAN Gateway Set ( Contains ZN081, CB601, CB602 )

Abrites ZN181 - CAN Gateway Set Description:

Additional Adapter From Abrites with Product Number: MK24697
This Weight Product: 200g

This set is used when working with modules on bench for key programming and parts adaptation procedures, even when it is required to work with more than one module.

Abrites ZN181 - CAN Gateway Set Functionalities:

(used when performing these procedures)

• Setting a module to virgin state
• Personalization
• Key programming

Abrites ZN181 - CAN Gateway Set Supported vehicles:

• All Mercedes-Benz trucks with FBS3 immobilizer system

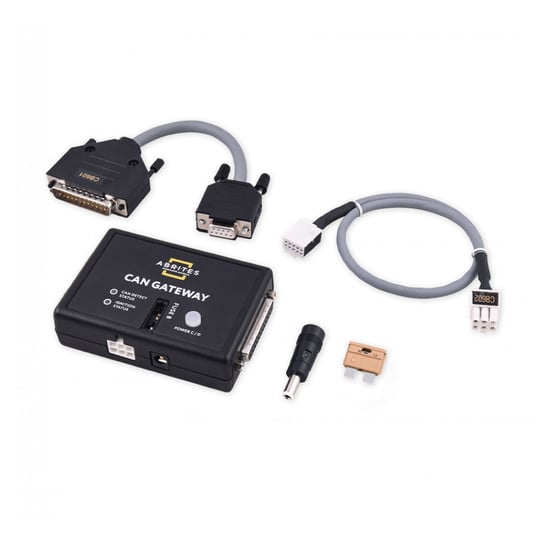

This set contains the following cables and tools:

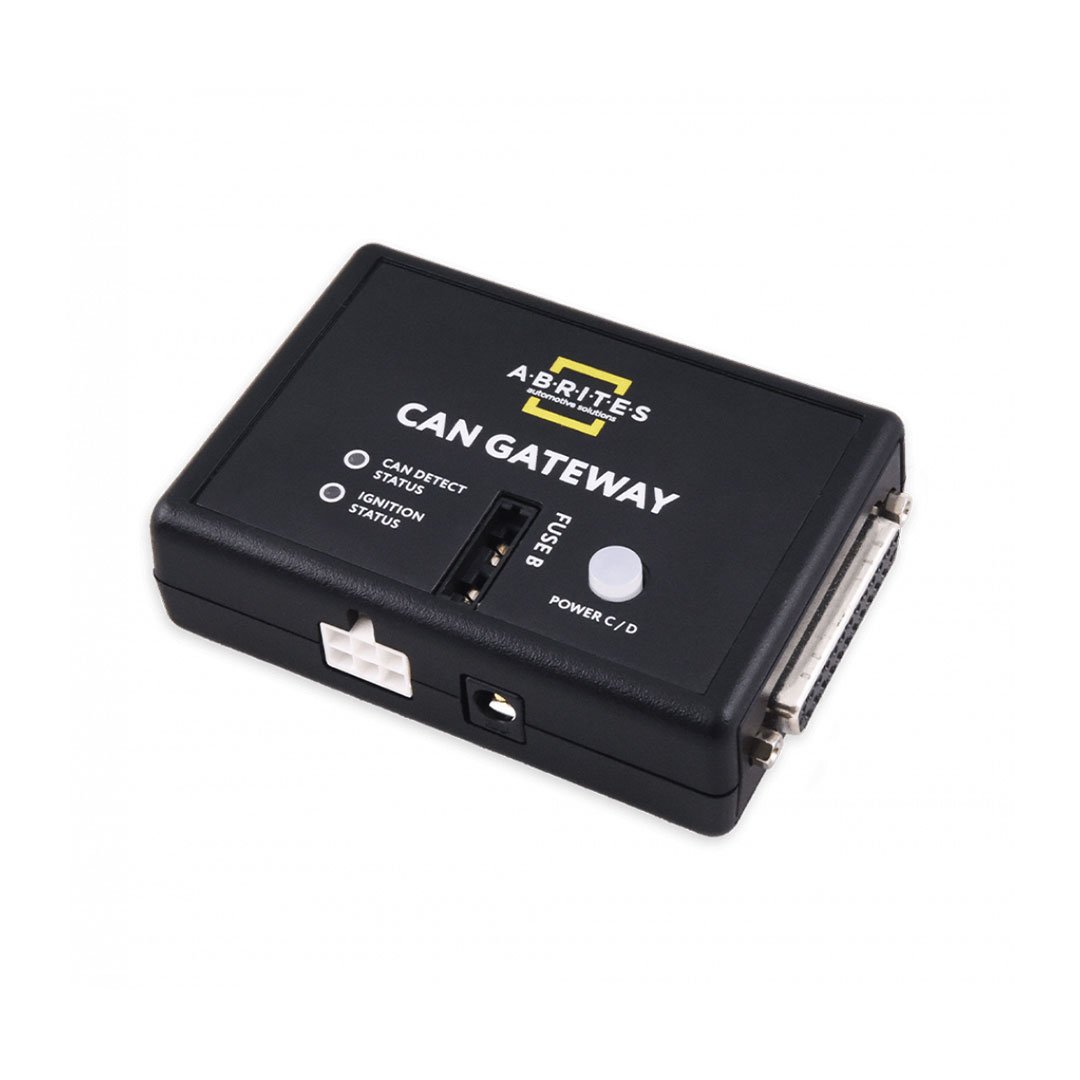

• ZN081 - CAN GATEWAY

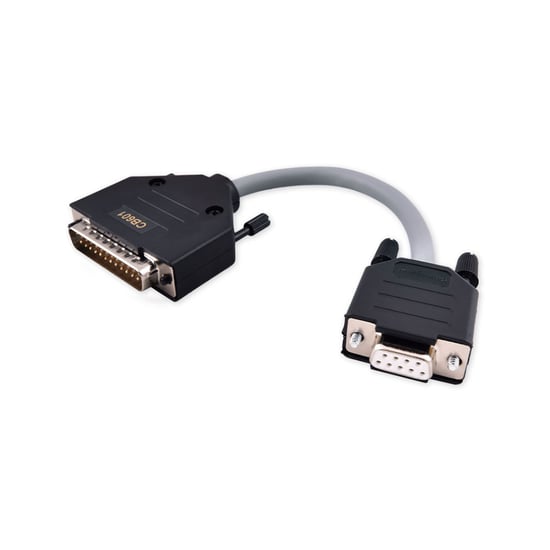

• CB601 - CAN GATEWAY Connection Cable

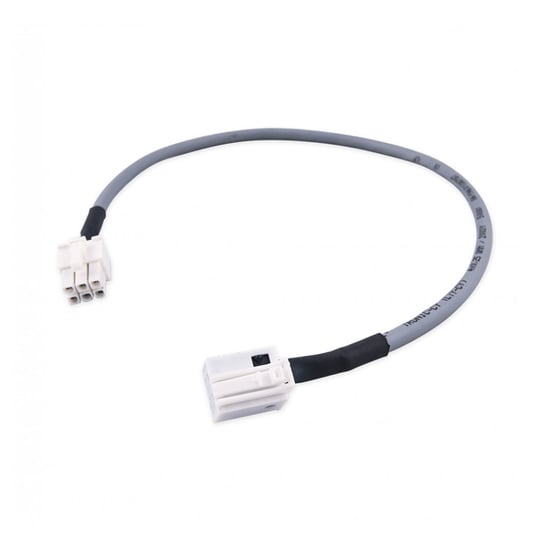

• CB602 - TRUCK EZS/EIS Connection Cable

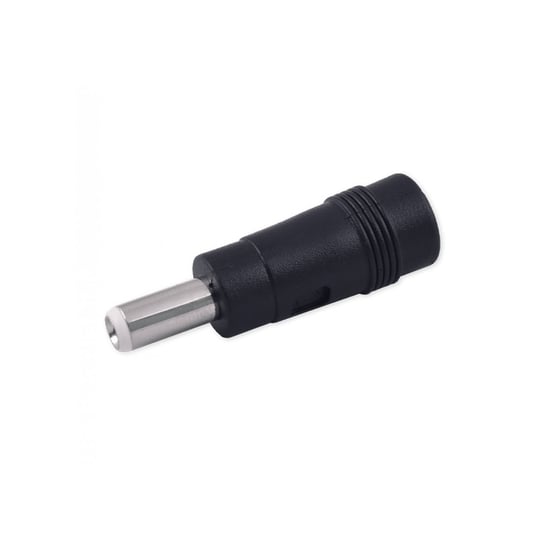

• DC Jac adapter F 5.5x2.1 to M 5.5x2.5

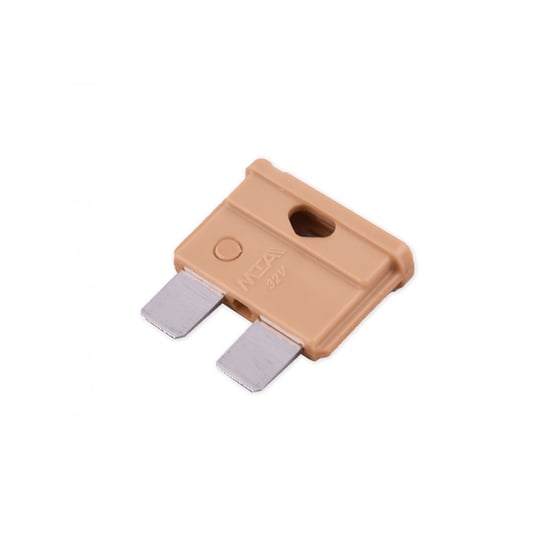

• Fuse - 5A

In order to use this product, you will need the following software: MN031 DAS Manager For Mercedes-Benz Trucks and Buses (incl. Setra).
Using the ZN181 in combination with AVDI, ZN051 Distribution Box, ZN075 IR Adapter for Mercedes Actros and the MN031 license, you can extract EZS password from Actros trucks, as well as learn a key to these vehicles (TA69 key).
In addition, the CB603 TRUCK MCM Connection Cable and CB604 TRUCK TCU Connection Cable cables will assist you in setting to virgin state and personalization of MCM and TCU modules on bench.
When working with 24V truck modules on bench, we strongly recommend the ZN084 24V/4A DC Power adapter
AVDI with active AMS is required.
