XTool COMPASS MASTER Flagship Smart Diagnosis Device
XTool COMPASS MASTER Flagship Smart Diagnosis Device Description:
New XTool COMPASS is your ultimate diagnostic companion, designed for efficiency and precision. Featuring a crystal-clear 10.1" display and powerful performance, it ensures seamless operation for professionals. With J2534 support (optional), it enables OEM software connectivity for advanced diagnostics and programming. Covering a wide range of vehicles, it offers topology mapping, ADAS calibration, and online coding. Plus, with wireless charging and long battery life, you can work without limits. COMPASS — smart, powerful, and built for the future of automotive diagnostics!
Diagnostic Tools From X-Tool with Product Number: MK27539
This Weight Product: 8800g
● Offers access to an online informatics database in partnership with Autodata
● Features a 10.1-inch display with a resolution of 1920 x 1200 and runs on the Android 10.0 operating system
● Powered by an octa-core processor (2.2GHz + 1.8GHz) and comes with 8GB RAM and 128GB of internal storage
● Dual Wi-Fi connectivity allows simultaneous connections to the internet and the VCI
● Equipped with a 6400mAh, 7.2V high-capacity battery for extended working hours
● Includes an 8MP rear camera for capturing diagnostic or vehicle condition images
● Supports all standard diagnostic protocols along with DoIP and CANFD for advanced vehicle communication
● SAE J2534 compatibility is available for OEM software connectivity (Included by default on COMPASS MASTER; available as a paid option on COMPASS)
● Provides extensive vehicle coverage, including U.S., European, and Asian models — such as BUICK, DODGE, FORD, TESLA, HONDA, MAZDA, NISSAN, TOYOTA, AUDI, BMW, MERCEDES, VW, VOLVO, and more
● Features a topology module mapping function with color-coded system status displays (on supported vehicles)
● Supports offline programming for Ford, Lincoln, and Mazda, as well as online coding and programming for VAG, BMW, and Mercedes-Benz
● Tesla Diagnostics Available: Perform comprehensive diagnostics on Tesla vehicles with full data access and a range of special functions
● Enables ADAS system calibrations for both cameras and radar-based systems
● Comes with OBDI connectors
● Generates enhanced diagnostic reports, including PreSCAN and PostSCAN documentation
● Includes a 3-year software subscription for continuous updates and improvements
● Fully integrated with AutoAuth™ to provide seamless access to FCA's Secure Gateway (SGW)
XTool COMPASS MASTER Flagship Smart Diagnosis Device Parameters
- Operating System：Android 10.0
- VCI Communication：Wi-Fi/Wired
- Processor：2.2GHz+1.8GHz Octa-core Processor
- Ports：USB （Type-C）
- Memory：128G
- Display：10.1-inch, 1920×1200
- Battery：6400 mAh, 7.2V
- Camera：8MP rear
- Working Temperature：0 to 40℃
- Compatible Protocol：UDS, KWP2000, K_Line/L_Line, CAN/CANFD, DoIP, SAE J1939, SAE J1708, SAE J1587, SAE J1850, etc.
XTool COMPASS MASTER Flagship Smart Diagnosis Device SPECIAL FUNCTION

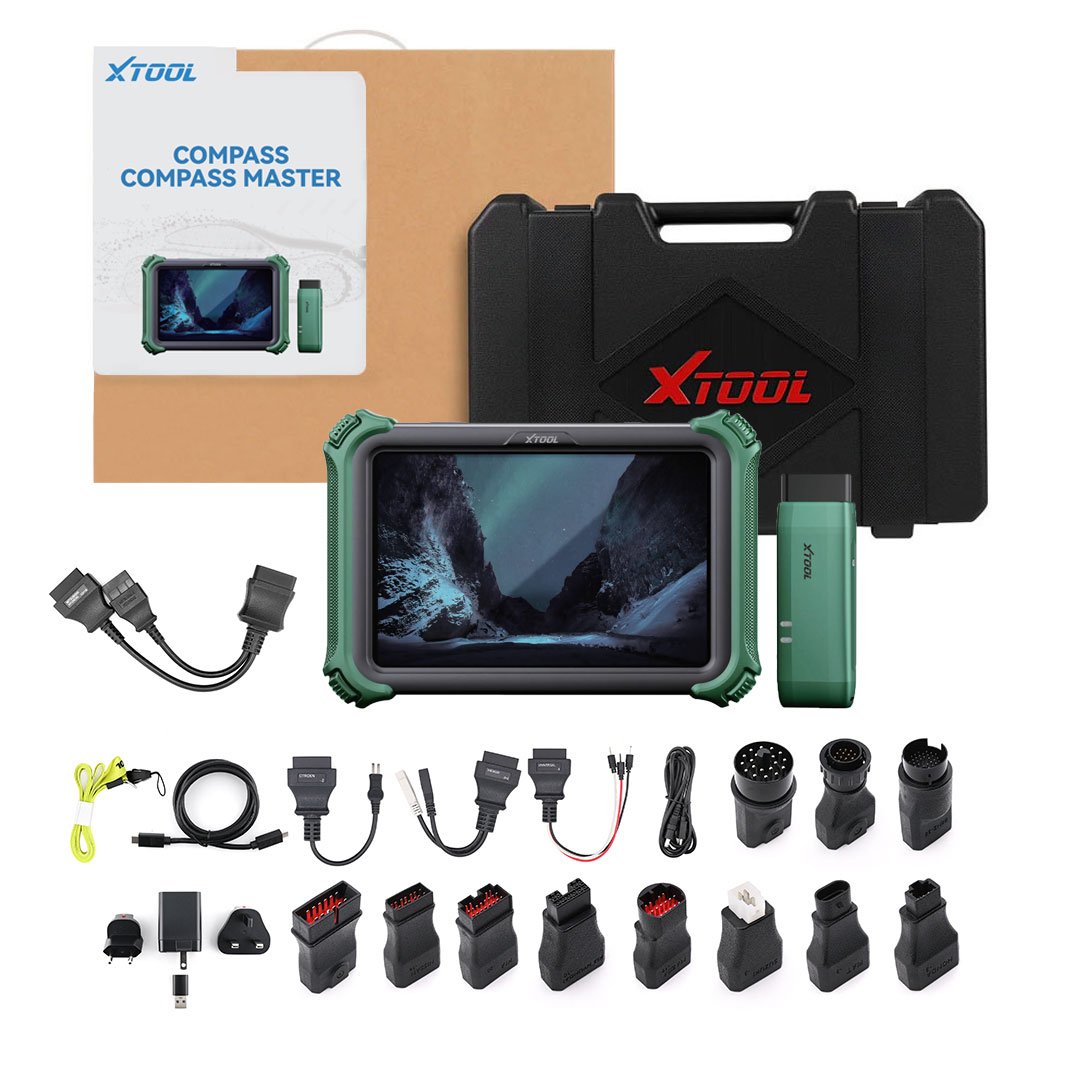

XTool COMPASS MASTER Flagship Smart Diagnosis Device PACKING LIST
Accessories
- Color Carton
- Packing List
- Certificate of Quality

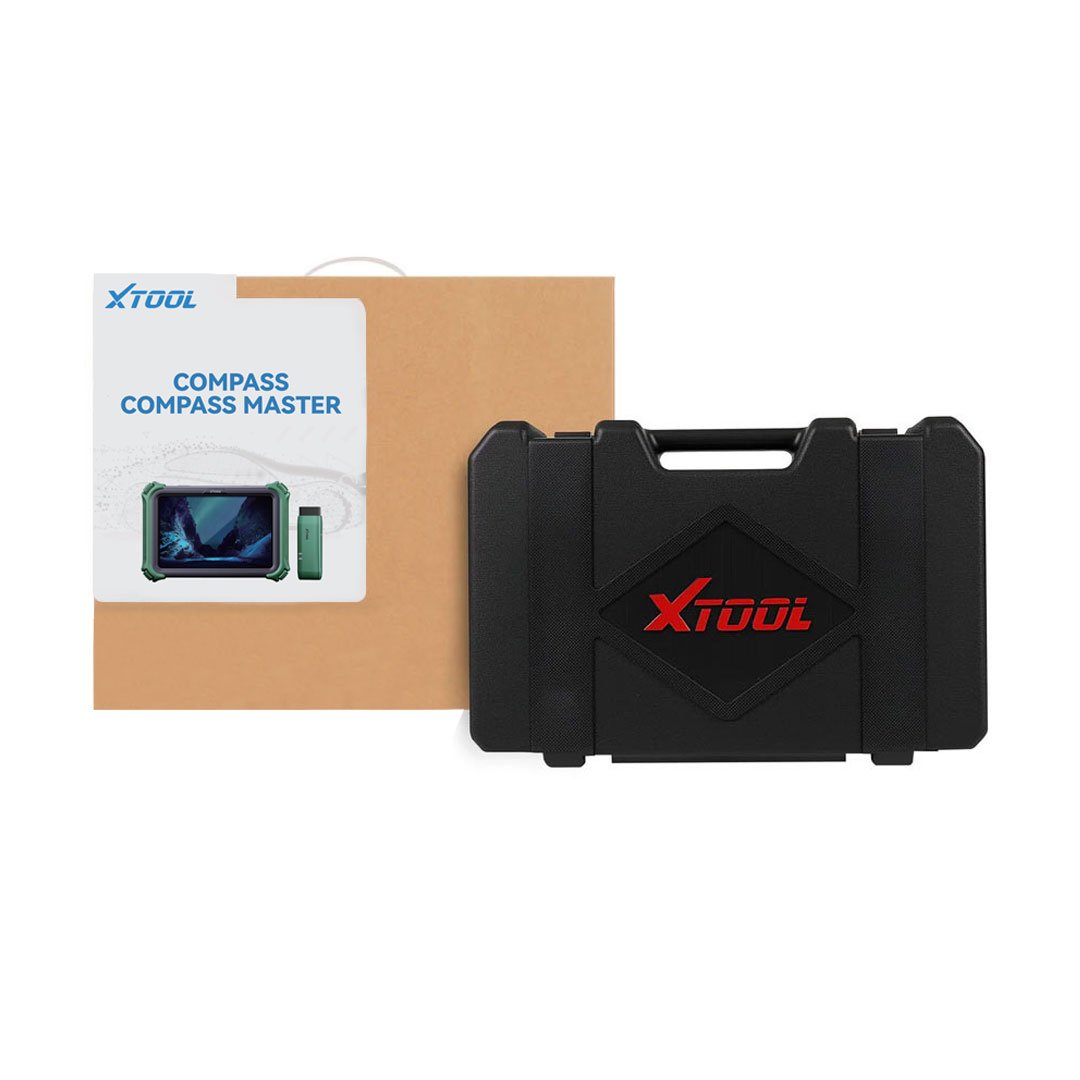

- Tool Case
- Quick Guide
Main Units

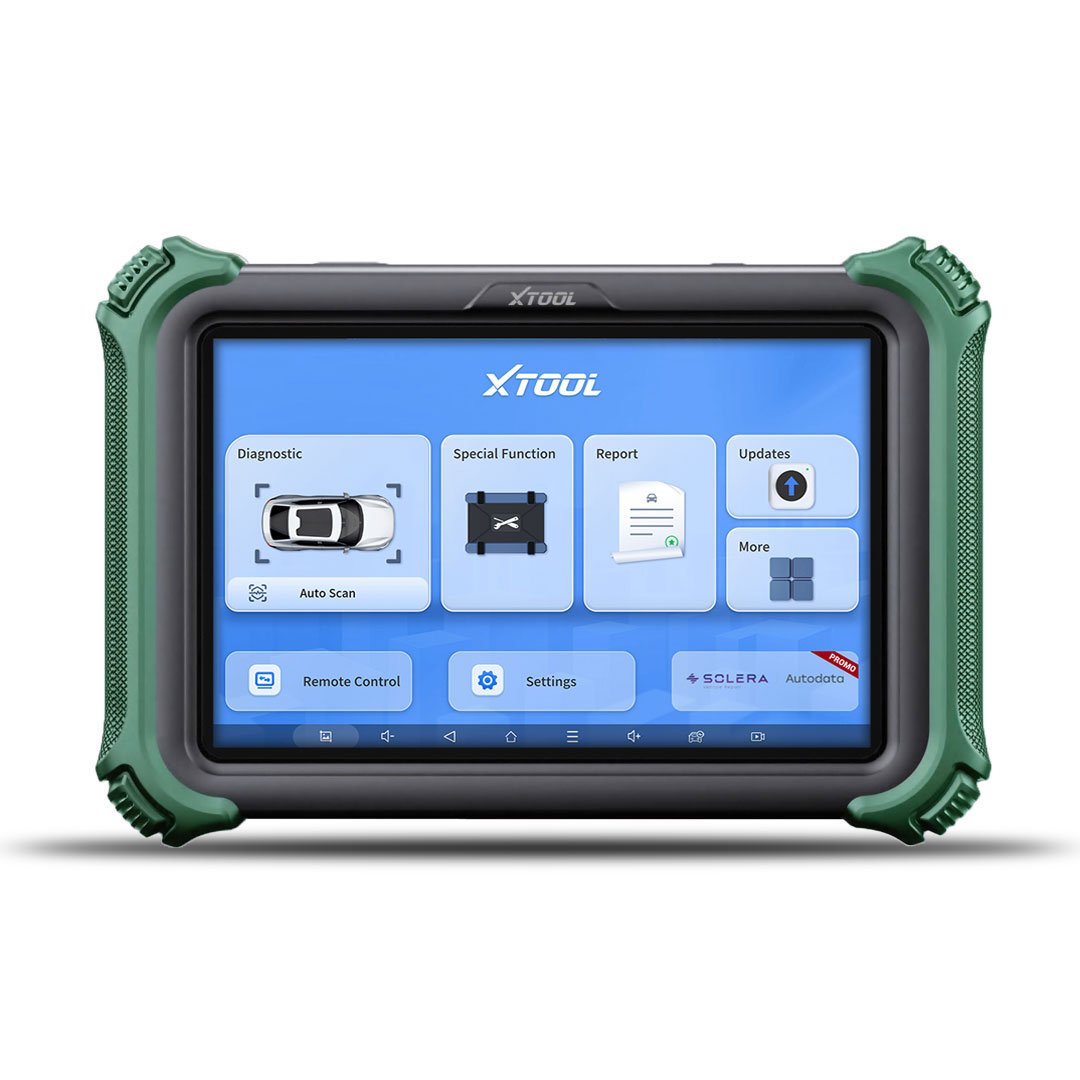

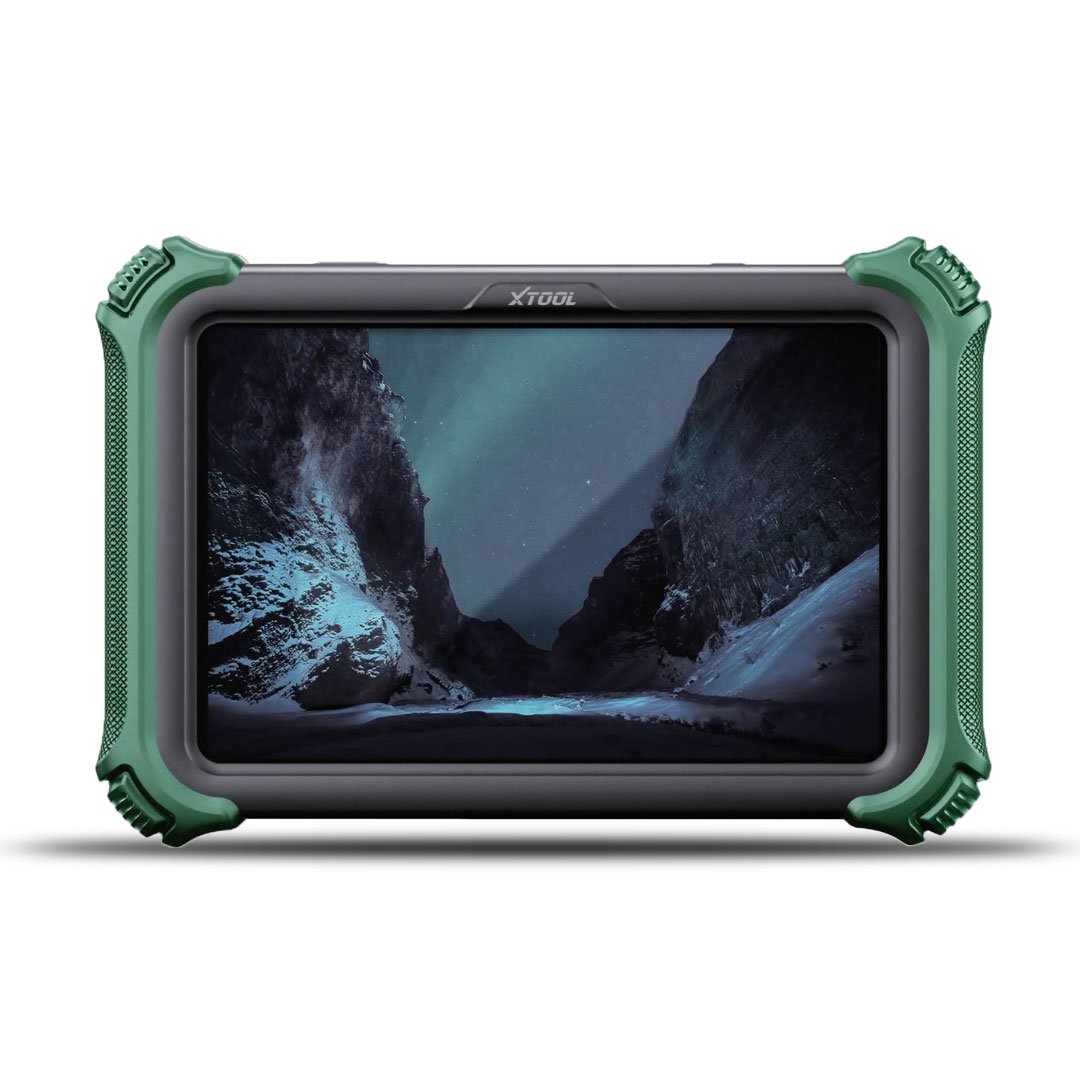

- Tablet

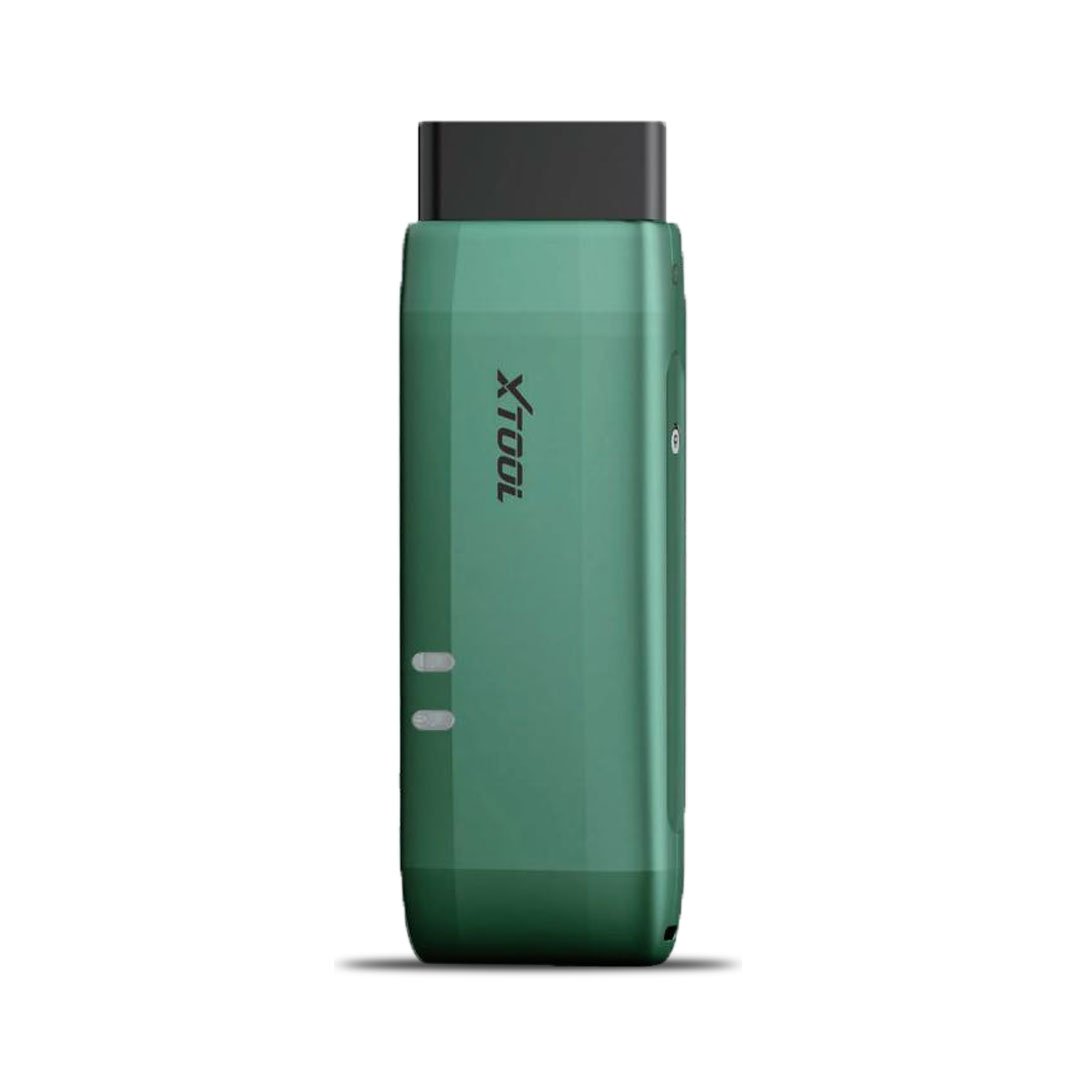

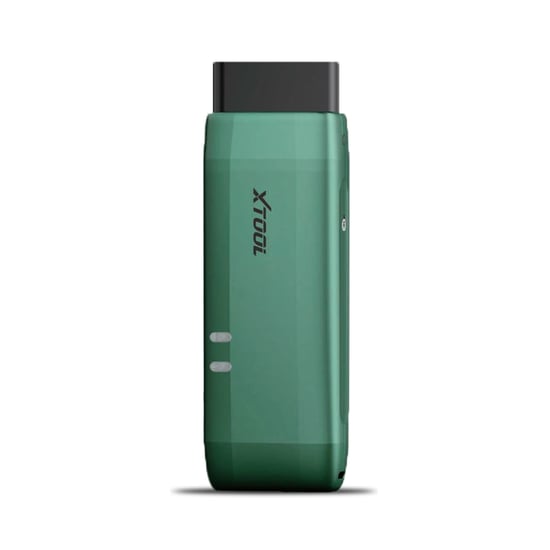

- VCI Box

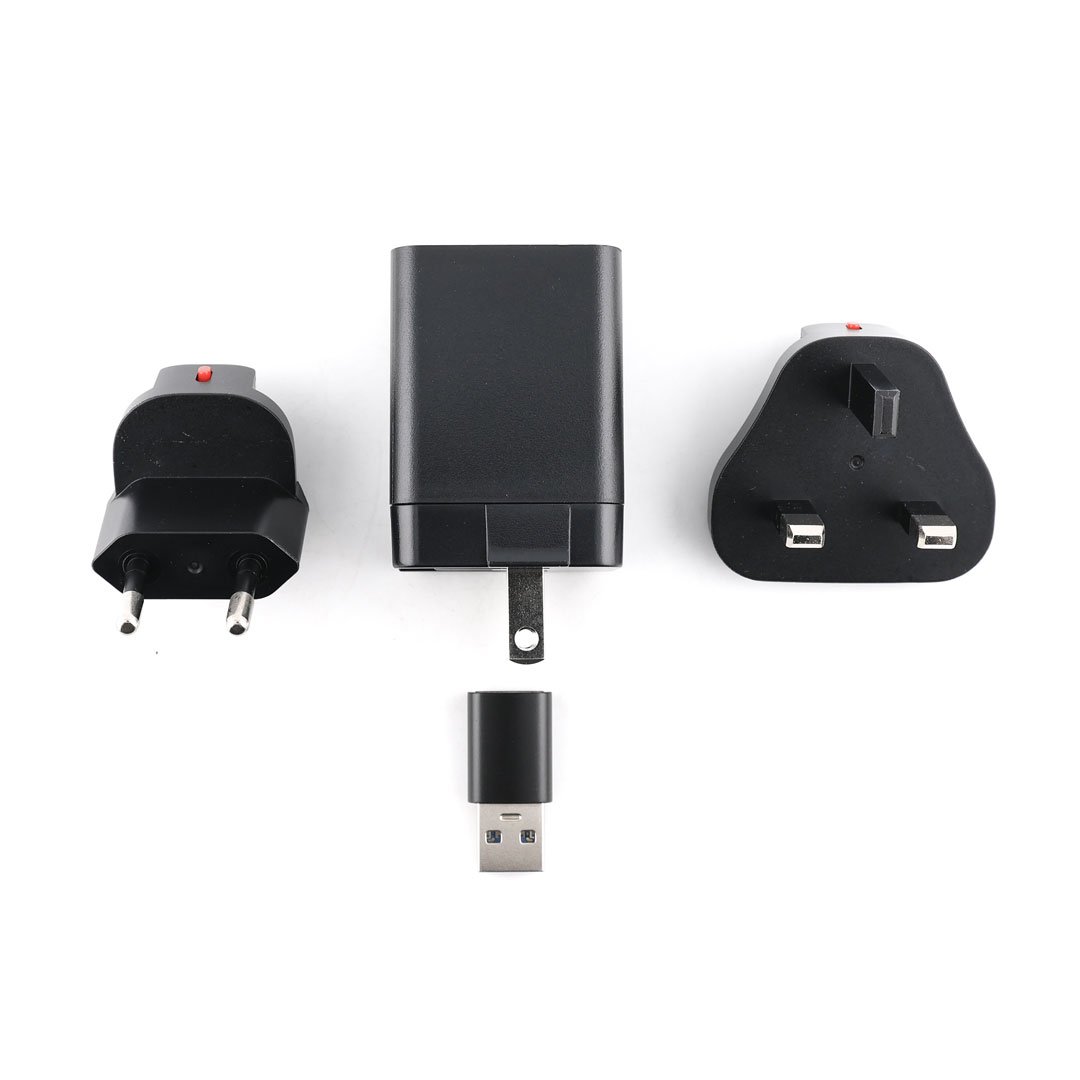

- Power Supply (PD)
- Charging Adapter (EU)
- Charging Adapter (UK)

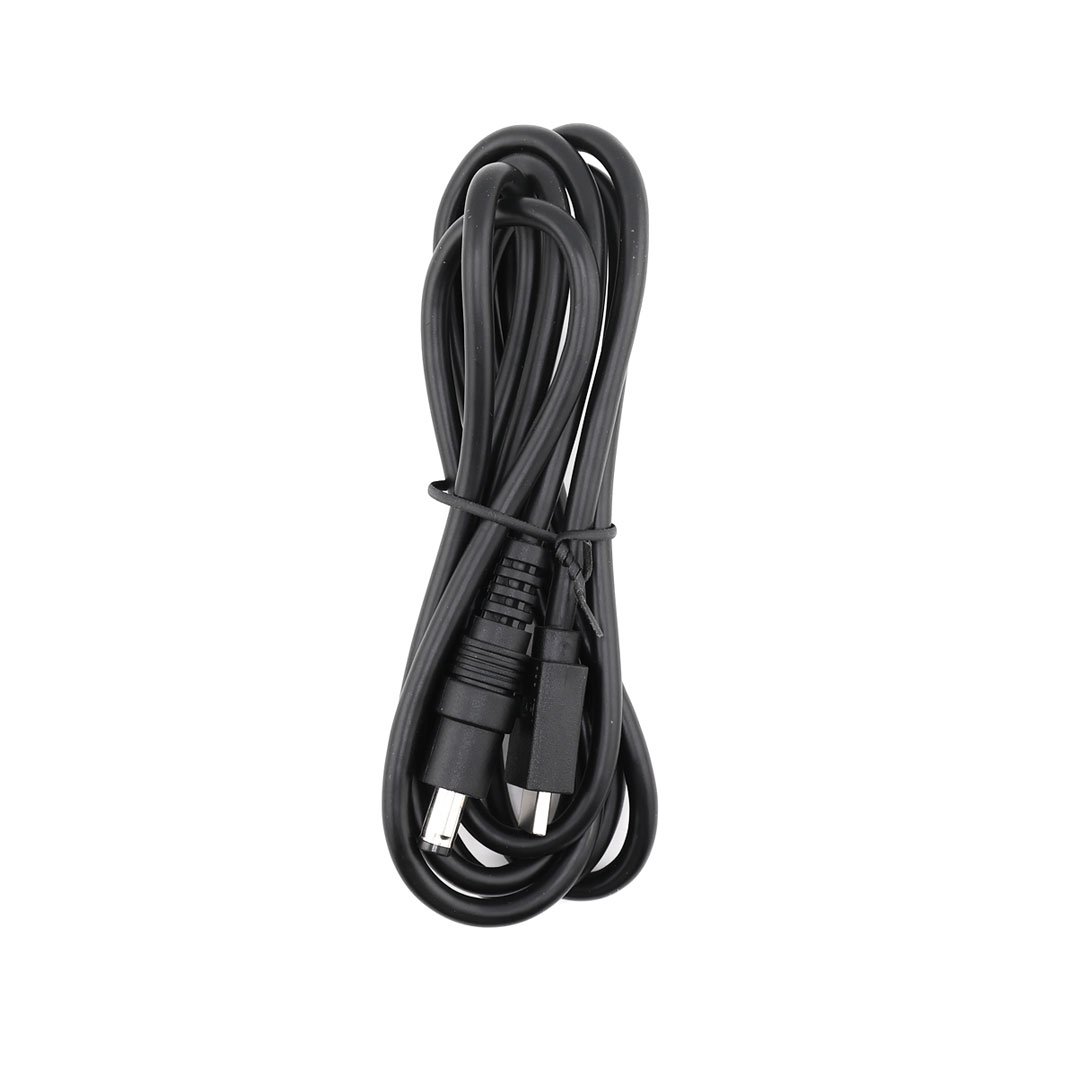

- PD-12V Power Cable (Type-C to DC)

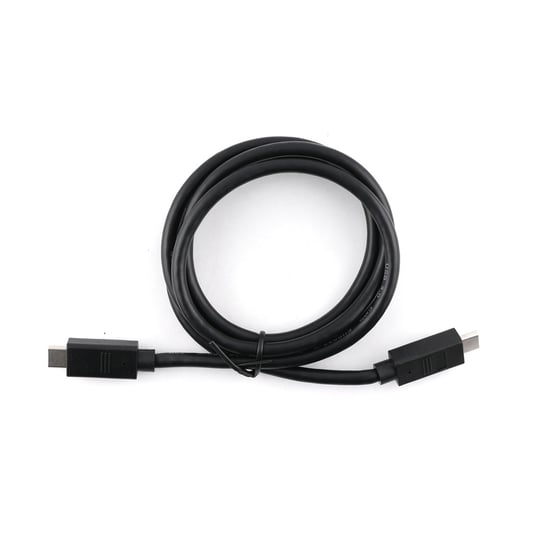

- Data Cable (Type-C To Type-C)
- Adapter (Type-C to Type-A)
Test Connectors

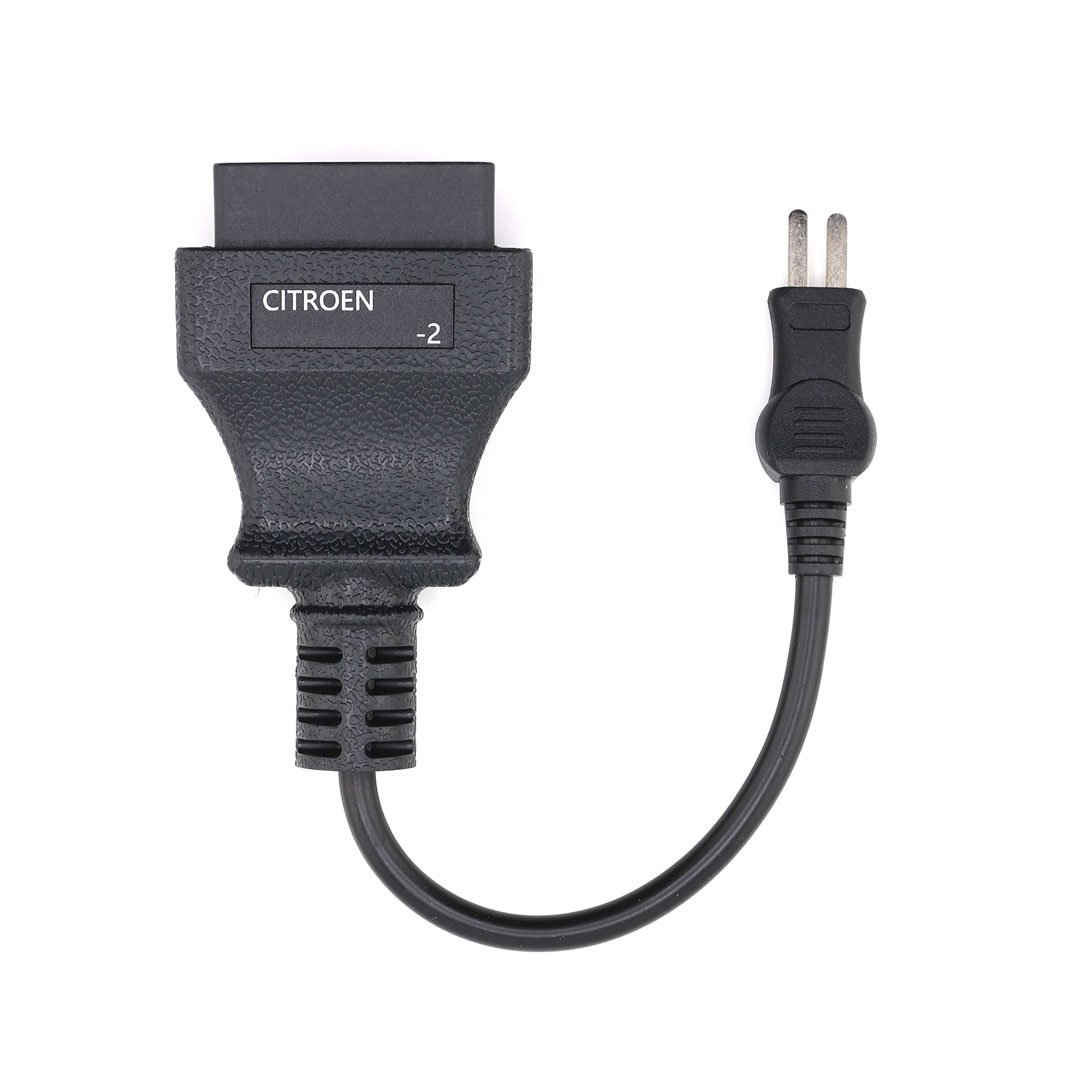

- CITROEN-2

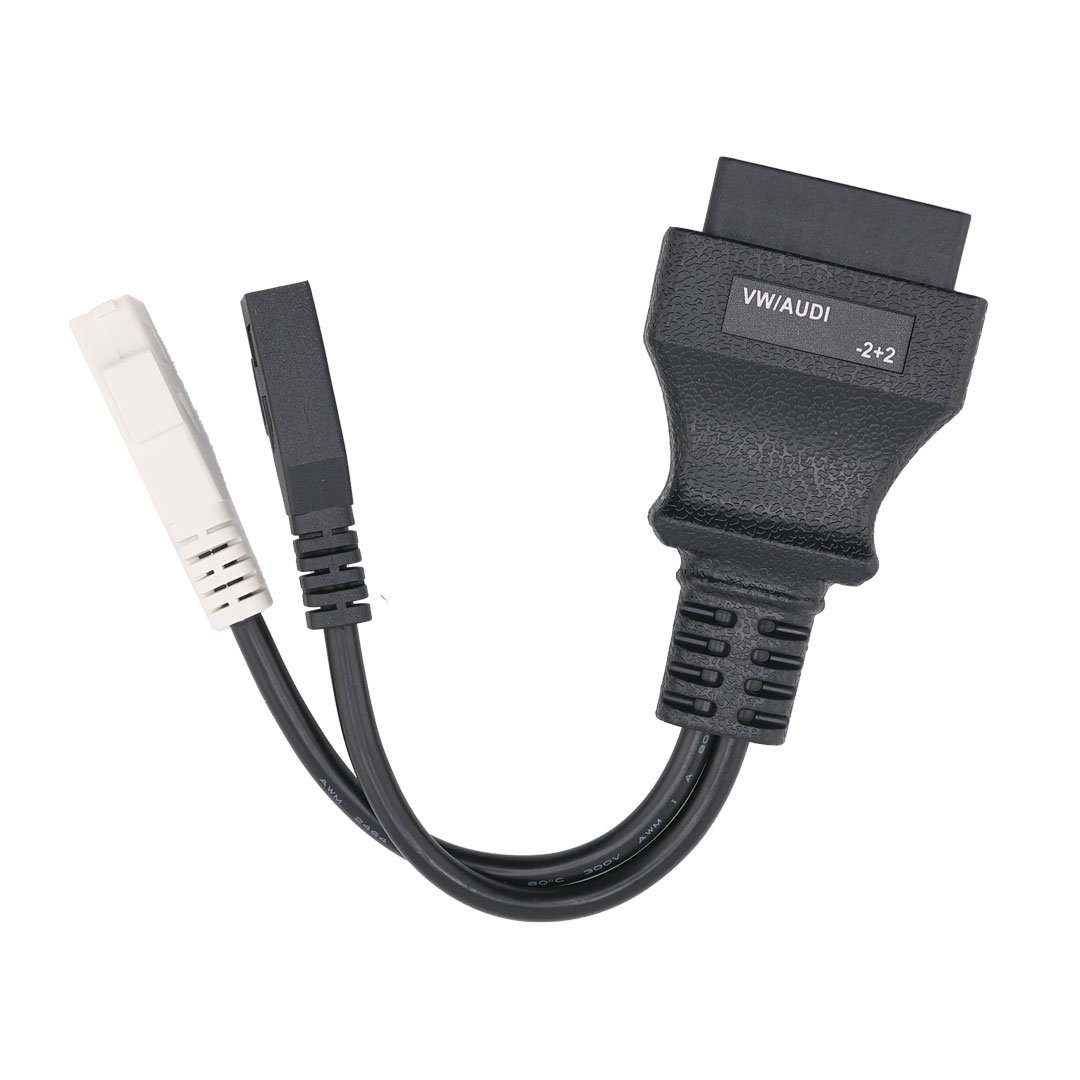

- VW/AUDI-2+2

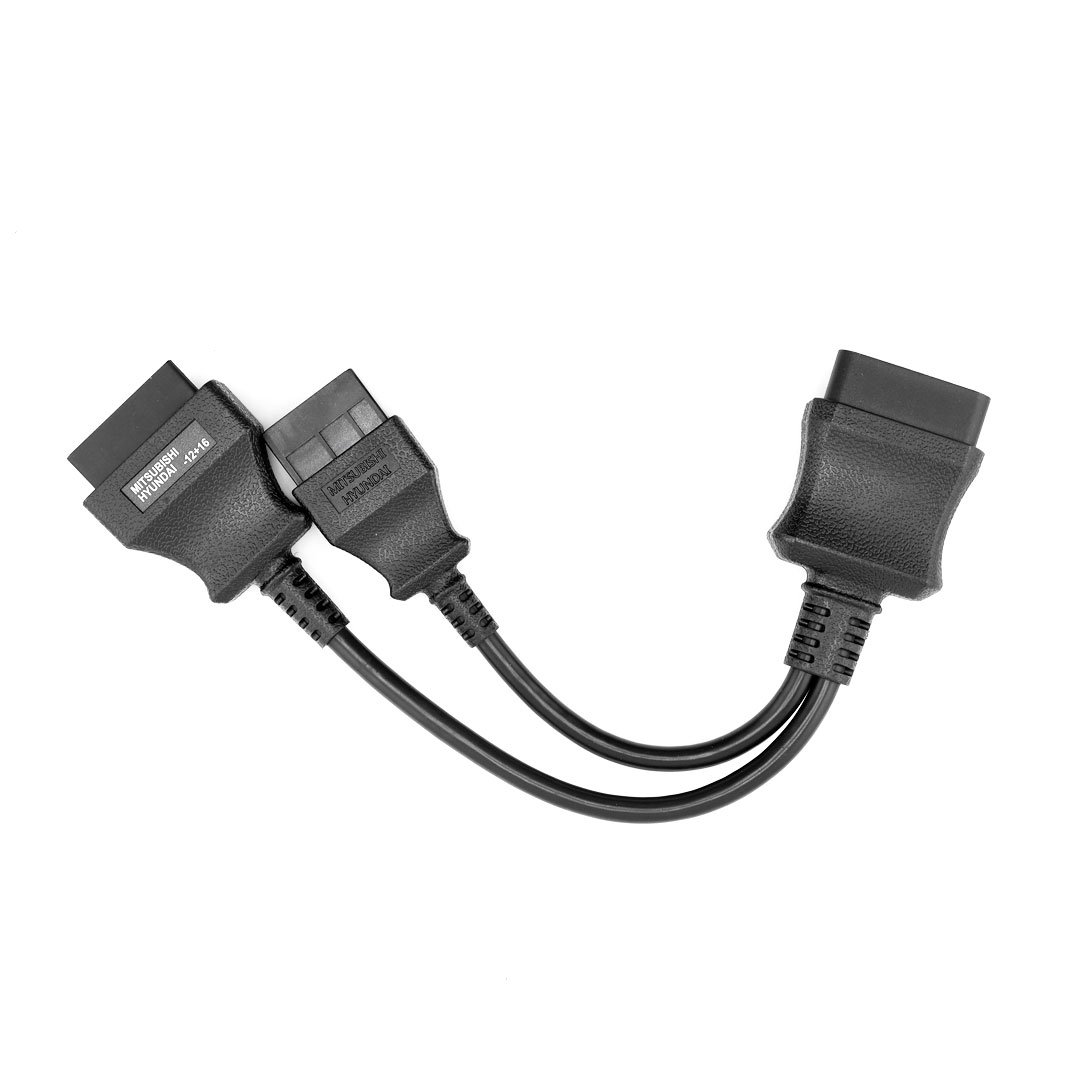

- MITSUBISHI/HYUNDAI-12+16

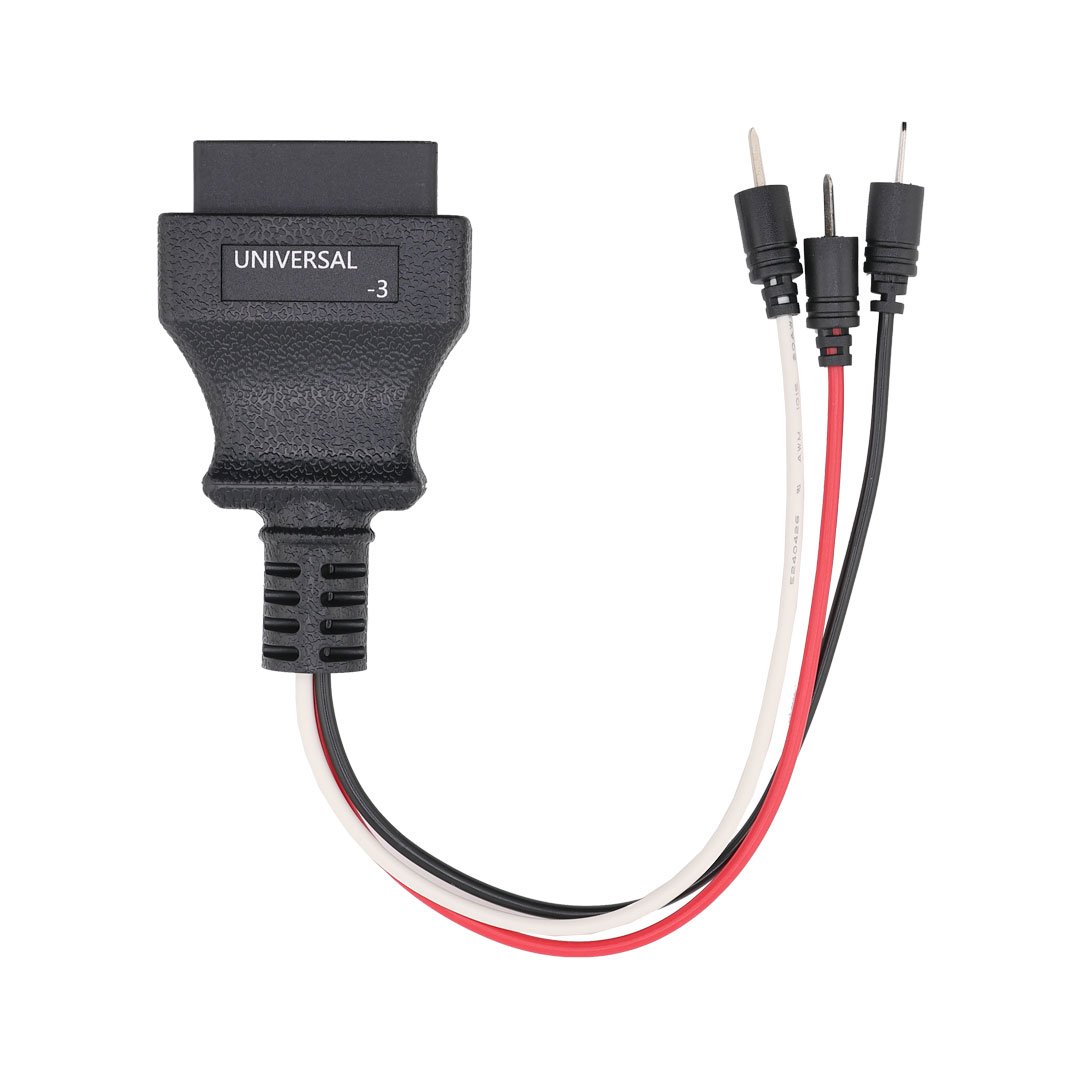

- UNIVERSAL-3

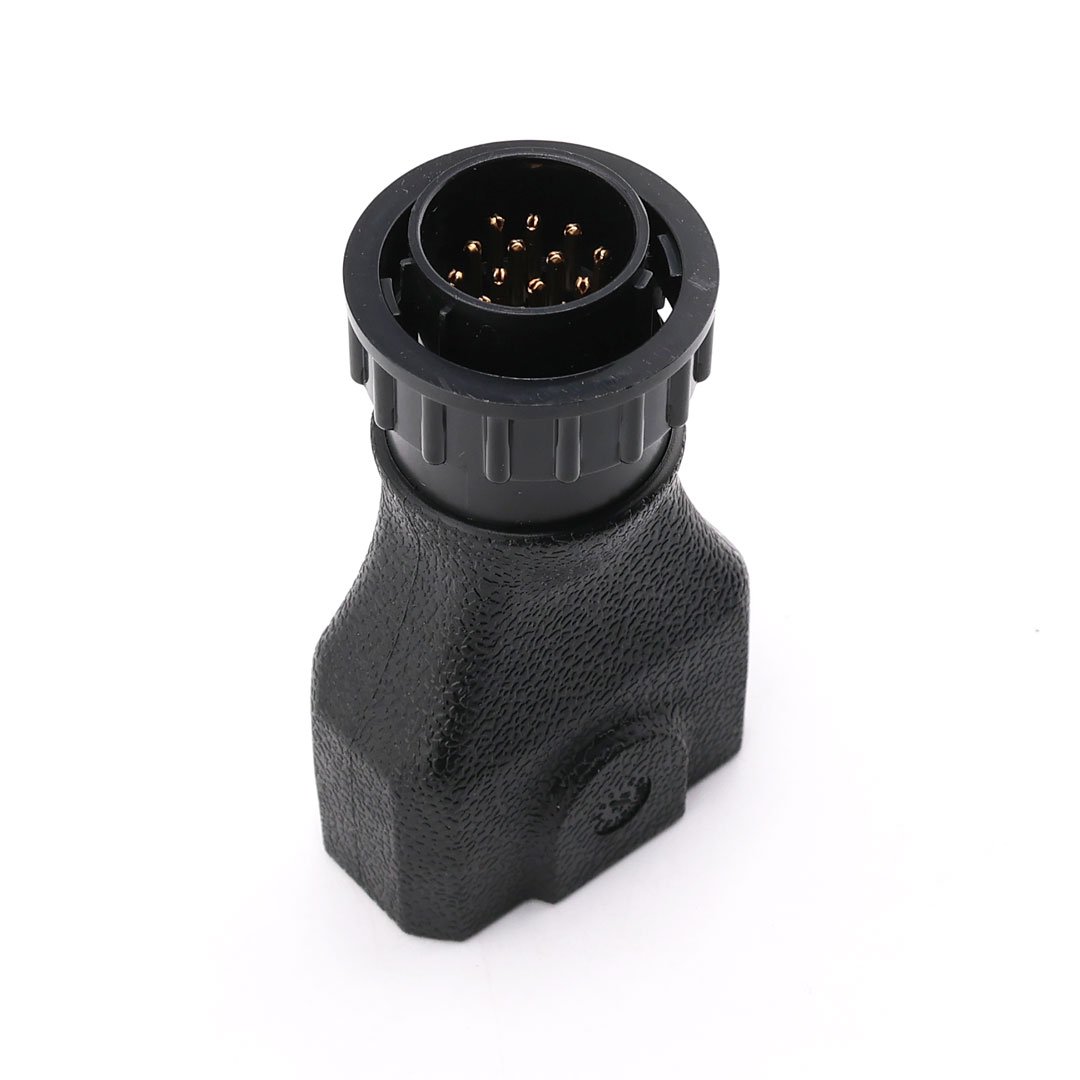

- BENZ-14

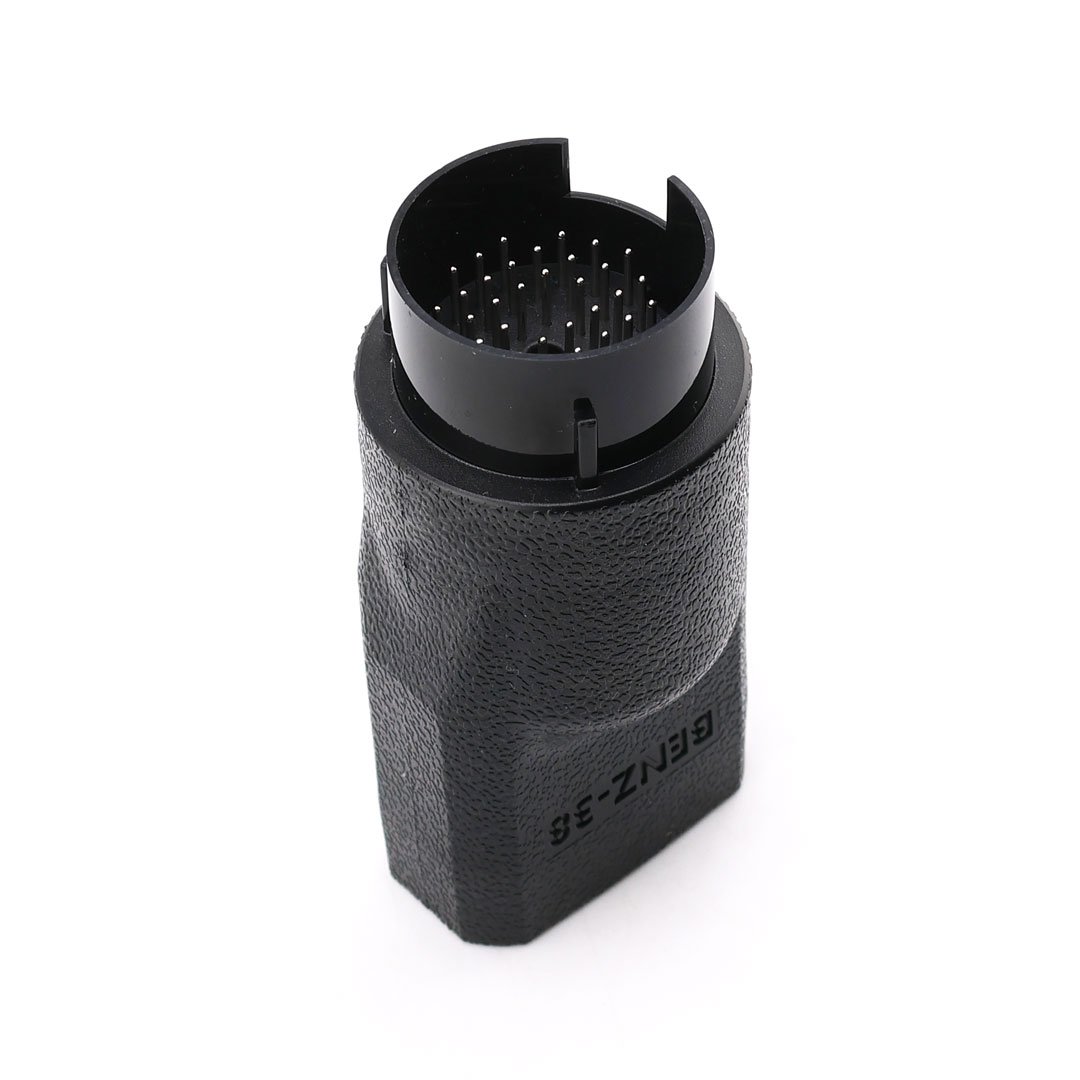

- BENZ-38

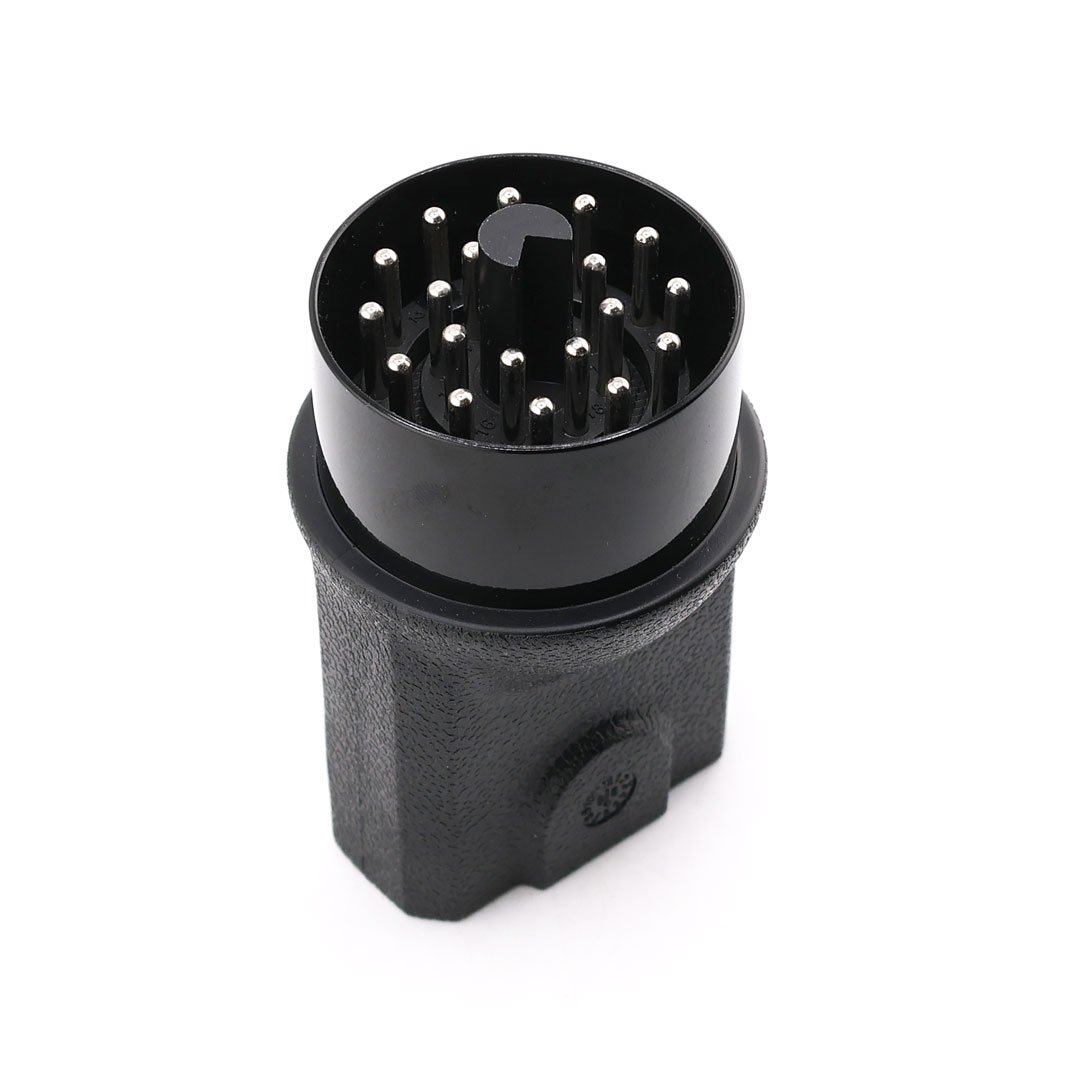

- BMW-20
- GM/DAEWOO-12

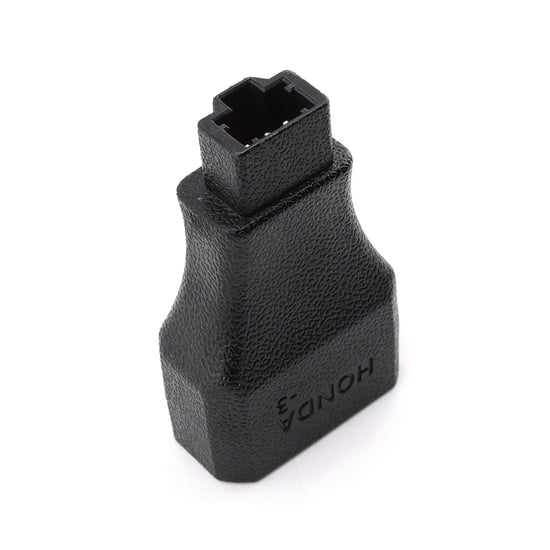

- HONDA-3
- TOYOTA-17

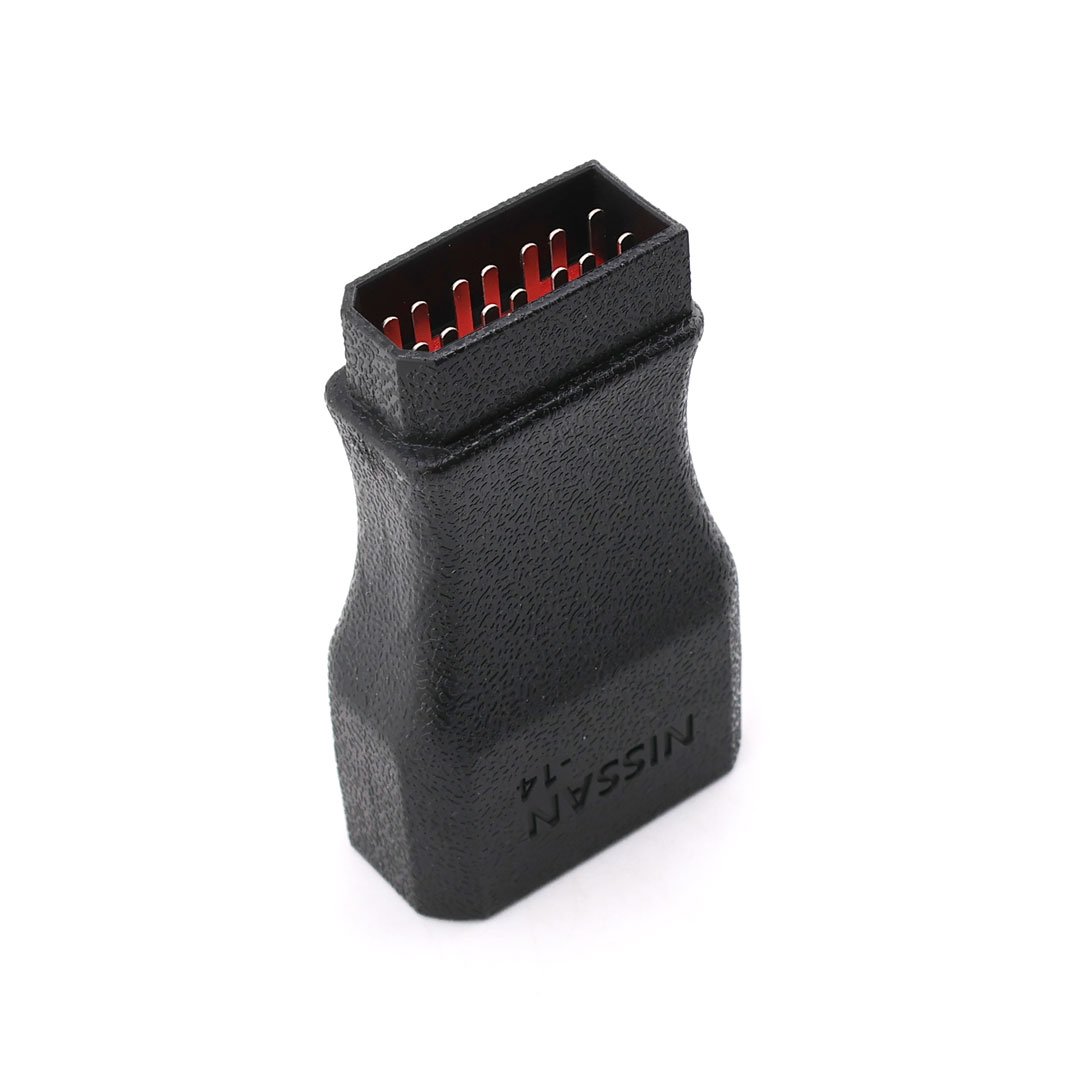

- NISSAN-14

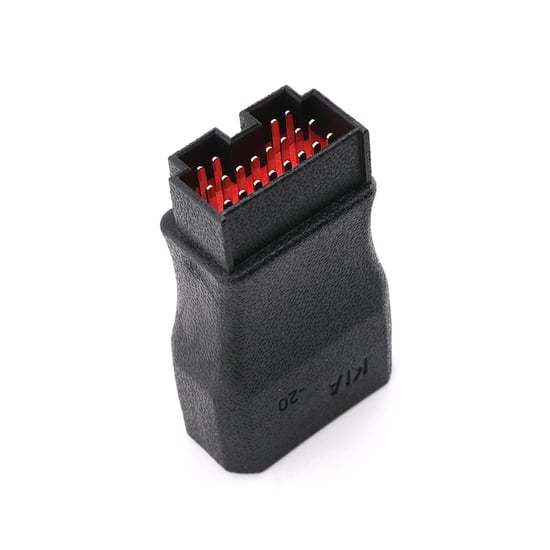

- KIA-20

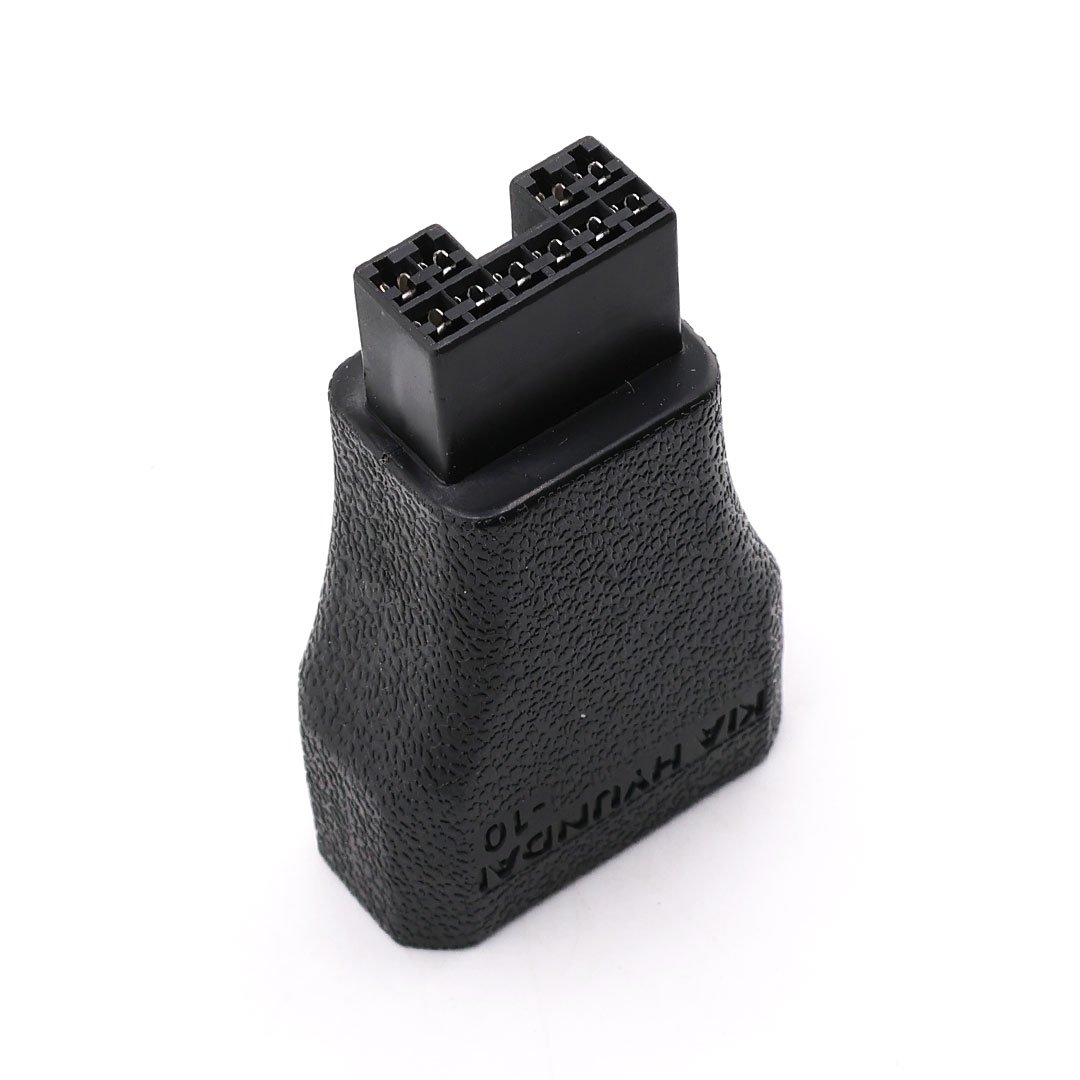

- HYUNDAI/KIA-10

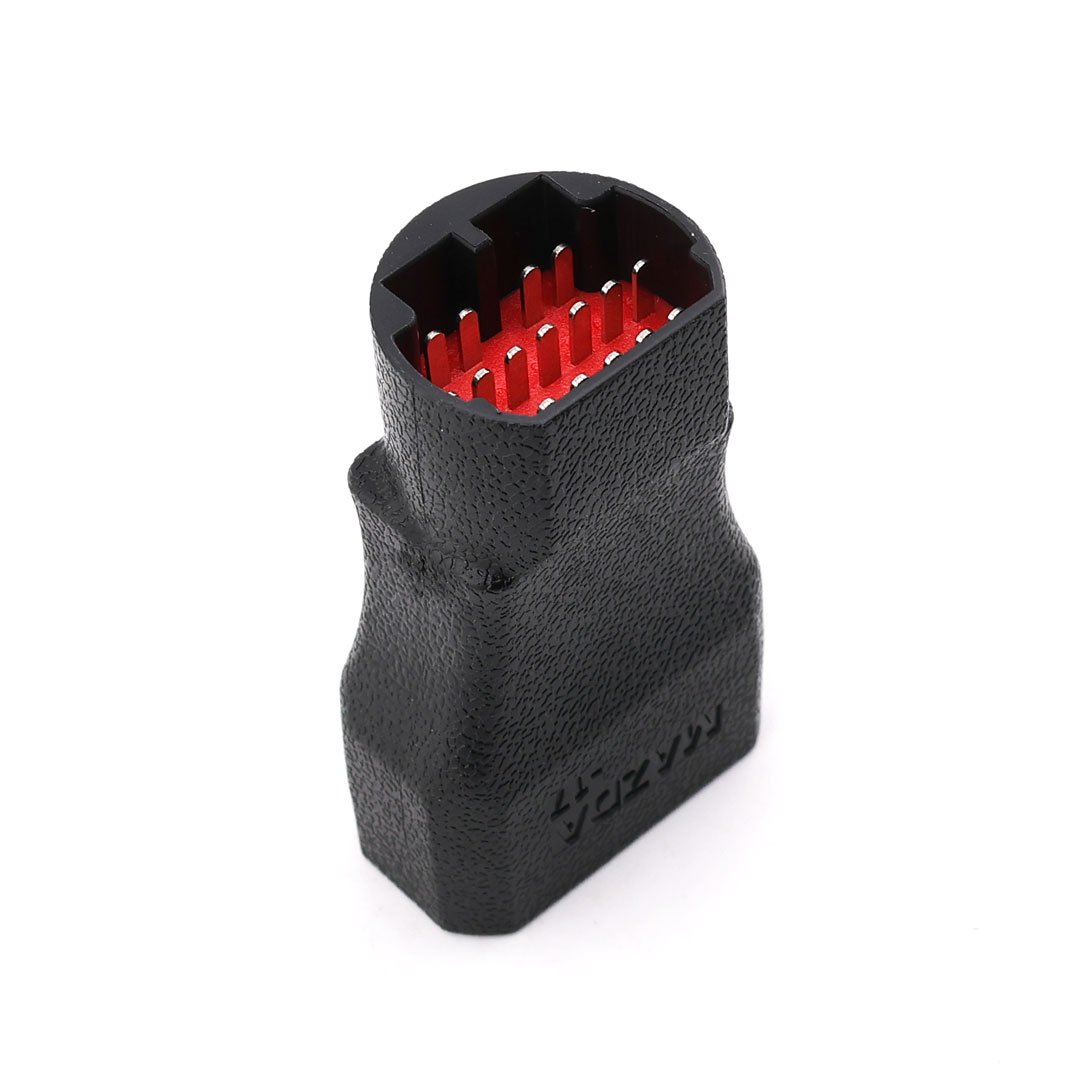

- MAZDA-17

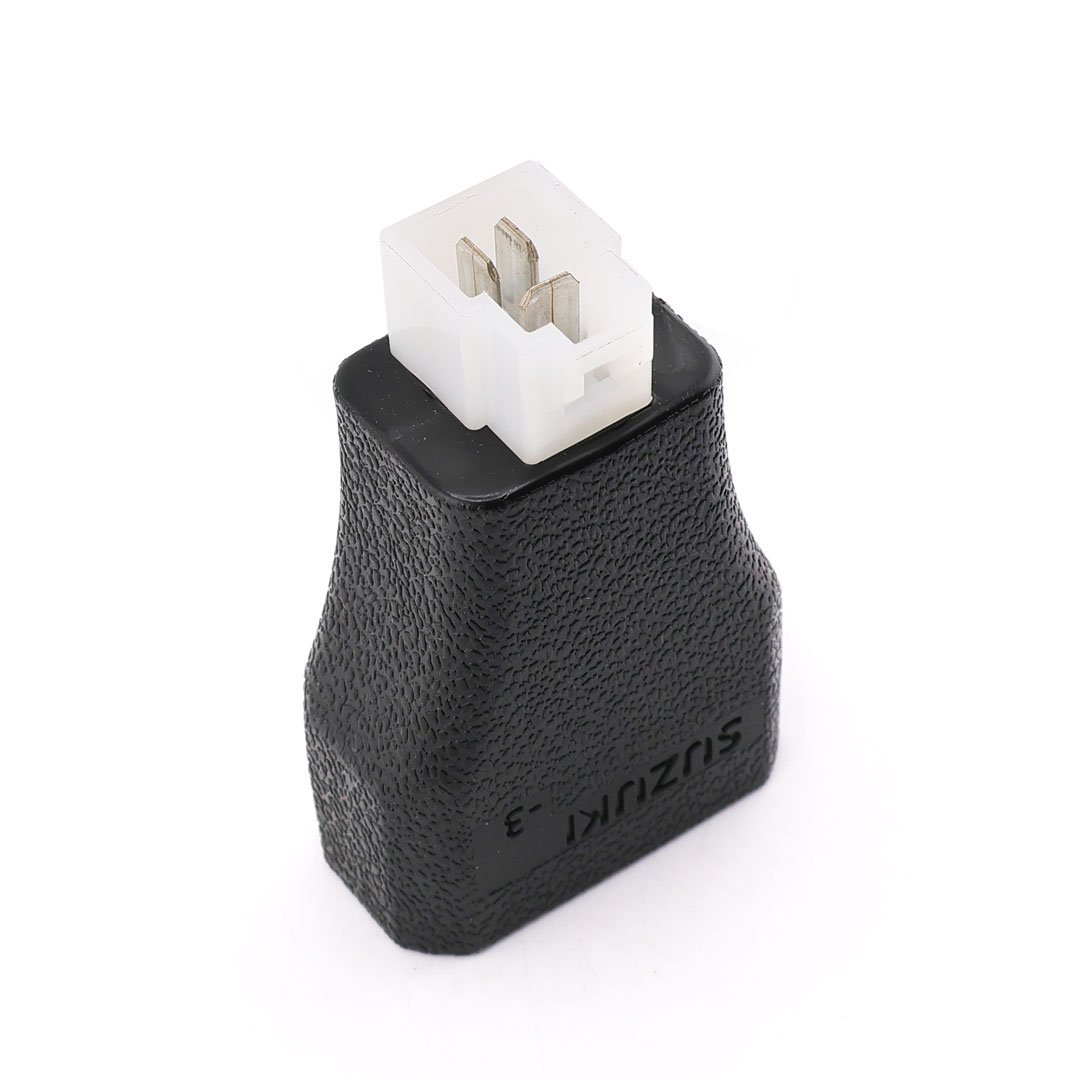

- SUZUKI-3

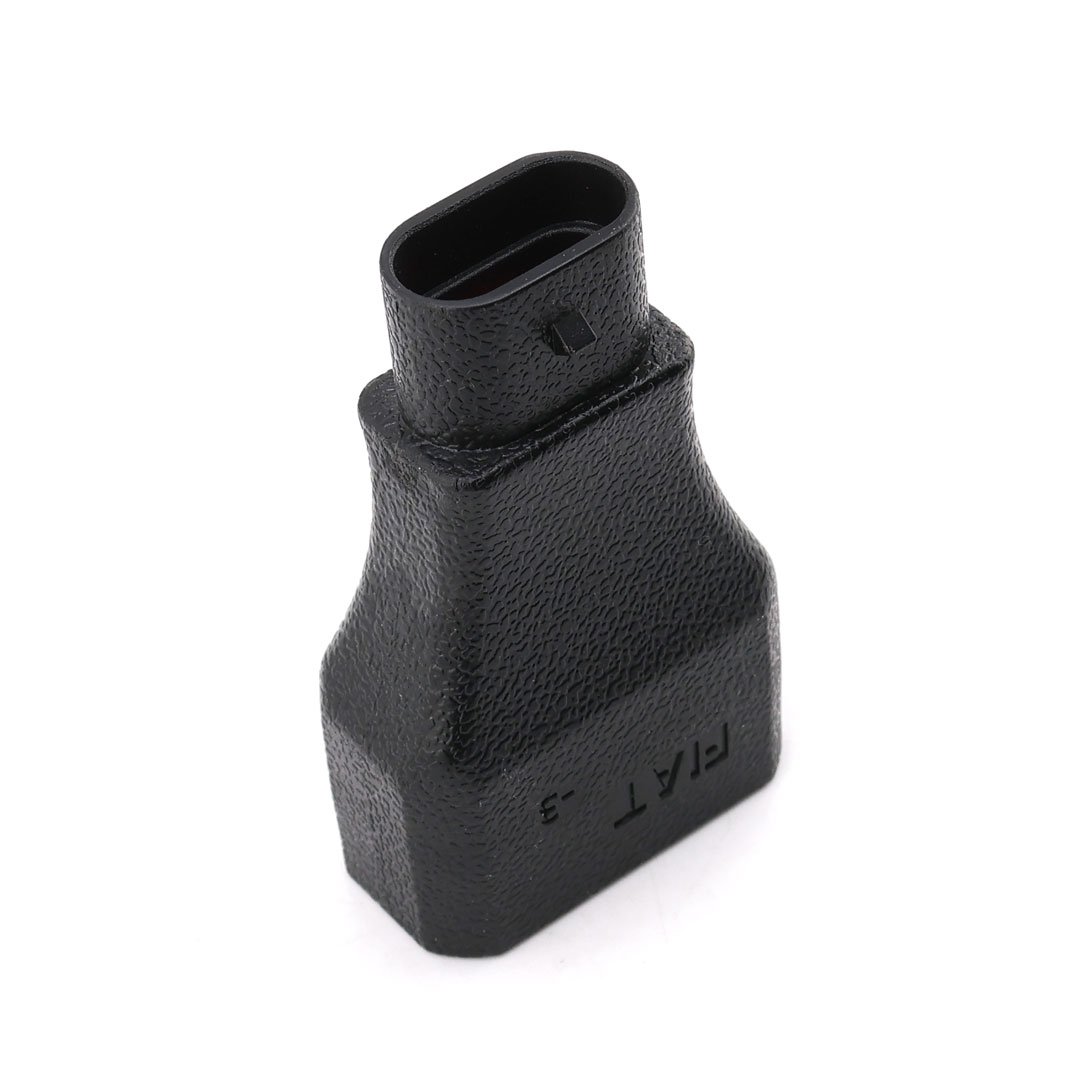

- FIAT-3
