I/O IO Terminal Multi Tool Device & I/O IO Terminal OBD Cable for MultiTool Bundle

I/O IO Terminal Multi Tool Device & I/O IO Terminal OBD Cable for MultiTool Bundle

Product Description:

Key Programming Tools From I/O TERMINAL with Product Number: MKON199
This Weight Product: 200g

Specs:

Manufacturer: I/O Terminal
Condition: New

Note: - you need to buy activation in order to use the functions of this device.

Package including:
- I/O TERMINAL MULTI TOOL. MK9872

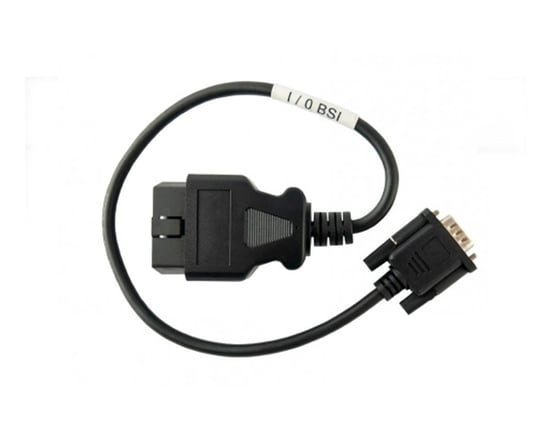

- I/O IO Terminal OBD Cable for MultiTool. MK9476

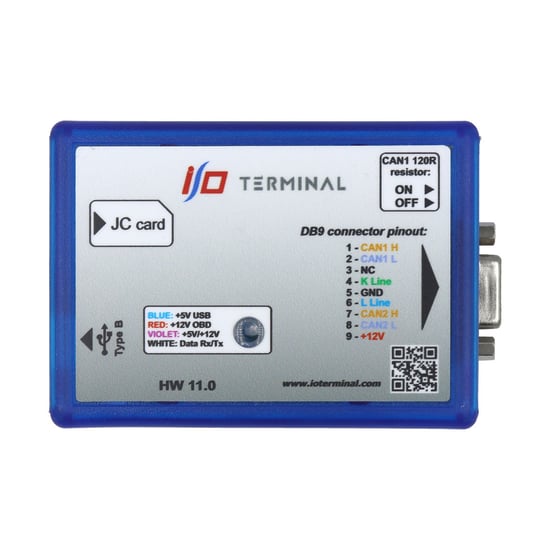

I/O TERMINAL MULTI TOOL:

Software for I/O TERMINAL hardware owners. Software reads, writes memories of various car ECUs and other car modules made by diferent manufacturers. Software and documents can be downloaded from DOWNLOADS Link.

I/O Terminal Downloads

Abbrevations :

1. R – Read
2. W – Write

Supported ECUS and functions :

OPEL/GM ECU ACTIVATION modules list and functions
ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD).
DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD).
DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD).
ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD) .
ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD) .
ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD) .
ACDELCO (BOSCH) E84 MPC5676 FLASH R/W.CAN (OBD)
EEPROM DUMP VIEWER,EDITOR.
OPEL/GM TCM ACTIVATION modules list and functions
TCM 6T30,6T35,6T40,6T45,6T50 FULL AM29BDD160GB FLASH R/W. CAN (OBD).
TCM 6T70,6T75,6T80,6L45,6L50,6L80,6L90 FULL M58BW016DB FLASH R/W. CAN (OBD).
OPEL/GM EPS ACTIVATION modules list and functions
EPS BOSCH 70F3187+95080 70F3187 FLASH R/W 95080 EEPROM R/W. CAN (OBD).
EPS BOSCH 70F3485 70F3485 FLASH R/W DATAFLASH R/W. CAN (OBD).
OPEL/GM PIM/TPIM ACTIVATION modules list and functions
PIM/TPIM ACDELCO S95. 1xMPC5566 FLASH R/W, 3xMPC5565 FLASH R/W. CAN (OBD).

FCA (Fiat Chrysler Automobiles) RFHUB/RFHM ACTIVATION modules list and functions
CONTINENTAL 9S12XEQ384/ 9S12XEG384/ 9S12XET512 FLASH+EEPROM R/W, 95640 EEPROM R/W. (CAN 11-bit system) .
CONTINENTAL 9S12XEQ384/ 9S12XEG384/ 9S12XET512 FLASH+EEPROM R/W, 95640 EEPROM R/W. (CAN 29-bit system) .

FORD BCM ACTIVATION modules list and functions
FORD CONTINENTAL/SIEMENS BCM 4L91N/0L01Y (9S12DT256) CAN . 9S12DT256 EEPROM R/W , 9S12DT256 FLASH R/W.
FORD CONTINENTAL/SIEMENS BCM 4L00M (9S12DP512) CAN . 9S12DP512 EEPROM R/W, 9S12DP512 FLASH R/W.
FORD CONTINENTAL/SIEMENS BCM 70F3384/70F3637 CAN . 70F3384/70F3637 DATA & PROGRAM FLASH R/W .
FORD CONTINENTAL BCM MPC5607 CAN . MPC5607 DATA & PROGRAM FLASH R/W.
FORD DELPHI BCM M30882F+95320. M30882F DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W.
FORD DELPHI BCM R5F64524/R5F64525. R5F64524/R5F64525 DATA & PROGRAM FLASH R/W.
FORD LEAR BCM SPC560B64+95320. SPC560B64 DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W.
FORD LEAR BCM MC9S12XEP768. MC9S12XEP768 DATA & PROGRAM FLASH R/W.
FORD LEAR BCM V2 MC9S12XEP768. MC9S12XEP768 EEPROM+DATA FLASH & PROGRAM FLASH R/W.
FORD TEMIC BCM MC9S12DG256. MC9S12DG256 EEPROM + PROGRAM FLASH R/W.
FORD TEMIC BCM MC9S12XD256. MC9S12XD256 EEPROM + PROGRAM FLASH R/W.
VOLVOCEMLIC000001 ACTIVATION modules list and functions
VOLVO DELPHI CEM M30882F+95320. M30882F DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W. In order to use need PINCODE.
VOLVO DELPHI CEM R5F64524/R5F64525. R5F64524/R5F64525 DATA & PROGRAM FLASH R/W. In order to use need PINCODE.
VOLVO DELPHI CEM REVB. R5F64524/R5F64525. R5F64524/R5F64525 DATA & PROGRAM FLASH R/W. In order to use need PINCODE.
VOLVO LEAR BCM SPC560B60/SPC560B64+95320. SPC560B60/SPC560B64 DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W. In order to use need PINCODE.
VOLVOCEMLIC000002 ACTIVATION modules list and functions
VOLVO DELPHI CEM L M30835F+93C86. M30835F PROGRAM FLASH R/W. EEPROM 93C86 R/W. In order to use need PINCODE.
VOLVO DELPHI CEM L M30855F+93C86. M30855F PROGRAM FLASH R/W. EEPROM 93C86 R/W. In order to use need PINCODE.

WEBASTOLIC000001 ACTIVATION modules list and functions
FORD/LAND ROVER/VOLVO AHCM/CPM TTV/TTVEVO WEBASTO CONTINENTAL 9S12DG256. 9S12DG256 FLASH R/W, EEPROM R/W.

FOMOCOKVMLIC000001 ACTIVATION modules list and functions
VOLVO P3/FORD/JAGUAR KVM (Keyless Vehicle Module) SIEMENS/CONTINENTAL 9S12DG256. 9S12DG256 FLASH R/W, EEPROM R/W.
FORD KVM (Keyless Vehicle Module) SIEMENS/CONTINENTAL 9S12XDT384. 9S12XDT384 FLASH R/W, EEPROM R/W.

FIAT BSI 2 ACTIVATION modules list and functions
FIAT DELPHI BSI 70F3237+93C86 CAN . EEPROM 93C86 R/W ,show PIN, show KEY preparartion data. 70F3237 FLASH R/W.
FIAT DELPHI BSI 70F3379+93C86 CAN . EEPROM 93C86 R/W ,show PIN, show KEY preparartion data. 70F3379 FLASH R/W.
FIAT DELPHI BSI 70F3632/70F3633 CAN . 70F3632/70F3633 DATA & PROGRAM FLASH R/W ,show PIN, show KEY preparartion data.
FORD DELPHI BSI 70F3379+93C86 CAN . EEPROM 93C86 R/W ,show PIN, show KEY preparartion data. 70F3379 FLASH R/W.
FIAT DELPHI BSI 70F3556 CAN . 70F3556 DATA & PROGRAM FLASH R/W.
FIAT DELPHI BSI 70F3557 CAN . 70F3557 DATA & PROGRAM FLASH R/W.
FIAT CONTINENTAL BSI MPC5606 CAN . MPC5606 DATA & PROGRAM FLASH R/W.
OPEL BCM ACTIVATION modules list and functions
OPEL DELPHI BCM 70F3238+93C86 CAN . EEPROM 93C86 R/W ,show PIN, reset PIN. 70F3238 FLASH R/W.
OPEL DELPHI BCM 70F3379+93C86 CAN . EEPROM 93C86 R/W,show PIN, reset PIN. 70F3379 FLASH R/W.
OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W ,show PIN, reset PIN.
OPEL DELPHI BCM 70F3634 CAN . 70F3634 DATA & PROGRAM FLASH R/W ,show PIN, reset PIN.
OPEL/GM BOSCH BCM 70F3469+24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W show PIN,reset,change odometer,change VIN.
OPEL/GM BOSCH BCM 70F3385+24C16.70F3385 FLASH R/W. EEPROM 24C16 R/W show PIN,reset,change odometer,change VIN.
OPEL/GM BOSCH BCM 70F3558+24C32.70F3558 FLASH R/W. EEPROM 24C32 R/W show PIN,reset,change odometer,change VIN.
OPEL/GM CONTINENTAL BCM 70F3469+95160(25160). 70F3469 FLASH R/W. EEPROM 95160(25160) R/W show PIN,reset,change odometer,change VIN.
OPEL/GM CONTINENTAL BCM 70F3558+95320(25320) .70F3558 FLASH R/W. EEPROM 95320(25320) R/W show PIN,reset,change odometer,change VIN.
PSA BSI ACTIVATION modules list and functions
Siemens D76F0018+95160 KLINE (BSI-E0X-00/BSI-F0X-00) . EEPROM 95160 R/W , show PIN
Siemens 1L00M+95128/95256 CAN (BSI-S0X-00). EEPROM 95128/95256 R/W, show PIN, 9S12DP512 FLASH R/W
Continental SC667050+95256 CAN (BSI-Q0X-00). EEPROM 95256 R/W, show PIN, SC667050 FLASH R/W
Valeo 4L00M+95128/25128 CAN (BSI2004-P0X-00).EEPROM 95128/25128 R/W, show PIN, 9S12DP512 FLASH R/W
Valeo 2M48H+24C128 CAN (BSIEV-X0X-00) . EEPROM 24C128 R/W, show PIN, 9S12XEP768 FLASH R/W
Valeo SC667152+95256 CAN (BSI-N0X-00). EEPROM 95256 R/W, show PIN, SC667152 FLASH R/W
Johnson Controls easyCAN4+29LV400+95128 CAN (BSI2004-H0X). EEPROM 95128 R/W, show PIN, 29LV400BB FLASH R/W
Johnson Controls easyCAN4F1M-32+95128 CAN (BSI04EV-K0X). EEPROM 95128 R/W, show PIN, easyCAN4F1M-32 FLASH R/W
Johnson Controls SPC560B60+95128 CAN (BSI04EV2-KEX). EEPROM 95128 R/W, show PIN,SPC560B60 FLASH R/W
VAG DSG ACTIVATION modules list and functions
TEMIC DQ250 MPC555+95160 KLINE EEPROM 95160 R/W, MPC555 FLASH R/W
SMART SAM ACTIVATION modules list and functions
3L80R (MC9S12B128) CAN , EEPROM R/W, FLASH R/W
0L01Y (MC9S12DG256) CAN, EEPROM R/W, FLASH R/W
2K79X (MC9S12DG256) CAN, EEPROM R/W, FLASH R/W
VOLVO SIMCARD modules list and functions aivalable on multitool software. (other options of VOLVO aivalable on separate VOLVO TOOL software)
DDM/PDM (70F3233+95080) CAN , 95080 EEPROM R/W, 70F3233 FLASH R/W
DDM/PDM (70F3371/70F3624) CAN, DATAFLASH R/W, FLASH R/W
DDM/PDM (70F3373/70F3626) CAN, DATAFLASH R/W, FLASH R/W

Guide to make OBD cable (CABLE TYPE1):

ioterminal_hwsw_info
