OBDSTAR MS50 Motorcycle Scanner Motorcycle Diagnostic Tool

OBDSTAR MS50 Motorcycle Scanner Motorcycle Diagnostic Tool

Product Description:

Key Programming / ECU Diagnostics Tools Diagnostic Tools From OBDSTAR with Product Number: MK7898
This Weight Product: 4750g

OBDSTAR MS50 Specs:

Manufacturer: OBDSTAR
Condition: New

OBDSTAR MS50 Motorcycle Scanner USER MANUAL

OBDSTAR MS50 Motorcycle Scanner BASIC COVERAGE

OBDSTAR MS50 Motorcycle Scanner STD COVERAGE

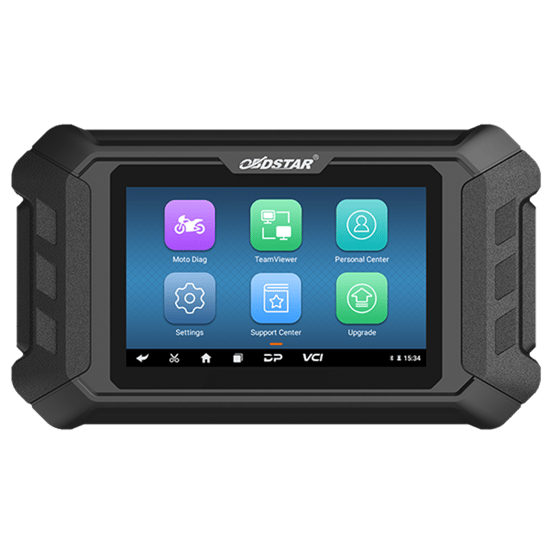

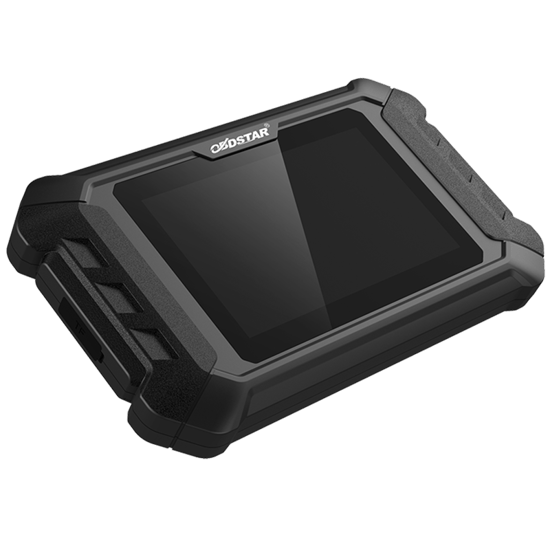

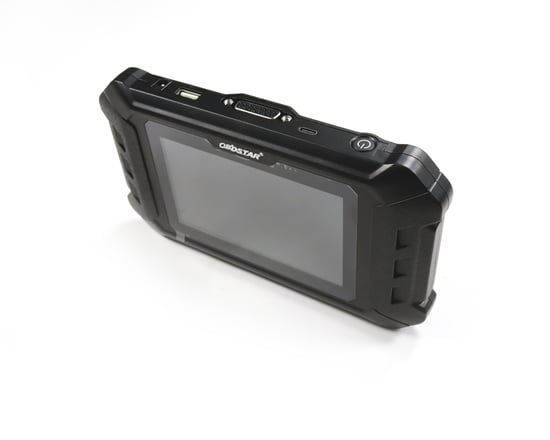

OBDSTAR MS50 basic version is a portable motorcycle diagnostic tablet, which is based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, used for motorcycle maintenance and repair. It is a new generation of intelligent motorcycle diagnostic equipment tailored for motorcycle technicians.

Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience;

OBDSTAR MS50 Functions:

• New Android 5.1.1 operation system
• Simple and intuitive menu guidance allows you to quickly master the equipment operation;

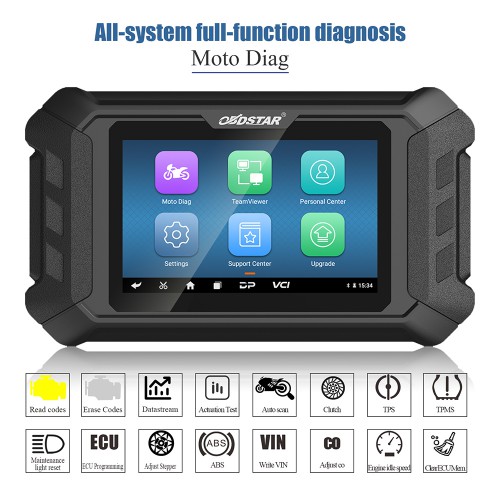

• Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
• Menu Arbitrary selection is more convenient and quick;
• Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
• Wi-Fi connection to the Internet, one-click software upgrade;
• One-Click remote function, OBDSTAR technical staff remote assistance;
• Support most of the Asia and Europe models;

OBDSTAR MS50 Advanced Function:

• The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
• Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
• Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.

Motorcycle / Snowmobile / ATV / UTV support car series:

Asia:

Honda , Kawasaki , Kymco , Suzuki , SYM , Yamaha , PGO , Hardford , AEON；

Europe:

Benelli , KTM , Piaggio , Vespa

More functions under developing...

OBDSTAR MS50 Function Display:

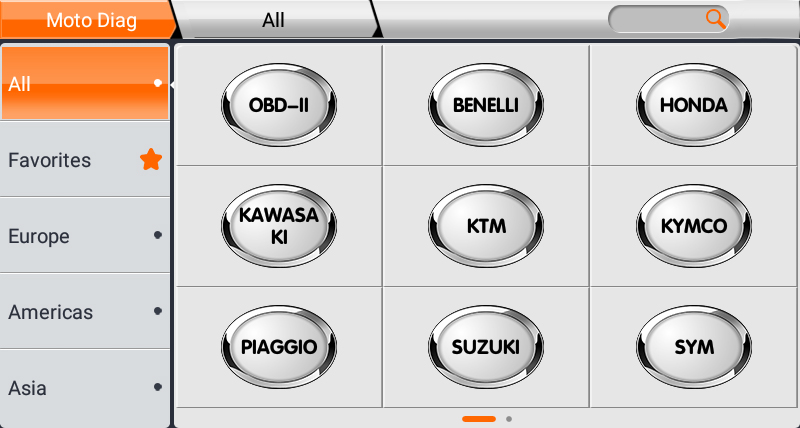

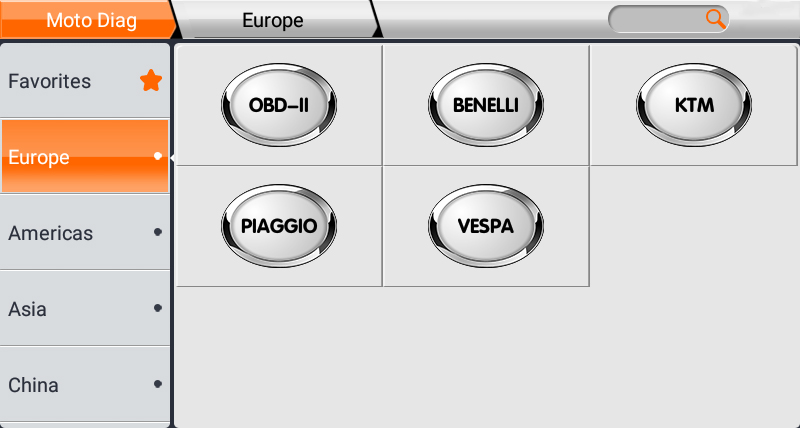

1) Main Page/Brand Supported

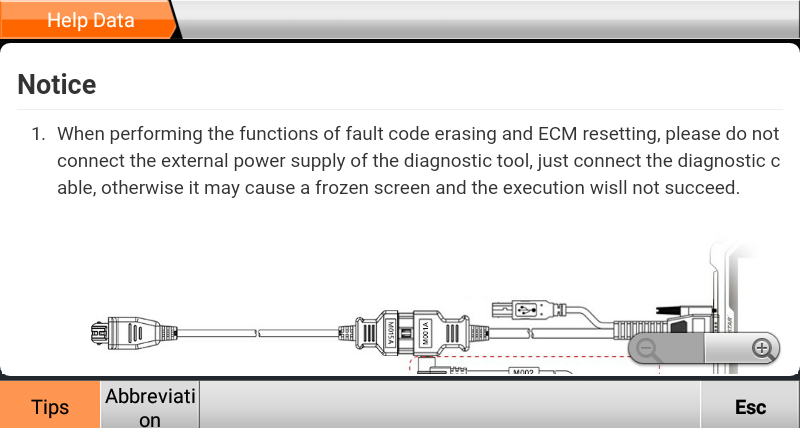

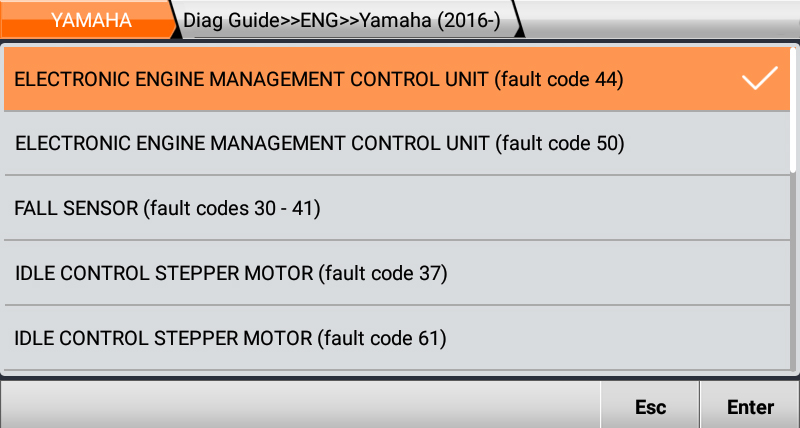

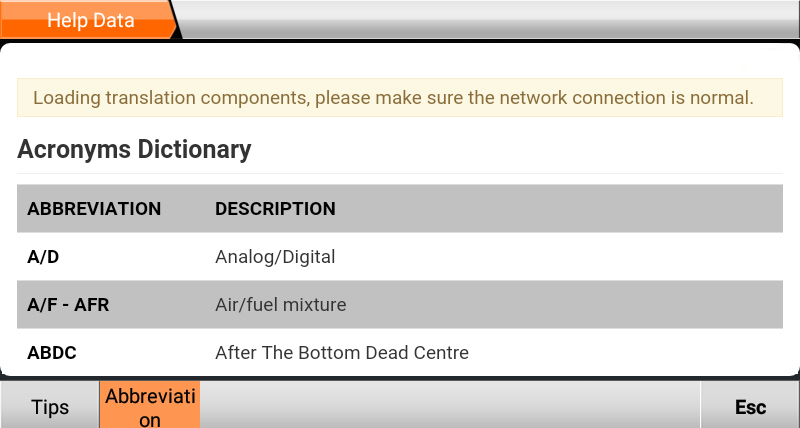

2) Help Data/Technical Bulletin/Fault Guidance

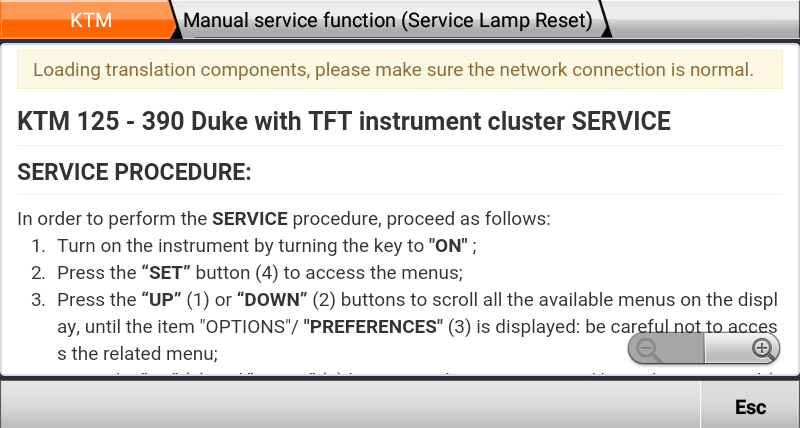

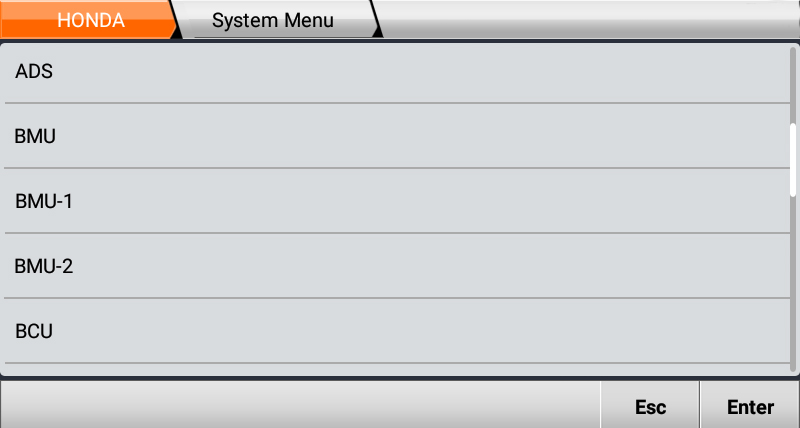

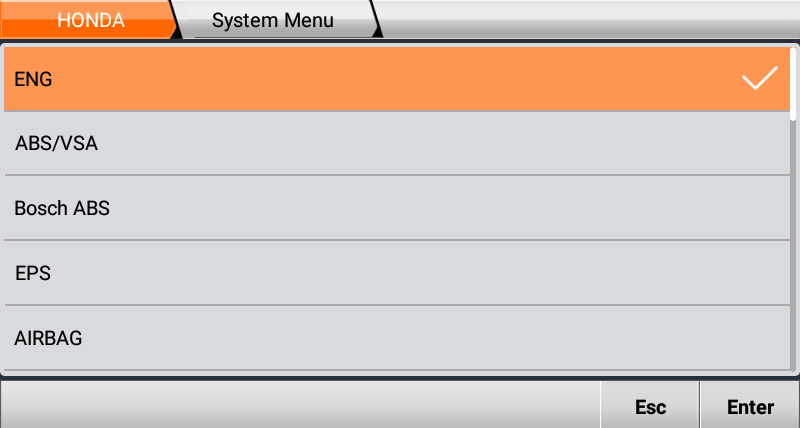

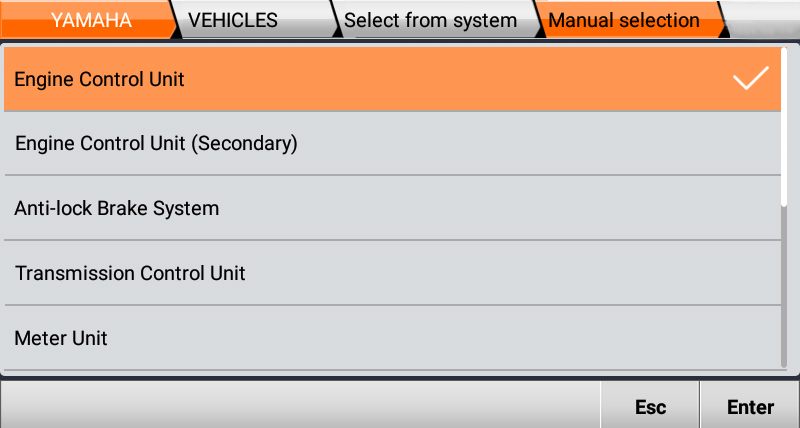

3）Supported System List/ Manual Service Function

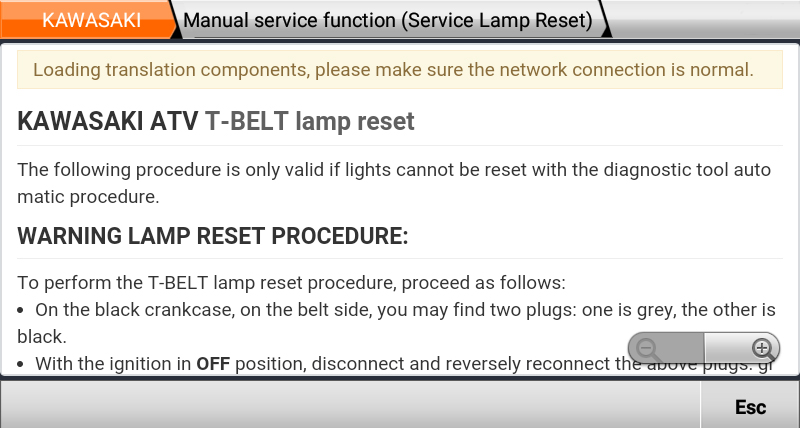

4) Manual maintenance reset

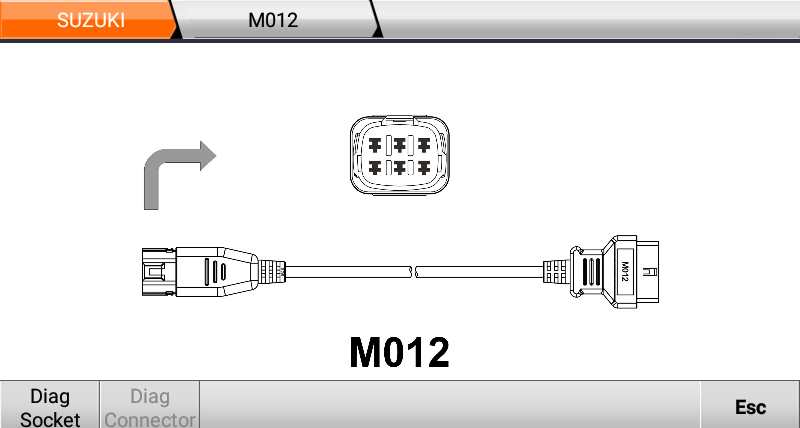

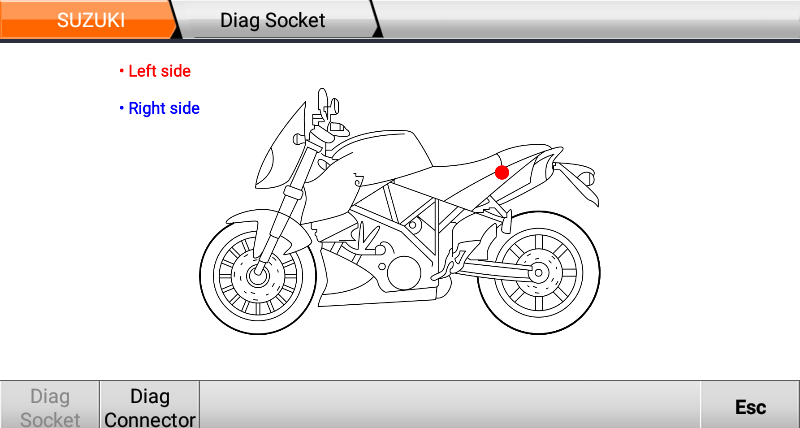

5) Diag socket/Diag Connector Location

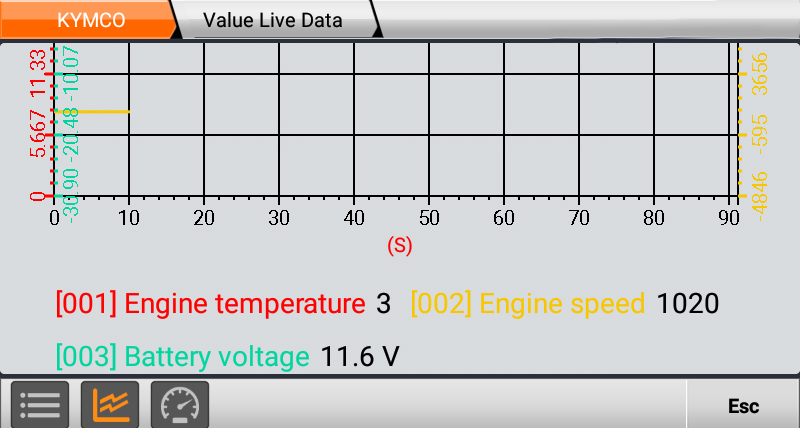

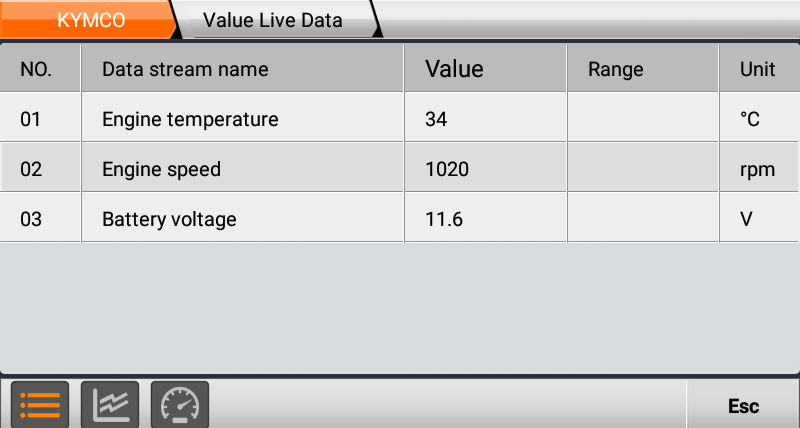

6) Data Flow Text/ Waveform Diagram/Instrument Diagram

7) Special Function-Benelli
8) Special Function-KTM
9) Special Function-Piaggio
10) Special Function-Vespa

The Comparison Among MS50 Standard Version, MS50 Basic Version, MS50 StandardVersion+Special Kit and MS50 Basic Version+Special Kit

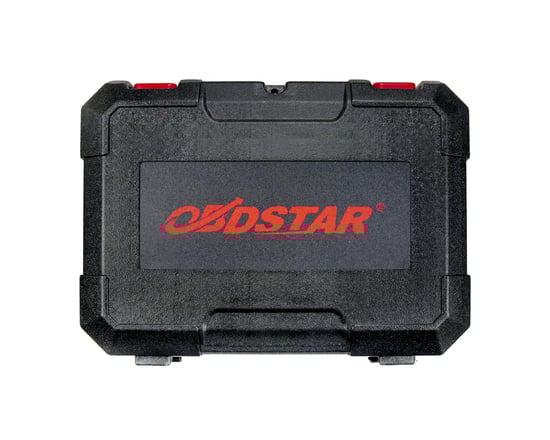

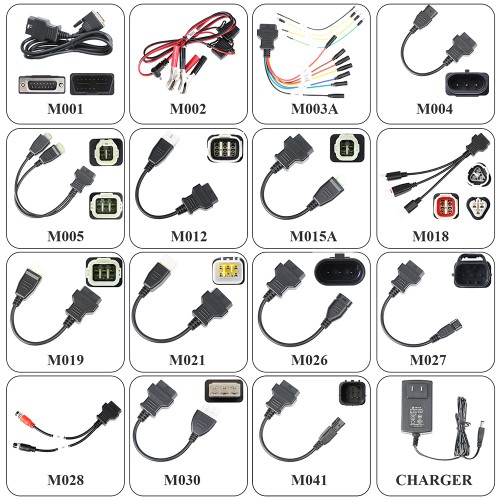

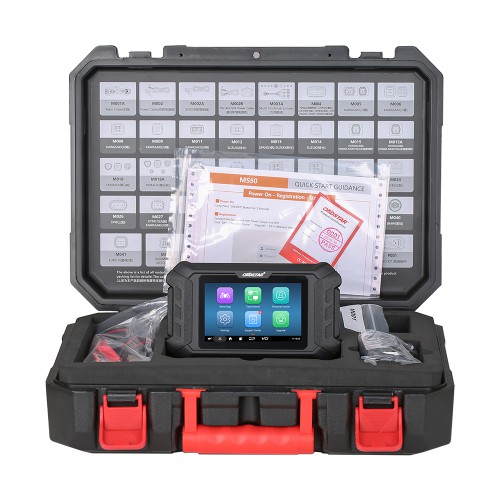

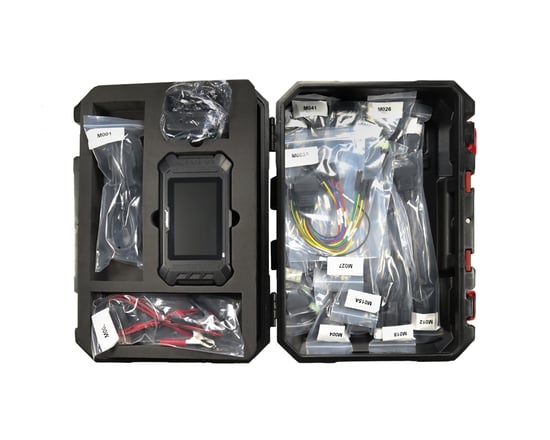

OBDSTAR MS50 Package Contents:

1. 1pc x MS50 BASIC Tablet
2. 1pc x M001A Main Cable
3. 1pc x M002 Power Cable
4. 1pc x M003A Multi-functional Jumper
5. 1pc x N004 APRILIA/ DUCATI/ HONDA/ KTM/ PIAGGIO/ VESPA/ YAMAHA
6. 1pc x M005 KAWASAKI
7. 1pc x M006 KAWASAKI
8. 1pc x N012A SUZUKI
9. 1pc x N015A HONDA
10. 1pc x M018A YAMAHA
11. 1pc x N021A AEON/BENELLI/BENELLI DSK/QJ BENELLI
12. 1pc x N026 SYM
13. 1pc x N027 KYMCO/KAWASAKI
14. 1pc x N041 EURO V
15. 1pc x 12V2A Charger
16. 1pc x Packing List
