OBDStar MS80 Device Tablet for Motorcycle/PWC/Snow mobile/ATV/UTV Diagnostics Tool Supports IMMO Key Programming and ECU Tuning

OBDStar MS80 Device Tablet for Motorcycle/PWC/Snow mobile/ATV/UTV Diagnostics 1 Year Free Update No Need Token

Product Description:

Key Programming / ECU Diagnostics Tools Diagnostic Tools From OBDSTAR with Product Number: MK7899
This Weight Product: 7000g

OBDStar MS80 Specs:

Manufacturer: OBDSTAR
Condition: New

OBDStar MS80 USER MANUAL

OBDStar MS80 BASIC COVERAGE

OBDStar MS80 STD COVERAGE

MS80 is the new generation of intelligent motorcycle ( Motorcycle/PWC/Snow mobile / ATV / UTV Tablet , etc ) diagnostic equipment of OBDSTAR Technology Co., Ltd Based on Samsung Exynos processor, extremely fast and smooth; equipped with 8-inch capacitive touch screen, touch sensitive. MS80 has professional-level intelligent diagnosis, providing an unprecedented intelligent diagnosis and maintenance experience-the first fault guidance Technical bulletin, data flow assistance, diag socket, and other functions to help you diagnose accurately and efficiently; exclusive interactive circuit diagram and electrical query system Easy troubleshooting Failure, so you have no worries about the car diagnosis!

OBDSTAR MS80 Functions:

• New Android 5.1.1 Operation System
• Simple and intuitive menu guidance allows you to quickly master the equipment operation;
• Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
• Menu Arbitrary selection is more convenient and quick;
• Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
• Wi-Fi connection to the Internet, one-click software upgrade;
• One-Click remote function, OBDSTAR technical staff remote assistance;
• Support the fault diagnosis of most of the world's luxury locomotives and tens of thousands of models.

OBDSTAR MS80 Advantage Function:

• The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
• Exclusive interactive circuit diagram and electrical description query function, so that you can have a worry-free diagnosis;
• Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
• Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.

Motorcycle / snowmobile / ATV / UTV Tablet diagnostic function support car series:

Asia:

•  Honda , Hondamontesa , Kawasaki , Kymco , Suzuki , SYM , Yamaha

Europe:

• Aprilia , Benelli , BMW , Derbi , Ducati , Gasgas , Gilera , KTM , Malaguti , Moto Guzzi , MV Agusta , Peugeot , Piaggio , Triumph , Vespa

Americas:

• BRP , Harley Davison , Indian , Victory

Motorcycle key programming support car series:

Gilera , Harley Davison , Peugeot , Piaggio , Triumph , Vespa

PWC support car series:

BRP , Honda , Kawsaki , Yamaha

More functions under developing...

Function Display:

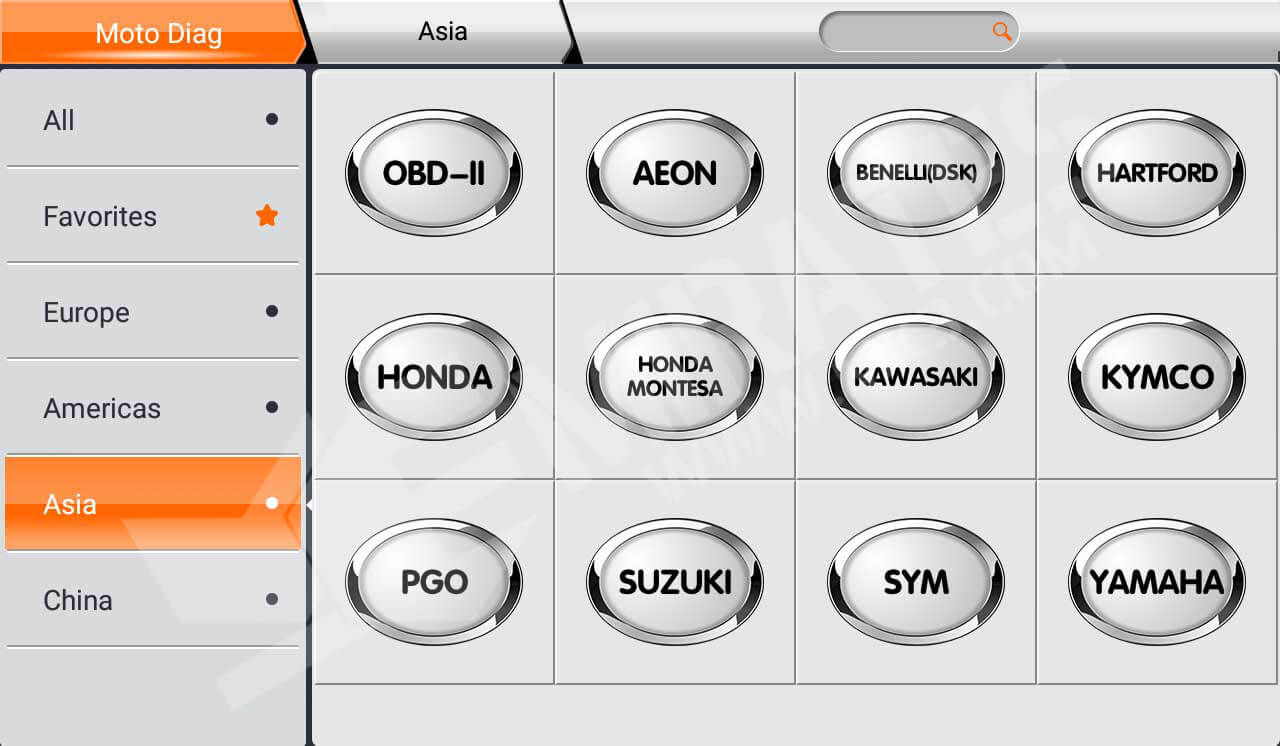

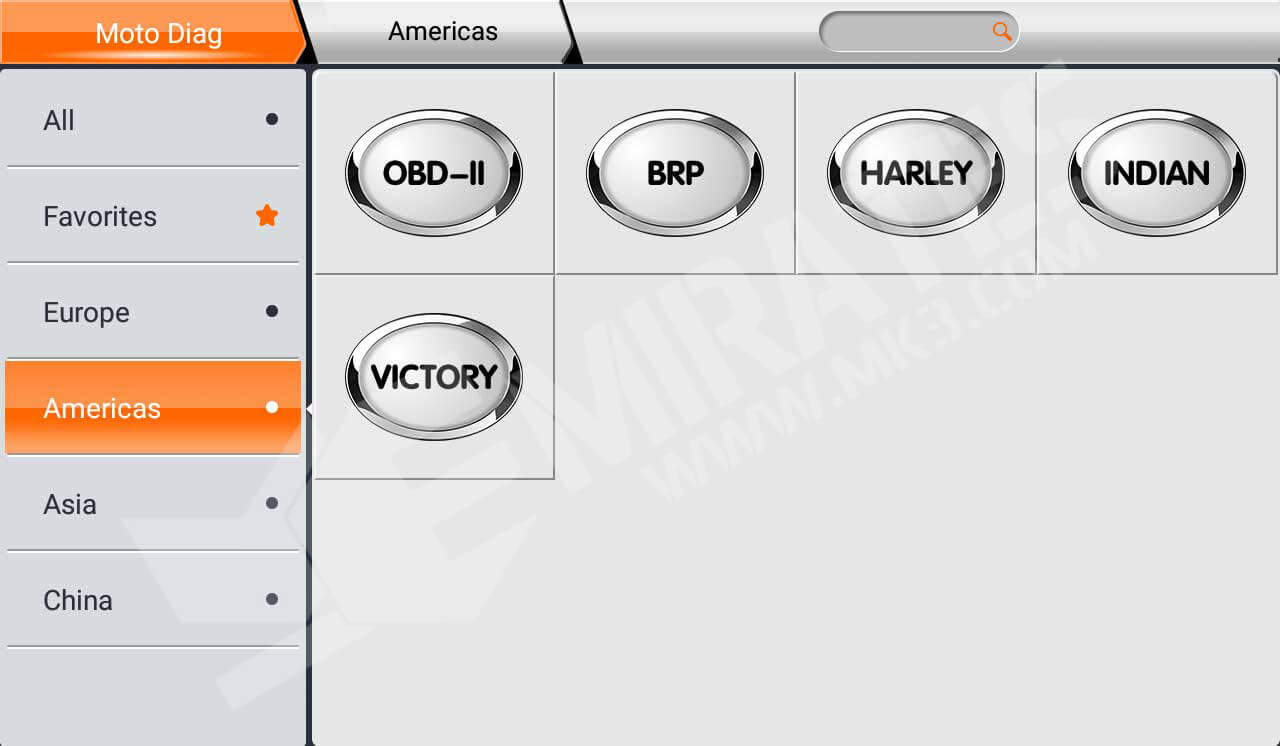

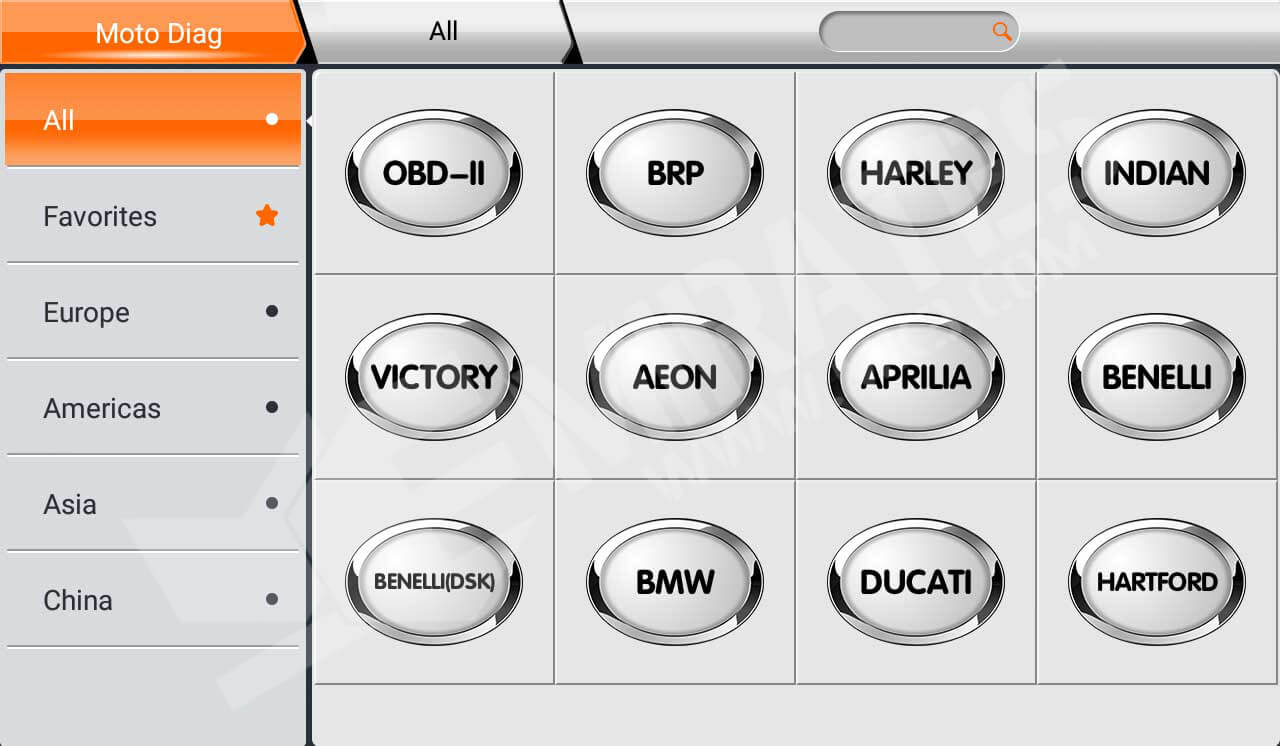

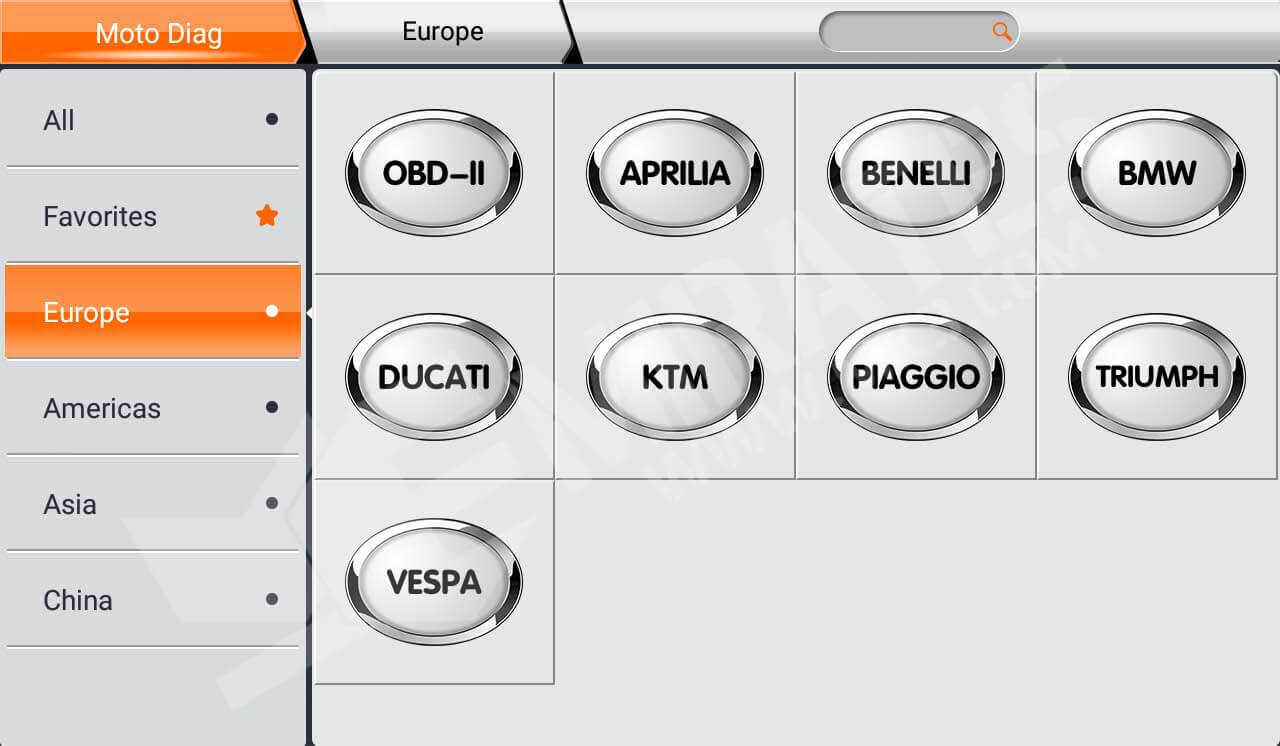

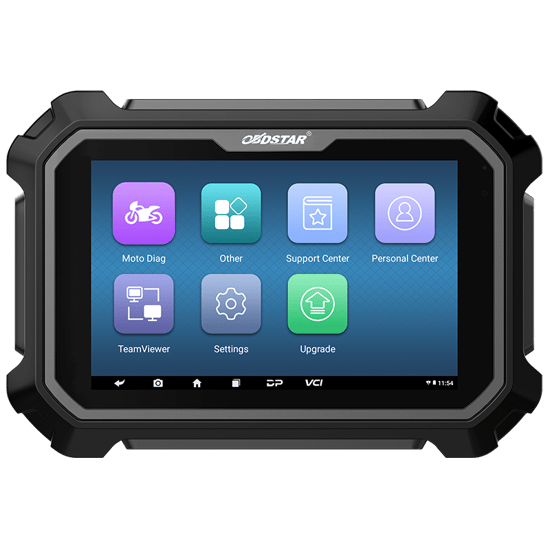

1) Main Page/Brand Supported

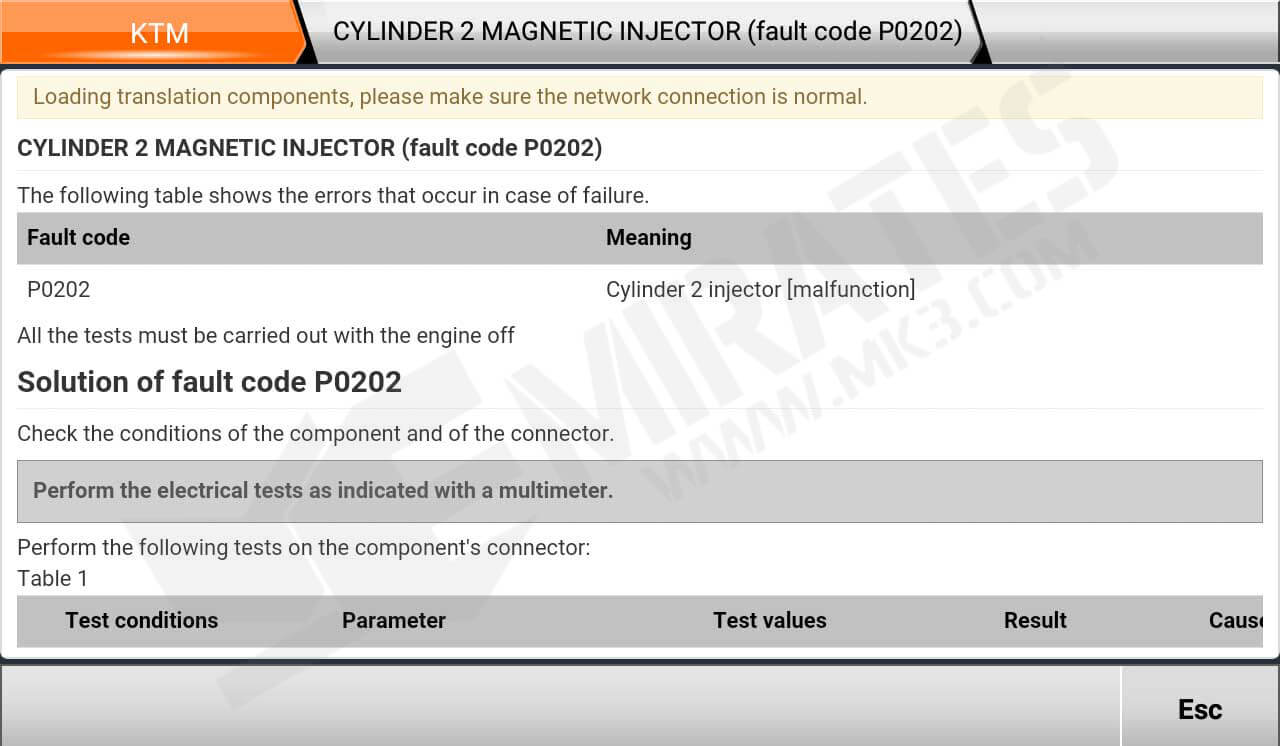

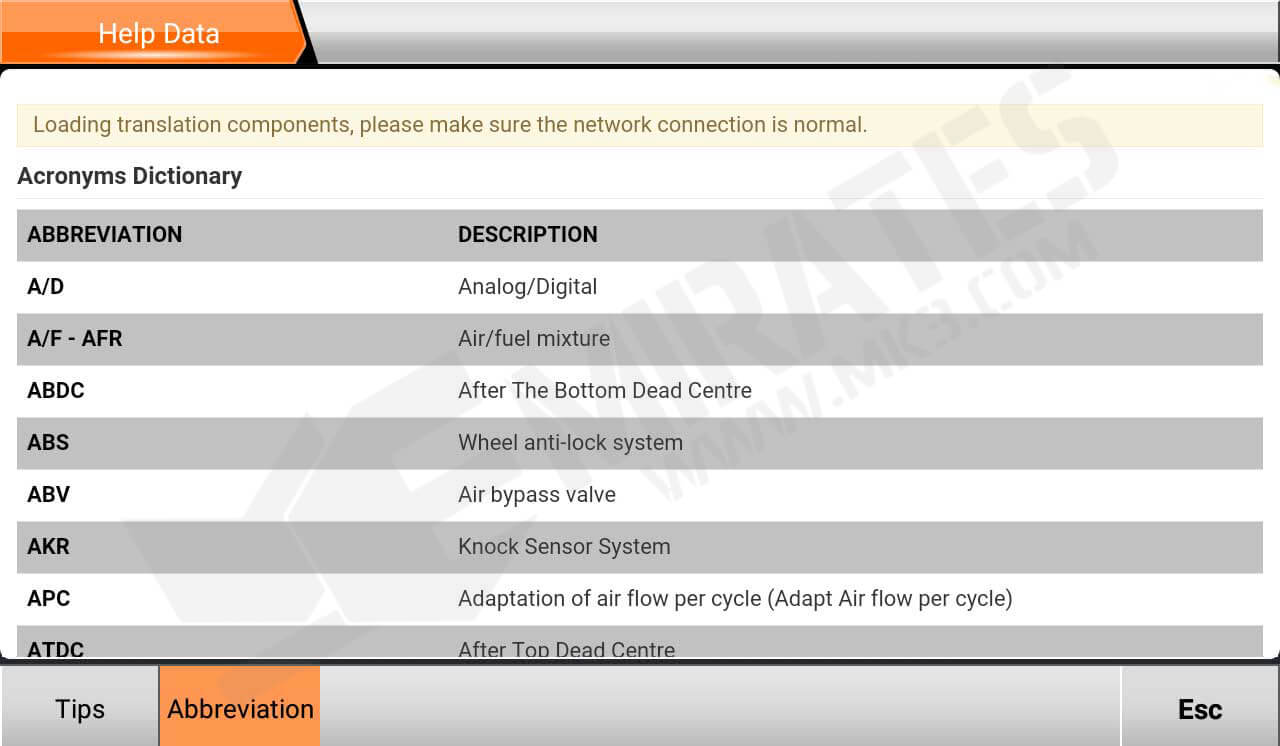

2) Help Data / Technical Bulletin / Fault Guidance

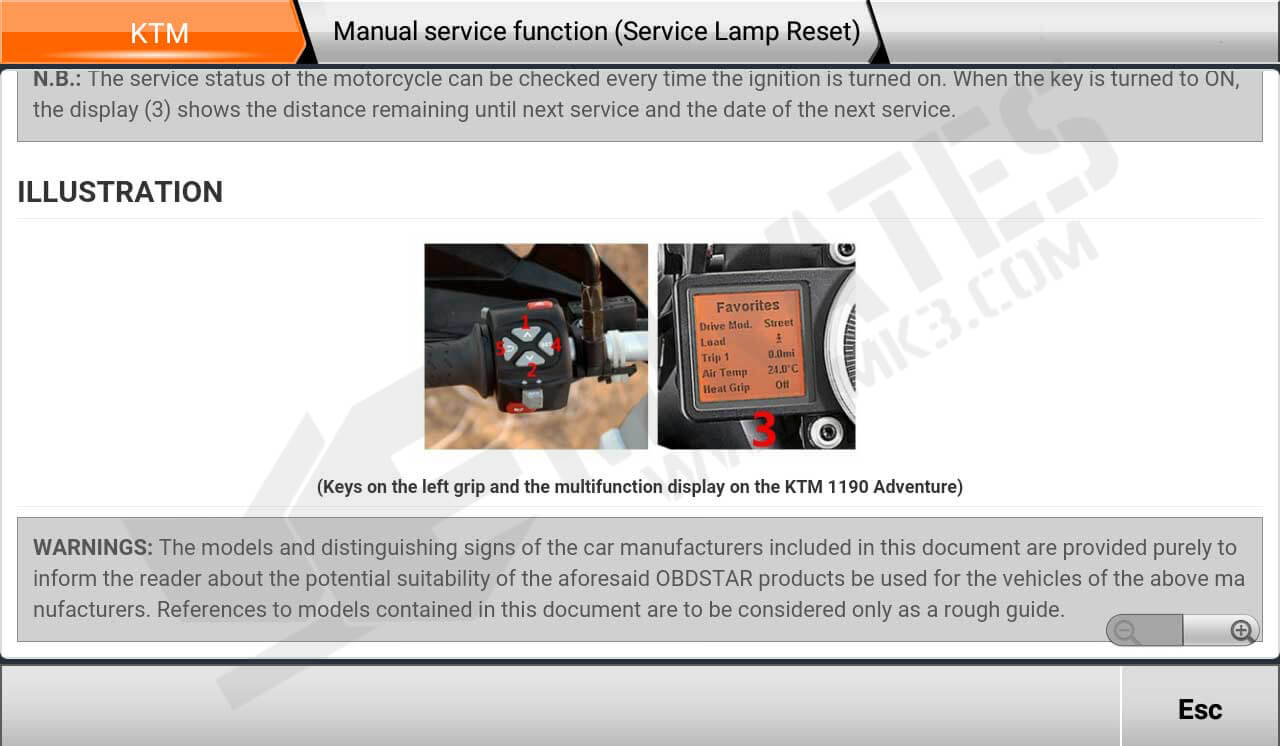

3) Supported System List / Manual Service Function

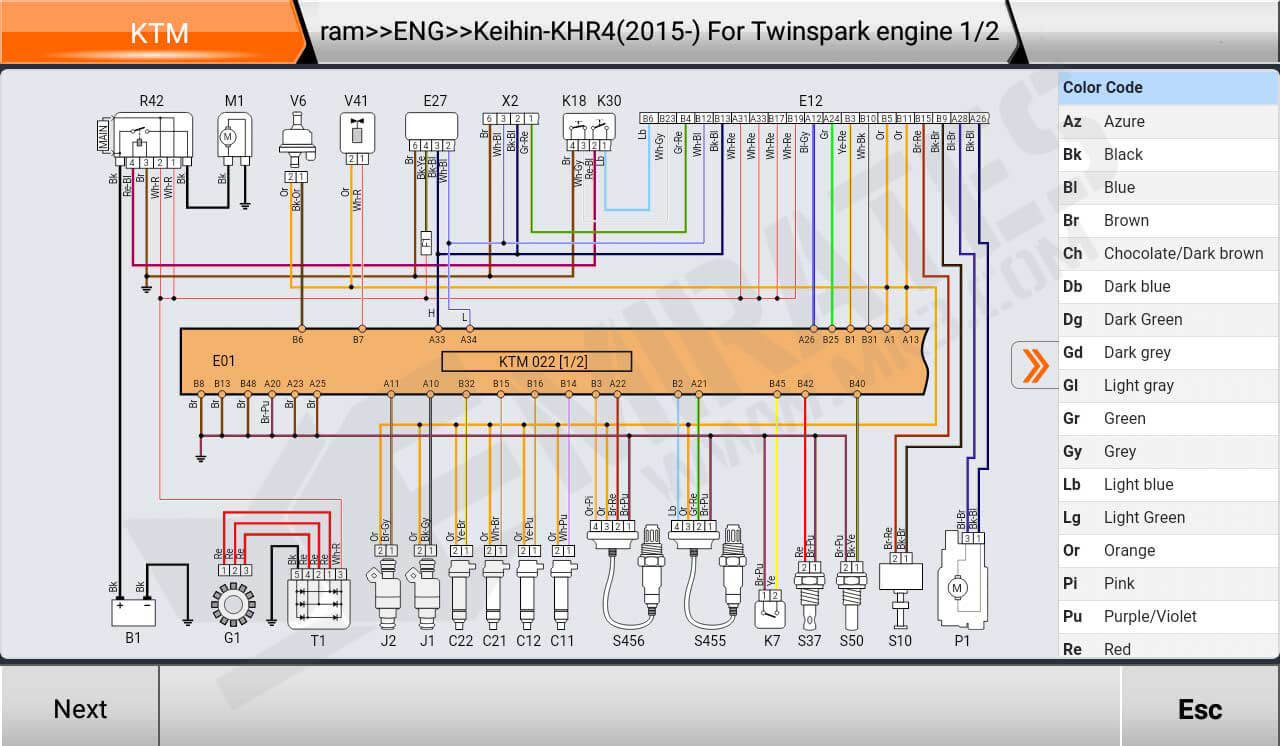

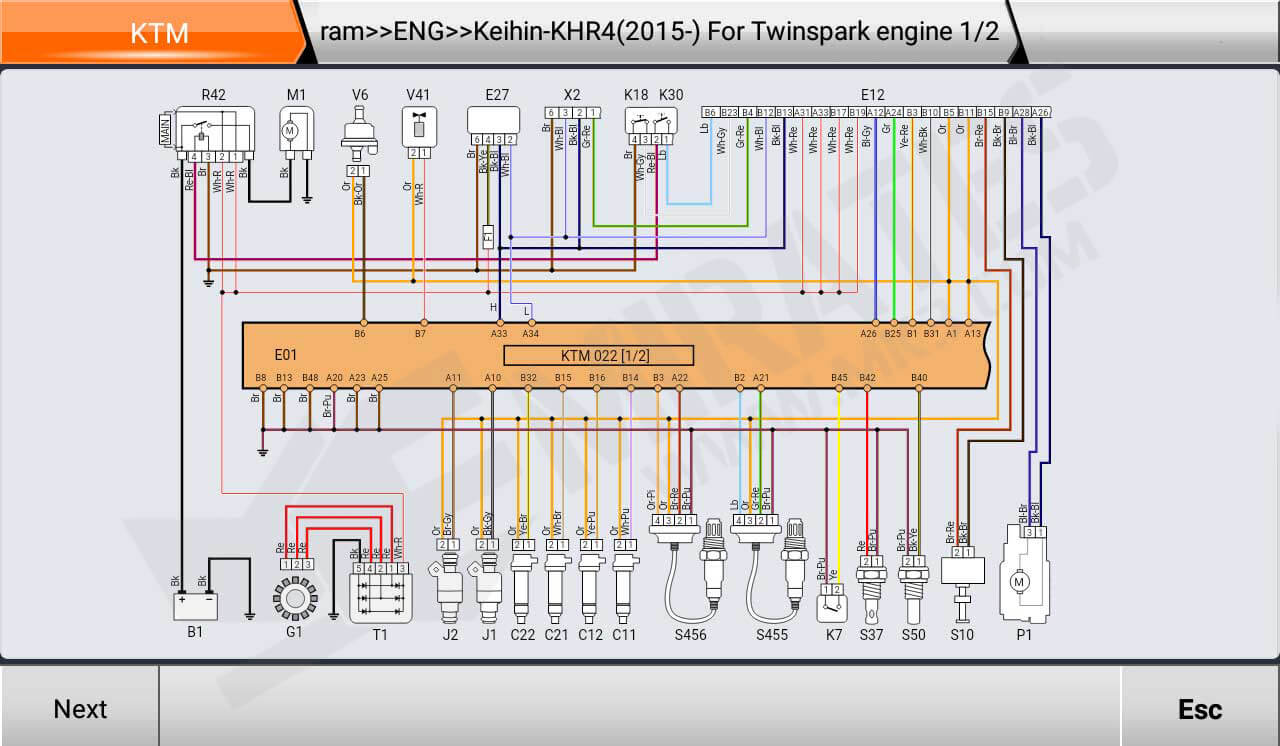

4) Interactive Circuit Diagram

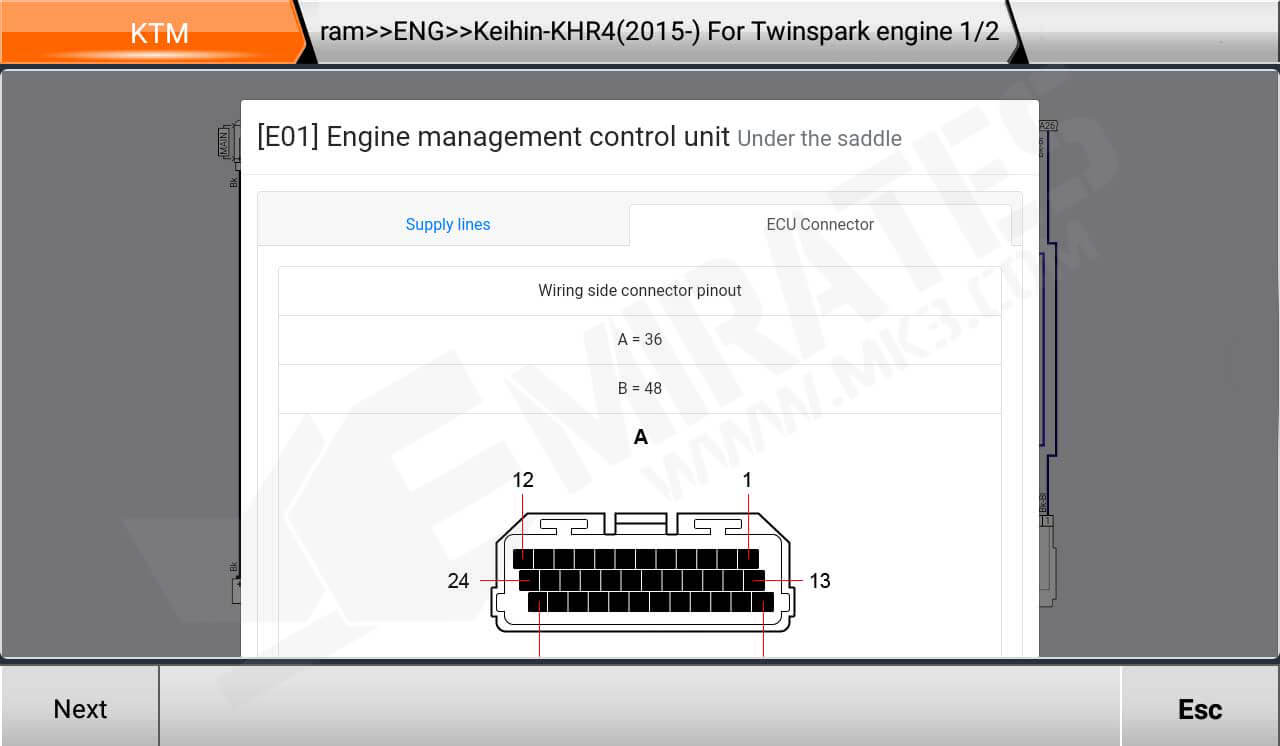

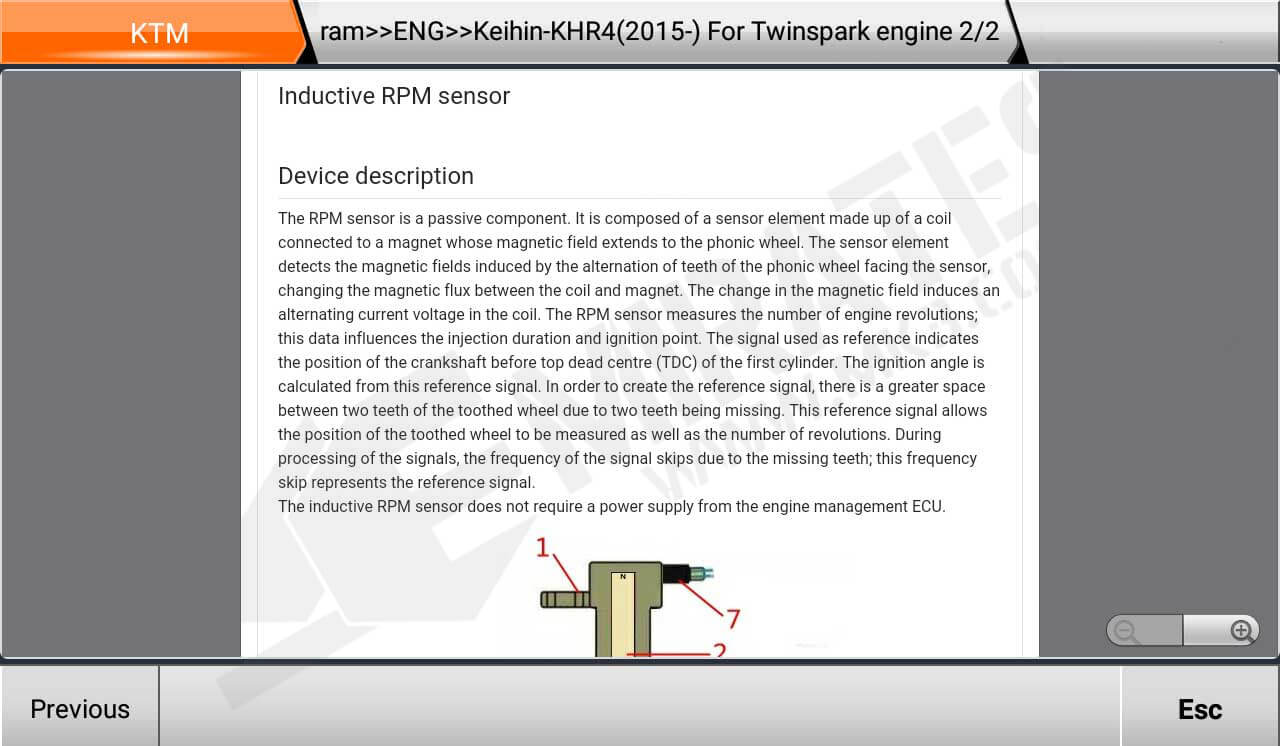

5) Components Description

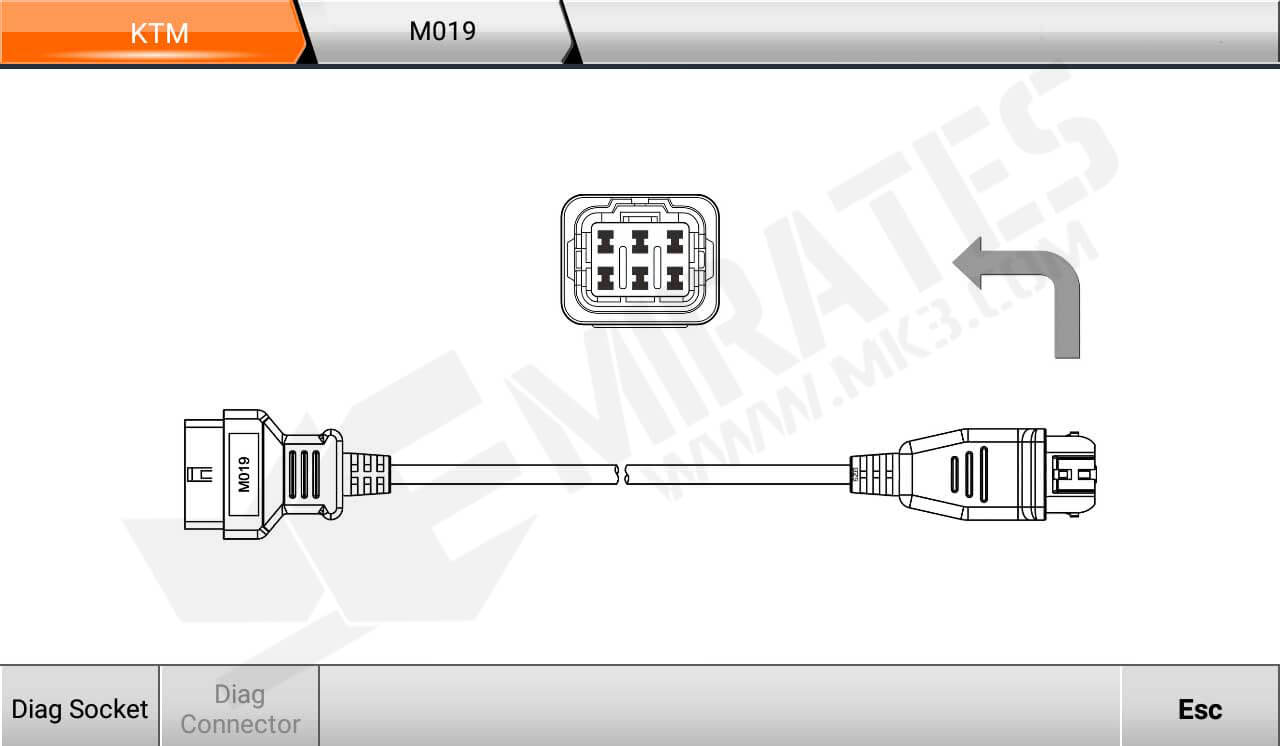

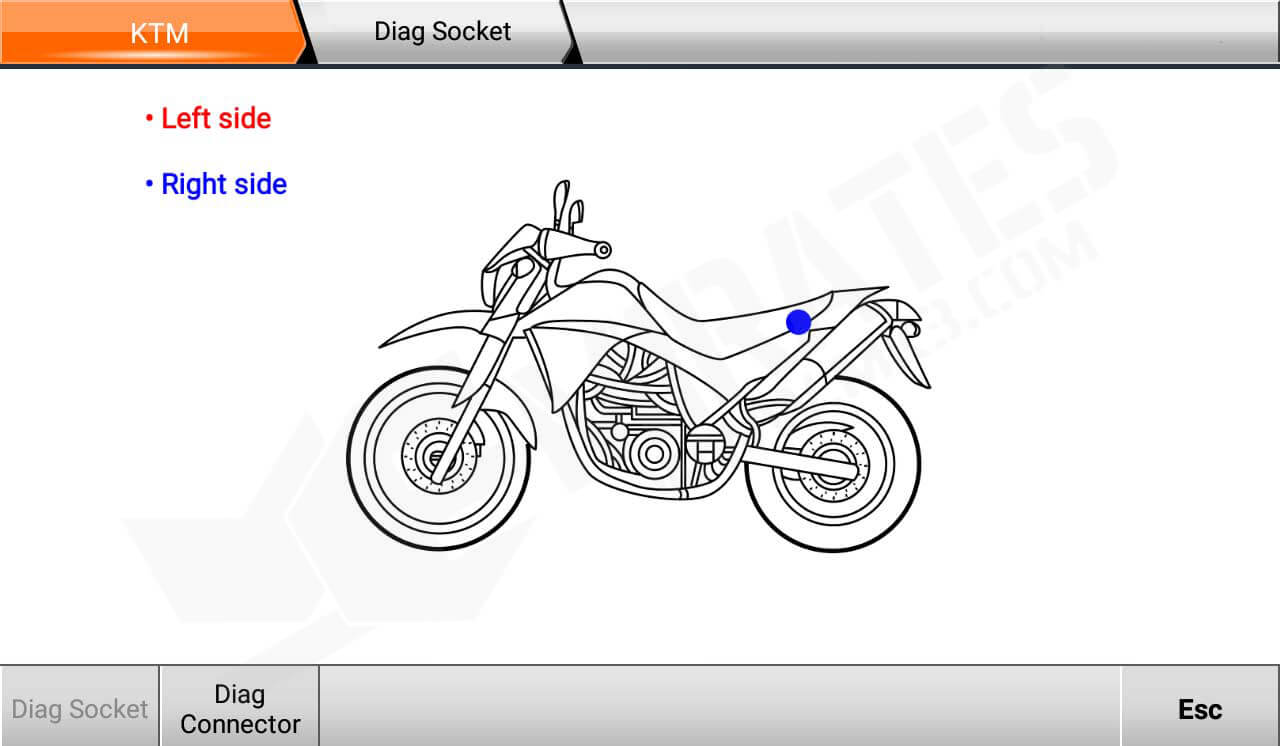

6) Diag socket / Diag Connector Location

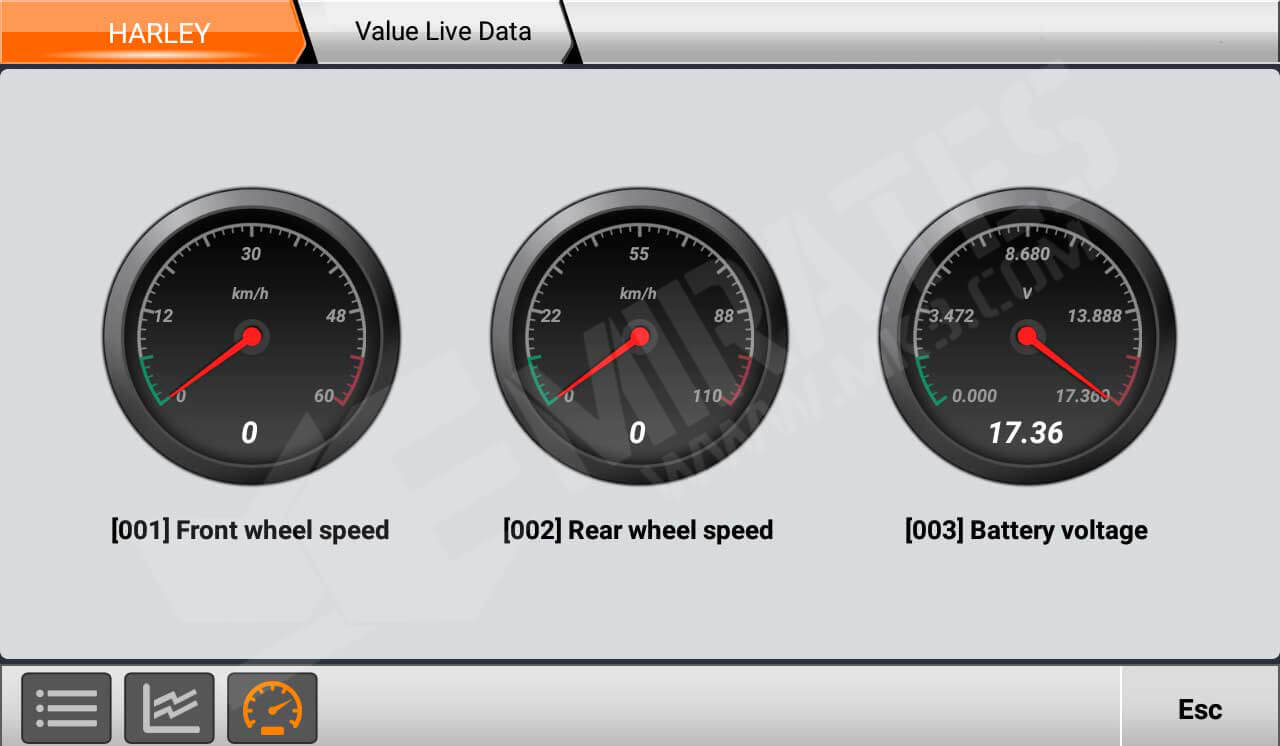

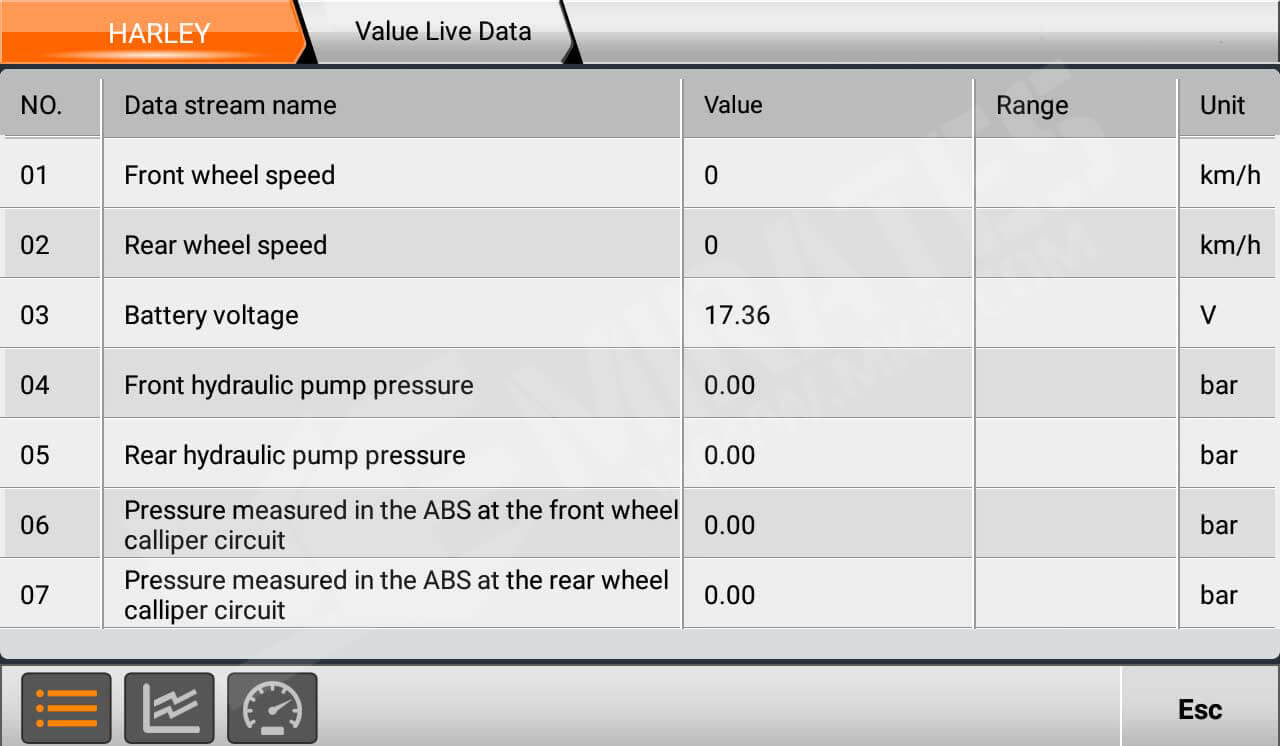

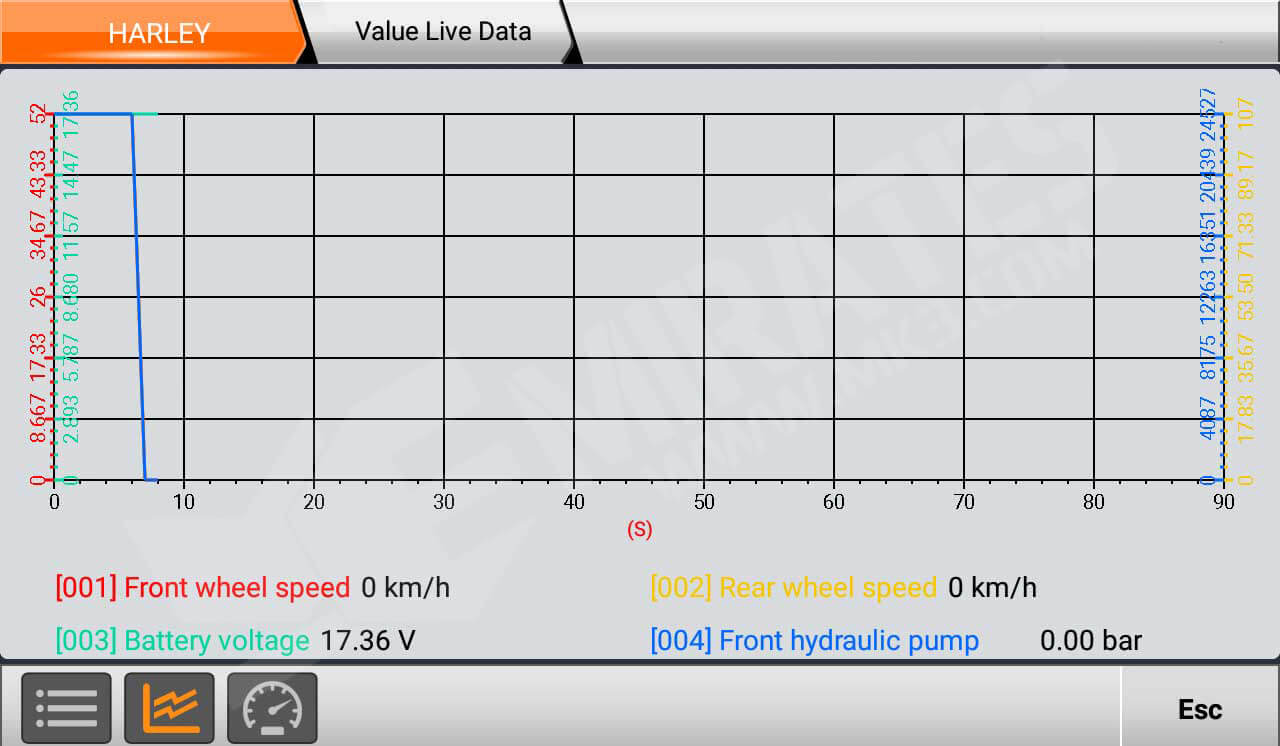

7) Data Flow Text/ Waveform Diagram /Instrument Diagram

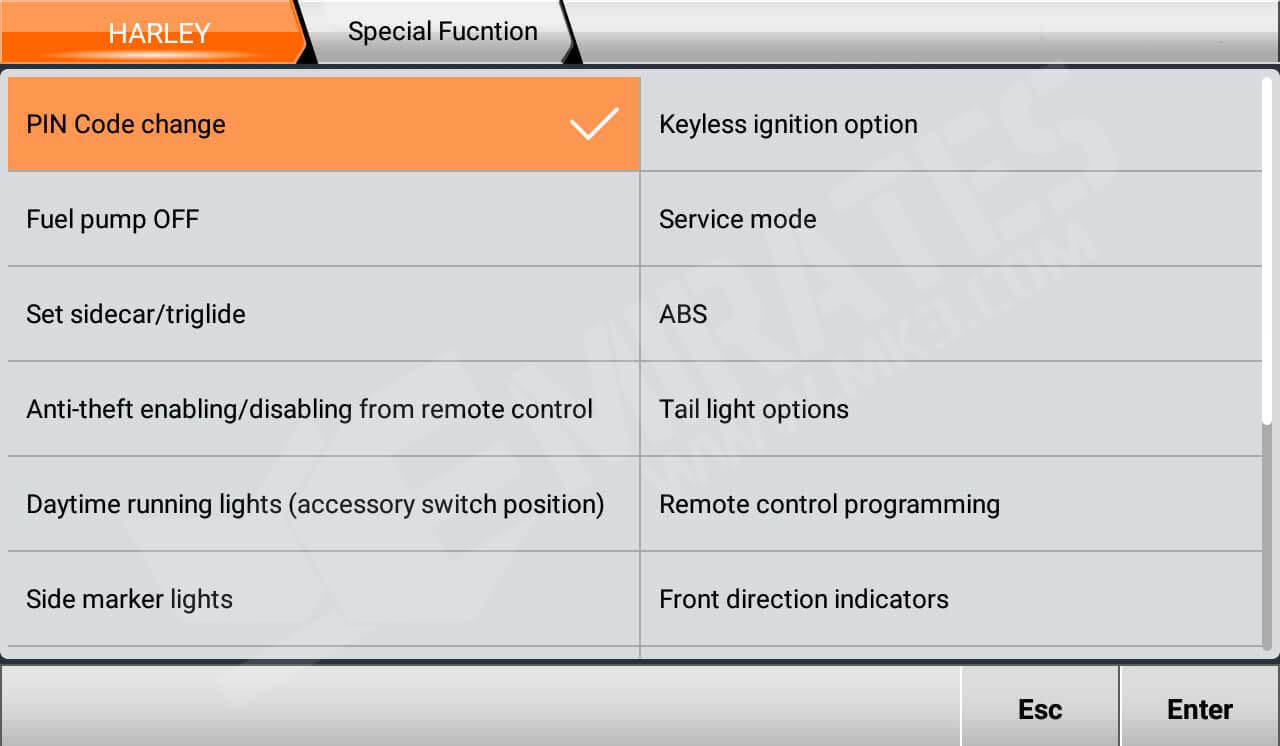

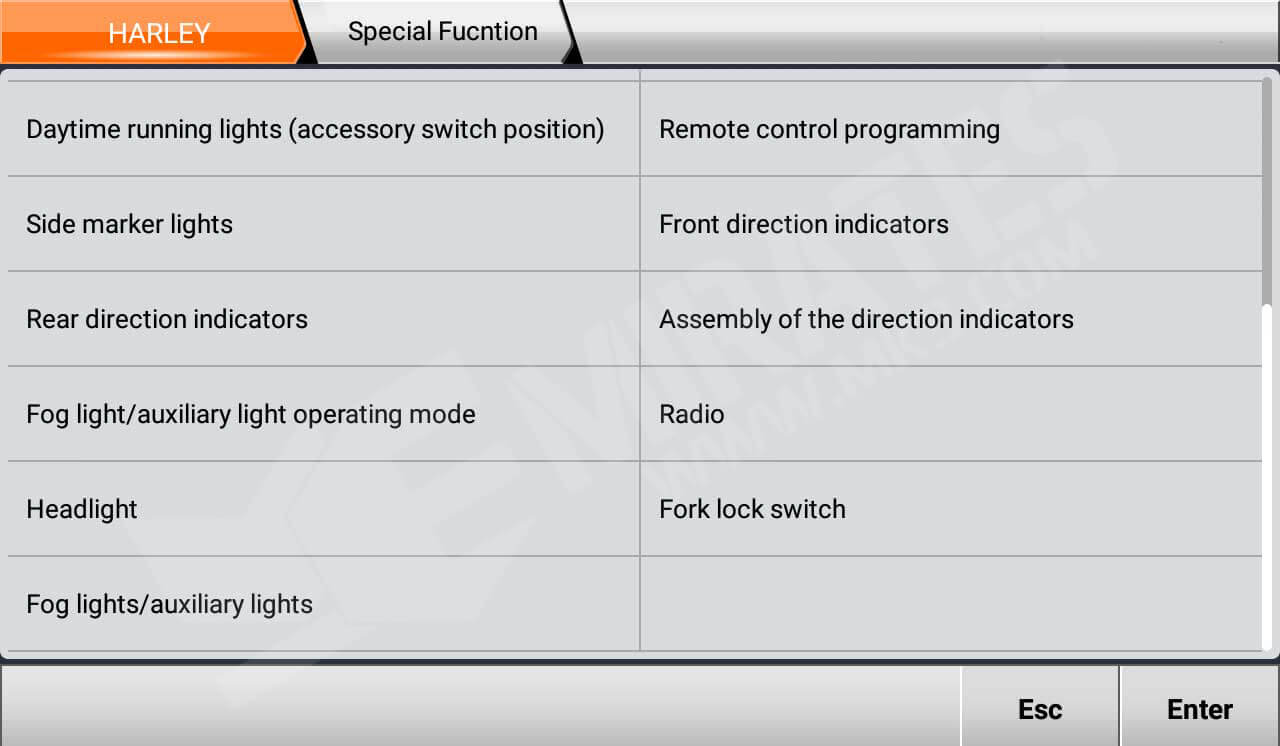

8) Special Function-Harley

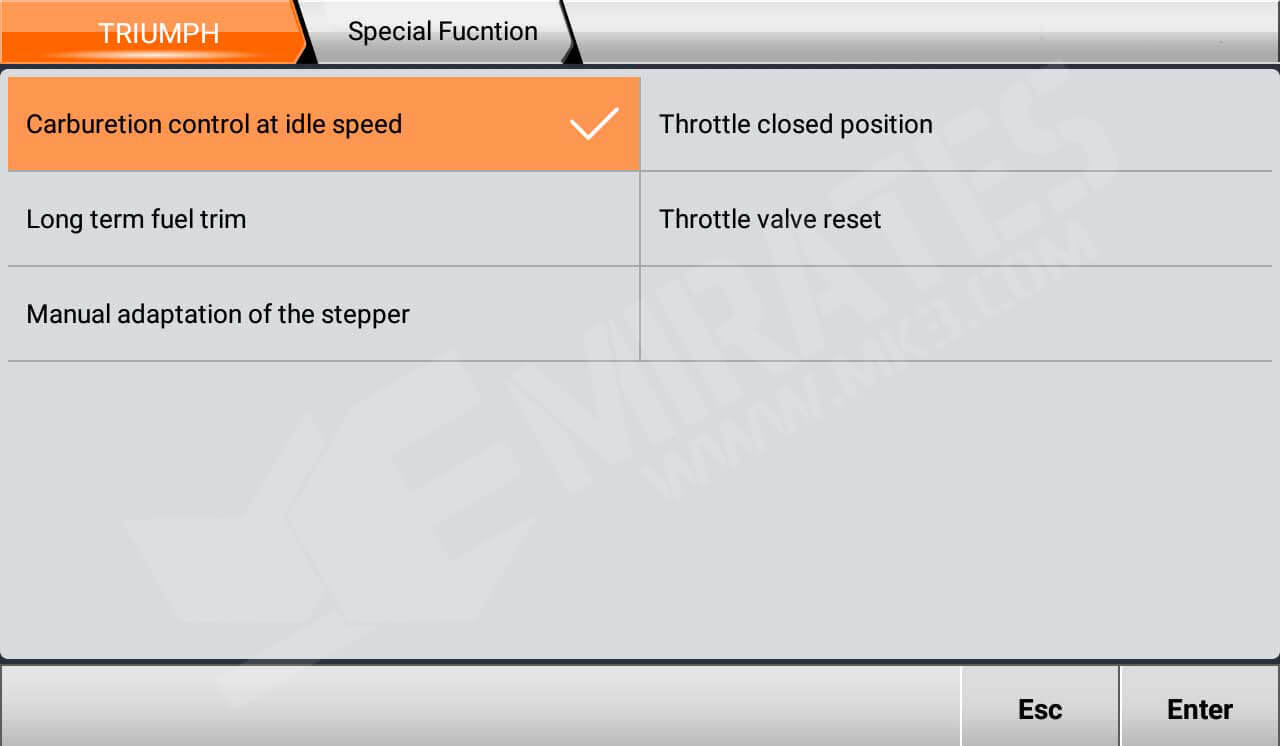

9) Special Function-Triumph

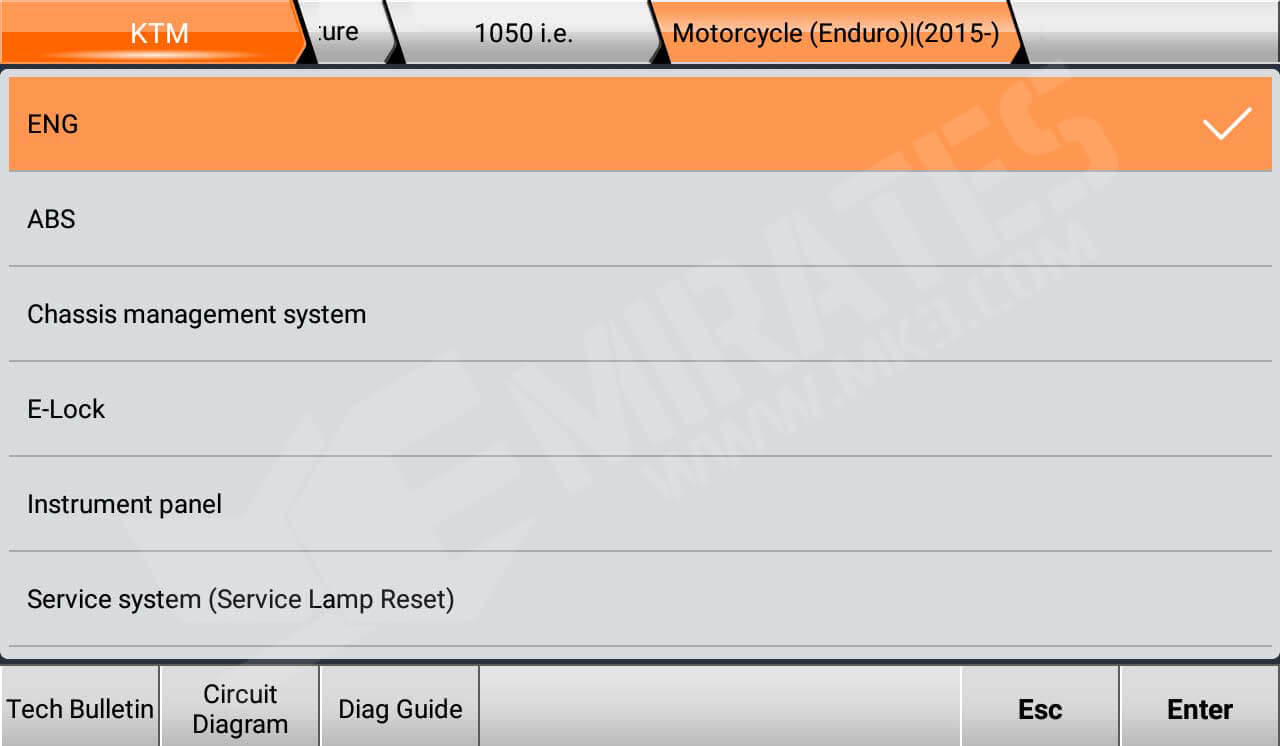

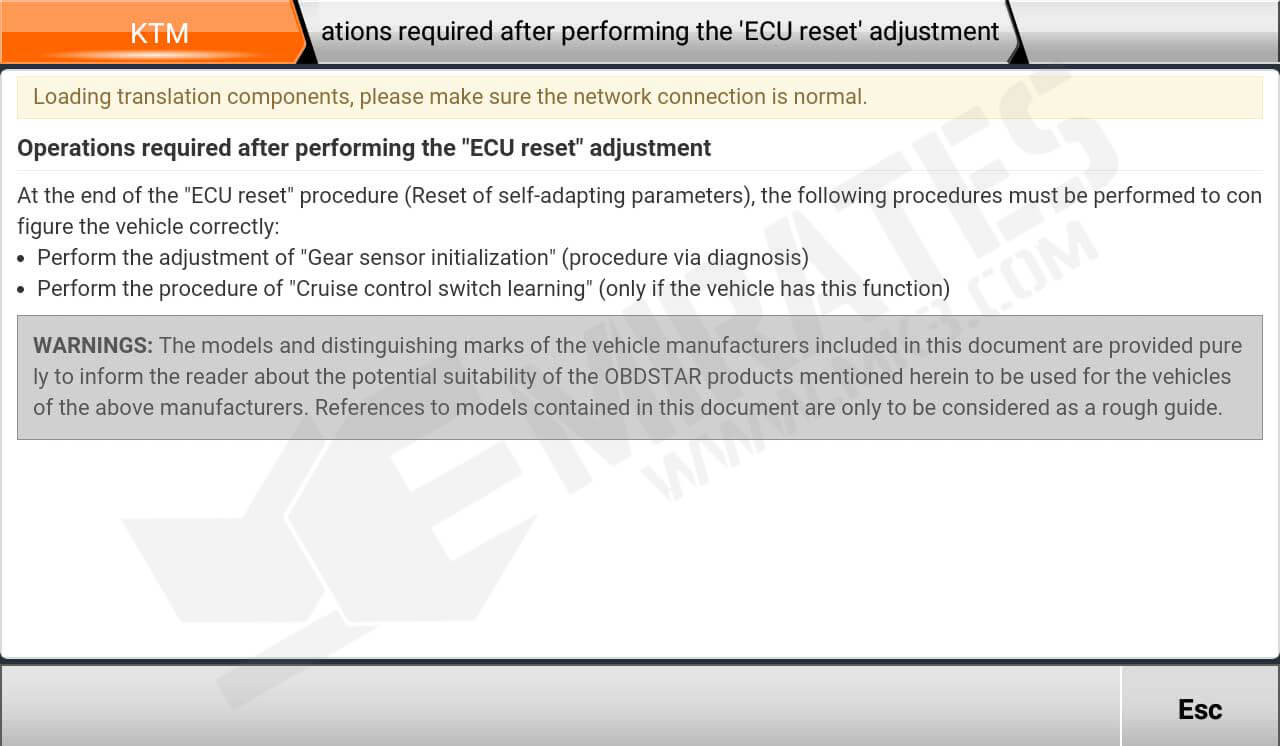

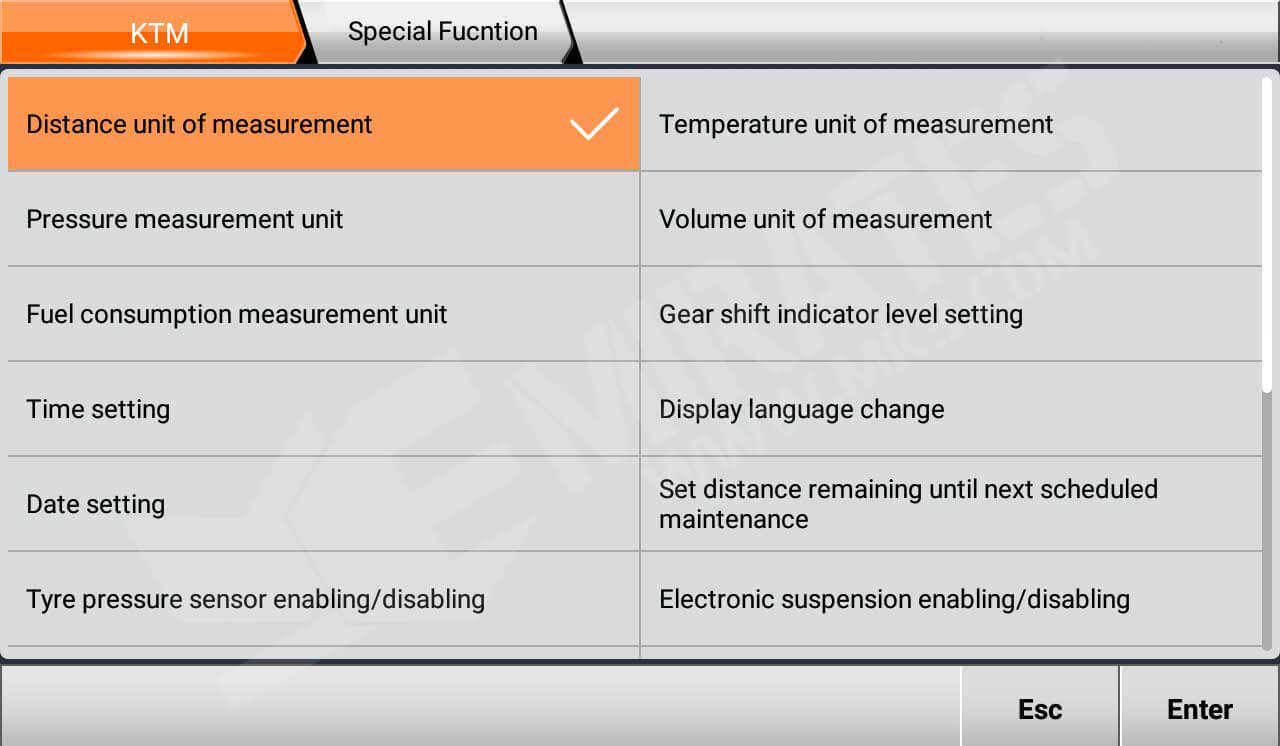

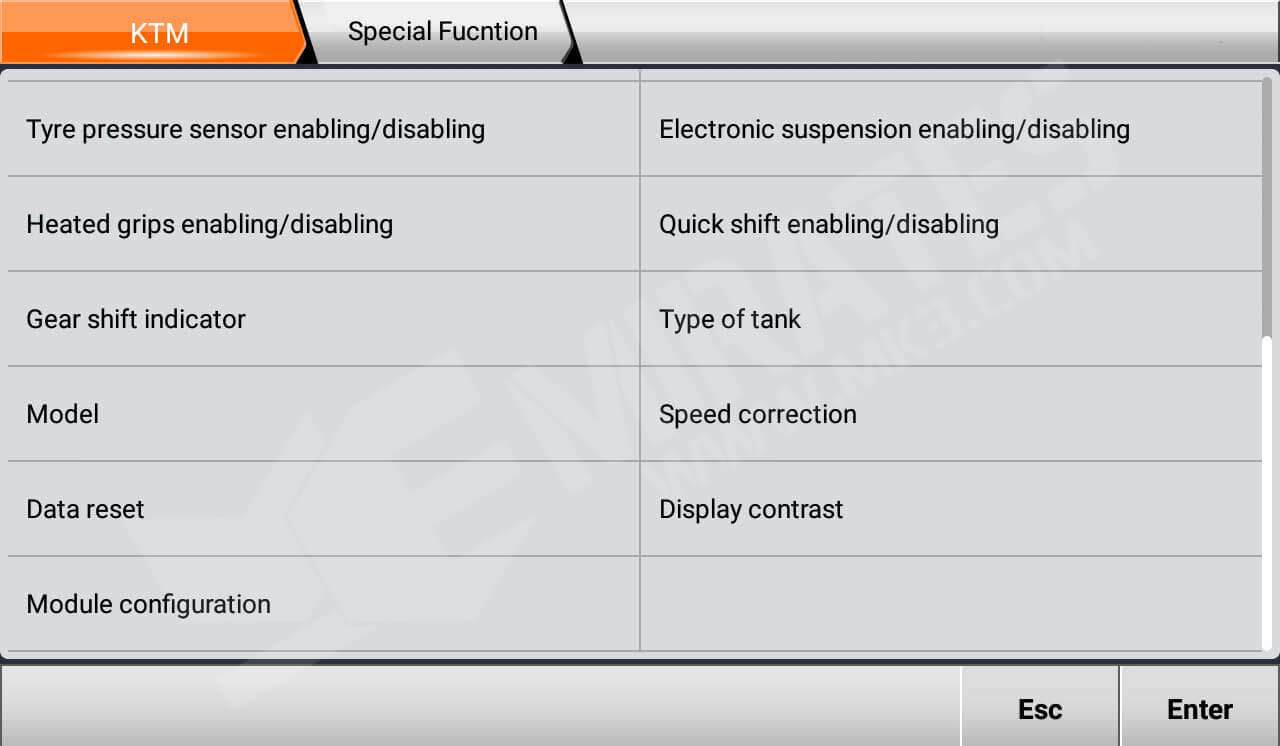

10) Special Function-KTM

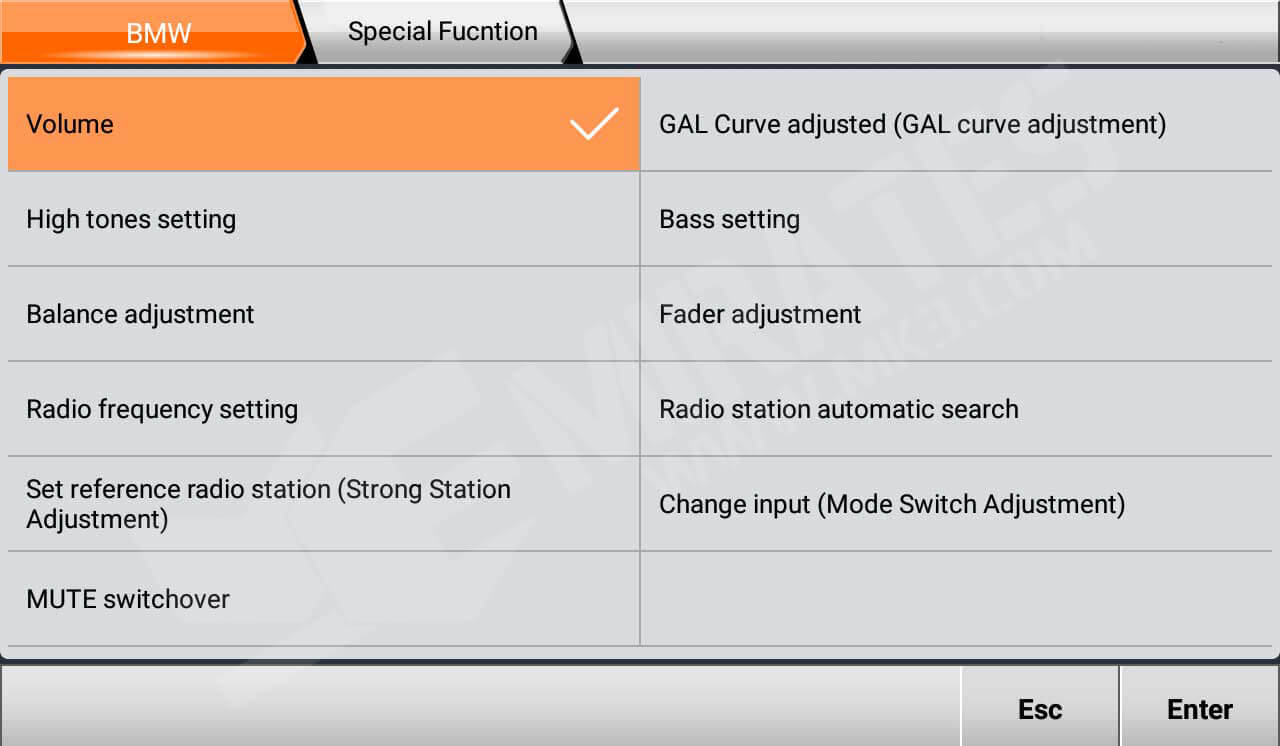

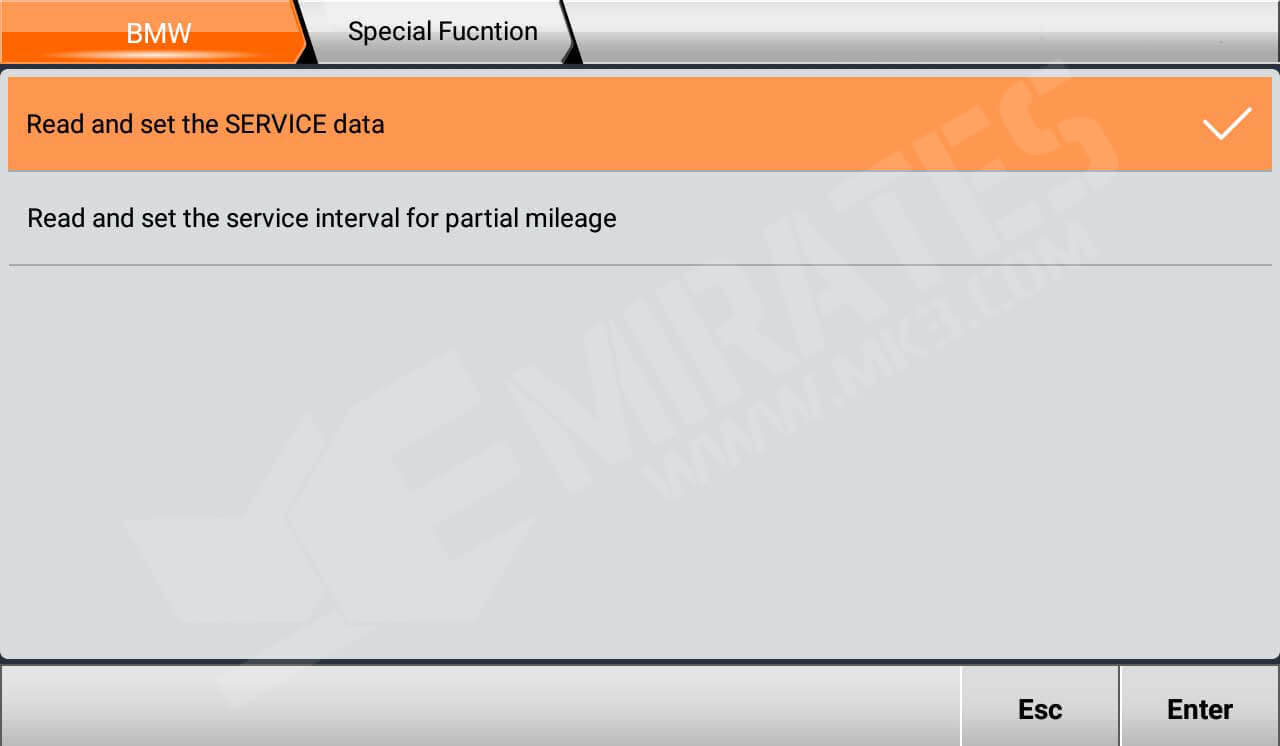

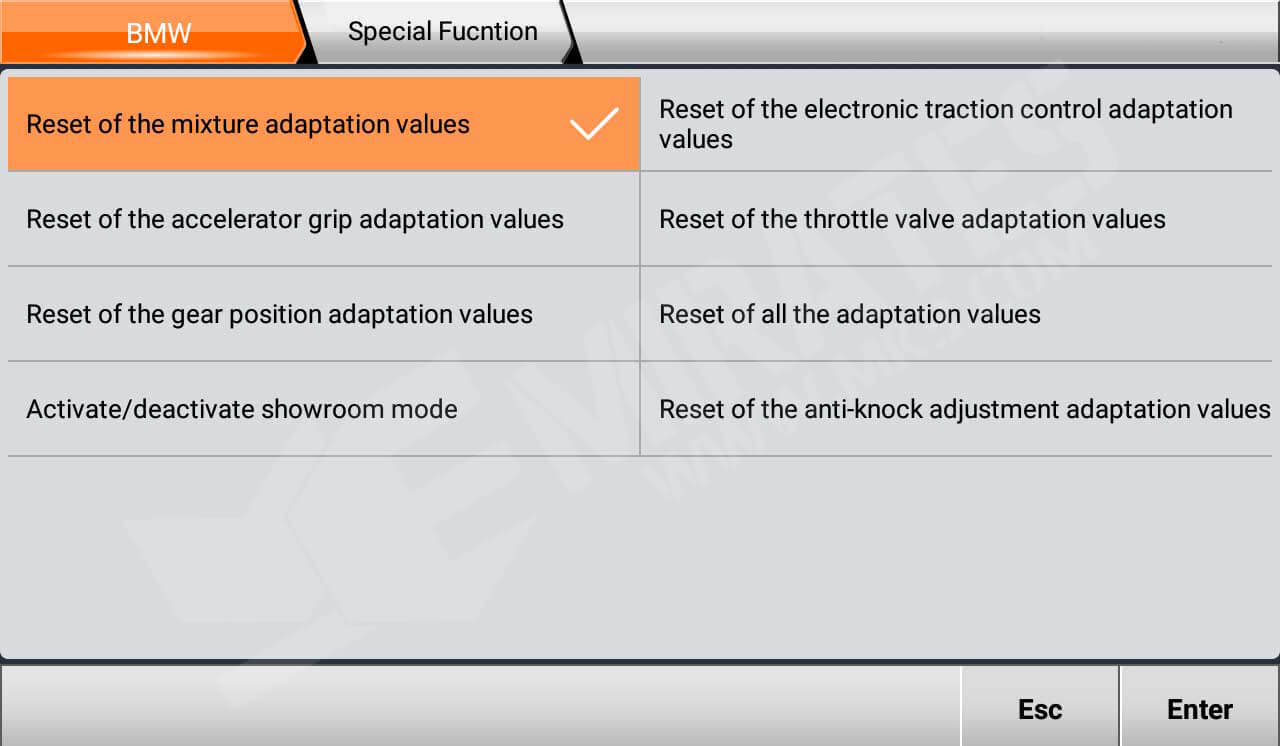

11) Special Function-BMW

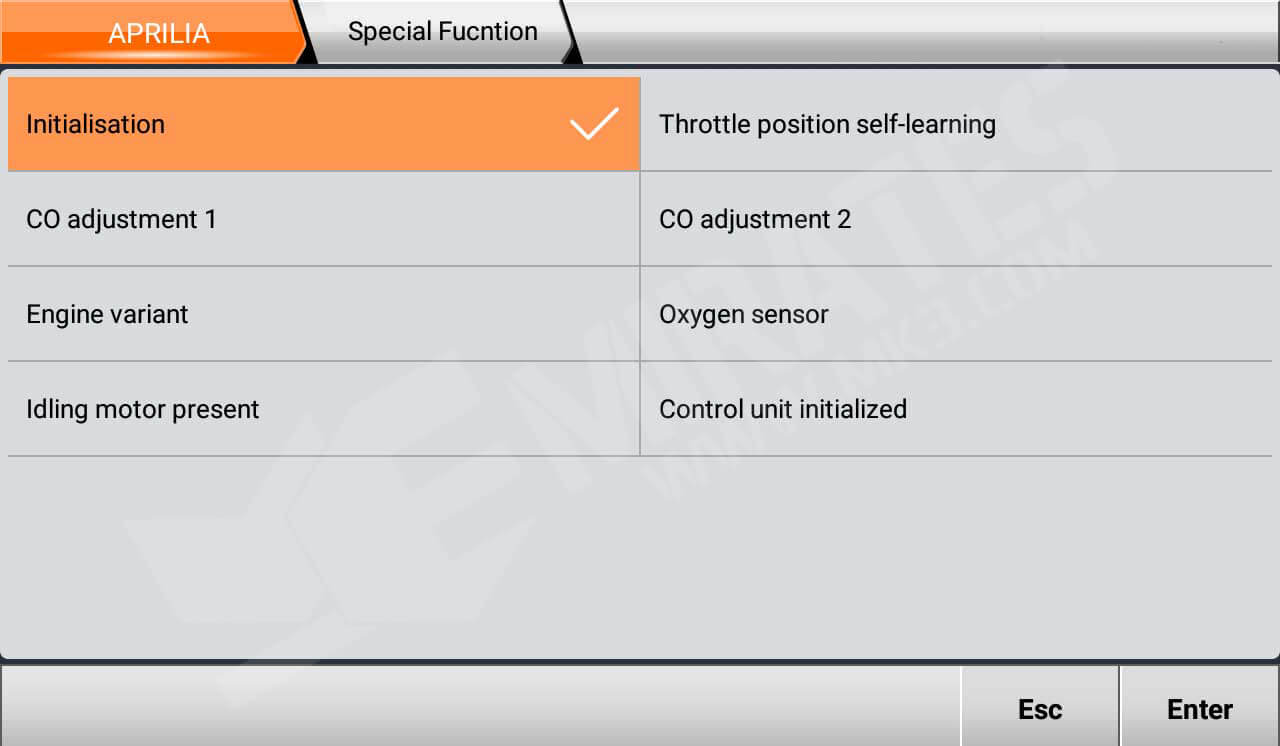

12) Special Function-Aprilia

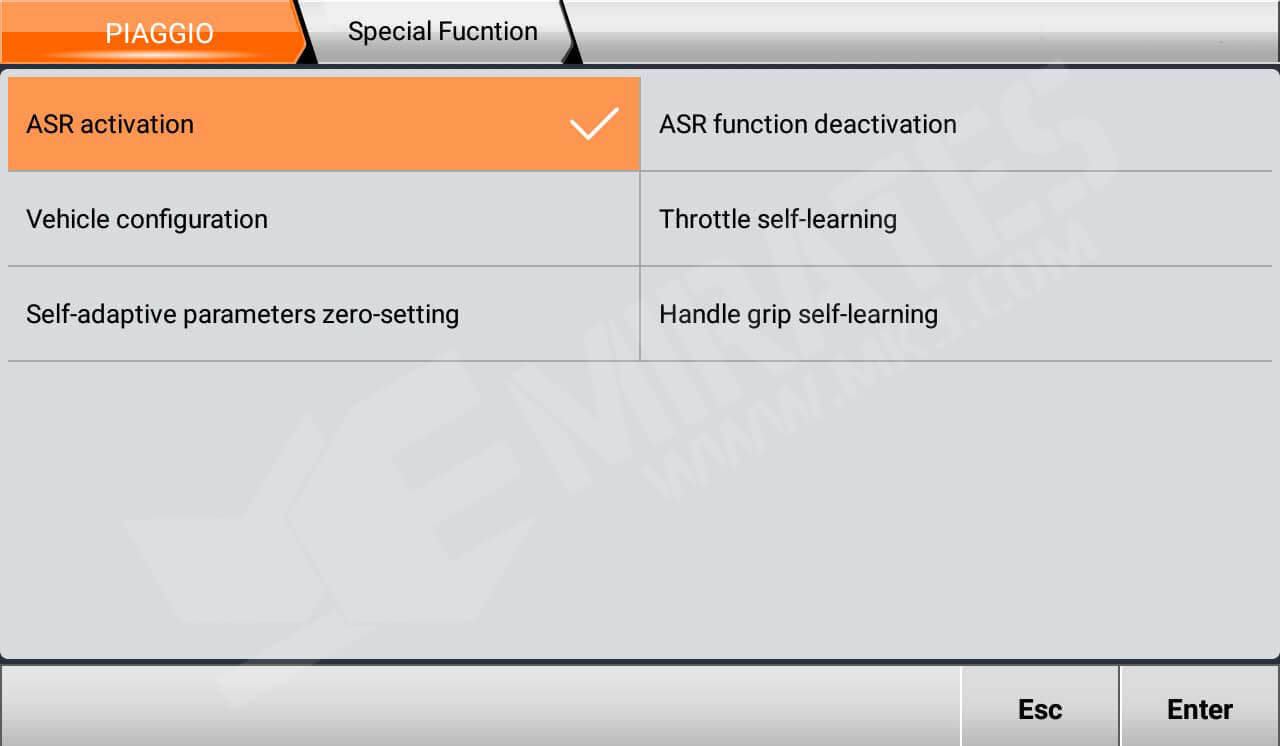

13) Special Function-Piaggio

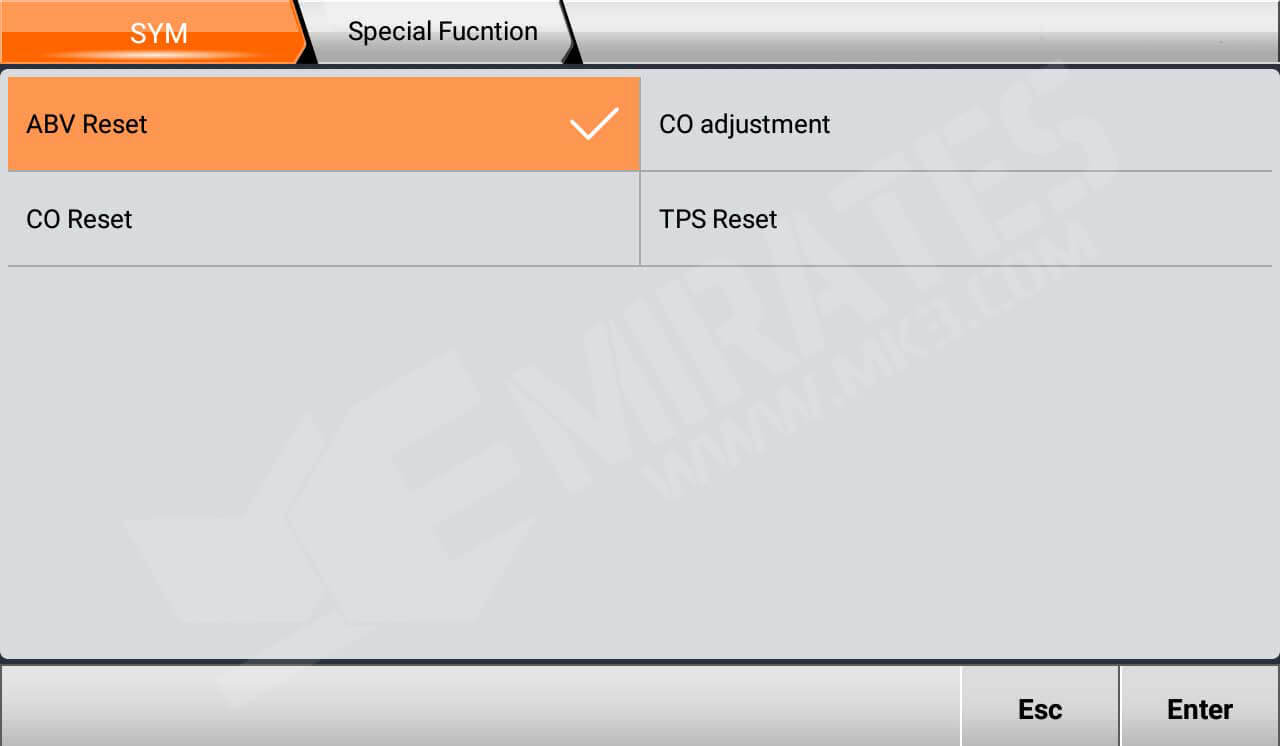

14) Special Function-SYM

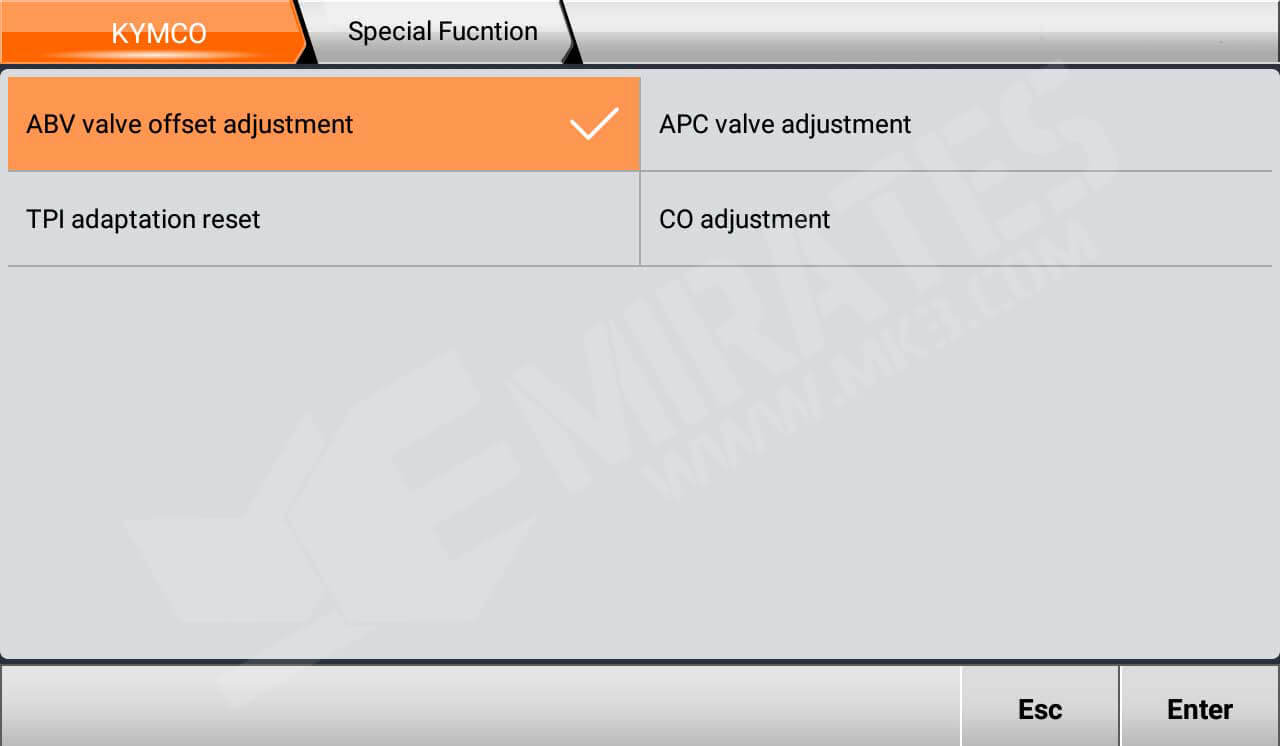

15) Special Function-KYMCO

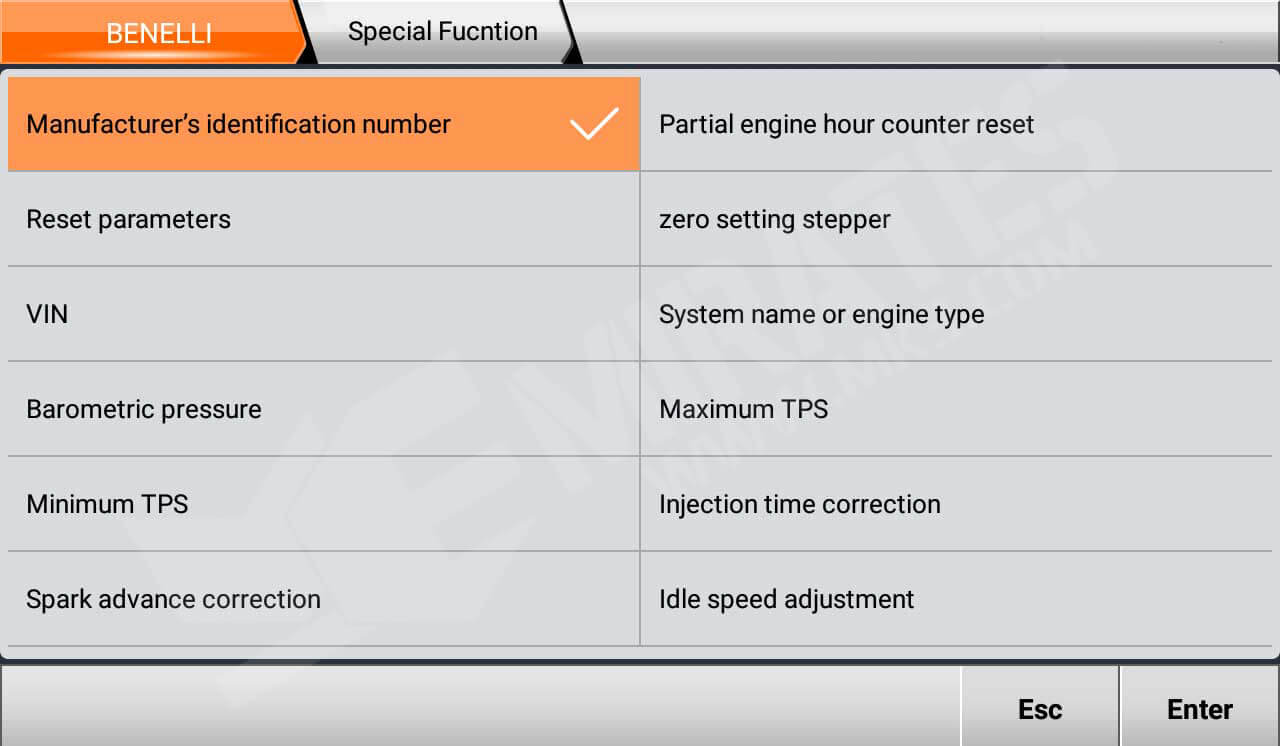

16) Special Function-BENELLI

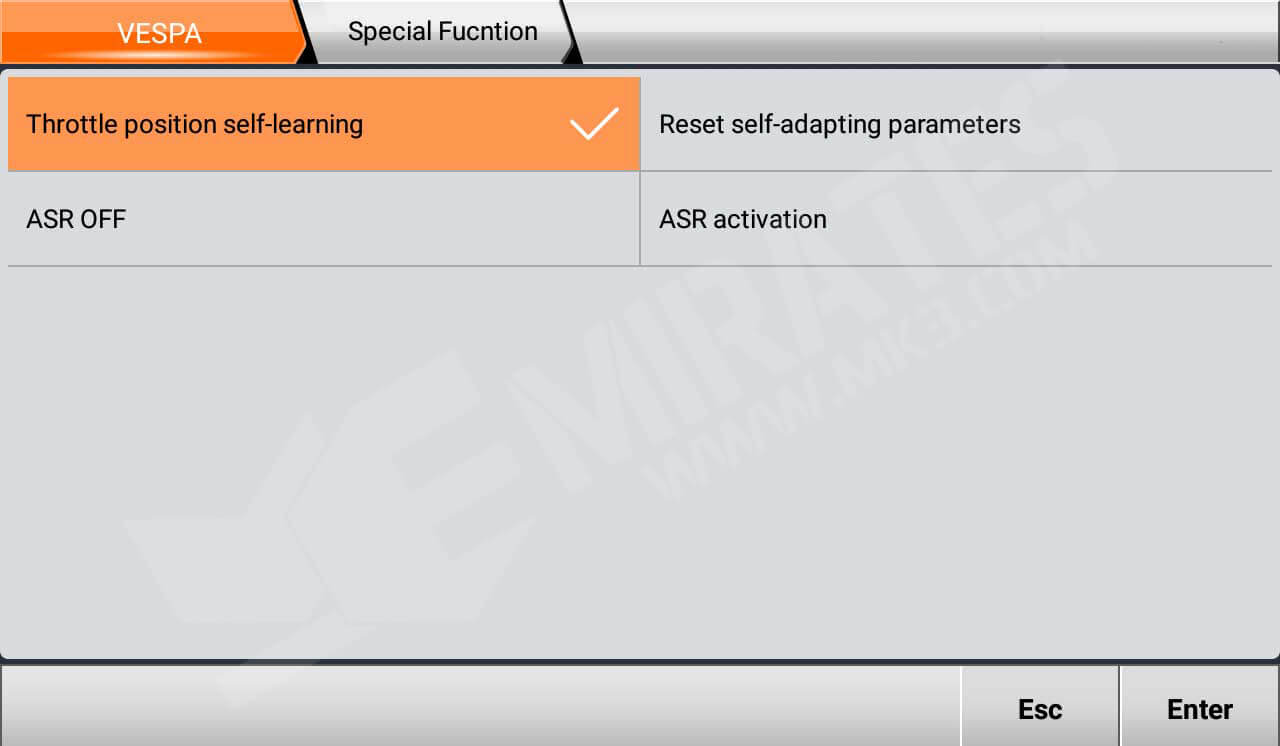

17) Special Function-VESPA

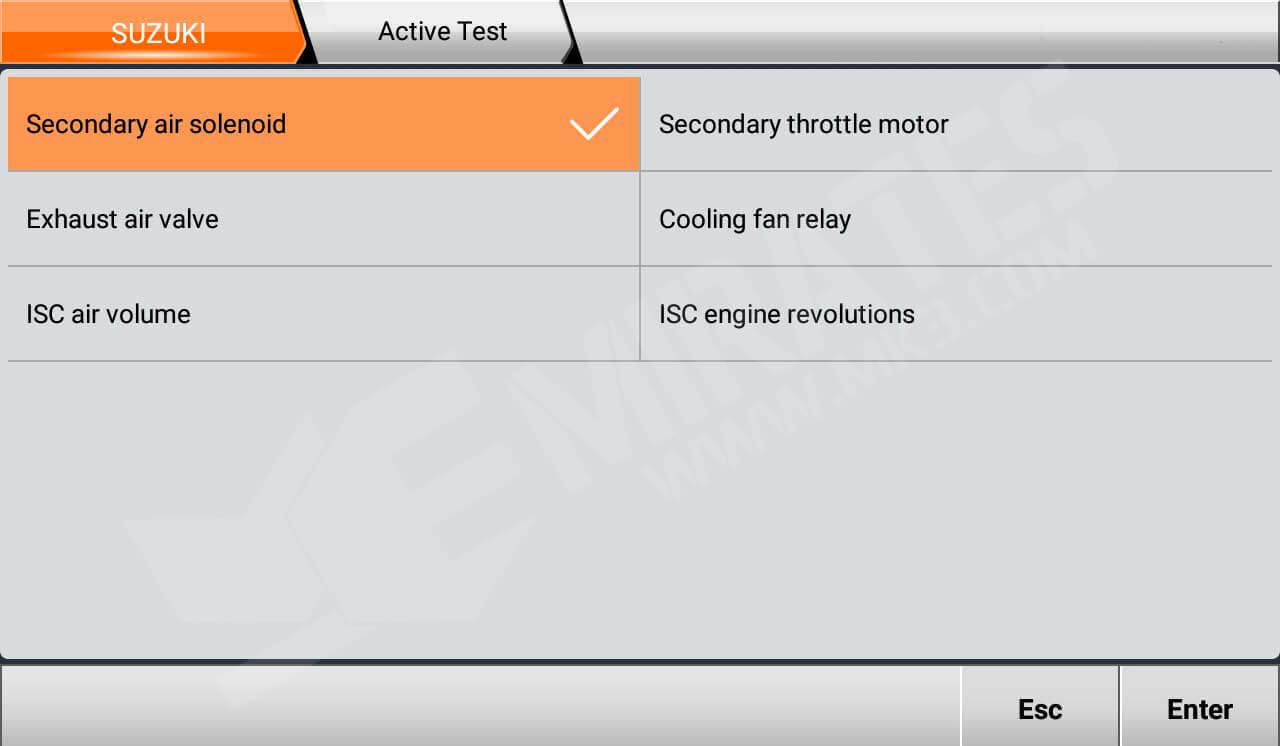

18) Special Function-SUZUKI

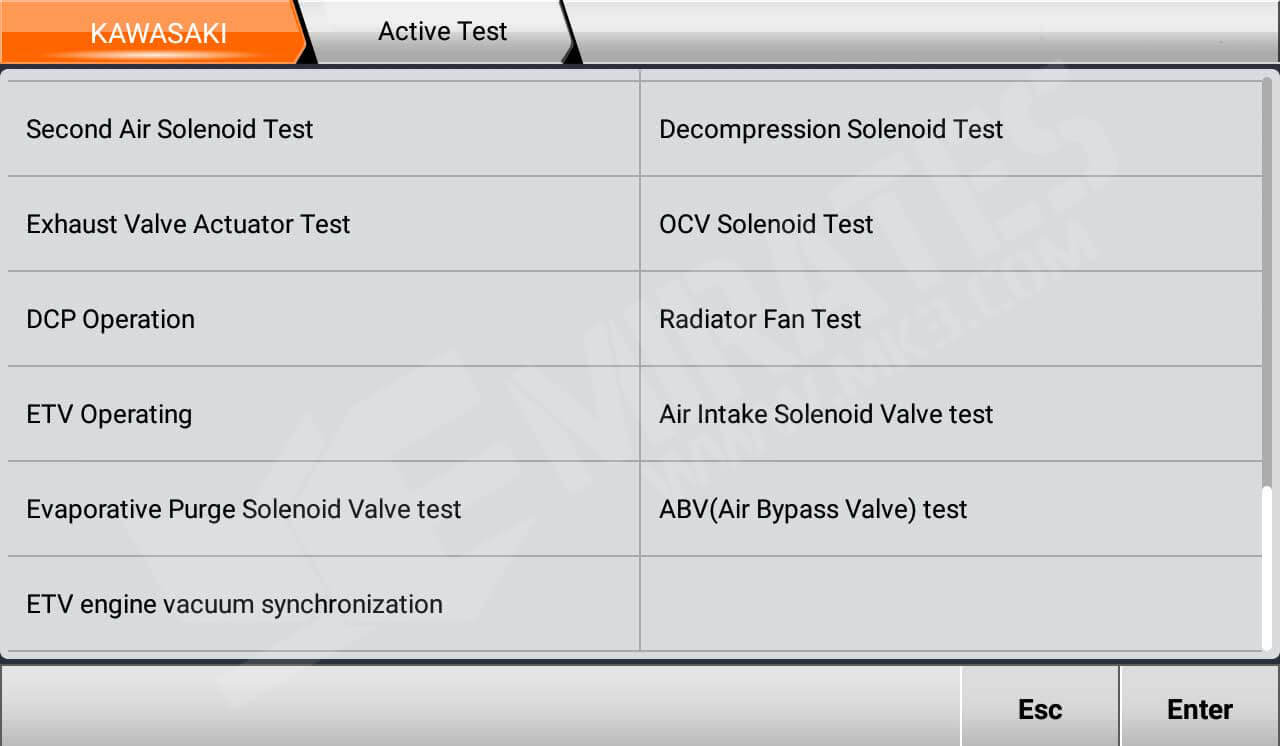

19) Special Function-KAWASAKI

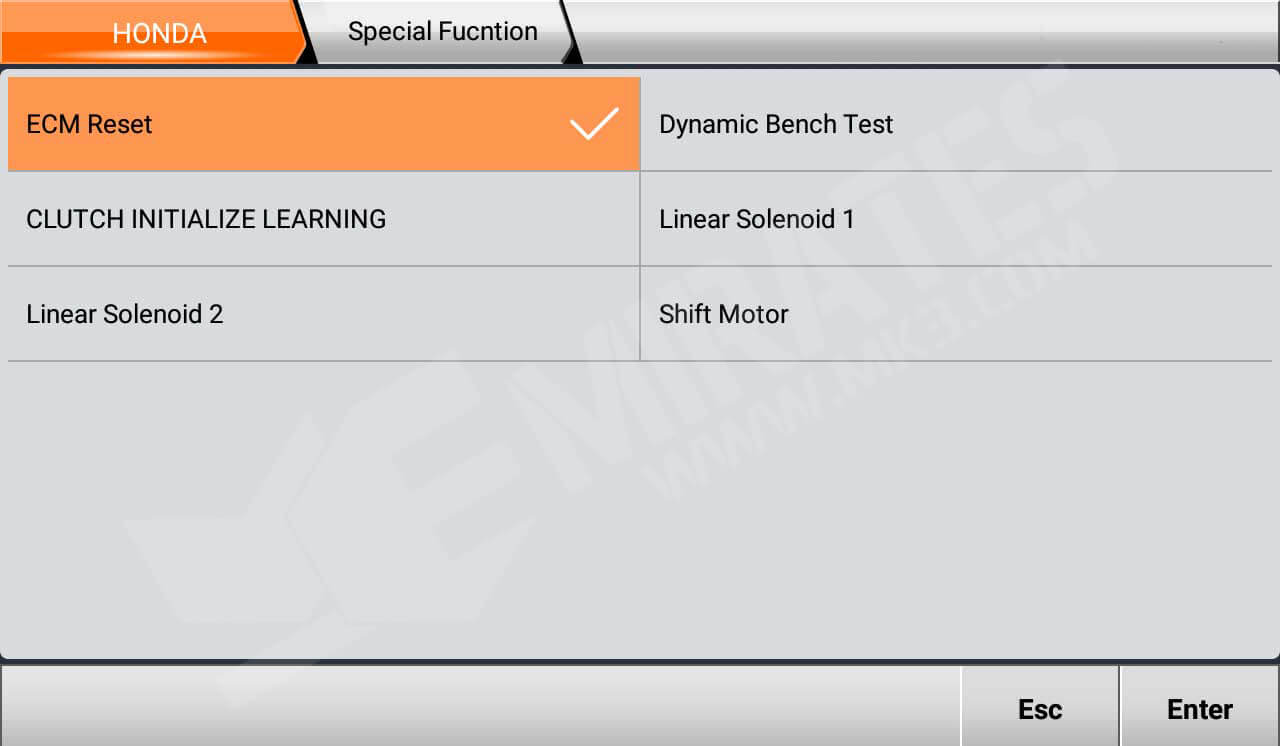

20) Special Function-HONDA

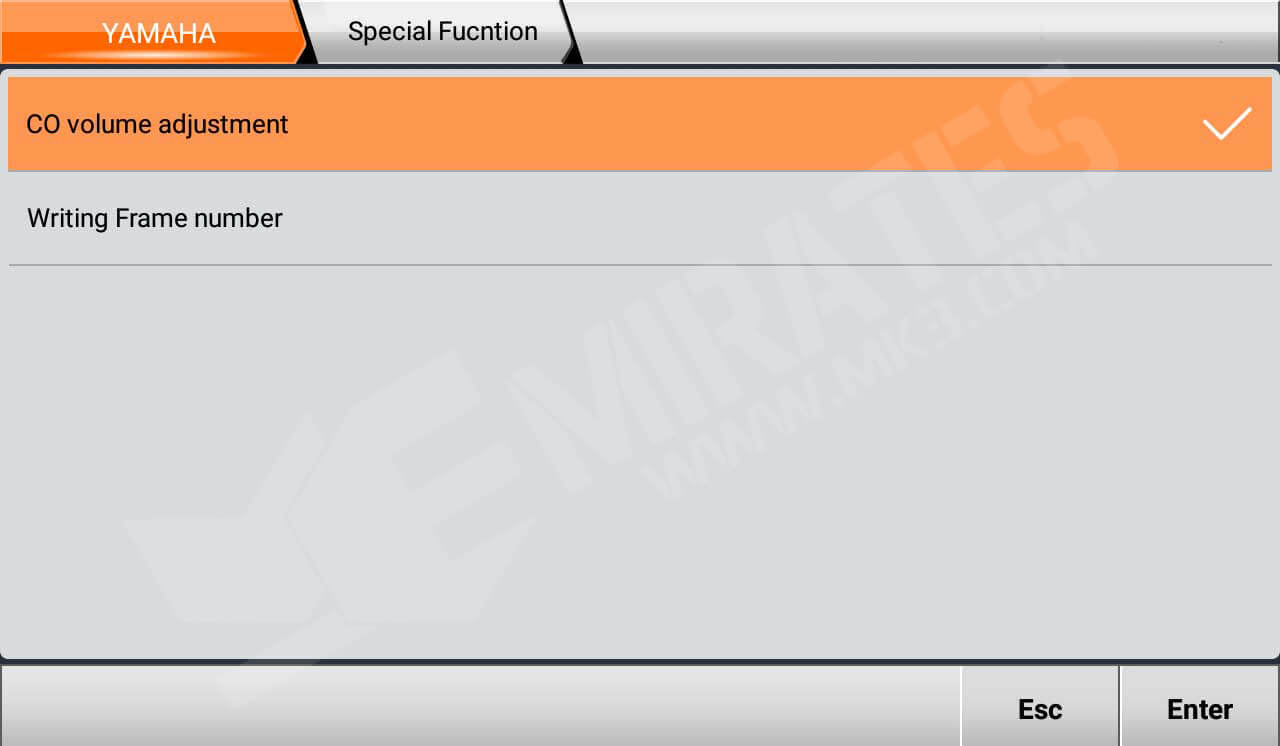

21) Special Function-YAMAHA



OBDStar MS80 Functions:

MS80 FUNCTION
					Immobilizer	Europe	TRIUMPH		√
							GILERA		√
PEUGEOT		√
PIAAGIO		√
DUCATI		√
VESPA		√
America	HARLEY		√
Motorcycle diagnosis	Asia	HONDA		√
		KAWASAKI		√
		KYMCO		√
		SUZUKI		√
		SYM		√
		YAMAHA		√
		MONTESA		√
		PGO		√
		HARTFORD		√
		AEON		√
		BENELLIDSK		√
	Europe	APRILIA		√
		BENELLI		√
		BMW		√
		DUCATI		√
		KTM		√
		PIAGGIO		√
		TRIUMPH		√
		VESPA		√
		MALAGUTI		√
		GASGAS		√
		GILERA		√
		GUZZI		√
		AGUSTA		√
		DERBI		√
	Ameria	HARLEY		√
		INDIAN		√
		VICTORY		√
		BRP		√
	OBD	OBD		√
Motorboat	Asia	HONDABOAT		√



OBDStar MS80 Specification:

Operation system	Android 5.1.1
CPU	Exynos4418  Dual Core ARM Cortex A9
Battery	3700mA, rechargeable polymer lithium battery
Extension memory card	32G Micro SD (TF) card supported
Storage capacity	32GB
LCD	8.0 inch
LCD resolution	1280*800
Touch screen	capacitive touch screen
Wifi	supported

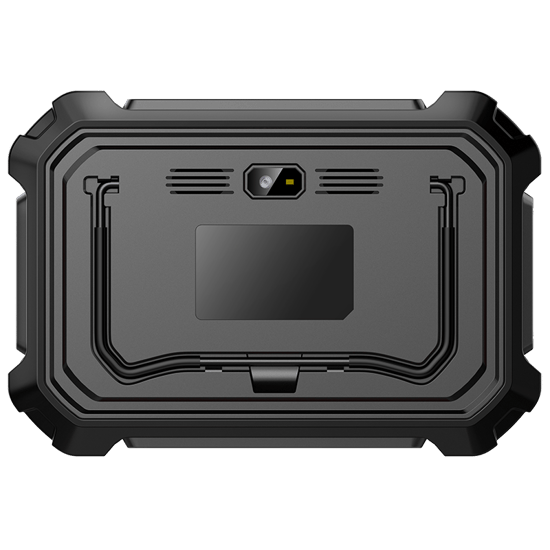

Camera	5 mega rear view camera
Working temperature	-10℃～55℃（14℉～131℉）
Storage temperature	-20℃～70℃（-4℉～158℉）
Weight	1kg（Main Unit)
Dimension	254mm*174*mm*35mm



OBDStar MS80 vs MS50:

Item			OBDSTAR MS80	OBDSTAR MS50
Diag Cable			High Quality，low price	High Quality，low price
Main machine			8 inch android tablet	5 inch android tablet，OBD charge
Plastic Cover			Industrial Design	Industrial Design
Smart switch pin			Highly integrated diagnostic connector	Highly integrated diagnostic connector
Diag Connector			OBD adapter, no need to disassemble	OBD adapter, no need to disassemble
Operation System			Android	Android
Wifi			one button click	one button click
Language			English and more local language	English and more local language
Remote assistance			Yes, engineer can assistant via remote control software	Yes, engineer can assistant via remote control software
IMMO	European	TRIUMPH	√
		GILERA	√
		PEUGEOT	√
		PIAAGIO	√
		DUCATI	√
		VESPA	√
	USA	HARLEY	√
Motor Diagnosis	Asia	HONDA	√	√
		KAWASAKI	√	√
		KYMCO	√	√
		SUZUKI	√	√
		SYM	√	√
		YAMAHA	√	√
		MONTESA	√
		PGO	√	√
		HARTFORD	√	√
		AEON	√	√
		BENELLIDSK	√
	European	APRILIA	√
		BENELLI	√	√
		BMW	√
		DUCATI	√
		KTM	√	√
		PIAGGIO	√	√
		TRIUMPH	√
		VESPA	√	√
		MALAGUTI	√
		GASGAS	√
		GILERA	√
		GUZZI	√
		AGUSTA	√
		DERBI	√
	USA	HARLEY	√
		INDIAN	√
		VICTORY	√
		BRP	√
OBD	OBD-II	OBD	√	√
Motorboat diagnosis	Asia	HONDABOAT	√

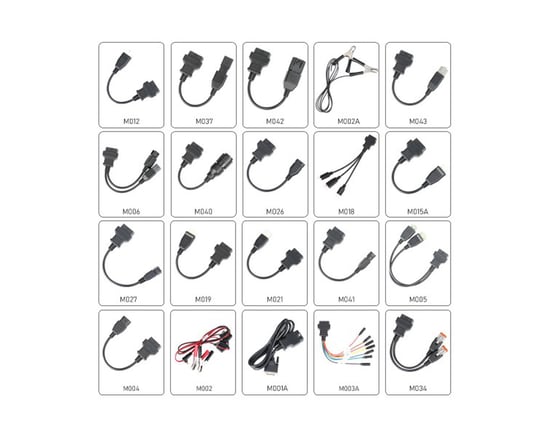

Accessories
M001		Main Cable	√	√
M002		Power Cable	√	√
M002A		GND	√
M003A		Multi functional jumper	√	√
M004		APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA	√	√
M005		KAWASAKI	√	√
M006		KAWASAKI	√
M012		SUZUKI	√	√
M015A		HONDA/HONDA MONTESA	√	√
M018		YAMAHA	√	√
M019		KTM	√
M021		AEON/BENELLI/BENELLI DSK	√	√
M026		SYM	√	√
M027		KYMCO/KAWASAKI	√	√
M028		pgo		√
M030		HARDFORD		√
M034		HARLEY-DAVIDSON	√
M037		DUCATI	√
M040		BMW	√
M041		EURO V	√	√
M042		INDIAN/VICTORY	√
M043		BRP	√
P001		IMMO KIT(Optional)
12V2A		CHARGER	√	√
Support system			1. Comparable to the original factory 2. Full coverage of engine, ABS, traction control, airbag, instrumentation, power steering, alarm, chassis management, body, headlights, battery management, tire pressure, frame, anti-theft, suspension, radio, handle, and other systems	1. Comparable to the original factory 2. Full coverage of engine, ABS, traction control, airbag, instrumentation, power steering, alarm, chassis management, body, headlights, battery management, tire pressure, frame, anti-theft, suspension, radio, handle, and other systems
Advanced Function			Comparable to the original factory (automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit Settings, EOL mode, transmission memory reset, clear computer memory, etc.)	Comparable to the original factory (automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit Settings, EOL mode, transmission memory reset, clear computer memory, etc.)
Diagnostic connector location			√	√
Diagnostic connector Display			√	√
Technical Bulletin			√	√
Fault Guidance			√	√
Data Flow Text/ Waveform Diagram			√	√
Instrument Diagram			√	√
Any menu back			√	√
Interactive Circuit diagram			√	--
Components Description			√	--

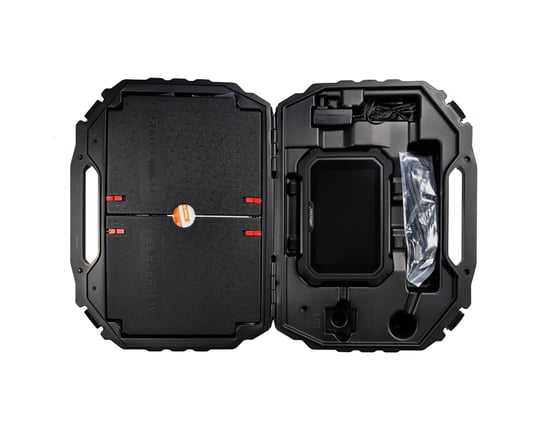

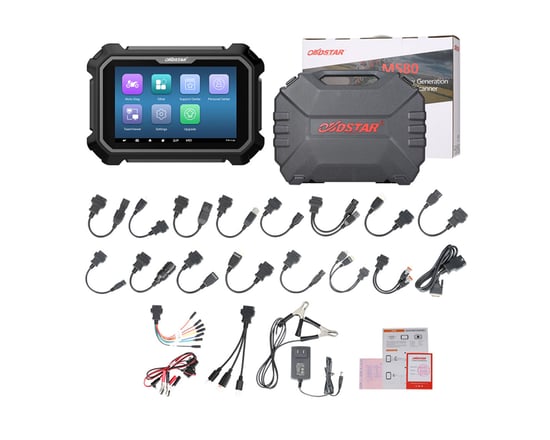

OBDStar MS80 Package includes:

1. 1pc x M001         Main Cable
2. 1pc x M002         Power Cable
3. 1pc xM002A       GND
4. 1pc x M003A       Multi functional jumper
5. 1pc x M004         APRILIA/ DUCATI/ HONDA/ KTM/ PIAGGIO/ VESPA/ YAMAHA
6. 1pc x M005         KAWASAKI
7. 1pc x M006         KAWASAKI
8. 1pc x M012         SUZUKI
9. 1pc x M015A       HONDA/HONDA MONTESA
10. 1pc x M018        YAMAHA
11. 1pc x M019        KTM
12. 1pc x M021        AEON/BENELLI/BENELLI DSK
13. 1pc x M026        SYM
14. 1pc x M027        KYMCO/KAWASAKI
15. 1pc x M034        HARLEY-DAVIDSON
16. 1pc x M037        DUCATI
17. 1pc x M040        BMW
18. 1pc x M041        EURO V
19. 1pc x M042        INDIAN/VICTORY
20. 1pc x M043        BRP
21. 1pc x P001         IMMO KIT(Optional)
22. 1pc x 12V2A      CHARGER
