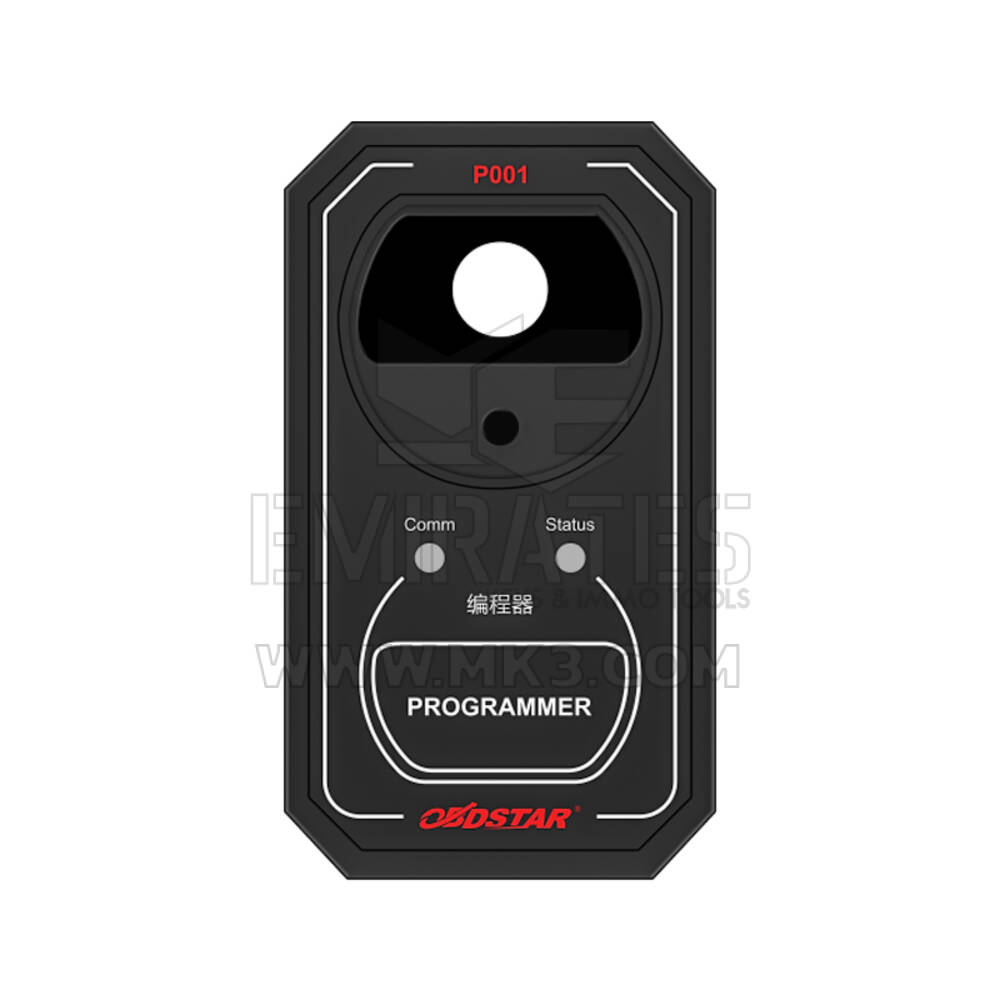

OBDStar P001 Programmer RFID PCF79XX Renew Key EEPROM Adapter for DP Devices

OBDStar P001 Programmer RFID PCF79XX Renew Key EEPROM Adapter for DP Devices

Product Description:

Key Programming / ECU Diagnostics Tools From OBDSTAR with Product Number: MK5791
This Weight Product: 650g

OBDStar P001 Specs:

Manufacturer: OBDSTAR
Color: Black
Condition: New

OBDSTAR P001 Programmer for X300 DP/Key Master DP = EEPROM adapter, RFID adapter and Key Renew adapter 3-in-1

OBDSTAR P001 Programmer Features:

On the basis of original adapter features, P001 programmer, integrated with the EEPROM adapter, RFID adapter and Key Renew adapter, is a multifunctional programmer.
OBDSTAR P001 not only allows  auto technician to reduce cumbersome procedures, but also is compatible with simulated smart keys to realize the Toyota all lost.
OBDSTAR P001 can program keys for REN Talisman/Megane IV/Scenic IV/Espace V used with OBDSTAR Converter.

P001 programmer uses dual coils with stronger signal, supporting a wider range than RFID. It is also required in recent model upgrades, as follow:

• Ferrari 458/F12/F149;
• Maserati mechanical key;
• Fiat 500/Viaggio/Palio/Siena/Boyue/Pailang/Ottimo, etc.
• Iveco
• Alfa Romeo
• Volkswagen MQB
• Toyota  simulated cards
• BMW
• Porsche

Note: OBDSTAR P001 Programmer only works with OBDSTAR X300 DP

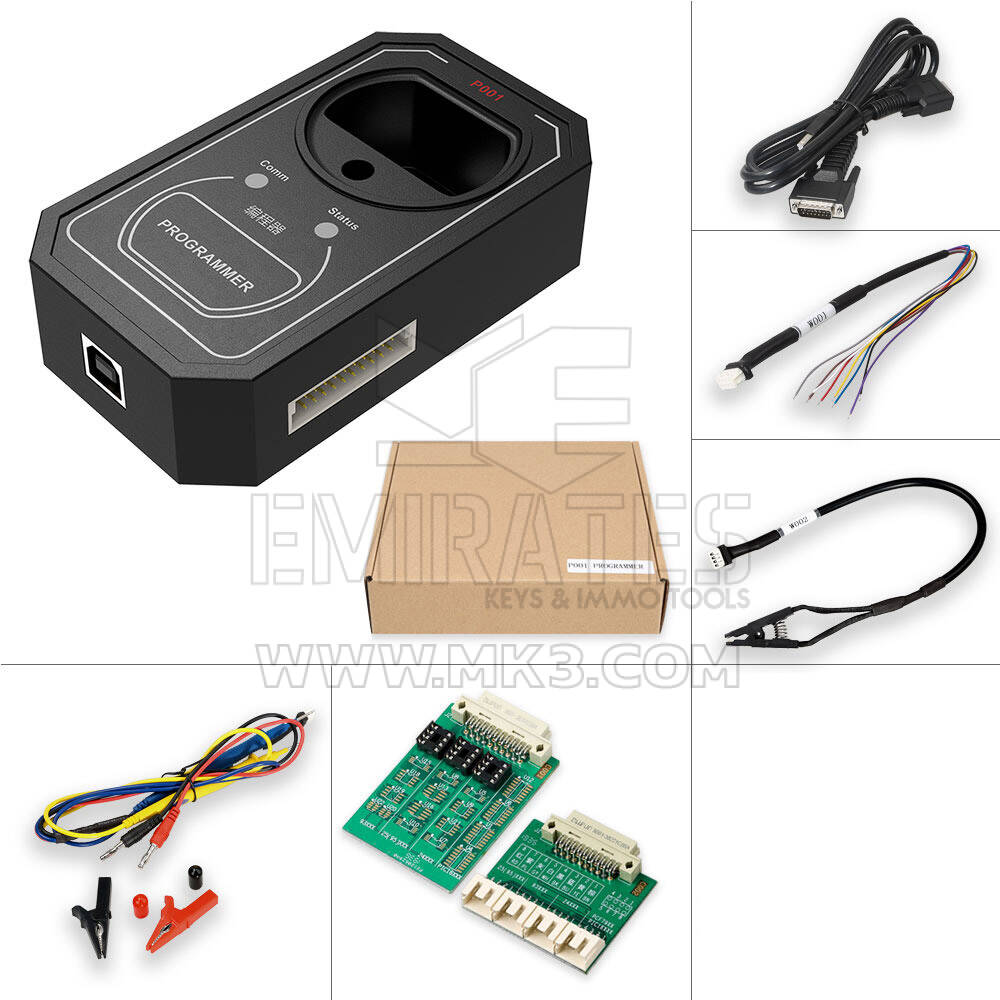

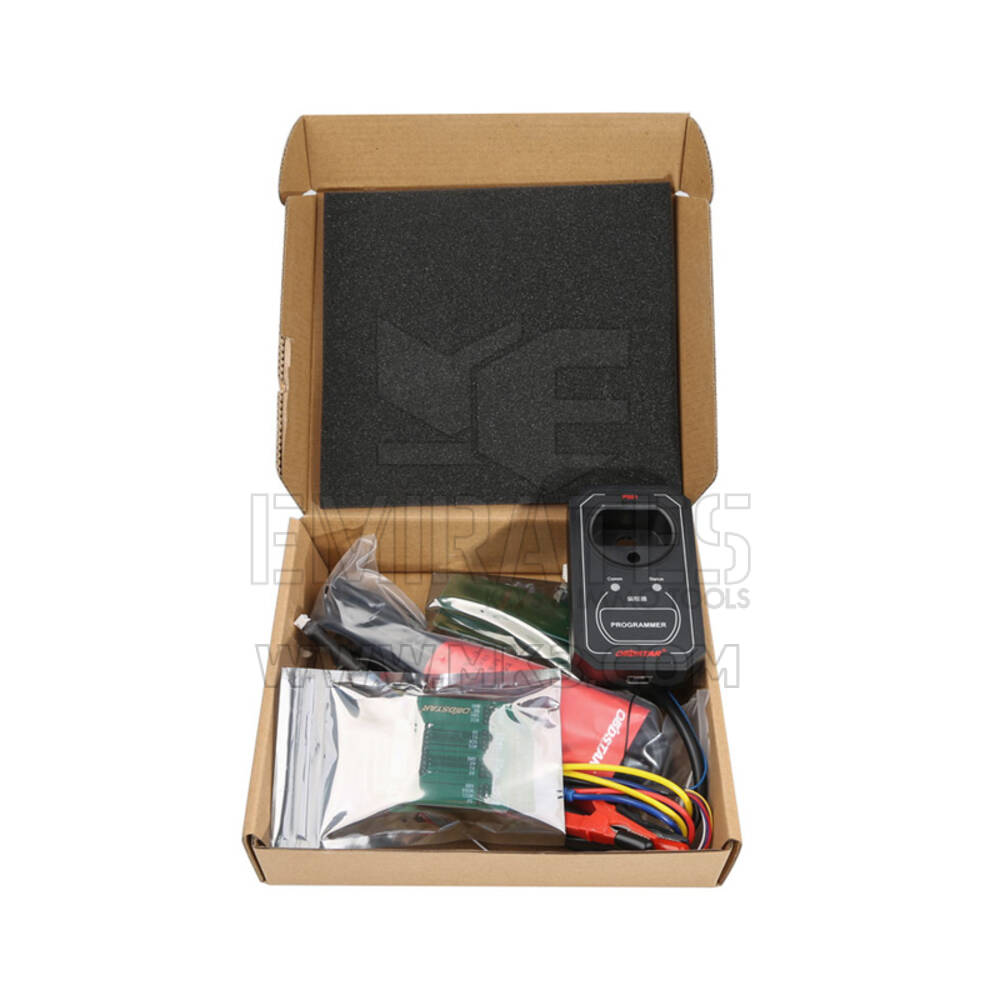

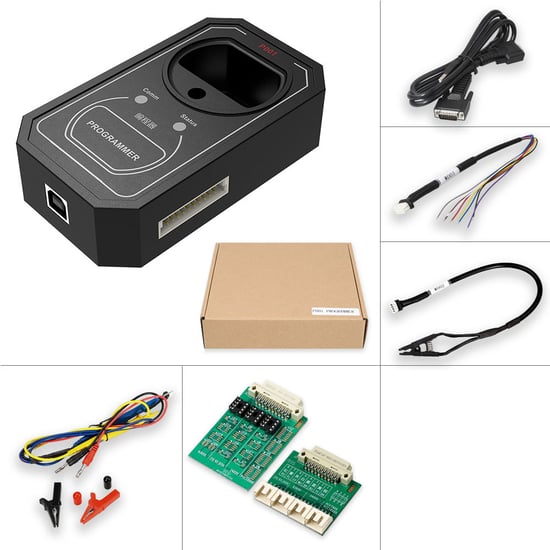

P001 Programmer Configurations

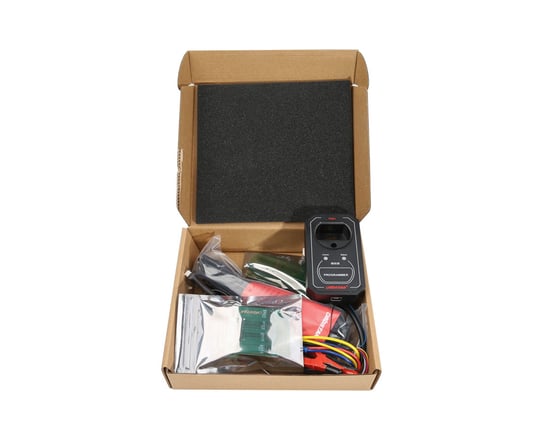

P001 programmer (full package):

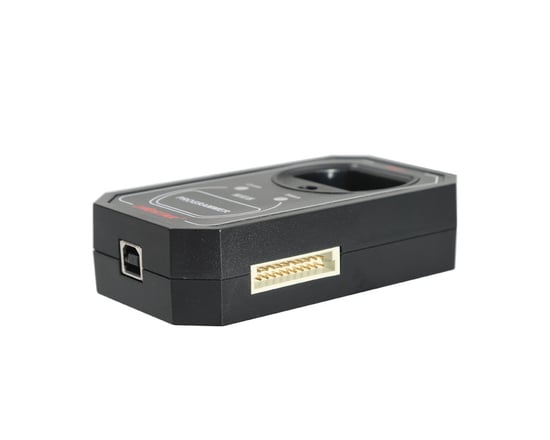

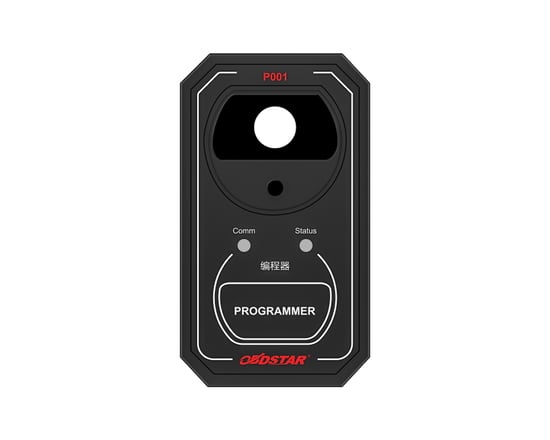

1. P001 programmer unit.
2. C001 circuit board .
3. C002 circuit board .
4. W001 data cable .
5. W002 data cable .
6. W003 data cable .



P001 Programmer Accessories

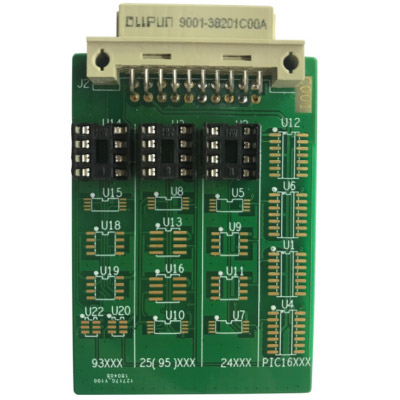

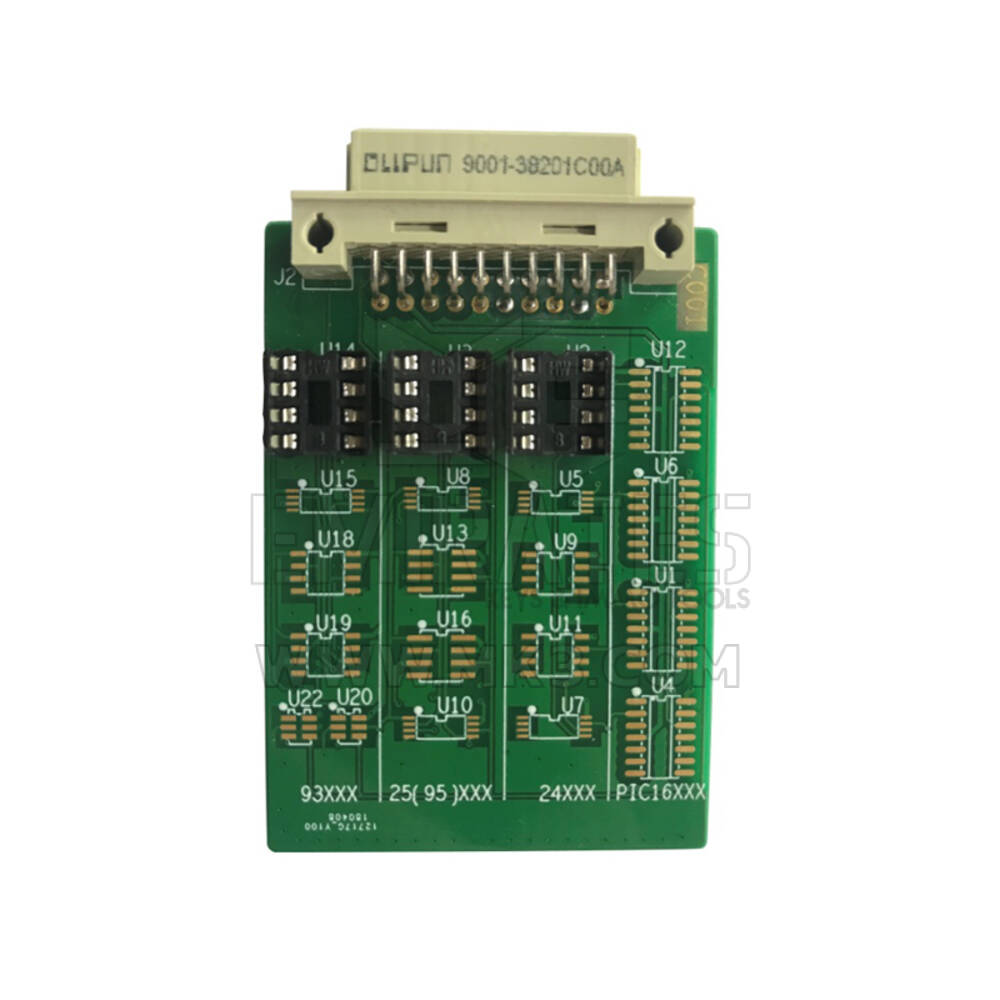

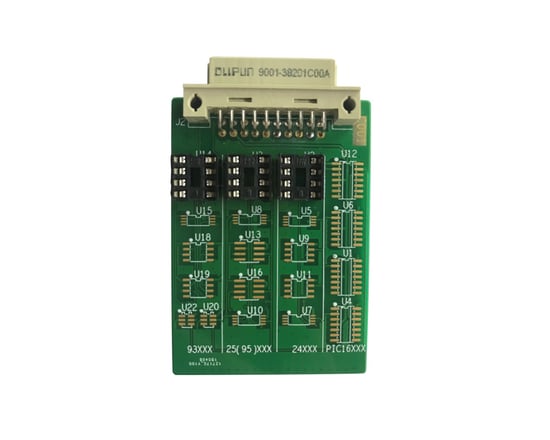

Accessory 1: C001 circuit board

C001 circuit board is compatible with old NO. 3 and 4 circuit boards, applying to EEPROM chip dismantling and reading, Tianjin FAW and VIZHI immobilizer coil initialization and other functions.

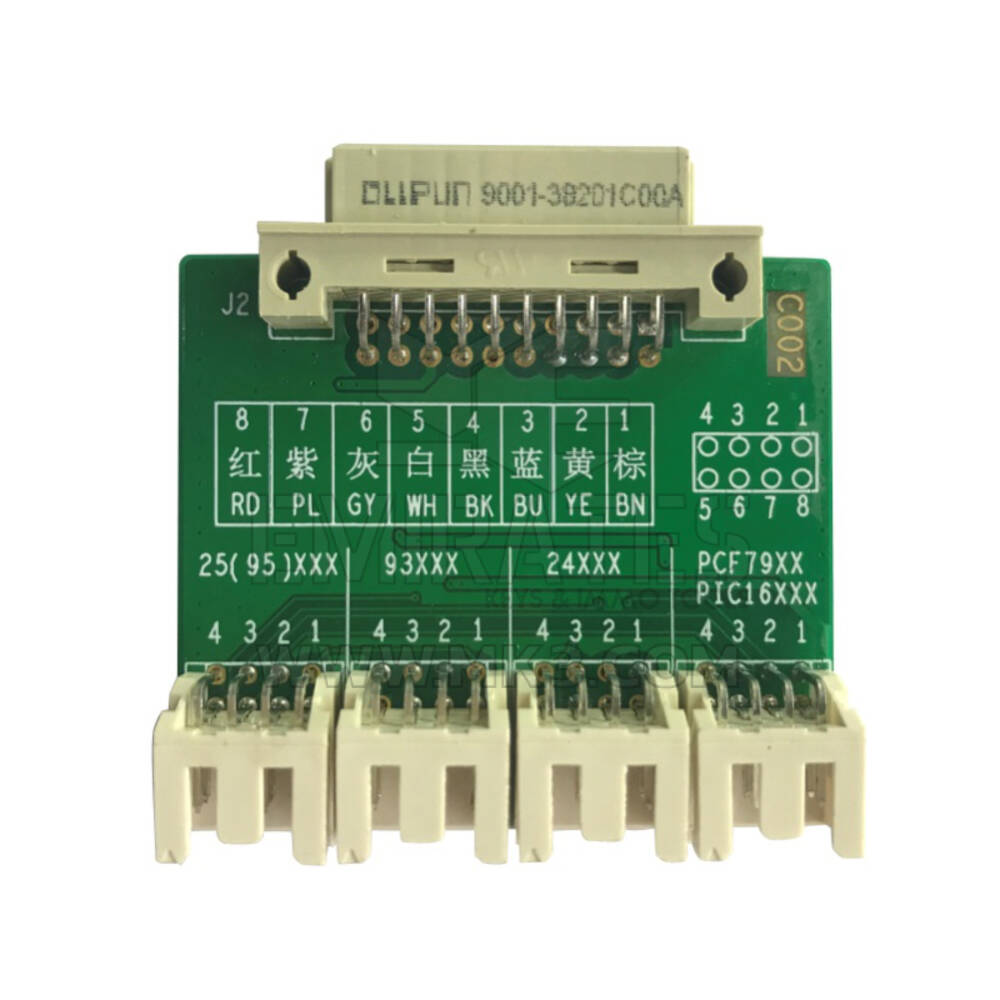

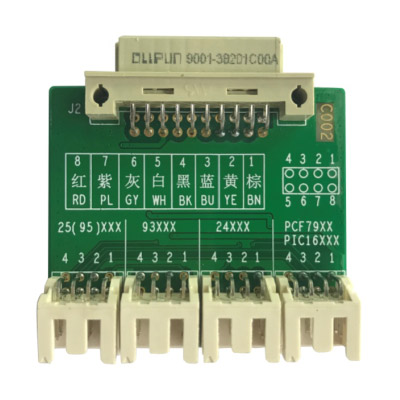

Accessory 2: C002 circuit board

The newly developed C002 circuit board is connected by W001, W002 or W003 without welding the chip.

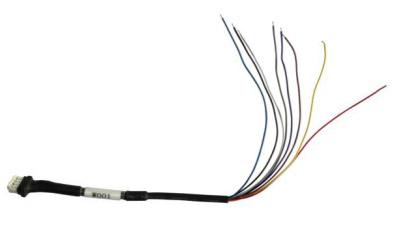

Accessory 3: W001 data cable

W001 data cable can read or write data by linking the chip with a bonding wire

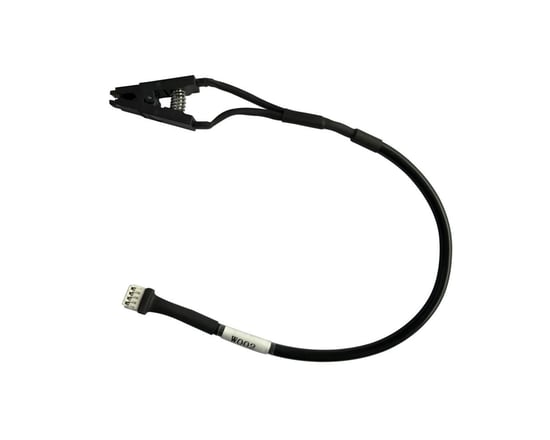

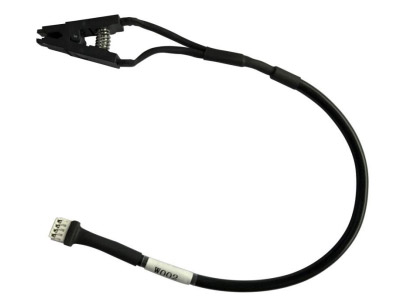

Accessory 4: W002 data cable

W002 data cable can read or write data by clamping the chip (SOP 8-pin) directly without welding EEPROM.

Accessory 5: W003 data cable

W003 data cable can read or write data by clamping positive pole and negative pole with red and black clips and contacting the data interface with yellow and blue probes.


Wiring Instruction

To better understand the connection among P001 programmer and its accessories, examples for W001 and W003 wiring instructions are as below. (During the actual operation process, there is a diagram of wiring inside tablet)

OBDStar P001 Connectivity

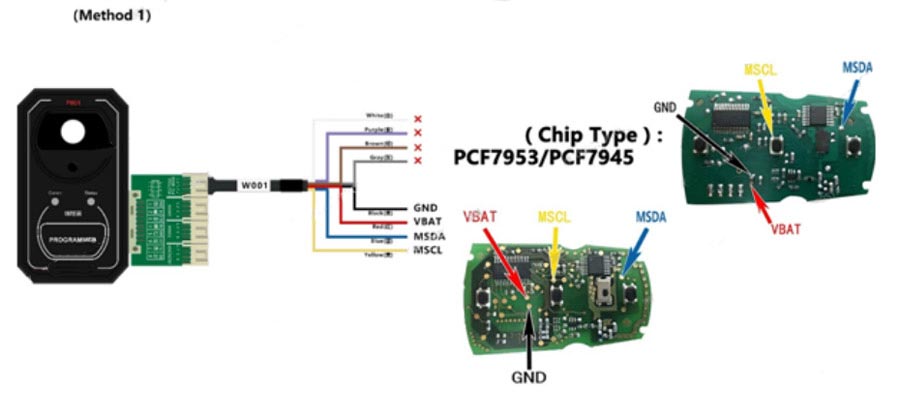

Method 1

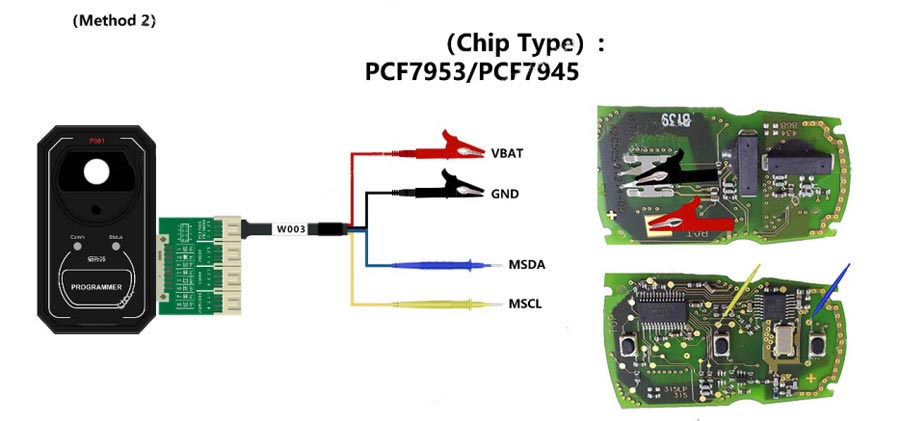

Method 2

About Toyota simulated smart key

1.Why use a Toyota simulated smart key?

For the Toyota/Lexus 2007-2016 models, if all smart keys are lost, the instrument table must be removed and the ECU must be replaced. The cost is very high!
This Toyota simulated smart keycan generate a Toyota key with our devices in the case of all keys lost, so the ignition switch can be turned on, and then a new smart key can be added and programmed with our devices.

2.What are the advantages of the Toyota simulated smart key?

• Save costs.
• Reusable.

3.Which type of smart keys can be simulated?

Simulated key 1 applies to the vehicle with 94/D4 type of smart key
