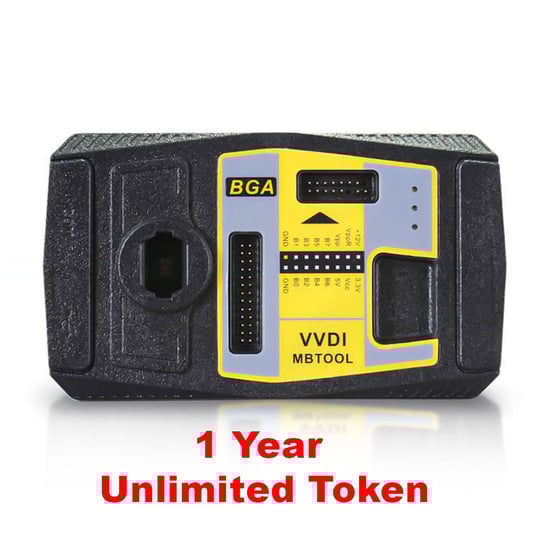

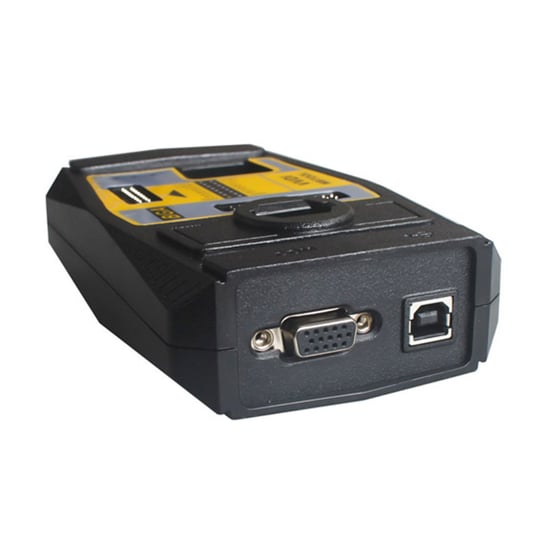

Xhorse VVDI MB BGA Tool Device for Mercedes Benz Key Programming

Xhorse VVDI MB BGA Tool Benz Key Programmer with 1 Year Unlimited Token Subscription

V5.1.1 VVDI MB BGA Tool Frequently online update
Support all key lost W210,w204, w207, W166, W230, W246, W212, W212(old), some W216, W164 2009- and some others.
Mainly used for key reading and writing, EIS tools, password calculation, key file preparing, ESL tools, ECU/Gearbox renew, and many more special functions

Top 6 Reasons to Buy VVDI MB Tool:

1. VVDI MB Tool Language: English, Polish, Spanish (Will add more in future)
2. Latest VVDI MB Tool Version: 5.1.1
3. Fastest Benz password calculation speed.
4. High quality, Professional Design.
5. Support all key lost: W210, W204, W207, W166, W230, W246, W212, W212(old), some W216, W164 2009- and some others.
The future will add more.
6.Support FBS4 disable key function (Other function->FBS4 disable key)- Support W166/W205/W213/W218/W222/W246 type

Notice:
1. If you had (Condor Dolphin, or Condor MINI Plus, or IKEYCUTTER CONDOR XC-007 Master or IKeycutter CONDOR XC-MINI Master).
You can get the password freely once a day. Contact us to bind for you. For the second or third calculate, it needs tokens or points.
You can buy Tokens for VVDI MB BGA Tool Password Calculation from us.
2. VVDI MB Tool renew function, if your ECU can be read via VVDI MB, it is supported, or not.

V5.1.1 VVDI MB Tool Update (2021-07-14 ) Require firmware V5.0.1 BENZ V5.1.1
1. Release user manual V2.1 version
2. Bugfix

Xhorse VVDI MB BGA TOOL Functions:

1. Read Write Key :
Identification key, IR read-write BE key, read v51, v67 version's key password by NEC adapter,
Read activate blank BGA (OCF4) key, current key HASH (repair), renew, write into the used NEC key, write smart key, etc.

2. Password Calculation :
OBD read and calculate all (FBS3) can protocol EIS password, support BGA keys, NEC key, v51, v57 version password calculation,
Support all key lost W164, W216, W166, W209, W211, W212, W246, W212(old), W204, W207, etc, online calculation key password

3. ESL Tools :
OBD (Kline) read data, Renew ESL, replace ESL (no need to renew EIS), check ESL damage, repair W204 ESL

4. Read/ Write Gateway :
Support OBD repair KM: W204, W207, W212, W251, W164, W211, W221, W216, W166.W172, W232, W205, etc
Support reading and writing gate EEPROM and FLASH: W211/W/164/W204/W207/W212/W221/W216 etc

5. EIS Tools :
Read 8 write ES by OBD or ROBD auto-detect, access to W164 W209 W211 without gateway.
Read the old Motorola EIS(k-line)’s password.
Renew EIS, Replace EIS, Enable key, Disable key. Personalize W204 ESL - Test ESL Status/Working key etc

6. Prepare Key File :
Online generate v11, v41, v51 version's key file, support Motorola EIS
EPROM file, with high efficiency, 1009 successful generate

7. Program ECU / Gearbox / ISM :
Support renew ECU, gearbox, and SM, write in VN, personalized, etc

Latest Technical VVDI Benz BGA Tool Details:

Note: VVDI MB BGA tool update goes well, the following workable models are for reference only.

Model Support IR/OBD:
W164, W164 2009+
A166, W197, W212, W218, A246
A169, W209, W211
W172, W204, A207
W203
W204, W207, W212 only by dump
W209 only by dump
W210
W215, W220
W230
W216
W221
W906

Keys Version Supported:
v03, v06, v08
v05, v07, v09
v59, v61

VVDI Benz BGA Tool Review:

1. I test password from 212 new models super good tool need pay 2 tokens to need 10 min all ok
2. Do you have to see a video of this tool They say can do all key lost on w212.No tool can do it even Mehaco or nec pro51.

w212 eis on video, sure it can. Mehaco/Mercedes instrument can do all keys lost on w212.. the option is available a few months.

I try to collect the list of OK and K.O. experiences with IR pass reading with VVDI BGA TOOL
W210: EIS/EZS A208.545.01.08 - MCU -read PSW IR - not successful
W210: EIS/EZS A210.545.02.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.03.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.00.08 - MCU 0D69J - read PSW IR - not successful
W215: EIS/EZS A215.545.00.08 - MCU 0D69J - read PSW IR - not successful
W215: EIS/EZS A215.545.08.08 - MCU 1L85D - read PSW IR - not successful
W203: EIS/EZS A203.545.05.08 - MCU - read PSW IR - OK
W203: EIS/EZS A203.545.05.08 - MCU 1J35D - read PSW - OK
W203: EIS/EZS A209.545.09.08 - MCU 1L85D - read PSW IR - not successful
W220: EIS/EZS A215.545.02.08 - MCU - read PSW IR - OK
W220: EIS/EZS A215.545.00.08 - MCU 1D69J read PSW IR - not successful
W639: EIS/EZS A639.545.05.08 - MCU 2x 1L02Y - read PSW IR - not successful
W639: EIS/EZS A639.545.09.08 - MCU 0L01Y - read PSW IR/OBD - not successful
I Can guarantee it will not read ANY WITH HC05
1D69J/0D69J cannot be read by IR alone - A calculation with kline is possible.
read a w203 A203.545.05.08 with mask 1J35d password ok
W203 IES 203 545 05 08 read PSW IR OK
W220 IES 215 545 02 08 read PSW IR – OK

Only support parts of HC05, HC08 Motorola EIS(Kline), it cannot support will show error, need to remove eis get EEPROM.
We have tested W215 ok, but not means all W215 can support.
only support parts of this type.

vvdi MB got an slk 2013 all keys lost, can this be done via obd.

VVDI Benz BGA Tool Package List:

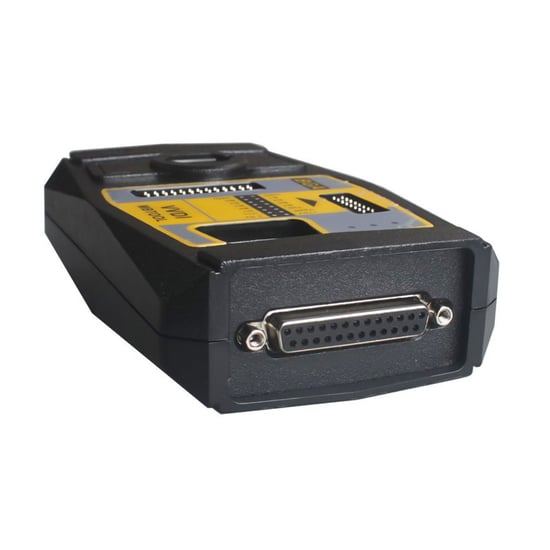

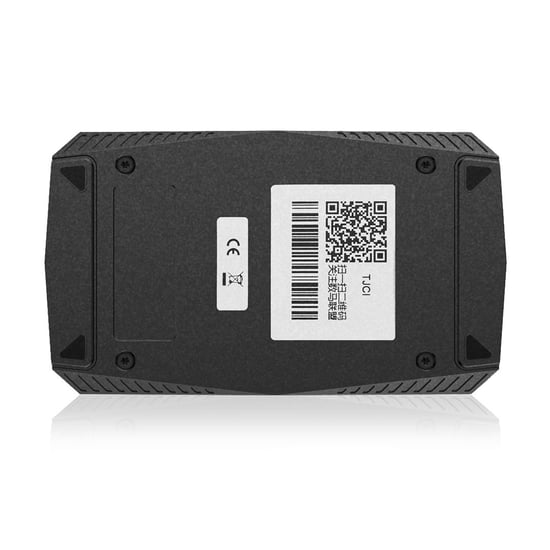

1. VVDI-MB TOOL device

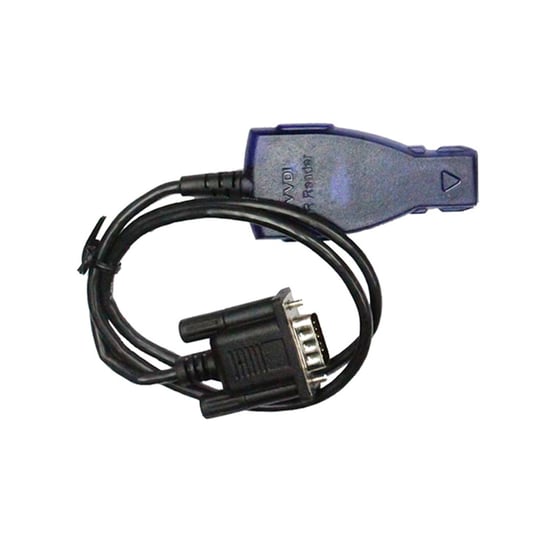

2. IR adaptor

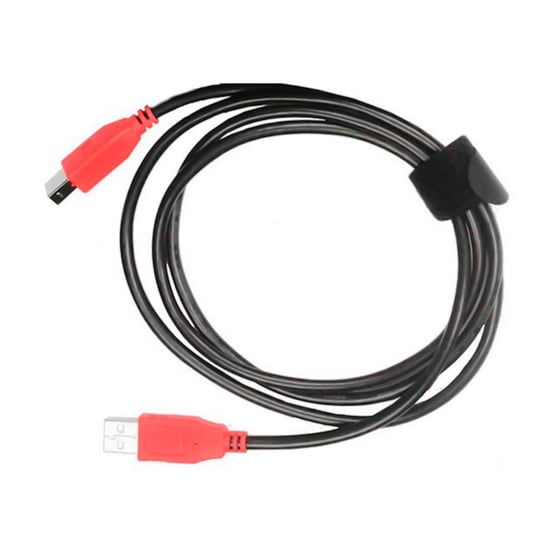

3. USB cable

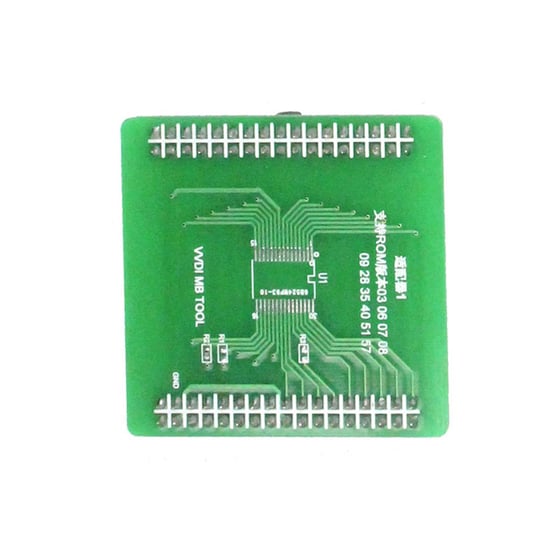

4. NEC adaptor 1

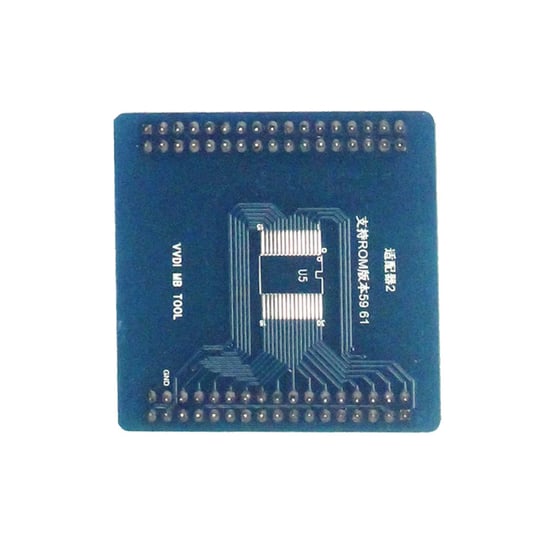

5. NEC adaptor 2

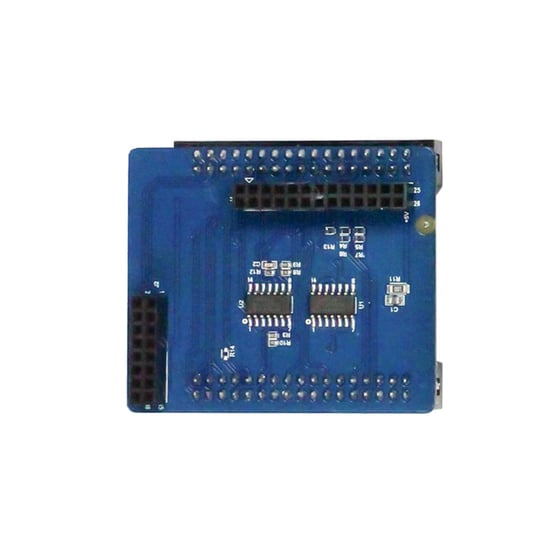

6. NEC adaptor base PCB
7. K-Line in OBD line

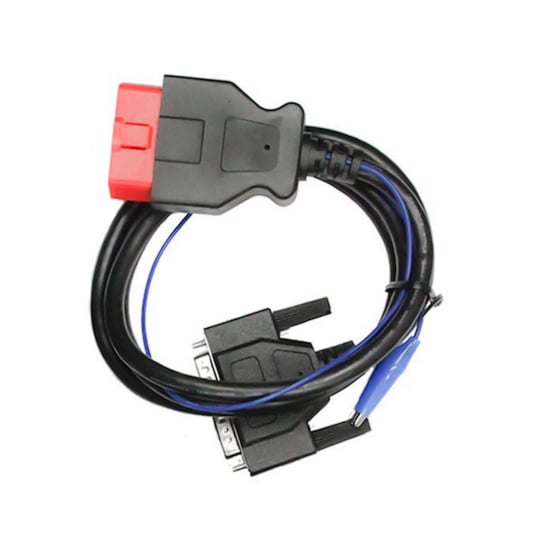

8. OBD line
9. Plastic Box
10. Carton Box

FAQ

Q1: I tested read data with obd2 210 kline working and 204 car read with obd 2,
but 211 not read with obd2 cable connect
16 12v
4+5 GND
14 CAN_L
6 CAN_H

pin 1: ESL 1
pin 2: GND
pin 3 : +12V (30)
pin 5: pin 6: CAN H (Green)
pin 7: CAN L
pin 8: CAN H
CAN ANYONE TEST

A: Read eis via obd for W164, W169, W211, W209, require gateway connected

Q2: I bought an EIS W221 lock with a key from the lock from one machine. I have read the PSW.
I will make a complete loss of the W221 key in the future?
Describe step by step procedure

A: you have used/2nd-hand EIS with working key, you can do like this for W221 all keys lost
1. Read all key lost EIS data-> save EIS data
2. Read used EIS data enter a password, wipe off password->renew used EIS.
3. Load step1 EIS data to renewed EIS with password->write EIS data
4. Load EIS data(with key password)->prepare key file
5. Input new key to device IR reader->load key file->write
6. Insert new key to EIS->EIS will learn the new key->key learn success

by the way, if your all key lost W221 is Motorola EIS, not need to change EIS, remove eis get EEPROM by the programmer(VVDI PROG).
then load EEPROM to VVDI MB TOOL prepare key file.

Q3: I have a w204 All key lost and I program a new EIS with VVDI, the ignition doesn't come on or crank,
but the steering can lock and unlock.
can someone guide me on what to do?

A: about W204 all key lost(change new EIS), refer to following steps, maybe helpful:
1. Read EIS data via obd, then Save EIS data
2.adapt ESL:Read ESL data->Get Erase Password->Renew ESL
3. Change new EIS, Load EIS data(step1)->write Key Password(enter manually and at random)->Write EIS data
4. Personalize W204 ESL
5. Load EIS data(with Key Password)->Prepare Key File
6. Input new Key to device IR reader->Load Key file->write
7. Insert new Key to EIS->EIS will learn the new key->key learn success

Q4: Is there a way to delete the used key with VVDI MB BGA?

A: Yes, VVDI MB TOOL supports that!

Get more about VVDI MB BGA Tool FAQ and Answers

Note:

1. For the customers who bought VVDI MB from us before, the package had 1 adapter not working.
Now we can send you the exchanged new adapter freely. Pls, contact customer service.

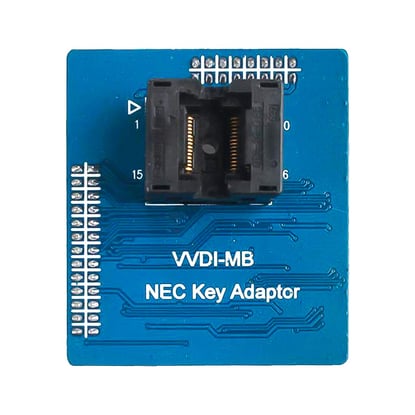

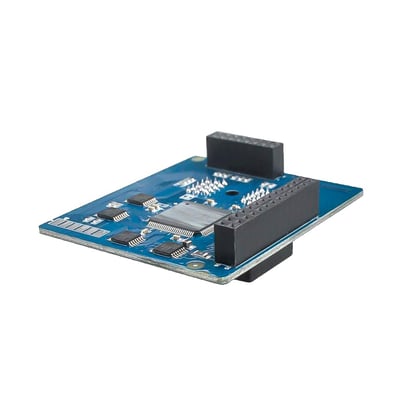

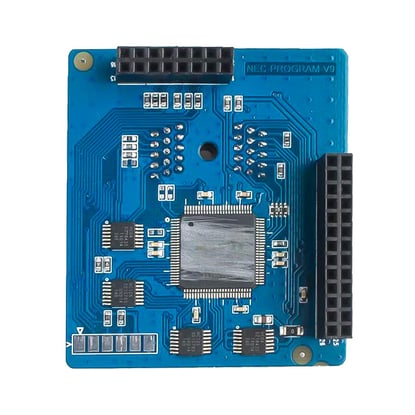

2. We released a new nec adapter. Support the Original smart and non-smart key erases and write.
The original nec adapter in the VVDI MB package can only support Original non-smart key erase and write.
