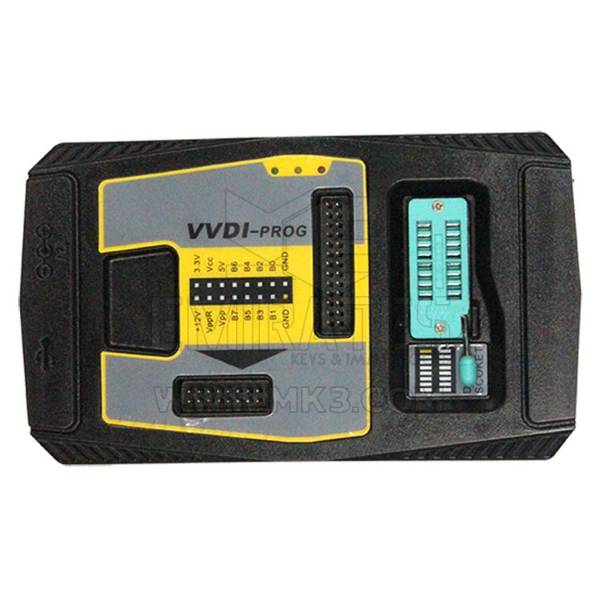

Latest V5.0.7 Original Xhorse VVDI PROG Programmer is a Powerful ECU Programmer that Can Read BMW ISN and NEC MPC Infineon etc Chips
Latest V5.0.7 Original Xhorse VVDI PROG Programmer is a Powerful ECU Programmer that Can Read BMW ISN and NEC MPC Infineon etc Chips with Built-in Software
VVDI Prog User Manual
Software Version: 5.0.7
Firmware Version: 2.0.0
Newest version software download (2021-09-24)
TOP 9 Reasons to urge VVDI Prog
- Built-in update software: Make VVDIProg firmware update timely.
- High-speed USB communication interface: Make software automatically connect.
- Smart operation mode: possible causes of error are going to be listed
- Reserve ports: For future updates.
- Self-test function: Check if the machine works well or not.
- Power supply: Through a USB cable, the software will automatically prompt if the external USB power supply is required
- Newly Add Bosch ECU Adapter functions, Support Reading ISN from BMW ECU N20 N55 B38 B48 But need to buy VVDI Prog Bosch ECU Adapter.
- Multi-language: English, French, Italian, Spanish, Arabic, Cezch, Polish, Portuguese, Russian, Turkish, Chinese
- Get free BMW ISN read function and NEC, MPC, Infineon etc chip continously update service
VVDIProg Using Tips:
- don't click firmware upgrade in VVDI Prog software, its firmware is usually 2.0 version, no got to update. Or it'll get a communication server error.
- Please do wiring 100% an equivalent because the connection diagram in VVDI PROG software. Don't lengthen the connection lines with other parts, or will fail to read.
- Operating system: Win XP, Vista, Win7, Win8/8.1, Win10
Xhorse VVDI Prog Programmer Function:
- Support R&W lots of chips, include MC9S08 series, MC68HC (9)12series, MC9S12series, V850series, H8Xseries, R8Cseries, PCF79XXseries and most eeprom chips etc.
- Support chip data verify, check blank function
- Support data file compare function
- Free Pin code calculation service by Dump for various models
- Support Read and Write BMW N20, N55 ECU (show ISN directly)
- Stable Read and Write MC9S12XE series chips (5M48H/ 1N35H/ 2M53J/ 3M25J etc.)
- Support renew PCF79XX remote, currently support BMW E/F series (Please Note PCF79XX adapter is optional)
- Has the largest database of connection diagram
- Reserve Ports: For future update
VVDI-Prog Update Log:
v5.0.7 (2021-09-24) v5.0.7 (2021-09-24)
* This version Don’t need update
firmware
+ Modify LOCK_BCM2-1 (ADAPTER),
LOCK_BCM2-1(WELD),
LOCK_BCM2-2(ADAPTER),
LOCK_BCM2-2(WELD),
options in
<4-IMMOBILIZER>->
Optimize the process
Xhorse VVDI Prog Cables and Function:
16Pin LockingSocket
Read the common EEPROM, note: please insert the chip by following the below picture.
1.3.2 MCU Reflash Cable
wont to program MCU on board
1.3.3 ECU Reflash Cable
wont to program ECU
1.3.4 MC9S12 Reflash Cable
wont to program MC9S12 series chip
VVDI-Prog Supported Type List:
Memory:
ATMEL, CATALYST, EXEL, FAIRCHILD, INTEL, MICROCHIP, MITSUBISHI, ST, TOSHIBA, XICOR
MCU:
RENESAS V850, RENESAS H8X, RENESAS R8C, MOTOROLA MC68HC (9)08, MOTOROLA MC68HC (9)12, MOTOROLA MC9S08, MOTOROLA MC9S12, NXP PCF79XX, ST ST10F, INFINEON XC2XXX, ATMEL, ATMEGA XXXX, INFINEON XC164CS, MICROCHIP PIC18F
VVDI PROG Supported Model List:
ECU List:
BMW E Series, BMW F Series, BOMBARDIER, CHANGAN, DELPHI, MAGNETI, MARELLI, RENAULT, OTHER
IMMOBILIZER List:
AUDI, BENZ, BMW, BUCIK, CHEVROLET, STEC, CHRYSLER, FIAT, FORD, GREATWALL, INFINITI, LANDROVER, JAGUAR, NISSAN, OPEL, PORSCHE, RENAULT, SAICMOTOR, VOLKSWAGEN, ZHONGHUA.
DASHBOARD List:
BUICK, CHANGAN, CHERY, CHEVROLET, DONGFENG, FAW, FORD, GEELY, GREATWALL, HAFEI, TOYOTA, HANTENG, HAIMA, HONDA, JAC, JAGUAR, JINBEI, JMC, LUXGEN, NISSAN, SGMW, VOLOVO, ZHONGHUA, ZOTYE
REMOTE List:
BMW E Series, BMW F Series
VVDI Prog Supported Chip List
EEPROM
|
Manufactures
|
Types
|
Support
|
Remark
|
|
ATMEL
|
AT24CXX
|
R
|
|
|
AT25XXX
|
R
|
|
|
AT93CX6
|
R
|
|
|
BOSCH
|
B3XX
|
R
|
|
|
B4XX
|
R
|
|
|
B5XX
|
R
|
|
|
B58XXX
|
R
|
|
|
CATALYST
|
CAT24CXX
|
R
|
|
|
CAT24WXX
|
R
|
|
|
CAT93CX6[A]
|
R
|
|
|
EXEL
|
XL[S]24CXX
|
R
|
|
|
|
XL[S]93CX6
|
R
|
|
|
FAIRCHILD
|
FM24CXX
|
R
|
|
|
NM24CXX
|
R
|
|
|
NM93CX6
|
R
|
|
|
GRUNDIG
|
GRXX
|
R
|
|
|
HOLTEK
|
HT93CX6
|
R
|
|
|
MICROCHIP
|
24AAXX
|
R
|
|
|
24[L]CXX
|
R
|
|
|
93[L]CX6
|
R
|
|
|
93AAX6
|
R
|
|
|
MITSUBISHI
|
M6M800X1
|
R
|
|
|
SEIKO
|
S-24CXX
|
R
|
|
|
S-93CX6
|
R
|
|
|
ST
|
D80/D160
|
R
|
Canerasethefirst32bytes
|
|
M35080
|
R
|
Canerasethefirst32bytes
|
|
NEC
|
M24CXX
|
R
|
|
|
ST
|
ST24CXX
|
R
|
|
|
ST24EXX
|
R
|
|
|
ST24WXX
|
R
|
|
|
ST25CXX
|
R
|
|
|
ST25EXX
|
R
|
|
|
ST95P0X
|
R
|
|
Note: R means the type is supported, £ means the type will be supported in the future.
MCU
|
Manufactures
|
Types
|
Support
|
Remark
|
|
MOTOROLA
|
MC9S12XEP
|
R
|
CanautomaticallydetermineD-FLASH/EEEspace
|
|
MC9S12XA
|
R
|
|
|
MC9S12XB
|
R
|
|
|
MC9S12XD
|
R
|
|
|
MC9S12XDT
|
R
|
|
|
MC9S12XDP
|
R
|
|
|
MC9S12XDQ
|
R
|
|
|
MC9S12DG
|
R
|
|
|
MC9S12DT
|
R
|
|
|
MC9S12P
|
R
|
|
|
MC9S12H
|
R
|
|
|
MC9S12HY
|
£
|
|
|
MC9S12HA
|
£
|
|
|
MC9S12HZ
|
£
|
|
|
MC9S12XHZ
|
£
|
|
|
MC9S12B
|
£
|
|
|
MC9S12GC
|
£
|
|
|
MC9S12XS
|
£
|
|
|
MC9S12K
|
£
|
|
|
MC9S12Q
|
£
|
|
|
MC9S12C
|
£
|
|
|
MC9S12P
|
£
|
|
|
MC9HC(9)08
|
£
|
|
|
ATMEL
|
ATTINY
|
£
|
|
|
ATMEGEA
|
£
|
|
|
NEC
|
uPD70F
|
£
|
|
|
ST
|
TMS370
|
£
|
|
Note: R means the type is supported, £ means the type will be supported in the future.
ECU
|
Manufactures
|
Types
|
Support
|
Remark
|
|
VAG
|
MED17.1-TC1796
|
£
|
|
|
MED17.11-TC1796
|
£
|
|
|
VAGMEG17.5-TC1766
|
£
|
|
|
VAGMED17.5.1-TC1796
|
£
|
|
|
VAGMED17.5.2-TC1767
|
£
|
|
|
VAGMED17.5.5-TC1766
|
£
|
|
|
VAGMED17.5.20-TC1766
|
£
|
|
|
VAGEDC17CP14/CP20-TC1796
|
£
|
|
|
VAGEDC17CP04-TC1796
|
£
|
|
|
VAGEDC17C46-TC1767
|
£
|
|
|
VAGEDC17CP24-TC1796
|
£
|
|
|
VAGEDC17CP44-TC1797
|
£
|
|
|
VAGEDC17U01-TC1766
|
£
|
|
|
VAGEDC17U05-TC1796
|
£
|
|
|
VAG/PorscheSiemensContinentalSDI3-
TC1796
|
£
|
|
|
BMW
|
MEVD172(N55)
|
R
|
|
|
MEVD172P(N20)
|
R
|
|
|
MEVD172G(N55)
|
R
|
|
|
MEVD172S(N55)
|
R
|
|
|
MEVD1724(N20)
|
R
|
|
|
MEVD1725(N13)
|
R
|
|
|
MEVD1726(N55)
|
R
|
|
|
MEVD1729(N20)
|
R
|
|
|
MEVD1728(N63/S63)
|
R
|
|
Firmware:
Please note: Firmware keeps v2.0. No need to update firmware.
How to Update Xhorse VVDI Prog Software and Firmware?
Please note: Firmware keeps v2.0. No got to update the firmware.
Package List:
- 1pc x Programmer multiplexer
- 1pc x Square USB cable
- 1pc x SOP16 test socket
- 1pc x 16pin converter (Support SOP/SOT/SSOP)
- 1pc x MCU reflash cable
- 1pc x ECU reflash cable
- 1pc x MC9S12 reflash cable (Used to program MC9S12 series chip)
VVDI Prog Optional Adapters:
Benz EIS / EZS Adapter Kit Full Set 10pcs
TB28FXXX Adapter
PCF79XX Adapter
M35080 / D80 Adapter
EWS3 Adapter
EWS4 Adapter
EEPROM Clip Adapter
TMS370 Adapter
Land rover KVM Clip Adapter
MC68HC05X32 Adapter
MC68HC05BX Adapter
PQFP80 Flash Adapter
AM29FxxxB (SOP44)
35160DW Chip
Bosch ECU Adapter
BMW CAS4 Clip Adapter
BMW FEM / BDC 8-PIN Adapter
AUDI J518 Test Line
BMW ISN DME Clone Cable
BMW FRM Footwell Reading Cable
