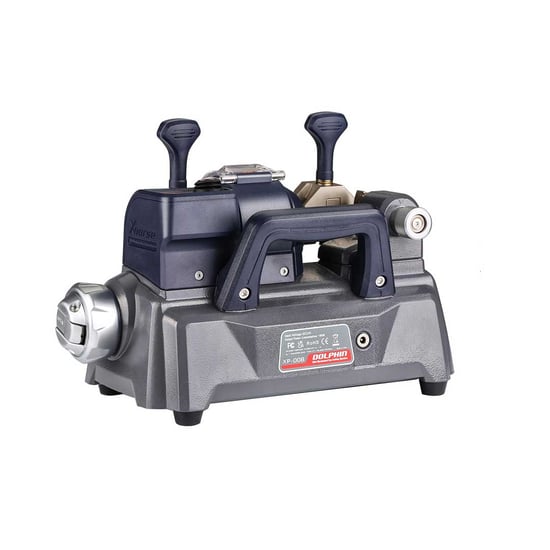

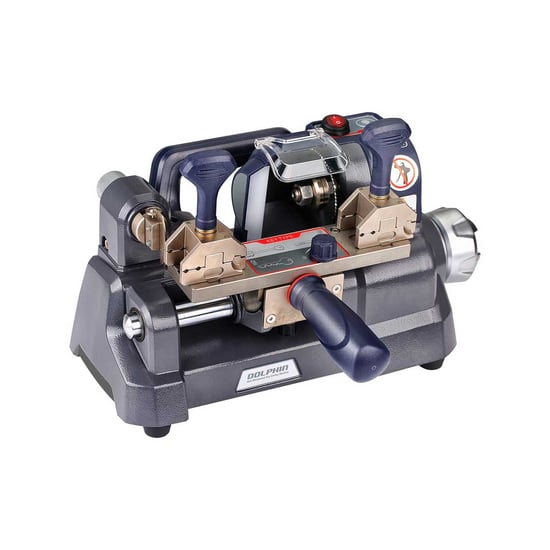

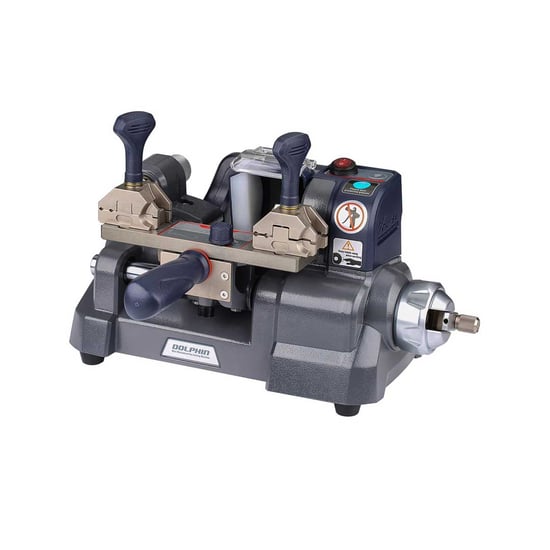

Xhorse Dolphin XP-008 Key Cutting Machine for Special Bit, Double Bit Keys

Xhorse Dolphin XP-008 Key Cutting Machine for Special Bit, Double Bit Keys

Product Description:

Key Cutting Machines From Xhorse with Product Number: MK1800
This Weight Product: 13000g

Xhorse Dolphin XP-008 Specs:

Manufacturer: Xhorse
Condition: New

Xhorse Dolphin XP-008 Key Cutting Machine for Special Bit, Double Bit Keys

DOLPHIN XP-008 is specially designed to duplicate bit keys ,double bit keys,pump keys and safe deposit box keys, which meets the needs of a wide range of locksmiths. Featuring a wide clamp space reaching 115mm, a wide rotation range allowing the bench to rotate 0~45°, ultra-high portability and the all-direction micro-adjustment base.

Xhorse Dolphin XP-008 KEY FEATURES

• Special Keys Cutting
• Ergonomic Design
• Superior Mechanical Structure
• All-purpose Clamps
• Ultra-high Precision Processing
• Easy to Carry
• Comes with Adapter:
  INPUT: 100V- 240VAC 50/60Hz
  OUTPUT: 24V - 6.67 A 160W MAX

Dolphin XP008 Parameters

• Input Frequency: 47-63Hz
• Spindle Speed: 1050rpm
• Travel of Table: 46mm
• Clamp Rotation Angle: 0-45°
• Machine Dimensions: 305x185x200mm
• Package Dimensions: 435x370x315mm
• Power: 145W
• Input Voltage: 12V/DC
• Motor Torque: 1.32Nm
• Net Weight: 10.8kg
• Gross Weight: 12.5kg

Designed to Meet Diverse Demands

To meet the needs of a wide range of users, DOLPHIN XP-008 is specially designed to duplicate various bit/pump and safe deposit box keys.

Exceptional Design

Ergonomic design brings users an extraordinary working experience. DOLPHIN XP-008 comes with an LED light, helping users work in different scenes with ease.
Users can complete the lateral cutting feed by simply turning the handwheel which can be entirely concealed inside after duplication.

Efficient Cutting Guaranteed

The spindle speed reaching 1050rpm guarantees high efficiency in cutting. More importantly, it helps minimize the wear and tear of the cutter and ensures high-quality cutting results.

Innovative Micro-adjustment Base

The all-direction micro-adjustment base consisting of a key cutting guide and micro-adjustment knob is innovatively developed, making it possible to achieve ultra-high precision duplicating.

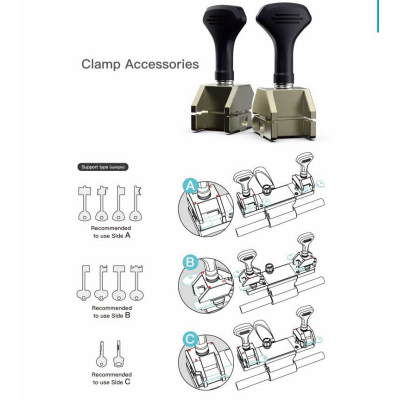

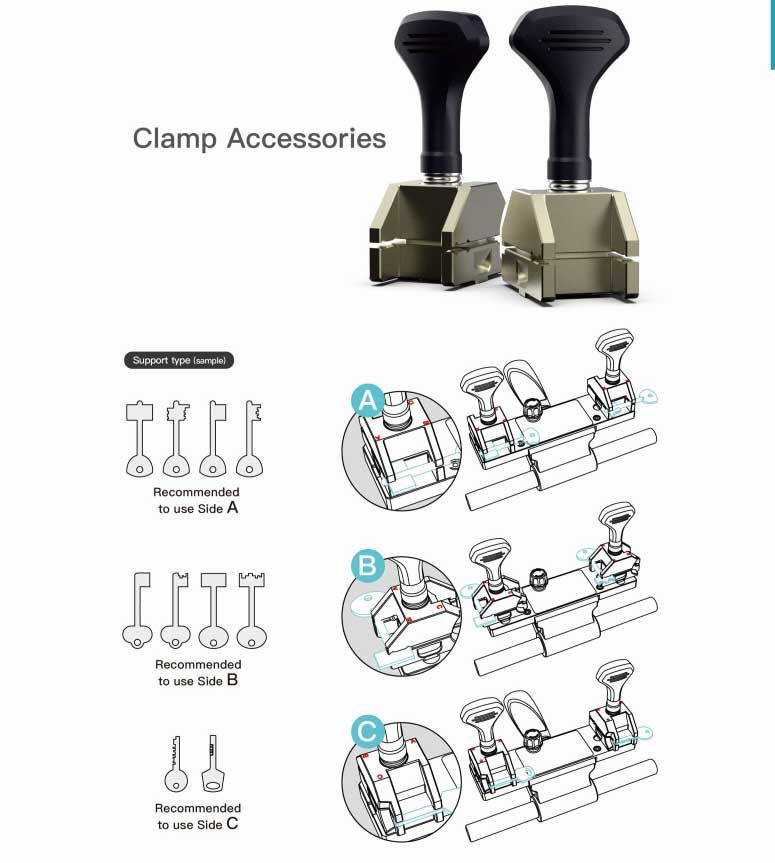

Xhorse Dolphin XP-008 Flexible Clamps

The machine features a wide clamp space reaching 115mm, providing a more flexible experience to clamp different keys with no limits to the stem length. XP-008 also offers a wide rotation range so the rotation bench can rotate 0~45° when turning the handle.This makes sure that keys with different titled angles can be perfectly cut.

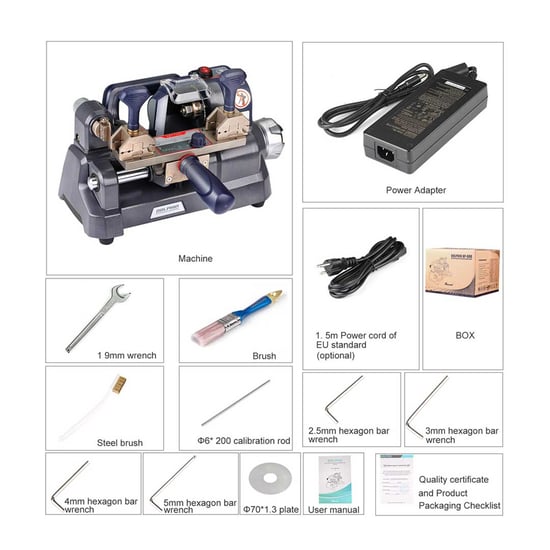

Xhorse Dolphin XP-008 Package Includes:

1. 1pc x Xhorse Dolphin XP-008.
2. 1pc x power supply adapter .
3. 1pc x power cord.
4. 1pc x calibration plate.
5. 1pc x brush.
