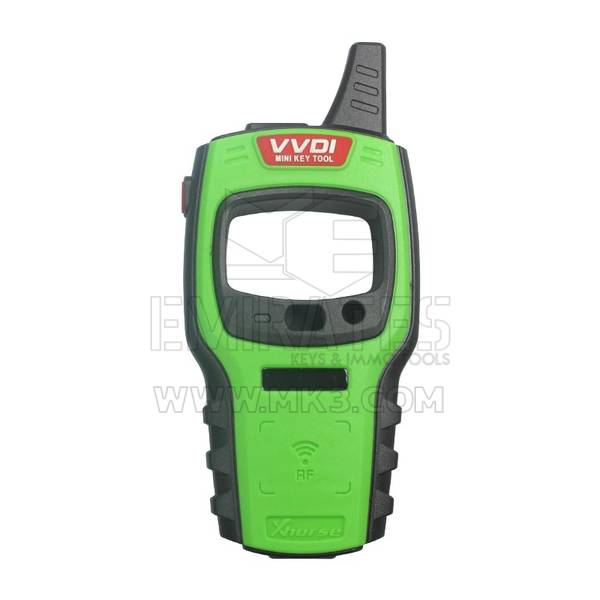

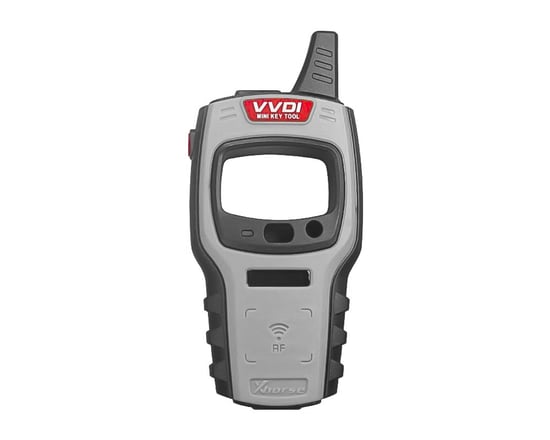

Xhorse VVDI Mini Key Tool Device

Xhorse VVDI Mini Key Tool Device

Product Description:

Key Programming / ECU Diagnostics Tools From Xhorse with Product Number: MK9486
This Weight Product: 300g

Specs:

Manufacturer: Xhorse
Condition: New

What's new in Xhorse VVDI Key Tool Mini?

Power up super fast!!!

Read chip super fast!!!

Test frequency super-fast!!!

Test frequency distance: 30 cm!!!

Based on mobile App via Bluetooth!!!

3 colors optional: red, green, orange. Color sent randomly.

Comprehensive functions, support remote and chip programming.

Integrated most existing mainstream data for remote and chip.

Mini Key Tool Function Introduction:

Main Functions:

Remote Clone

Remote Generation

Garage Remote Generation

Transponder Clone

Generate Transponder

Frequency Test

Remote Renew

IC/ID Clone

Special Functions

It has ability to clone ID4C/4D, 46, ID70, ID72 and can adapt to future updates.

It can also generate remotes for various car brands by connecting the mini key tool with the VVDI Mobile App available on both Android & iOS mobiles.

Transponder cloning:

Supports 46 42 4D 4E 11 33 8C 83 etc transponder cloning

Transponder Generating:

Support TP transponder & parts of special transponder

more than 700 vehicle models, reduce the stock of transponders efficiently.

Remote Cloning:

Support the HCS/Fixed code cloning, support non-HCS rolling code cloning, support PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fixed code editing.

Remote Generate:

Support 128 brands, over 2000 vehicle models. Generate

more abundant and thorough key pictures, transponder types, key blanks and remote matching data.

Frequency Test:

Support the power test within the range of 300-450Mhz.

Garage Remote Generating:

Support more than 100 types

Special Functions:

Remote Renew

Ignition switch coil signal detection

Unlock Toyota smart key

VVDI smart key clone

VVDI super transponder

Honda cycle key renew

ID/IC clone

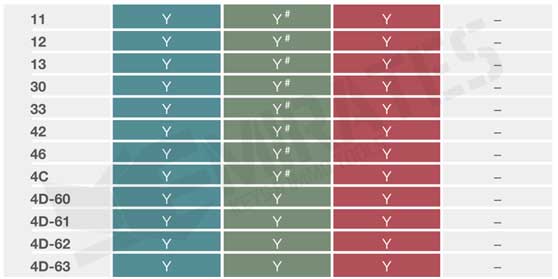

Identifiable Transponders:

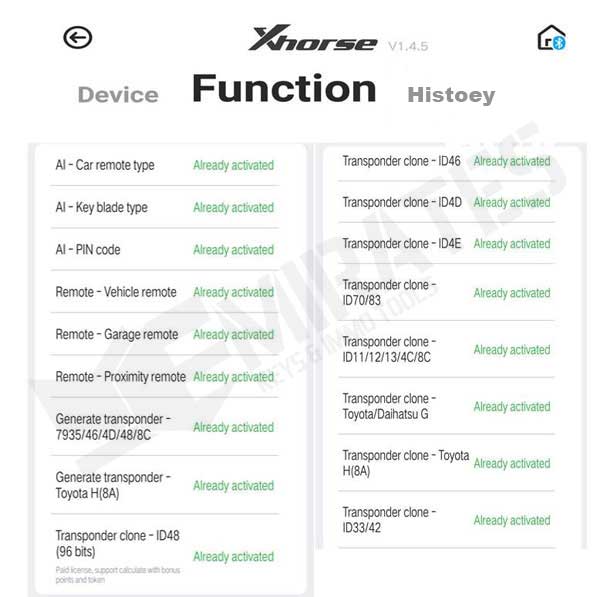

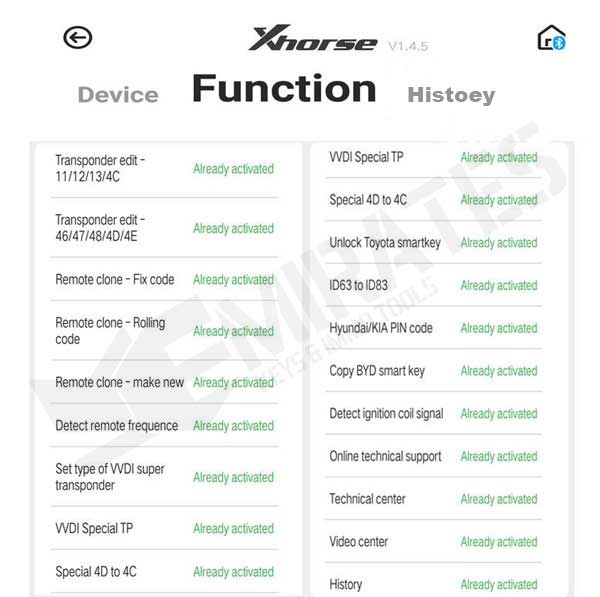

VVDI Mini KeyTool Full Authorization (already activated):

• AI - Car Remote Type
• AI - Key Blade Type
• AI - PIN Code
• Remote - Vehicle Remote
• Remote - Garage Remote
• Remote -Proximity Remote
• Generate Transponder - 7935/46/4D/48/8C
• Generate Transponder - Toyota H (8A)
• Transponder Clone - ID46
• Transponder Clone - ID4D
• Transponder Clone - ID4E
• Transponder Clone - ID70/ 83
• Transponder Clone - ID11/ 12/ 13/ 4C/ 8C
• Transponder Clone - Toyota/ Daihatsu G
• Transponder Clone - Toyota H (8A)
• Transponder Clone - ID33/42
• Transponder Edit - 11/12/13/4C
• Transponder Edit - 46/47/48/4D/4E
• Remote Clone - Fix Code
• Remote Clone - Rolling Code
• Remote Clone - Make New
• Detect Remote Frequency
• Set Type of VVDI Super Transponder
• VVDI Special TP
• Special 4D to 4C
• Unlock Toyota Smart Key
• ID63 to ID83
• Hyundai/Kia PIN Code
• Copy BYD Smart Key
• Detect Ignition Coil Signal
• Online Technical Support
• Technical Center
• Video Center
• History

How to combine VVDI MINI KEY TOOL/DOLPHIN/KEY TOOL?

Login Xhorse APP, connect device by Bluetooth, enter device & History'to combine device.

How to Update Xhorse VVDI Mini Key Tool?

• Connect Xhorse MINI Key Tool with computer via USB cable.

• Start Xhorse update kit software, and choose VVDI Lark, click find device.

• After find device, click upgrade.

• Finish.

• Update Xhorse app VVDI MINI Key Tool database.

• Start VVDI MINI Key Tool, connect with Xhorse app via Bluetooth.

Mini Keytool Parameters:

• LCD Size: 2.4’
• LCD resolution: 320*240
• Extra Power: 5V/1A
• Usage Time: ≥10 Hour
• Product Size: 108x194x28mm
• Weight: 229g
• Charge Current: 1A
• Battery Capacity: 150mAh
• Power: 600mW
• Battery Voltage: 3.6-4.2V
