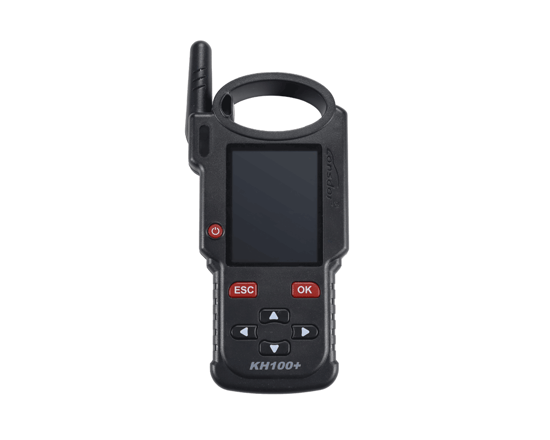

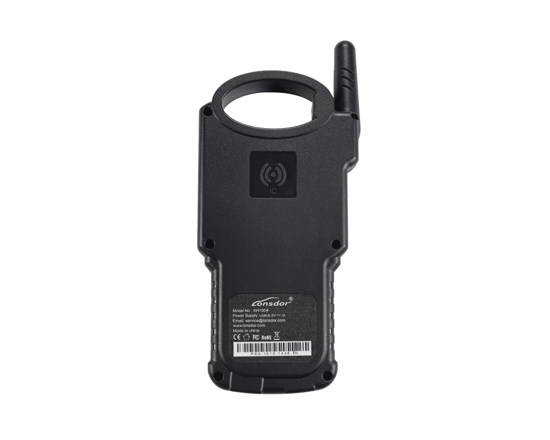

Lonsdor KH100+ Remote Key Programming Multifunction Tool
Product Description:
New Lonsdor KH100+ Full Featured Key Remote Programmer Update Version of KH100
Key Programming Tools From Lonsdor with Product Number: MK8644
This Weight Product: 950g
Specs:
Manufacturer: Lonsdor
Condition: New
Lonsdor KH100+ Highlights:
- Modern appearance design, in line with the operating habits of the public.
- Device system comes with operation instructions, easier for you to use.
- It covers almost all the functions of the similar products in the market.
- Built-in super sensor to collect data(over-range data collection).
- Exclusive support for 8A(H chip) generation.
- Built-in WIFI module, can connect to network at any time
- Handy chip holder integrated,902MHZ supported
- Toyota 8A Smart Key Direct copy to Add key(Latest Update)
Lonsdor KH100+ Benifits:
KH100+ Handheld device is the latest upgraded version from old KH100, it embraces all the functions that KH100 had, besides, it is far superior in below ways:
- Handy chip holder integrated
- 902MHZ supported
- Longer distance data collection
- More accuracy frequency detection
- More user friendly
- Faster running
- Larger memory
- Optimized power system(faster charge &heat protection)
- Upgraded packaging
Lonsdor KH100+ Functions:

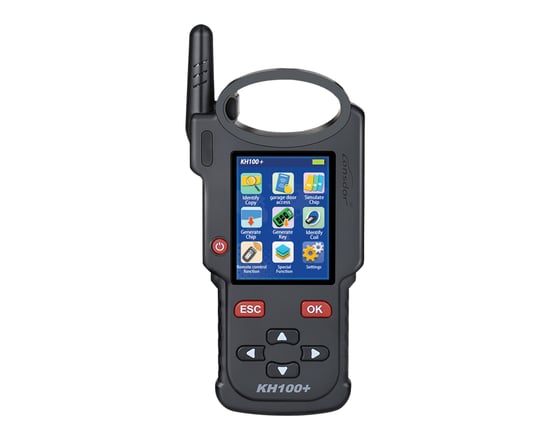

When complete the registration activation, it enters below menu interface:
Lonsdor KH100+ Identify Copy
Enter this menu, follow system prompts to operate (as shown).
Lonsdor KH100+ Access card cloning
Enter this menu, you can identify and copy IC card, and generate garage key as well. Follow the prompts to operate(as shown below).
Lonsdor KH100+ Simulate Chip
Put KH100+'s antenna at the ignition switch(as shown), choose the corresponding chip type to simulate.
This device supports below chip types: ①4D ②46 ③48 ④47
Lonsdor KH100+ Generate Chip
Put below types of chip into the induction slot(as shown), choose the corresponding chip to operate according to the prompts.
This device supports below chip types: ①4D ②46 ③48 ④T5 ⑤7935 ⑥8A ⑦4C ⑧Chip conversion
Note: some chip data will be covered and locked.
Lonsdor KH100+ Generate Remote
Enter [Generate key]->[Generate remote], choose the corresponding vehicle type to generate remote control(as shown) according to different regions.
Lonsdor KH100+ Generate Smart key(card):
Enter [Generate key]->[Generate smart key] menu, choose the corresponding vehicle type to generate smart key/card(as shown) according to different regions.
Lonsdor KH100+ Identify Coil:
- Search smart induction area Connect remote key with remote connector, Put KH100+'s antenna close to the pre-determined position. If inductive signal is identified, the device will continuously make sounds, please check if the position is right(as shown below).
- Detect IMMO Connect remote key with remote connector, Put KH100+'s antenna close to key identification coil, and use key to turn ignition ON. When KH100+ buzzer beeps, it means signal is detected.
Lonsdor KH100+ Remote Frequency
Enter this menu, put remote control at the device’s induction area to detect remote frequency.
Lonsdor KH100+ Special function:
Include: detect infrared signal, unlock Toyota smart key, FT Toyota smart key, Charge key, More functions:
- Detect infrared signal
Put remote control at the infrared signal detection area, press the remote's button once. When the light on KH100+'s screen is on, it indicates there is infrared signal, otherwise there is no signal(see below pic).
- FT smart key
For Toyota or Lexus smart keys from Lonsdor, you can perform the following functional operations: read version info, modify key value, unlock and upgrade program and etc. Put in the smart key, click [select] to operate.
- Unlock Toyota smart key/detect Toyota key status
Put in the smart key, click OK to operate.
- Charge key
For a chargeable key with battery, you can perform this function. Put in the key, click [OK] to operate.
How to register Lonsdor KH100:
Note: After booting the device, please connect to WIFI and enter the following process.
For New user:
- For the first use, please prepare a common call phone or email to help complete activation process, click OK to start.
- Boot the device and enter registration activation process.
- Input user name, password. Confirm password, cellphone number or email to obtain verification code. Then input the code to submit registration.
- Account registered successfully, it will take 5 seconds to bind the device.
- Successful registration, enter the system.
For Registered user(who has registered Lonsdor products before)
- For the first use, please prepare a registered call phone or email to help complete activation process, click OK to start.
- Boot the device and enter registration activation process.
- Input your registered mobile number or email, password to obtain verification code. Then input the code to submit login.
- Account login succeeded, it will take 5 seconds to bind the device.
- Successful registration, enter the system.
In addition, users who have already registered Lonsdor's product can directly choose [registered user] to activate account.
How to update Lonsdor HK100:
- Enter settings menu
- Connect the device to network
- Then choose [check for updates]
- One-click for online update!
Lonsdor HK100 parameter
- Device dimension: 193MM*88MM*24MM
- Screen size: 2.8 inch
- Screen resolution:320X240
- Battery: 3.7V 2000MAH
- Power: 5V 1A
- Work temperature: -5℃~60℃

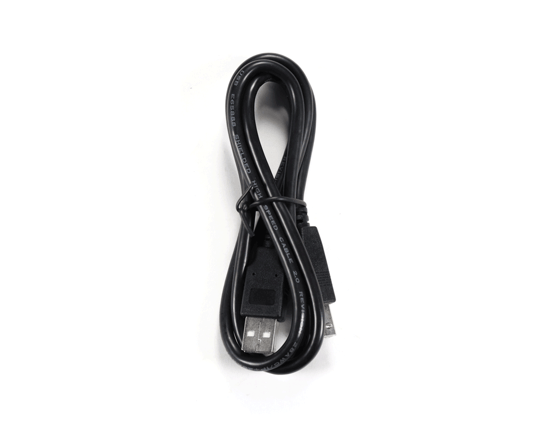

- USB: USB-B/charge-data transfer
- Connector port: PS/2 +1.25mm spacing, 6PIN terminal
