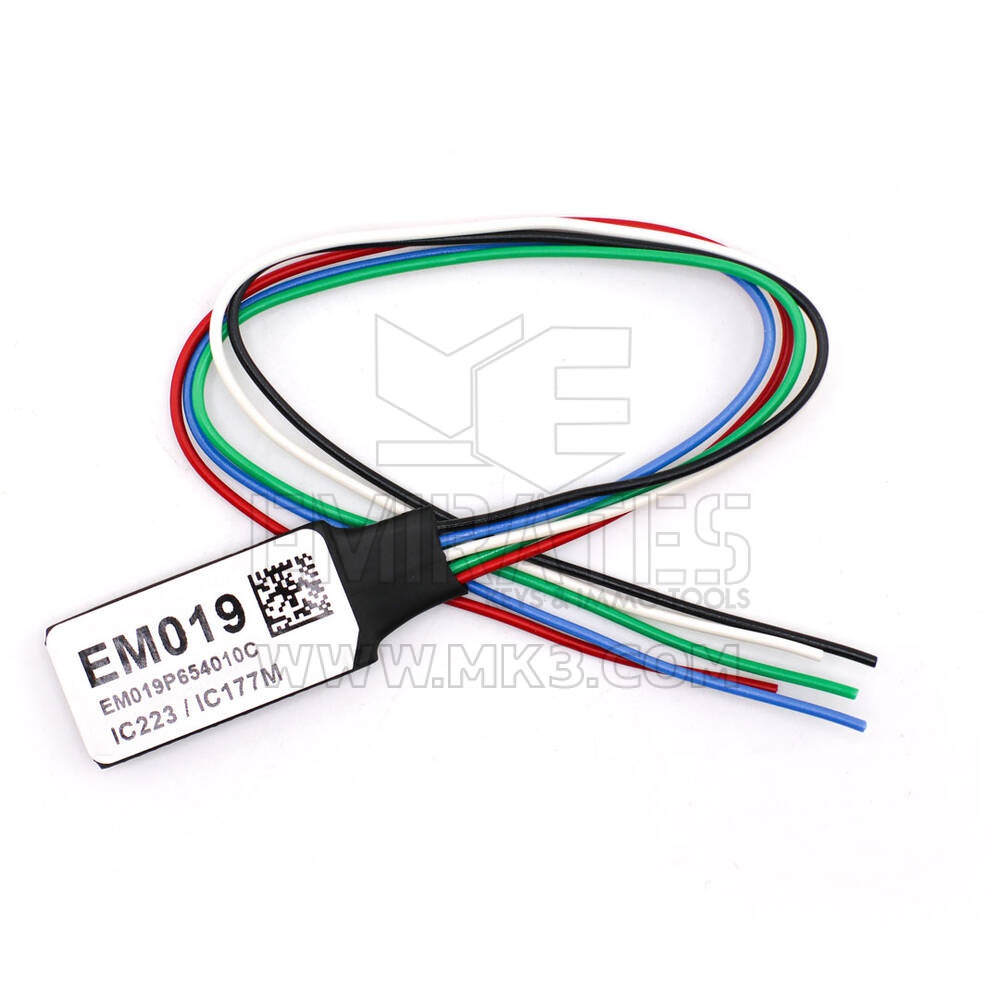

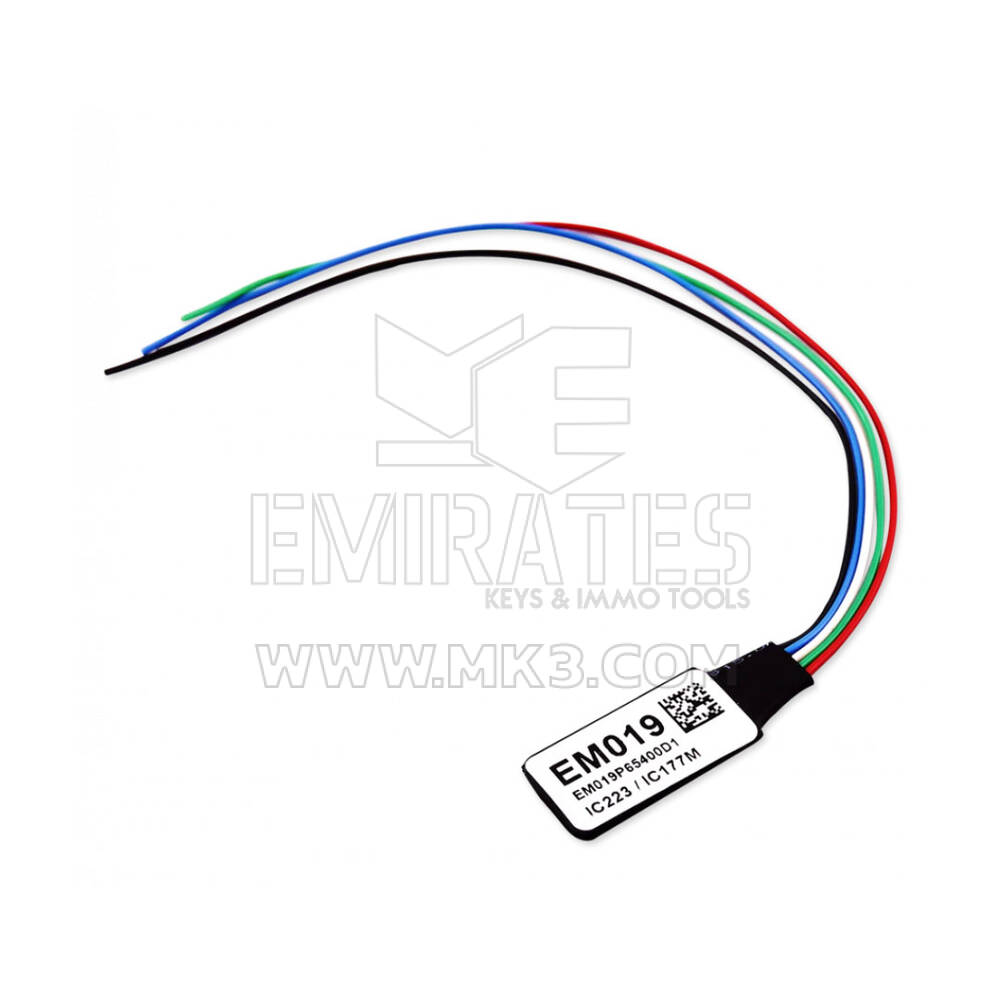

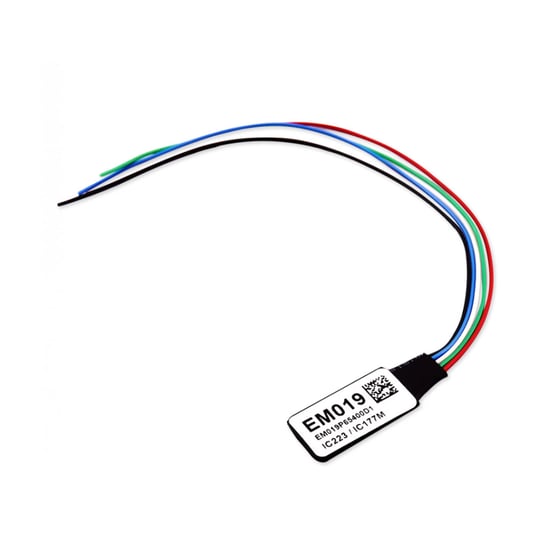

Abrites EM019 Еmulator for IC223 / IC177M Dashboards

Abrites EM019 Еmulator for IC223 / IC177M Dashboards

Abrites EM019 Еmulator for IC223 / IC177M Dashboards Description:

Emulator From Abrites with Product Number: MK26293
This Weight Product: 10g

Abrites EM019 emulator is a mandatory emulator for use with the Cluster Calibration IC223 2020+/IC177 M 2023+ (Visteon R7F701529 BGA) license MN038.

Abrites EM019 Еmulator for IC223 / IC177M Dashboards Functionality:

• Helps block the synchronization between the EZS and IC

Abrites EM019 Еmulator for IC223 / IC177M Dashboards Supported Models:

(Same as in MN038 license)

• W223 S-Class 2020+
• W206 C-Class Sedan (Saloon) 2021+
• S206 C-Class Station Wagon (T-model) 2021+
• V206 C-Class Long Wheelbase Sedan 2021+
• X206 C-Class All- Terrain 2021+
• X254 GLC 2022+
• C254 GLC Coupe 2022+
• C236 CLE Coupe 2023+
• A236 CLE Cabriolet 2023+
• Other models with the IC223, equipped with Visteon R7F701529 BGA processor

Including models after 2023 with IC177 M, equipped with Visteon R7F701529 BGA processor, such as:

• W177 A-Class
• W243 B-Class
• W247 B-Class
• H243 EQA- Class
• X243 EQB- Class
• C118 CLA- Class
• H247 GLA- Class
• W167 GLE/ GLS- Class
• X247 GLB-Class
• W257 CLS-Class
• X290 AMG GT Four Door Facelift

In order to connect and work with the IC223/IC177 M cluster successfully, you will need the ZN085 RH850/V850Programmer and the ZN092 adapter.
The EM019 adapter is required to complete the procedure successfully. After the new mileage is written with the help of the RH850 Programmer and CB501 cable, unsolder the CB501 wires and solder the EM019 as shown in the user manual.The emulator is soldered as shown in the RH850/V850 Programmer’s software after the calibration is complete and it is left inside the module.
AVDI and Annual Subscription are required to use this product and its mandatory counterparts
