Abrites ZN086 MC9S12 Adapter For ABPROG

Be the first to review this product

$23.40

Category: Additional Adapter

Manufacturer: Abrites

Availability: In stock

SKU: ADD-ABR-22369

Old SKU: MK22369

GTIN: 808233428529

Qty:

Products specifications

Products specifications

Attribute name	Attribute value
Manufacturer	ABRITES
Condition	New

Full Description:

Abrites ZN086 MC9S12 Adapter For ABPROG

Product Description:

Abrites ZN086 MC9S12 Adapter For ABPROG And AVDI To Complete The Procedure For Reading And Writing Specific Processors

Additional Adapter From Abrites with Product Number: MK22369
This Weight Product: 60g

Specs:

Manufacturer: ABRITES
Condition: New

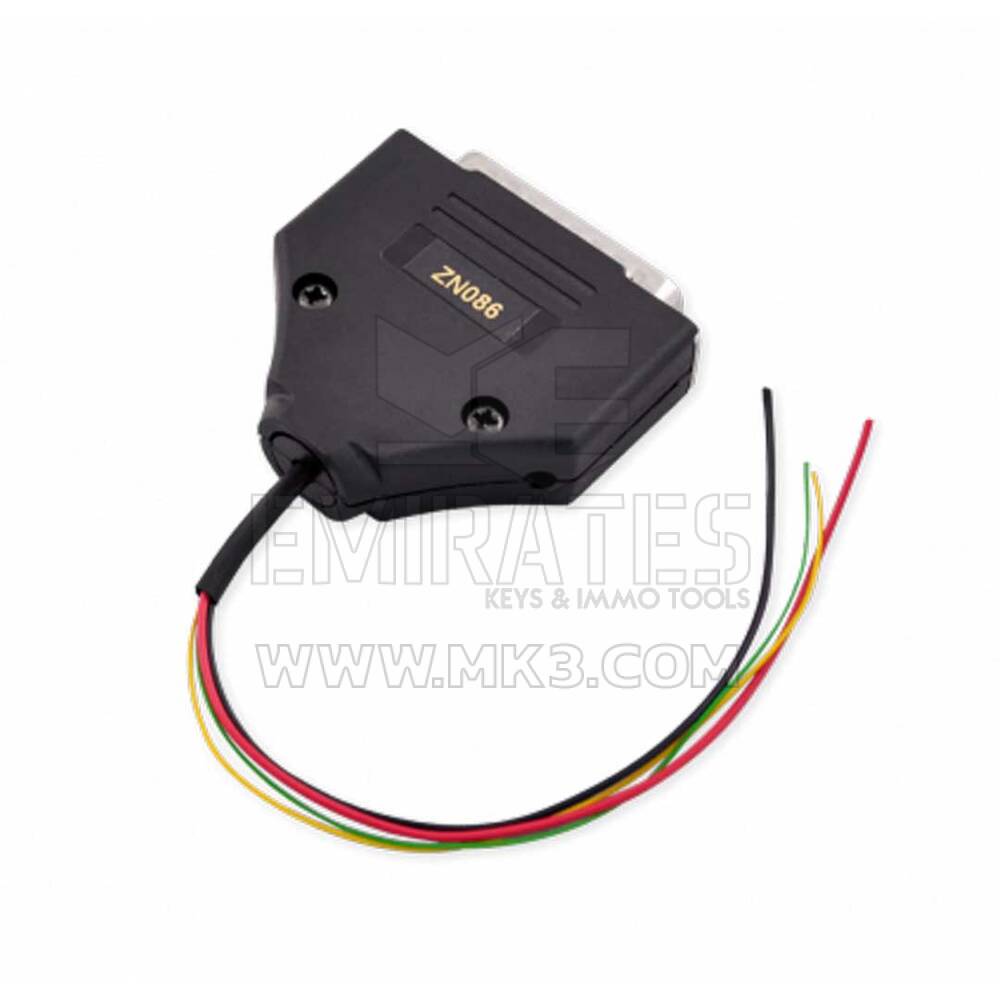

The ZN086 adapter for ABPROG is used for establishing communication with a specific type of processors. This adapter is not a standalone tool, it is used in boot mode by directly soldering the wires to four points on the PCB. The adapter is then connected to the ABPROG and AVDI to complete the procedure.

Main functionalities:

Reading data from MC9S12 processors
Writing data from MC9S12 processors

Supported processors:

Unlocked MC9S12xxxxxxxxx processors

Pinout:

DB25 (Male) connector - used for connecting to ABPROG

4 wires 20 cm each as follows:

14pin - GND - black 0.25
21pin - +5v - red 0.25
11pin - RST - yellow 0.14
19pin - BKGD - green 0.14

These reading and writing functionalities are accessible via ABPROG Upgraded and Classic menus in the ABRITES software.
AVDI and active AMS are required.
