Alientech 144300KAD4 K-TAG - Complete Set of Adapters

Alientech 144300KAD4 K-TAG - Complete Set of Adapters

Product Description:

Additional Adapter Accessories From ALIENTECH with Product Number: MK7895
This Weight Product: 7500g

Specs:

Condition: New
Manufacturer: ALIENTECH
Weight: 7.5KG
DIMENSIONS: 40 × 50 × 18 cm

Set of adapters K-TAG

K-Gear. Case Including Adapters For Positioning Frame For ECUs Equipped With Infineon Tricore, Motorola MPC5xx, Motorola MPC56xxx, NEC 76F00xx, Nexus MPC5xxx, Renesas SH705x, And ST10Fxxx Microprocessors

No soldering, no risk!

Description

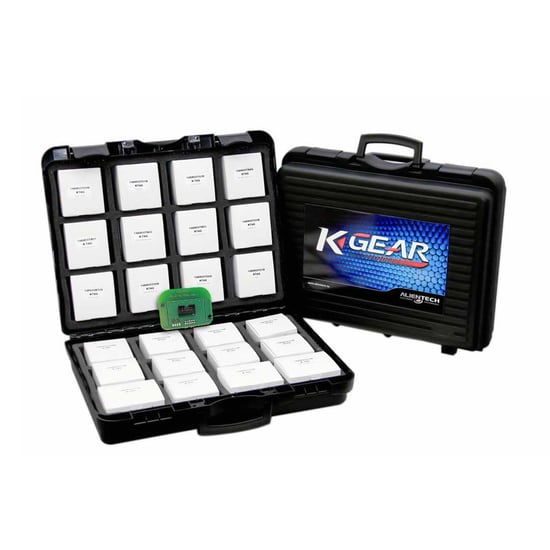

K-gear Includes All The Adapters For The Positioning Frame.
You'll Connect Your K-Tag Directly On The Board Of The ECU Using The Programming Probes, Designed To Be Used On All The Most ECUs.

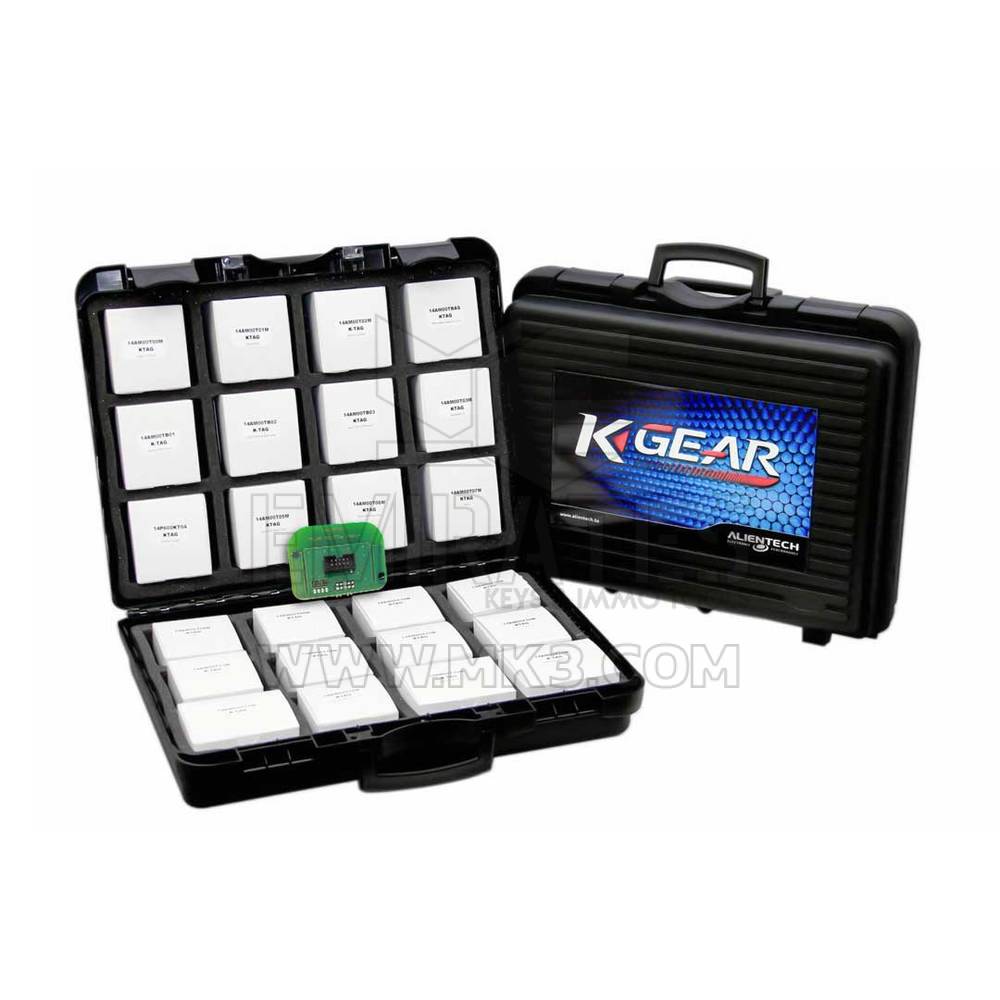

During Your Working Trips, You'll Just Replace The Adapters Within The K-Gear Suitcase In Their Safe Places.

Technical Features

Main supported ECUs:

• AC Delco E83
• Bosch EDC16
• Bosch EDC17
• Bosch EDC7
• Bosch ME7
• Bosch ME9
• Bosch MED17
• Chrysler NGC5
• Continental CM2250
• Continental SIM
• Continental SIMOS
• Continental SID
• Delphi CRD
• Delphi DCI
• Delphi DCM
• Denso CAN
• Denso MB
• Denso PS
• Denso K-Line
• Detroit DDEC
• EFI T6
• Magneti Marelli IAW
• Magneti Marelli MJD
• Magneti Marelli MJ8DF
• Siemens SID
• TRW EMS2 E5

The kit includes:

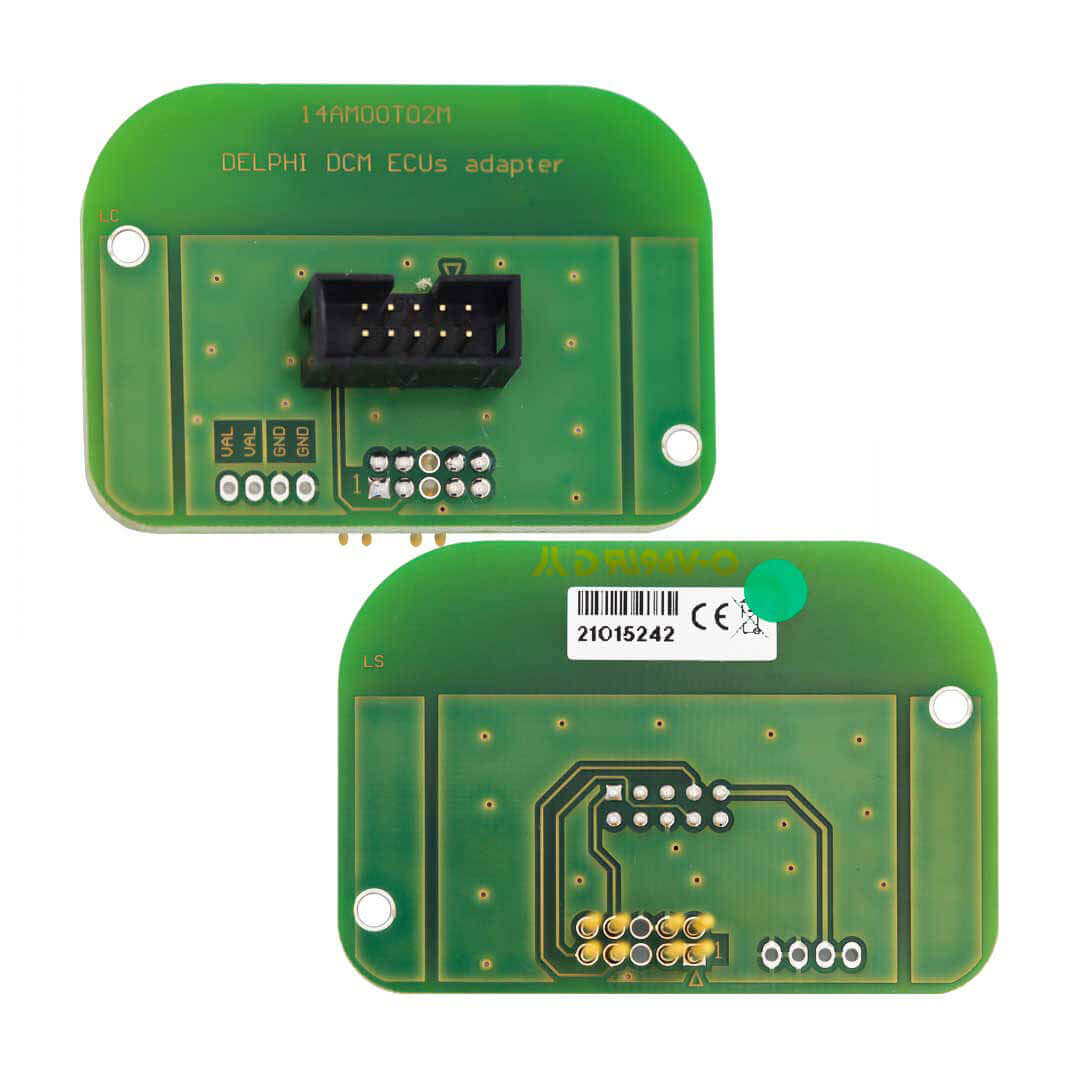

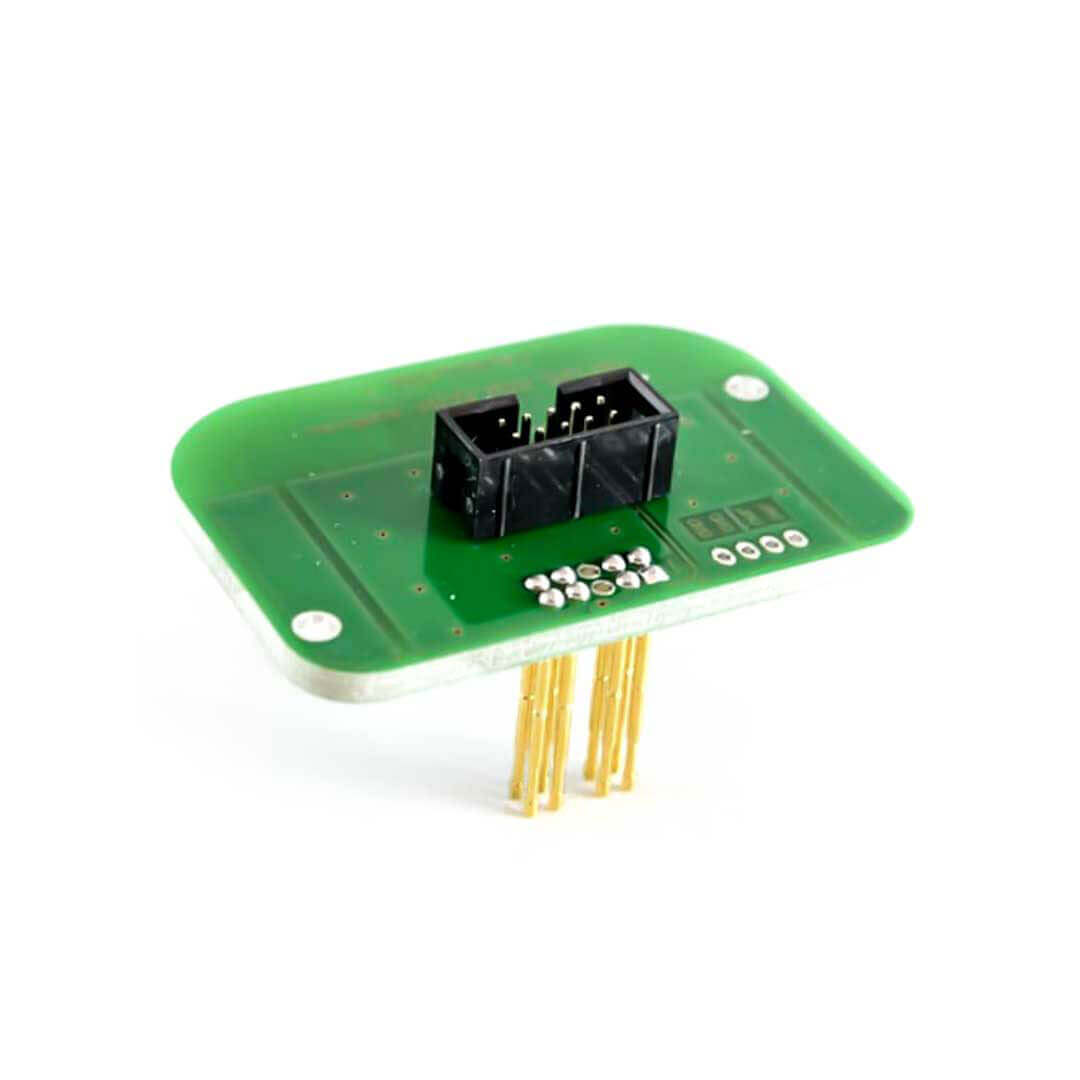

• Adapter Delphi DCM MOTOROLA MPC5xx

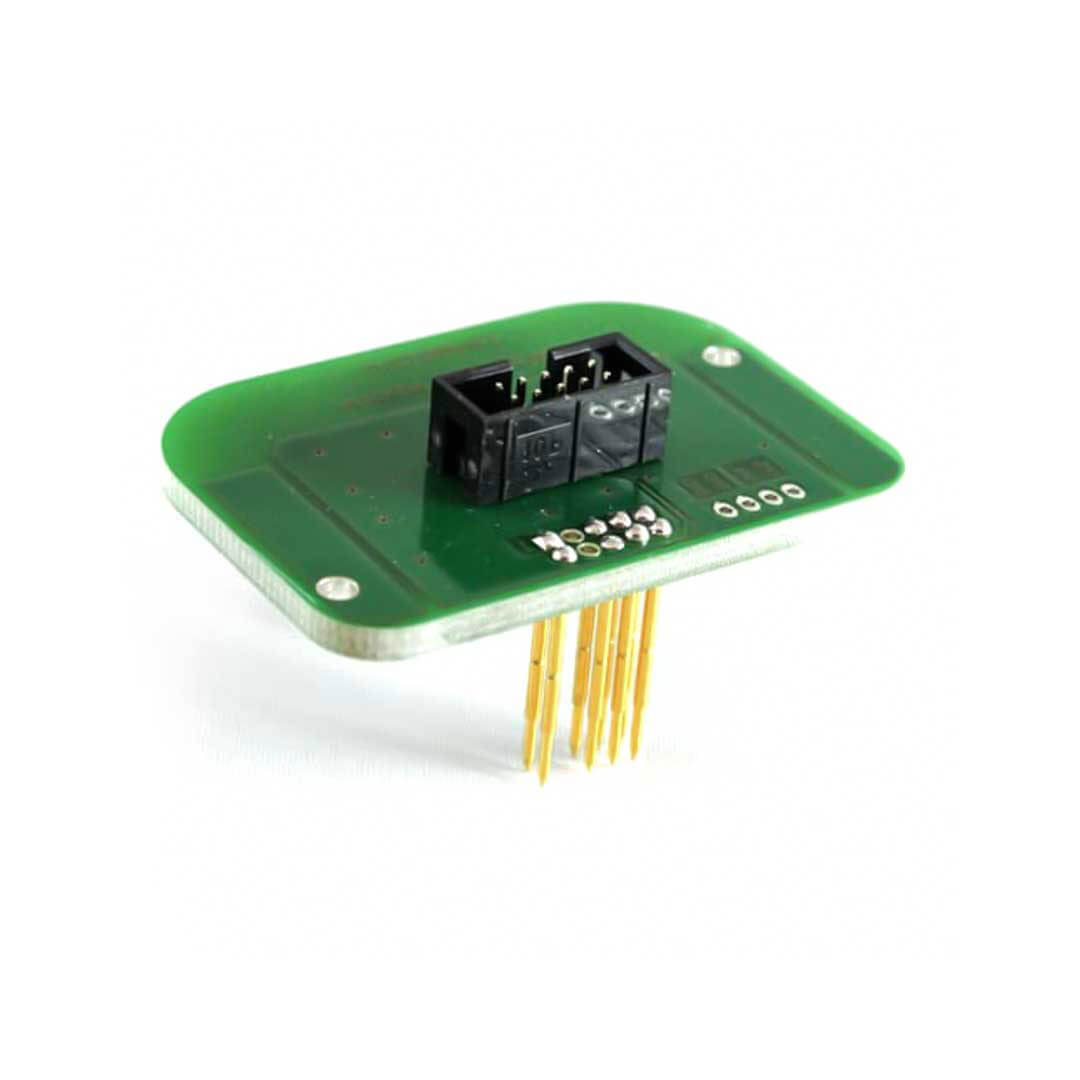

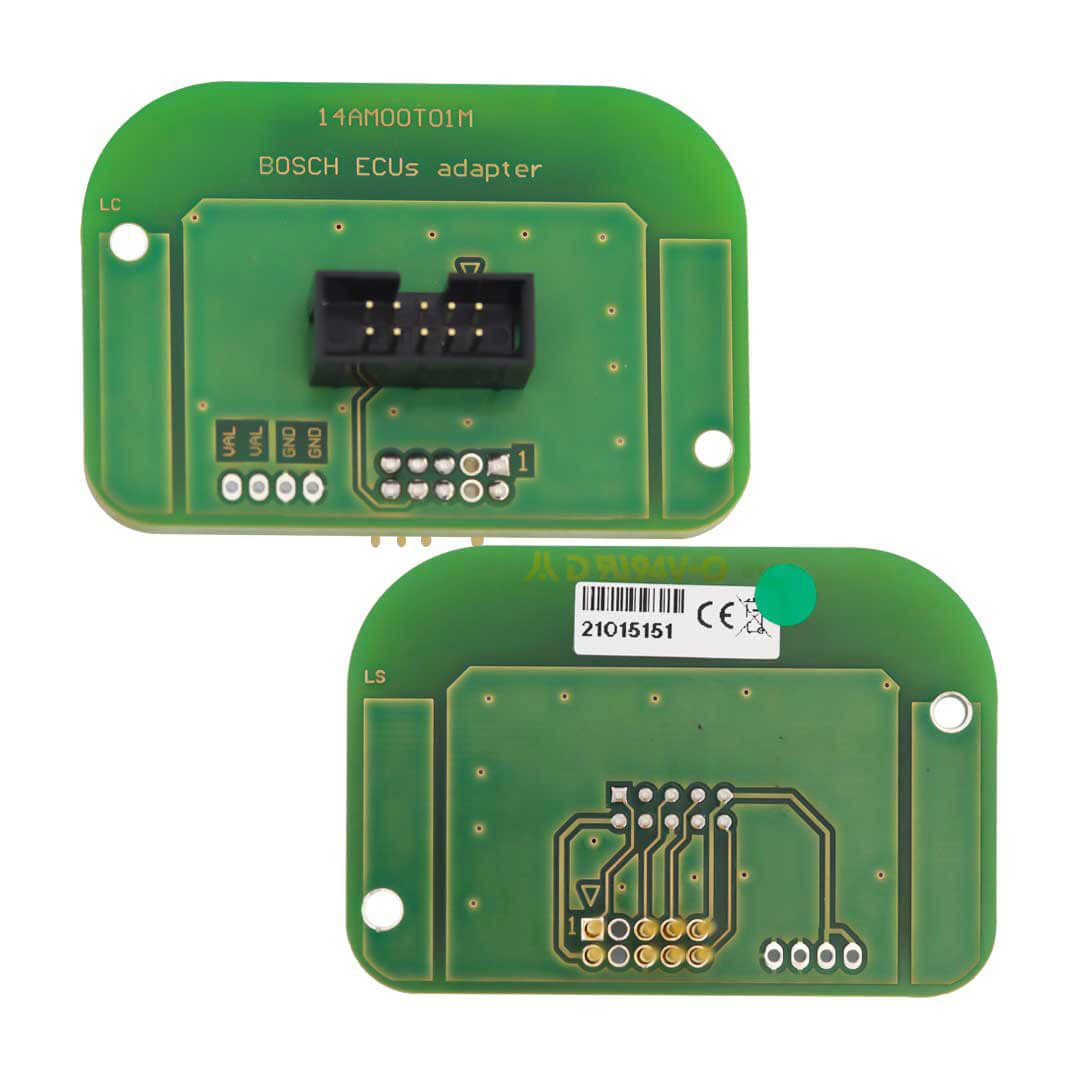

• Adapter Bosch MOTOROLA MCP5xx

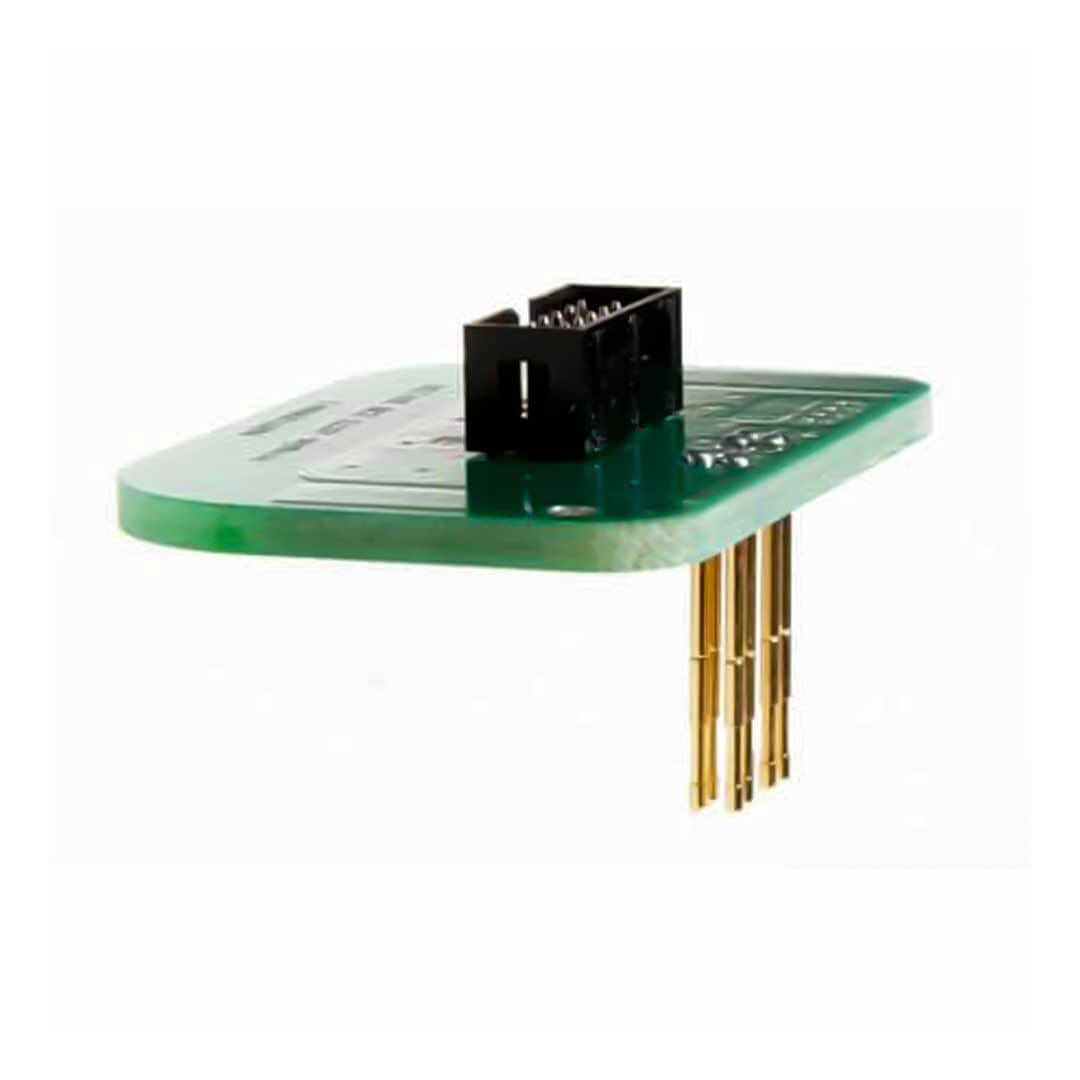

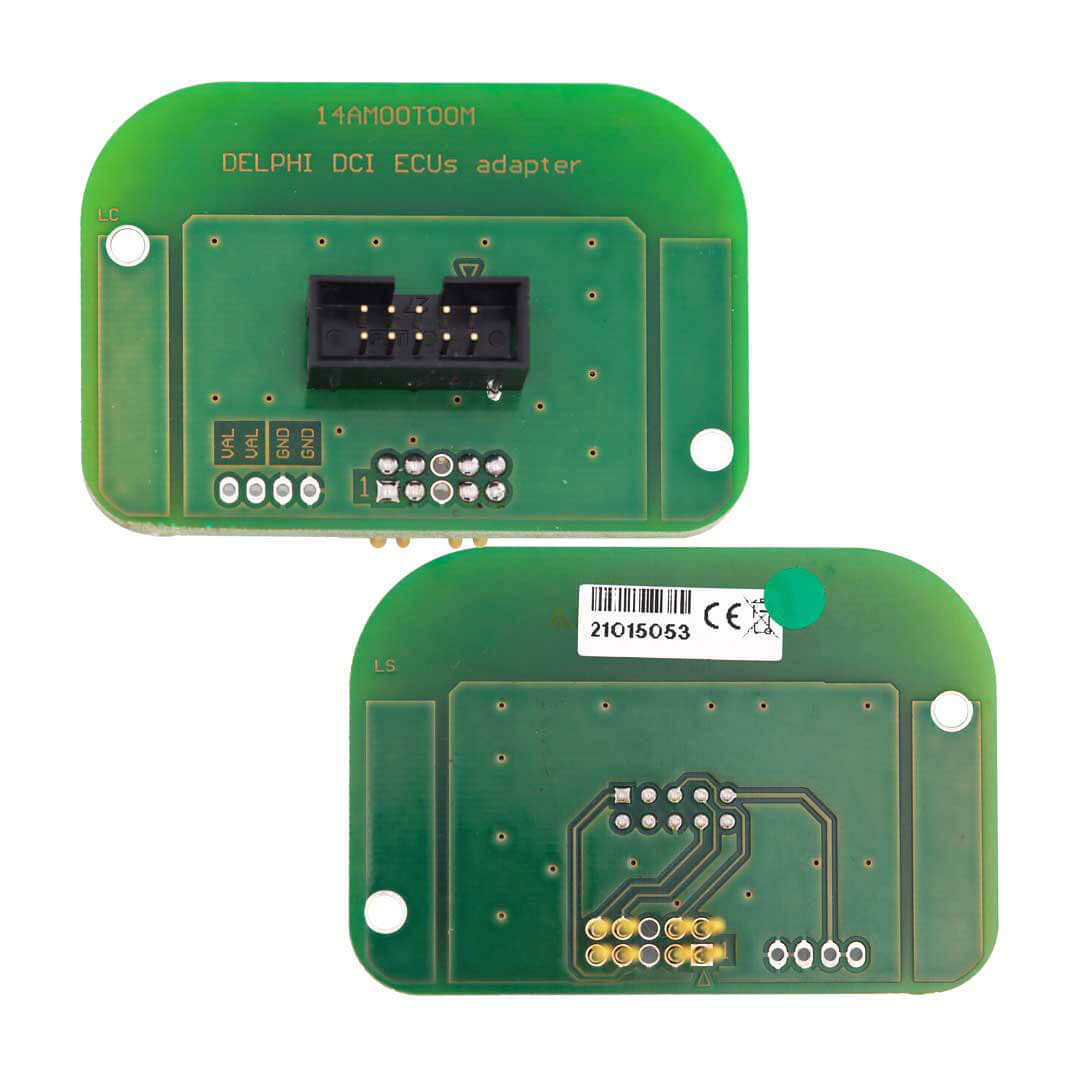

• Adapter Delphi DCI MOTOROLA MPC5xx

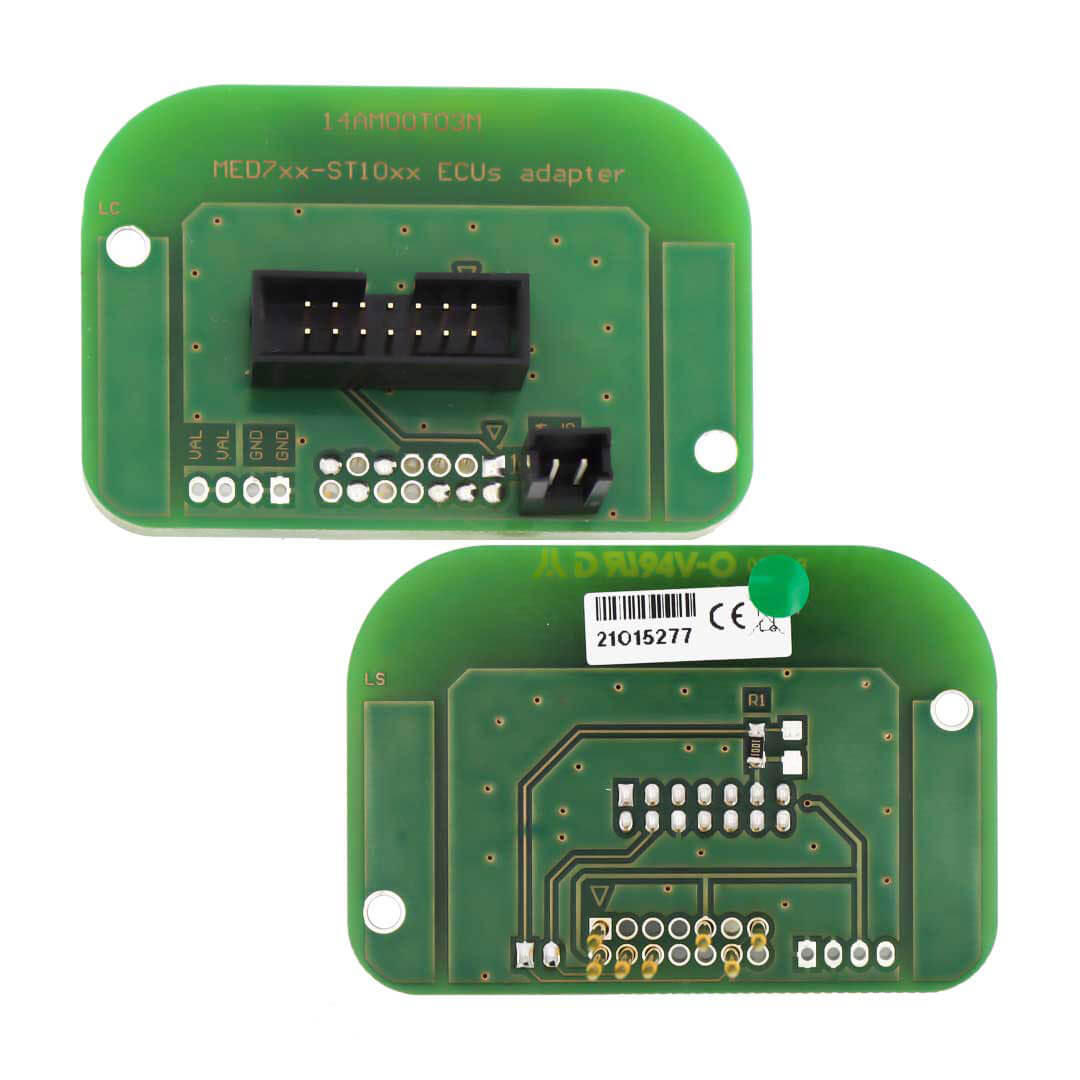

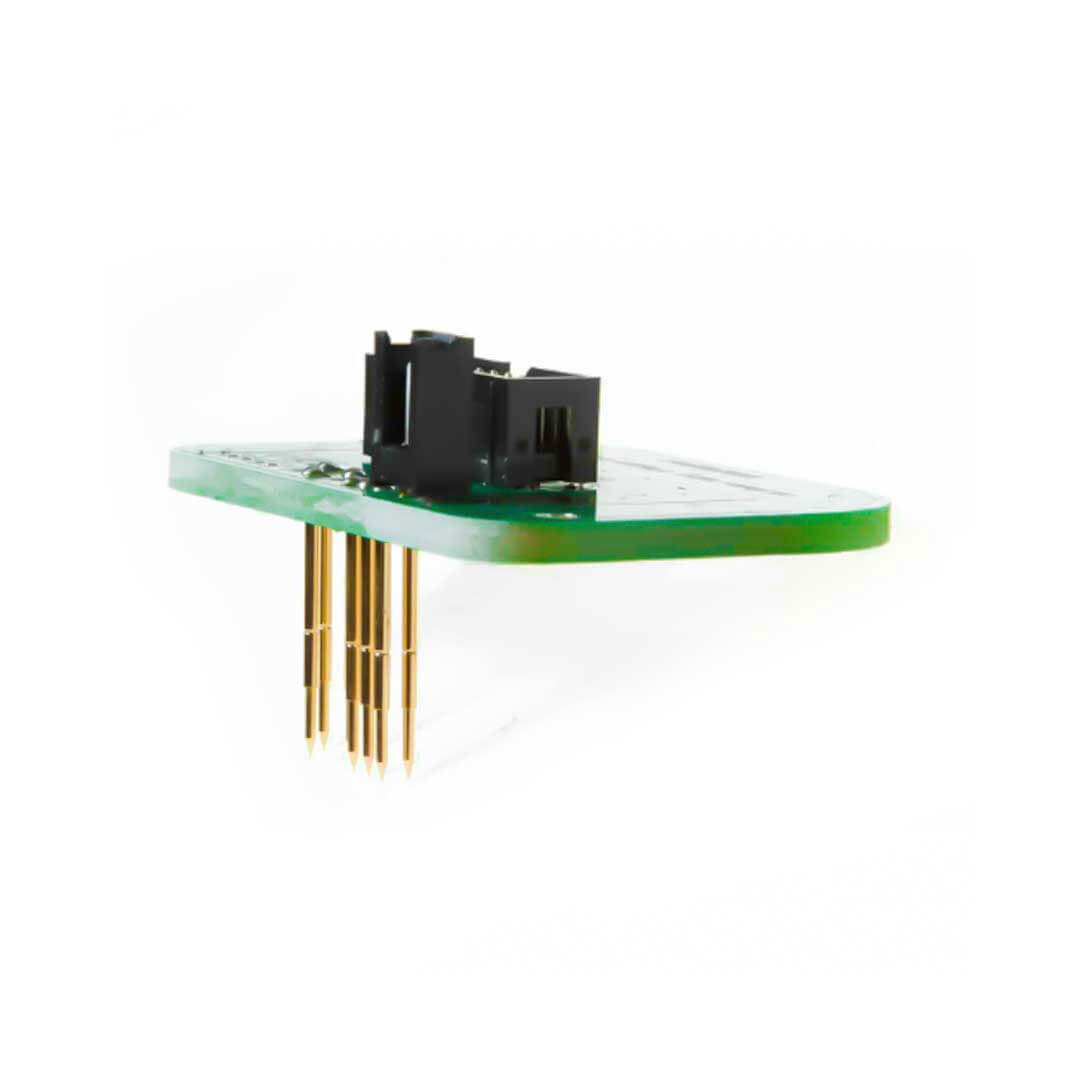

• Adapter Bosch ME ST10Fxxx

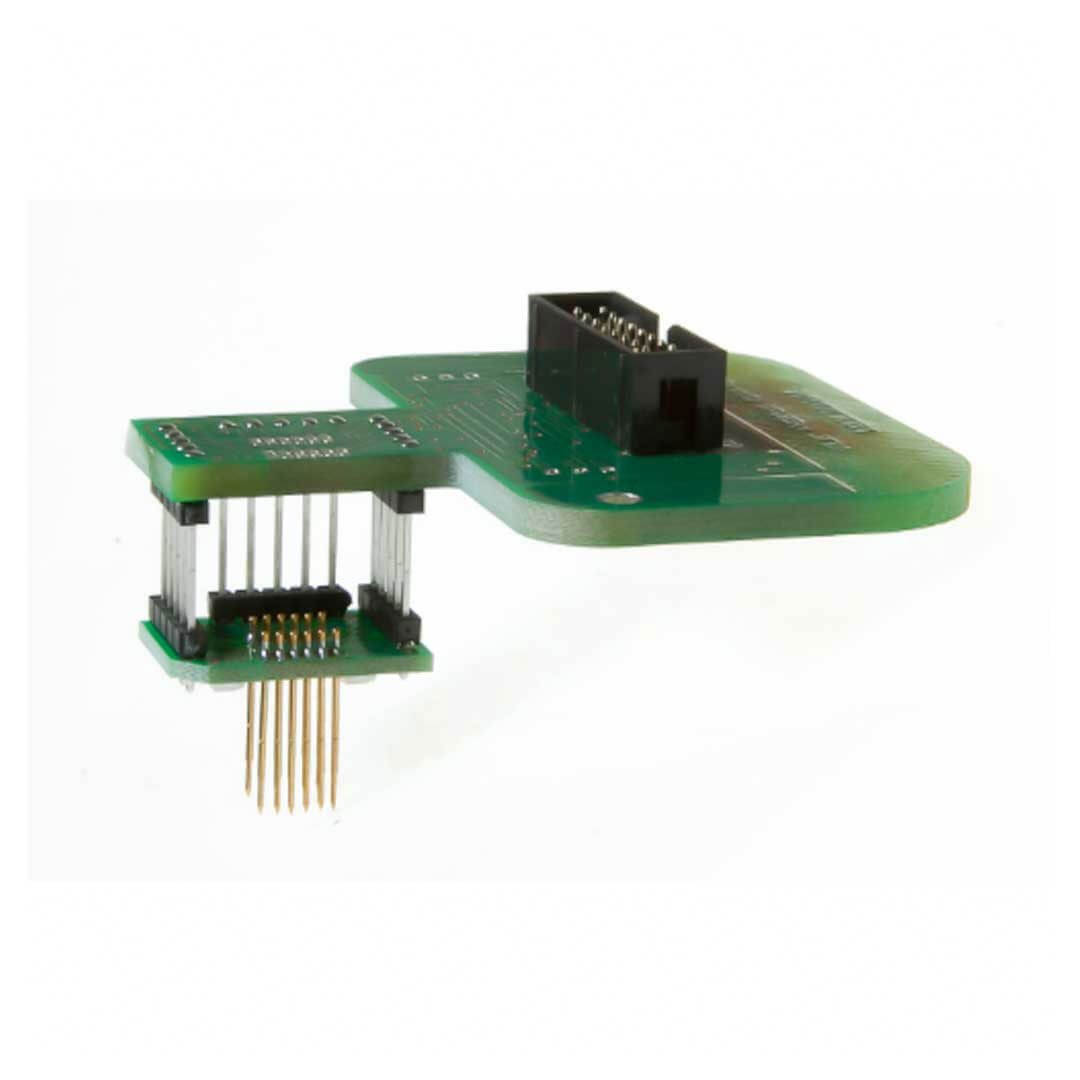

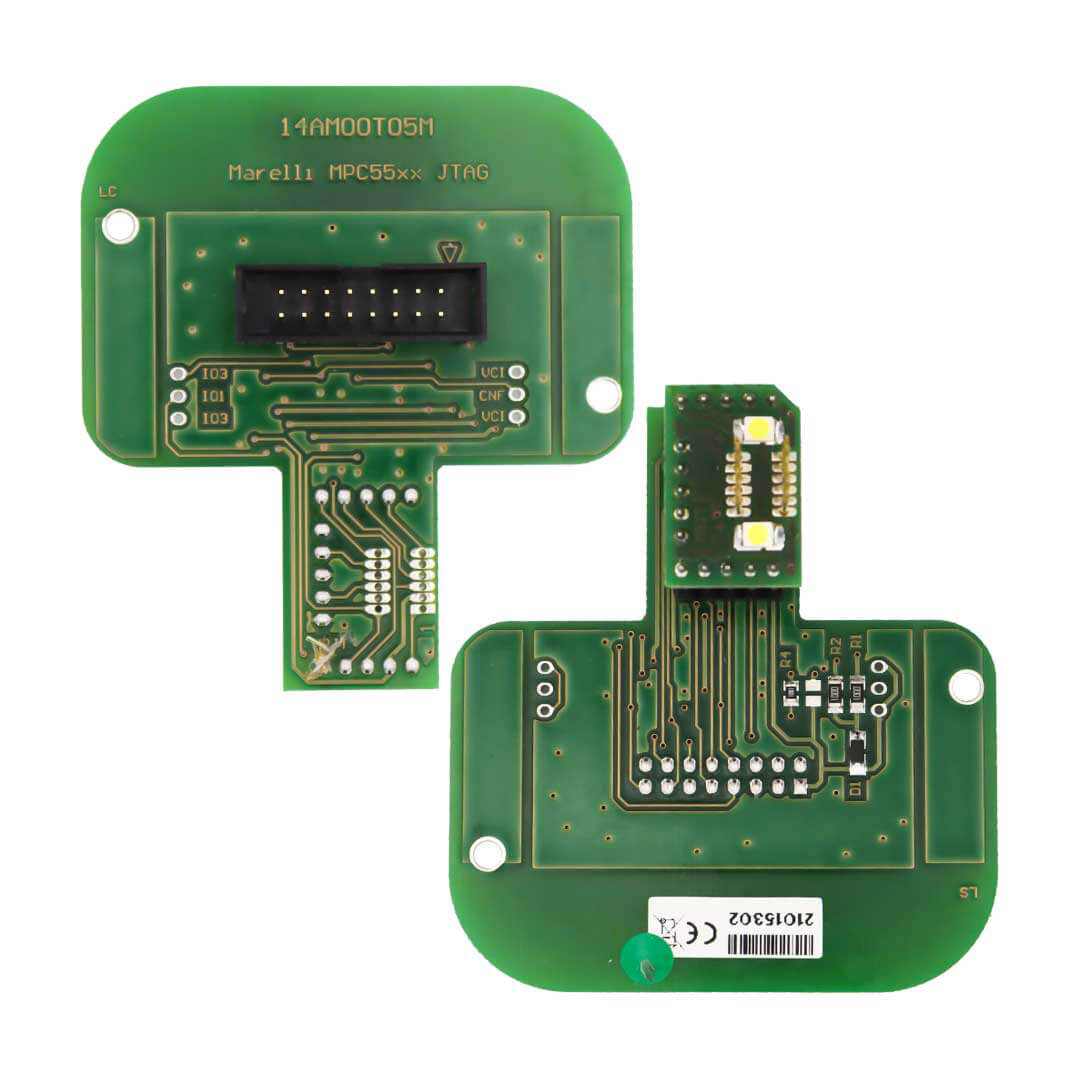

• Adapter Magneti Marelli Nexus MPC5xxx
• Adapter Delphi Nexus MPC5xxx

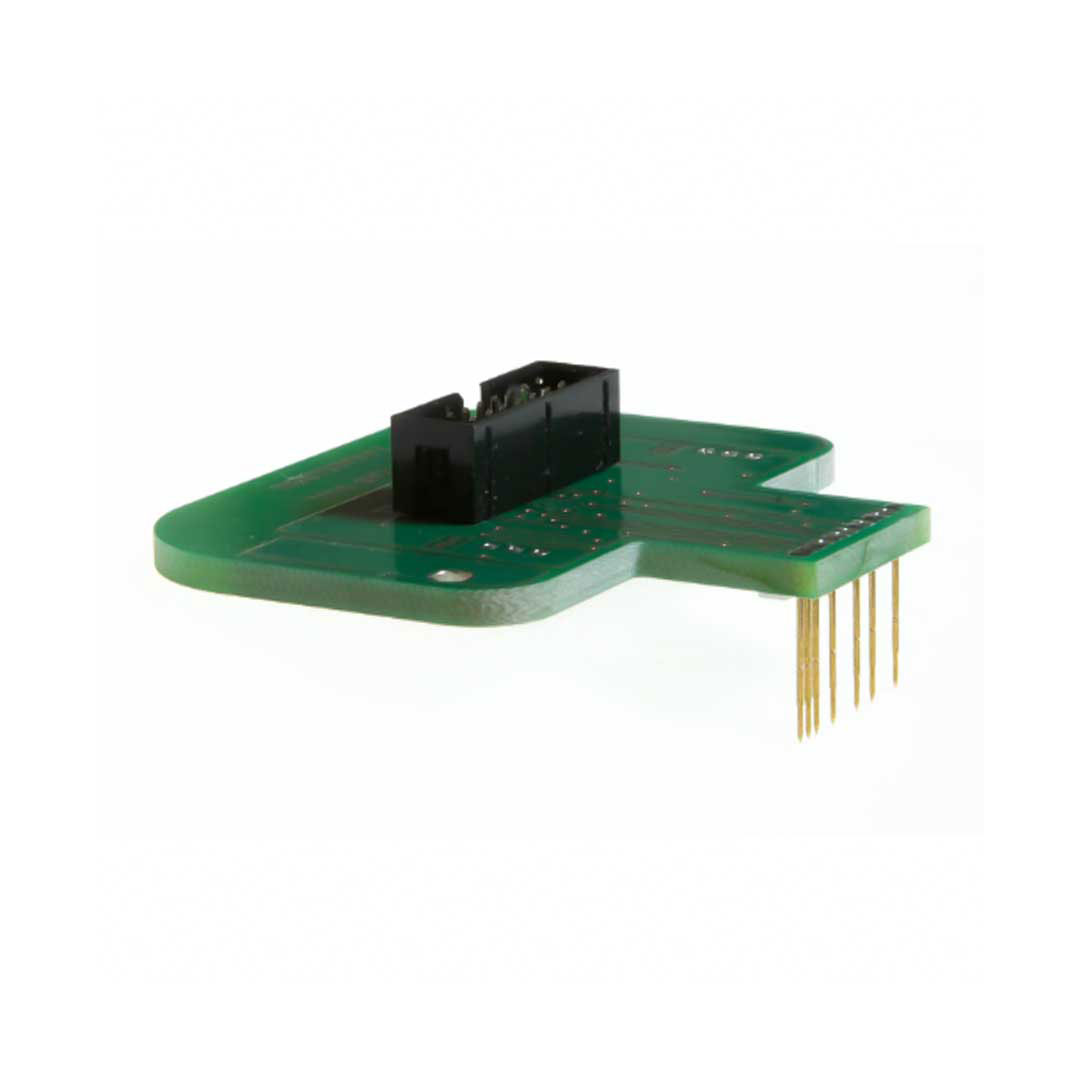

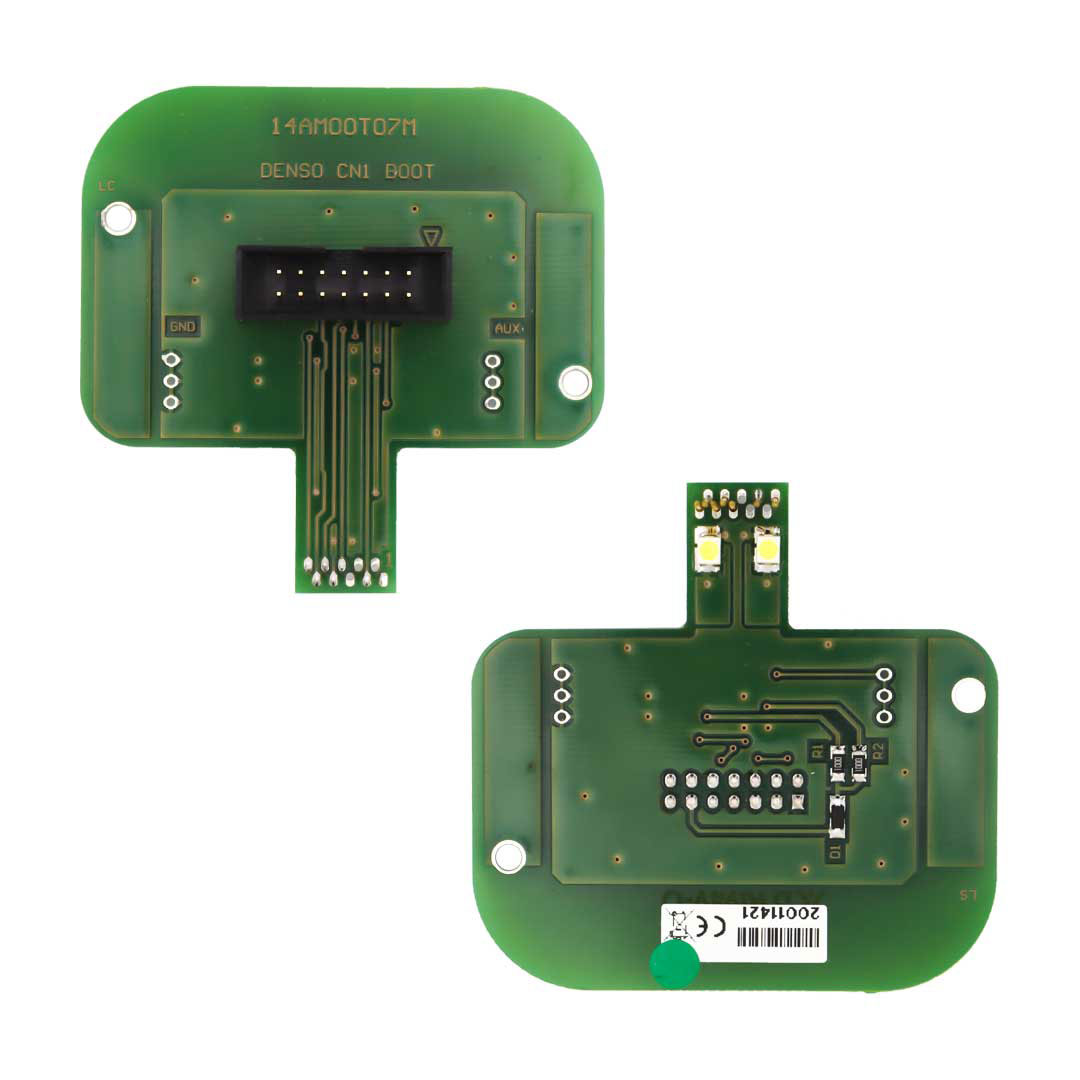

• Adapter to write Denso Renesas SH705x #1

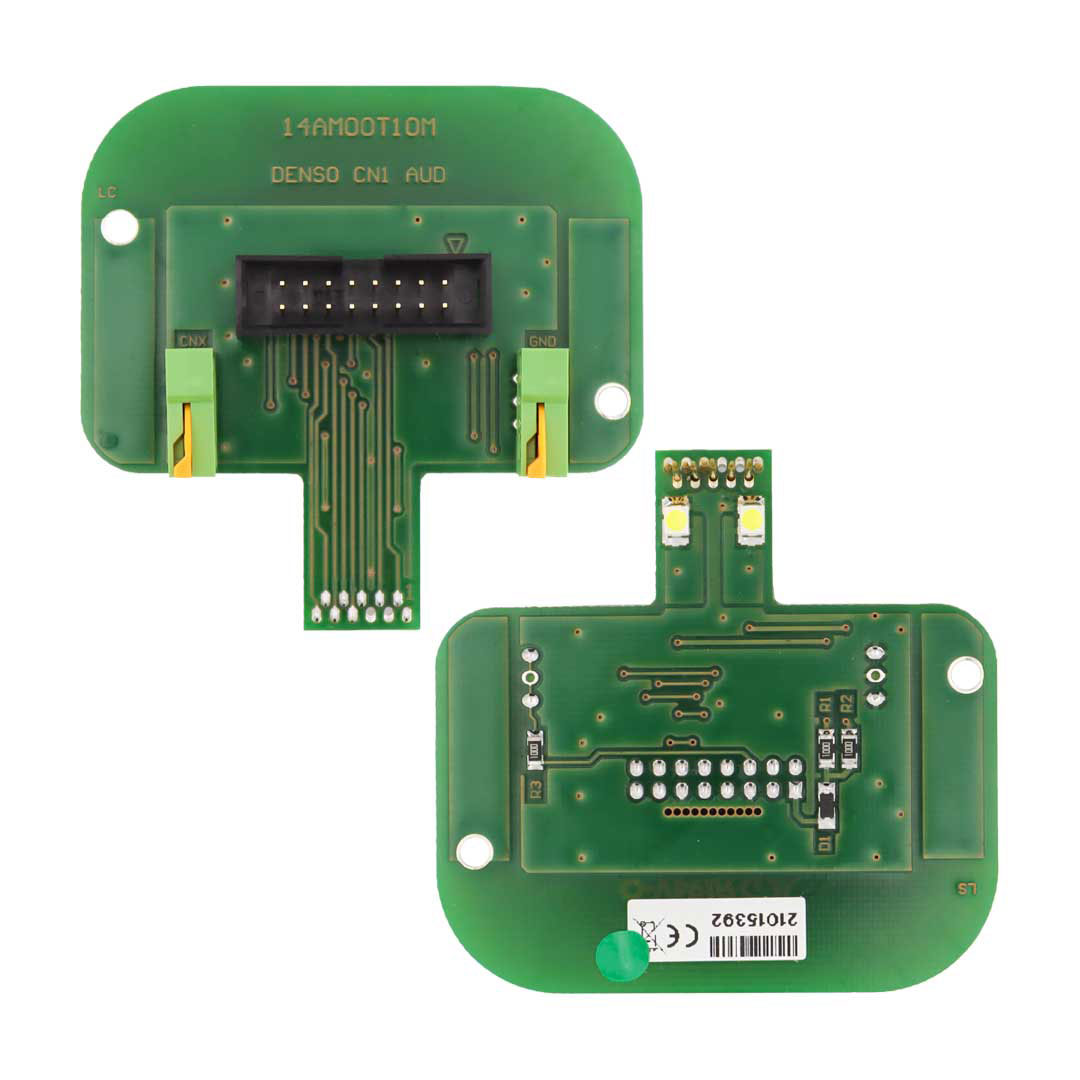

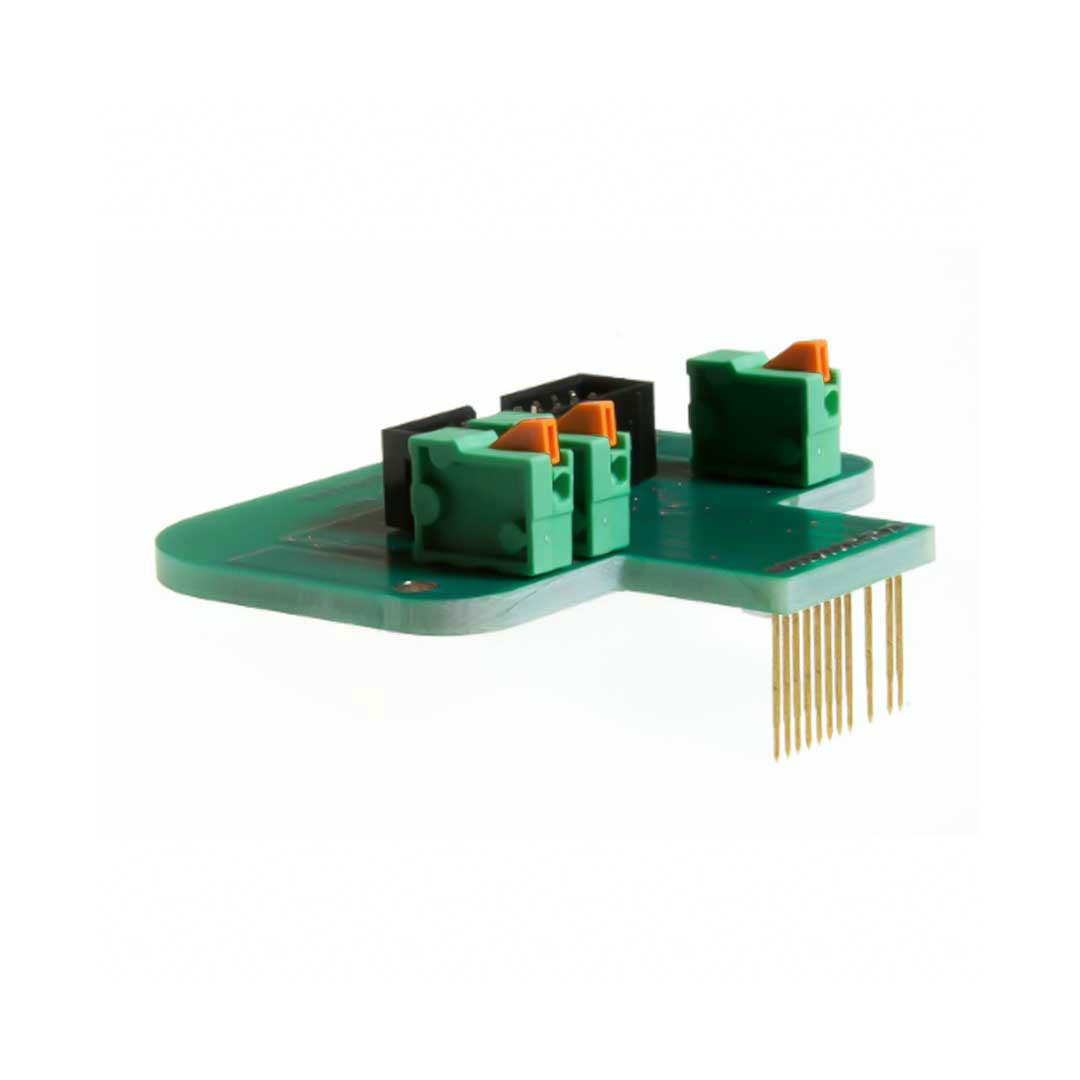

• Adapter for lettura Denso Renesas SH705x #1

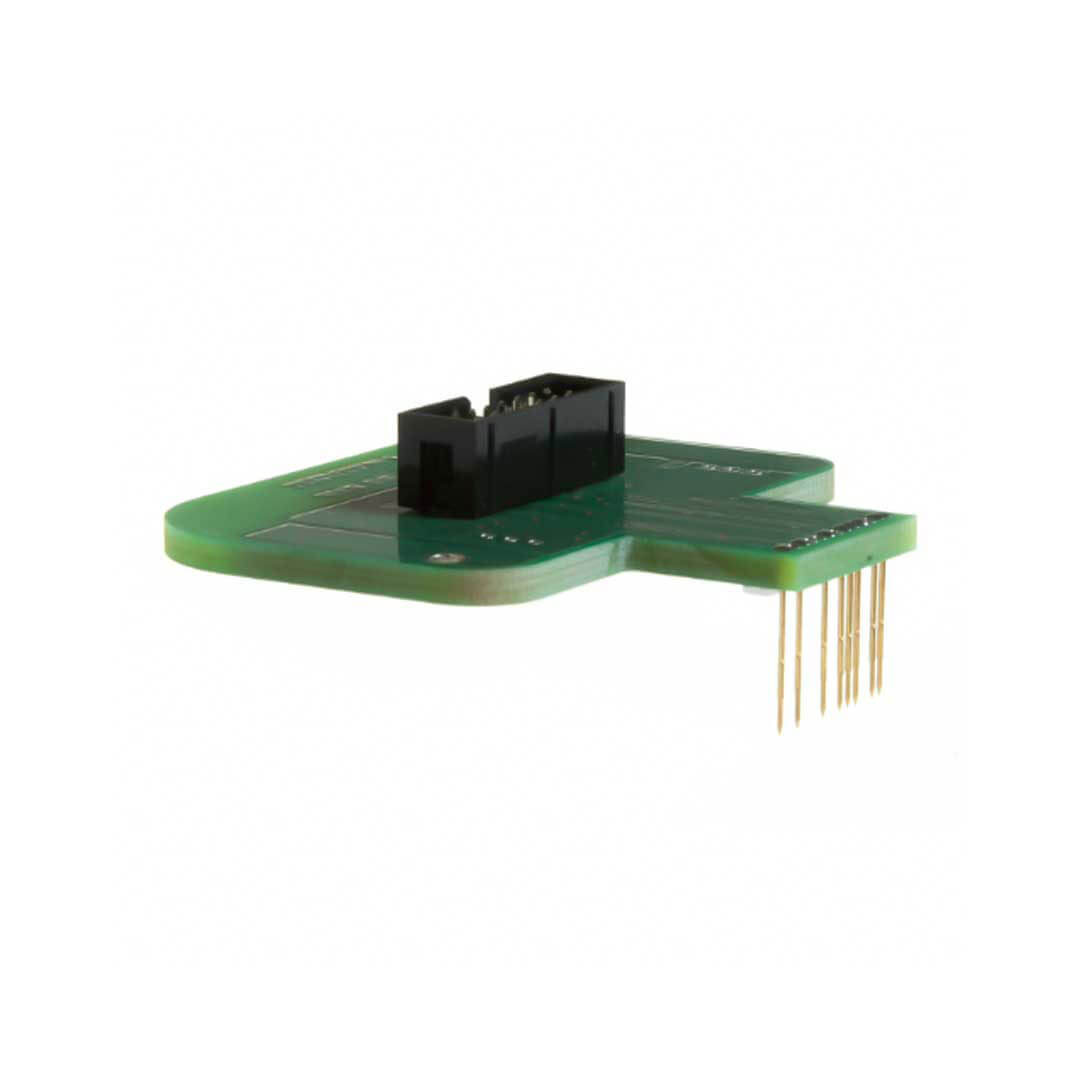

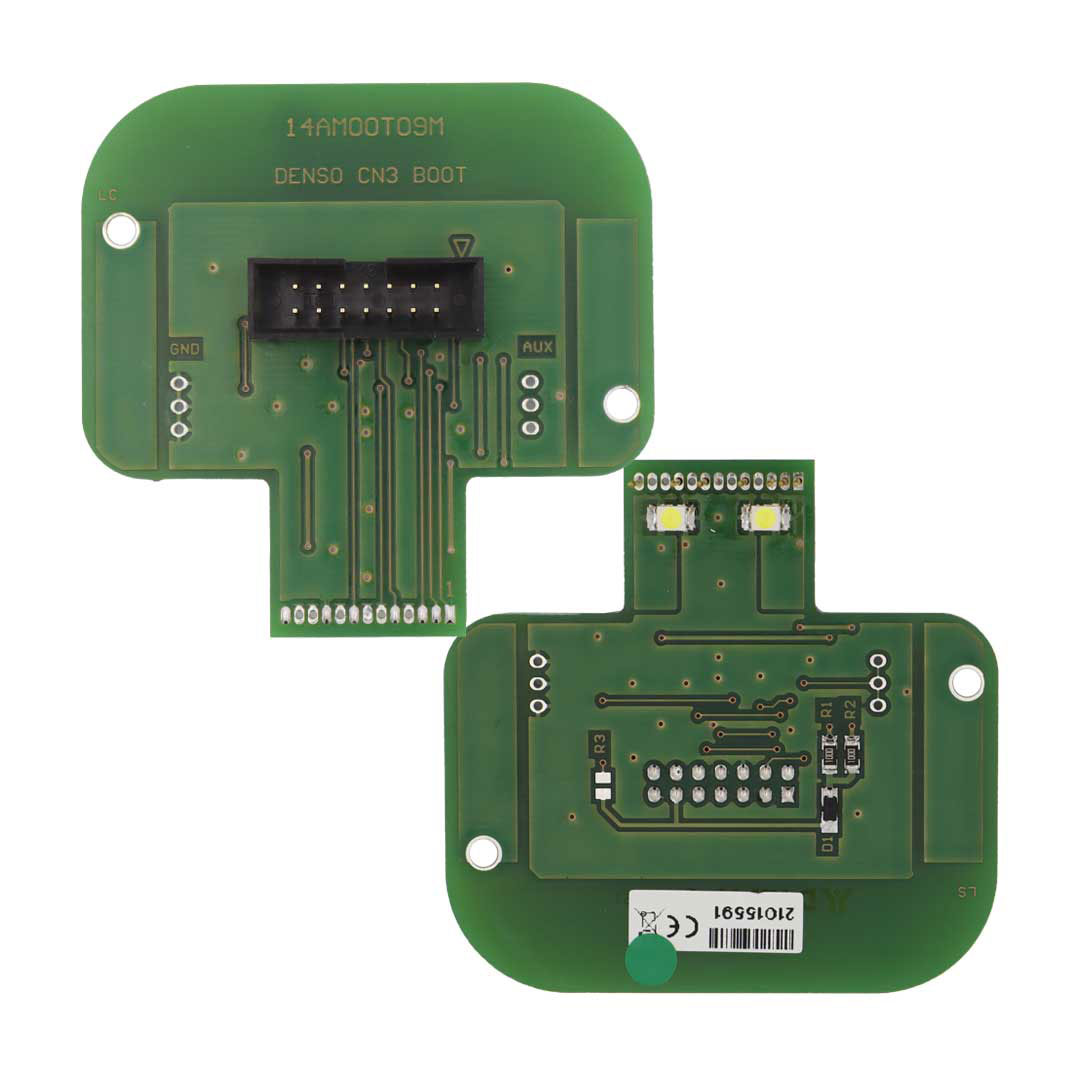

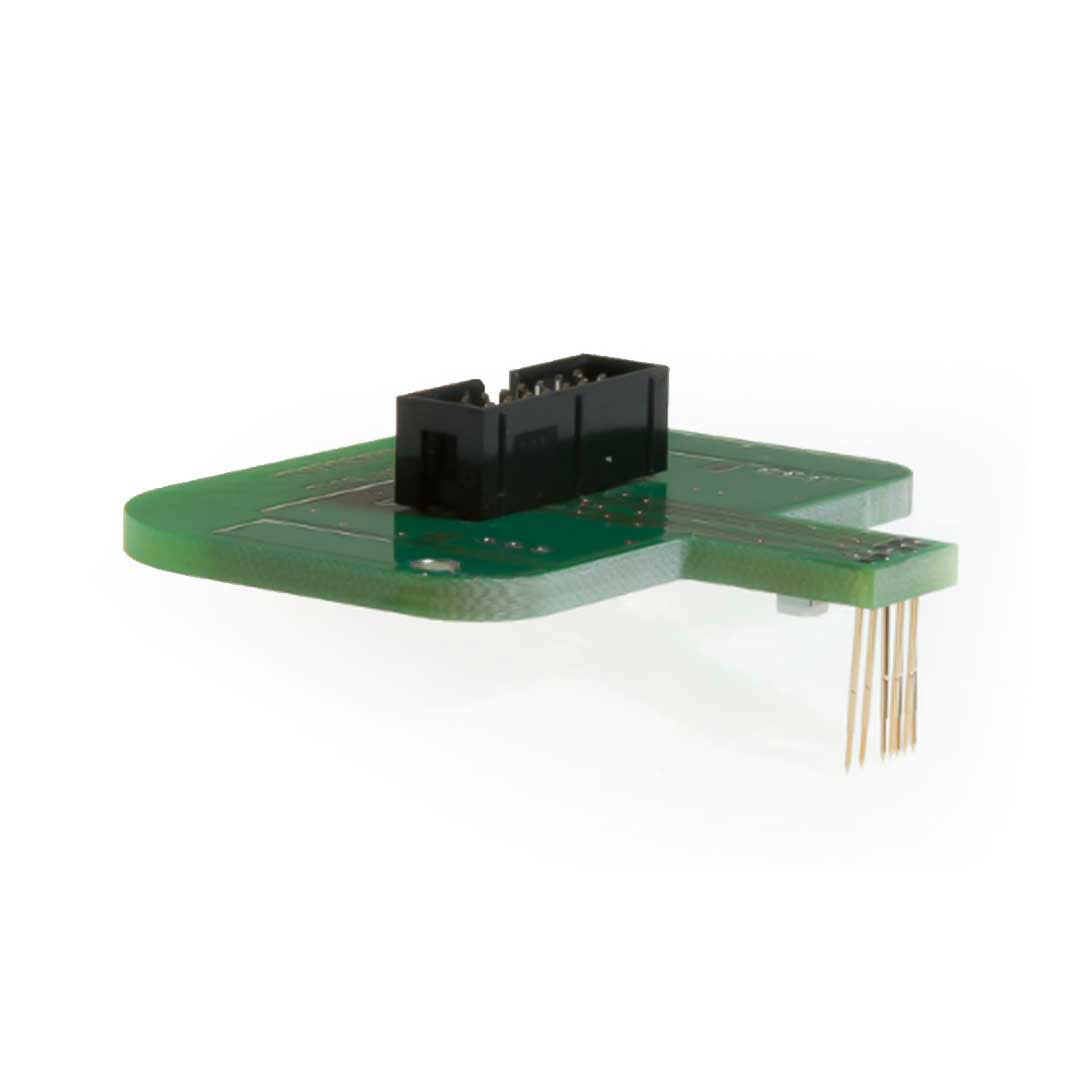

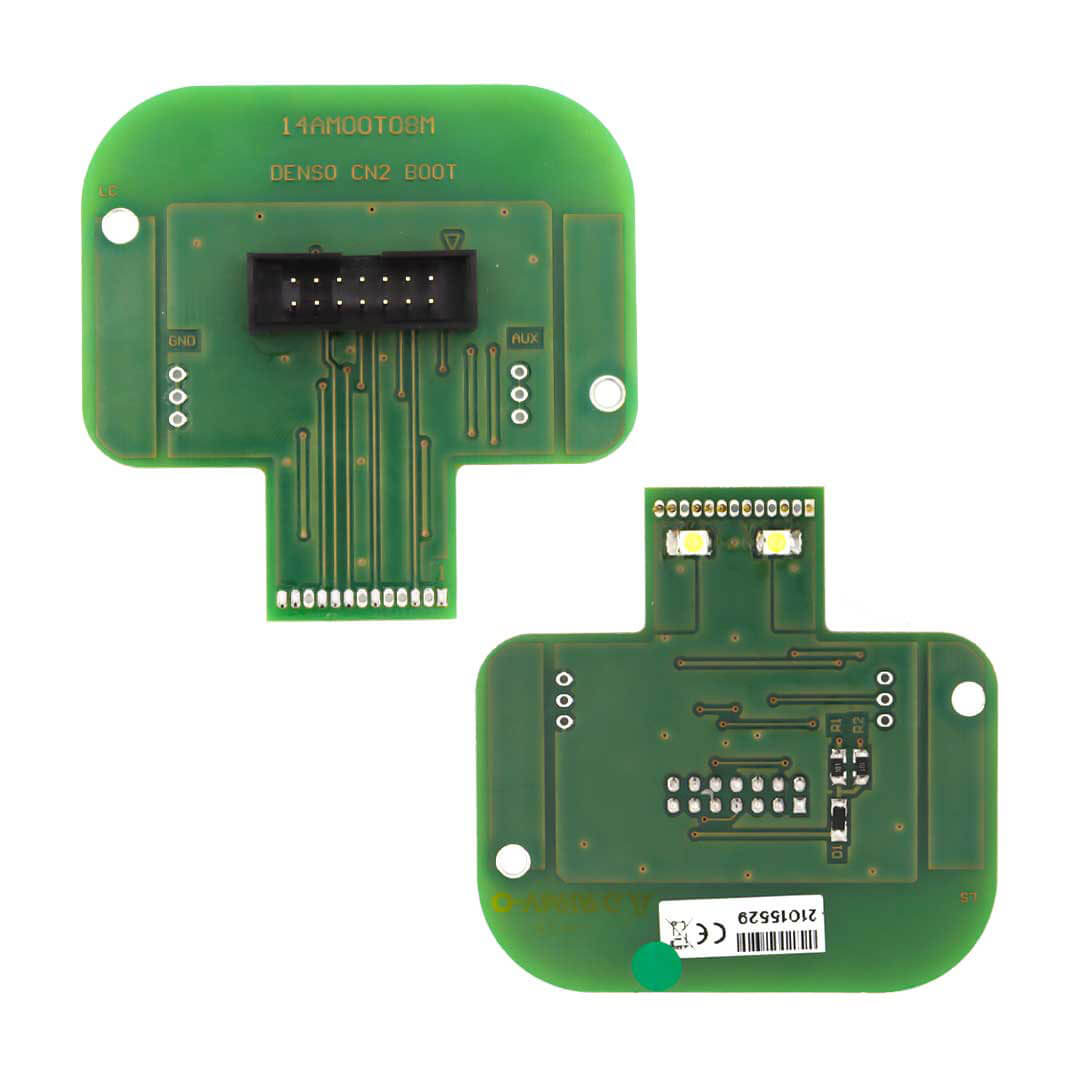

• Adapter to write Denso Renesas SH705x #2
• Adapter to write Denso Renesas SH705x #2

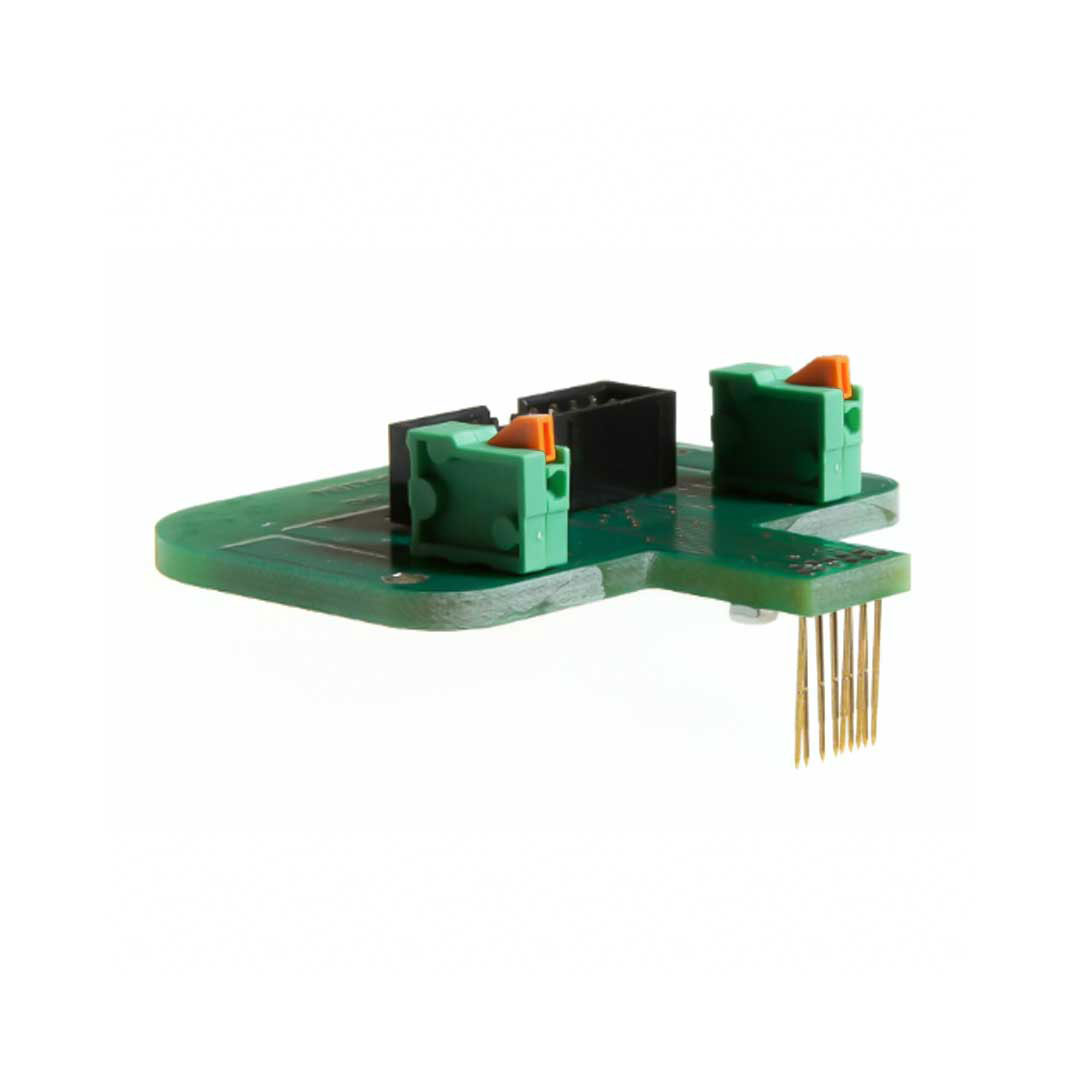

• Adapter for lettura Denso Renesas SH705x #2

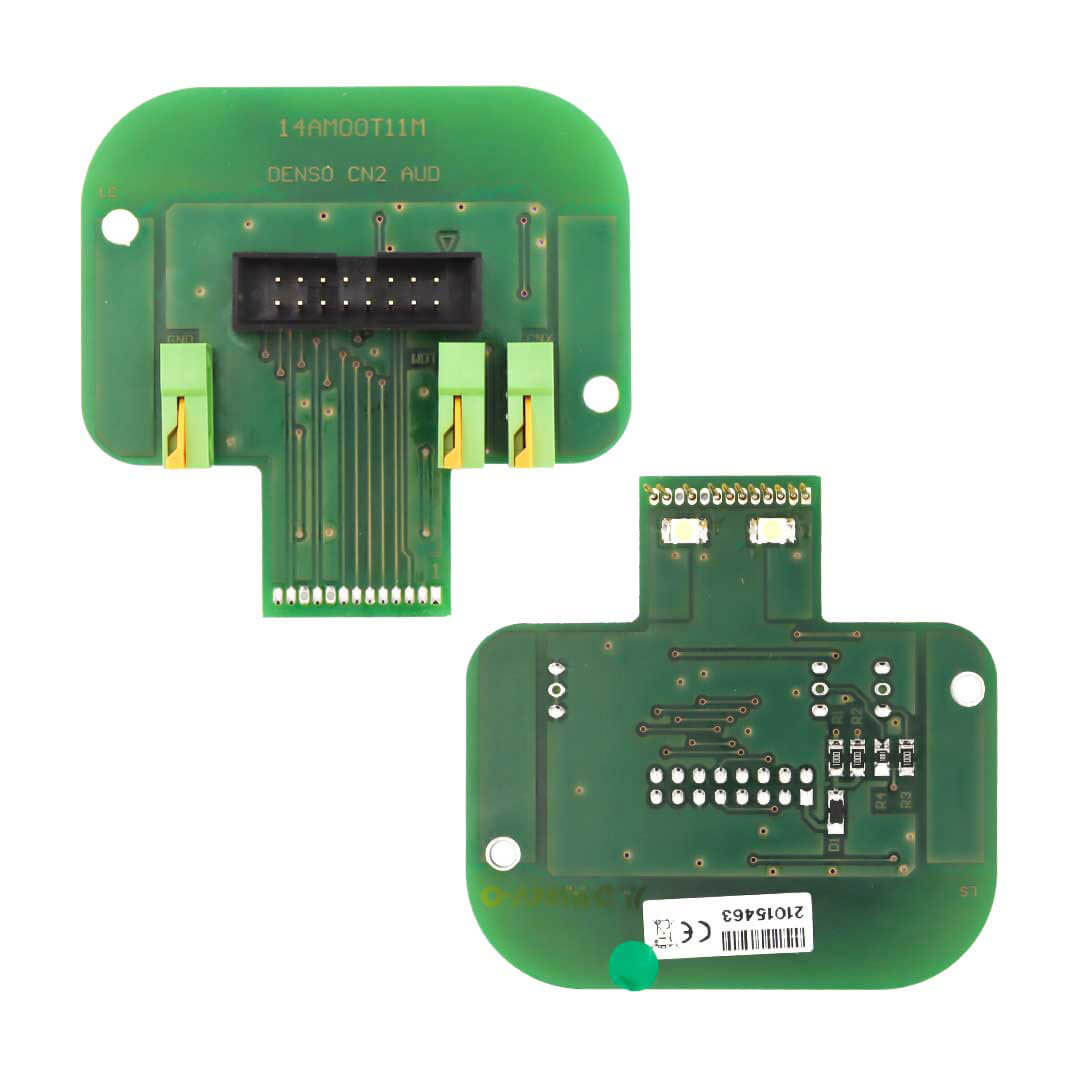

• Adapter Nexus MPC5xxx ECU TRW

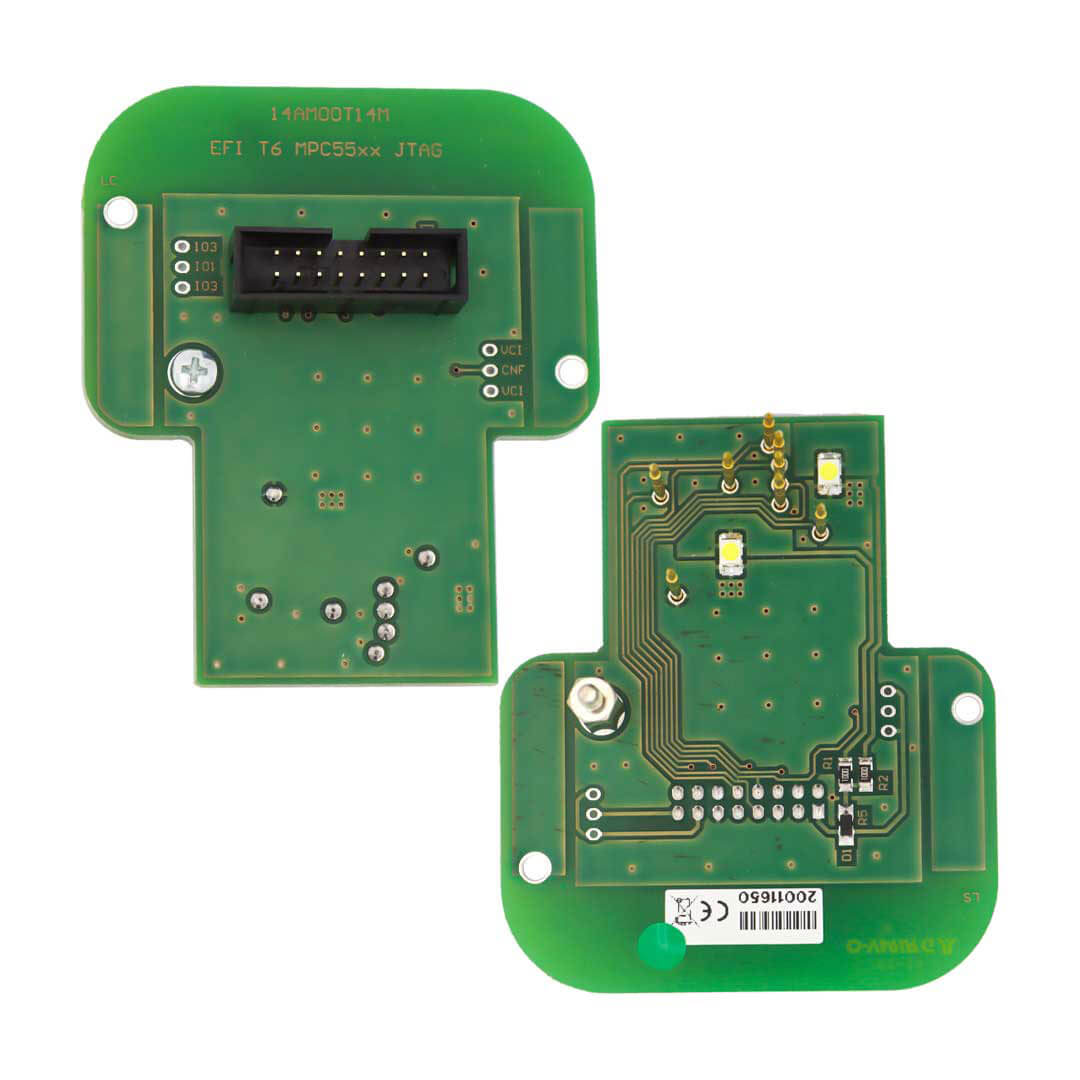

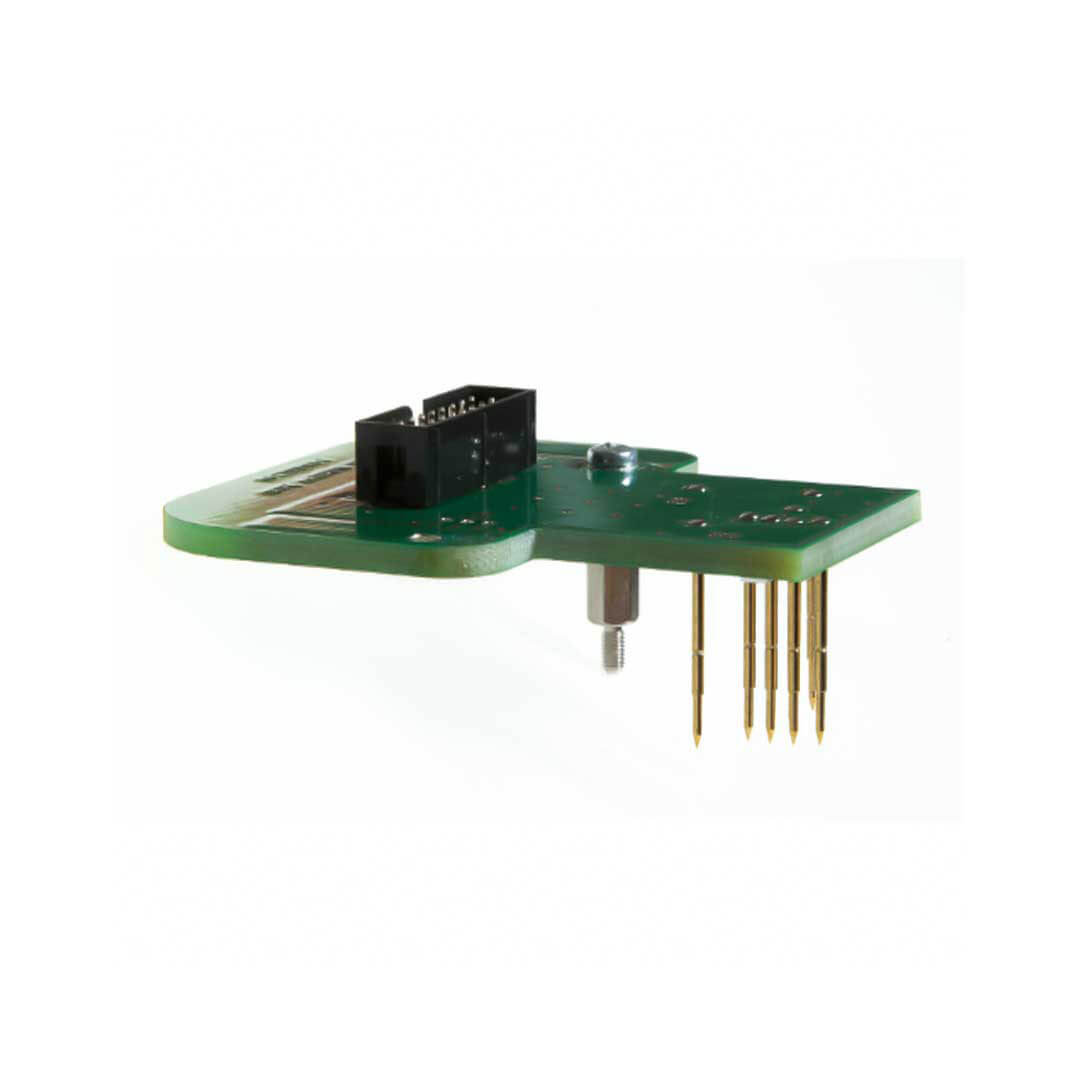

• Adapter EFI T6 Nexus MPC5xxx

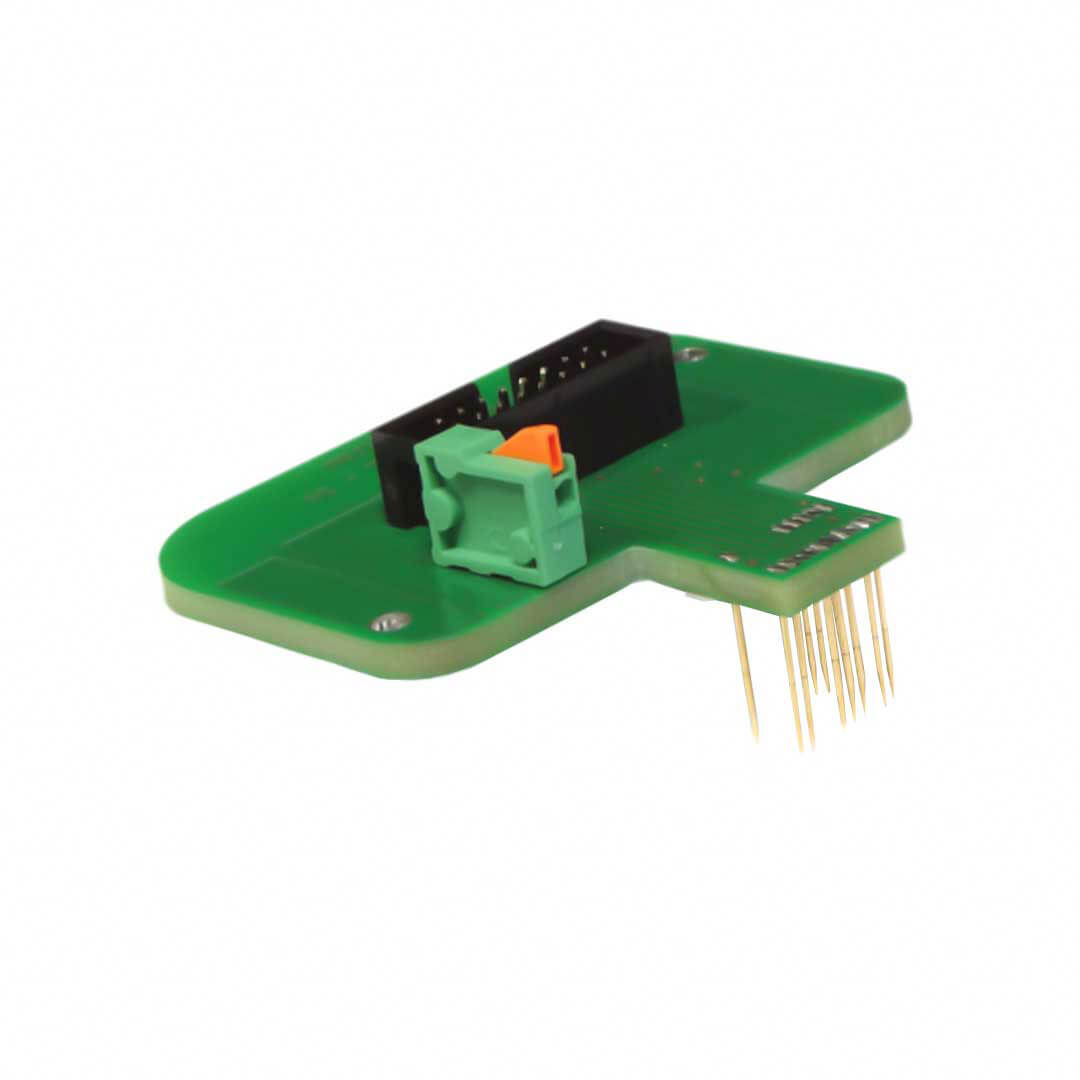

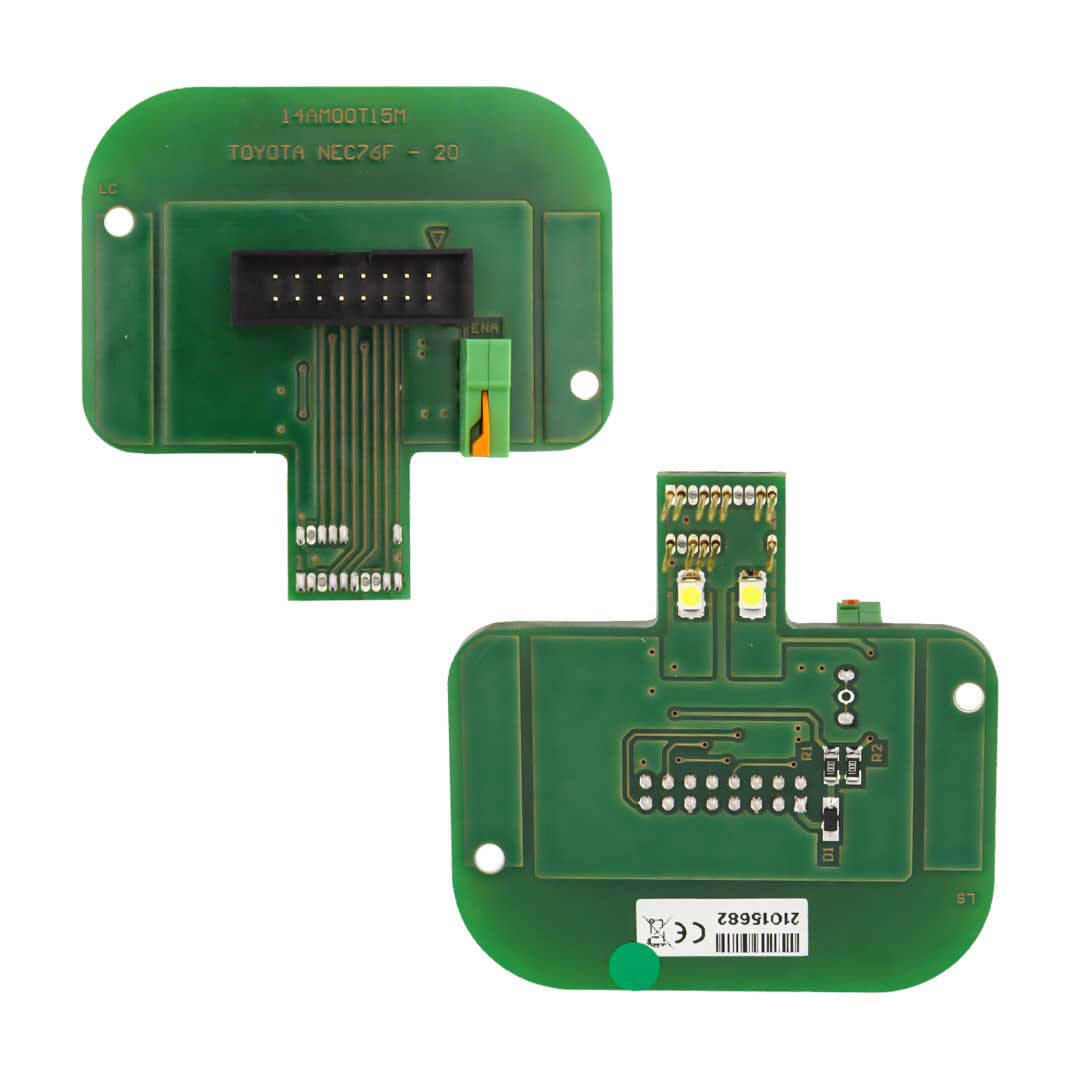

• Adapter for Denso NEC 76F00XX 20pins

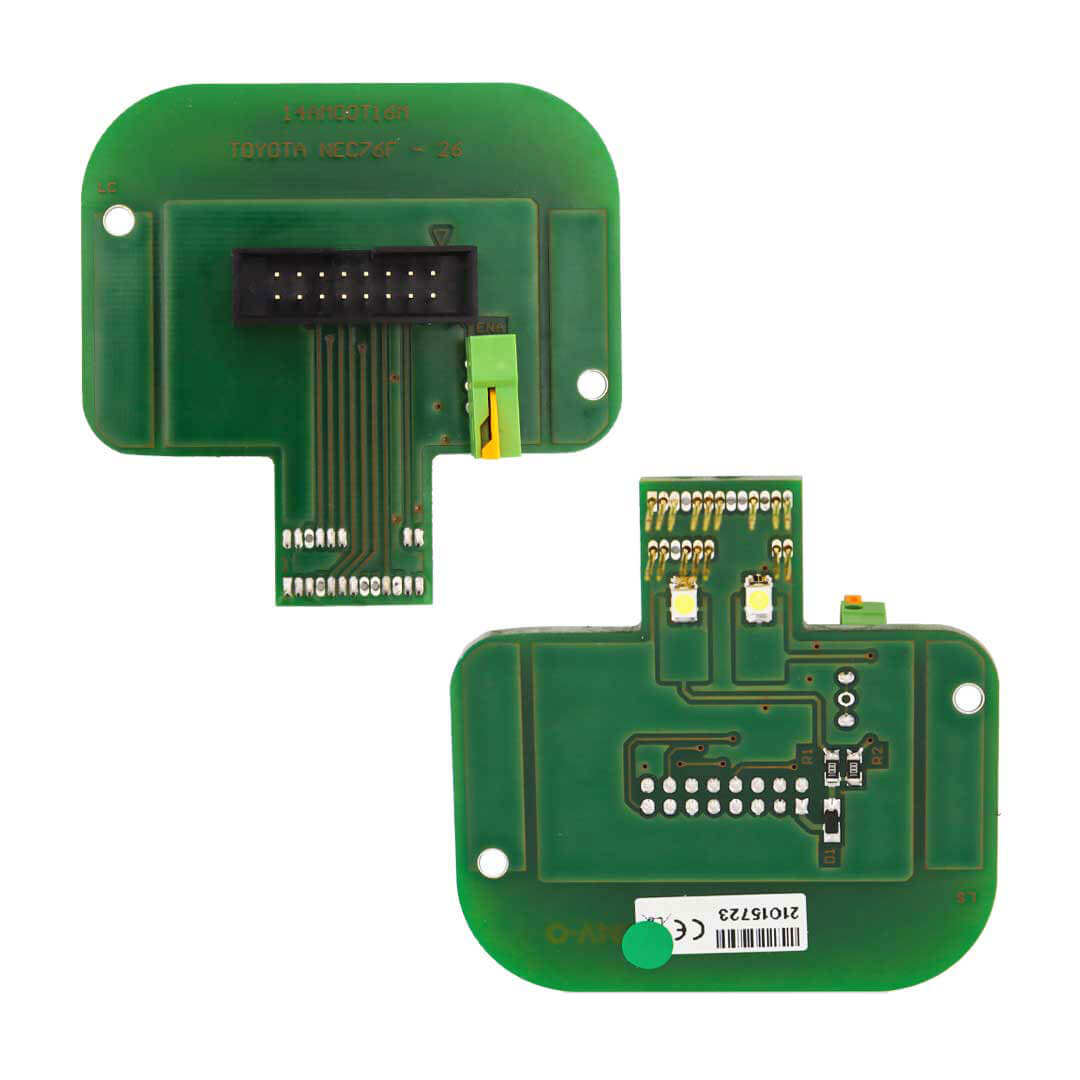

• Adapter for Denso NEC 76F00XX 26pins

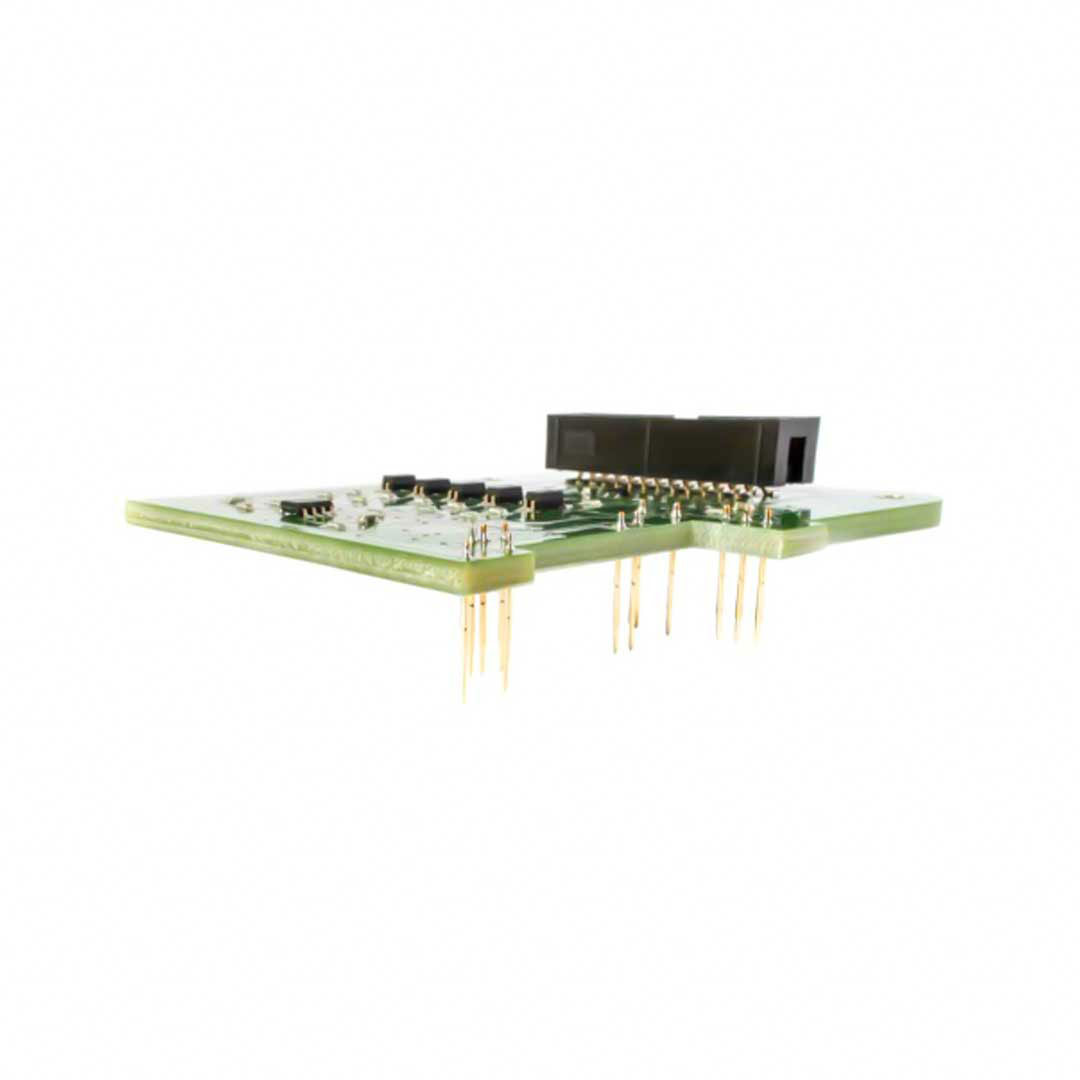

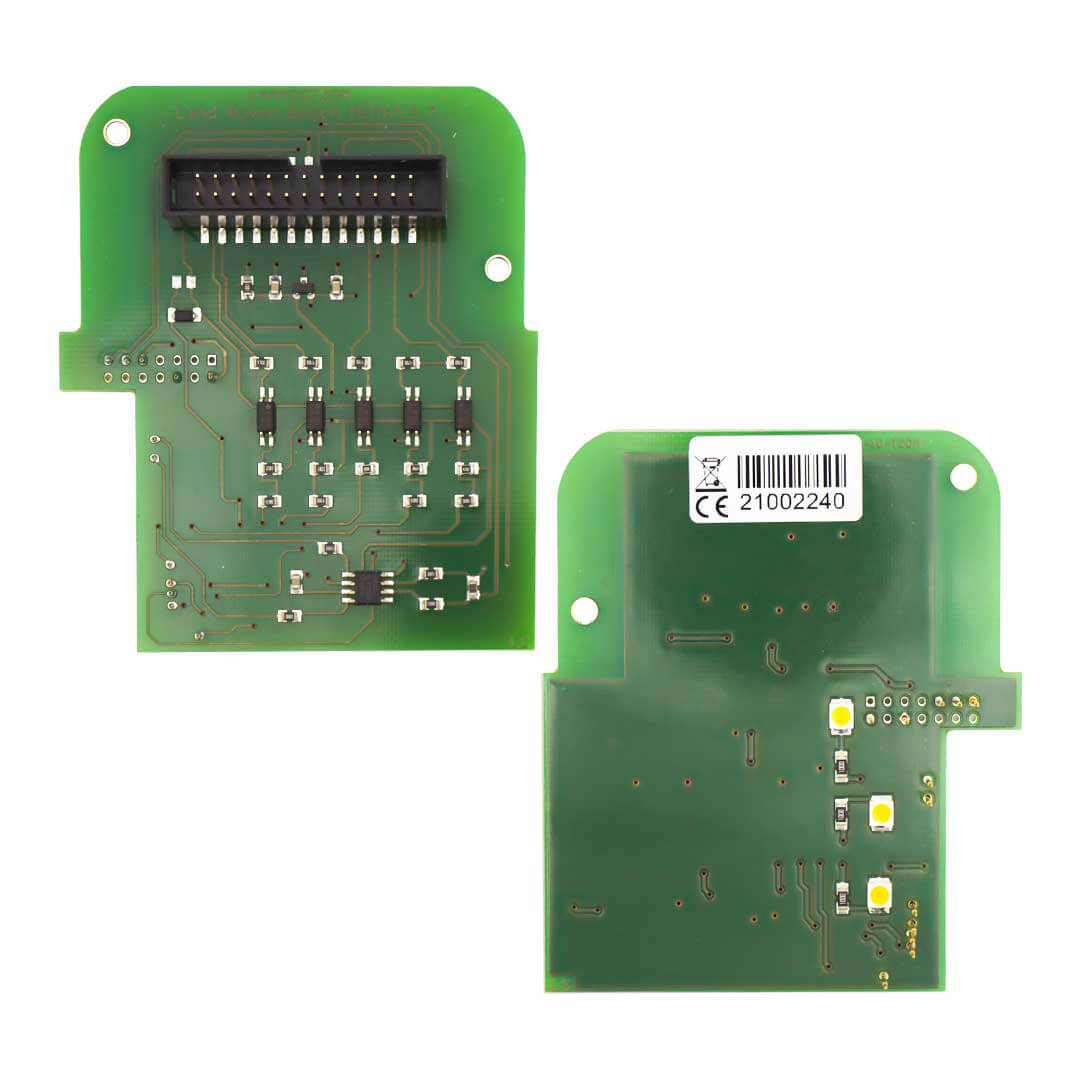

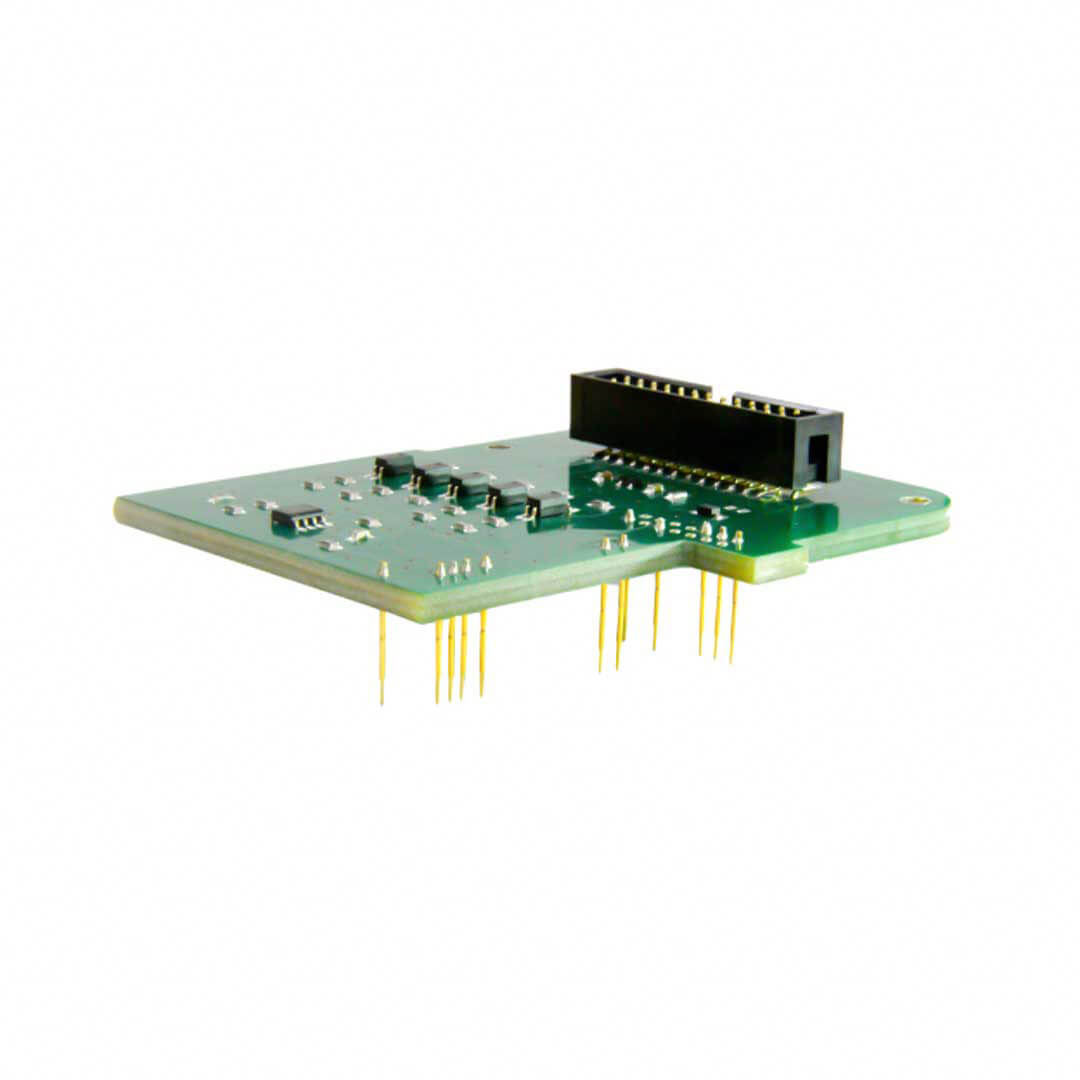

• Adapter Infineon Tricore ECU Bosch MED17.9.7

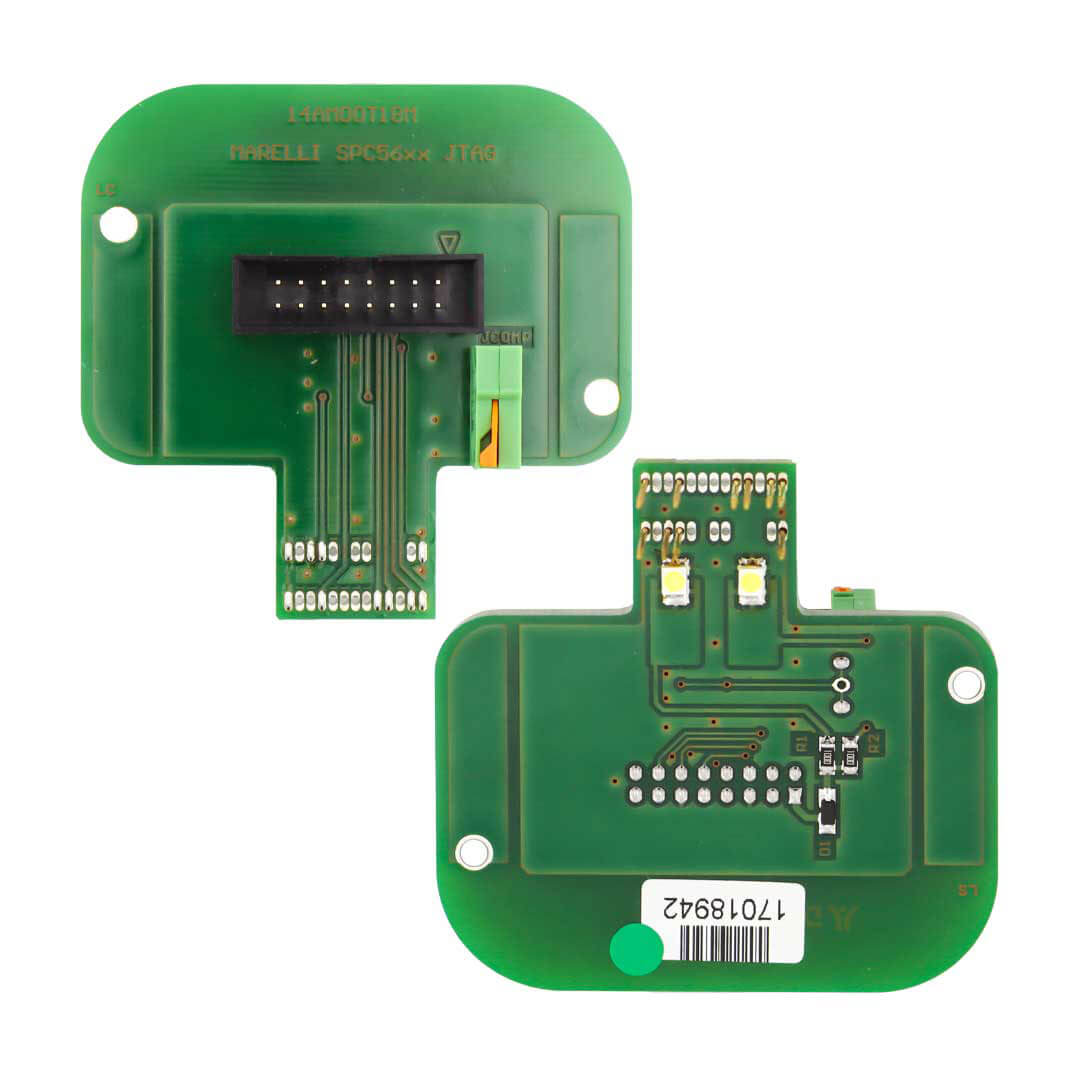

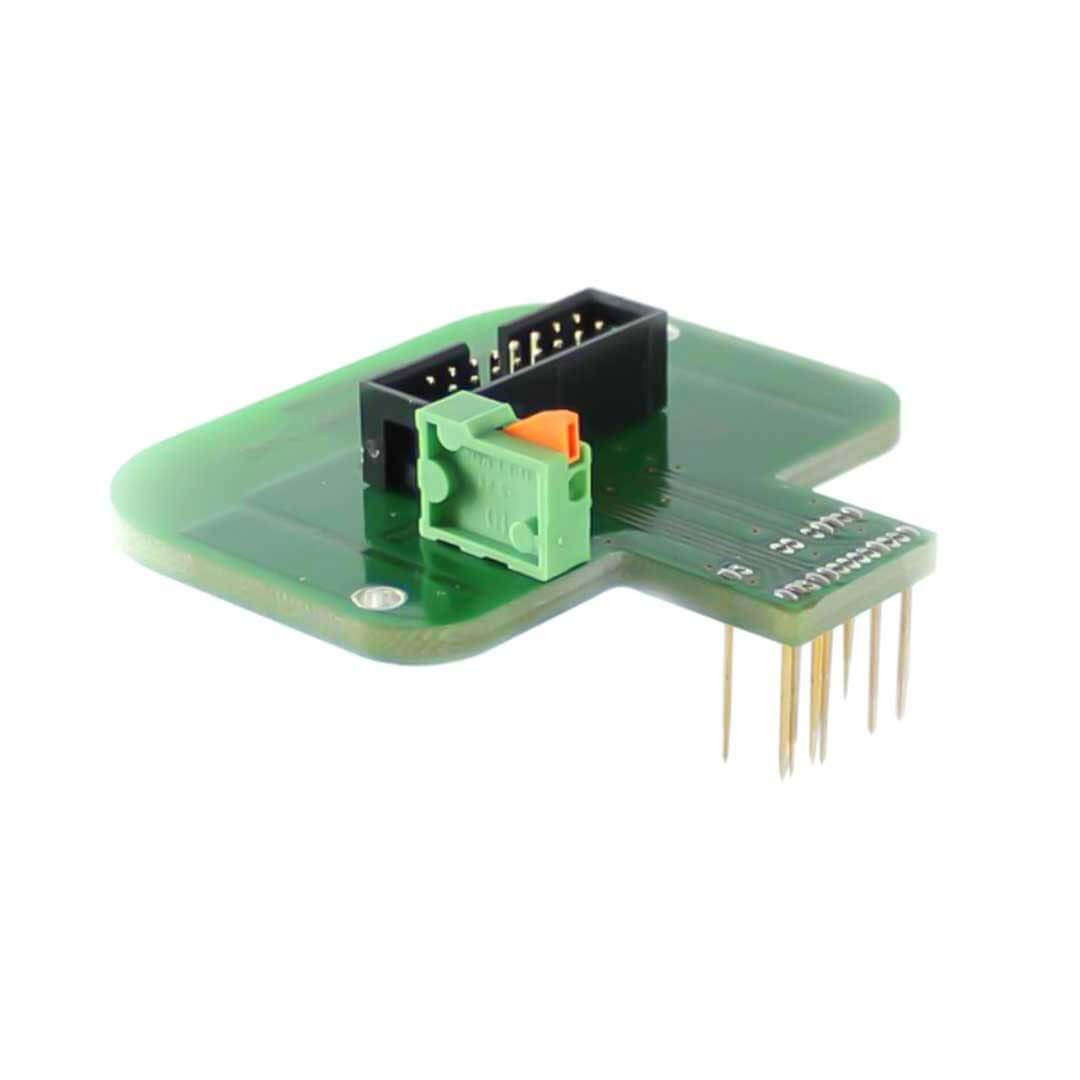

• Adapter Magneti Marelli MOTOROLA MPC56xxx

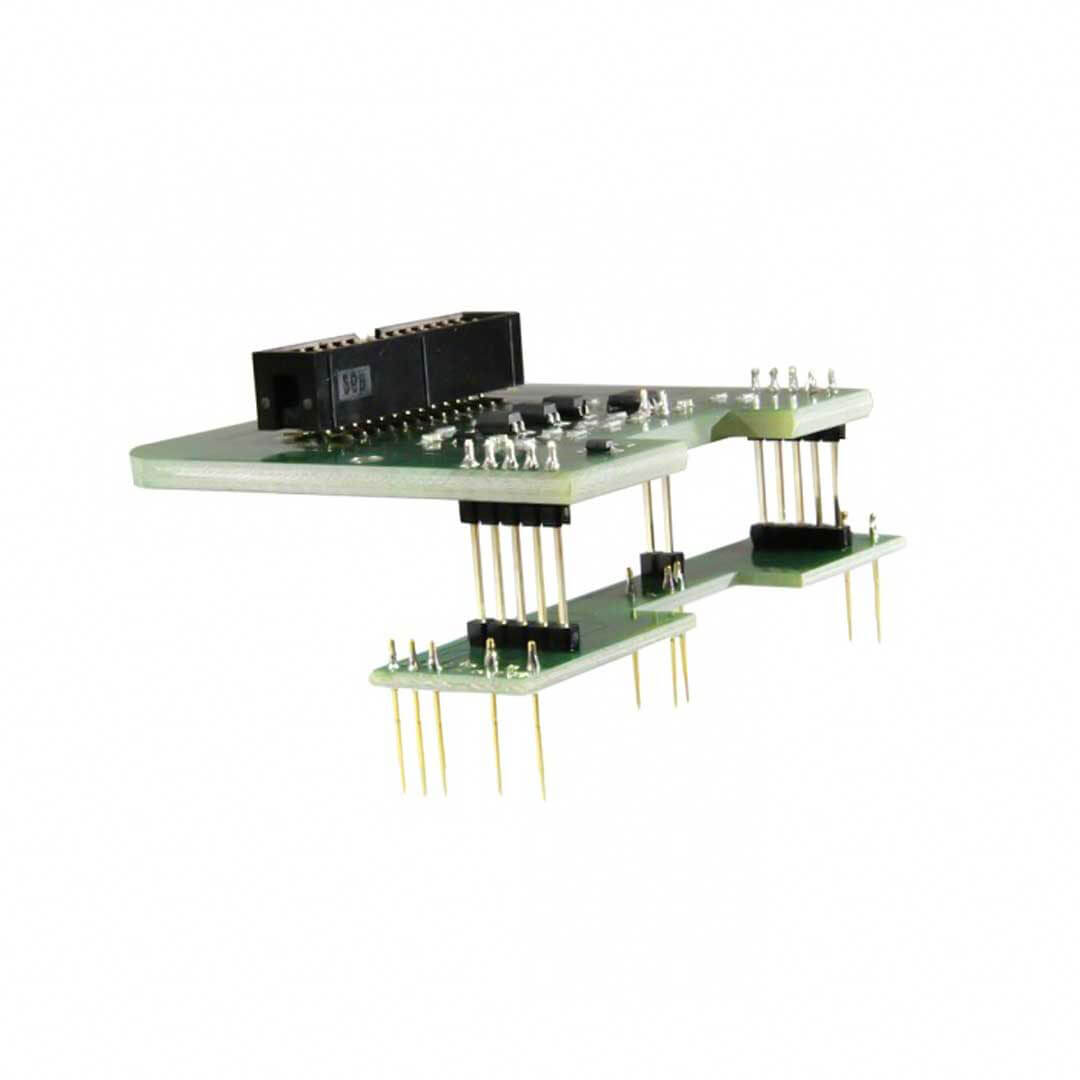

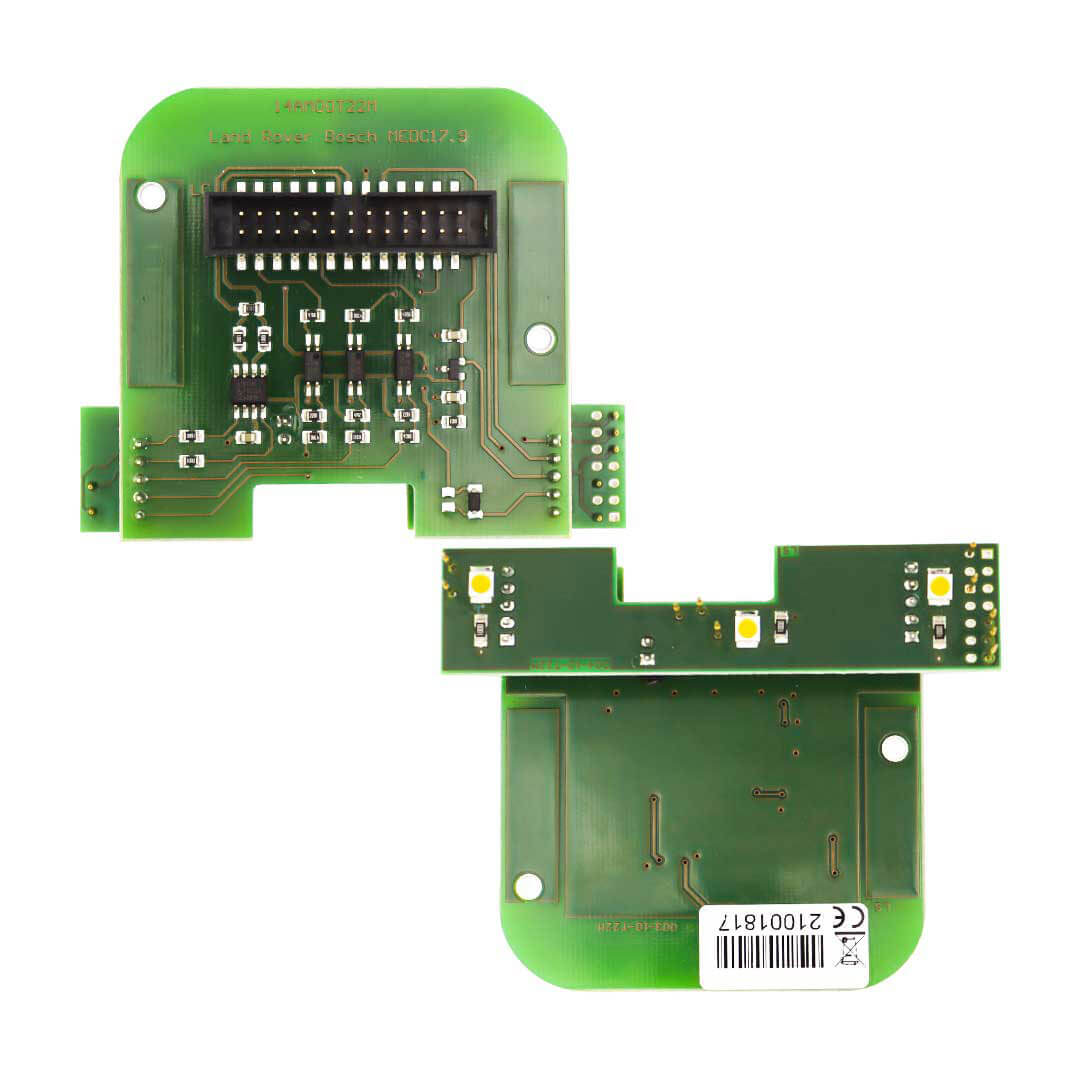

• Adapter Infineon Tricore ECU Bosch MEDC17.9

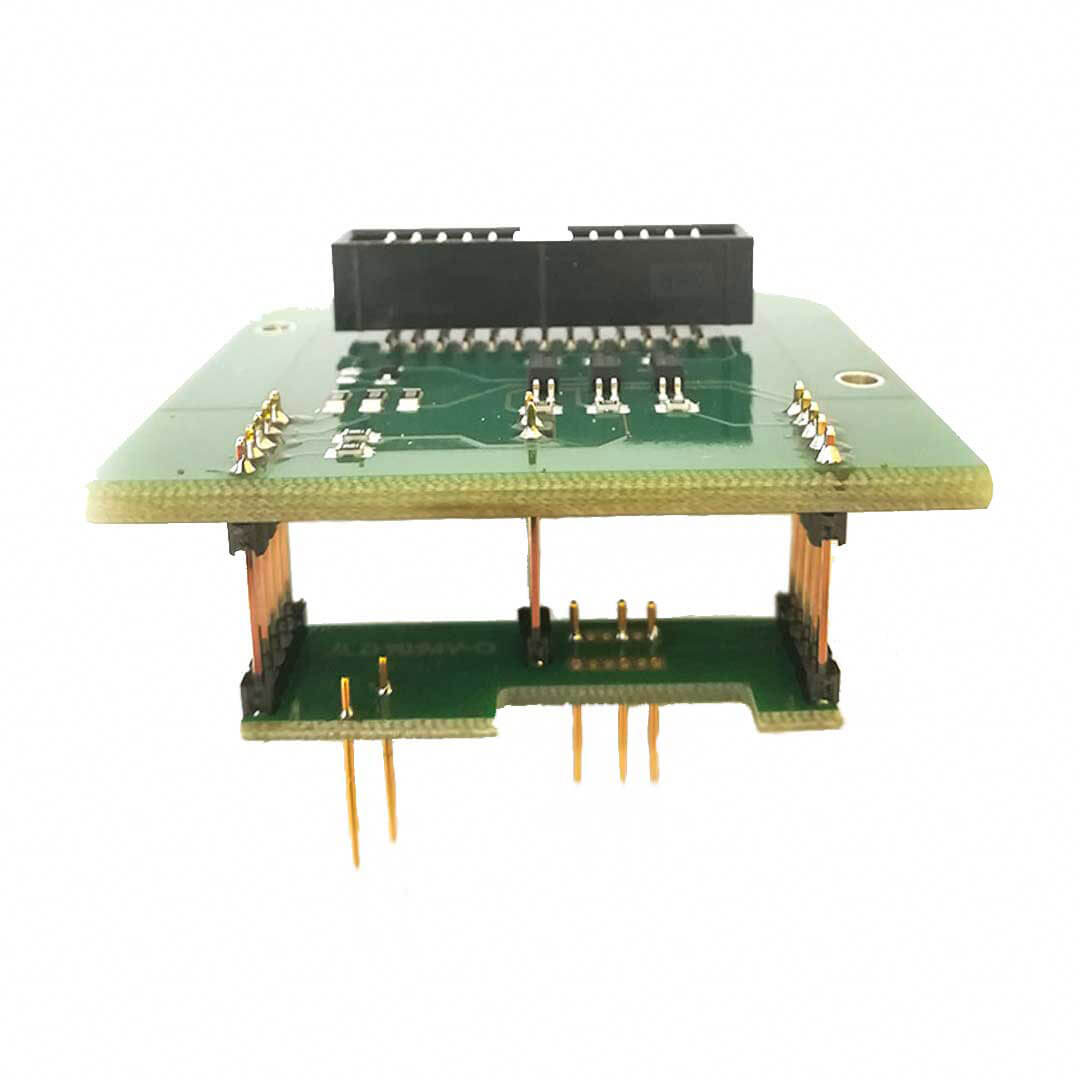

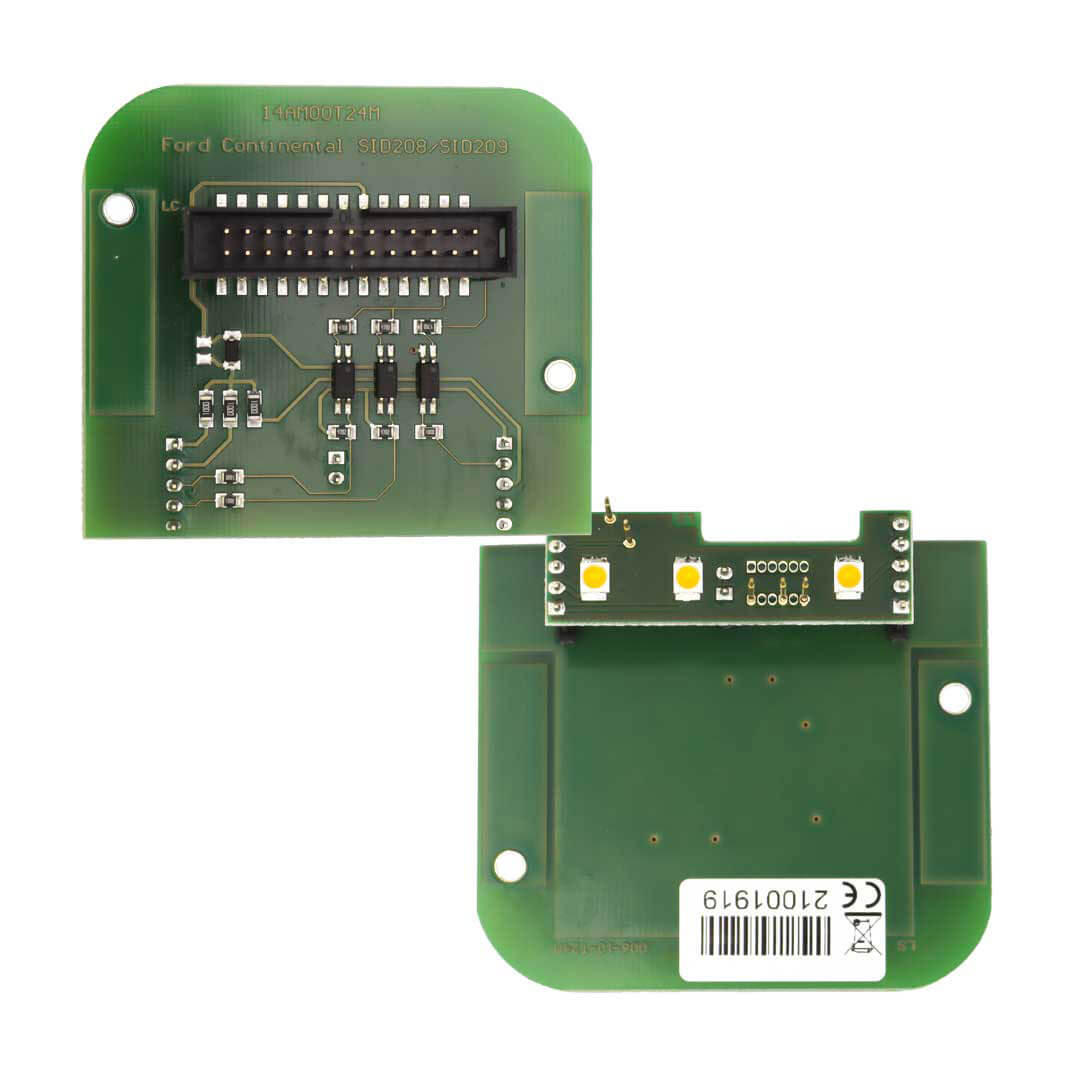

• Adapter Continental SID208 – SID 209

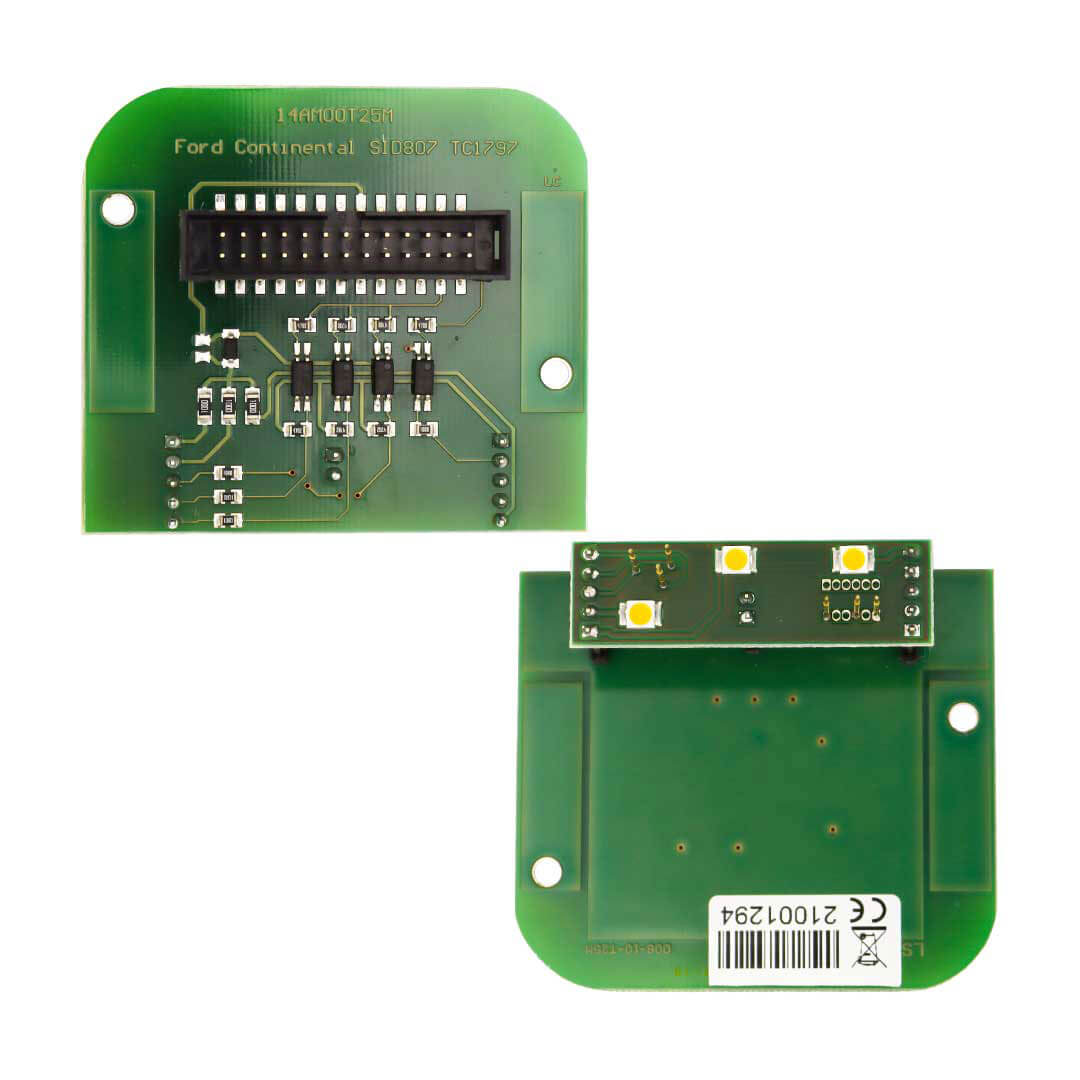

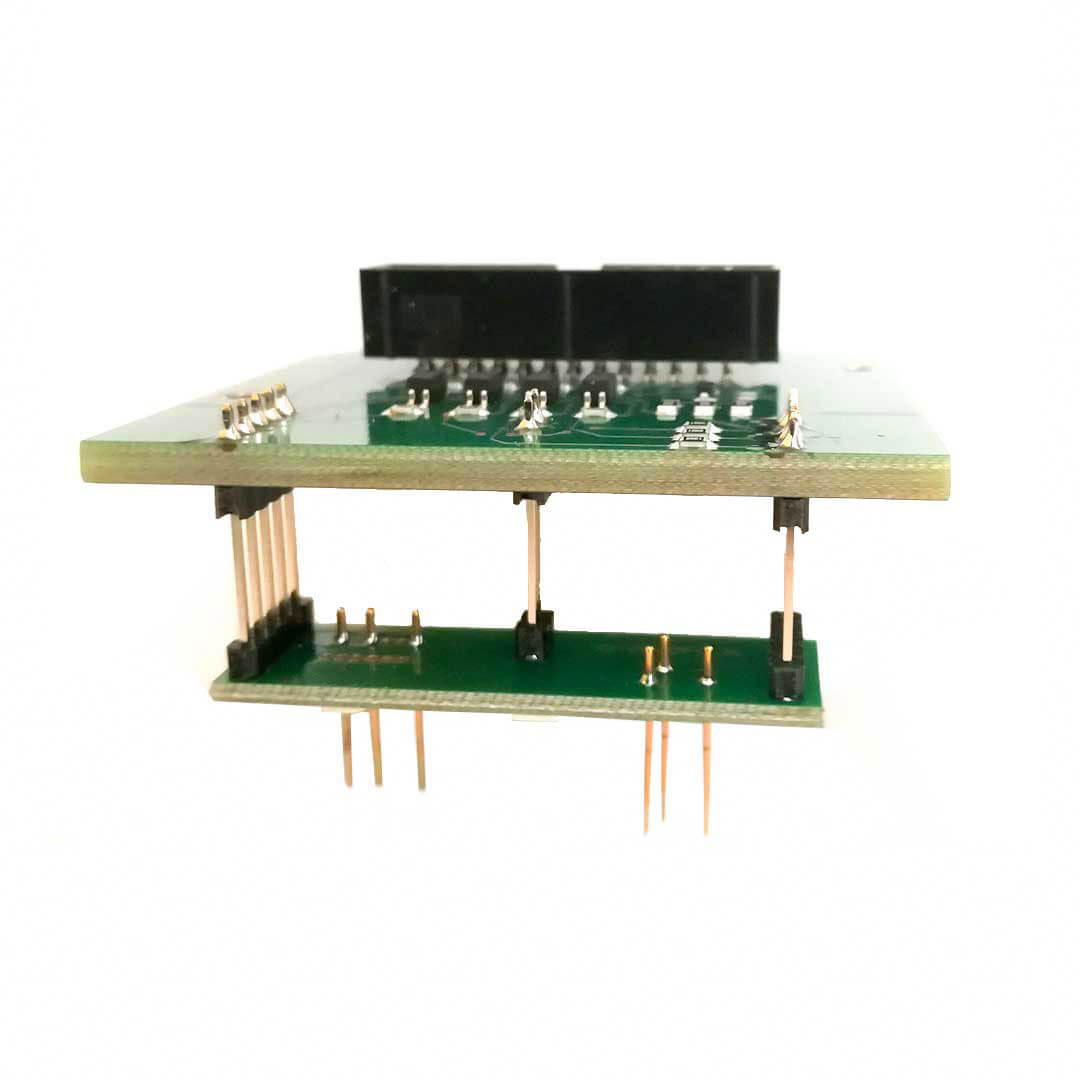

• Adapter Continental SID807

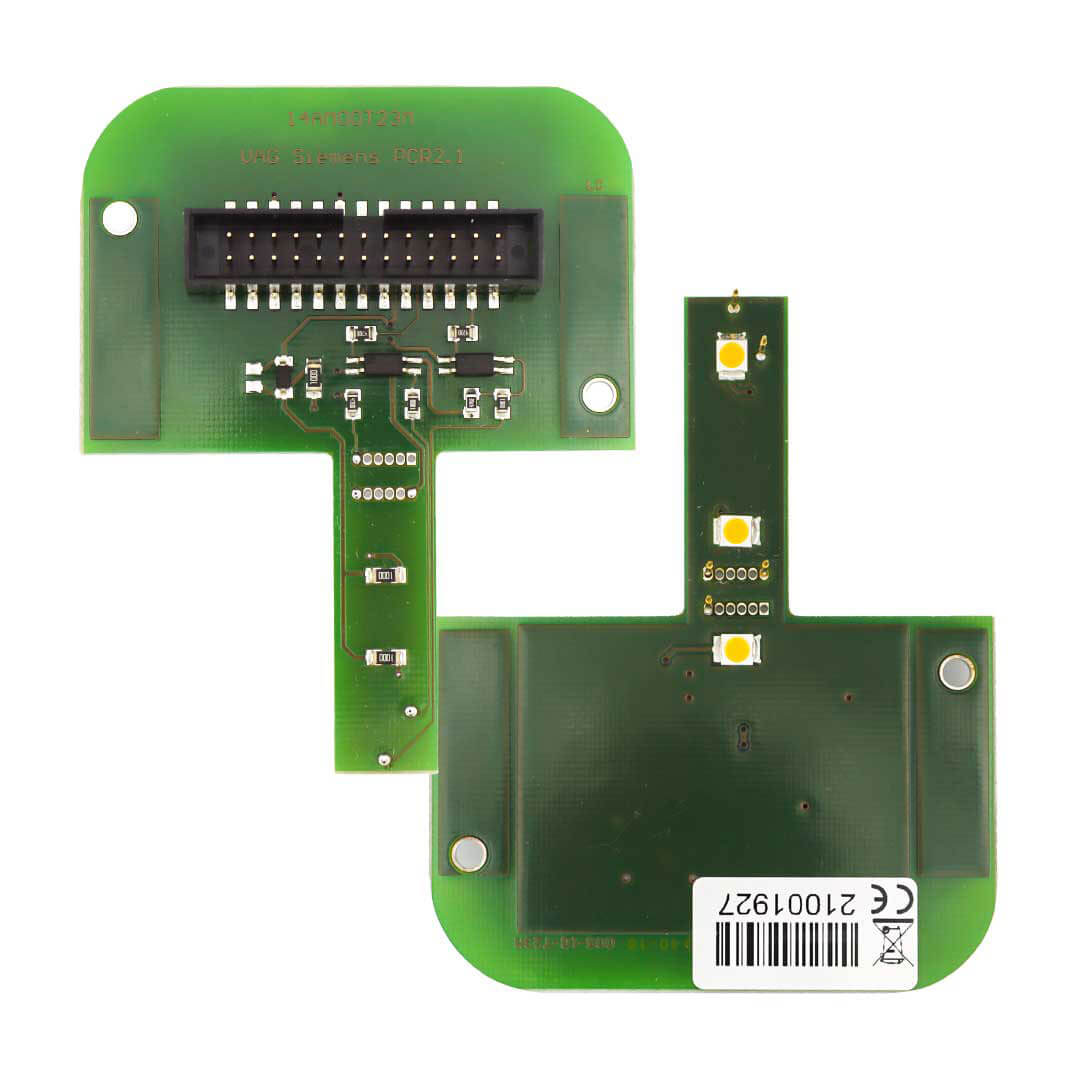

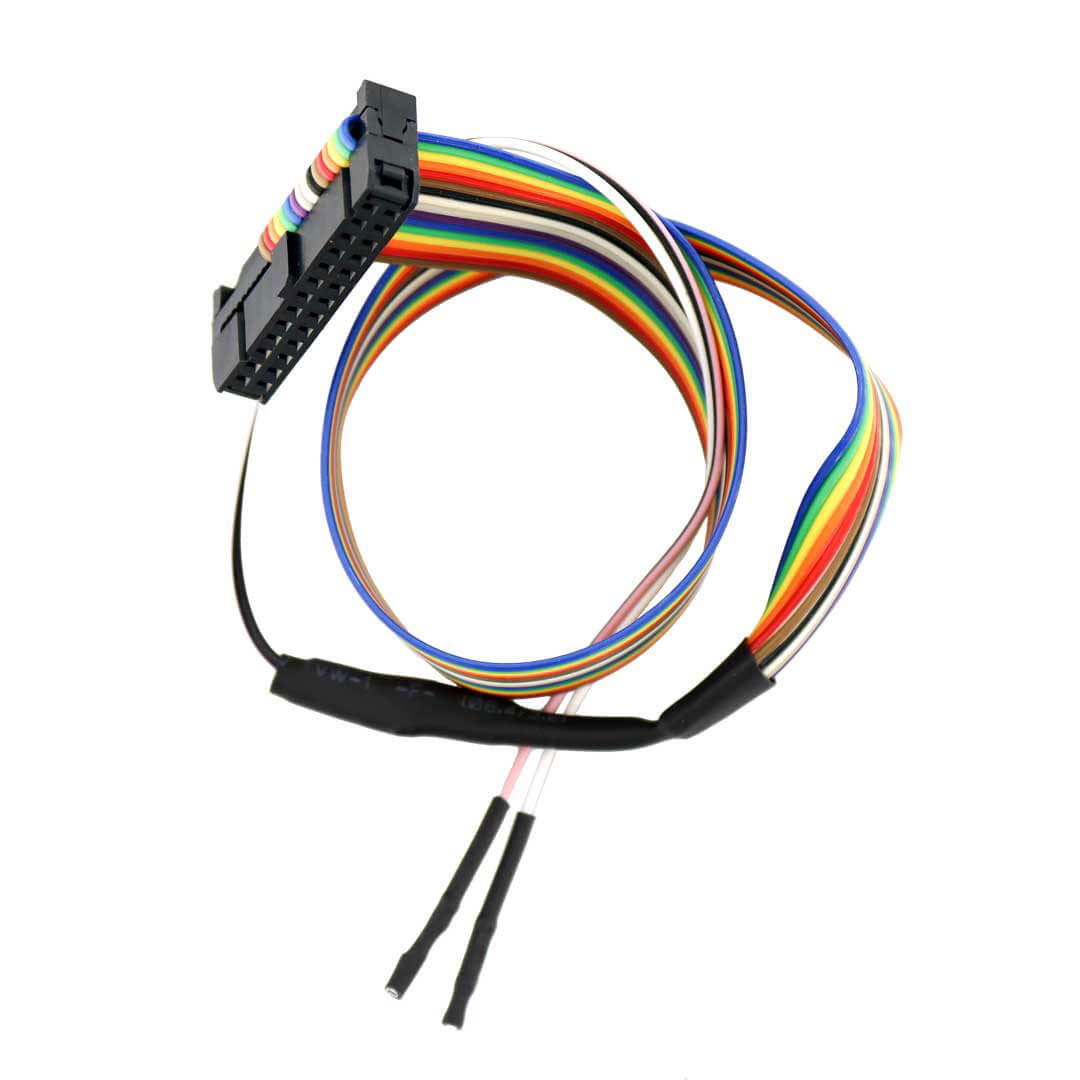

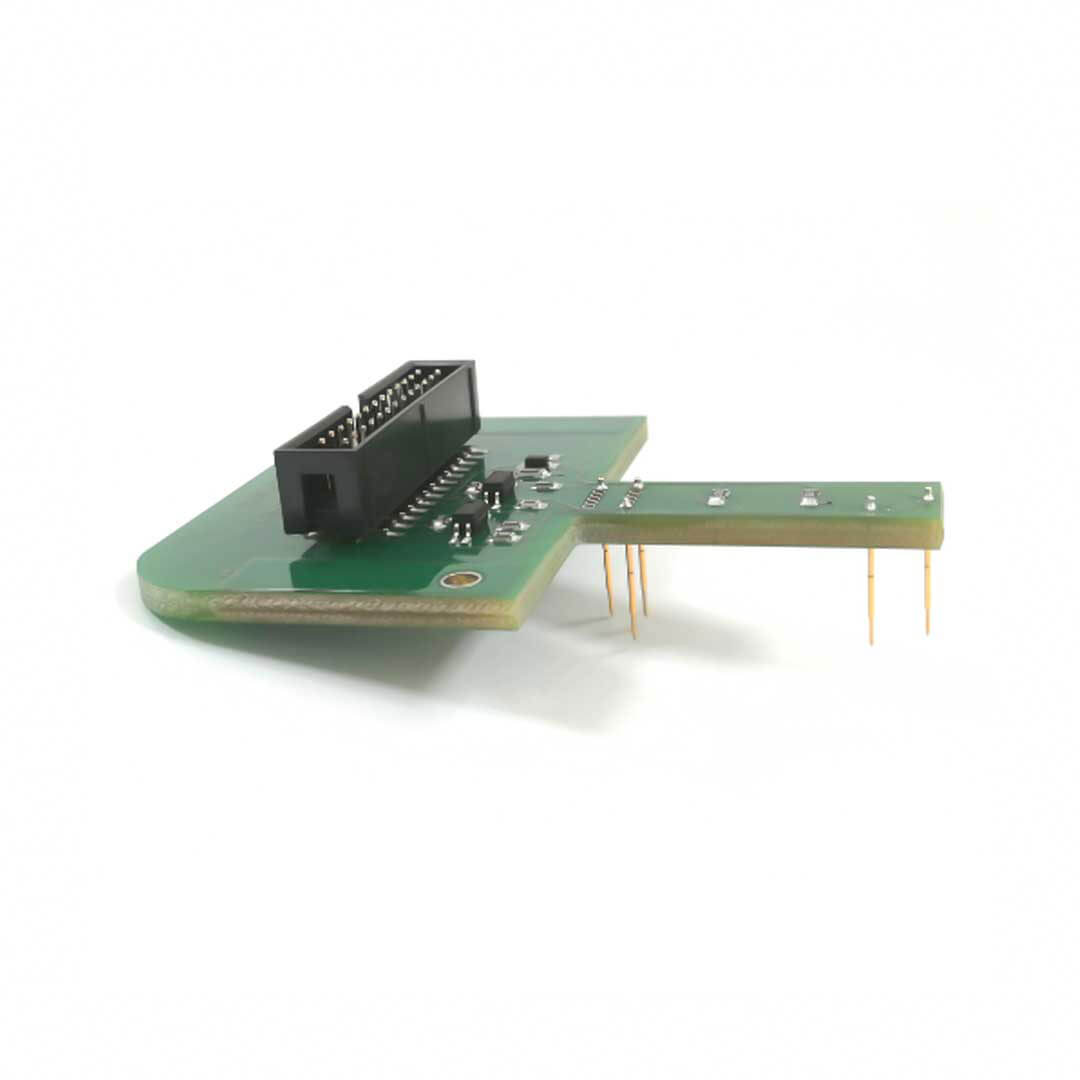

• Adapter Continental Simos PCR 2.1
• Adapter Multi-funzione for ECUs Denso
• Adapter Renesas Board SH725xxx-36
• Adapter Renesas Board SH725xxx-26

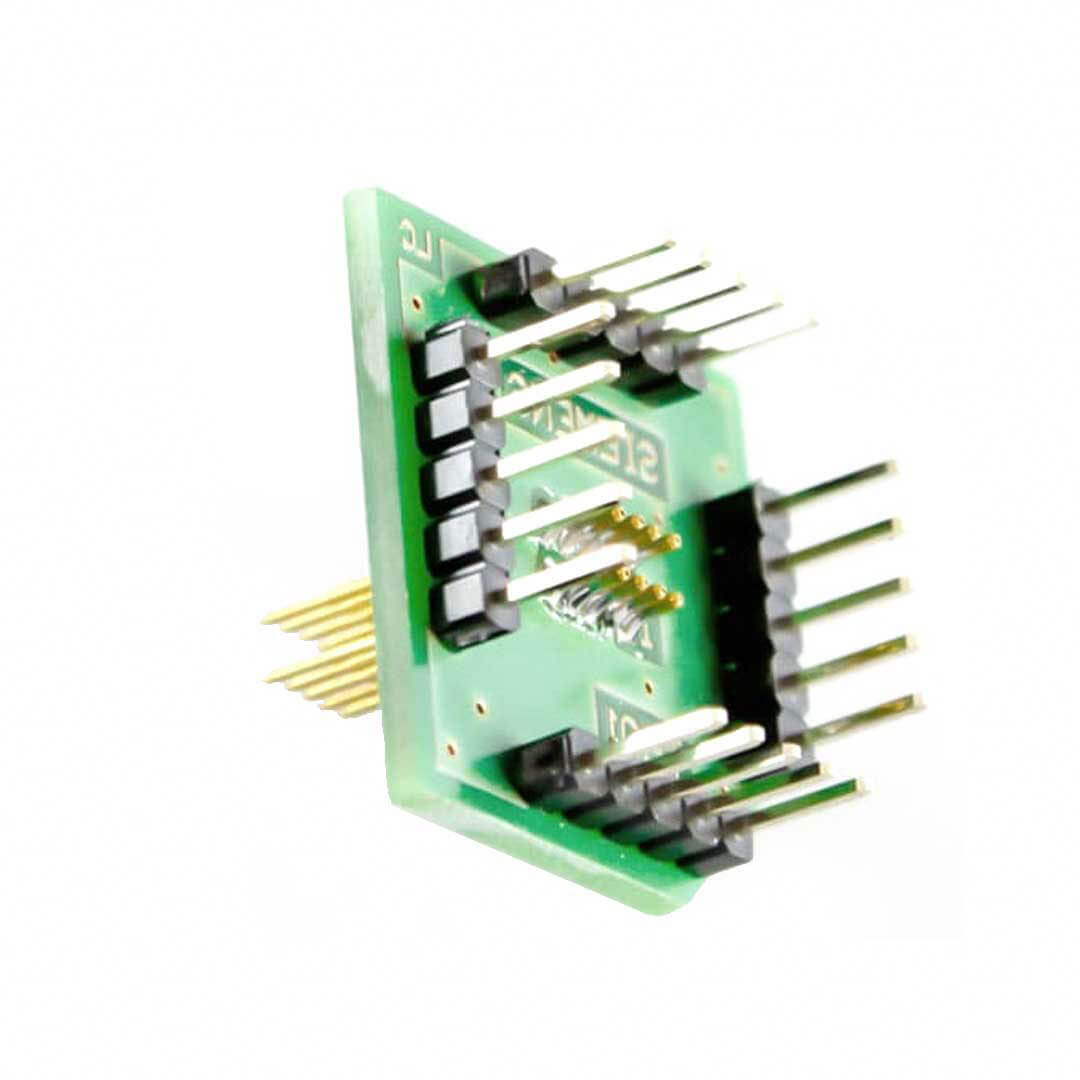

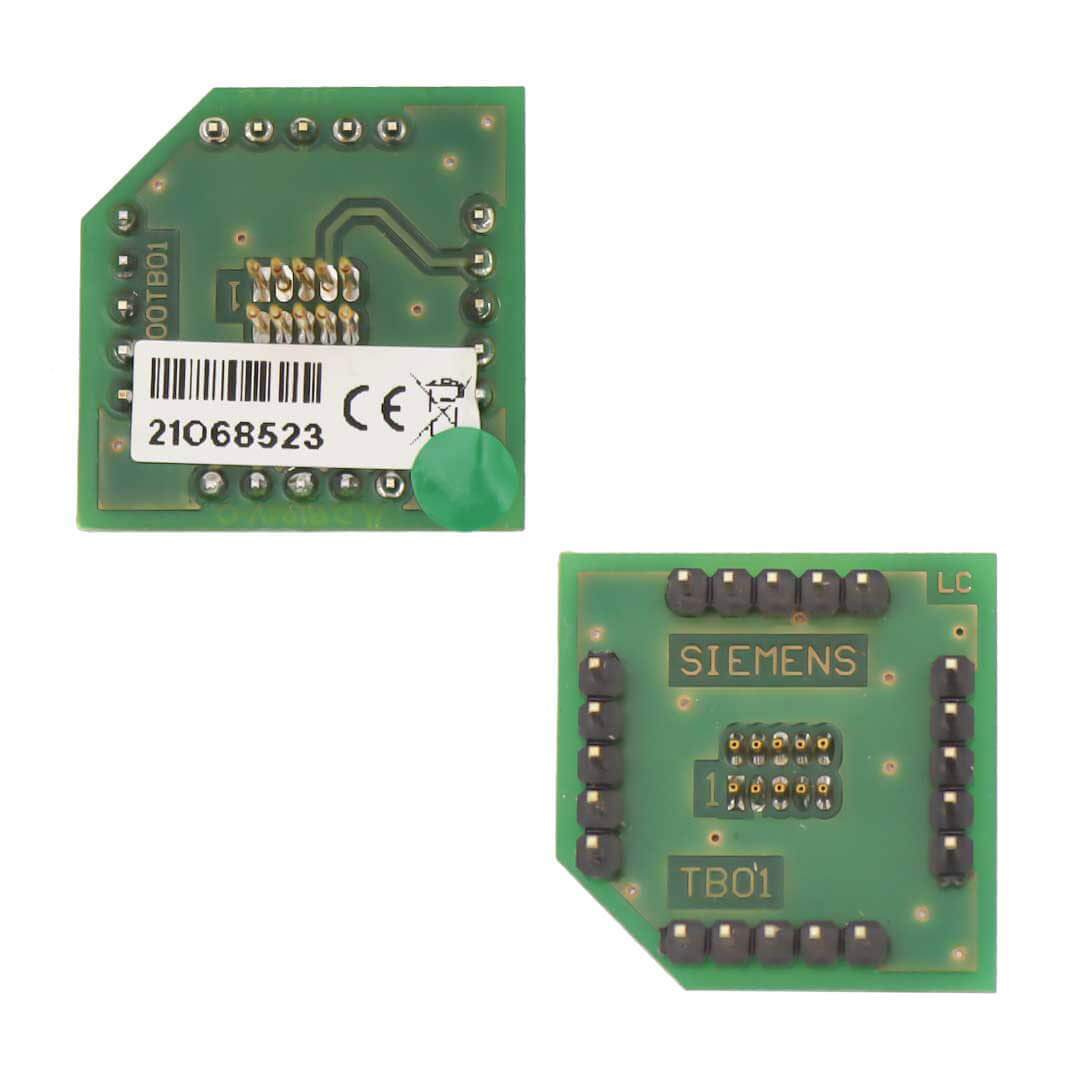

• Pull-out Tip Siemens MOTOROLA MPC5xx for Adapter Multifunzione
• Pull-out Tip Magneti Marelli MOTOROLA MPC5xx for Adapter Multifunzione
• Pull-out Tip Bosch EDC7 MOTOROLA MPC5xx for Adapter Multifunzione

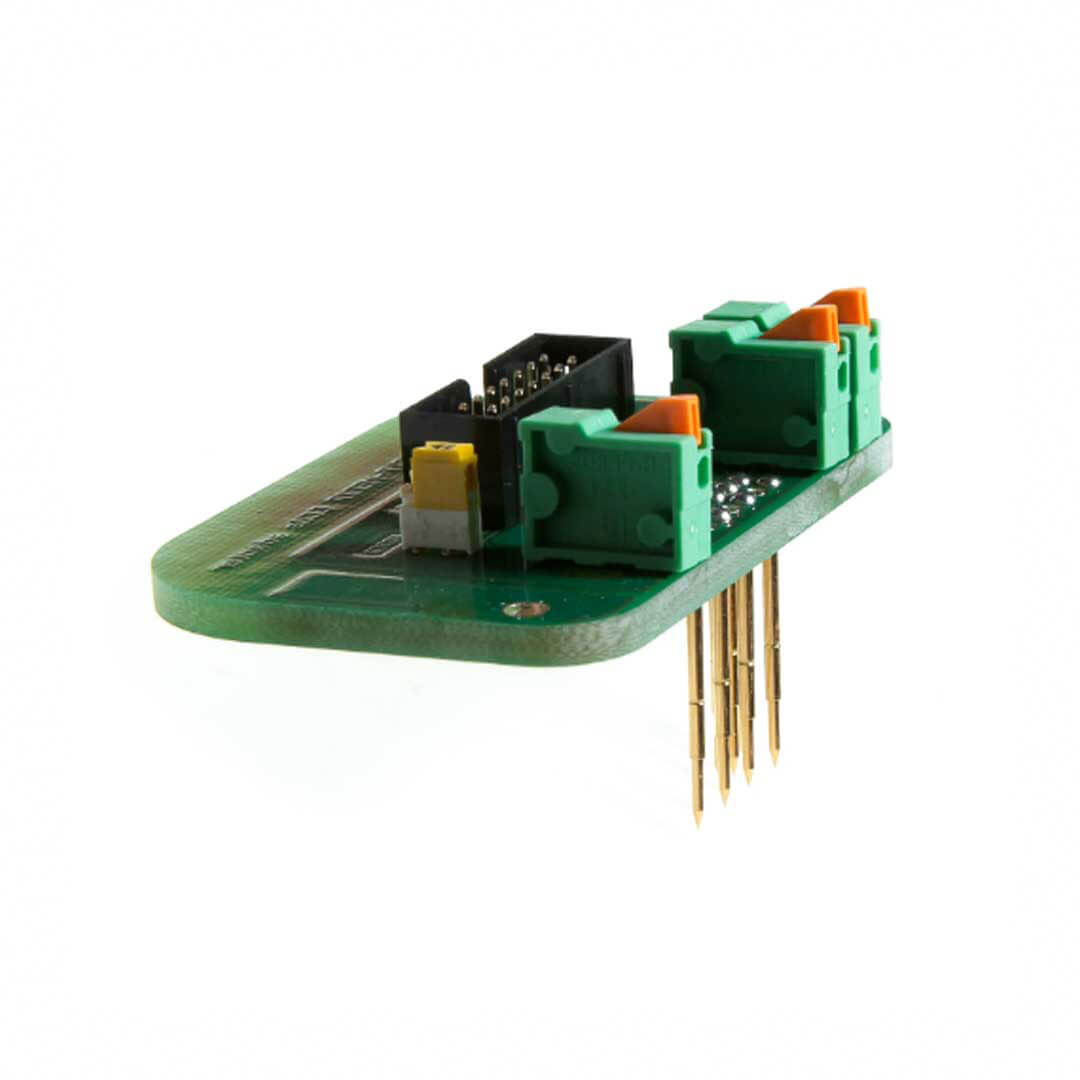

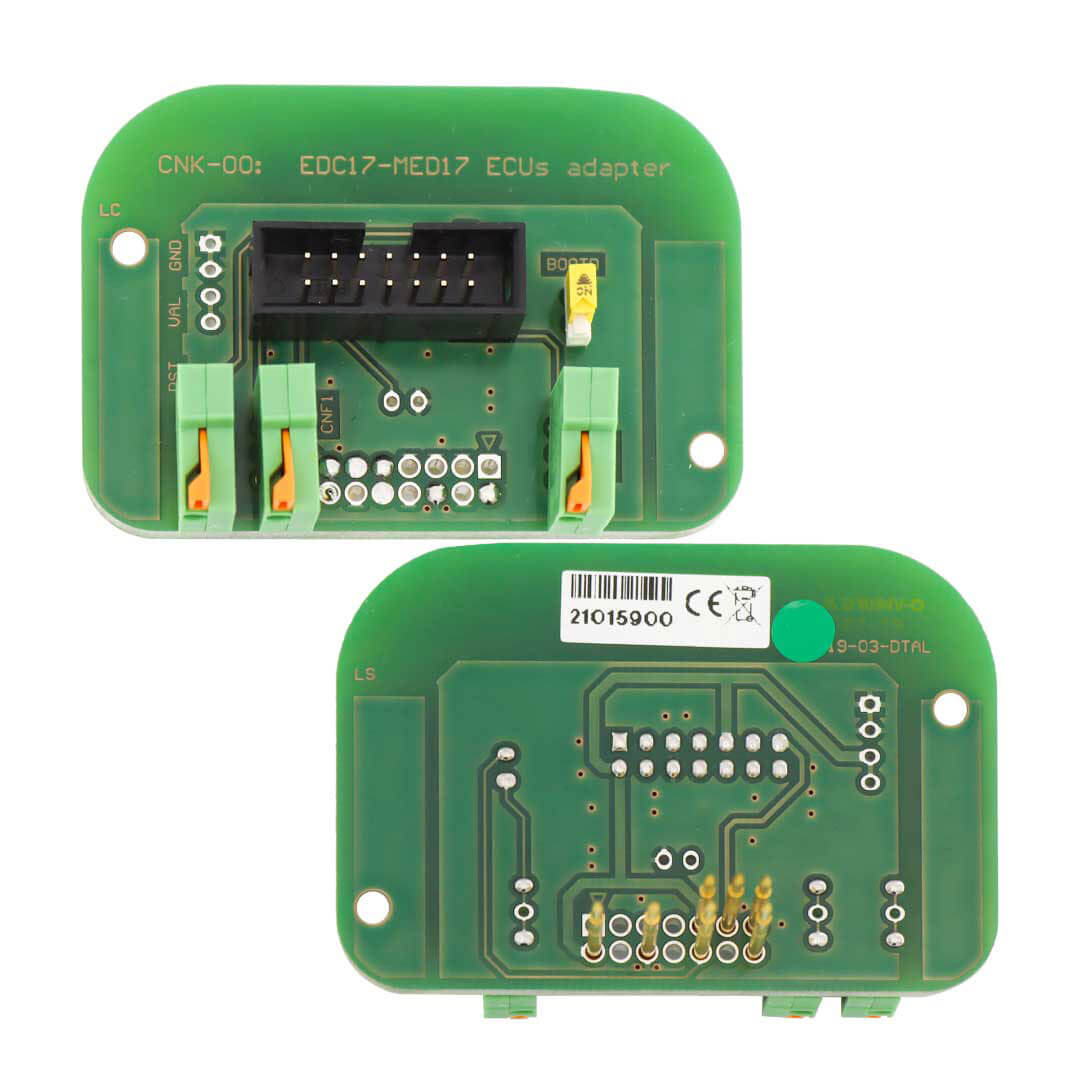

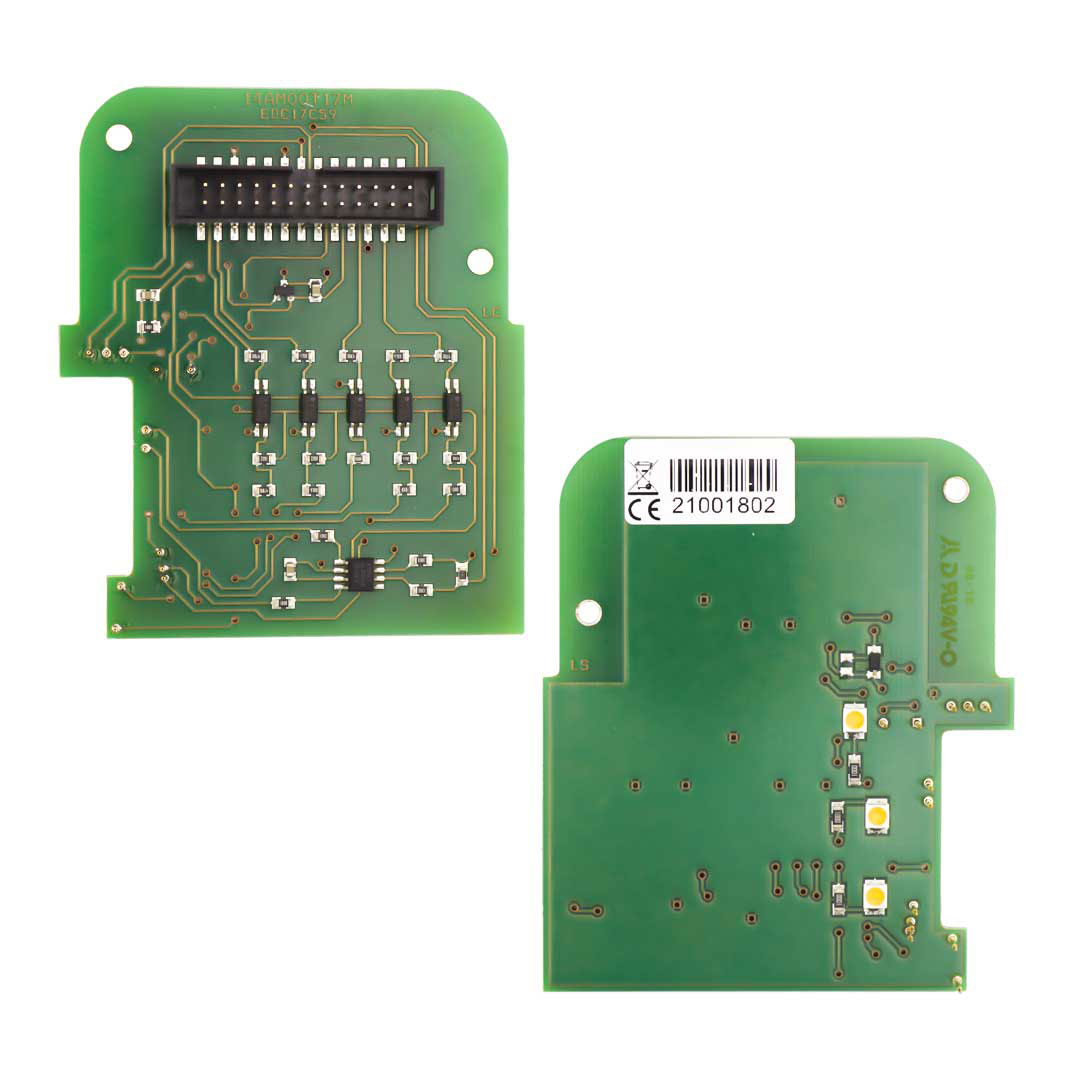

• Adapter Bosch EDC17/MED17 Infineon Tricore
• Grabber probesSMD for microprocessoreBGA

Data Sheet

• PCB with programming probes and LED illumination
• Grabber probes

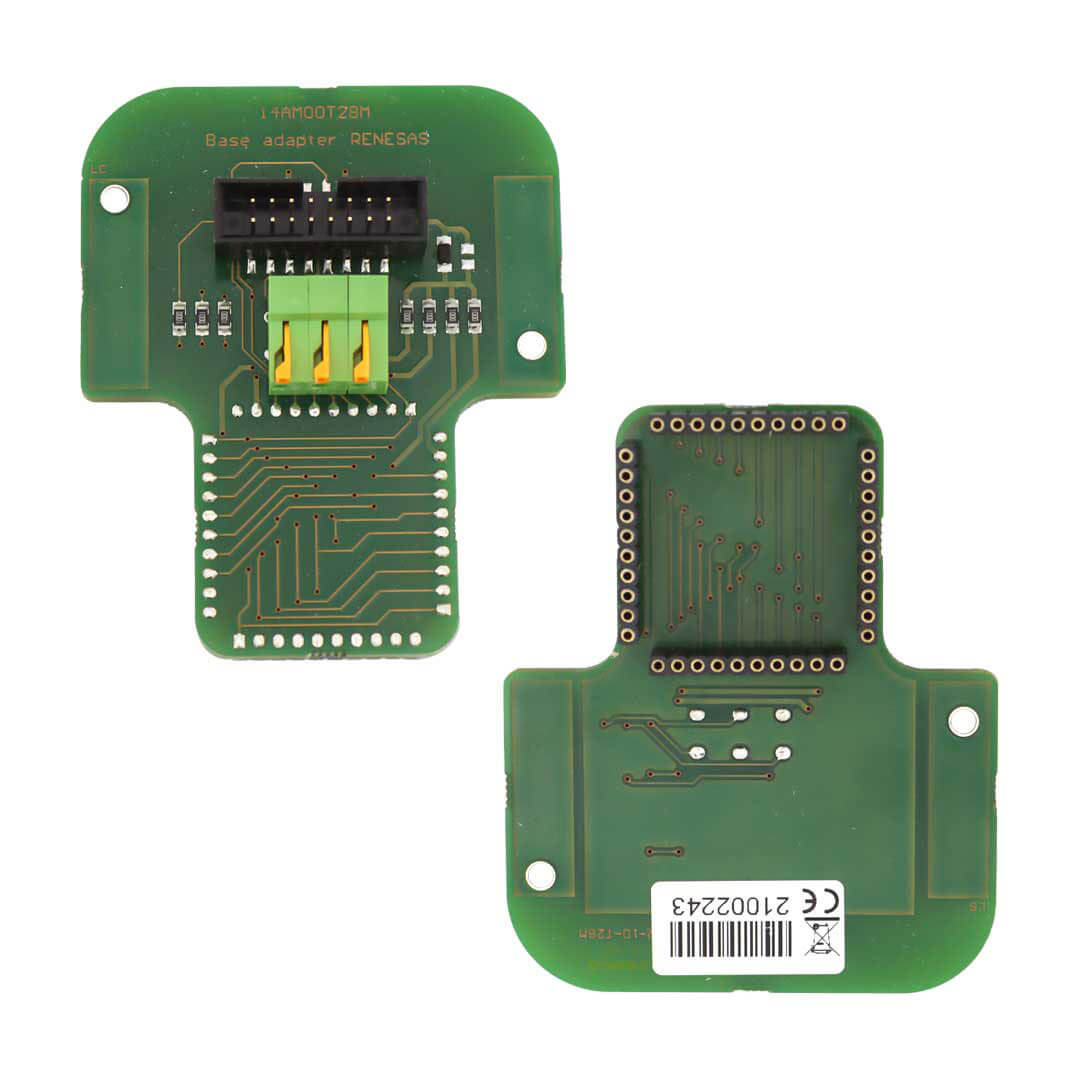

Adapter Multi-funzione for ECUs Denso

Adapter for positioning frame for ECUs Denso Renesas SH725x

Description

With the adapter for positioning frame you can connect your K-Tag directly on the board of the ECU, using the probes designed for the main ECUs.

Technical Features

Main Supported ECUs:

Denso Renesas SH725x

Data Sheet

PCB with programming probes

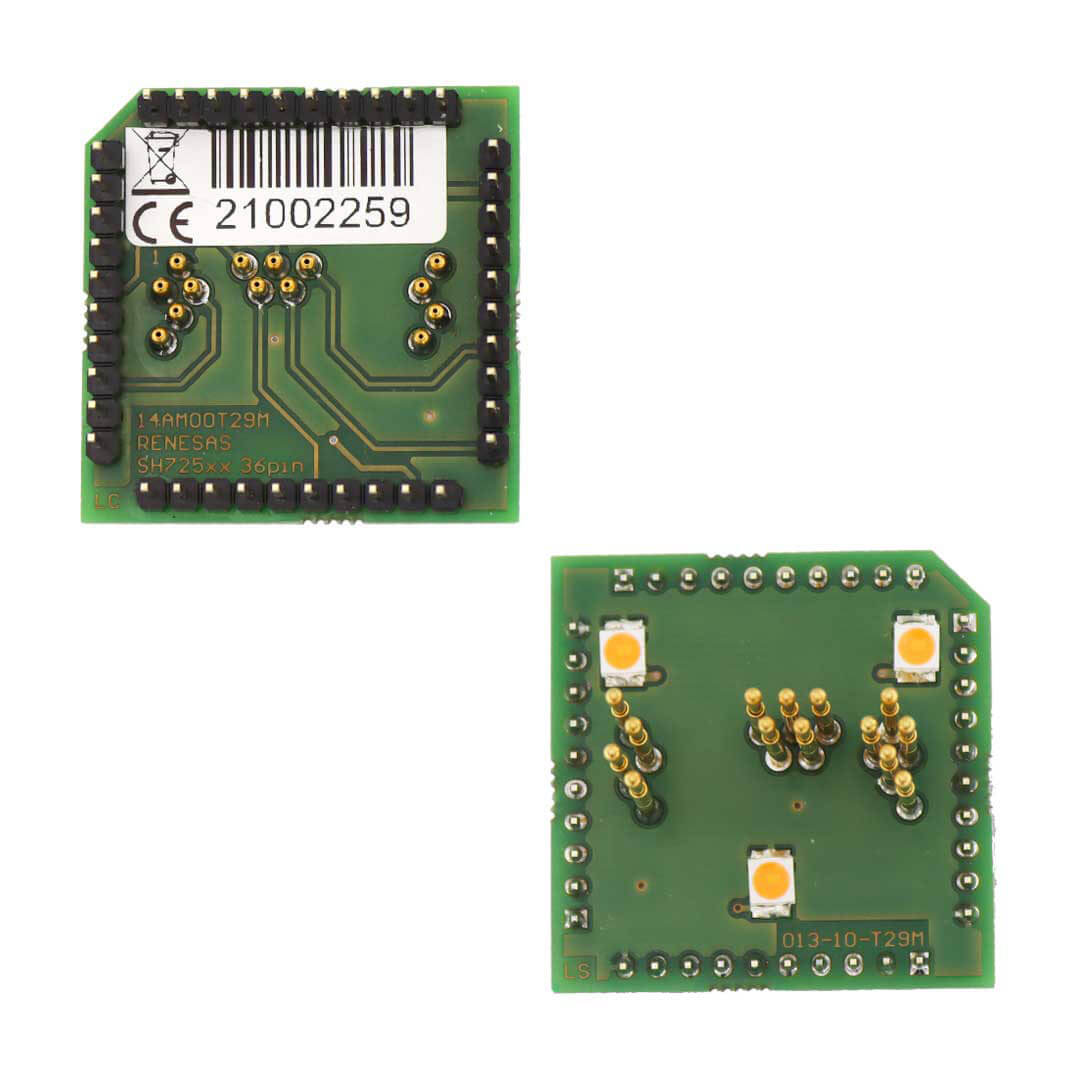

Adapter Renesas Board SH725xxx-36

Pull-out Tip for Adapter with LED illumination deck for positioning frame for ECUs Denso Renesas SH725xxx-36

Description

With the adapter for positioning frame you can connect your K-Tag directly on the board of the ECU, using the probes designed for the main ECUs.

Technical Features

Main Supported ECUs:

Denso Renesas SH725xxx-36

Data Sheet

PCB with programming probes and LED illumination

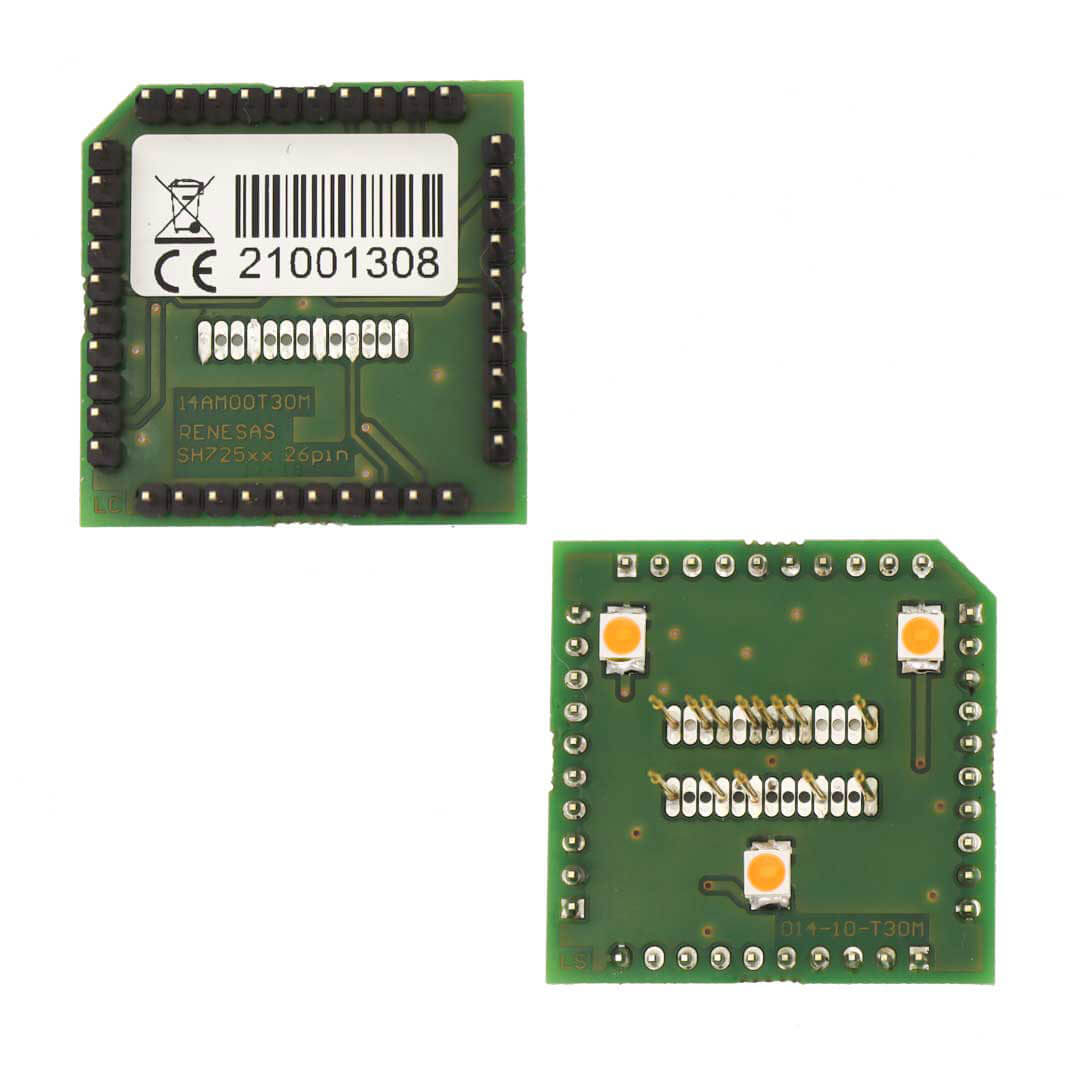

Adapter Renesas Board SH725xxx-26

Pull-out Tip for Adapter for positioning frame with LED illumination deck for ECUs Denso Renesas SH725xxx-26

Description

With the adapter for positioning frame you can connect your K-Tag directly on the board of the ECU, using the probes designed for the main ECUs.

Technical Features

Main Supported ECUs:

Denso Renesas SH725xxx-26

Data Sheet

PCB with programming probes and LED illumination

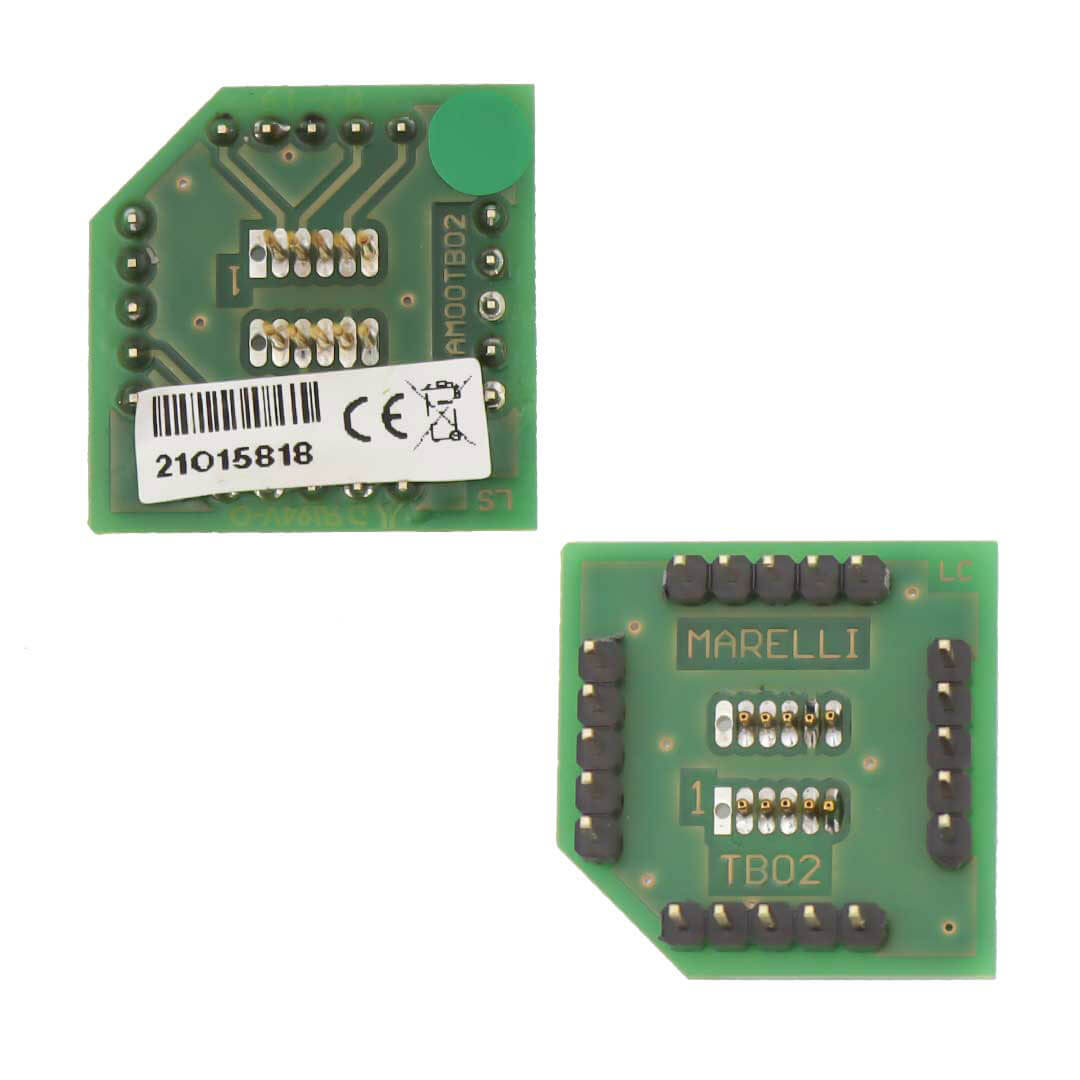

Pull-out Tip Magneti Marelli MOTOROLA MPC5xx for Adapter Multifunction

Adapter for positioning frame for ECUs Magneti Marelli equipped with MOTOROLA MPC5xx.

Description

With the adapter for positioning frame you can connect your K-Tag directly on the board of the ECU, using the probes designed for the main ECUs.
This pull-out tip must be used with the multifunctional adapter 14AM00TBAS.

Technical Features

Main Supported ECUs:

Magneti Marelli MJD

Data Sheet

PCB with programming probes

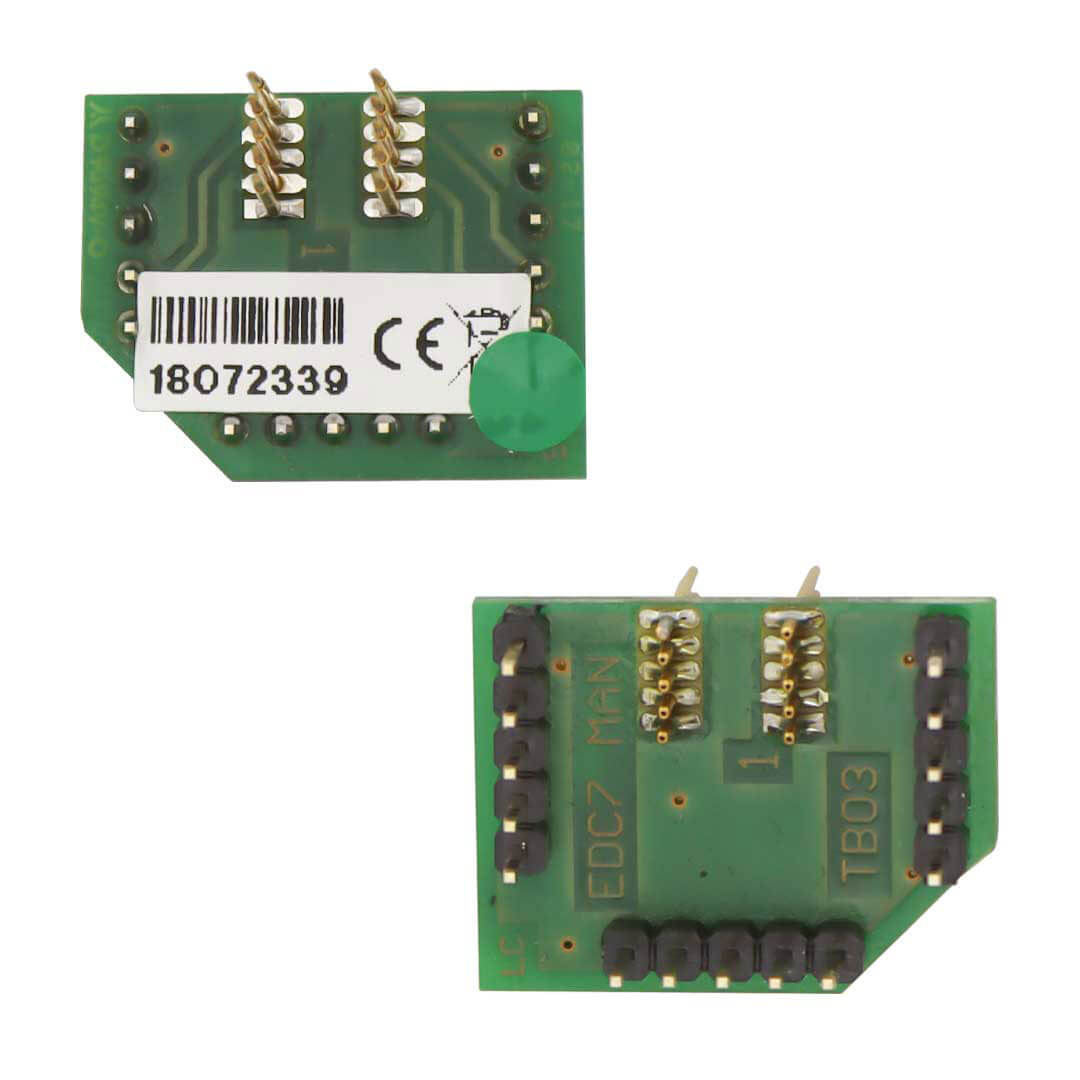

Pull-out Tip Bosch EDC7 MOTOROLA MPC5xx for Adapter Multifunction

Adapter for positioning frame for ECUs Bosch EDC7 equipped with MOTOROLA MPC5xx.

Description

With the adapter for positioning frame you can connect your K-Tag directly on the board of the ECU, using the probes designed for the main ECUs.
This pull-out tip must be used with the multifunctional adapter 14AM00TBAS.

Technical Features

Main Supported ECUs:

Bosch EDC7

Data Sheet

PCB with programming probes

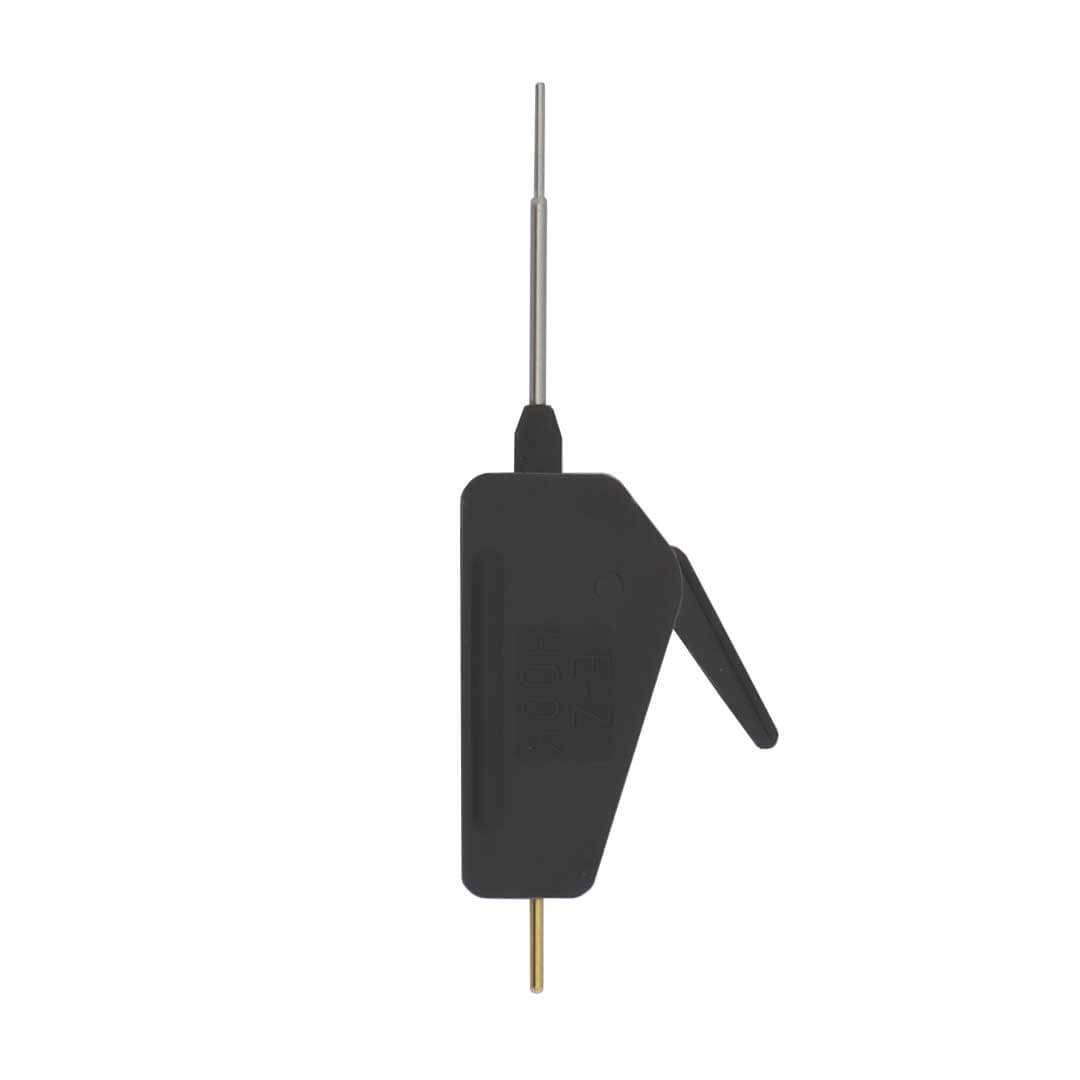

Grabber probes SMD

1x grabber probes SMD (BGA microprocessor).

Description

These grabber probes allow to establish a direct connection on the pin of the microprocessor with no solderings needed.

Technical Features

Main Supported ECUs:

Bosch EDC17
Bosch MED17

Data Sheet

Plastic and metallic components
