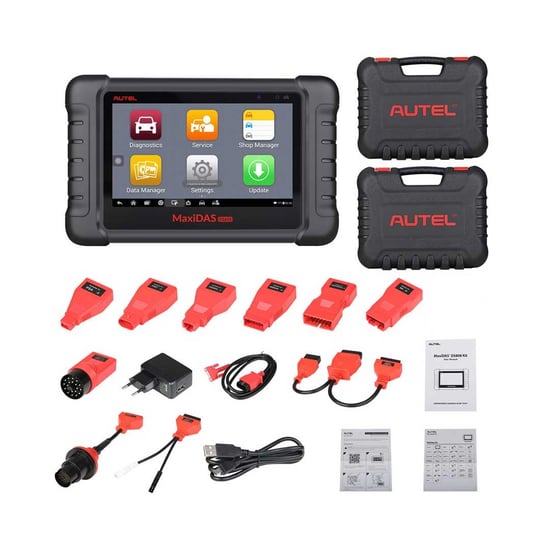

Autel MaxiDAS DS808 Kit Android Tablet Diagnostic Tool

Autel MaxiDAS DS808 Kit Android Tablet Diagnostic Tool 2 Years Update Subscription

Product Description:

Key Programming / ECU Diagnostics Tools Diagnostic Tools From Autel with Product Number: MK7505
This Weight Product: 6700g

Specs:

Manufacturer: Autel
Condition: New

Note: 2 Years update subscription is included with the device.
Note: Ip Restriction (works only in India, Middle East and Africa ).

Based on the Android operating system, the MaxiDAS DS808 features comprehensive coverage of OE level diagnostics.
Installed with a fast quad-core processor, the DS808 provides maximum convenience and efficiency in diagnosis and analysis.
The intuitive user interface makes using the device easily with a 7-inch LCD touch screen displaying in 1024 x 600 resolution.
AUTEL MaxiDAS DS808 provides you with access to the electronic control unit (ECU) of various vehicle control systems, such as the engine, transmission, ABS, airbag system (SRS), and more.
By creating a data link for serviced vehicle ECUs directly, this diagnostic tool allows you to retrieve ECU information for the tested ECUs including unit type, version numbers, and other specifications, read and clear DTCs to identify problem areas, easily clear codes, and view data Live for each parameter element and perform active tests that help users know if a particular subsystem or component in vehicles is working fine by testing the output elements rather than checking the ignition status.

Autel MaxiDAS DS808 Hightlights

1. Instant remote control tech support anytime, anywhere
2. Smart AutoVIN technology for identifying vehicles easily
3. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
4. Automatic system and software updates with real-time push message notifications via Wi-Fi
5. MaxiDas DS808 One Year Update Service to continue to update over one year, only 349USD/Year.
6. Exceptional OE-Level system coverage for all electronic systems: Handheld 7inch Touch Screen Android System Autel Diagnostic Tools for more than 80 US, Asian and European vehicle makes, also support New Function Injector Coding
7. There are two options available when accessing the Diagnosis section:
* Auto Scan – starts auto scanning for all the available systems on the vehicle.
* Control Units – displays a selection menu of all available control units of the test vehicle.
After a section is selected and the tablet establishes communication with the vehicle, the corresponding function menu or selection menu displays.

Autel DS708 vs. Autel MaxiSYS MS906 vs. Autel DS808 Standard vs. Autel DS808 Full

Differences between MaxiDAS DS708 And MaxiDAS DS808

AUTEL DS808K vs DS808TS vs MX808/ MK808 vs MX808TS/ MK808TS

Top Reasons To Get AUTEL MaxiDAS DS808:

1. A data management system suitable for managing internal software applications and data audit
2. Instant remote control technical support anytime and anywhere
3. Comprehensive vehicle coverage for more than 80 American, Asian and European vehicles
4. Smart AutoVIN technology to easily identify vehicles
5. Exceptional OE-Level system coverage for all electronic systems
6. Automatic system and software updates with instant message notifications via Wi-Fi
7. Full capabilities of codes, live data, active test, ECU information, adaptation, matching, etc.
8. Convenient data management system for managing internal software applications and data audit
9. The cloud-based MaxiFix online community provides a vast database of diagnostic, repair tips, and installed fixes
10. One year free update online. You need to purchase the MaxiDas DS808 One Year Update Service to keep updating over one year.
11. One-stop multitasking designed for perfect management of workshop operations to keep all data files, customer information, and vehicle records well organized
12. Interactive data logging sessions allow direct contact with Autel Technical Support for direct troubleshooting of bugs and diagnostic errors

MaxiDAS DS808 (With Conkit) Features:

Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Convenient data management system for managing internal program applications and reviewing data

Supported Automotive Protocols:

 ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Autel Maxidas DS808 Supported Vehicle List:.

Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes Exceptional OE-Level system coverage for all electronic systems Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.

European: AUDI, BENZ, BMW, DACIA, EU FORD, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART, JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE.

USA: GM, CHRYSLER, FORD

Asian: SUZUKI, KIA, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, NISSAN, MITSUBISHI, LEXUS, INFINITI, HYUNDAI, HOLDEN, HONDA, ACCURA, MAZDA.

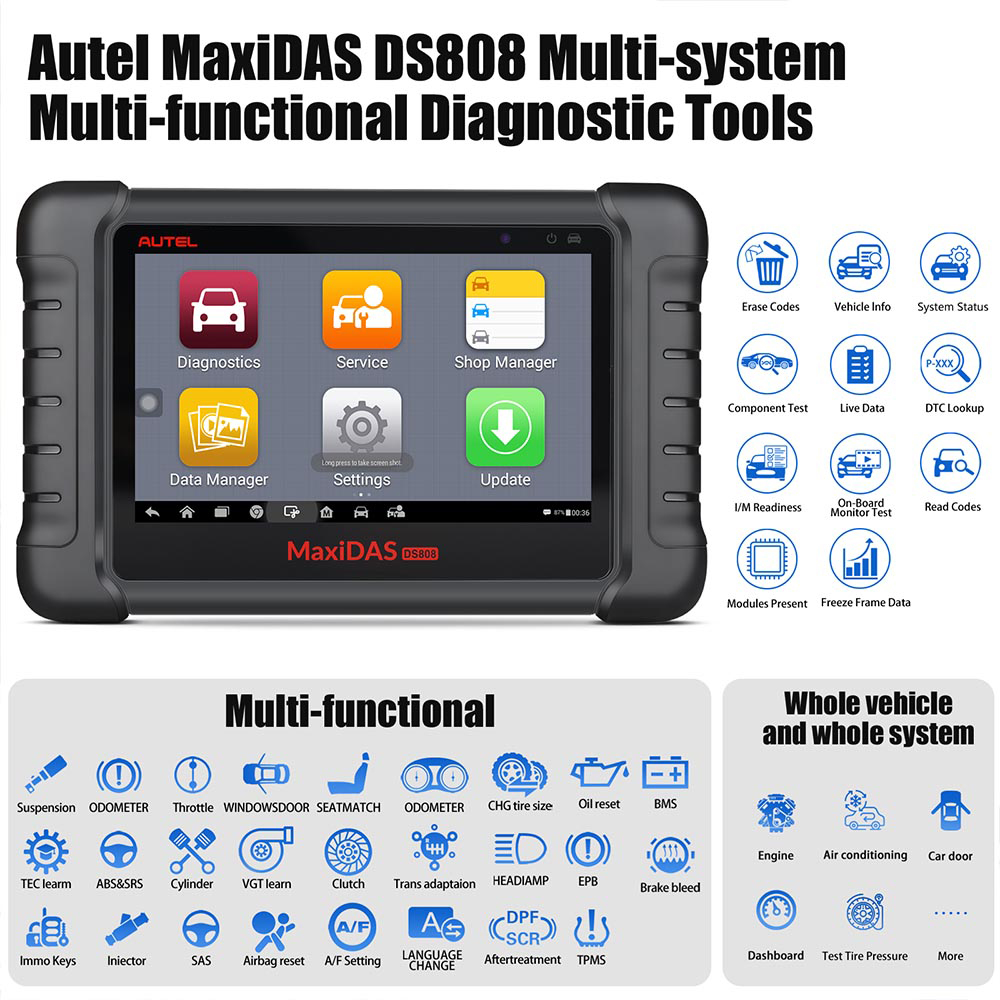

Autel DS808 Functions:

1. All Systems Comprehensive Diagnostics for Deep Inspection in Vehicle

Autel DS808 is an ideal diagnostic tool designed to work for diagnoses of complete systems, which allows users to operate functional tests, retrieve vehicle diagnostic information (trouble codes), freeze frame data and live data for various vehicle control systems (engine, transmission, ABS, etc.), providing its users with all the information pertinent to a vehicle's health quickly and in an accessible, reader-friendly format. To name just a few:

1) ECU Information: Retrieves and displays the specific information for the tested control unit, including unit type, version numbers and other specifications.
2) Trouble Codes: Includes Read Codes and Erase Codes functions. Displays detailed information of DTC records retrieved from the test vehicle's ECU and erases DTC records and other data from the test vehicle's ECU.
3) Freeze Frame: Displays the freeze frame data of the DCTs.
4) Live Data: Retrieves and displays live data and parameters from the test vehicle's ECU.
5) Active Test: During the actuation test, DS808 outputs command to the ECU in order to drive the actuators, and then determines the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators, such as switching an injector between two operating states. (This option is used to access vehicle-specific subsystem and component tests. Available test varies by the vehicle manufacturer, year, and model.

Provides specific subsystem and component tests. This selection may appear as Actuators, Actuator Test, or Function Tests, etc., and the tests options may vary depending on the manufacturer and model.
And much more …

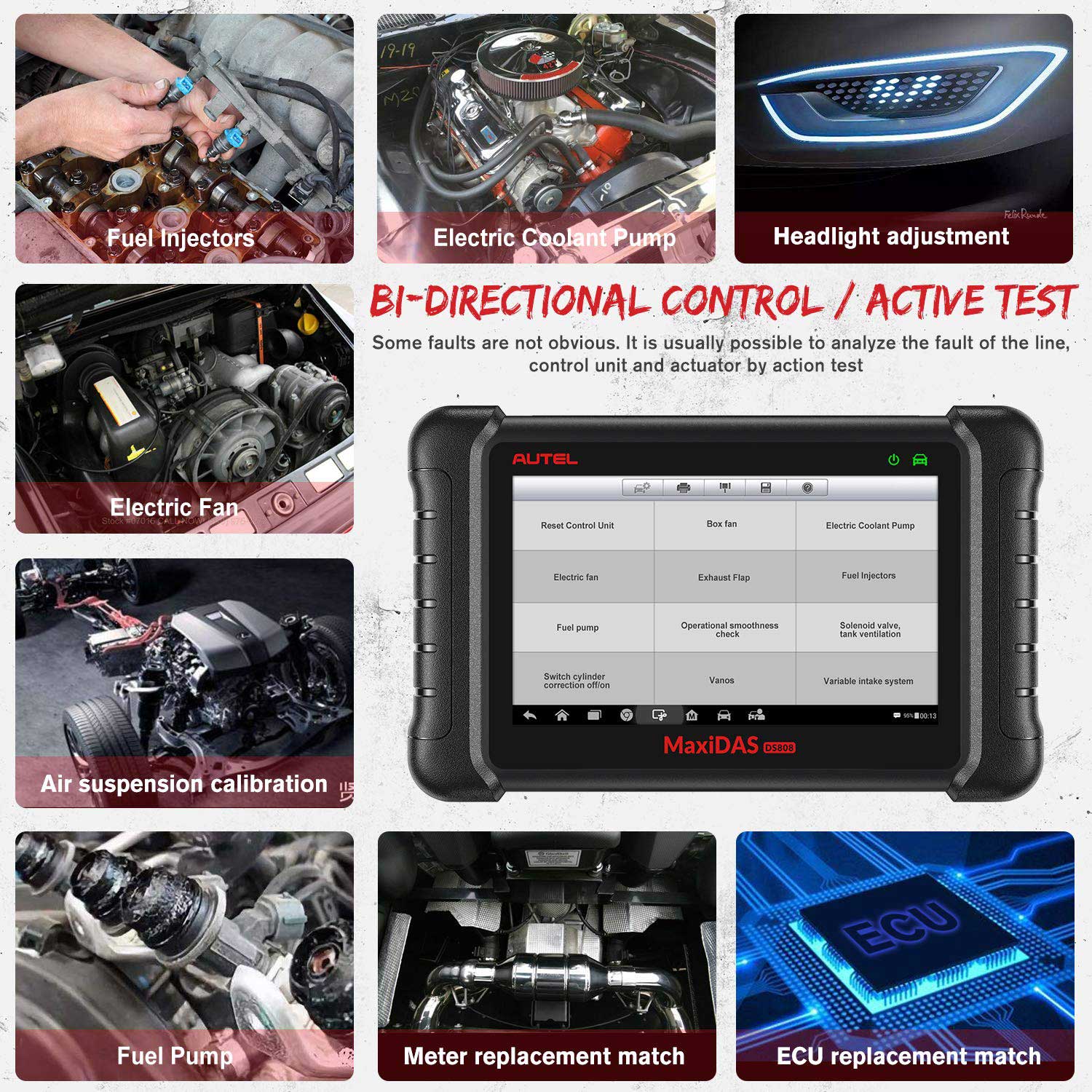

2. Bi-directional Control / Active Test

Autel DS808K automotive diagnostic tool scan tool has the same functions as Autel MS906,MP808K. The Active Test/Bi-Directional Control Special Function can help you access vehicle-specific subsystem and component tests. This test determines the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch between two operating states.
Note: Active Test/Bi-Directional Control are NOT universally compatible. Please check compatibility before purchasing.

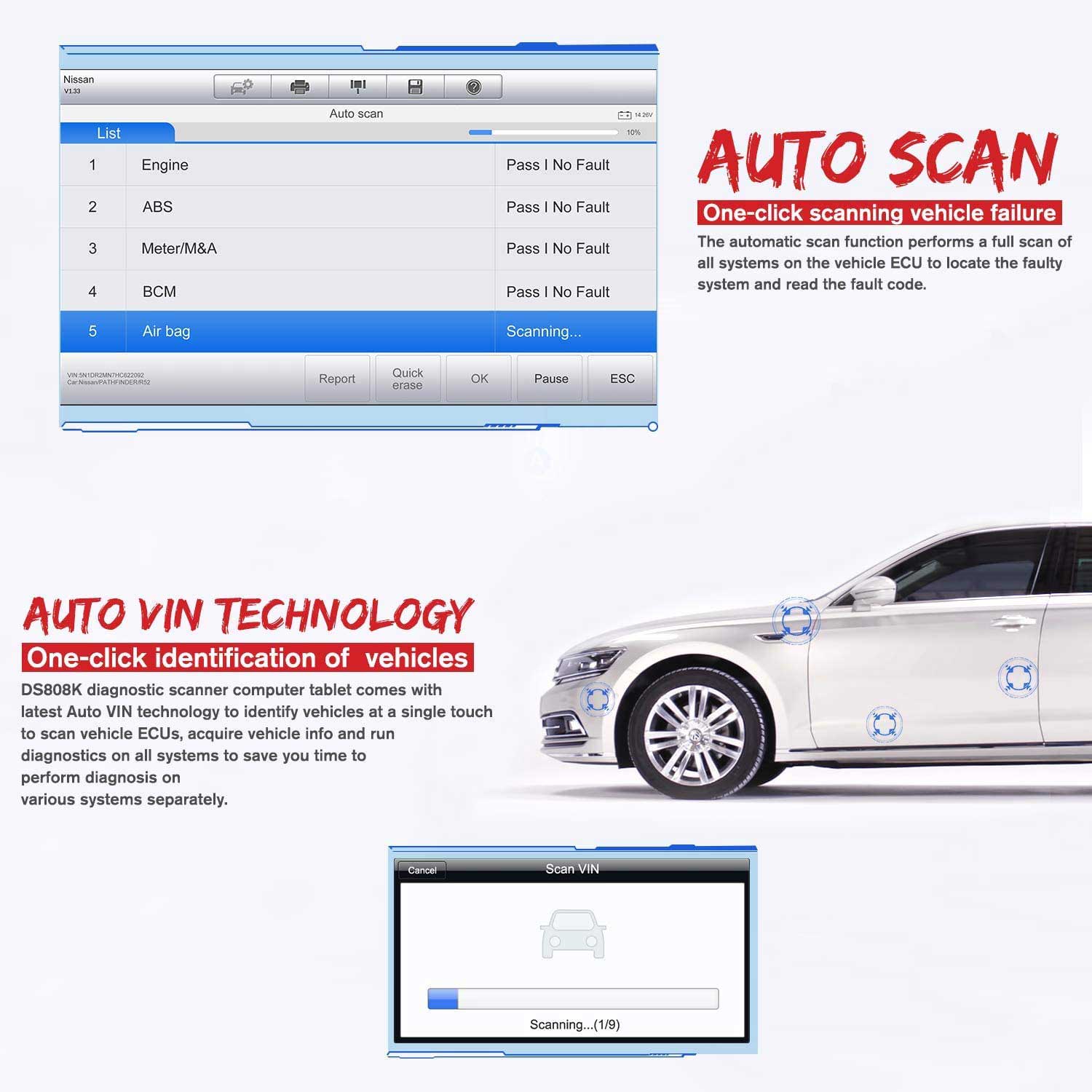

3. Smart AutoVIN technology for identifying vehicles

The MaxiDAS diagnostic system features the latest VIN-based Auto VIN Scan function to identify vehicles in just one touch, which allows the technician to quickly detect vehicles, scan all the diagnosable ECUs on every vehicle and run diagnostics on the selected system.

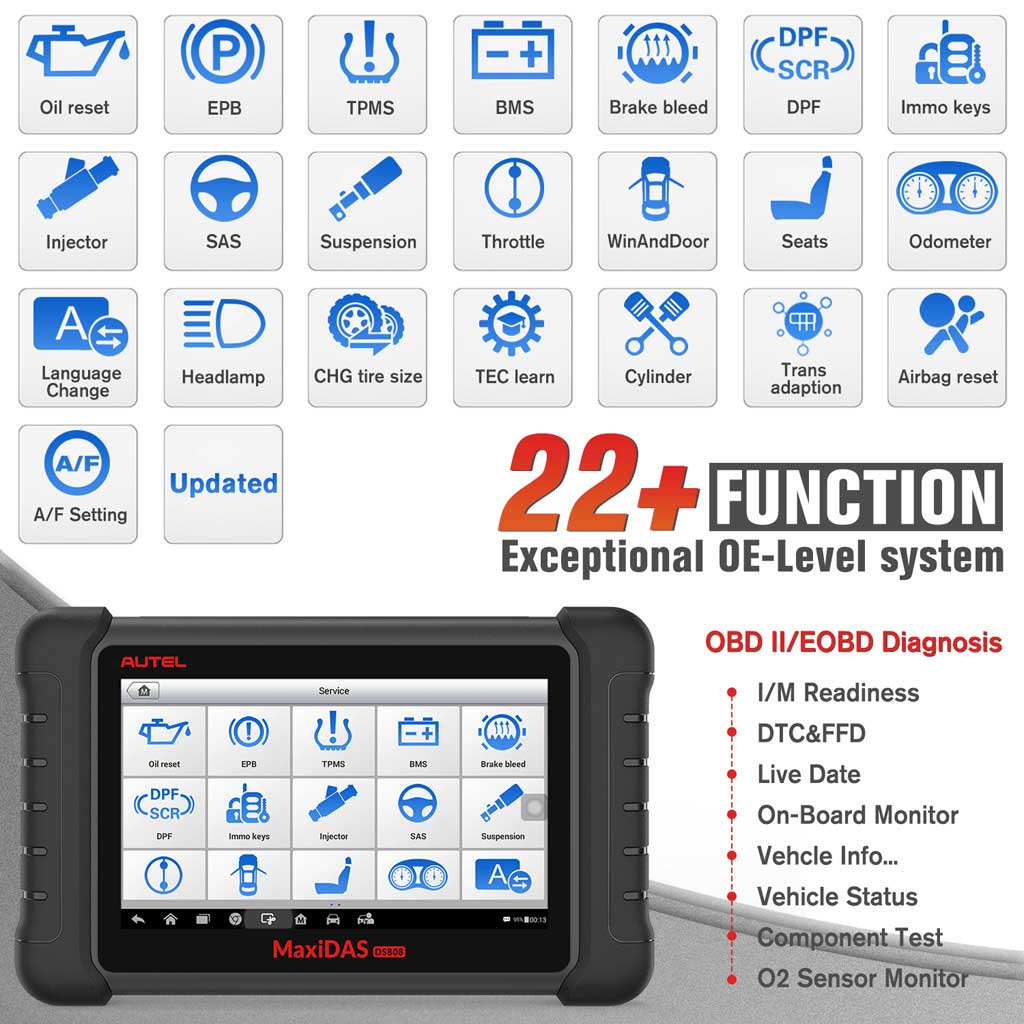

4. Functions Customized for Specific Needs

The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances
Autel DS808 is specially designed to add benefits of providing its users with quick access to the vehicle systems for 7 commonly performed service functions including:

1). Oil Service Reset – Performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light;
2). TPMS Service – Quickly looks up the tire sensor IDs from the vehicle's ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced;
3). EPB Service – Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately;
4). ABS/SRS Services – Performs various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System;
5). SAS Service – Performs steering angle adjustment, clears steering sensor fault memory and turns off steering wheel warning light;
6). DPF Regeneration Service – Clears particulate matter from the DPF filter to stabilize the filter performance.
7). BMS Service - Perform a reset on the vehicle battery for clearing the fault information and re-match the battery;
8). Brake Bleed - When your brake pedal becomes soft and inconvenient to control, this diagnostic tool can perform bi-directional tests to check the Anti-lock Braking System;
9). Injector Coding - Make the cylinder better identify injector after ECU or injector is replaced;
10). SAS Service - to perform calibration for the Steering Angle Sensor and clear steering sensor fault memory;
11). Throttle Adaptation - initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately
12). Headlamp, Suspension, Lang change, Odometer, Seats, CHG tire size, TEC learn and WIN DR ROOF, etc

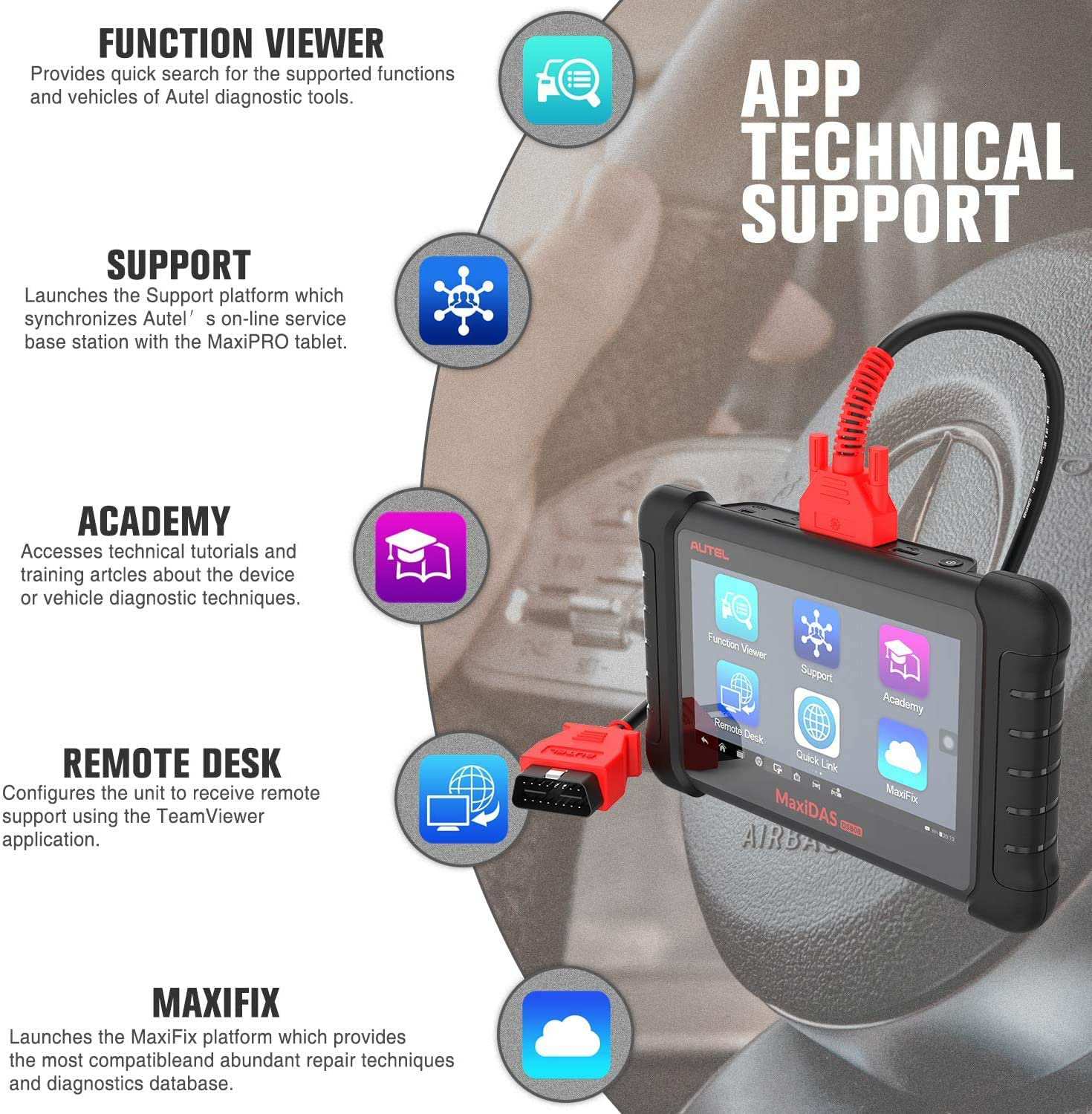

5. Intelligent Applications to Facilitate Your Daily Repair Work

1) MaxiFix: The cloud-based MaxiFix application launches the on-line troubleshooter database, which not only provides users virtually all common diagnostic trouble codes (DTCs) database for most vehicles, but also serves as a forum allowing to network with others and gives the access to a vast database of repair and diagnostic tips along with proven filed fixes.
2) Shop Manager: The Shop Manager application helps users to manage the workshop information, customer information records, and keep test vehicle history records, convenient for related information search and helpful for time-saving, which is a great assist in dealing with daily workshop business and improves customer service.
3) Data Manager: The Data Manager application is used to store, print, and review the saved files, which is a convenient data management system for managing internal program application and reviewing data. Save needed or might-be needed data for later check or problem summary.
4) Data Logging:  Interactive Data Logging sessions enable direct contact with Autel Technical support for first-hand troubleshooting of diagnostic bugs and errors.
5) Notification Center: Receives the regular on-line messages from the server for system update notification or other service information. Never miss news or updates.

How to Register Autel MaxiDAS DS808 scanner:

1.Go to the website: http://pro.autel.com
2.On the Sign In page, input your account ID and other information to log in, if you already have an account.
3.If you are a new member to Autel and do not have an account yet,click the Create Autel ID button on the left side.
4.Enter the required information in the input fields, read through Autel’s Terms and Conditions and tick on Agree, and then click Create Autel ID at the bottom to continue.
5.The online system will automatically send a confirmation email to the registered email address. Validate your account by clicking the link provided through the mail.
A product registration screen opens.
6.Find out the scanner serial number and password from the About section of the Settings application on the Display Tablet.
7.Select the product model of your Autel DS808, enter the product serial number and password on the Product Registration screen, and click on Submit to complete the registration.

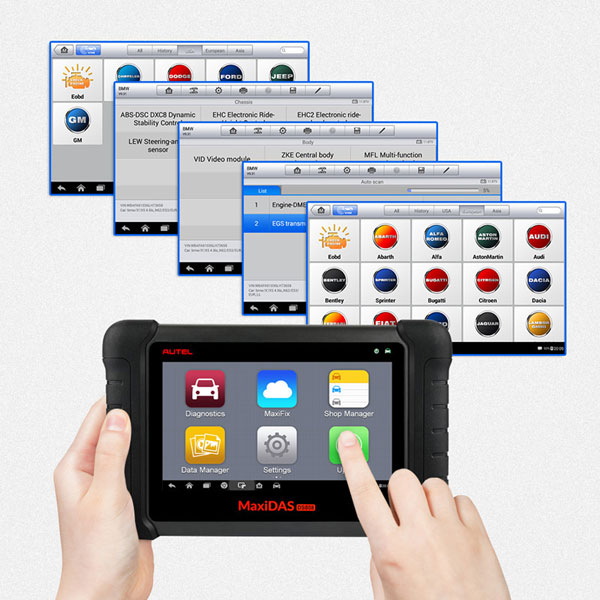

How to update Autel DS808 software:

1. Make sure the Display Tablet is connected to a power source with stable access to the internet.

2. Tap the Update application button from the MaxiDAS Job Menu;

or tap the update notification message when received one;
or tap the Update icon on Vehicle Menu in Diagnostics application.
The Update application screen displays.

3. Check all available updates:

If you decide to update all the items, tap the Update All button.
If you only want to update one or some of the item(s), tap the Update button on the right column of the specific item(s).


4. Tap the Pause button to suspend the updating process.

When you tap Continue to renew the update, the updating process will resume
from the break point.

5. When the updating process is completed,

the firmware will be installed automatically. The previous version will be replaced.

MaxiDAS DS808 (With Conkit) Specifications:

Operating System:Android™ 4.4.4
Processor:Cortex-A9 processor (1.5 GHz)
Memory :32GB
Display:7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity:Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB)
Sensors:Ambient light sensor for brightness auto changing
Audio Input/Output: Input: N/A • Output: buzzer
Power and Battery: 3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply
Tested Battery Life:Around 4.5 hours of continuous use
Battery Charging Input:5 V/1.5 A
Power Consumption:500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp:-10 to 60°C(14 to 140°F)
Storage Temp:-20 to 70°C (-4 to 158°F)
Operating Humidity:5% - 95% non-condensing
Dimensions (W x H x D):237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)

 Comprison

Autel MaxiDAS DS808 - Frequently Asked Questions:

Q1: Does this tool have bi-directional control and diagnostics for the body control unit?
A1: Yes, of course, it can support it.
Q2: Does it work on the 2007 BMW e90 n54?
A2: Yes, it is supported to work on all 1996 and newer vehicles that have a universal OBD II connector, it will read and remove the engine and transmission code, so if your vehicle supports OBD II, it can be used.
Q3: What is the difference between ds808 and ms906?
A3: DS808 is a smaller size version of MS906. The two models have the same function in the software but differ in hardware configuration
Q4: Is this unit can adjust rpm and can it work on diesel too
A4: Yes, it can
Q5: Will this disable the automatic engine start/stop feature on the Land Rover Range Rover?
A5: We are sorry that DS808 cannot support the function you mentioned.

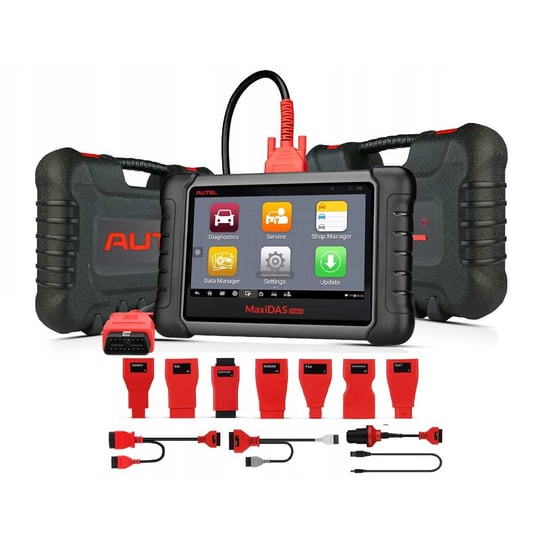

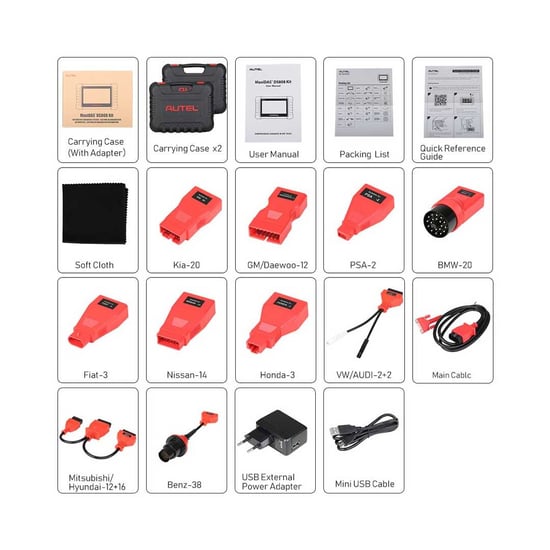

Package Includes:

1pc x AUTEL MaxiDAS DS808 Main Unit
1pc x USB External
1pc x Power Adapter
1pc x USB External Power AdapterUser
1pc x Manual Quick reference guide
1pc x Main cable
1pc x Mini USB Cable
1pc x User Manual
1pc x Quick Guide
1pc x Chrysler-16
1pc x Kia-20
1pc x Nissan-14
1pc x GM/Daewoo-12
1pc x Honda-3
1pc x VW/AUDI-2+2
1pc x Mitsubishi/Hyundai-12+16
1pc x Benz-38
1pc x PSA-2
1pc x Fiat-3
