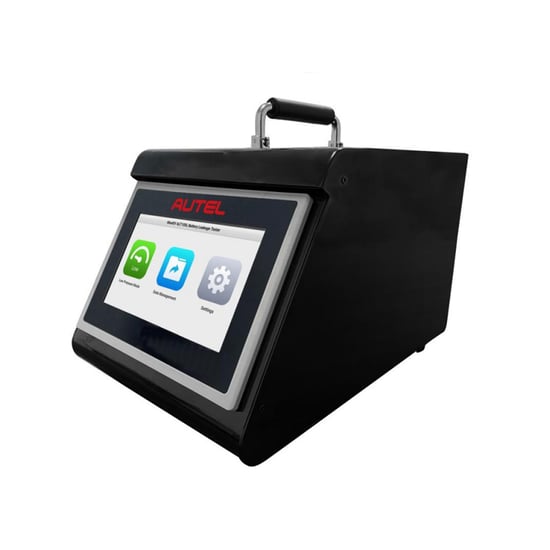

Autel MAXIEV ALT100L EV Battery Leakage and Airtightness Tester

Be the first to review this product
Ev Battery Enclosure Integrity Testing
$2,900.00
Category: Automotive Workshop Equipment
Manufacturer: Autel
Availability: In stock
SKU: BAT-AUT-26792
Old SKU: MK26792
GTIN: 3841654142084
Products specifications
Attribute name Attribute value
Manufacturer Autel
Condition New
Full Description:

Autel MAXIEV ALT100L EV Battery Leakage and Airtightness Tester, Ev Battery Enclosure Integrity Testing

Product Description:

New Autel MaxiEV ALT100L is an EV battery leakage and airtightness tester. The unit tests high voltage battery enclosures and high voltage thermodynamics systems for leaks. Offers real-time, dual pressure display of current pressure and leakage fluctuation with high-sensitive pressure sensing that significantly improves test accuracy and stability. The ALT100L offers customizable presets: Pack ID and volume, target pressure, testing phase time, alarm settings, and save and print reports. Offers onscreen test monitoring, and automatically saves test parameters for easy retest adjustments.

Battery Service Automotive Workshop Equipment From Autel with Product Number: MK26792
This Weight Product: 4000g



Autel MAXIEV ALT100L EV Battery Leakage and Airtightness Tester User Manual



Autel MAXIEV ALT100L EV Battery Leakage and Airtightness Tester Features:



•Tests high voltage battery enclosures and high voltage thermodynamics systems such as coolant and A/C for leaks

•High-sensitive pressure sensing significantly improves test accuracy and stability

•Dual Pressure Display: Real-time display of current pressure and leakage fluctuations

•On-screen monitoring of tests progress

•Customizable Presets: Pack ID and volume, target pressure, testing phase time, and alarm settings

•Automatically saves test parameters for easy retest adjustments

•Audible and visual abnormal or failed test results to ensure safety

•Saves test result screenshots to USB for report generation

•Software updates via download



Autel MAXIEV ALT100L EV Battery Leakage and Airtightness Tester Specs:

TEST POWER 20W Max
TEST PRESSURE RANGE 0-30KPa
SENSOR RESOLUTION 1 Pa
TEST ACCURACY Âą5pa
COMMUNICATION PORT RS-232 / USB
DATA STORAGE Internal memory/ download via USB disk
POWER SUPPLY AC 220V
AIR SUPPLY 0.1‒1.0 MPa dry compressed air
AIR INLET PORT/TEST PORT φ6mm air pipe/φ6mm air pipe
WORK TEMPERATURE/HUMIDITY 10%‒90% @25°C, without condensation
DIMENSIONS 280*300*200 mm
