Autel MaxiTPMS TBE200 Tire Control Device No IP Restriction MK17367
Autel MaxiTPMS TBE200 Tire Control Device
Autel MaxiTPMS TBE200 Tire Control Device
Autel MaxiTPMS TBE200 Tire Control Device | MK3 -| thumbnail
New Autel MaxiTPMS TBE200 Laser Tire Tread Depth & Brake Disc Wear 2in1Tester With Dual Camera Real-time Data  Examiner| Emirates Keys -| thumbnail

Autel MaxiTPMS TBE200 Tire Control Device

No IP Restriction

Write Review
$500.00 (€475.00)
Add to Wishlist
Product Code: MK17367
Categories TPMS Service
Manufacturer Autel
In StockIn Stock
Product Specifications
Manufacturer Autel
Condition New

Autel MaxiTPMS TBE200 Tire Control Device


Product Description:

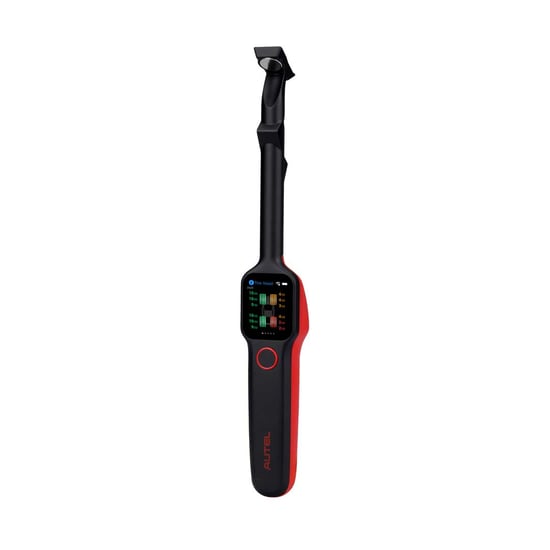

New Autel MaxiTPMS TBE200 Laser Tire Tread Depth & Brake Disc Wear 2in1Tester With Dual Camera Real-time Data Examiner| Emirates Keys

TPMS Service From Autel with Product Number: MK7367
This Weight Product: 1150g

Specs:

Manufacturer: Autel
Condition: New



The MaxiTPMS TBE200 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. It features a 1.65” AMOLED super retina touchscreen, displaying measurement data curves in real-time. TBE200 provides uneven wear analysis and detailed replacement & maintenance suggestions for quick tire service. The TBE200 dual cameras enable users to document tire wear and damage and scan Tire Identification Number (TIN). Use the tool separately, or with ITS600 to view and print detailed TPMS reports.

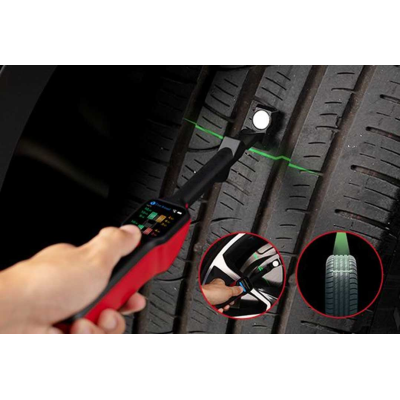

LASER MEASUREMENT

• Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement

• Laser measurement with 0.1mm accuracy

• Full tread measurement

• Quick Check both tread depth & brake disc



REAL-TIME TIRE HEALTH ANALYSIS

• Real-time measurement data on touchscreen

• Measurement data curve display

• Uneven wear analysis

• Test detail for single tire tread / brake disc

• Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)

• Scan DOT, tire expiration notice, tire recall lookup

• Take photos of tire wear & damage

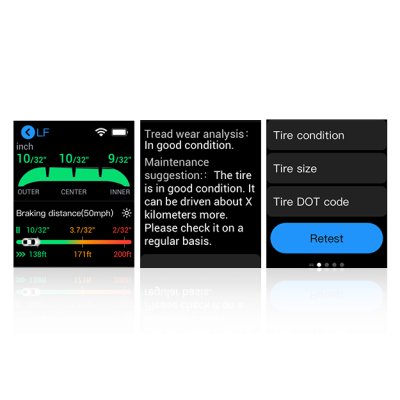

TBE200 Real Time Health Analysis





COMPREHENSIVE TEST REPORT

• Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600

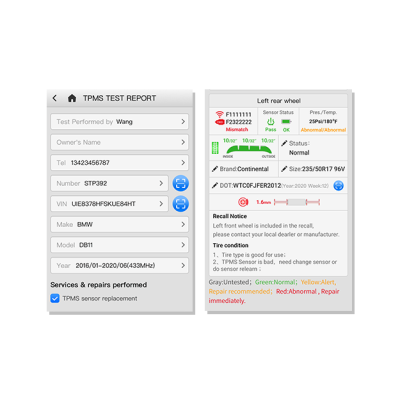

TBE200 COMPREHENSIVE TEST REPORT

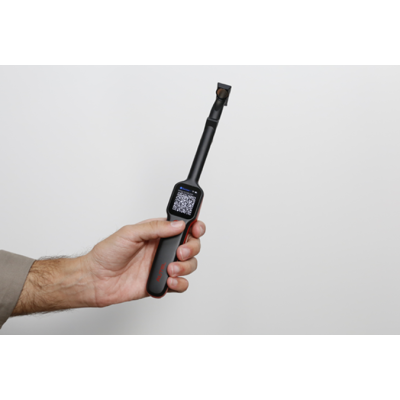

EASY TO USE QR CODE REPORT DOWNLOAD & SHARING

• Generate QR codes for tire tread depth and brake disc measurements to allow for easy report sharing & download via mobile phones or tablets.

TBE200 EASY TO USE QR CODE REPORT DOWNLOAD & SHARING





Device Features

Processor- 4x ARM Cortex-A35 (1.5 GHz)

Memory- 1 GB Ram LPDDR3 & 4 GB ROM

Display- 1.65 Inch Amoled Touchscreen with 348x442 Resolution

Connection Type- Wi-fi, USB 2.0 Type C

Camera- CMOS WXGA 1 Megapixel & 8 Megapixel, 30 Fps

Audio Output- Output: Beep

Power and Battery - 3.7 V / 3000 mAh 18650 lithium ion battery and charged with 5V AC7DC power supply

Battery Life - 8 Hours continuous use battery life

Battery Charger Input - 5V / 1.5 A

Operating Temperature- (-10 to 45 ° C)

Storage Temperature- (-20 to 60 ° C)

Net Weight- (188 Grams)

Protocols - ISO9141-2, ISO14230-2, ISO15765, K / L-Line, Flashing Code,

SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High Speed, Medium Speed,

Low speed and Single wire CAN, fault proof CAN), SAE J2610, GM UART,

UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Comparison Table

Comparison MaxiTPMS TBE 200 MaxiTPMS TBE 100
FEATURES
Tire tread depth/ brake disc wear measurement Yes Yes
No need to remove the wheel during measurement Yes Yes
Laser measurement Yes Yes
Measurement accuracy 0.1mm 0.1mm
Real-time measurement data on touchscreen Yes Yes
Measurement data curve display Yes Yes
Full tread measurement Yes Yes
Uneven wear analysis Yes Yes
Replacement & Maintenance suggestions:
Tire replacement, brake disc replacement, tire rotation, four tire alignment
Yes Yes
Quick Check Yes Yes
Test detail for single tire tread / brake disc Yes Yes
Comprehensive Test Report with TPMS  (When used with ITS600)  (When used with ITS600)
Scan DOT Yes
Tire expiration notice Yes
Tire recall lookup Yes
Take photos of tire wear and damage Yes
Compatible with Passenger cars, off-roads, commercial vehicles Yes Yes
Hardware
Size 283x38.9x33.5mm 277x28.7x33.5mm
Weight 188g 138.8g
Screen 1.65”AMOLED super retina touchscreen 1.65”AMOLED touchscreen
Camera 1 Megapixel, 4cm macro camera; 8 Megapixel 10cm zoomable camera 1 Megapixel, 4cm macro camera
Vibration reminder Yes Yes
Flash / RAM 4GB/1GB 4GB/1GB
Lithium-ion Battery 3000mAh 1300mAh

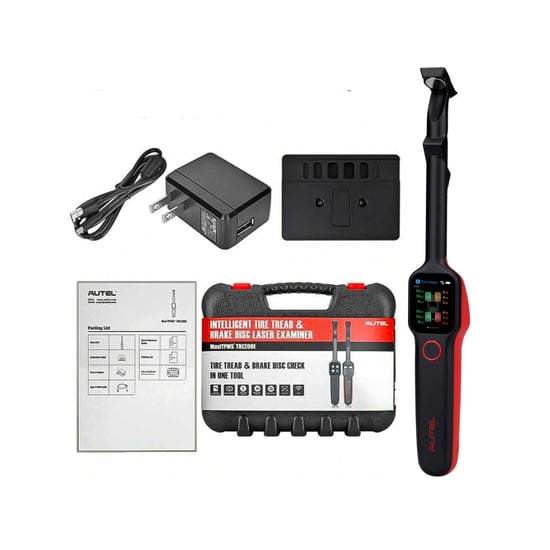

Package Contents

  • MaxiTPMS TBE200 Tool
  • Calibration Table
  • Power Adapter
  • Type C USB Cable
  • Carrying Case
  • Packing List
  • Quick Reference Guide
