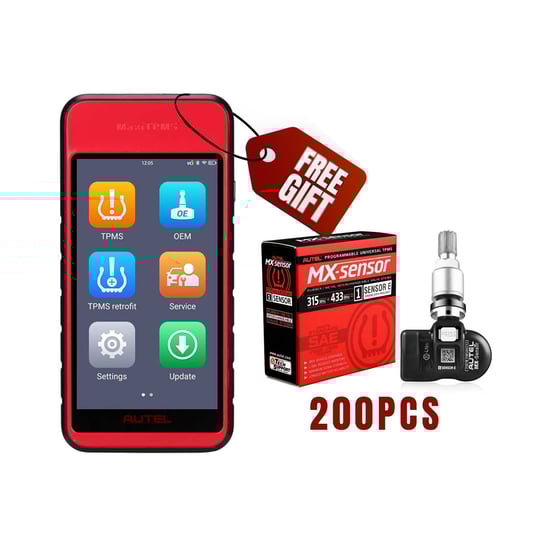

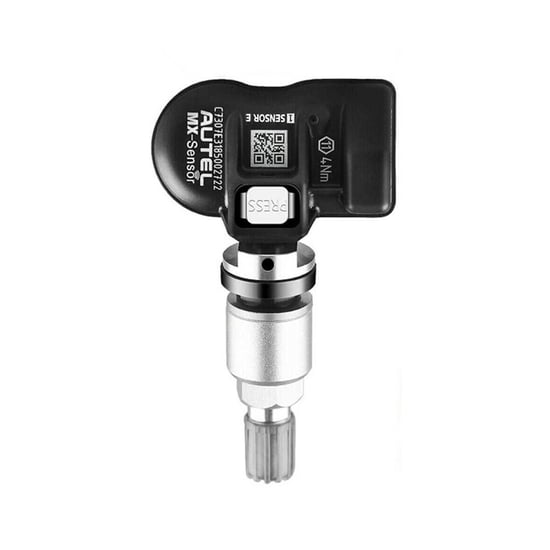

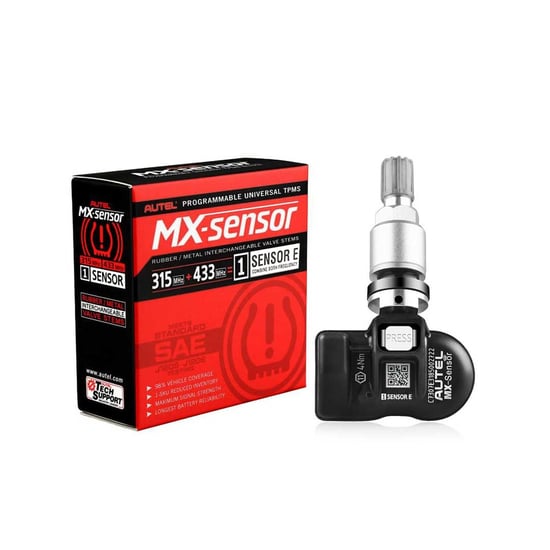

New Bundle Autel MX-Sensor E TPMS Programmable 2-In-1 315-433MHz Metal Tire Pressure Sensors 200 PCs + Free Gift Autel MaxiTPMS ITS600 Wireless Android Tablet

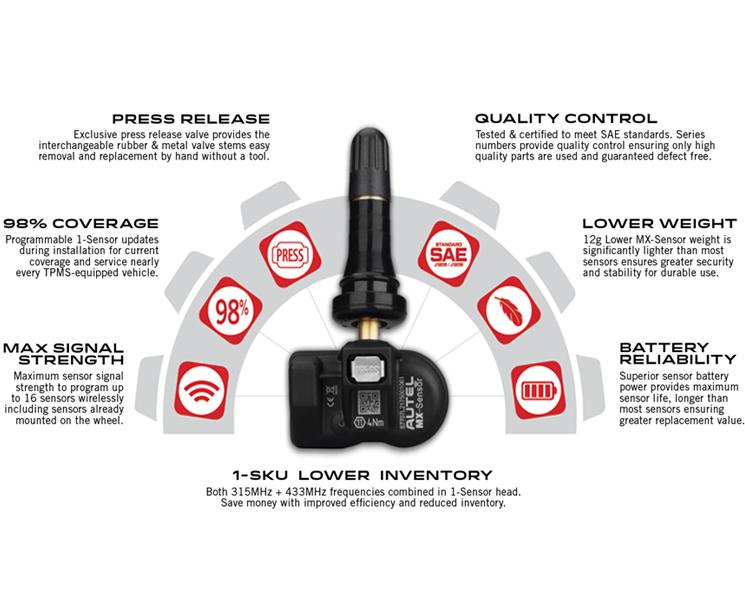

Greatly reduce sensor inventory investment with the 1-SKU Autel MX-Sensor 1-Sensor solution providing 98% vehicle coverage. The easy to use exclusive PRESS release valve design, reduces tire and wheel service time to increase profits. With both rubber and metal accessory valves available, easily choose the preferred valve stem to minimize installation time and provide a quick and simple assembly.
Autel is the only manufacturer to produce both TPMS sensors and easy-to-use TPMS tools to offer a truly complete TPMS solution.
An easy to use and cost effective necessity for any shop performing TPMS repairs, the Autel 1-SKU sensor inventory solution with 98% vehicle coverage eliminates the need for distributors to carry the hundreds of sensors to fulfill shop orders. On the shop level, needing only 1-Sensor to service nearly every TPMS equipped vehicle means lower repair cost and higher install efficiency.

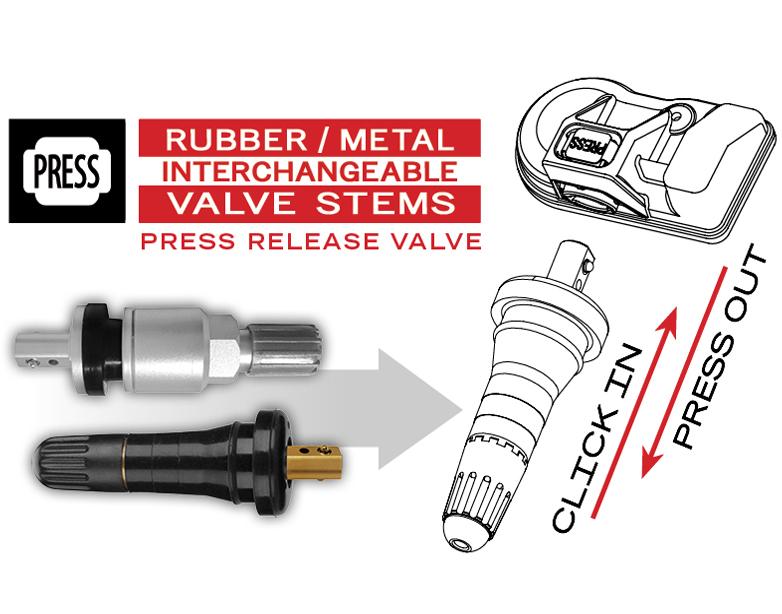

Autel MX-Sensor EXCLUSIVE PRESS RELEASE INTERCHANGEABLE VALVE STEMS
The patented press release valve design allows interchangeable rubber and metal valves to be easily replaced in the same sensor head by hand, with no valve fitting tool required. Simply click in and press out. Installing TPMS sensors has never been so easy.

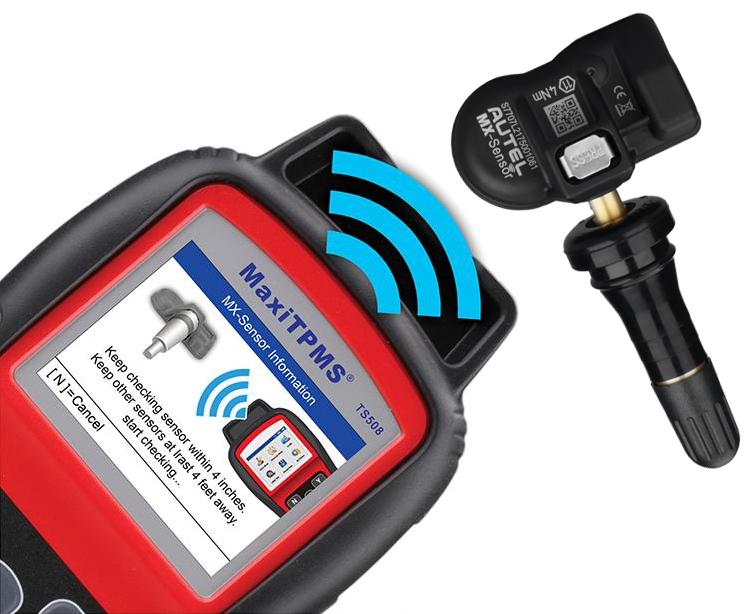

Autel MX-Sensor MAXIMUM SIGNAL STRENGTH WIRELESS PROGRAMMING
The extraordinary sensor signal strength allows AUTEL 1-Sensor to be easily programmed wirelessly even when the sensors have already been mounted to the wheel. And with strong signal strength, now up to 16 sensors can be programmed in one session with AUTEL latest TPMS tools. AUTEL MX-Sensor is 100% clone-able. No relearn is required when the MX-Sensor is cloned with the original sensor ID and put in the same position.
Autel MX-Sensor SUPERIOR BATTERY RELIABILITY LOWER SENSOR WEIGHT
With the highest quality materials and advanced TPMS technology, AUTEL 1-Sensor provides superior battery life and reliability, to match OE sensor battery performance. The 1-Sensor body weighs only 12g, making it significantly lighter than most sensors in the market, which ensures better sensor stability and performance.

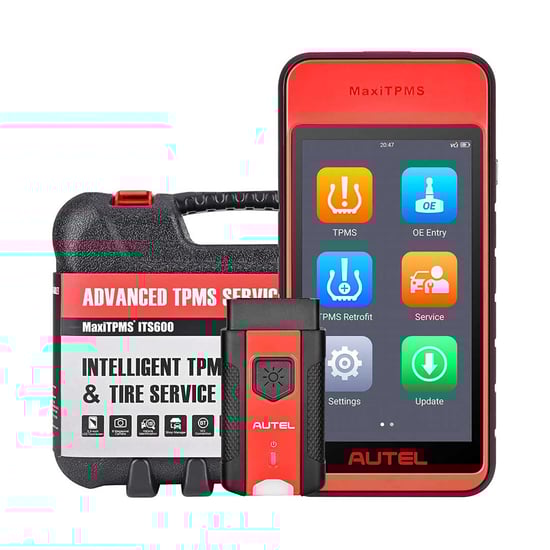

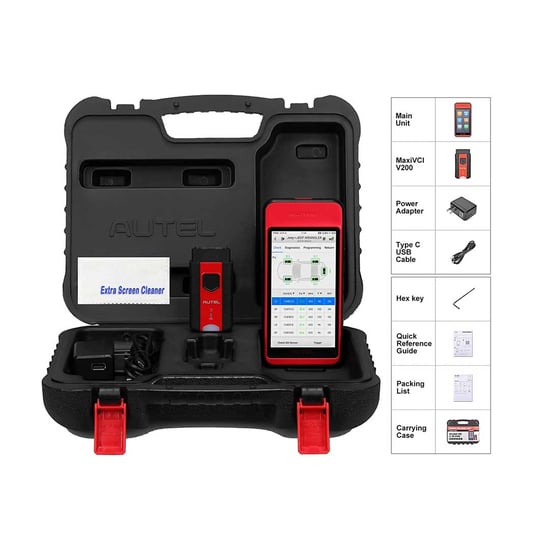

Autel MaxiTPMS ITS600 Wireless Android Tablet that offers complete TPMS diagnostics and service functions
The MaxiTPMS ITS600 is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions. The tablet features a 5.5-inch color display and Bluetooth vehicle communication interface (VCI). Compatible with U.S, Asian and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS status screen, VINscan for rapid vehicle identification, four MX-Sensor programming options, OBDII relearn functionality and onscreen relearn instructions for all vehicles. The ITS600 can activate, read and relearn all known sensors, perform TPMS system diagnostics and four common maintenance services. Additionally, it provides DOT number scan, tire expiration notice, and access to recall lookup. The ITS600 is compatible with TBE200/TBE100 Tire Tread & Brake Disc Wear Analysis tool, sold separately. By providing an extensive series of tire-related features and functions, ITS600 is your ideal choice to complete TPMS and tire health work.
EVERYTHING TPMS SOLUTIONS
• Activates, reads and relearns all known sensors
• Enhanced, at-a-glance diagnostics status screen
• Fast OBDII relearn for most vehicles
• Program MX-Sensors to replace 99% of OE sensors
• Copy By OBD sensor programming for faster service
• Four MX-Sensor program modes; batch program up to 20 MX-Sensors
• Includes wireless Bluetooth vehicle communication interface (VCI)
• Tire pressure placard value reset
• Read/Clear TPMS system codes & view live data
• Free Wi-Fi software updates for the life of the tool
QUICK VEHICLE ID TECHNOLOGY
• Rapid VIN acquisition via optical VINScan
• QR Code Scan / Barcode Scan, Plate scan, Auto VIN detect and manual input
• Identify MMY and sensor OE part number via VIN decoding
DIAGNOSTICS & SERVICE
• Oil light reset
• Electronic brake service
• Battery registration
• Steering angle reset
• Included service function updates are free for the life of the tool
• All systems diagnostics and maintenance services software available with Pro Upgrade purchase
EXPANDED TIRE SERVICE
DOT
• Quick & Easy Tire DOT Number Scan
• Tire Expiration Notice
• Tire Recall Lookup
Tread Depth & Brake Disc Wear
• Precise laser measurement of tread depth & brake disc wear with purchase of Autel TBE100/TBE200
• Comprehensive Test Report: TPMS health‚ Tread depth & brake disc wear characteristics & Repair tips
| Recommended Use |
Indoor |
| Operating System |
Android 9.0 |
| Processor |
Quad-core processor (1.5 GHz) |
| Memory |
1GB RAM DDR4 & 64GB ROM |
| Display |
5.5-inch LCD capacitive touchscreen with 1280x720 resolution |
| Connectivity |
Wi-Fi
USB 2.0, Type C
BT |
| Sensors |
Light sensor for brightness auto adjust |
| Audio input/output |
Input: N/A
Output: Beep |
| Power and Battery |
3.8 V/5000 mAh lithium-polymer battery
Charges via 5 V AC/DC power supply |
| Battery Charging Input |
5 V/2 A |
| Power Consumption |
600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V |
| Operating Temp. |
-10 to 45°C(14 to 113°F) |
| Storage Temp. |
-20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) |
183.0 mm (7.2") x 89.0 mm (3.5") x 22.0 mm (0.87") |
| Net Weight |
368 g (0.8 lb.) |
| Protocols |
ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66 |
Product Comparison
| Comparison |
ITS600 |
TS608 |
TS508-WF |
TS508 |
| TPMS & TIRE SERVICE |
|
|
|
|
| Worldwide Vehicle Coverage 99%, Always Up-to-date |
Yes |
Yes |
Yes |
Yes |
| Easy Vehicle Identification |
(AutoVIN, VINscan, QR code/Barcode scan, Plate Scan, Manually select/input) |
(AutoVIN, Manually select/input) |
(Manually select) |
(Manually select) |
| Activate, Read, Relearn All Known TPMS Sensors |
Yes |
Yes |
Yes |
Yes |
| Four Programming Options |
Yes |
Yes |
Yes |
Yes |
| Autel Sensor Batch Programming |
(Up to 20 sensors) |
(Up to 16 sensors) |
(Up to 16 sensors) |
(Up to 16 sensors) |
| OBDII Relearn / Automatic Relearn / Stationary Relearn |
Yes |
Yes |
Yes |
Yes |
| Relearn Procedure Guide |
Yes |
Yes |
Yes |
Yes |
| Exclusive TPMS Status Screen |
Yes |
Yes |
Yes |
Yes |
| Indicate sensor OE part number |
Yes |
Yes |
Yes |
Yes |
| Check MX-Sensor Information (ID, Battery, etc.) |
Yes |
Yes |
Yes |
Yes |
| Tire Pressure Placard Value Reset |
Yes |
Yes |
Yes |
Yes |
| Unlock TPMS ECU for old Toyota/Lexus, Integrated into OBD relearn |
Yes |
Yes |
Yes |
Yes |
| Test Remote Key Entry (RKE) |
Yes |
Yes |
Yes |
Yes |
| Read/Clear Codes for TPMS System |
Yes |
Yes |
Yes |
Yes |
| Special Functions (e.g. View Live Data for TPMS System) |
Yes |
Yes |
|
|
| DOT Scan, Tire Expiration Notice, Tire Recall Lookup |
Yes |
(Coming soon with Autel-cloud based app) |
|
|
| Test Report |
Yes |
Yes |
(View on PC) |
(View on PC) |
| TPMS Software Update |
Free Update |
Annual Update Fee |
Free Update |
Free Update |
| DIAGNOSTICS |
|
|
|
|
| All System Diagnostics & All Maintenance Service |
Free OLS, SAS, BMS, EPB;
Optional purchase of Pro Upgrade for All System Diagnostics & All Maintenance Service |
Yes |
|
|
| Diagnostic Software Update |
All System Diagnostics and Services updates is FREE for 1 Year with Pro Upgrade purchase.
New software updates for these features will require a new ITS600 Pro Upgrade purchase. |
Annual Update Fee |
|
|
| SOFEWARE |
|
|
|
|
| OPERATING SYSTEM |
Android 9.0 |
Android 4.4 |
|
|
| HARDWARE |
|
|
|
|
| Display |
5.5 inch TFT LCD-touch, 1280×720 |
7 inch TFT LCD-touch, 1024×600 |
2.8 inch TFT LCD, 320×240 |
2.8 inch TFT LCD, 320×240 |
| Camera |
8 MP |
|
|
|
| Flash / RAM / SD |
64GB / 1G; SD card up to 64G (Optional) |
32G / 1G; SD card up to 32G (Optional) |
16M / 3M |
16M / 3M |
| Lithium-ion Battery |
3.8V/5000mAh |
3.7V/5000mAh |
3.7V/3200mAh |
3.7V/3200mAh |
| Vibration reminder, Microphone voice remote assistance |
Yes |
|
|
|
| ACCESSORIES |
|
|
|
|
| Tread Depth & Brake Disc Wear Examiner TBE200 / TBE100 |
(Sold separately) |
|
|
|
| Thermal printer |
(Sold separately) |
|
