1 SUMMARY
Working based on existing GSM/GPRS network and GPS satellites, this product can locate
and monitor any remote targets by SMS, APP and Internet. It adopts the most advanced
technology of GPS and AGPS dual positioning.

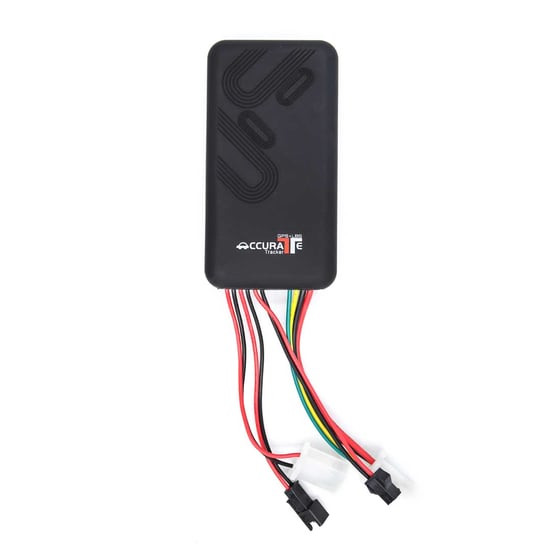

2.Hardware Description

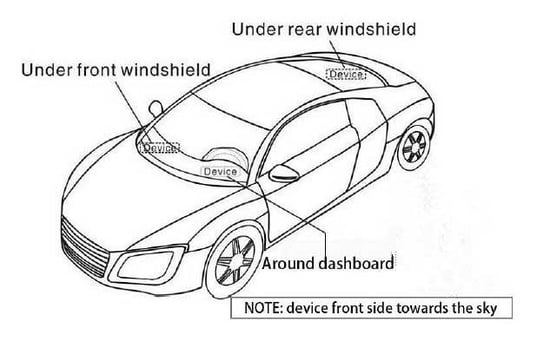

2.1) device front side towards the sky. When install in car, if the
windscreen glued by metal thermal insulation layer or heating layer, it will
reduce the GPS receive signal and lead to GPS work disorder.

(The GPS tracker must be installed professional personnel)

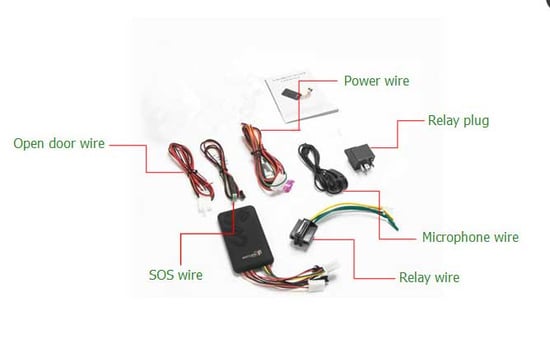

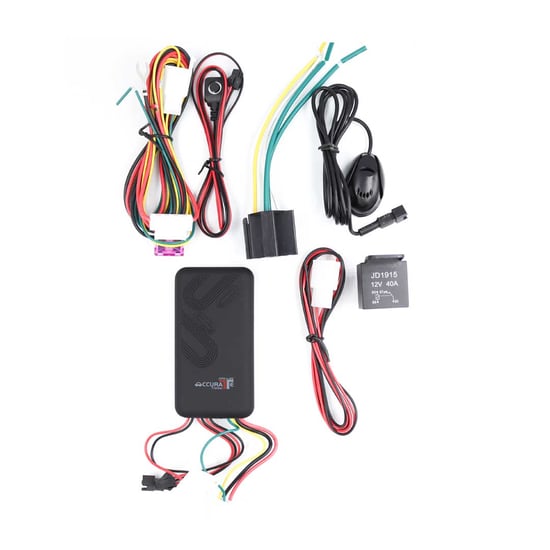

2.2 Wires connection

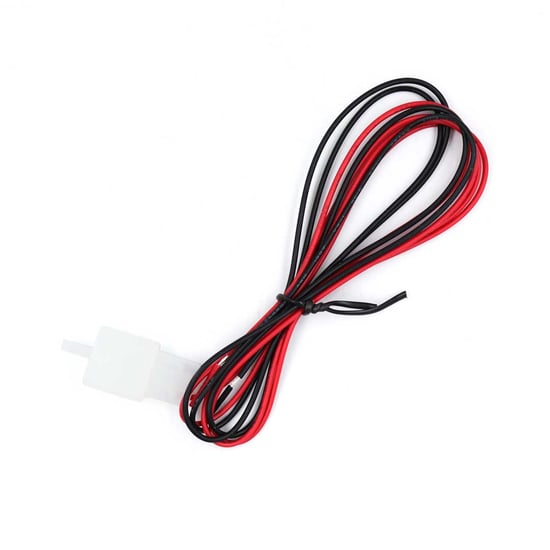

2.2 device power wire connection as below:
2.2.1 Red wire connects to vehicle power positive +
2.2.2 Black wire connects to vehicle power negative -

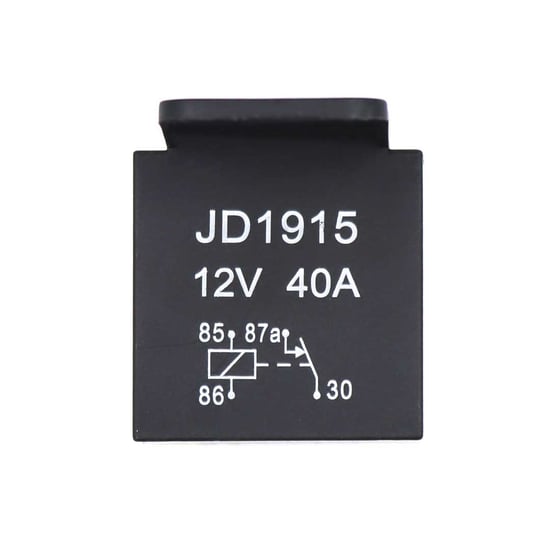

2.2.3Yellow wire connects to relay yellow wire
2.2.4 Green wire connects to ACC wire
2.25 thin Red wire connects to the door control circuit if it is positive
2.26 thin black wire connects to the door control circuit if it is negative
Knowing about the type of the door trigger is positive or negative trigger

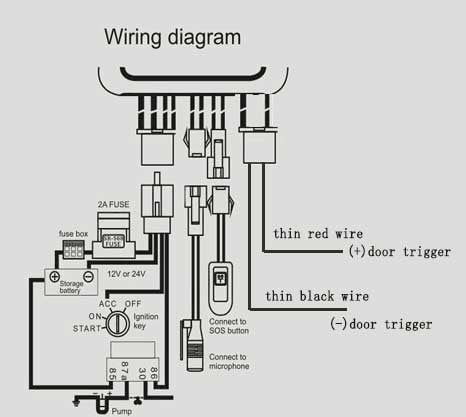

2.3 Device wiring diagram

Note: All ledS will turn off after 5 minutes for best hide
Connect 12V-36 v voltage of the power supply


3. Main functions
· GSM quad-band frequency;
· Real time tracking by SMS/GPRS;
· Recover original password;
· Real time voice monitoring;
· Overspeed alarm ;
· ACC anti-theft alarm
· SOS alarm ;
· Built-in backup battery to realize power failure alarm;
· Cut vehicle oil or circuit (optional).
· Add Open the door alarm;
· Add Vibation alarm
· Add Smart sleep save power Mode

4. Notices:
1.GPS tracking can be worked outdoor.
2.Please make sure GSM SIM card(2G GSM network or compatibility 2G GSM
network) supports making calls, sending messages, GPRS network.
3.Please make sure GSM SIM card is with sufficient balance.
4.Please make sure the GSM card has opened the call shows and turned off
the call transfer.
5.Please insert the GSM phone card correctly.
6.Do not assembly and disassembly device at will.
5.TURN

5.TURN ON THE DEVICE

Open the back cover, insert the SIM card(chip up) to the slot.

The indicator light is on when SIM card is inserted.

The device gets GPS location when there is GPS signal and gets LBS
location when there is no GPS signal.

The device automatically turns off when the SIM card is removed

6.SMS TRACKING(123456 is default password)
6.1. insert the SIM card, take device to outdoor
6.2. tracker

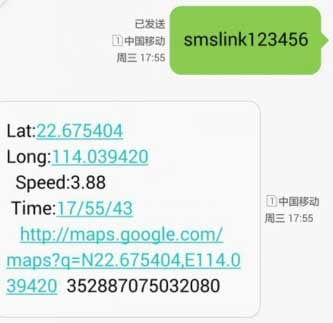

Call the SIM card phone number in tracker,you will receive a Google Maps link of position
after set up the authorization number or sending message “smslink123456” to SIM card
phone number in tracker .


6.3. Admin number setting support 5pcs admin number (After admin
number setting, all SMS alarm will send the admin number.)
Command: admin123456 phone number（This phone number is your own
mobile phone number , not the SIM card number in tracker .）
Reply：admin ok
E.g：admin123456 13800138000
When the unit is in over-speed alarm,move alarm it will send alert to the admin
number.（13800138000）
Admin number Canceling:
Command ：noadmin123456 13800138000
Reply：noadmin ok

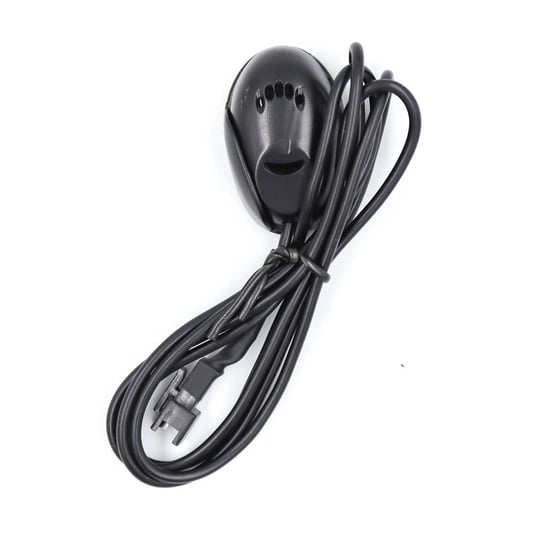

6.4 Monitor
6.4.1 The default mode is “tracker” (Tracker mode).
6.4.2 Send SMS “monitor+password” to the unit,switch to “monitor”
mode.then use your mobile call the device sim card,unit will auto pick
up
6.4.3 Cancel monitor Send SMS “tracker+password” to the unit, switch to
“tracker” mode
6.5 ACC working alarm
6.5.1 This function is deactivated by default. send "ACC+password" to tracker, And
tracker will send "ACC on+latitude & longitude" to authorized numbers when
detect ignition on; and tracker will send “ACC off+latitude & longitude" to
authorized numbers when ignition off and ACC is off.
6.5.2 Send "noacc+password" to deactivate this function, tracker will reply

6.6 Cut off the Oil and Power System
6.6.1 Send command “cut+password” to tracker,And it will remain immobile state
until next command to resume.it will be executed , and stop the car when the speed
is less than 20KM/H.
6.6.2 resume the Oil and Power System
Send “resume+password" to tracker,

6.7 Power failure alarm
6.7.1.This function activates by default.it will send alarm after the extral power
discount

6.8 SOS help
Long Press the SOS button for 3 seconds, the tracker device will send SMS
“SOS HELP!+lat./long.” to all the authorized numbers

9 Vibation alarm (built-in g-sensor)
Send “shock+password+space+level” to the unit(level from 1 to 5,1 is the
highest sensitive),when the sensor is striggered ,and will send send Vibrate
alarm+latitude&longitude”,
6.9.1
6.9.2 canceling: Send SMS “noshock+password”

7. Arm set
7.1.1 Send SMS command “arm+password” to the tracker. the SMS command
will make the tracker device enter into armed state,User must stop the engine,
(that is ACC is lower voltage),You will set up arm status fail if the engine is
turned on (the ACC is high voltage), it will reply “set up fail! pls turn off ACC”

Disarm
7.1.2 Disarm by SMS
Send SMS command "disarm + password" to the tracker device, and the SMS
command will make the tracker device enter into disarmed state.

Alarms under Arm State
7.1.2 Door open alarm
The unit will send SMS “Door alarm+lat/long” to the authorized number at
interval of every 3 minutes when the door of the car always open in arm status.
Close the door of the car or Disarm to stop this alarm

7.1.3 ACC Alarm
The unit will send SMS “ACC on+lat/long” to the authorized number in at
interval of every 3 minutes when the engine of the car is always turned on in
arm status
Close the ACC off or Disarm to stop this alarm

7.2 Over-speed Alarm setting（It works only in continuous positioning mode.）
Over-speed Alarm setting:
Command ：speed123456 70（Suppose speed is 70km/h）note: not less
60KM/H
Reply：speed ok
E.g：
When the unit speed is over 70km/h, it will send message “speed alarm!” to the
admin number .
Over-speed Alarm canceling ：
Command ：nospeed123456
Reply：nospeed ok
7.3. move Alarm setting (It works only in getting gps signal, the scope is a
circle that radius 200meters)
Command：move123456
Message Reply：move ok
E.g：
move alarm Canceling:
Command：nomove123456
Reply：nomove ok

7.4 Terminal (local) Time Setting(factory setting GMT 0)
Command：time zone123456 local time zone
Reply：time ok!
E.g： time zone123456 1 time zone123456 -1 Time zone123456 0
time zone123456 5 30
7.5 Reset Hardware
Command：reset123456
Reply：reset ok
7.6 Change the password
Command: password123456 888888
Reply :password OK
Note: 123456 is the old password(default ),888888 is the new password,it
must the 6 digits Arabic numerals

7.8 Smart sleep save power Mode

7.8.1 send “sleepin+password”7.8.2 Cancel: Send “sleepout+password”, tracker will reply “sleepout ok”,
tracker won’t sleep, GSM and GPS works all the time.
7.8.3 switch GPRS to SMS mode (SMS mode means close the GPRS)
The default mode is “GPRS”, Send SMS “sms+password” to the tracker,
and it will reply “sms ok!” enter sms mode
Send SMS “gprs+password” to the tracker, and it will reply “gprs ok!”
enter GPRS mode
8. EXPLANATION OF PARAMETERS/CODES IN SMS MESSAGE
 Lat:22.039124 lon:114.039124 Positioning of the latitude and longitude
values.
 Spd：000 This refers to the device moving speed. The unit is km/h.
 Time:18/15/43 real-tracking time, the Default is beijing time. You can
set a time zone by sms command
 Google Link: This is the link to the Google map showing the position of the
device.
 352887077654321: Device IMEI No.
Pic 2：Replied LBS information without GPS satellites signal.
 smcc:27a4 1223: Real-time LBS data.
 Time:08/00/00 LBS positioning time.
 IMEI:352887077654321
6. 0 START ONLINE TRACKING
sms1: adminip123456 www.12gps.net 10202 (set DNS and port)
sms2: APN123456 Apn name ( APN name pls ask the sim card
company ,for example tell you the apn name is ABC,so send APN123456
ABC)
If set the first step,device one line in platefrom, no need set apn commands
If you need real-time tracking by APP or web platform, please see
platform set card
