CGDI Newest CG100X CG100 D1 Adapter for VAG MQB D70F34xx D70F35xx Mileage Repair

CGDI Newest CG100X CG100 D1 Adapter for VAG MQB D70F34xx D70F35xx Mileage Repair No Soldering No Lift Pin

Product Description:

Additional Adapter From CGDI with Product Number: MK23417
This Weight Product: 30g

Specs:

Manufacturer: CGDI
Condition: New

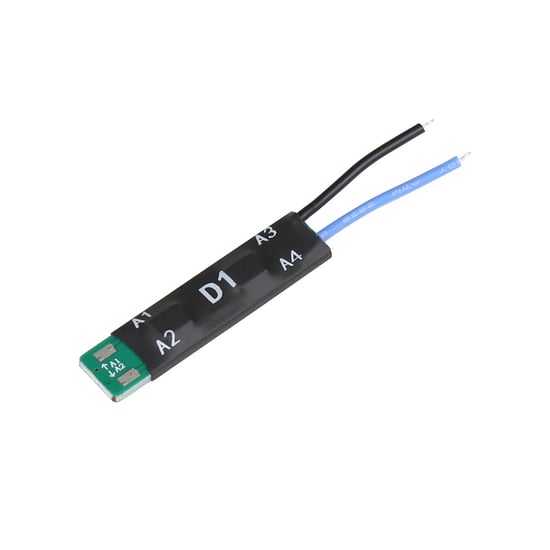

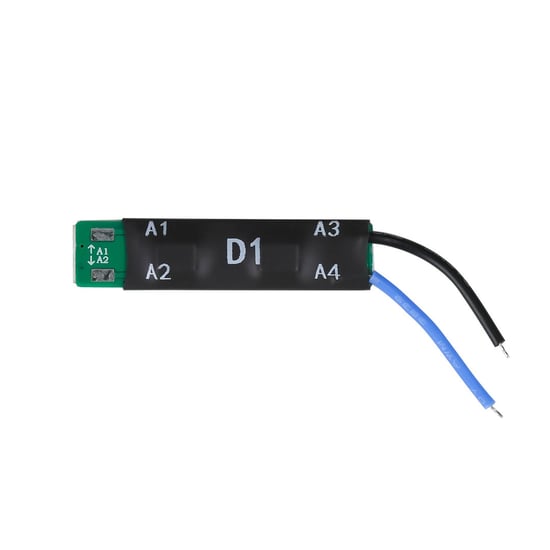

The D1 adapter is used to repair/change VAG MQB D70F34XX and D70F35XX processor mileage without soldering, which works with both CG100X and CG100.

CG100X D1 Adapter Feature:

No Soldering
No Lift Pin
Can be reused

CG100X Software V1.3.5.1: Added D1 adapter, support VW D70F34/35xx remove capacitor way mileage repair.

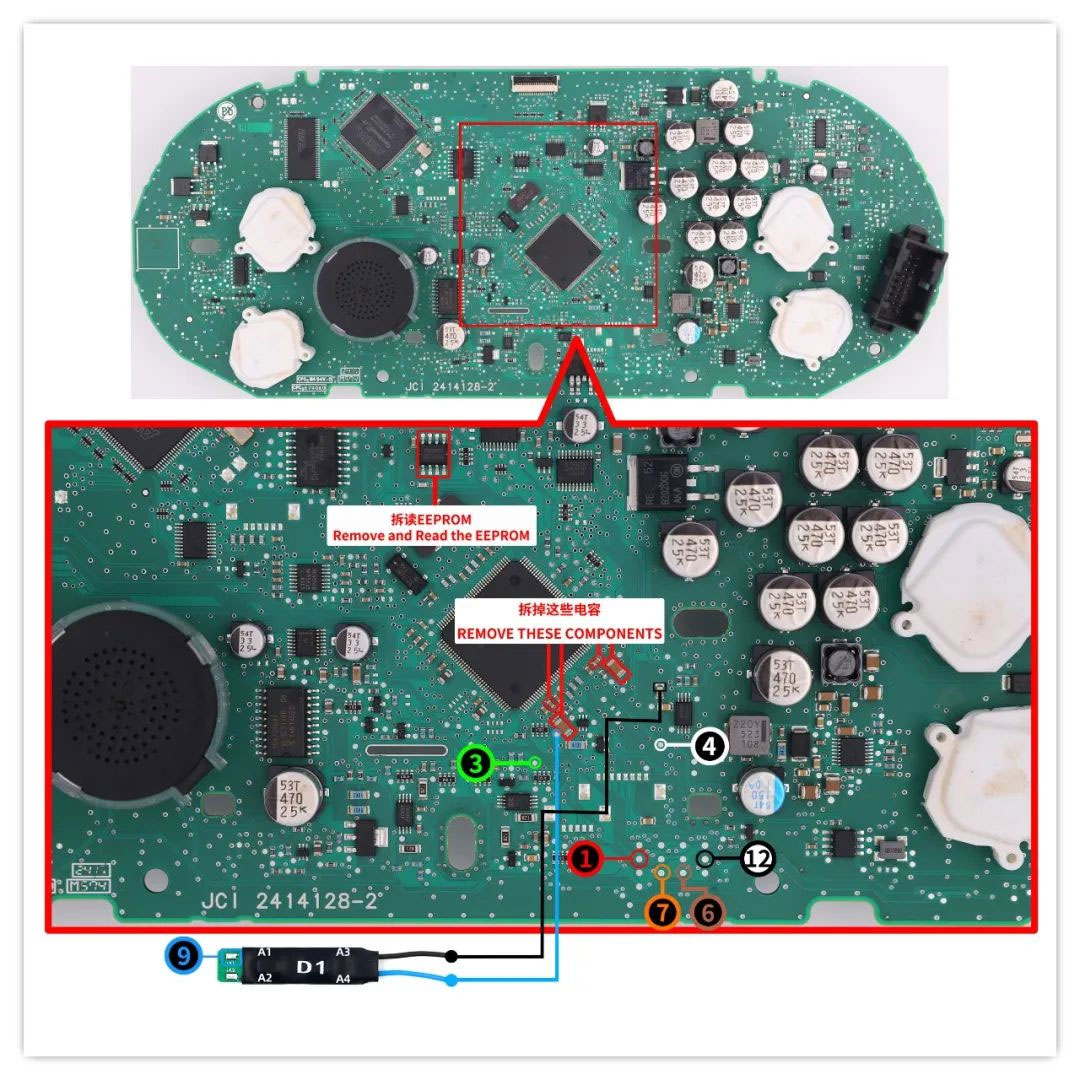

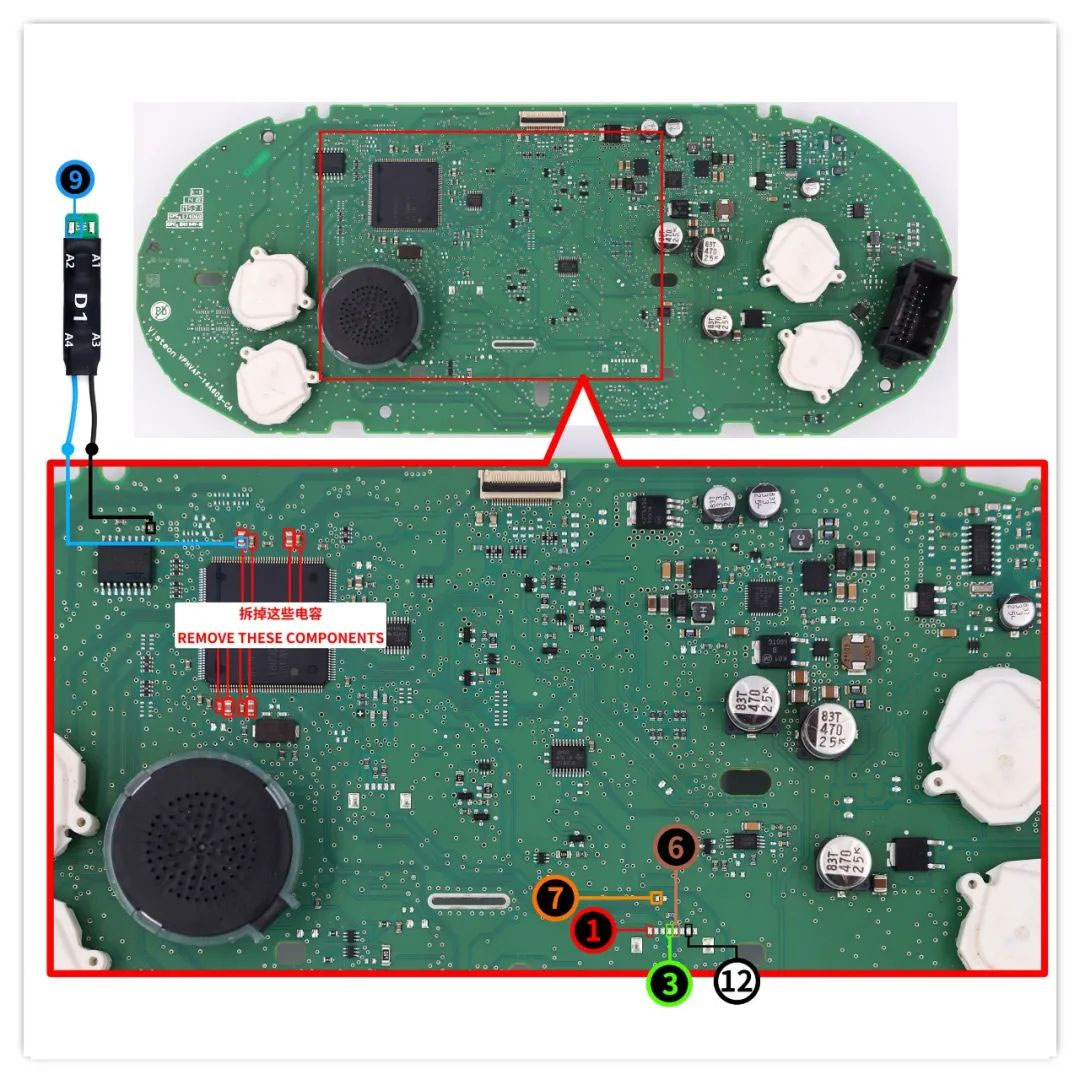

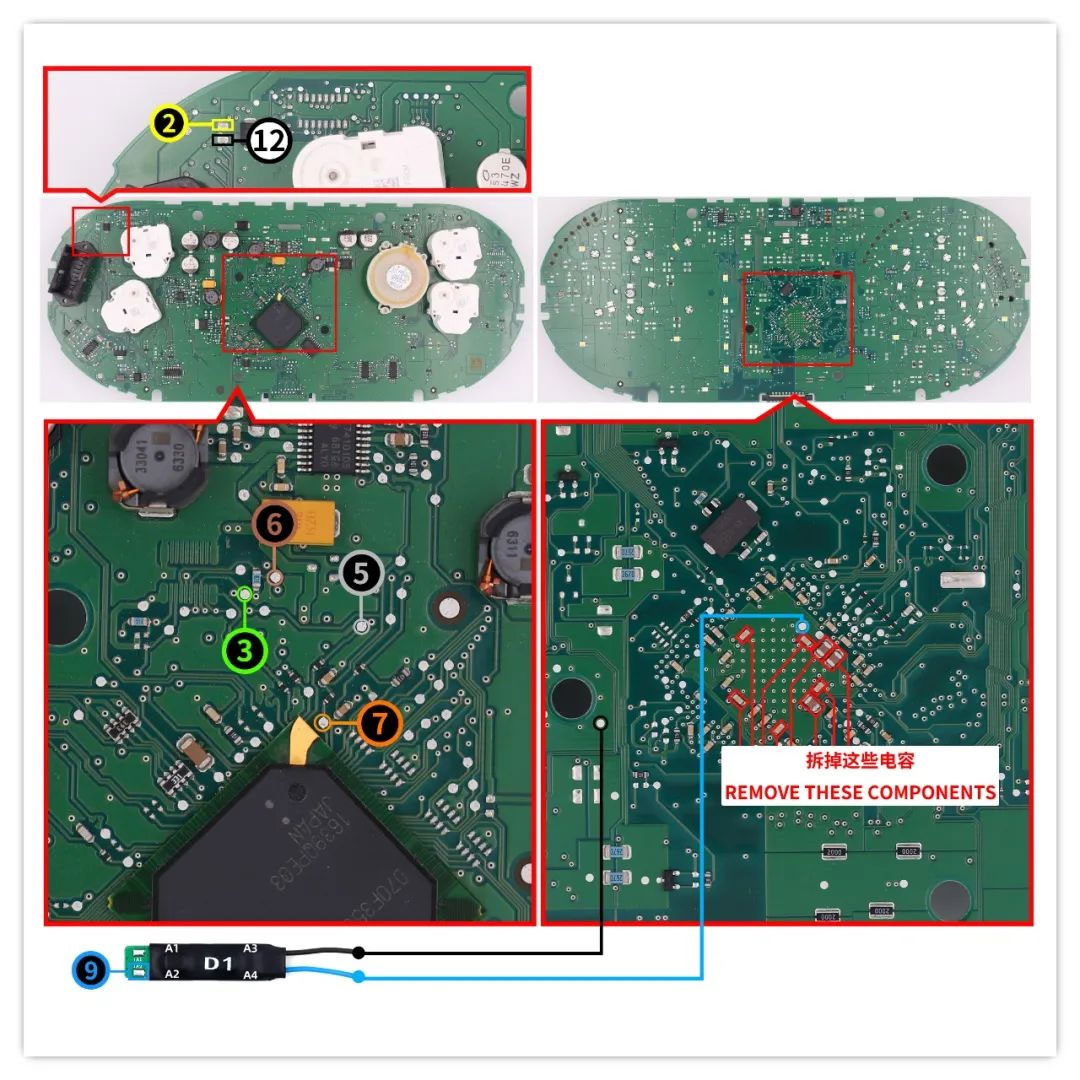

CG100X and D1 Adapter Pinouts to VAG MQB Cluster:




Notice:
1. This repair method requires the use of D1 Adapter
2. Pay attention to the direction of the four corners of the D1 adapter on the wiring diagram
3. Do not extend the wire harness of the D1 Adapter

Package List:

1pc x CG100X D1 Adapter

Extra Details:
