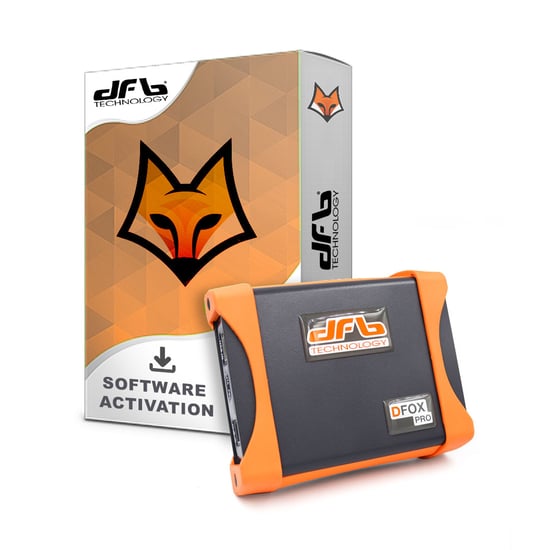

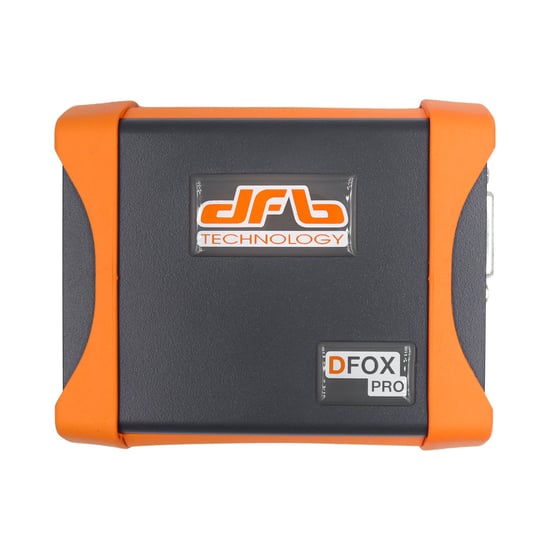

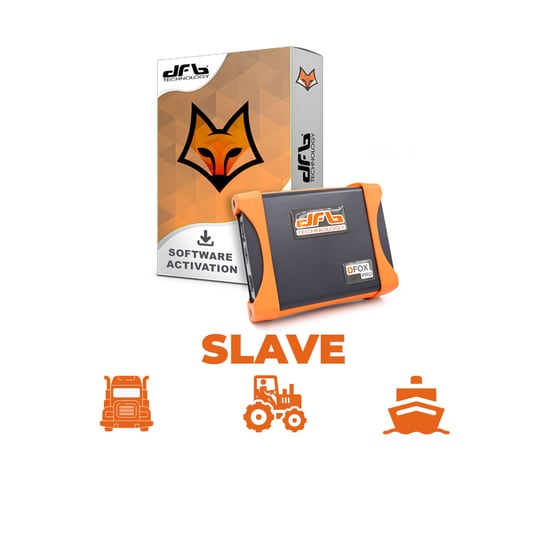

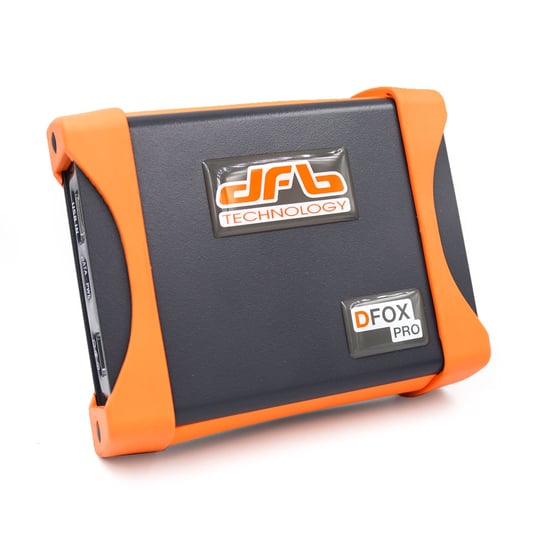

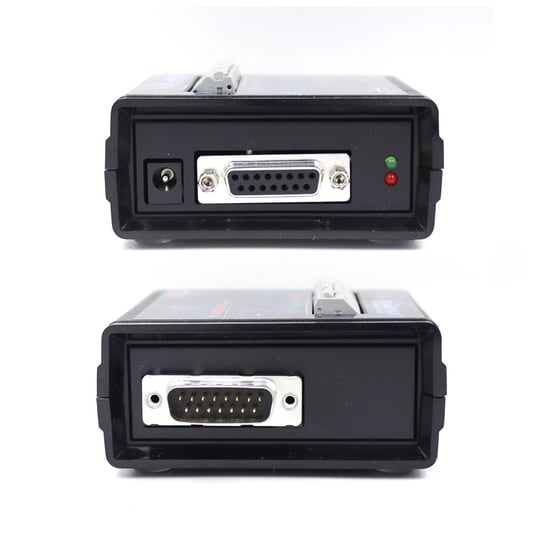

Dfox Slave Heavy + Pro ECU Programming Package

DFB Technology DFOX ECU Programming Package Protocols:

DFB Technology solutions provide a wide range of protocols:

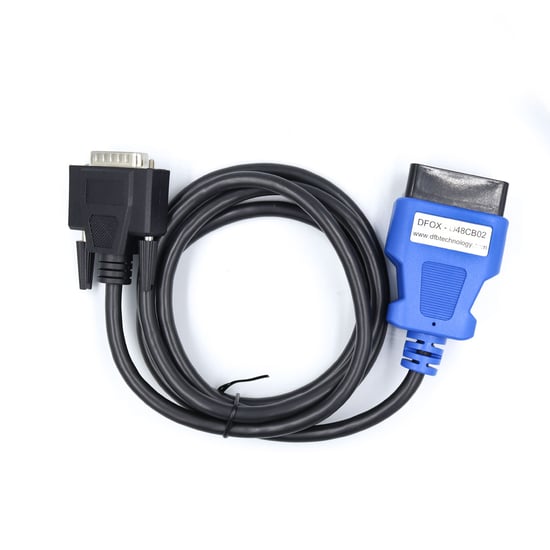

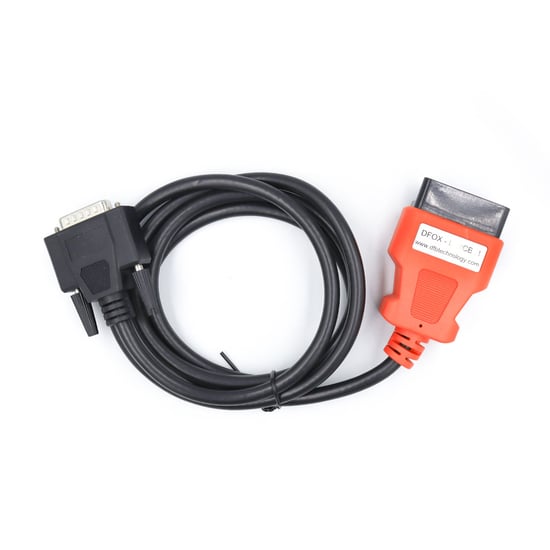

• OBD driver for communication via the car diagnostic socket.
• BENCH MODE driver for communication via the external pinout of the control unit.
• BOOT MODE / BAM driver for low level communication.
• JTAG MODE driver for low level communication.

All this for ECU (Engine Control Unit) and TCU (Transmission Control Unit).

All this in one device.

Professional technical assistance, operating manuals for each control unit:

• reading the original file
• write the modified file
• automatic calculation of Checksum / RSA / CVN in writing
• restoration of the original configuration and back to stock functions

DFB Technology DFOX ECU Programming Package Supported Vehicles:

Modern vehicles have an increasing presence of electronic components.Thanks to DFOX you can work to read the contents of the processor, the flash and the Eeprom of the ECU, repair, clone or improve performance always in compliance with current regulations. With DFOX you can intervene on the control units of the various models of cars, motorcycles, tractors, trucks, marine vehicles, and industrial engines.

DFOX allows serial communication with the Engine and Automatic transmission control units via the OBD diagnostic socket. It is a professional software for reading and programming the control units of:

DFB Technology DFOX ECU Programming Package Areas of Use:

•  OBD Mode

Do you need an OBD ECU reading and remapping tool? DFOX is the perfect technology for you!
DFOX allows serial communication with the engine and automatic gearbox control unit via the OBD diagnostic socket.

• BENCH Mode

Are you looking for a tool for reading and remapping ECUs in BENCH mode? DFOX is the professional tool that’s right for you!

• BOOT Mode

Are you looking for a tool for reading and remapping ECUs in BOOT mode? Discover all the advantages of DFOX!
DFOX is the tool for reading and remapping engine ECUs in BOOT MODE. This advanced system allows communication with the low-level processor.

• JTAG Mode

Do you need a tool for reading and remapping ECUs in JTAG mode? DFOX is the perfect professional tool for you!
DFOX is a unique professional solution for mechatronics, which allows you to read and remap engine ECUs via JTAG MODE systems, supporting communication with the low-level processor.

DFB Technology DFOX ECU Programming Package Technical Features:

FULL READING AND WRITING VIA PINOUT IN BENCH MODE:

• BOSCH EDC7
• BOSCH EDC16
• BOSCH ME9 / MED9
• BOSCH MD1
• BOSCH MG1
• AURIX TC29x
• FREESCALE SPC5777
• ST SPC58
• BOSCH EDC17
• BOSCH MED17 / ME17
• SIEMENS PCR2.1 (Possibility of unlocking also via pinout)

 FULL SYSTEM MODE VIA PINOUT (MICRO / FLASH + EEPROM) OF CONTROL UNITS:

• BOSCH
• CONTINENTAL
• DELCO
• DENSO
• MARELLI
• SIEMENS
• TEMIC

BOOT MODE:

• BOOT MODE C167 29Fxxx

• BOOT MODE ST K-LINE / RX-TX / CA	BOOT MODE Tricore for micro	BOOT MODE Renesas	BOOT MODE Mitsubishi
  ST10F168 ST10F269 ST10F273 ST10F275 ST10F276 ST10F280 ST10F296	TC1724 TC1728 TC1738 TC1762 TC1766 TC1767 TC1782 TC1791 TC1792 TC1793 TC1796 TC1797	SH7052 SH7054 SH7055 SH7058 SH7059 SH7251 SH72543 SH72544	MH7202 MH7203 MH8102F MH8105F MH8106F MH8202 MH8206F MH8301F MH8304F MH8405F

• BOOT BAM SYSTEM MOTOROLA
  • SPC5674
  • SPC5777
• BOOT MODE Fujitsu
• BOOT MODE Hitachi

BDM AND JTAG MODE FOR:

• BDM MPC 55x
• BDM MPC 56x
• BDM MC32 / ZC32
• BDM HC12 / S12x
• JTAG NEXUS MPC/SPC 56xx
• JTAG NEXUS MPC 55xx
• JTAG RENESAS
  • SH7055
  • SH7058
  • SH7059
  • SH7251
  • SH72543
  • SH72544
• JTAG NEC 76F00xx
  • 76F0038AGD
  • 76F0038GD
  • 76F0039AGD
  • 76F0039GD
  • 76F0040GD
  • 76F0070
  • 76F0085

ADDITIONAL PACKAGE FOR AUTOMATIC TRANSMISSIONS:

• COMPLETE READING AND WRITING TCU (MICRO + EEPROM)
• TCU ECU CLONING
• TCU CODING FUNCTIONS

DFB Technology DFOX ECU Programming Package Compatible operating systems:

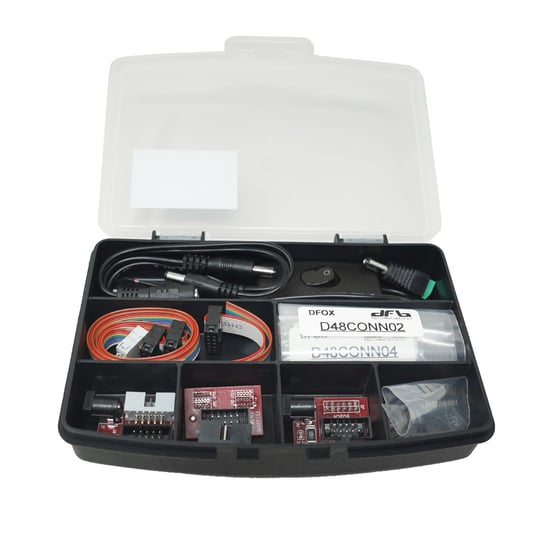

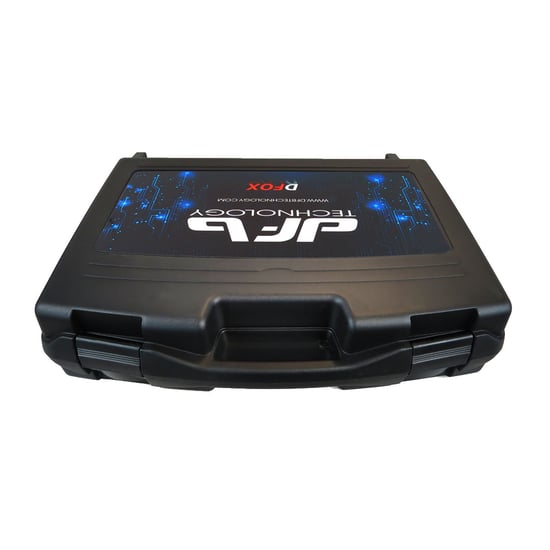

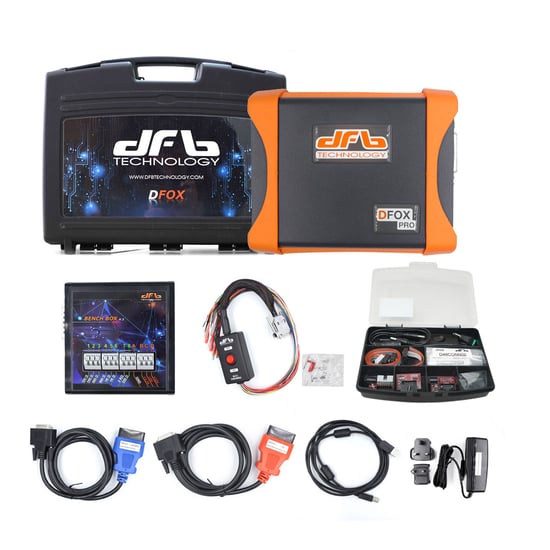

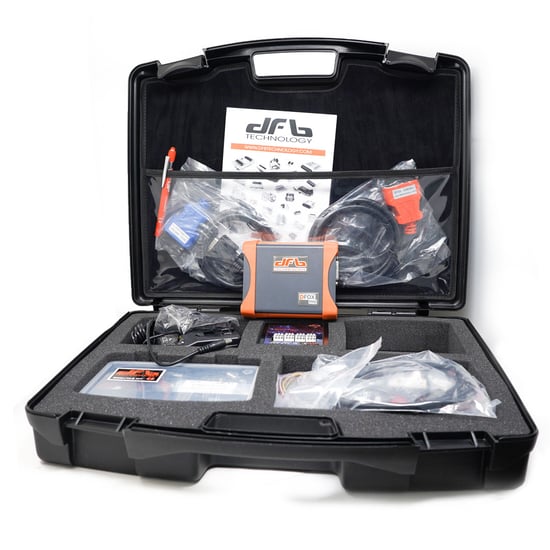

DFB Technology DFOX ECU Programming Package Content:
