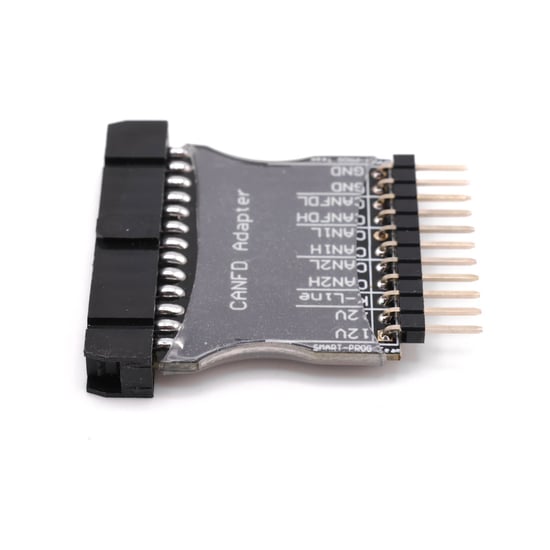

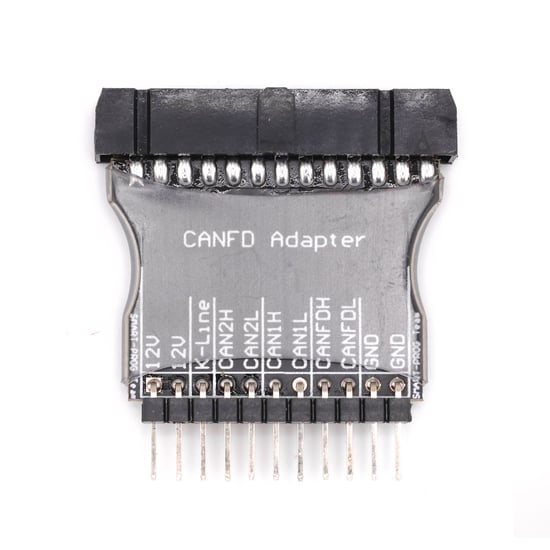

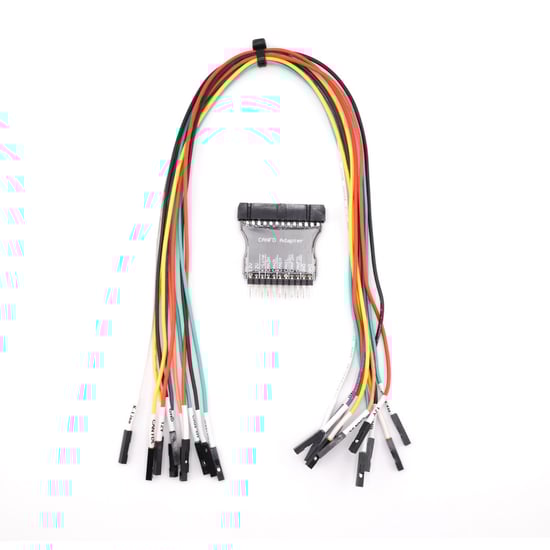

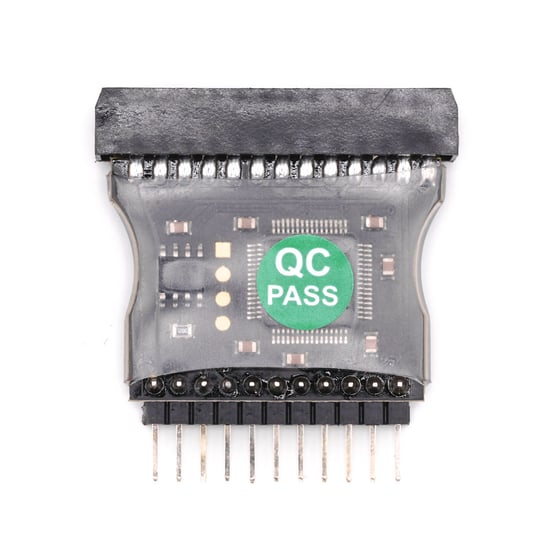

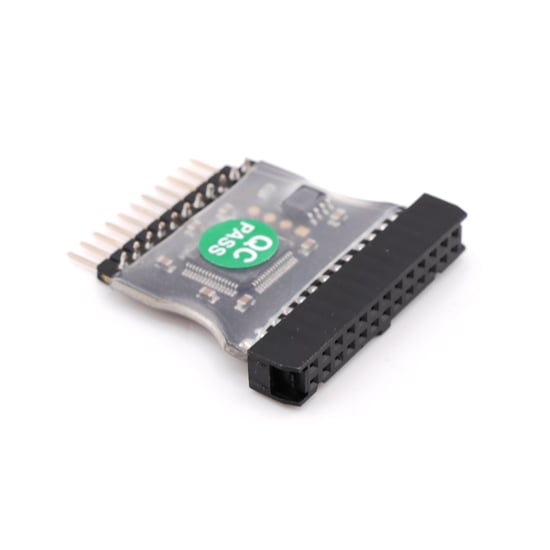

DiagCar SMARTOBD CAN FD Adapter Description:

Additional Adapter From DiagCar with Product Number: MK25362
This Weight Product: 40g

DiagCar SMARTOBD CAN FD Adapter Support CANFD List

DiagCar SMARTOBD CAN FD Adapter Specs:

Manufacturer: DiagCar
Condition: New

• SMARTOBD CAN FD ADAPTER supported CAN FD protocol.

• Diagnostic and crash data repair by CAN FD on table.

• Simple connection and very easy for use.





CARS 2020/2023 REPAIR SOLUTION

SMARTOBD CAN FD ADAPTER required.

How to install DiagCar SMARTOBD CAN FD Adapter

1. Connect Your CAN FD ADAPTER to SmartOBD.
2. Run AST CAN software and wait for update FW to v2.5
3. Select KIA or HYUNDAI ( CAN FD ) and click "do it" button.
4. Wait for "CAN FD Adapter Connected ... ok"
5. Your CAN FD Adapter ready for use.

NOTE:

One CAN FD Adapter can work just with one SmartOBD CAN Tool.
You can not exchange to other hardware.
SmartOBD not included in set.

Supported brands and types of controllers, full list in AST CAN software.

HYUNDAI

Hyundai, , Continental, 95910-CH310 (CANFD), R7F7015803,
Hyundai, , Continental, 95910-CH320 (CANFD), R7F7015803,
Hyundai, , Continental, 95910-CJ310 (CANFD), R7F7015803,
Hyundai, , Continental, 95910-CW000 (CANFD), R7F7015803,
Hyundai, , Continental, 95910-CW100 (CANFD), R7F7015803,
Hyundai, , Continental, 95910-CZ000 (CANFD), R7F7015803,
Hyundai, , Continental, 95910-CZ200 (CANFD), R7F7015803,
Hyundai, , Continental, 95910-DW320 (CANFD), R7F7015803,
Hyundai, , Continental, 95910-K5000 (CANFD), R7F7015803,
Hyundai, , Veoneer, 95910-AR000 (CANFD), TC233x-16F,
Hyundai, , Veoneer, 95910-AR100 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-AR200 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-AR300 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P2000 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P2020 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P2100 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P2150 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P2200 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P2300 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P4000 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P4020 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P4100 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P4200 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P4250 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P4300 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P4400 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P4450 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-R0000 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-R0010 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-R0100 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-R0500 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-R0600 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-R5000 (CANFD), TC23xx-32F,
Hyundai, Genesis , Veoneer, 95910-T1000 (CANFD), TC23xx-32F,
Hyundai, Genesis , Veoneer, 95910-T1010 (CANFD), TC23xx-32F,
Hyundai, Genesis , Veoneer, 95910-T1020 (CANFD), TC23xx-32F,
Hyundai, Genesis , Veoneer, 95910-T1100 (CANFD), TC23xx-32F,
Hyundai, Genesis , Veoneer, 95910-T1200 (CANFD), TC23xx-32F,
Hyundai, Genesis , Veoneer, 95910-T6100 (CANFD), TC23xx-32F,
Hyundai, Genesis , Veoneer, 95910-T6120 (CANFD), TC23xx-32F,
Hyundai, Genesis , Veoneer, 95910-T6200 (CANFD), TC23xx-32F,
Hyundai, Genesis , Veoneer, 95910-T6400 (CANFD), TC23xx-32F,
Hyundai, EV6, Veoneer, 95910-CV000 CANFD, TC23xx-16F,
Hyundai, EV6, Veoneer, 95910-CV100 CANFD, TC23xx-16F,
Hyundai, EV6, Veoneer, 95910-CV200 CANFD, TC23xx-16F,
Hyundai, EV6, Veoneer, 95910-CV300 CANFD, TC23xx-16F,
Hyundai, EV6, Veoneer, 95910-CU000 CANFD, TC23xx-16F,
Hyundai, EV6, Veoneer, 95910-CU300 CANFD, TC23xx-16F,
Hyundai, , Veoneer, 95910-DS000 CANFD, TC23xx-16F,
Hyundai, Ioniq, Veoneer, 95910-GI000 CANFD, TC233x-16F,
Hyundai, Ioniq, Veoneer, 95910-GI100 CANFD, TC233x-16F,
Hyundai, Ioniq, Veoneer, 95910-GI200 CANFD, TC233x-16F,
Hyundai, Ioniq, Veoneer, 95910-GI300 CANFD, TC233x-16F,
Hyundai, Creta, Veoneer, 95910-JI000 (CANFD), TC22xx-16F,
Hyundai, Ioniq, Veoneer, 95910-KL000 CANFD, TC233x-16F,
Hyundai, Ioniq, Veoneer, 95910-KL200 CANFD, TC233x-16F,
Hyundai, , Mobis, 95910-AO100 (CANFD), 95512,
Hyundai, , Mobis, 95910-AO200 (CANFD), 95512,
Hyundai, , Mobis, 95910-AT000 (CANFD), 95512,
Hyundai, , Mobis, 95910-AT010 (CANFD), 95512,
Hyundai, , Mobis, 95910-AT100 (CANFD), 95512,
Hyundai, , Mobis, 95910-AT300 (CANFD), 95512,
Hyundai, , Mobis, 95910-CG100 (CANFD), 95512,
Hyundai, , Mobis, 95910-CG400 (CANFD), 95512,
Hyundai, , Mobis, 95910-CG500 (CANFD), 95512,
Hyundai, , Mobis, 95910-N0000 (CANFD), 95512,
Hyundai, , Mobis, 95910-N1000 (CANFD), 95512,
Hyundai, , Mobis, 95910-N6000 (CANFD), 95512,
Hyundai, , Mobis, 95910-N8000 (CANFD), 95512,
Hyundai, , Mobis, 95910-T4000 (CANFD), 95512,
Hyundai, , Mobis, 95910-T4100 (CANFD), 95512,
Hyundai, , Mobis, 95910-L8000 (CANFD), 95512,
Hyundai, , Mobis, 95910-L8050 (CANFD), 95512,
Hyundai, , Mobis, 95910-L8100 (CANFD), 95512,
Hyundai, , Mobis, 95910-L8200 (CANFD), 95512,

KIA

KIA, , Continental, 95910-N7010 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-N7030 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-N7050 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-N7070 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-N9000 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-N9010 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-N9020 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-N9030 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-N9050 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-N9060 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-N9080 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-N9110 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-P0000 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-P0010 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-P0100 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-P0110 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-P1310 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-P1320 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-P1330 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-P1340 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-P1350 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-R2110 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-R2120 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-R2310 (need CANFD Adapter), R7F7015803,
KIA, , Continental, 95910-R2320 (need CANFD Adapter), R7F7015803,

TOYOTA

Toyota, , Denso, 89170-02Y10 (CANFD diag only), R7F7016443,
Toyota, , Denso, 89170-02W60 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-02W80 (CANFD diag only), R7F7016443,
Toyota, , Denso, 89170-08110 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-08210 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-08230 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-0A100 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-0A140 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-0A200 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-0A220 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-0C660 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-0C670 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-0C690 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-0DE20 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-0DE30 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-0DF30 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-0DF40 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-0DF50 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-0DG60 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-0E330 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-0E340 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-0E350 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-0E430 (CANFD diag only), R7F7016443,
Toyota, , Denso, 89170-0H220 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-0H230 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-0R280 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-12G10 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-12G20 (CANFD diag only), CYT2B93BAC,
Toyota, , Denso, 89170-12L30 (CANFD diag only), R7F7016443,
Toyota, , Denso, 89170-16180 (CANFD diag only), R7F7016843,
Toyota, , Denso, 89170-28480 (CANFD diag only), R7F7016443,
Toyota, , Denso, 89170-42F10 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-42690 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-42700 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-42720 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-42730 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-47B50 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-48J20 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-48J40 (CANFD diag only), R7F7016443,
Toyota, , Denso, 89170-48E10 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-48E30 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-48E50 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-48F60 (CANFD diag only), R7F7016443,
Toyota, , Denso, 89170-52Q10 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-52Q20 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-52Q30 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-52Q50 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-52Q60 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-52Q70 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-52P60 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-52P70 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-52P80 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-60D70 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-60D80 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-60F10 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-60F80 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-60F90 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-60G00 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-60G70 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-62050 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-78090 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-78150 (CANFD diag only), R7F7016443,
Toyota, , Denso, 89170-78220 (CANFD diag only), R7F7016843,
Toyota, , Denso, 89170-F6010 (CANFD on bench), R7F7016443,
Toyota, , Denso, 89170-K0010 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-K0030 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-K0060 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-K0070 (CANFD on bench), R7F7016843,
Toyota, , Denso, 89170-K0080 (CANFD on bench), R7F7016843,
