Dimsport New Trasdata Bundle With Full Slave Software Activations

Dimsport New Trasdata Bundle With Full Slave Software Activations KNTVER-B & AV99NT001

Product Description:

Tuning Tools From Dimsport with Product Number: MKON345
This Weight Product: 4000g

Specs:

Manufacturer: Dimsport
Condition: New

Trasdata Dimsport Brief

New Trasdata is a unique tool supporting all microprocessors utilized by any kind of vehicles in the Automotive field, for reading and programming operations in JTAG, BDM and BOOT mode.

Developed as the evolution of Trasdata project previously issued - already successful and appreciated for its innovation (example: self-identification of the plugin required, creation of backup copies of the whole ECU firmware, etc.), New Trasdata opens new doors to JTAG communication, utilized by Asian vehicle manufacturers but also available in many new applications in Automotive.

Dimsport New Trasdata Bench & Open Ecu / Tcu Cloning / Reading / Programming Features

1. ECU and TCU cloning: The New Trasdata Bench can clone ECUs and TCUs using a variety of methods, including OBD, BDM, BOOT, JTAG, and AUD.

2. ECU and TCU reading: The tool can read the data stored on an ECU or TCU, including the software and data files.

3. ECU and TCU programming: The New Trasdata Bench can be used to program ECUs and TCUs with new data, including software updates, customizations, and modifications.

4. Automatic checksum correction: The tool automatically corrects the checksum when programming the ECU or TCU, ensuring that the unit functions properly.

5. Multiple protocols: The New Trasdata Bench supports a wide range of protocols, including CAN, K-LINE, J1850, and PWM.

6. Multi-brand and multi-language support: The tool supports multiple brands of vehicles and can be used with a variety of languages.

7. Real-time data display: The New Trasdata Bench can display real-time data from the ECU or TCU, including sensor data, fault codes, and other important information.

8. Easy-to-use software: The software used with the tool is designed to be easy to use and offers a variety of features, including automatic updates and backup options.

Trasdata Dimsport JTAG

A wide range of JTAG developments enhances now the range of BDM and BOOT applications previously released. The list of microprocessors (CPU) now includes:

• Motorola MPC5xx (BDM mode)
• Motorola MC68xxx (BDM mode)
• Motorola MPC55xx (JTAG mode)
• Renesas SH705x (AUD/BOOT mode)
• Mitsubishi MH72xx/MH82xx (BOOT mode)
• Infineon Tricore (BOOT mode)
• ST Microelectronics ST10xxx (BOOT mode)
• Motorola HC12 (BDM mode)
• Renesas M32R (BOOT mode)

New Trasdata Dimsport Software Patches

New Trasdata allows to enhance the range of vehicle supported by New Genius via OBDII: when the ECU microprocessor (CPU) is provided by ‘anti-tuning’ feature (blocking the OBDII tuning operations), a software patch realised by New Trasdata unlocks the OBDII communication, which is therefore restored and supported.

Are you a professional in the Automotive field?

• New Trasdata is the ideal tool for you! Just get the hardware, choose which applications to enable and then start working.
• New Trasdata allows the reading and programming of the whole content of the ECU: a microprocessor (CPU), flash Eprom and serial EEPROM. A wide variety of operations is therefore supported: after the initial reading, it is always possible to retrieve the original ECU content even in the case of blocking (back-up). This tool also performs autonomous checksum recalculations to ensure normal engine working conditions after the modification.
• The operations can be performed without any physical soldering/ desoldering intervention: a metal positioning frame provided with specific terminal adapters create the connection between the ECU board and the tool.
• Specific functions conceived for the tuning field like the mentioned reading of the whole ECU firmware, or the self-identification of the engine maps and important additional parameters (even if located in different components of the ECU), confirm New Trasdata as the leading tool available today on the market for reading and programming operations in JTAG, BDM and BOOT mode.

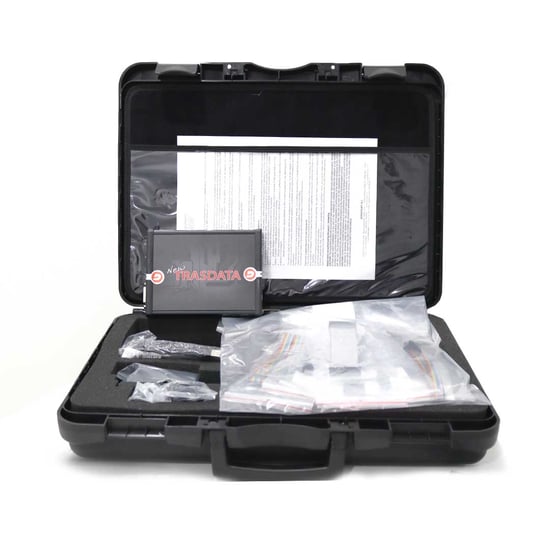

Trasdata Dimsport BASE HARDWARE SET (CPU ACTIVATIONS MUST BE ADDED)

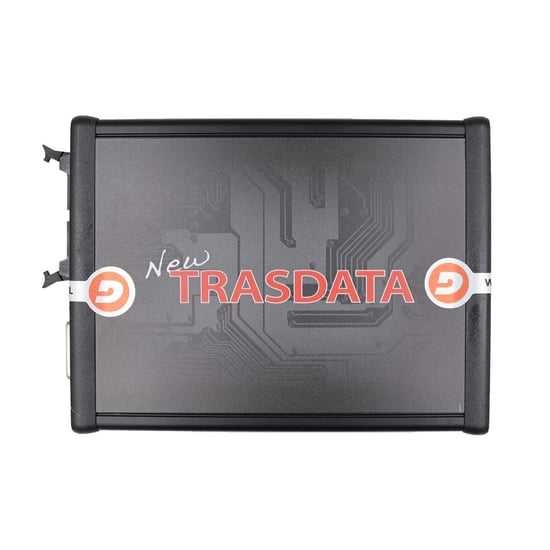

• NEW TRASDATA READER/PROGRAMMER TOOL (F34NEWTRASDATA)
• POWER FEEDING KIT WITH INTERNATIONAL PLUGS (C32GNALIM12)
• POWER FEEDING CABLE WITH CLAMPS (F32GN003)
• D-SUB15 WIRING KIT FOR BOOT CONNECTIONS (K32GN037-D)
• USB CABLE FOR PC/LAPTOP CONNECTION (C32GNUSB01)
• FLAT CABLE IDC26-10 (F34NTF01)
• FLAT CABLE IDC26-14 (F34NTF02)
• FLAT CABLE IDC26-16 (F34NTF03)
• FLAT CABLE IDC26-26 (F34NTF04)
• FLAT CABLES (2) WITH FREE COLORED WIRES BDM IDC26-10 (F34NTF51)
• FLAT CABLES (2) WITH FREE COLORED WIRES JTAG IDC26-16 (F34NTF53)
• FLAT CABLES (2) WITH FREE COLORED WIRES IDC26-26 (F34NTF54)
• OBDII CONNECTOR FOR NEW TRASDATA (F34NTA14)
• FLAT CABLE WITH COLORED WIRES FOR CAN & GPT IDC26-16 (F34NTA15-B)
• DB15 ADAPTER-FLAT FOR CAN & GPT (F32GN038)
• FLAT CABLE FOR SSM CONNECTIONS (PASSWORD READING)
• SIMOS18.x/PCR2.1 (F34NTA18-B) ABS HARD CASE FOR NEW TRASDATA KIT (K34NTVAL01)
• E-GPT ENHANCED WIRING KIT (K34NTA22-B)

Dimsport Supported ECUs

Extra Details:
