Product Description:

Keyless Entry & Engine Start Systems From Fortin with Product Number: MK20066

Specs:

Manufacturer: Fortin
Condition: New

The EVO-ONE is the ultimate and smallest ALL-IN-ONE HIGH POWER data immobilizer bypass, doorlock, security system & remote start interface. Compatible with all EVO-ALL T-Harnesses and also providing a new broad access to High Power T-Harnesses the EVO-ONE now sets the industry benchmark to a higher level. It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple micro controller and bus architecture which redefines the word Remote Starter. This unit is much more powerful than most entry level vehicle's BCM. EVO-ONE is an impressive state of the art unit at reachable cost.

Fortin EVO‐ALL WORKS WITH

FLASH LINK MANAGER
DCRYPTOR
RF KITS
TELEMATIC & GPS MODULES
SENSOR MODULES
EXTERNAL TRIGGERS

Fortin EVO-ONE FEATURES:

3x on-board LEDs for simplified programming and diagnostics
4-wire Fortin 2-way datalink port for data-to-data (RS-232) communication with datalink equipped remote-starters and security-systems.
20-wire general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems.
Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly

Fortin EVO‐ALL SPECIFICATIONS:

3x CAN-Bus controllers.
3x General purpose controllers (J1850, Class 2, encrypted key etc.).
1x On-board Relay (SPDT).
1x On-board Relay (DPDT).
1x Analog Controller 0-12VDC @ 20mV steps (Passlock, MUX).
1x TB control port for TB-series modules.
Fortin EVO‐ALL PARTS INCLUDED:

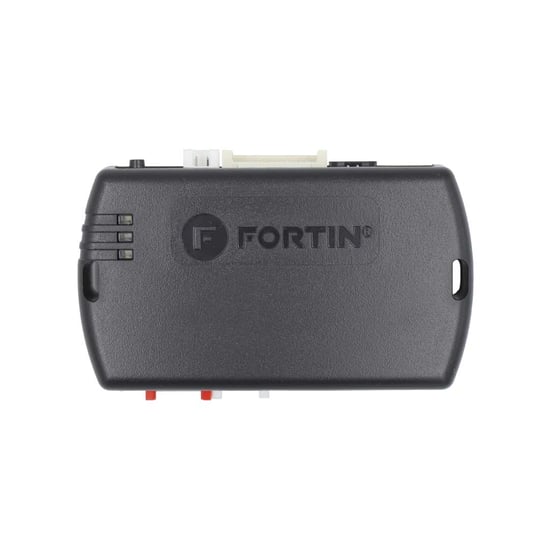

1x EVO-ALL control module.

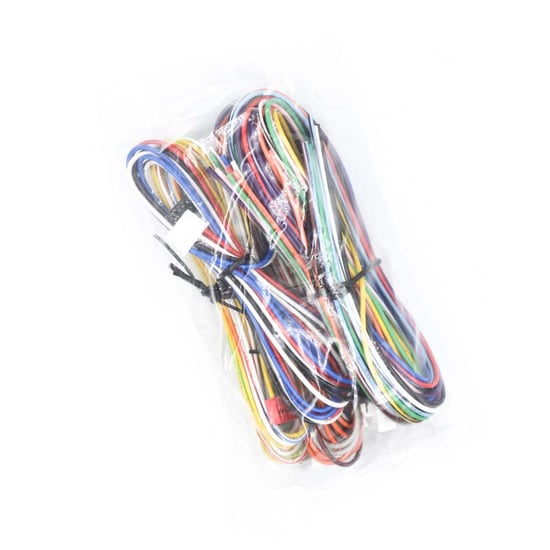

1x 20-pin General purpose harness.
1x 4-pin Fortin 2-way data-link harness.
1x 5-pin CAN-Bus harness.
1x 6-pin Relay harness.

Fortin EVO‐ALL SUPPORTED VEHICLES:

Fortin EVO‐ALL SUPPORTED VEHICLES
