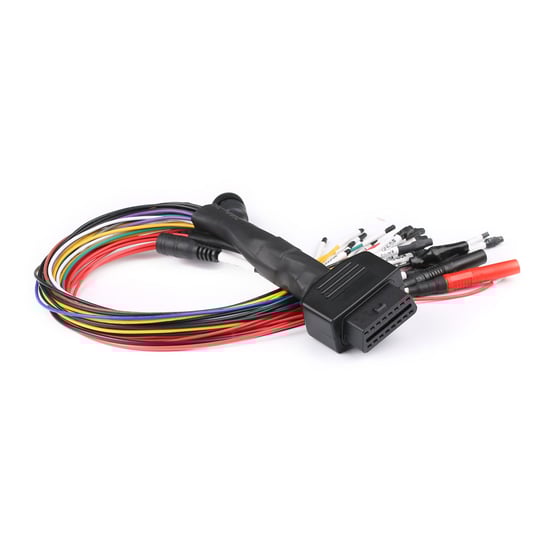

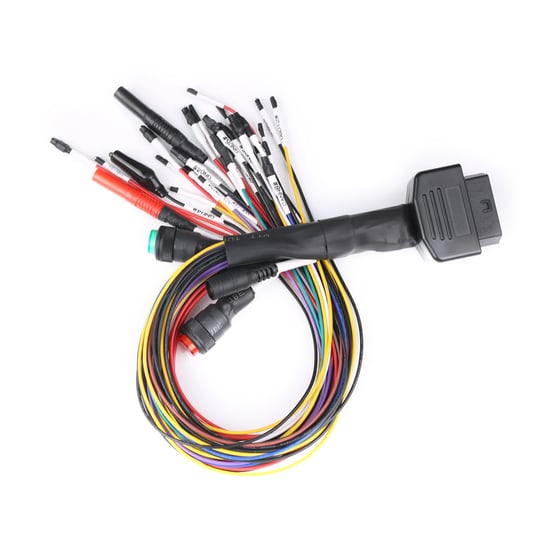

GODIAG Full Protocol OBD2 Jumper Adapter

Be the first to review this product

Used to Connect ECU for ECU Programing Via MPPS, FGTECH, KESSV2, BYSHUT, DISPROG

$22.00

Category: Additional Adapter , Cables

Manufacturer: GODIAG

Availability: In stock

SKU: ADD-GOD-24004

Old SKU: MK24004

GTIN: 3841614192135

Qty:

Products specifications

Products specifications

Attribute name	Attribute value
Manufacturer	GODIAG
Condition	New

Models

Brand	Model	From Year	To Year
Daihatsu	All
Fiat	All
Nissan	All
Audi	All
Mazda	All
Mitsubishi	All
SsangYong	All
Ford	All
Honda	All
Subaru	All
Toyota	All
Daewoo	All
Kia	All
BMW	All
Mercedes Benz	All

Full Description:

GODIAG Full Protocol OBD2 Jumper Adapter Used to Connect ECU for ECU Programing Via MPPS, FGTECH, KESSV2, BYSHUT, DISPROG

GODIAG Full Protocol OBD2 Jumper Adapter Description:

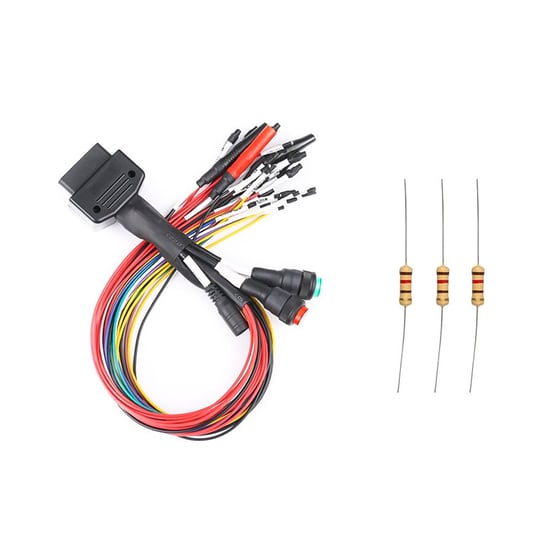

New GODIAG Full Protocol OBD2 Jumper Adapter Used to Connect ECU for ECU Programing Via MPPS, FGTECH, KESSV2, BYSHUT, DISPROG

Additional Adapter Cables From GODIAG with Product Number: MK24004
This Weight Product: 150g

GODIAG Full Protocol OBD2 Jumper Adapter Specs:

Manufacturer: GODIAG
Condition: New

GODIAG Full Protocol OBD2 Jumper Adapter Functions:

1. Supports DC power supply

2. Support safety protection banana head super programming dedicated connection port power supply.

3. Independent GND4, GND5 [meet the needs of special ECU programming].

4. With boot GND4 clip, compatible with programming equipment such as MPPS, FGTECH, KESSV2.

5. With GND4 GND5 short-circuit switch [some ECUs need to be switched to short-circuit mode when programming].

Note: The switch of GND4-5 is normally pressed to make it light. When some ECUs need to be independently connected to GND4 and GND5, release the switch.
6. With ignition analog switch [equipped with 1 large and 2 small dedicated ignition cables].

7. Support standard obd2 full protocol connection [double K line, double CAN line], 3 large and 2 small power plugs, 4 large GND, 4 small GND.

8. Equipped with CAN protocol communication resistance.

GODIAG Full Protocol OBD2 Jumper Adapter Supported Models:

BMW 20, BENZ38, PSA- , DAIHATSU-4, FIAT-3, GAZ NISSAN-14 SUZUKI-3 AUDI 4, BENZ 1, CHRYSLER 6, DAEWOO 12, FORD6+1, GM12, HONDA3, KIA20, MAZDA17, MITSUBISHI 12,SSANGYONG 20, SUBARU 9, TOYOTA 17, TOYOTA 22, BENZ 8, BENZ OD1 16

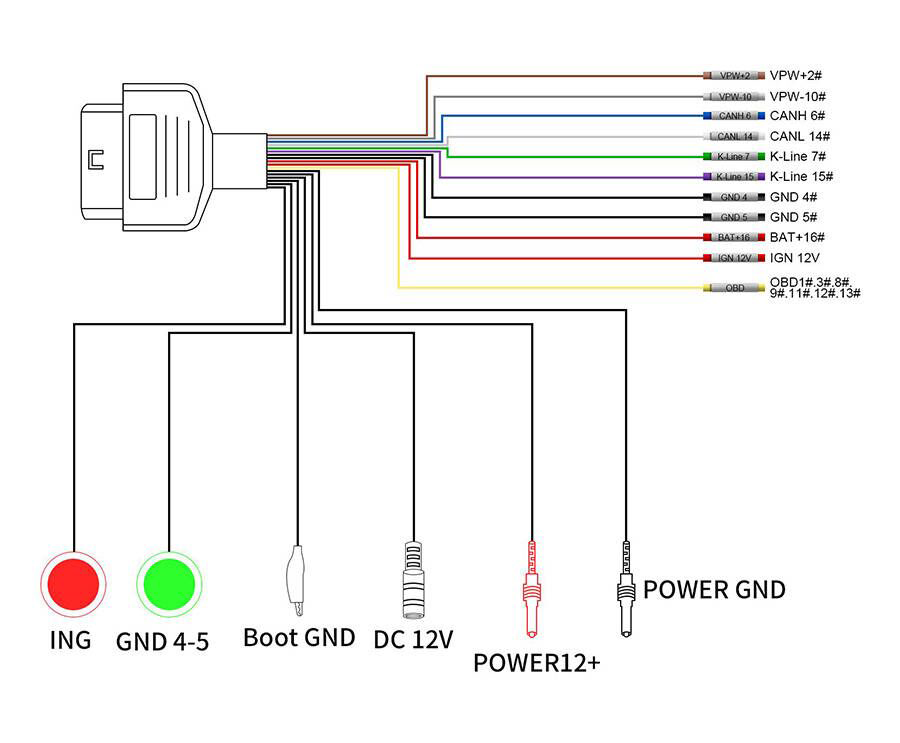

Connection diagram of the dedicated programming power connector

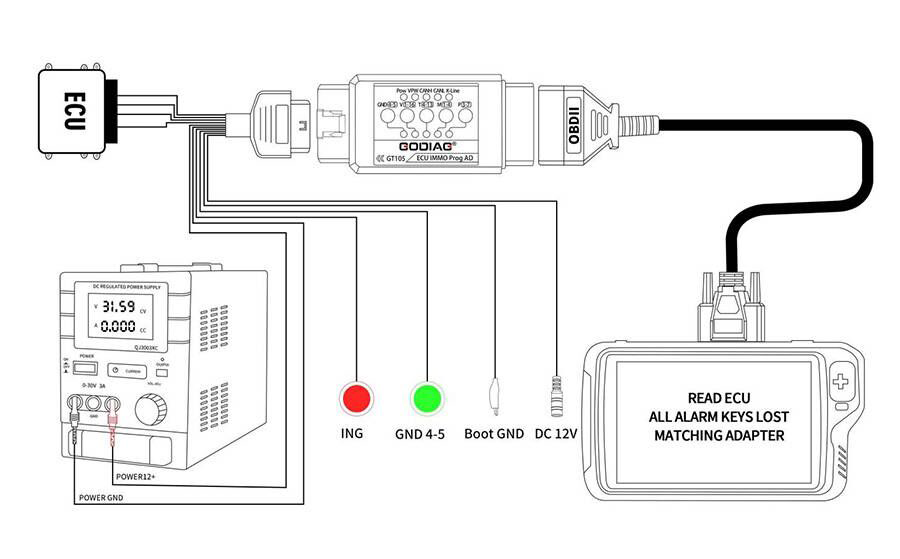

how to connect jumper cable?

FGTECH programming connection diagram

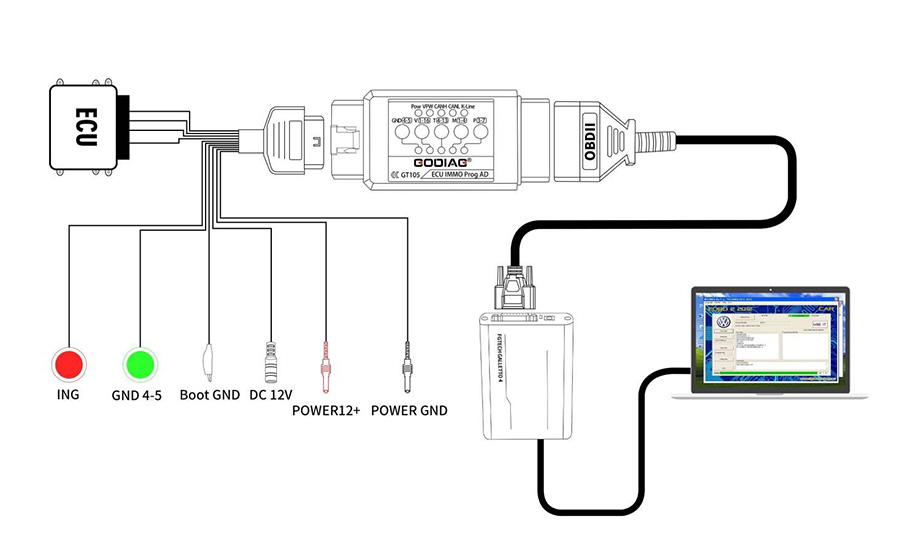

Godiag Jumper cable connect to FGTECH

MPPS ECU connection diagram

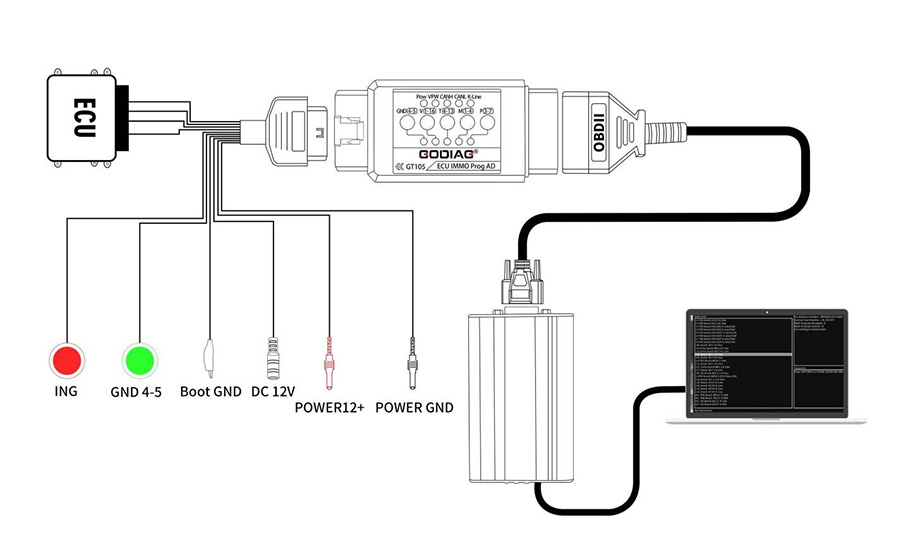

Godiag jumper cable connection

KESSV2 ECU connection diagram

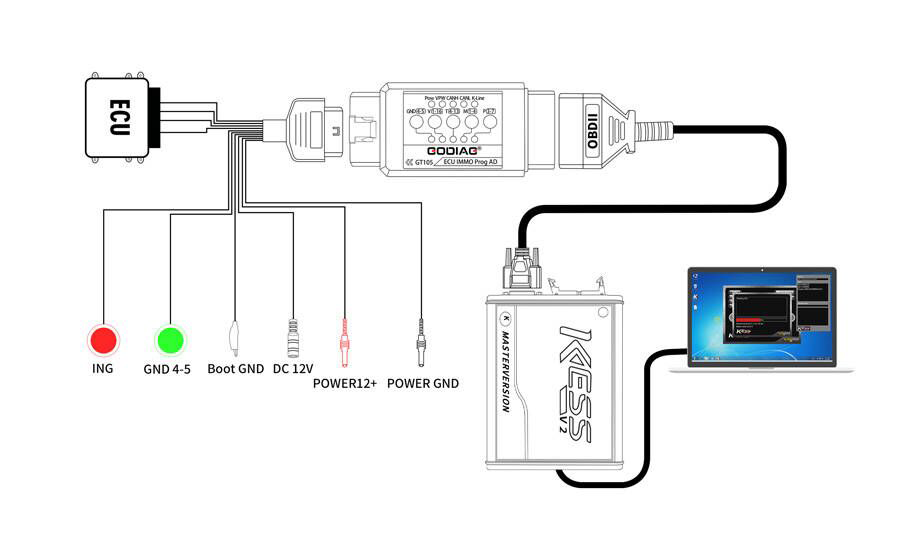

Godiag jumper cable connect to KESS V2

Connect with Airbag Reset Tools (OBDSTAR P50, Carprog, iProg, Launch X431, Autel etc) to Diagnose/ Reset/ Repair/ Coding Airbag Module

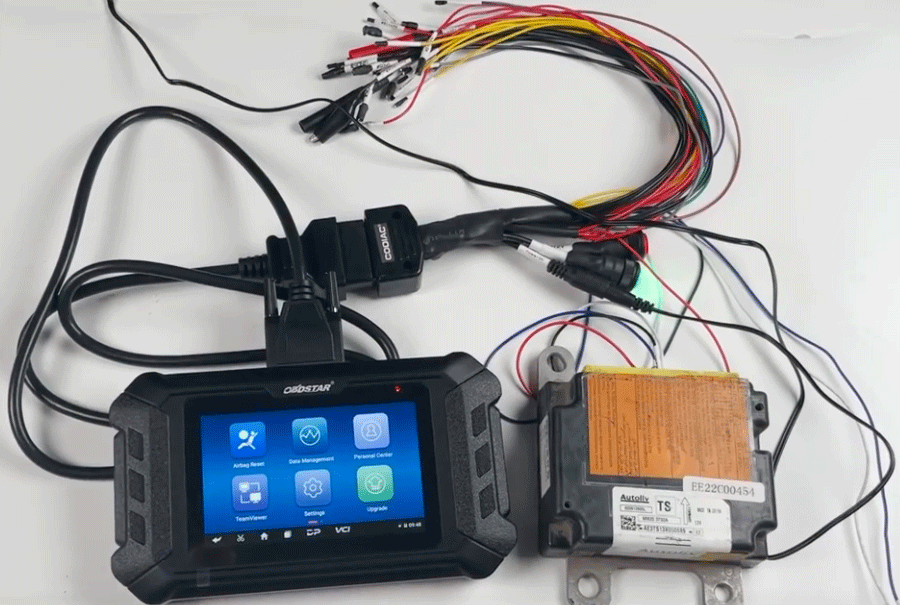

Godiag Jumper Connect with Airbag Reset Tool 1

Godiag Jumper Connect with Airbag Reset Tool 1

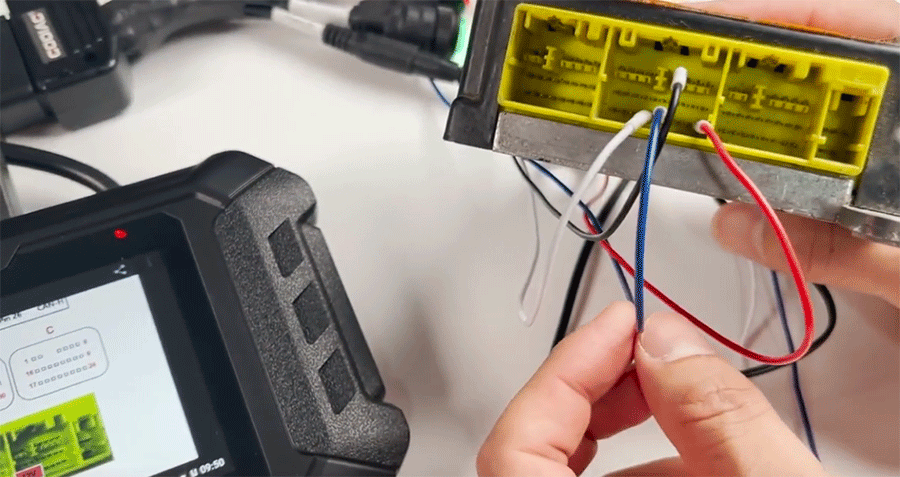

Godiag Jumper Connect with Airbag Reset Tool 2

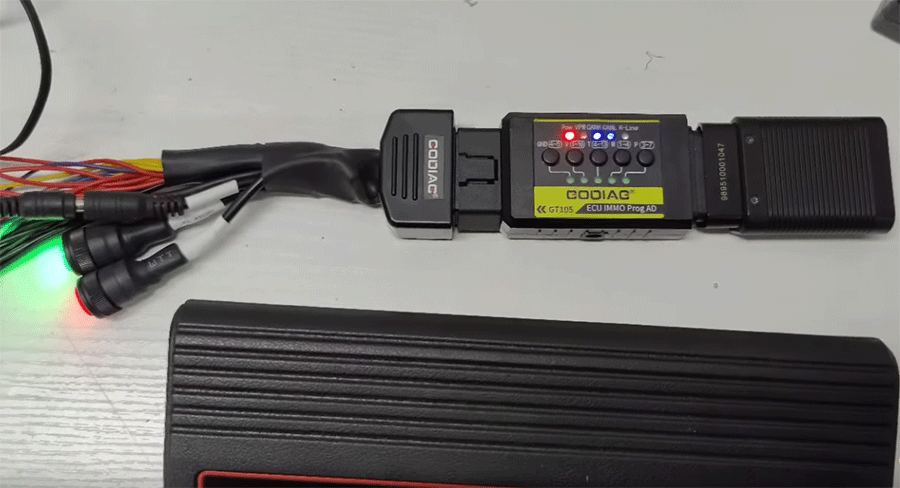

Godiag Jumper connect godiag tricore cable with launch x431

Connect with Xhorse VVDI MB tool/CGDI MB to read Mercedes Benz EIS/EZS data, can be used to replace Benz EIS EZS adapter set.

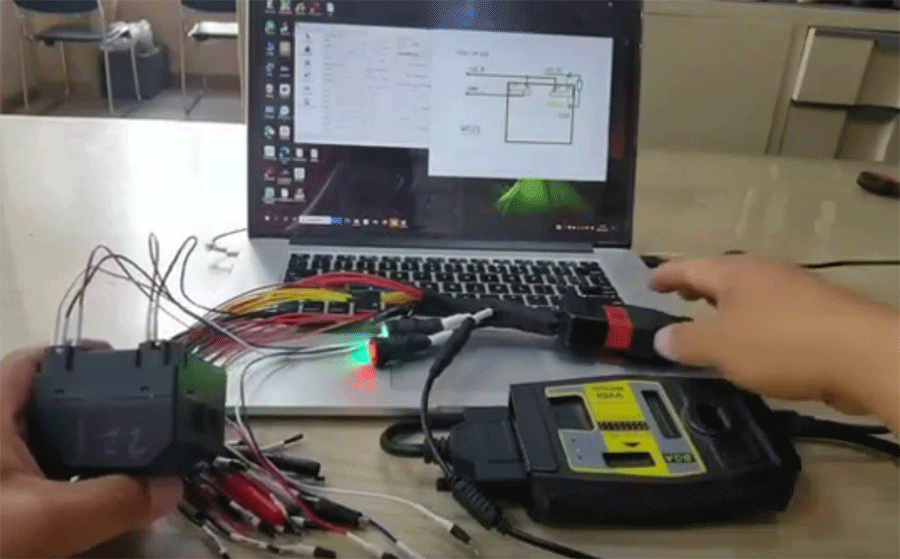

Godiag Jumper Connect with Xhorse VVDI MB tool to read Mercedes Benz EIS/EZS data

Godiag Jumper Connect with Xhorse VVDI MB tool to read Mercedes Benz EIS/EZS data

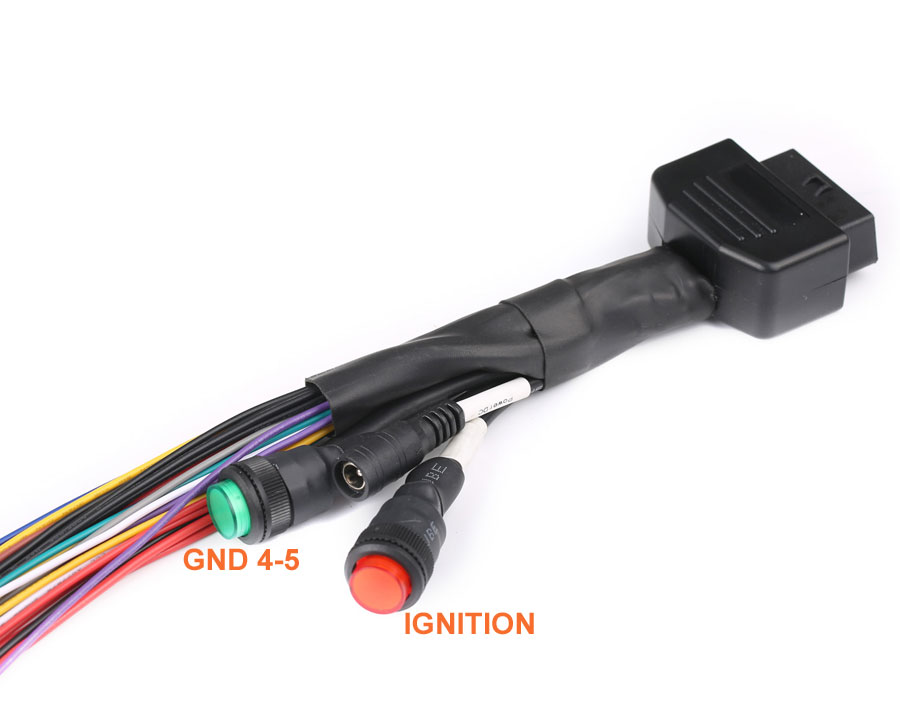

What is the analog ignition switch?

After the ING ignition switch is pressed, the line marked with ING12V will have 12v, which is the analog ignition switch. Because when some devices read some ECUs, the device will prompt to turn on or off the ignition switch.
