GODIAG GT100 Pro Breakout Box ECU Tool + BMW CAS4 CAS4+ FEM/BDC Test Platform Bundle

GODIAG GT100 Pro Breakout Box ECU Tool + BMW CAS4 CAS4+ FEM/BDC Test Platform Bundle Used with AUTEL IM508 IM608 VVDI2 CGDI BMW

Product Description:

Key Programming Tools Diagnostic Tools From GODIAG with Product Number: MKON289
This Weight Product: 2000g

Specs:

Manufacturer: GODIAG
Condition: New

GODIAG GT100+ Highlights

• 1 year warranty.
• Used with KESS V2 and Ktag
• ECU connection + OBDII Protocol Detector + Electronic Current Display
• The cable can be extended, with an Optional dedicated adapter
• Compatible with tools from LAUNCH, AUTEL, FOXWELL, XHORSE, VXDIAG, CGDI....
• Convert OBD1 diagnostic interface to the standard OBD2 diagnostic interface
• Used with BMW-CAS4 Adapter test platform to detect whether the CAS4 key programming work perfectly or not

GT100+ Pro vs. GT100

1. GT100+ adds Electronic Current Display.
2. GT100+ Adds CANBUS Protocol Communication
3. Reset instrument/immobilizer when all keys lost

GODIAG GT100+ is a latest testing platform for OBDII protocol communication detection and ECU maintenance / diagnosis / programming / coding And after all the keys are lost, the instrument and the anti-theft system are forced to activate by short-circuiting.

GT100+ with a voltage and current display is convenient for maintenance engineers to judge the current working status of ECU.

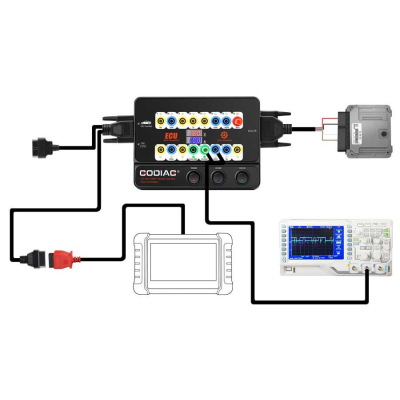

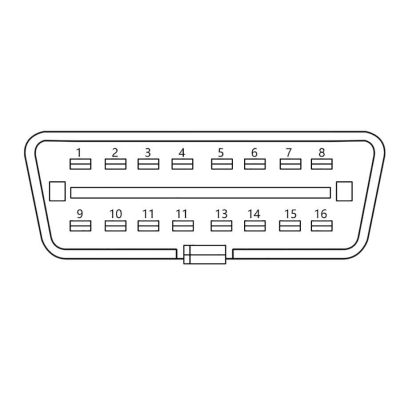

Convert the car OBD2 interface into 16 pin for signal detection and electrical level conversion. Able to connect the single modules or multiple modules of the vehicle.
Used with any diagnostic tool to help you tell whether the car communication is good or not.
Supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, the key remote control fails and the fault light turns on.

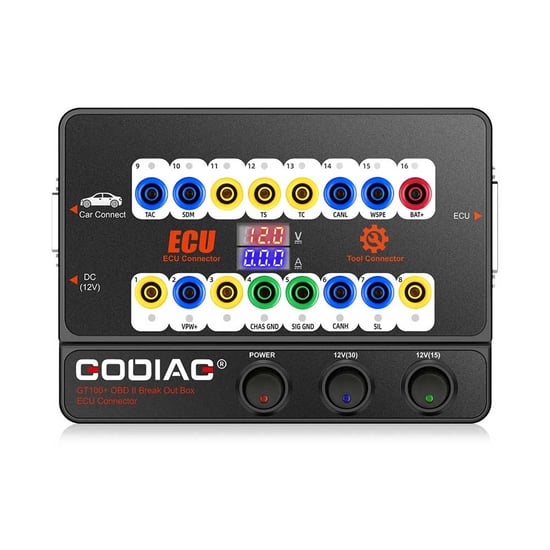

GODIAG GT100+ Function and Operation Guide

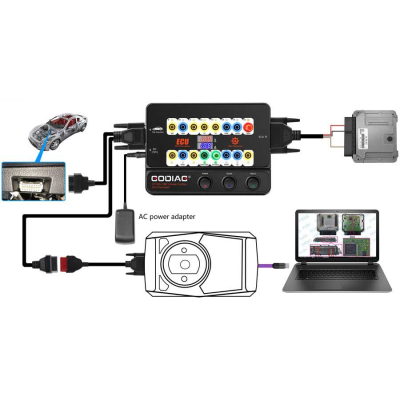

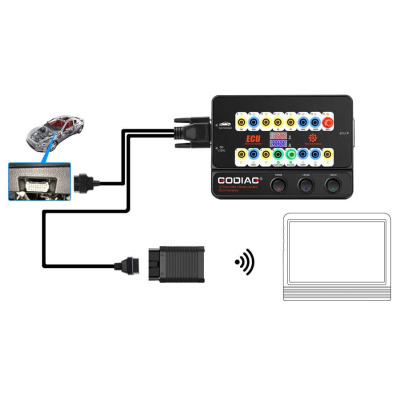

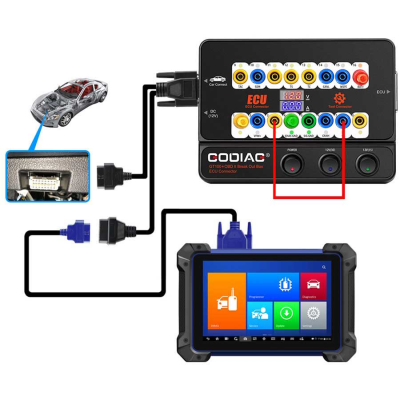

By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100+'s LED will indicate whether the OBDII diagnostic interface has a good communication with the car.

Monitor the voltage of vehicle OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid the vehicle being unable to start/data loss/module locked.

GODIAG GT100+ Indicator Meaning:


Used to check whether the diagnostic / programming / coding tool can send communication signals.


ECU connection: single module connection

GODIAG GT100+, connected to a single ECU module, is convenient for a user to do the single-module diagnosis and programming.

GT100+ program key for VW, Porsche, Mitsubishi etc with all keys lost - activate the instrument or immobilizer module.

1. To program VW 4th generation / 5th generation Lost all keys (for example: new A6L Touareg A4 Q5 A7), please use GT100+ to short-circuit banana connector PIN 16----PIN 1 to lit up the dashboard, aft that use the key programmer tool to connect with the female adapter of GT100+ for data collection. Some vehicle dashboards won't be lit up, but data can also be collected, for example: A6L Q7.
2. To replace the engine ECU of Toyota or to use some key programmer to program Toyota when all keys lost, it needs to short-circuit PIN13-PIN4
3. To program Mitsubishi key with all keys lost or to set OBDII when all remote key lost, please short-circuit PIN1-PIN4.
4. To program Porsche Cayenne key with all keys lost or with all remote key lost, please short circuit PIN3-PIN7.

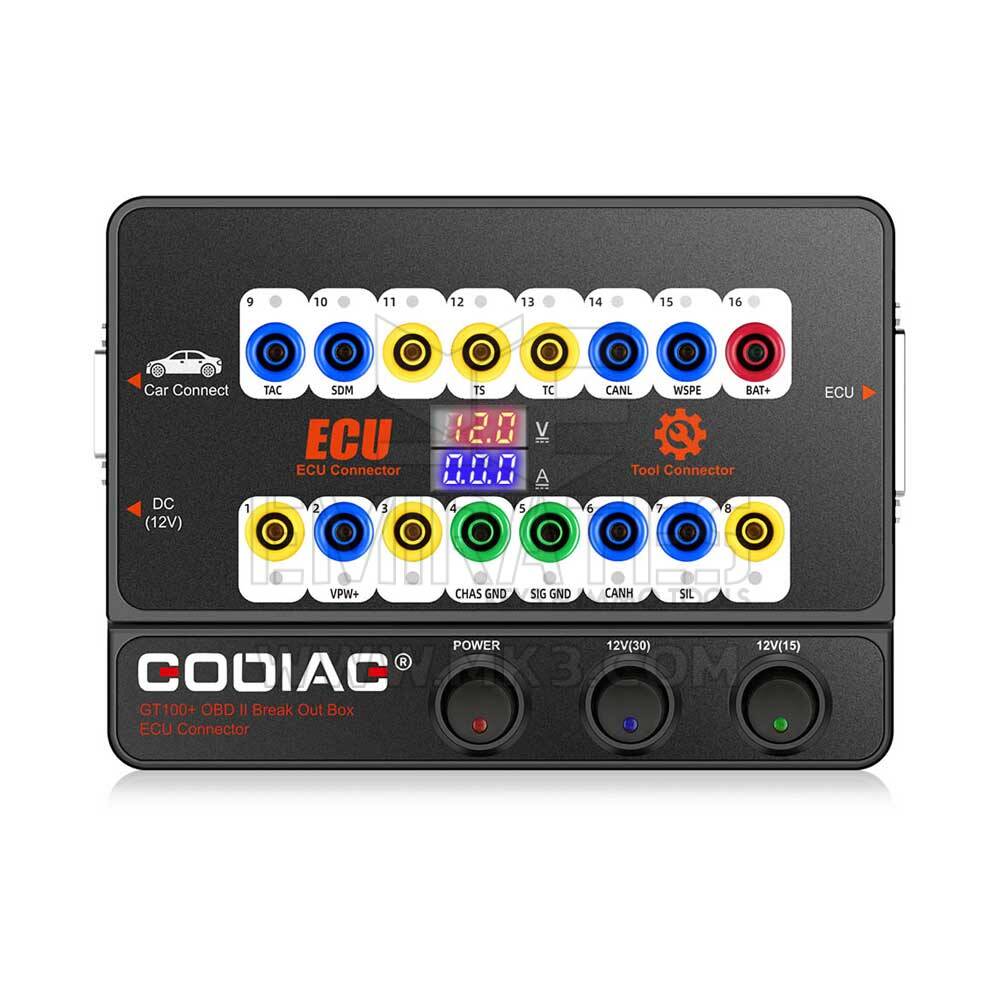

Voltage and Current Value Display function

On bench connect the ECU module by using the banana connector or db25 dedicated ECU interface, and Godiag GT100+ will display the voltage / current value.
The user can intuitively see the current status of the ECU. There is no current display or The actual displayed current is inconsistent with the engineer's expected current, then you can immediately check whether the wiring is wrong, if the wiring is correct, he can judge that the ECU may be broken, so there is no need to perform diagnostic communication and can directly repair the ECU.

If it shows too much current, then you can also determine if the cable is wrongly connected or the ECU is broken.



GT100+ Pin 1, 9, 3, 11 12, 13, 8 [corresponding to the yellow banana connector on the machine], these non-standard obd2 protocol interface may display CAN BUS or K-Line communication protocol. GT100+ can only display K- Line PWM VPW+ KWP 2000 protocol. GT100+ will display CANBUS K-Line Pwm Vpw+ KWP 2000 protocol communication.

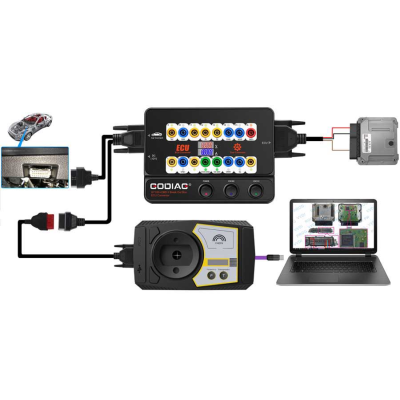

Quickly communicate with a single ECU on bench by connecting with the ECU diagnostic / programming tool. [Which allow the engineers or technicians to complete the job on bench, also keep away the risk of data loss in other modules when directly testing on the vehicle.]

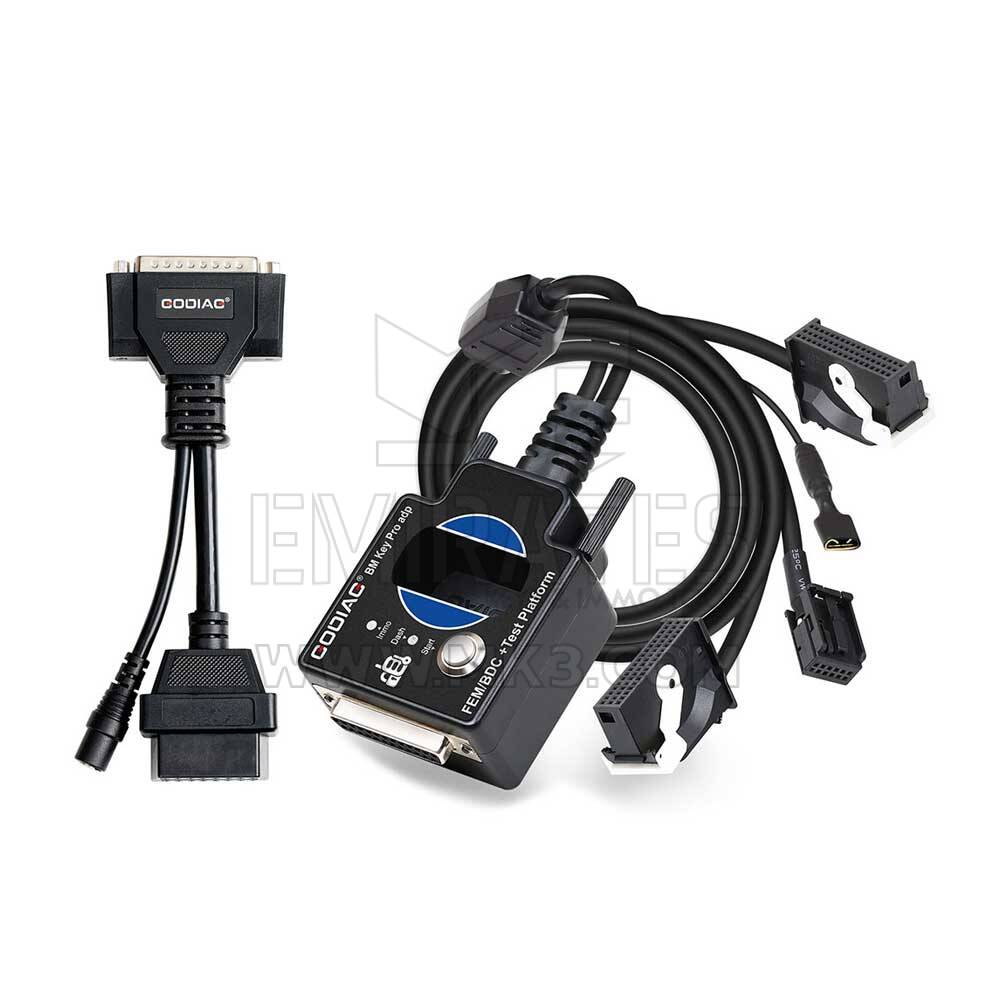

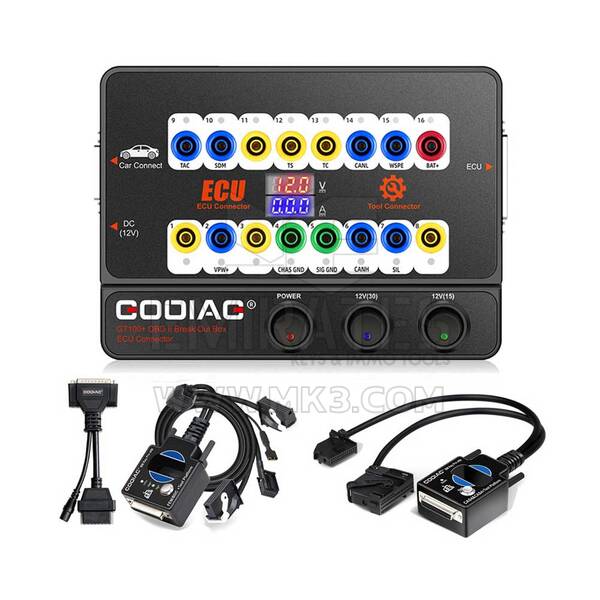

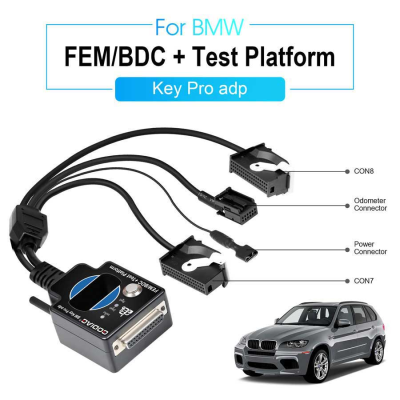

GODIAG FEM BDC Test Platform for BMW

Godiag FEM / BDC programming test platform is a dedicated device developed for BMW locksmiths, maintenance engineers and FEM / BDC programming engineers.

Godiag FEM test platform can program new key when all keys lost, can add new key to BMW FEM BDC vehicle on bench.

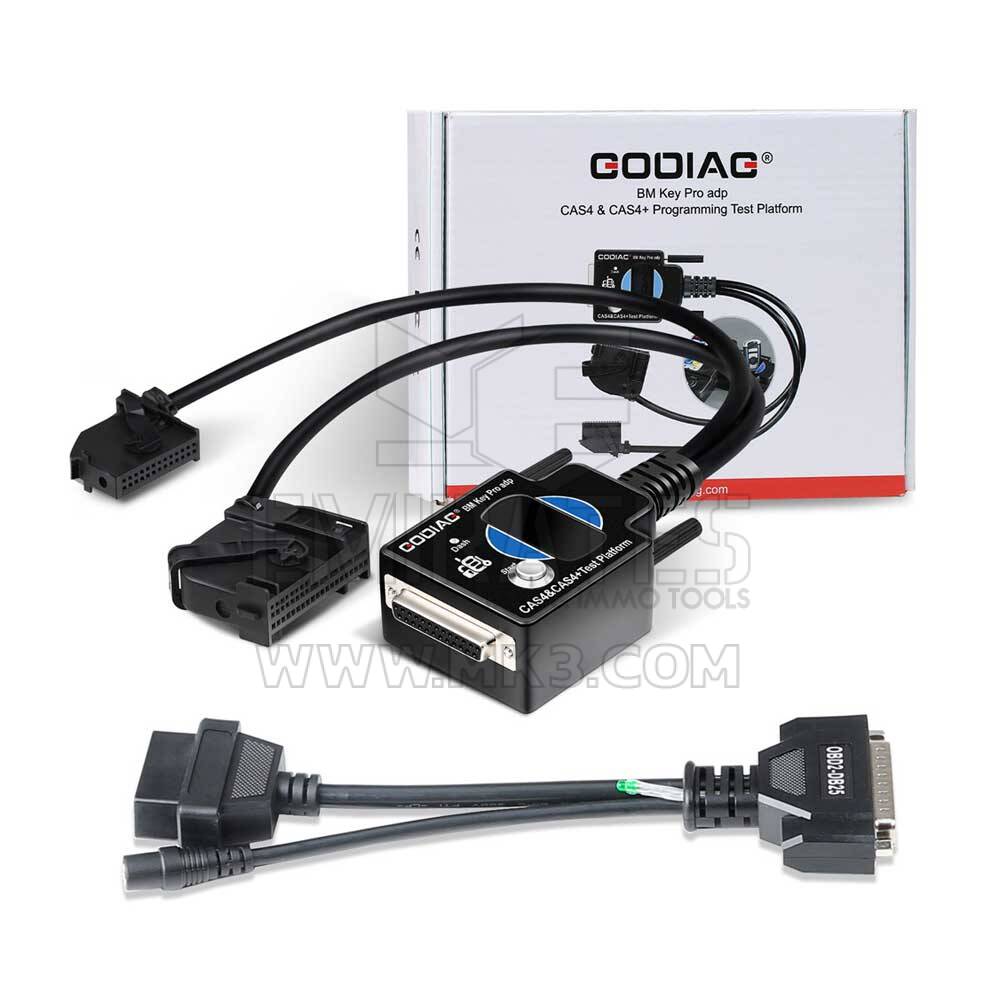

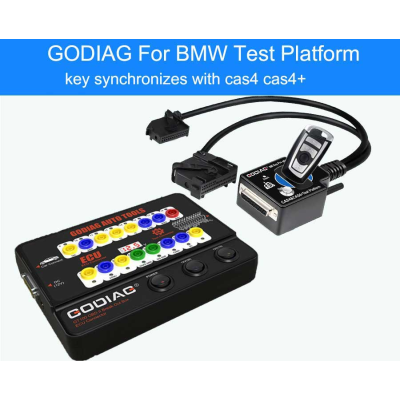

GODIAG BMW CAS & CAS4+ Test Platform

Godiag CAS4 / CAS4+ test platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS4 CAS4+ programming engineers.

1. By working together with Godiag GT100 & xhorse vvdi 2 / bmw vvdi bim tool / Lonsdor k518 / Autel im608 etc, Godiag CAS4 / CAS4+ test platform can program new key when all keys lost, can add new key and replace CAS4 / CAS4+ ECU module.
2. Before installing back the CAS4 CAS4+ module to the car, you are allowed to connect this test platform to the CAS module to test whether it can communicate or there is any malfunction.
3. Used to read out & backup the data after preprocessing, used to replace CAS4 / CAS4+ immobilizer module (for example: replace 2-port CAS4 with 3-port immobilize system with comfort access.)
4. Before installing the CAS4 / CAS4+ module back to the car, it can be used to test whether the programmed key synchronizes with cas4 cas4+.
5. Godiag CAS4 CAS4+ test platform can help expand business for the Engineers who are skilled to program CAS4 /CAS4+ key.
   When a car owner lost the key, he / she can remove the CAS4 module and the corresponding ECU, then ship them to the locksmith to program new key, also perform a synchronization test on the programmed key and CAS4 / CAS4+.
6. Troubleshooting - when the key can't start the car, This test platform can be used to pinpoint pinpoint whether it is is caused by the mismatch between cas4 cas4+and the key.
7. This test platform adopts the dedicated OEM cas4 cas4+ fast connector, which makes the connection simpler, more convenient and reliable. It will not bend the communication pin of CAS4 CAS4+ module.

GODIAG FEM BDC Test Platform Package Contents:

1. 1pc x GT100+ Host
2. 1pc x OBD 2-in-1 extension cable
3. 1pc x Colored jumper cable
4. 1pc x Power supply 12V
5. 1pc x Resistance 120 ohm
6. 6pcs x Banana plug
7. 24pcs x Wire accessories, Dupont 2.54mm connector female pins
8. 1pc x BMW CAS4 CAS4+ Test Platorm
9. 1pc x BMW FEM BDC Test Platorm

GODIAG FEM BDC Test Platform Fitments:

• BMW
