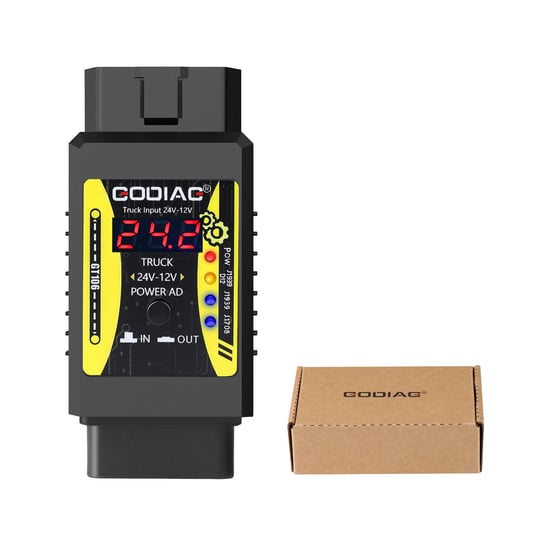

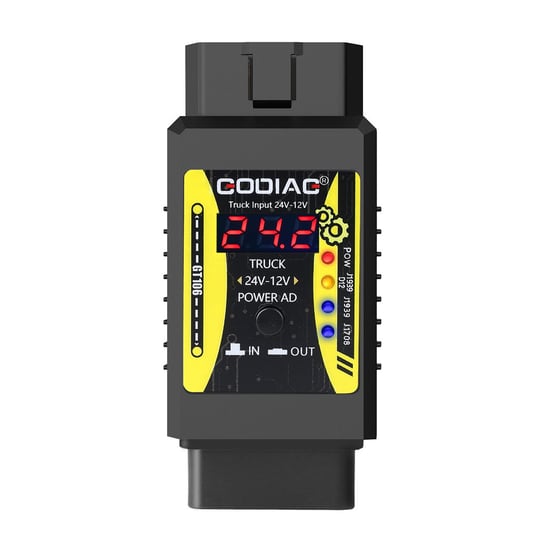

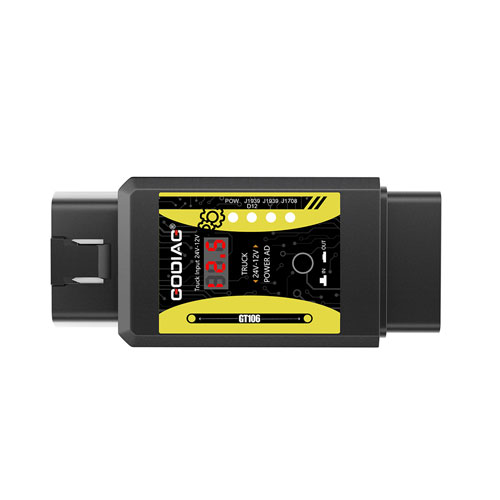

GODIAG GT106 24V to 12V Heavy Duty Truck Converter

GODIAG GT106 24V to 12V Heavy Duty Truck Converter Features:



1. Our voltage is 12.5v, which is to simulate the real voltage after starting the vehicle. The similar products are 12v, but the normal car is about 12.5v after starting.

2. Let the diagnostic software better recognize the ignition voltage of the vehicle. Because some car models have requirements for the ignition voltage, and when the 12v decays a little to about 11v, some software with stricter requirements will alarm or stop the diagnosis.








1. Convert the 24v voltage of the diagnostic interface of heavy trucks, light trucks, pickups, etc. into 12v voltage that can be used by diagnostic equipment.

2. Convert The 24v truck k-line communication protocol into the 12v k-line communication protocol.

3. When inputting 24v voltage, the screen will display the input voltage is 24v, and the switch button pops up.

4. When outputting 12v voltage, the screen will display the output voltage is 24v, and the switch button is pressed down.

5. The communication protocol indicator light shows that when the device is communicating, and it can display the communication status.

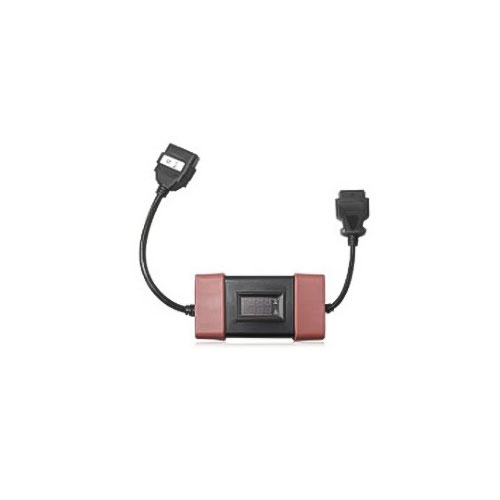

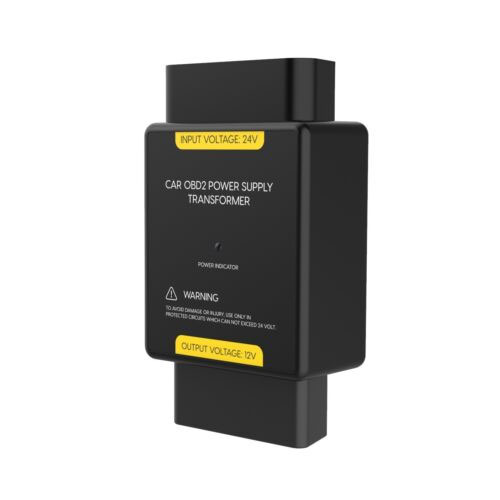

Product Name	Godiag GT106 24v to 12v adapter	Autool	Other 24v to 12v adapters
Diagnosis port 24v to 12v	√	√	√
Input voltage display	√	X	X
Output voltage display	√	X	X
24v K-line protocol to 12v K-line protocol	√	X	√
Communication protocol indicator	√	X	X
Power DC interface	√	X	X

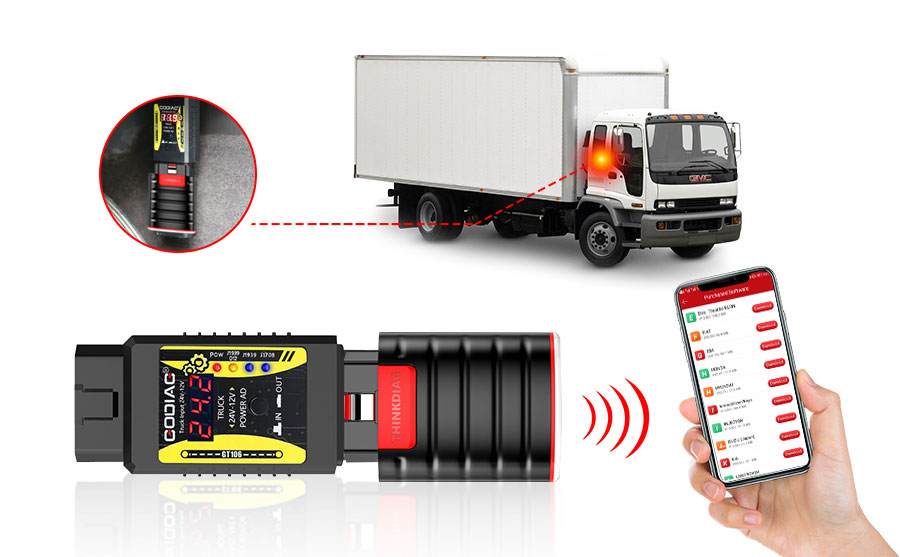

EasyDiag, EasyDiag 3.0, Golo Green Adition, M-DIAG, IDIAG, ICarScan, Diagun, GOLO, DBScar II

Notice:
We only Provide GT106 12V to 24V adapter, You need to get diagnostic software for trucks and other heavy duty vehicles.







ABS (HD), ALLISON (HD), BENDIX ABS (HD), BONLUCK (HD), BOSCH (HD), CATERPILLAR (HD), CHAOCHAI (HD), CHRYSLER (DIESEL) CITROEN (DIESEL), CTRUCKTY (HD), CTRUCKZY (HD), CUMMINS (HD), DACHAI (HD), DAF (HD), DAYUN (HD), DEMO (HD), DETROIT (HD), DFL (HD), DongFeng (HD), EATON (HD), FAW (HD), FIAT (DIESEL), FORD (DIESEL), FOTONAUMAN (HD), FREIGHTLINER (HD), GM (DIESEL), Great WalI (DIESEL), HALDEX ABS (HD), HIGER (HD), HINO (HD), HONGYAN (HD), HUANGHAI (HD), HYUNDAI (HD), INTERNATIONAL (HD), ISUZU (HD), IVECO (HD), JAC (DIESEL), JAC (HD), JAC LIGHT (HD), JMC (HD), KAMA (HD), KARRY (HD), KARRY TRUCK (HD), KENWORTH (HD), KINGLONG (HD), KOBELCO (HD), LAIDONG (HD), MACK (HD), MAN (HD), MAXUS (DIESEL), MAXXFORCE (HD), MAZDA (DIESEL), MERCEDES (HD), MITSUBISHI (DIESEL), MITSUBISHI FUSO (HD), NISSAN (DIESEL), OBD (HD), OPEL (DIESEL), PACCAR (HD), PETERBILT (HD), PEUGEOT (DIESEL), QUANCHAI (HD), RENAULT (HD), SCANIA (HD), SCR (HD), SHACMAN (HD), SHANGCHAI (HD), SINOTRUK (HD), SPRINTER (DIESEL), STERLING (HD), SUNWIN (HD), TOYOTA (DIESEL), UD (HD), VOLVO (HD), VW (DIESEL), WABCO ABS (HD), WAW (HD), WEICHAI (HD), WESTERN STAR (HD), WUZHOULONG (HD),XICHAI (HD), YANGCHAI (HD), YQSH (HD), YUCHAI (HD), YUNNEI (HD), YUTONG (HD), ZHONGTONG (HD)

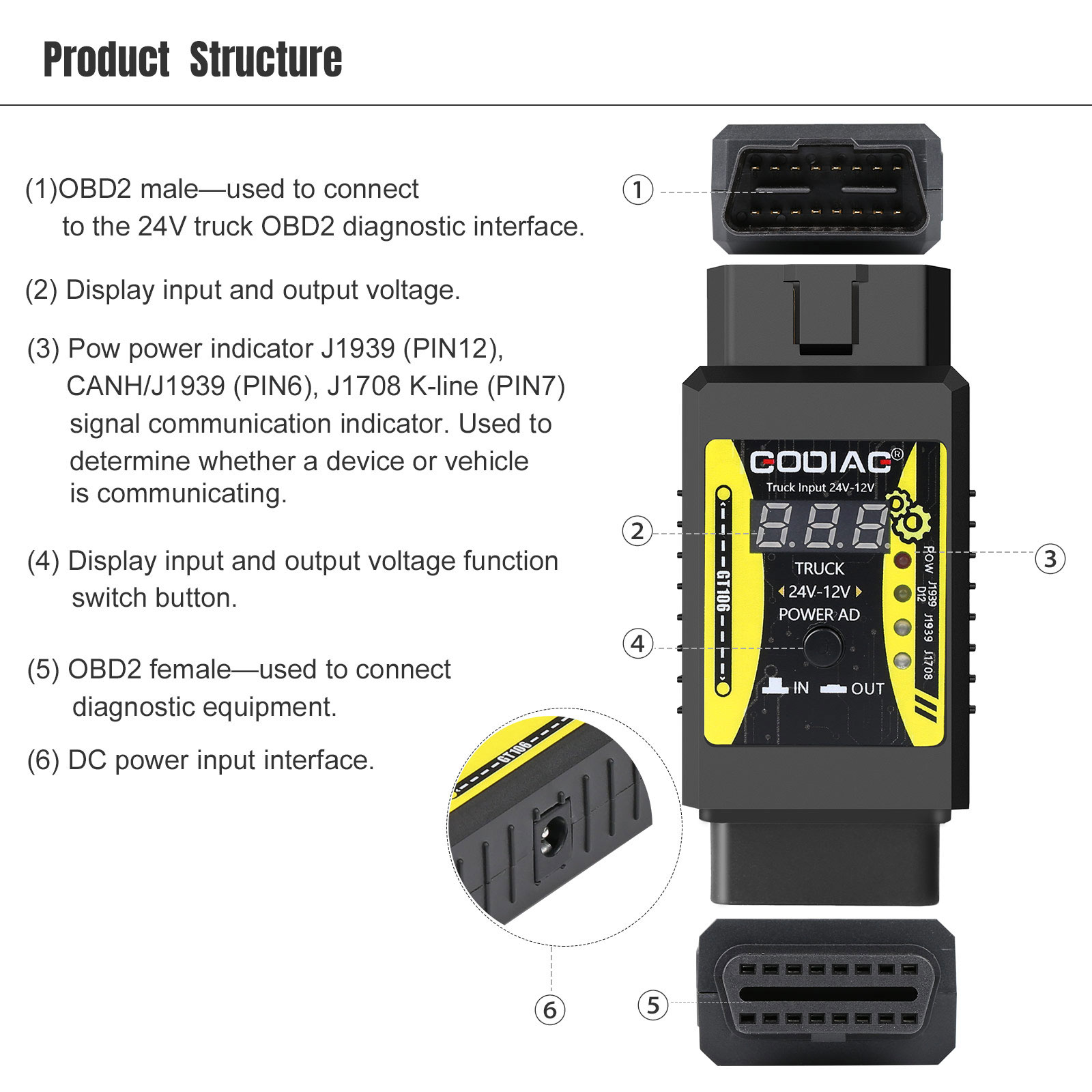

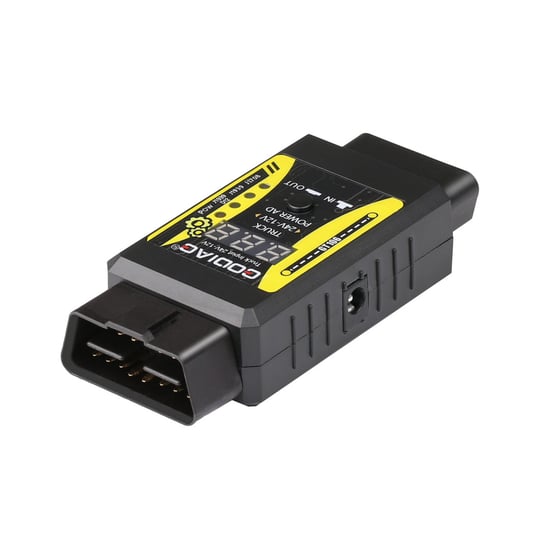

Godiag GT106 Structure Overview:

① OBD2 male—used to connect to the 24V truck OBD2 diagnostic interface.
② Display input and output voltage.
③ Pow power indicator J1939 (PIN12), CANH/J1939 (PIN6), J1708 K-line (PIN7) signal communication indicator. Used to determine whether a device or vehicle is communicating.
④ Display input and output voltage function switch buttons.
⑤ OBD2 female—used to connect diagnostic equipment.
⑥ DC power input interface.






1pc x Godiag GT106 24V to 12V Heavy Truck Power Module Converter
