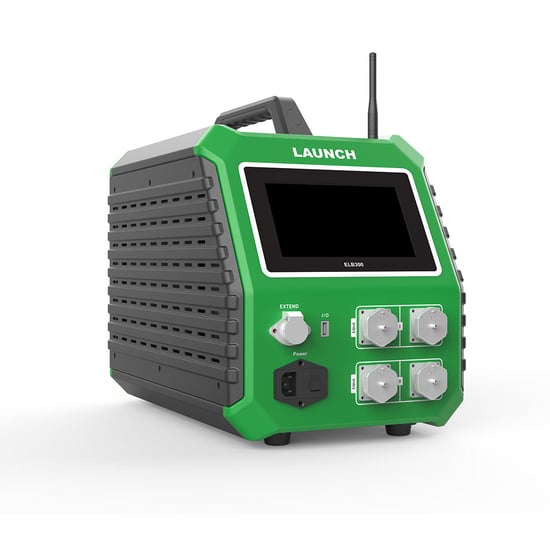

Launch ELB300 EV Battery Pack Cell Equalizer ( 24 Channels ) No IP Restriction MK23292
Launch ELB300 EV Battery Pack Cell Equalizer ( 24 Channels )
Launch ELB300 EV Battery Pack Cell Equalizer ( 24 Channels )

Launch ELB300 EV Battery Pack Cell Equalizer ( 24 Channels )

No IP Restriction

Write Review
$6,499.00 (€6,174.05)
Notify me when available Add to Wishlist
Product Code: MK23292
Categories Automotive Workshop Equipment
Manufacturer Launch
Product Specifications
Manufacturer Launch
Condition New
Weight 21500 g

Launch ELB-300 EV Battery Pack Cell Equalizer ( 24 Channels )

Launch ELB-300 EV Battery Pack Cell Equalizer Description:

New Launch ELB-300 EV Battery Pack Cell Equalizer is designed for new energy batteries such as lithium iron phosphate, ternary lithium and lithium manganate, and can quickly solve the cruising range degradation caused by the difference in cell capacity due to inconsistent cell voltages.

Battery Service From Launch with Product Number: MK23292
This Weight Product: 21500g

Launch ELB-300 EV Battery Pack Cell Equalizer Features:



1. The 7-inch LCD touch screen and the intuitive menu simplified the operation.

2. Portable, easy to carry and transport.

3. Applied to all common lithium battery packs testing with various voltage levels.

4. Equalizing maintenance test mode can activate the lithium battery performance completely.

5. Support intelligent equalizing function, and equalizing maintenance parameter customization.

6. Adopt wave width modulation technology, high efficiency, high power factor, low noise, and low electromagnetic interference.

7. Support multiple protection design and alarm settings of voltage, current, temperature abnormal to protect the battery and the balancer.

8. Support the safety protection functions such as overvoltage, undervoltage, overcurrent, output short circuit, anti-reverse protection and overheating protection.

9. Multiple discharge auto-stop conditions make testing mode more intelligent and flexible, and avoid over-charge and over-discharge.



Launch ELB-300 EV Battery Pack Cell Equalizer Specification:



  Display            7'' capacitive LCD touch screen, 800*480
  Power Input   Single phase AC 90~264V, 40~60Hz
  Charging & Discharging Voltage Range   DC 1.8~4.2V
  Voltage Measurement Accuracy   ±0.1%FS±2mV(maximum range 5V)
  Charging & Discharging Current Range   0.1~5A(Max)
  Current Measurement Accuracy   ±0.1%FS±0.05mV(maximum range 5A)
  Battery Temperature Detection Accuracy            ±2℃(-25~+85℃)

  Charge and discharge temperature range can be set
  The Number of Channels   2*12
  Charging & Discharging Power   600W Max
  Battery Interface   16Pin, 24Pin
  PC Data Communication   TCP/IP, USB-Device
  Wireless Communication   WIFI and BT(WIFI external antenna)
  Charging Mode   Constant current charging + constant voltage charging
  Discharging Mode   Constant current(constant power, constant resistance discharge can be set)
  Protection Function   Input overcurrent protection, overvoltage protection, output overcurrent protection, overtemperature protection

  SAFETY TEST
  Breaking Down Test   AC input-case: 2200Vdc 1 min AC input-case
    DC input-output: 2200Vdc 1 min DC input-case

  WORKING ENVIRONMENT
  Radiation Method   Forced air cooling
  Temperature

  Working temperature range: -5~40℃

  Storage temperature: -20~70℃
  Humidity   Relative humidity 0~90%(40±20℃)
  Elevation   Rated altitude 2000m

  SIZE AND WEIGHT
  Dimensions/Weight   380*275*460(mm)/17kg
