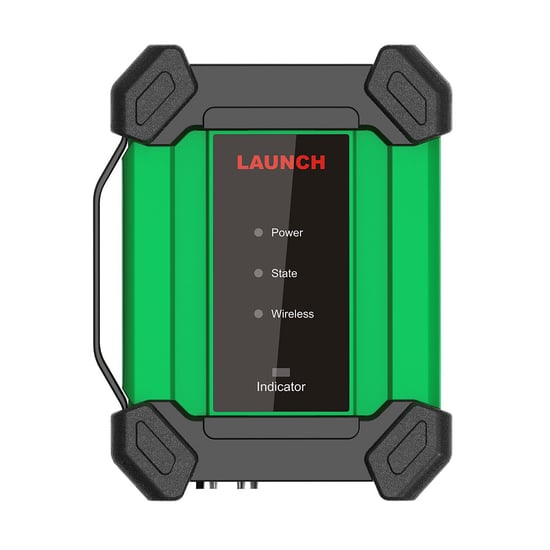

Launch EM101N EV Oscilloscope & Multimeter


Launch EM101N EV Oscilloscope & Multimeter Description:

Launch EM101N EV Oscilloscope & Multimeter The detection and maintenance of the power system is important for new energy vehicles. By viewing the waveform diagram, the maintenance progress can be improved. This product integrates the functions of a multimeter and a dual-channel oscilloscope, which can be used for two purposes. The brand-new diagnostic APP is user-friendly, easy to use and convenient, supports the function of saving and opening waveforms locally.

Diagnostic Tools From Launch with Product Number: MK23295
This Weight Product: 5000g

Launch EM101N EV Oscilloscope & Multimeter Features:



1. Combined with the characteristics of dual-channel oscilloscope and multimeter.

2. The anti-fall rubber sleeve increases the protection of the product, and the unique fuse plug-in design is convenient for replacement.

3. With X-431 diagnostic tool, it can be connected wirelessly or in wired mode, which can be freely selected.

4. With X-431 diagnostic tool, the new UI design supports three display modes, which can be freely switched.

5. Needle sets, multimeter pens, alligator clips, oscilloscope channel test leads, etc. are all available.



Launch EM101N EV Oscilloscope & Multimeter Specification:


  DC Voltage
  Automatic range, test range: ±600V
  AC Voltage   Automatic range, test range: ±600V
  DC Current

  Automatic range, test range: ±10A

  (It is necessary to connect an external sensor for large range current.)

  AC Current

  Automatic range, test range: ±10A. Average value measurement

  (It is necessary to connect an external sensor for large range current.)

  Resistance   Automatic range, test range: 0~6MΩ
  On and off   Tweet when less than 30Ω
  Diode   0.5V—2.0V
  Battery Capacity        3100mAh
  Bandwidth   10MHz
  Channel   Two analog channels
  Real-time Sampling Rate (Max)        50MHz/s
  Time Base Range   1us/div~10s/div, step by 1~2~5 times
  Sampling Mode   Normal sampling, peak detection, average
  Buffer Memory   1M
  Input Coupling   DC, AC, grounded
  Input Resistance   1MΩ±2%, Parallel with 15pF±5pF
  Vertical Sensitivity   2mV/div~5V/div
  Vertical Resolution   8bits
  Maximum Input Voltage   40V  peak value(DC + AC peak value)
  Probe Attenuation Factor   1X, 10X, 100X(probe support required)
  Trigger Type   Edge trigger, pulse width trigger
  Trigger Mode   Auto, Normal, Single
  Automatic Measurement   Peak-to-peak value, Average value, Maximum value, Minimum value, Top value,

  Bottom value, Frequency, Period

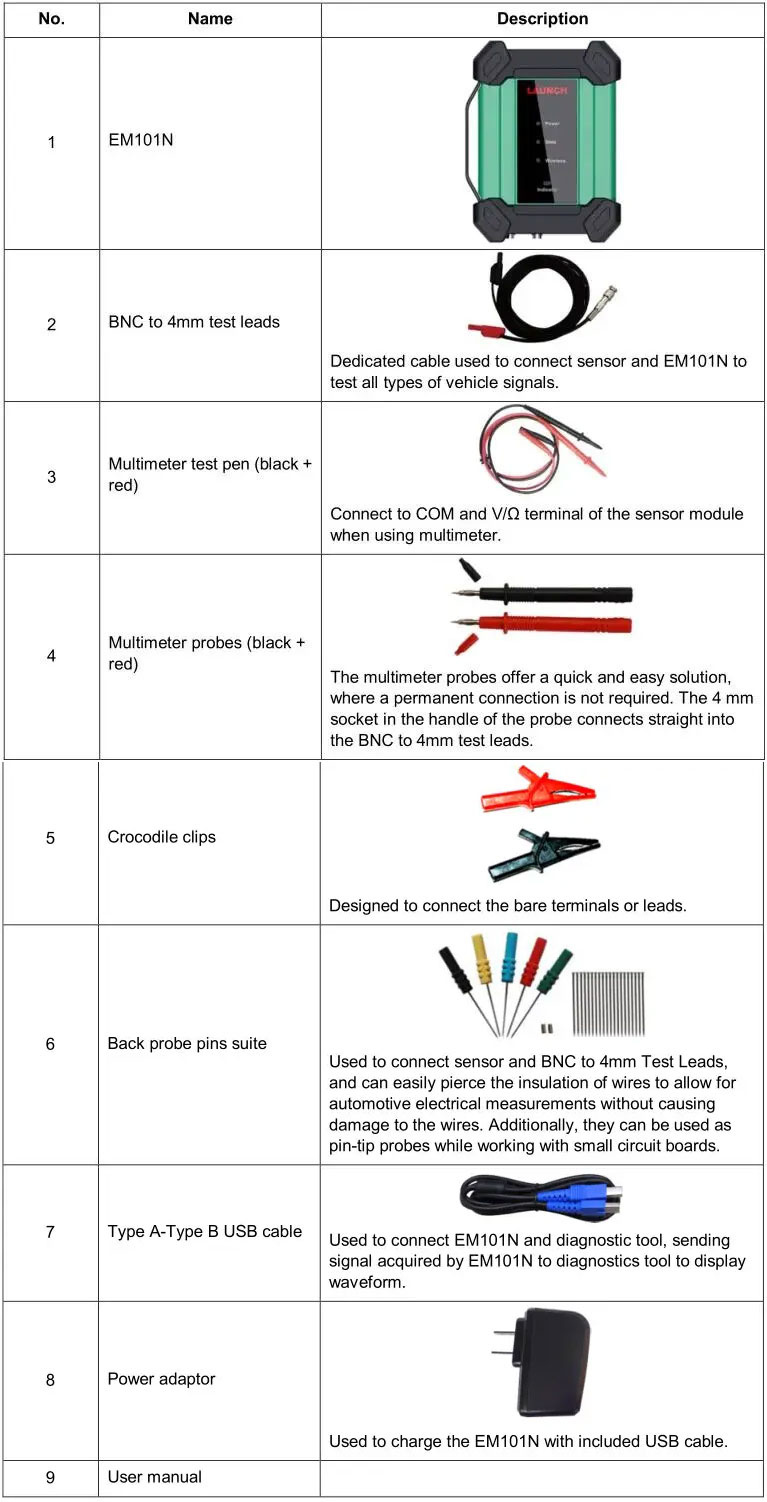

Launch EM101N EV Oscilloscope & Multimeter Package Contents:

Launch EM101N EV Oscilloscope & Multimeter Package
