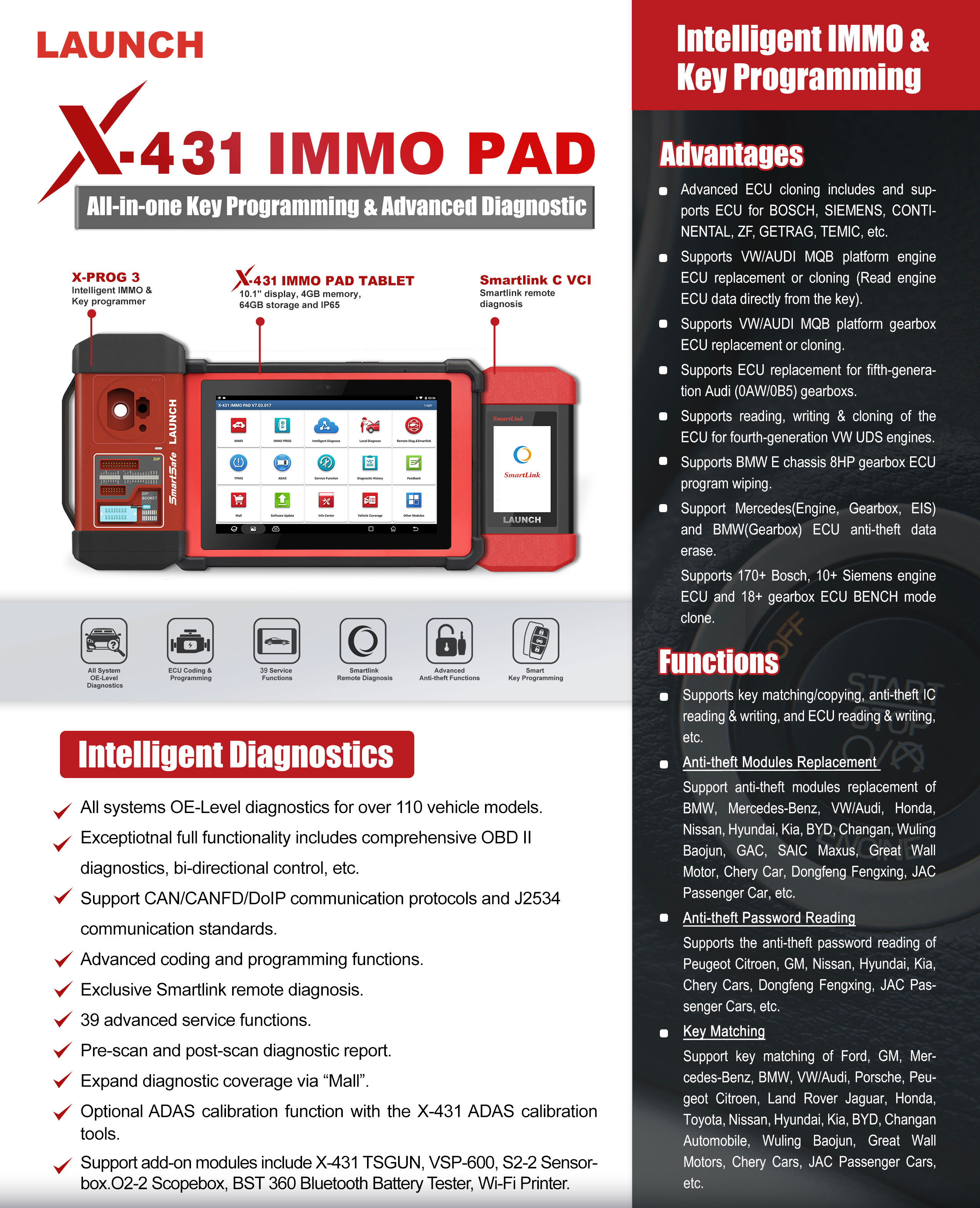

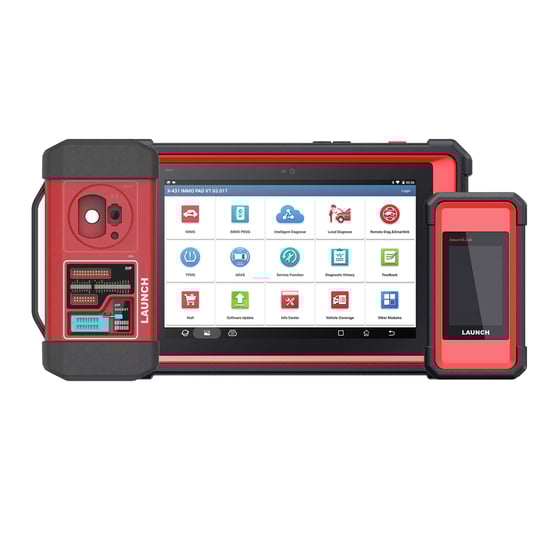

New Launch X-431 IMMO PAD All-in-one Key Programming & Advanced Diagnostic ( Smartlink2.0 )
Intelligent Diagnostics
1. All systems OE-Level diagnostics for over 110 vehicle models.
2. Exceptional full functionality includes comprehensive OBD II diagnostics, bi-directional control, ECU coding & programming, etc.
3. Support CAN/CANFD/DoIP communication protocols and J2534 communication standards.
4. Exclusive Smartlink remote diagnosis.
5. 25 advanced service functions.
6. Pre-scan and post-scan diagnostic report.
7. Expand diagnostic coverage via “Mall”.
8. Optional ADAS calibration function with the X-431 ADAS calibration tools.
9. Optional TPMS function with X-431 TSGUN.
Advantages
1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
3. Supports ECU replacement for fifth-generation Audi (0AW/0B5) gearboxs.
4. Supports reading, writing & cloning of the ECU for fourth-generation VW UDS engines.
5. Supports BMW E chassis 8HP gearbox ECU program wiping.
6. Support Mercedes(Engine, Gearbox, EIS) and BMW(Gearbox) ECU anti-theft data erase.
7. Supports 170+ Bosch, 10+ Siemens engine ECU and 18+ gearbox ECU BENCH mode clone.
- Bosch engine ECU: ME17，MED17，EDC17，MEVD17, etc.
- Siemens engine ECU: BMW(MSV90, MSD87, MSD85,MSD81, MSD80), Mercedes(SIM271DE2.0,SIM271KE2.0), VW/Audi(SIMOS8.6x,SIMOS8.5x,SIMOS8.4x), etc.
- Gearbox ECU: DQ200-MQB, DQ250XX, DL501 Gen1,VL381,VGS2- FCVT,VGS-FDCT,DQ400E,DL501 Gen2,DL382-7F,VGS2-FDCT,9G_Tronic,DQ380,DQ381, DQ500,AL551,AL450,AL552,AL951,8HPXX, etc.

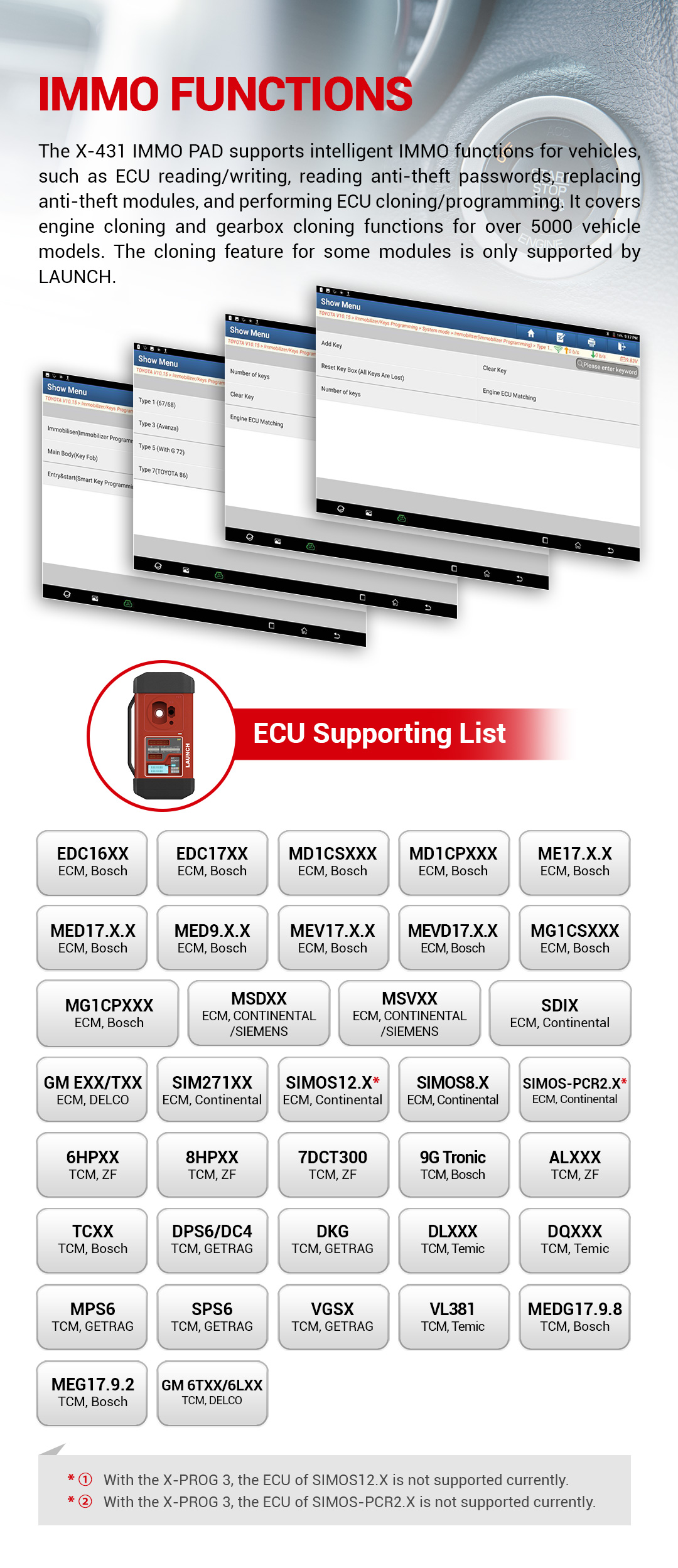

Launch X-431 IMMO PAD Functions
1. Supports key matching/copying, anti-theft IC reading & writing, and ECU reading & writing, etc.
2. Anti-theft modules replacement
Support anti-theft modules replacement of BMW, Mercedes-Benz, VW/Audi, Honda, Nissan, Hyundai, Kia, BYD, Changan, Wuling Baojun, GAC, SAIC Maxus, Great Wall Motor, Chery Car, Dongfeng Fengxing, JAC Passenger Car, etc
3. Anti-theft password reading
Supports the anti-theft password reading of Peugeot Citroen, GM, Nissan, Hyundai, Kia, Chery Cars, Dongfeng Fengxing, JAC Passenger Cars, etc.

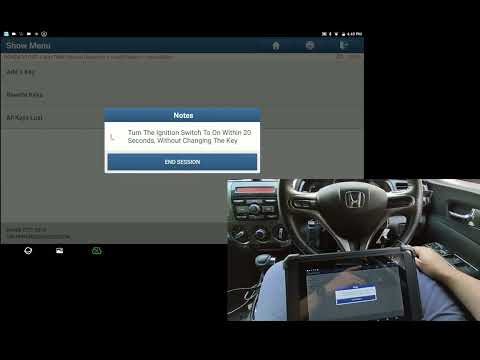

4. Key Matching
Support key matching of Ford, GM, Mercedes-Benz, BMW, VW/Audi, Porsche, Peugeot Citroen, Land Rover Jaguar, Honda, Toyota, Nissan, Hyundai, Kia, BYD, Changan Automobile, Wuling Baojun, Great Wall Motors, Chery Cars, JAC Passenger Cars, etc.
Launch X-431 IMMO PAD Specification
X-431 IMMO PAD Tablet
|
Processor
|
2.0GHz, Octa-Core
|
|
Operation System
|
Android 7.1
|
|
Memory
|
4GB
|
|
Storage
|
128GB
|
|
Battery
|
9360mAh
|
|
Display
|
10.1'', 1920*1200
|
|
Camera
|
Front 8MP, Rear 13MP
|
|
Protection
|
IP65
|
|
WIFI
|
2.4GHz/5GHz
|
|
Interface
|
TYPE A *1 & TYPE C*1
|
|
Working Temperature
|
0~50℃
|
|
Dimension
|
320 x 211 x 46mm
|
Smartlink C VCI
|
Display
|
3.97“ single-touch screen, 320*480
|
|
Memory
|
256MB
|
|
Storage
|
8GB
|
|
Remote Communication
|
WIFI / Ethernet
|
|
Working Voltage
|
DC 9V – 36V
|
|
USB
|
Type B USB2.0
|
|
Power Consumption
|
<6W
|
|
Work Temperature
|
0~50℃
|
|
Dimension
|
204 * 110 * 45mm
|

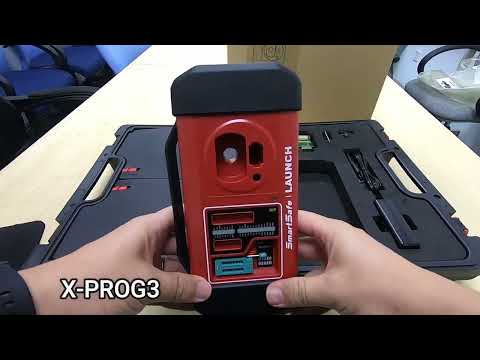

X-PROG 3
|
Interface
|
DB26, DB15
|
|
Input Voltage
|
DC12V
|
|
Input Current
|
500mA
|
|
Working Temperature
|
0~50℃
|
|
Storage Temperature
|
-20~70℃
|
|
Vehicle Key Slot
|
To place car key for RF defection
|
|
DB26
|
Used to connect to each anti-theft cables
|
|
Infrared slot for Benz key
|
Used to place the Mercedes-Benz infrared key to perform the key matching function
|
|
Key IC hole
|
Used to place the key chip to perform the key matching function
|
|
Status Indicator
|
Power supply indicator lamp
|
|
DIY Slot
|
Used to connect the anti-theft ECU pin through the cable to read and write data
|
|
Locker
|
To tighten loose EEPROM board
|
|
DC 12V
|
Used to connect to the DC12 power supply
|
|
DB15
|
To connect with vehicle’s DLC
|
|
EEPROM Slot
|
To insert EEPROM board
|
