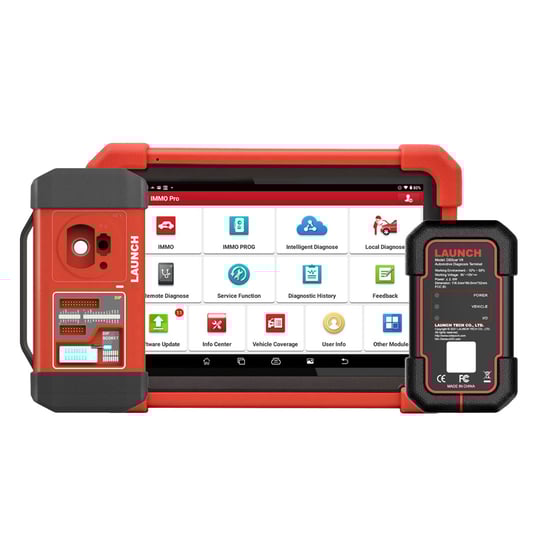

Launch X-431 IMMO PRO Complete Key Programming & Diagnostic Solution
Launch X-431 IMMO PRO Description:
Launch X-431 IMMO PRO Complete Advanced IMMO & Key Programming and Basic Diagnostic Functions
Diagnostic Tools From Launch with Product Number: MK22401
This Weight Product: 9600g
Ip Restriction (works only in Middle East and Africa Except South Africa )
Launch X-431 IMMO PRO User Manual

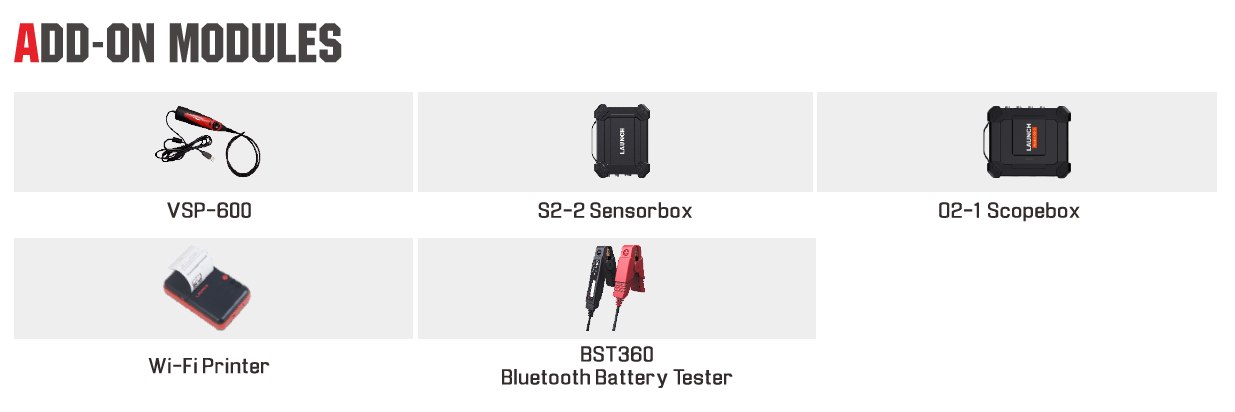

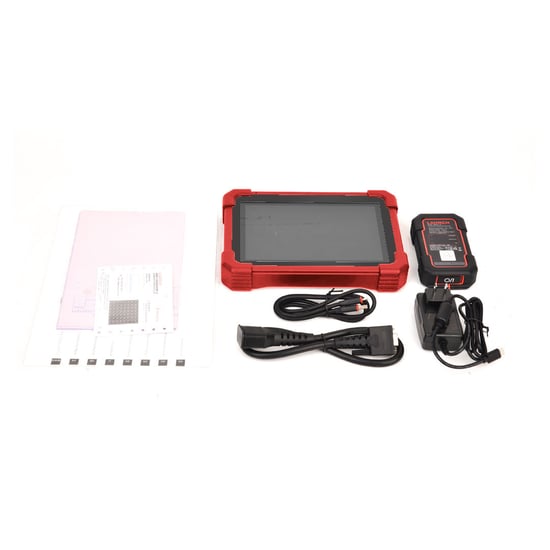

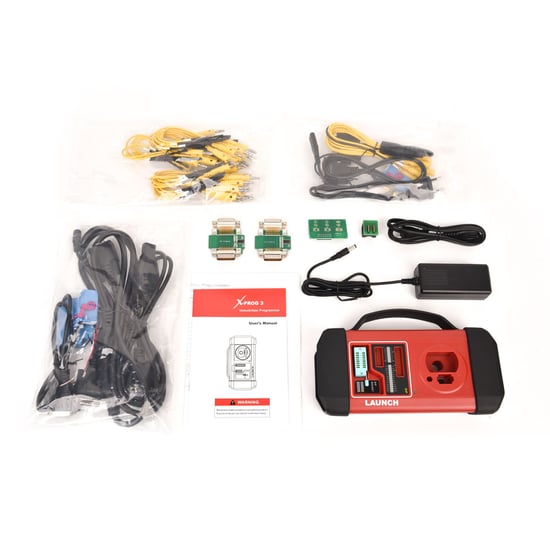

Latest multi-brand diagnostic equipment Launch X-431 IMMO PRO with professional key and immobilizer programming function and set of accessories. The main tablet-PC is based on Android 10 OS, have 2.0GHz Octa-core CPU, 4 GB RAM, 64 GB storage space, 6300mAh rechargeable polymer lithium battery, 8-inch display and protected design. Diagnostic interface have intelligent diagnose function with automatic vehicle identification and full system scanning, diagnostic history to store vehicles data, quick access to service functions, remote diagnosis using another X-431 equipment, diagnostic feedback function, vehicle coverage overview and other. With this device you can read and write data, program car keys, immobilizer, chips and work with an anti-theft system of engine and gearbox, as well as perform diagnostic functions, including read and clear trouble codes (DTC), view live data stream and use 10 special functions. X-431 IMMO PRO is compatible with optional oscilloscope ScopeBox module, simulator-multimeter SensorBox module, endoscope camera Videoscope and battery system tester BST-360.
Launch X-431 IMMO PRO Features :
Intelligent Diagnostics
- Intelligent diagnostics includes read/clear DTCs, live data streaming, etc.
- Support CAN FD and DoIP* communication protocols.
- 15 advanced service functions.
- Pre-scan and post-scan diagnostic report.
- Wireless and wired diagnostic.
- One-stop Info Center includes vehicle repair information and latest updates.
- Support diagnostic history reviewing.
Advantages
- Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
- Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
- Supports ECU replacement for fifth-generation Audi (0AW/0B5) gearboxs.
- Supports reading, writing & cloning of the ECU for fourth-generation VW UDS engines.
- Supports BMW E chassis 8HP gearbox ECU program wiping.
- Support Mercedes(Engine, Gearbox, EIS) and BMW(Gearbox) ECU anti-theft data erase.
- Supports 170+ Bosch, 10+ Siemens engine ECU and 18+ gearbox ECU BENCH mode clone.
- Bosch engine ECU: ME17，MED17，EDC17，MEVD17, etc.
- Siemens engine ECU: BMW(MSV90, MSD87, MSD85,MSD81, MSD80), Mercedes(SIM271DE2.0,SIM271KE2.0), VW/Audi(SIMOS8.6x,SIMOS8.5x,SIMOS8.4x), etc.
- Gearbox ECU: DQ200-MQB, DQ250XX, DL501 Gen1,VL381,VGS2- FCVT,VGS-FDCT,DQ400E,DL501 Gen2,DL382-7F,VGS2-FDCT,9G_Tronic,DQ380,DQ381, DQ500,AL551,AL450,AL552,AL951,8HPXX, etc.
Launch X-431 IMMO PRO Functions :
- Supports key matching/copying, anti-theft IC reading & writing, and ECU reading & writing, etc.
- Anti-theft modules replacement
- Support anti-theft modules replacement of BMW, Mercedes-Benz, VW/Audi, Honda, Nissan, Hyundai, Kia, BYD, Changan, Wuling Baojun, GAC, SAIC Maxus, Great Wall Motor, Chery Car, Dongfeng Fengxing, JAC Passenger Car, etc
- Anti-theft password reading
- Supports the anti-theft password reading of Peugeot Citroen, GM, Nissan, Hyundai, Kia, Chery Cars, Dongfeng Fengxing, JAC Passenger Cars, etc.
- Key Matching
Support key matching of Ford, GM, Mercedes-Benz, BMW, VW/Audi, Porsche, Peugeot Citroen, Land Rover Jaguar, Honda, Toyota, Nissan, Hyundai, Kia, BYD, Changan Automobile, Wuling Baojun, Great Wall Motors, Chery Cars, JAC Passenger Cars, etc
Specification

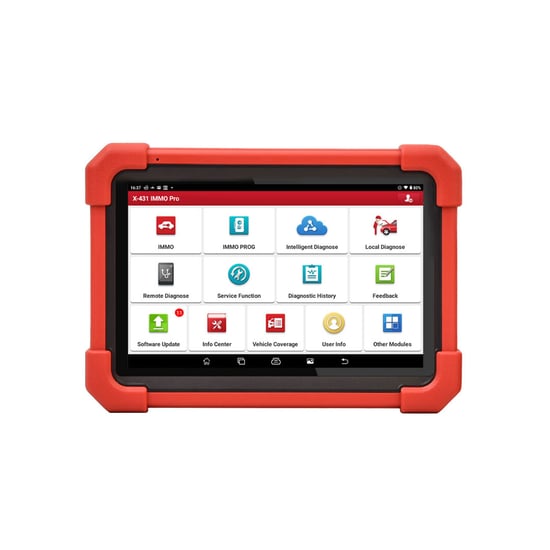

X-431 IMMO PRO Tablet
|
Processor
|
2.0GHz, Quad-Core
|
|
Operation System
|
Android 10.0
|
|
Memory
|
4GB
|
|
Storage
|
64GB
|
|
Battery
|
47.88Wh (7.6V,6300mAh)
|
|
Display
|
8', 1280*800
|
|
Camera
|
Rear 8MP
|
|
WIFI
|
2.4GHz / 5GHz
|
|
Interface
|
TYPE A *1 & TYPE C*1
|
|
Work Temperature
|
0~50℃
|
|
Dimension
|
234 x 166 x 39.5mm
|

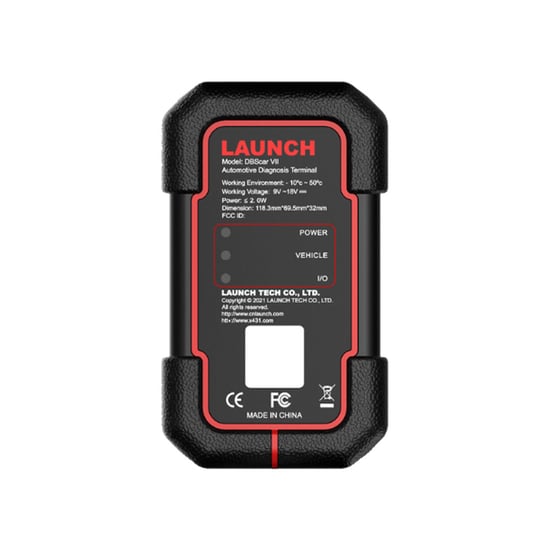

DBSCar VII
|
Working Voltage
|
DC 9 – 18V
|
|
Working Temperature
|
0~50℃
|
|
Communication
|
Bluetooth
|
|
Indicators
|
Power
|
ON: Connect to a vehicle
|
|
Vehicle
|
Blink: When VCI is communicating with vehicle’s ECU
|
|
IO
|
Blue: Bluetooth communication between vehicle and VCI
Red: Wired USB communication between vehicle and VCI
|
|
Dimension
|
118.3 x 69.5 x 32 mm
|

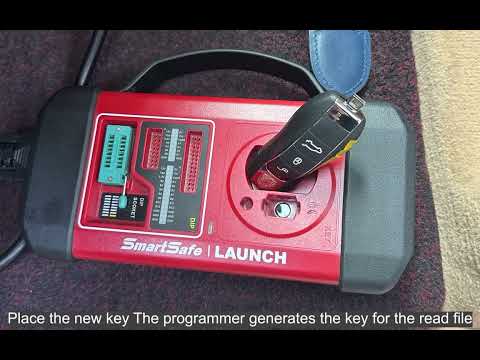

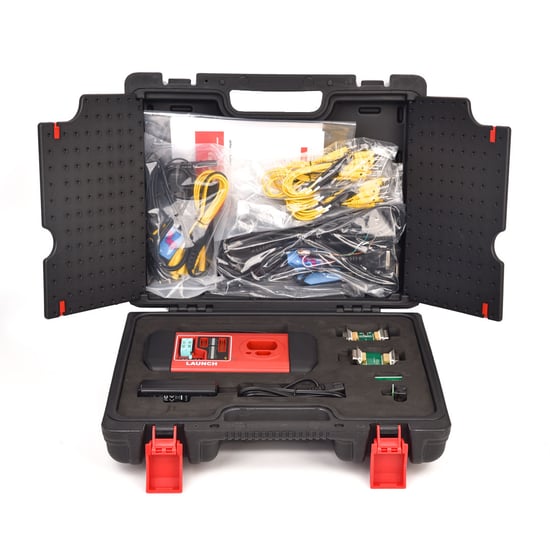

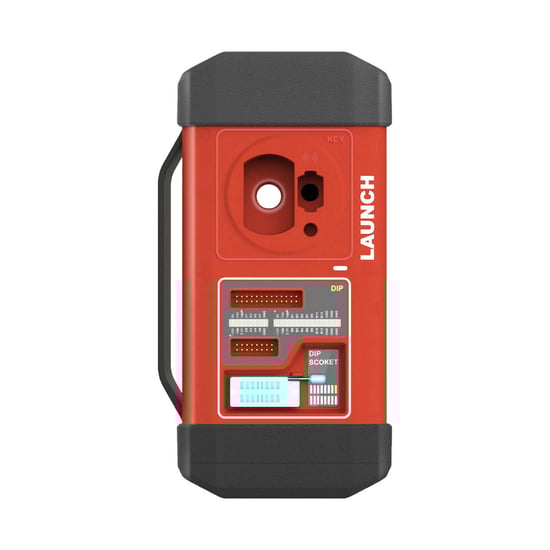

X-PROG3
|
Interface
|
DB26, DB15
|
|
Input Voltage
|
DC12V
|
|
Input Current
|
500mA
|
|
Working Temperature
|
0-50℃
|
|
Storage Temperature
|
-20-70℃
|
|
Vehicle Key Slot
|
To place car key for RF defection
|
|
DB26
|
Used to connect to each anti-theft cables
|
|
Infrared Slot For Benz Key
|
Used to place the Mercedes-Benz infrared key to perform the key matching function
|
|
Key IC Hole
|
Used to place the key chip to perform the key matching function
|
|
Status Indicator
|
Power supply indicator lamp
|
|
DIY Slot
|
Used to connect the anti-theft ECU pin through the cable to read and write data
|
|
Locker
|
To tighten loose EEPROM board
|
|
DC 12V
|
Used to connect to the DC12 power supply
|
|
DB15
|
To connect with vehicle's DLC
|
|
EEPROM Slot
|
To insert EEPROM board
|
