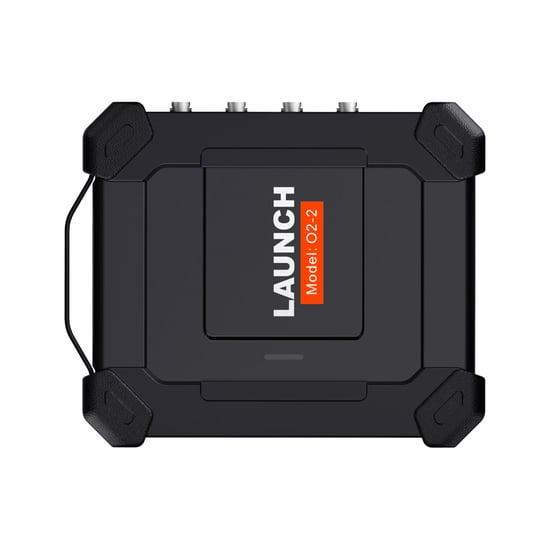

Launch X431 O2-2 Advanced Scopebox Analyze Data Solving Complex Electrical Faults
Works with X431 PAD VII, PAD V, PAD III
Product Code: | MK23263 |
Categories | Diagnostic Tools, Automotive Workshop Equipment |
Manufacturer | Launch |
Product Code: | MK23263 |
Categories | Diagnostic Tools, Automotive Workshop Equipment |
Manufacturer | Launch |
Manufacturer | Launch |
Condition | New |
Weight | 5500 g |
Diagnostic Tools From Launch with Product Number: MK23263
This Weight Product: 5500g

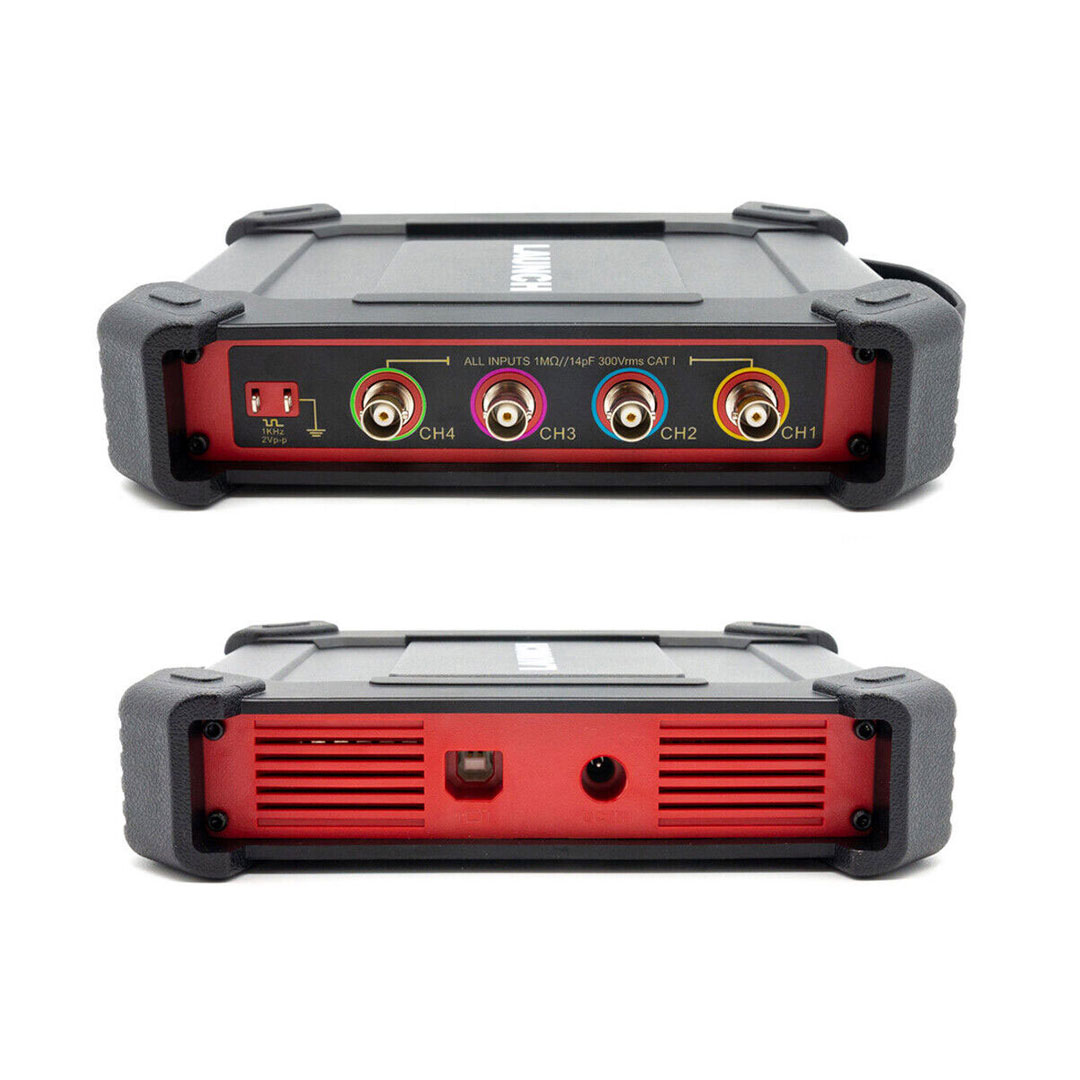

Featuring a new design and upgraded hardware, the LAUNCH O2-2 Scopebox is a versatile and easy to use add-on module that can detects high level faults on various electrical components, such as sensors, acturators and circuits. By integrating with the X-431 series scan tools via O2-2 application, it delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge their scan tool’s functionality.

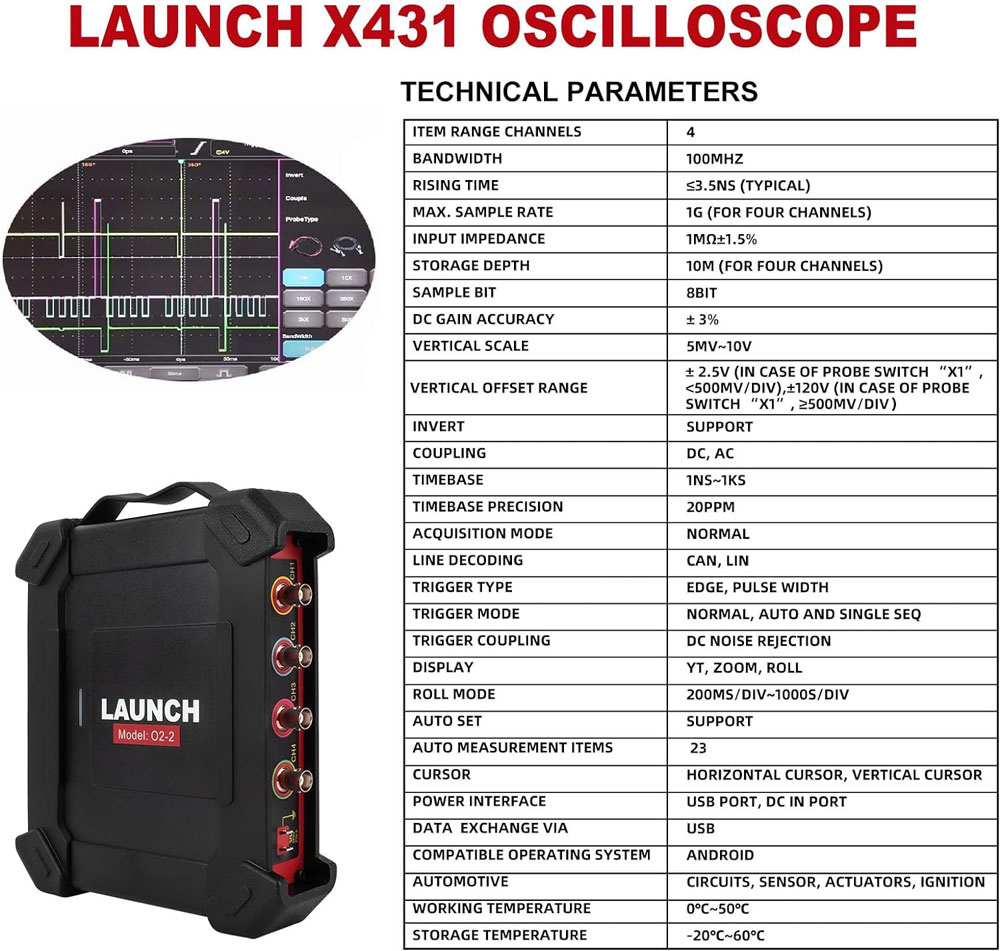

Channels | 4 |
Bandwidth | 100MHz |
Rising Time | 3.5ns (typical) |
Accuracy | ±3% |
Input Impedance | 1M ±1.5% |
Input Type | Single-ended, BNC Connector |
Input Coupling | DC, AC |
Overload Protection | ±200V on single input |
Timebase Ranges | 1ns~1ks (1 Channel) 1ns~1ks (2 Channels) 1ns~1ks (4 Channels) |
Vertical Resolution | 8bits |
Buffer Memory | 10M (for 4 Channels) |
Power Interface | USB port, DC IN port |
Data Exchange Via | USB |
Trigger Mode | Normal, Auto and Single SEQ |
Advanced Triggers | Edge, Pulse width |
20:1 attenuator
BNC test leads: 4 mm
Cable for alligator clips
Alligator clips
Secondary ignition starter
Multimeter probes
Rear probe pin assembly
USB cable
Model | O2-1 | O2-2 |
Channel | 4 | 4 |
Bandwith | 100MHz | 100MHz |
Rise Time | ≤3.5ns(typical) | ≤3.5ns |
Maximum sampling rate | 1Gbps(for four channels) | 1Gbps |
Input resistance | 1MΩ±1.5% | 1MΩ±1.5% |
Storage depth | 50M | 10M |
Number of sampling bits | 8bit | 8bit |
vertical accuracy | 3% | 3% |
Vertical gear | 5mV~10V | 5mV~10V |
Inverting | Support | Support |
Channel coupled | DC, AC | DC, AC |
Time base gear | 5ns~1ks | 1ns-1ks |
Time base accuracy | 20ppm | 20ppm |
Sampling mode | Normal | Normal |
CANBus decoding | CAN, LIN | CAN, LIN |
Trigger type | Edge, Pulse width | Edge, Pulse width |
Trigger mode | Normal, Auto and Single SEQ | Normal, Auto and Single SEQ |
Trigger coupling | DC, Noise rejection | DC, Noise rejection |
Math | Double waveFFT | Double waveFFT |
Display | YT、Zoom、Roll | YT、Zoom、Roll |
Roll mode | 200ms/div~1000s/div | 200ms/div~1000s/div |
Auto configuration | Support | Support |
Auto measurement | 23 | 23 |
Cursor | Horizontal cursor, Vertical cursor | Horizontal cursor, Vertical cursor |
Powered by | USB port, DC IN port | USB port, DC IN port |
Data transmission method | USB | USB |
Vehicle configuration options | Circuits, sensor, actuators, ignition | Circuits, sensor, actuators, ignition |
Operating temperature | 0℃~50℃ | 0℃~50℃ |
Power supply range | USB:5V/1A DC:12V/24V |
USB:5V/1A DC:12V/24V |
Compatibility | Different tablet resolutions require different APPs | One APP can be compatible with multiple tablet resolutions |
Multi-touch gestures | No | Supports 2-point touch, the waveform can be zoomed in or out vertically or horizontally |
Vehicle configuration | No | Each test project can support online help documentation (help documentation will be compiled according to needs later) |
Firmware upgrade | Manual upgrade | Support online upgrade |
Trigger | Waveform observation cannot be expanded during normal trigger waiting. | Can be used normally during normal trigger waiting. |
Demo function | No | Yes |
Split-screen | No | Yes |
Sampling rate | Single channel 1G/s, more than 2 channels only 250M/s | Single channel 1G/s, 2 channels 500M/s, multiple channels 250M/s |
Start time | 2-3S | about 16s |
Power consumption | about 6W | about 7.5W |
Different application scenarios require different connection methods (no matter which application scenario, the following connections are required):
First, power the oscilloscope box through the double-clip power cable: Connect one end of the double-clip power cable to the power interface of the oscilloscope box, and the other end to the vehicle battery to draw power (red is connected to the positive pole, black is connected to the negative pole).
Note: * PADVII series tablets support USB power supply.
2. Connect the Type B terminal of the USB cable to the Type B interface of the oscilloscope, and connect the other end to the USB interface of the diagnostic device.

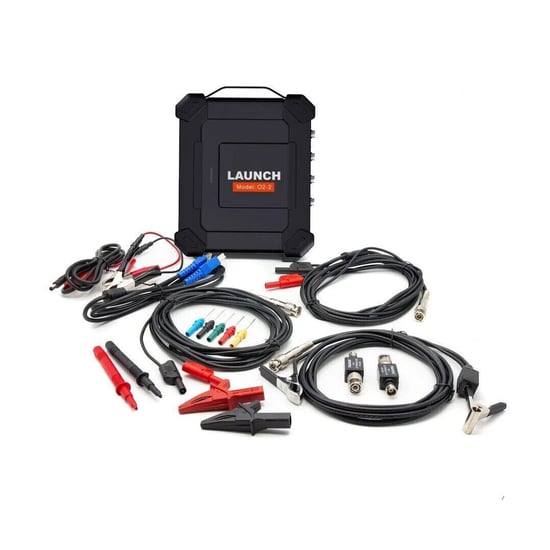

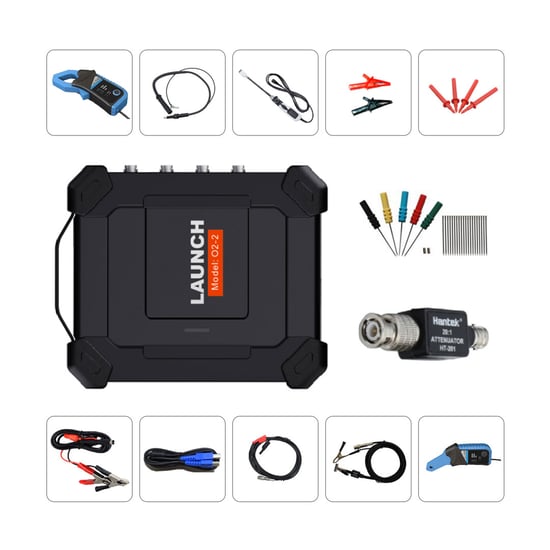

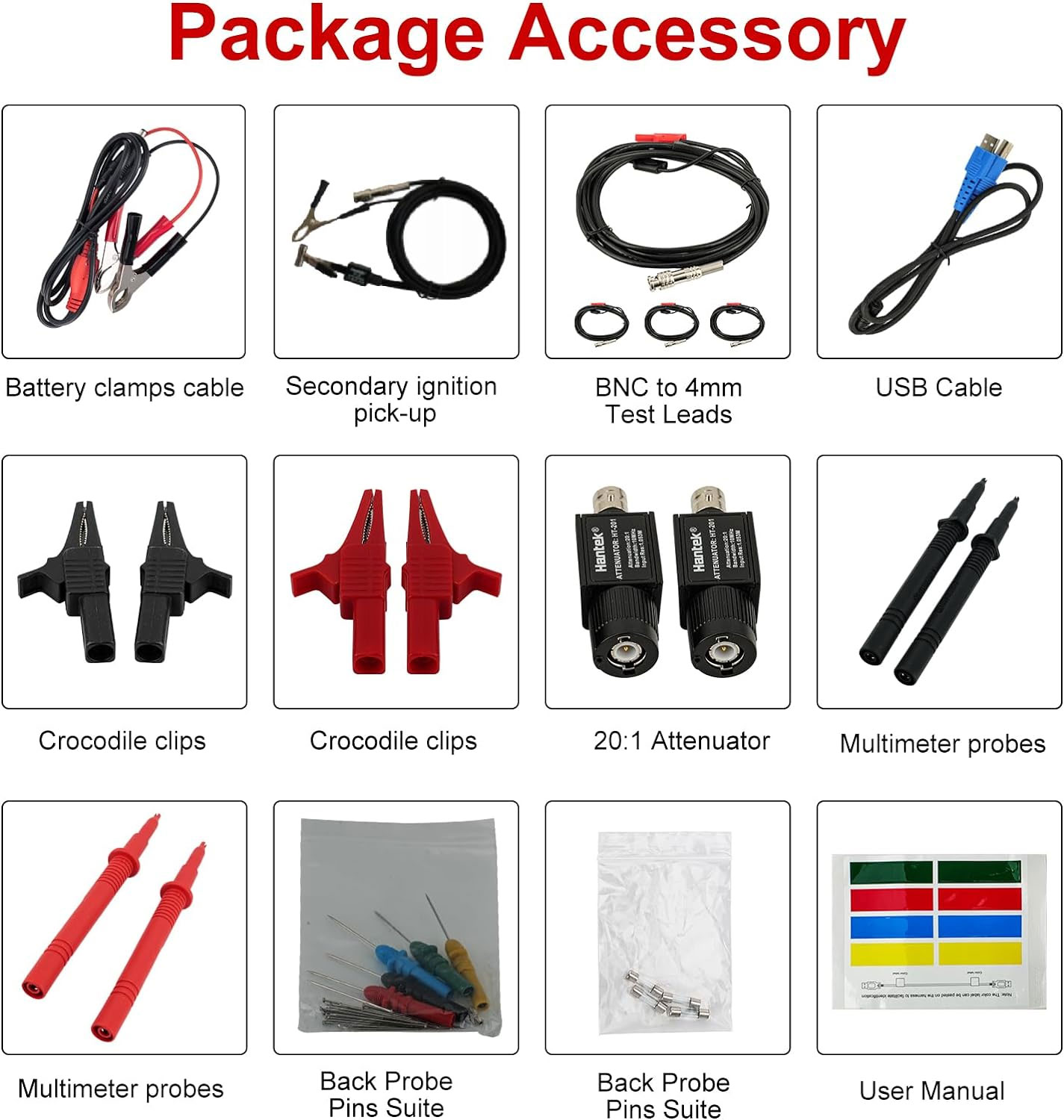

1pc x Launch O2-2 main unit
4pcs x HT 30 test lines
1pc x HT25 secondary ignition pick-up line
1pc x battery clip cable
1pc x USB cable
2pcs x HT201 attenuator
20pcs x piercing needles
2 pairs x multimeter probes
2 pairs x crocodile clips
5pcs x colored 4 female probes
4pcs x clipper fuses(5*20mm)
2pcs x screw head
1pc x user manual
1pc x color label
1pc x packing list
