OBDSTAR ISCAN Pro Mercruiser - Mercury Marine Scanner

OBDSTAR ISCAN Pro Mercruiser - Mercury Marine Scanner Description:

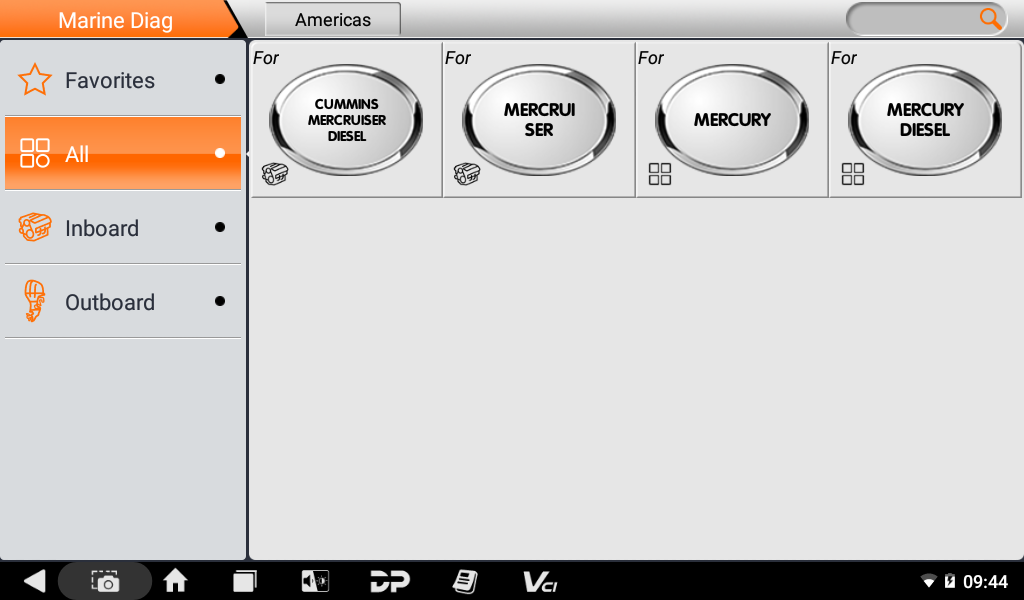

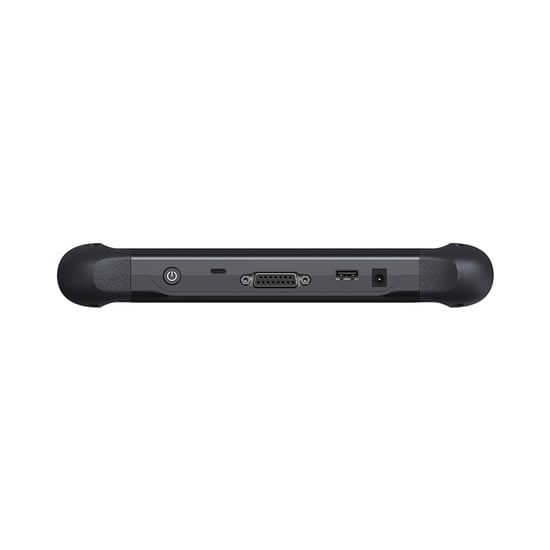

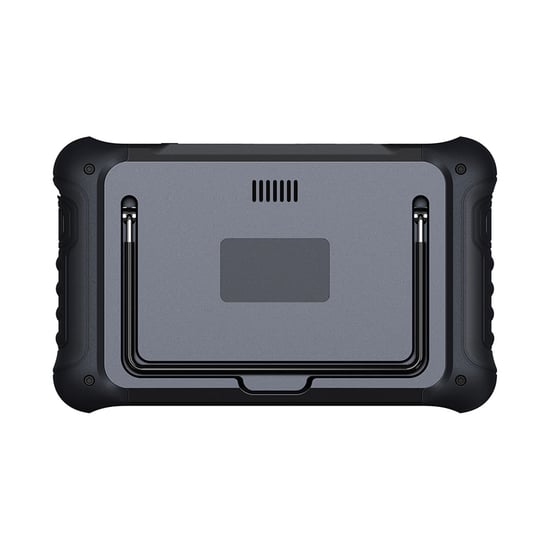

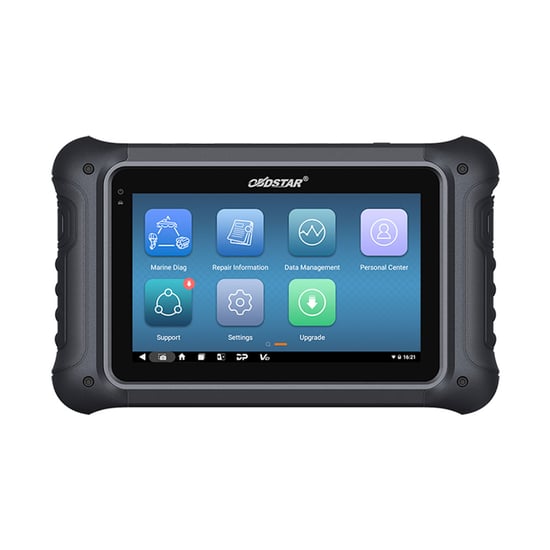

OBDSTAR ISCAN PRO MERCRUISER, MERCURY (MARINE) is a portable tablet which has super performance and industrial appearance design specialized for CUMMINS MERCRUISER DIESEL, MERCRUISER, MERCURY and MERCURY DIESEL. It is a new generation of intelligent marine diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 7.0-inch capacitive touch screen, brings customer professional diagnosis experience.

Diagnostic Tools From OBDSTAR with Product Number: MK25366
This Weight Product: 3950g

OBDSTAR ISCAN Pro Mercruiser - Mercury Marine Scanner User Manual

OBDSTAR ISCAN Pro Mercruiser - Mercury Marine Scanner Coverage

OBDSTAR ISCAN Pro Mercruiser - Mercury Marine Scanner Specifications:

Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	3700mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
Storage capacity	16GB
LCD	7.0 inch
LCD resolution	1024*600
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃55℃ (14℉131℉)
Storage temperature	-20℃70℃ (-4℉158℉)
Weight	About 0.766kg
Dimension	243mm148mm36mm

OBDSTAR ISCAN Pro Mercruiser - Mercury Marine Scanner Functions

1. Android 5.1.1 operation system;

2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;

4. Menu arbitrary selection is more convenient and quicker;

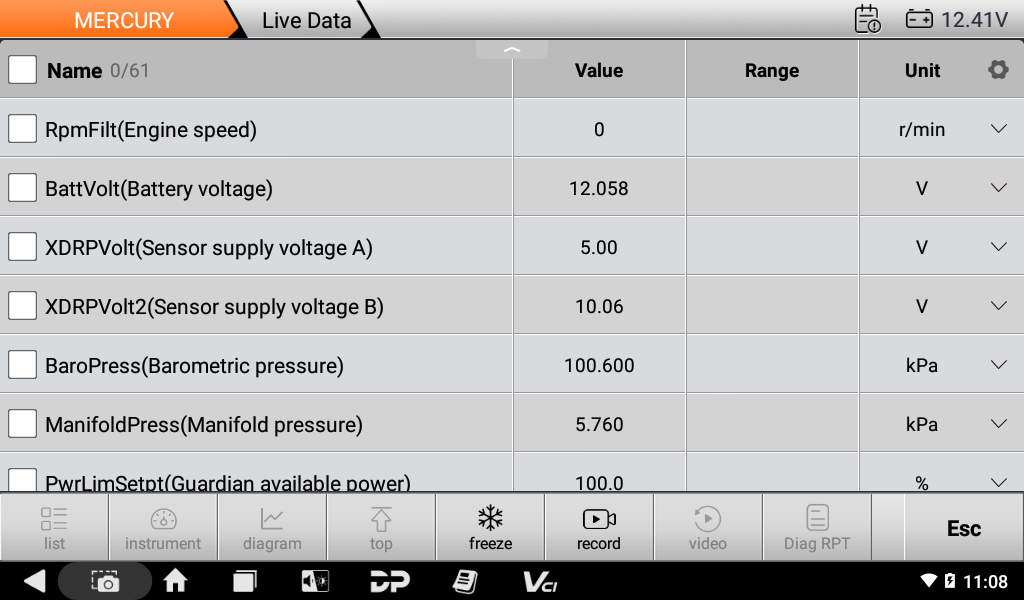

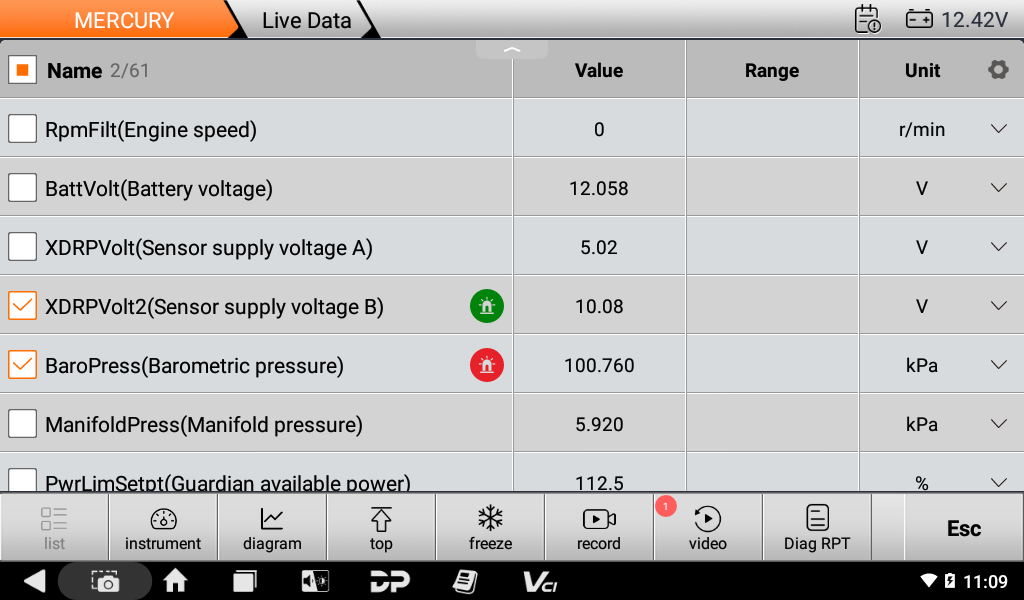

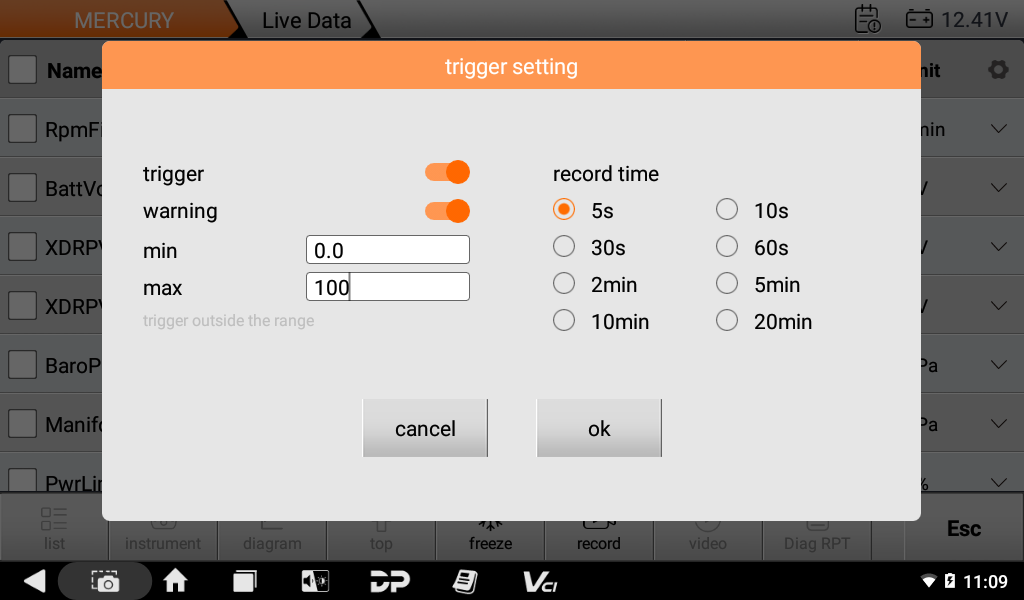

5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;

6. Wi-Fi connection to the internet, one-click software upgrade;

7. One-click remote function, OBDSTAR technical staff remote assistance.

OBDSTAR ISCAN Pro Mercruiser - Mercury Marine Scanner Advanced Function

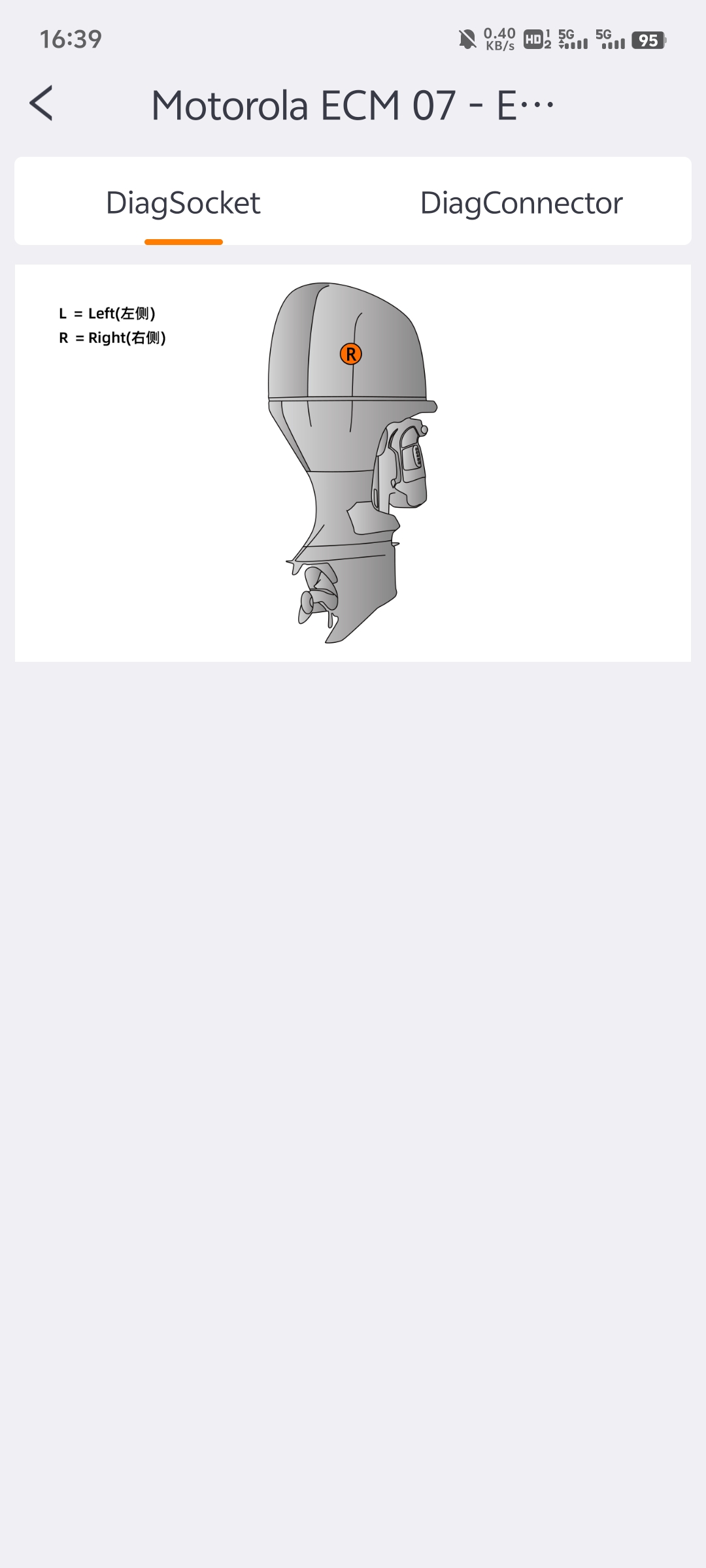

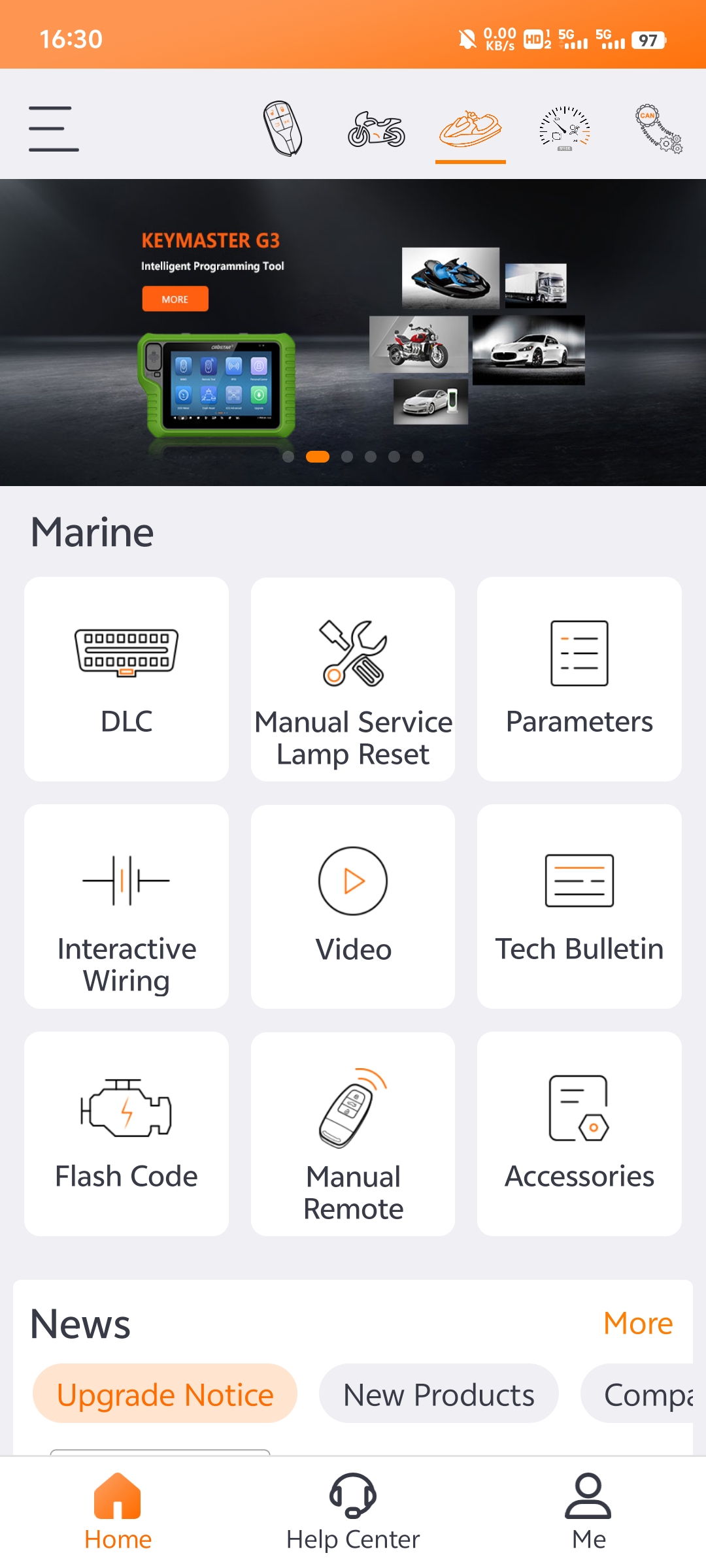

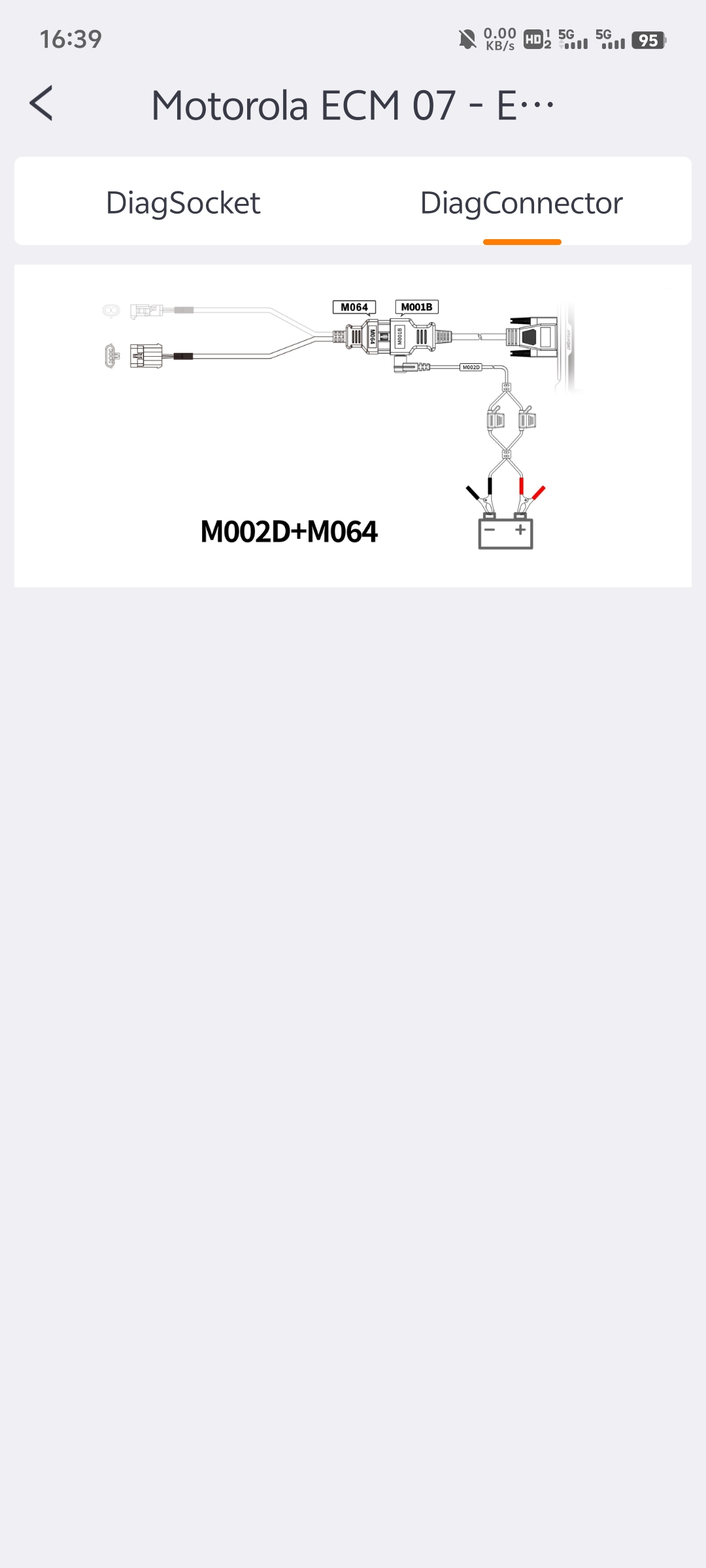

1. The OBDSTAR mobile APP integrates functions such as diag socket location, technical bulletin etc., working with ISCAN PRO to make marine diagnosis more accurately and efficiently;

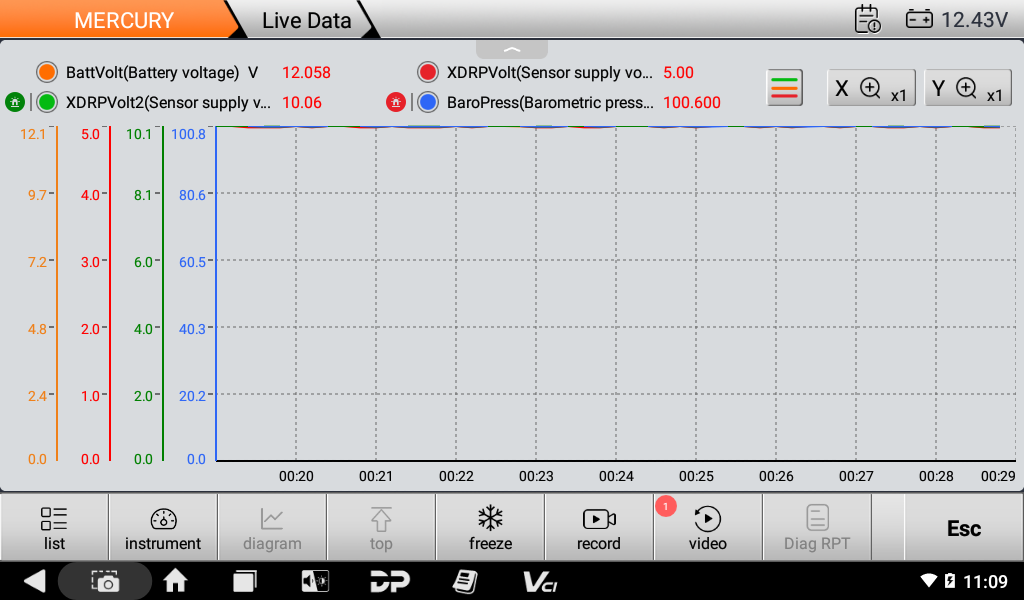

2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to analyze faults easily;

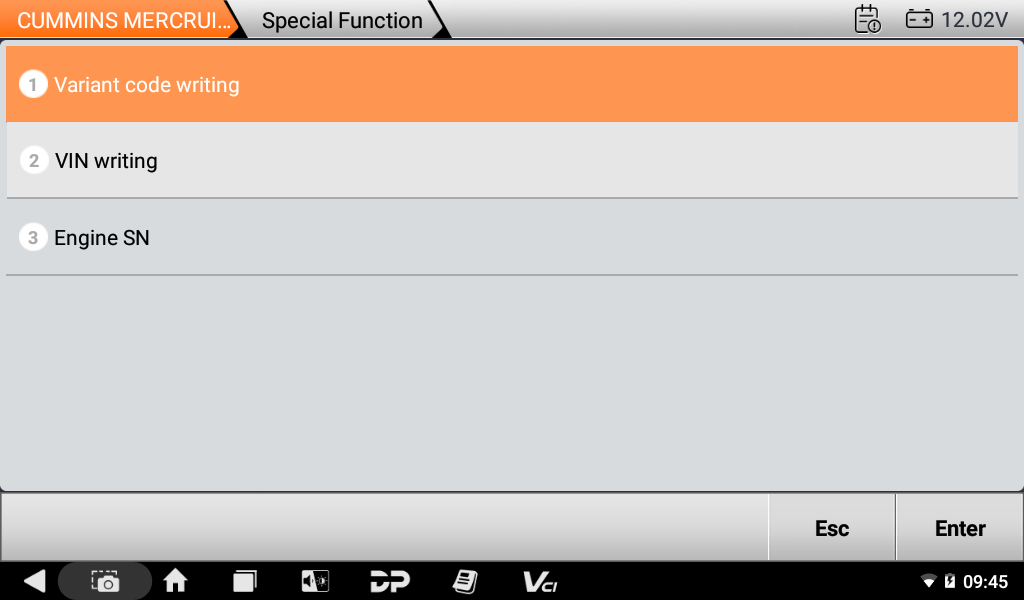

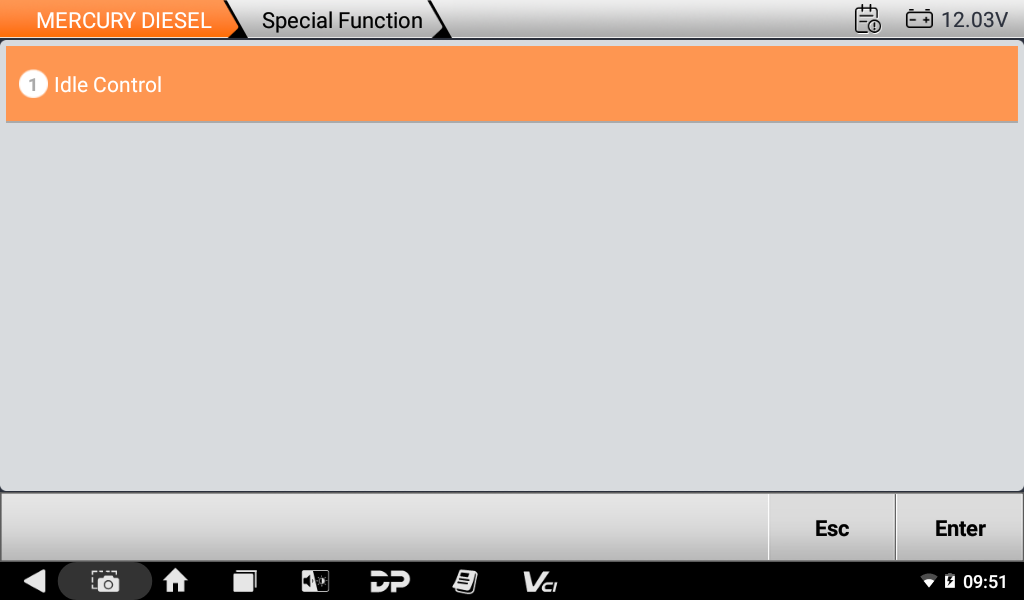

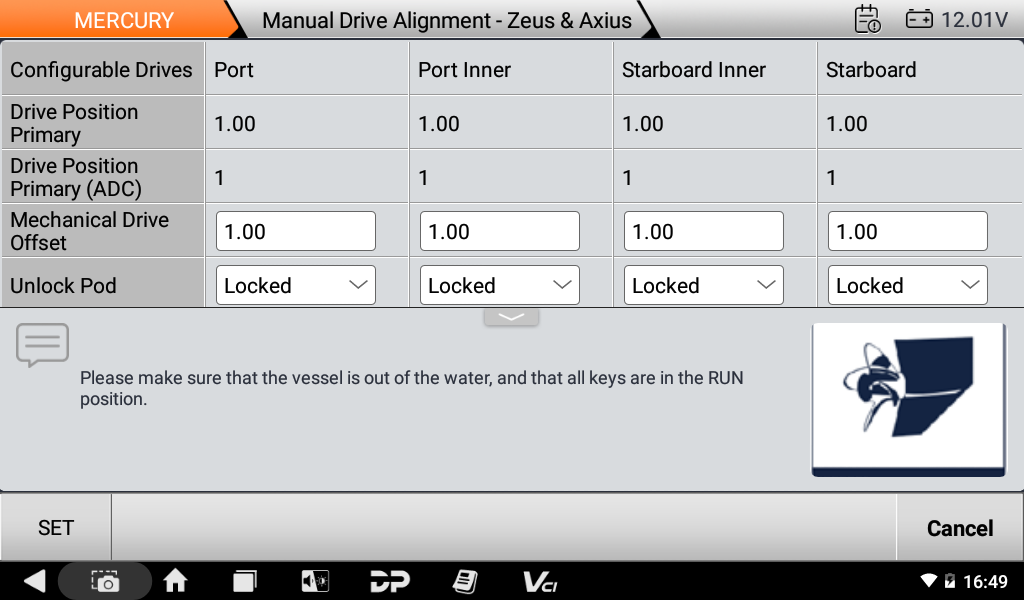

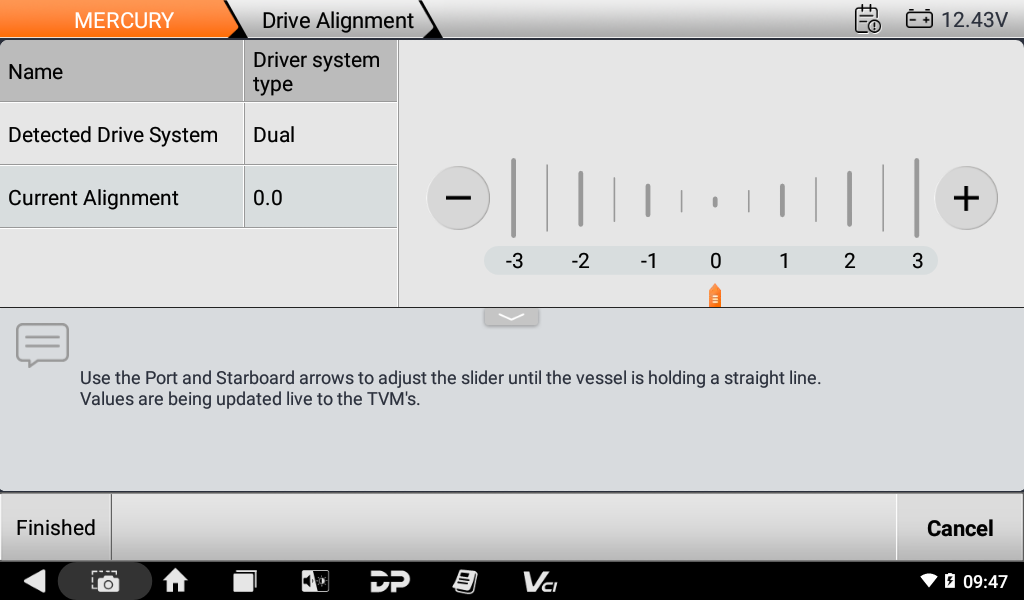

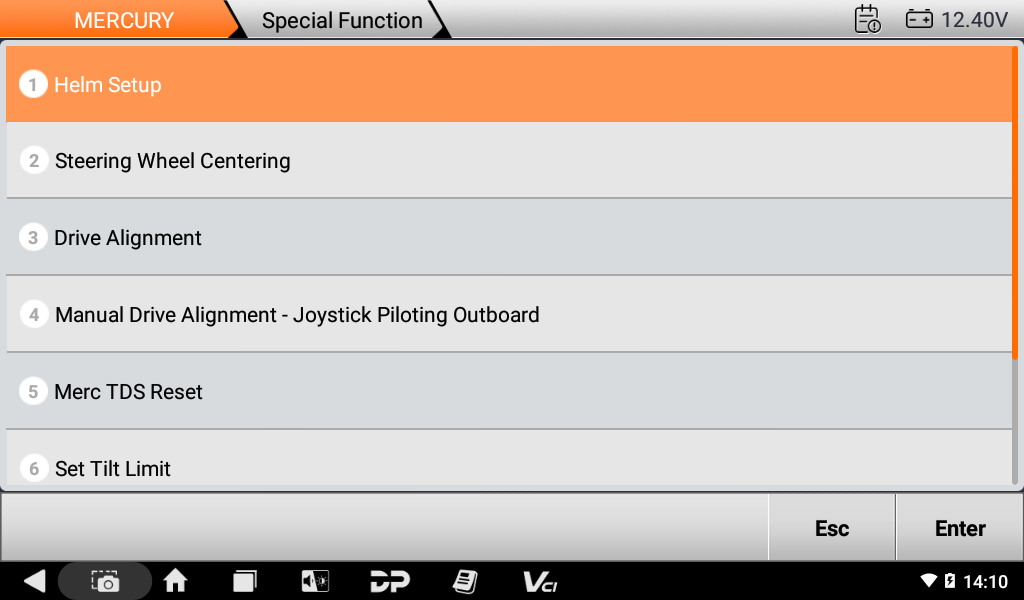

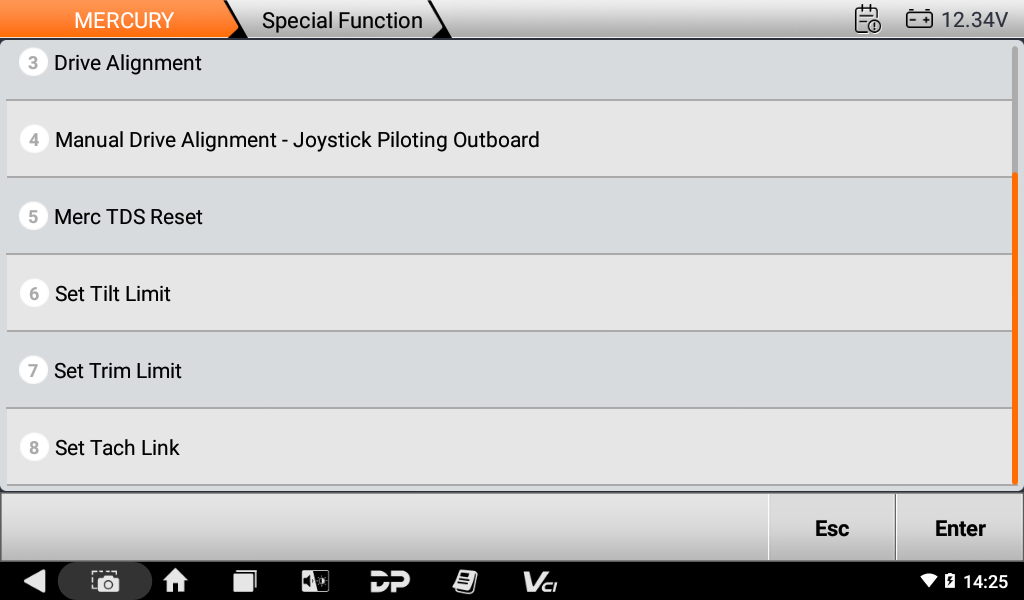

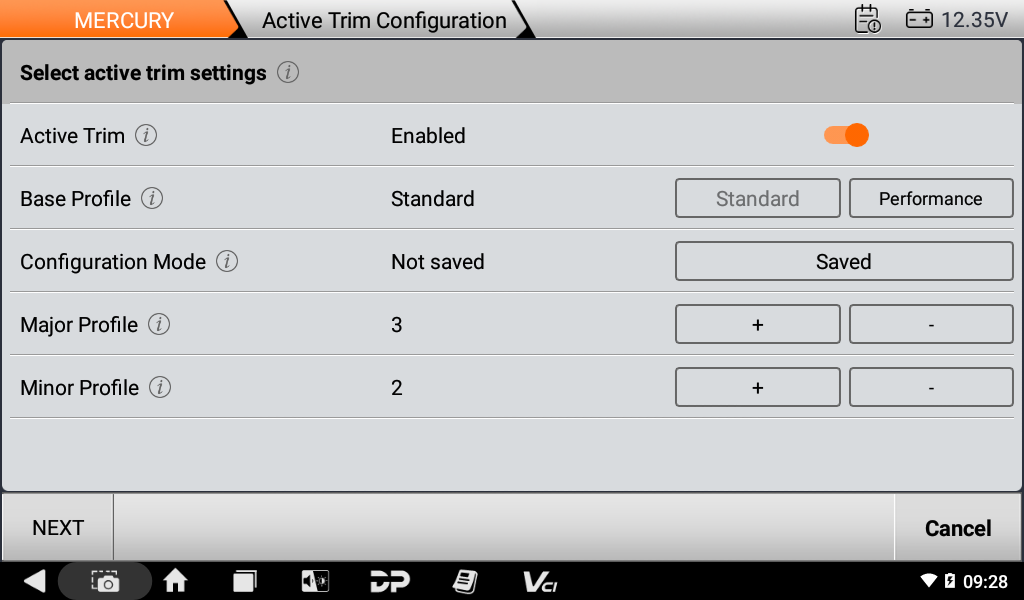

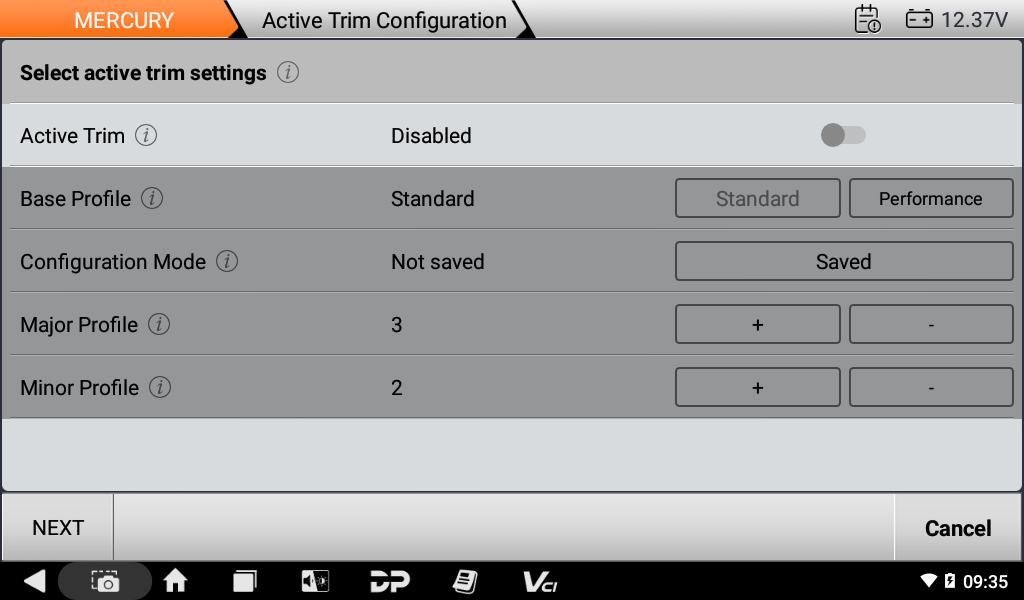

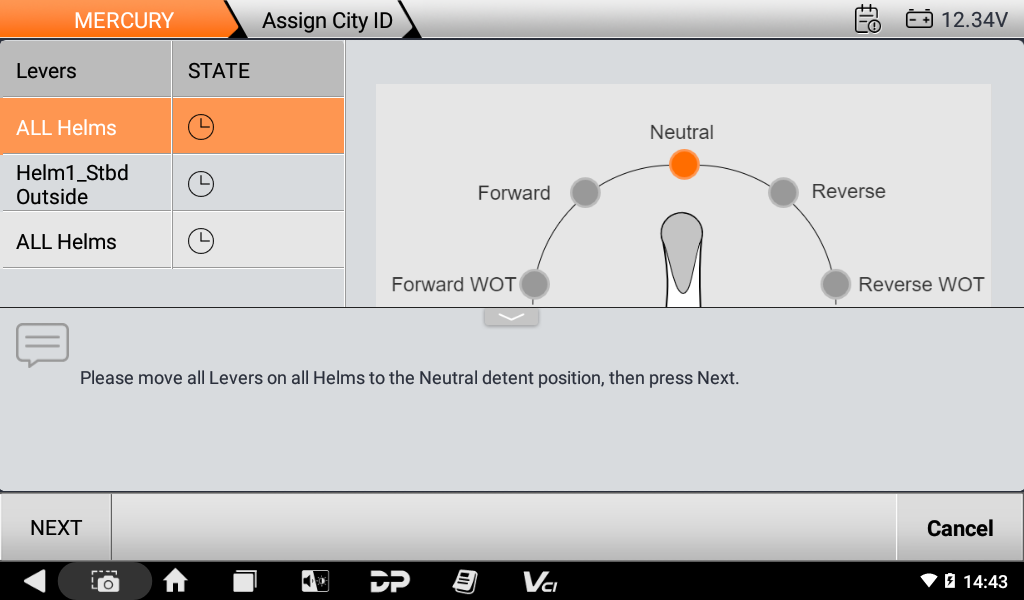

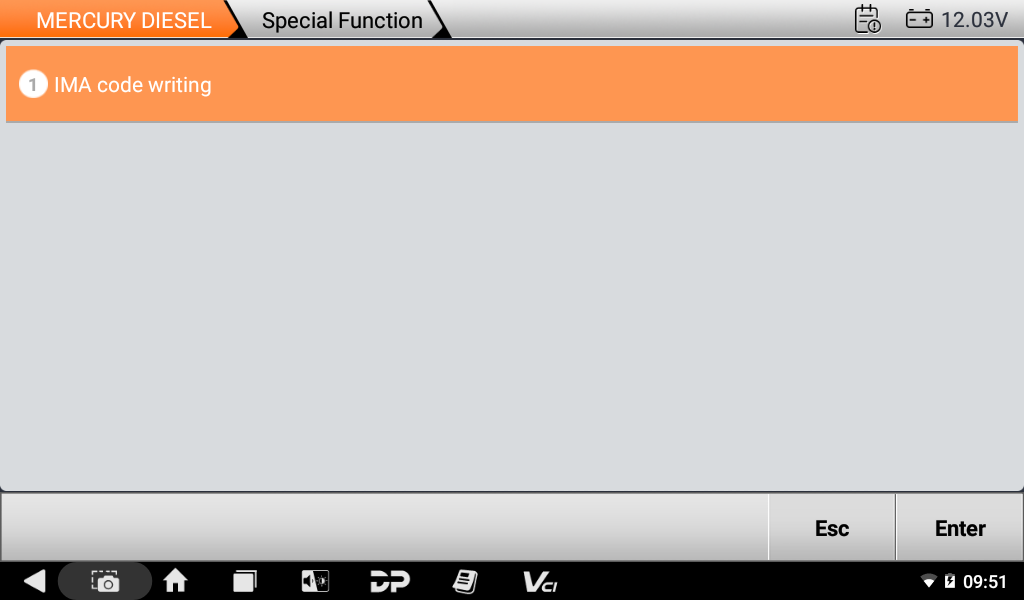

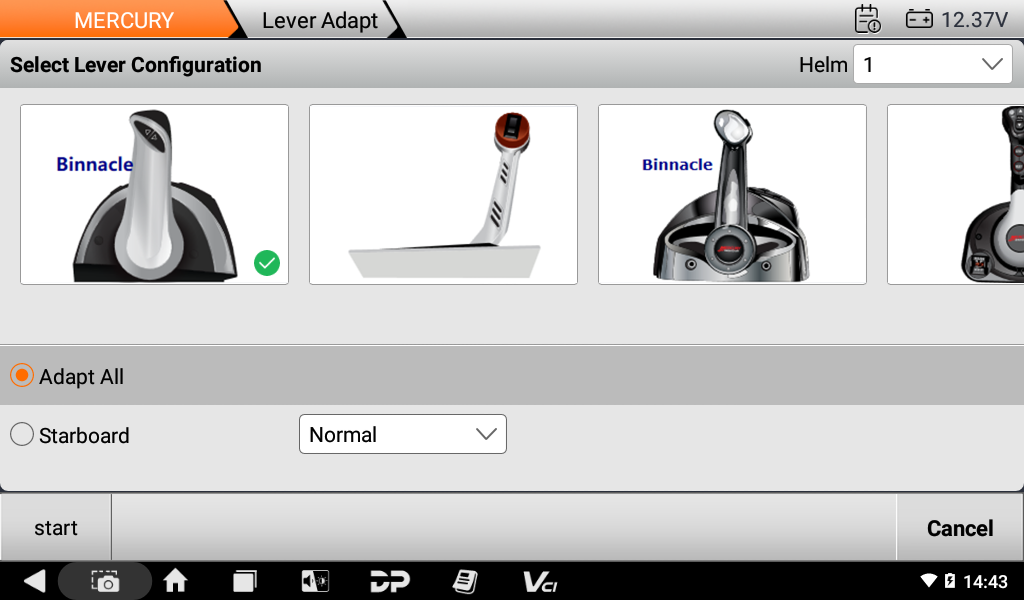

3. Support Helm Setup, Compass Configuration, Steering Wheel Centering, Auxiliary Joystick Configuration, Wheel Setup, Joystick Setup, Trackpad Configuration, Active Trim GPS Configuration, Drive Initialization, Drive Alignment, Manual Drive Alignment, Zeus_And_Axius, Joystick_Piloting_Outboard, Merc_Tds_Reset, Set Tilt Limit, Set Trim Limit, Set_Engine_Location, Set_Tach_Link, Active_Trim_Configuration, Maintenance, SMUX Configuration, Autopilot Configuration, Trackpad Configuration, Transmission Characteristics, Confirm Vessel Harnessing, Fathom II Enable, Tiller Adapt, Steering System to DTS and other special functions.

4. Support DC24V input.

OBDSTAR ISCAN Pro Mercruiser - Mercury Marine Scanner Diagnostic support series

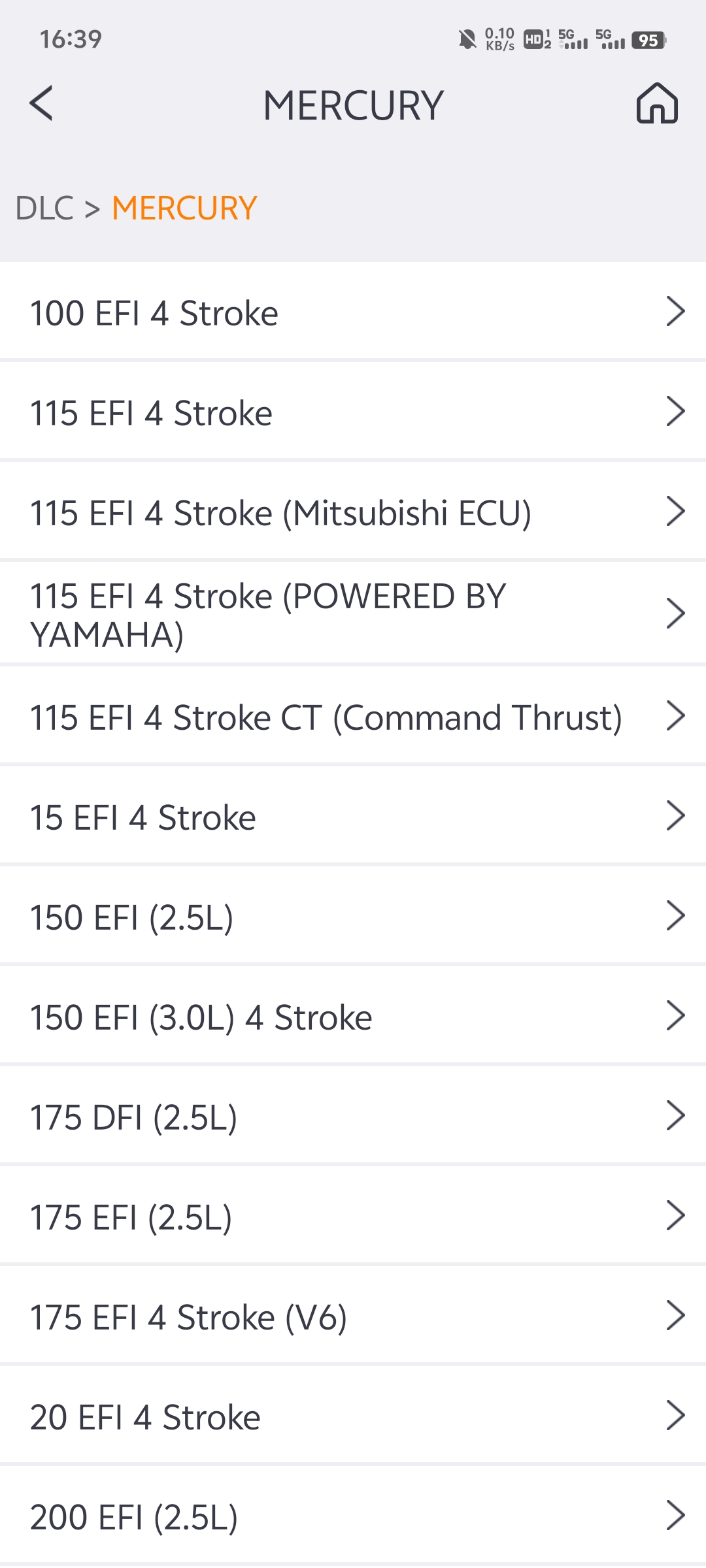

1. Support all models in G3, CUMMINS MERCRUISER DIESEL, MERCRUISER and MERCURY DIESEL, including DFI 2, Optimax, Seapro, Verado, 40HP-300HP, 100 VAZER - 4 IN LINE, 2.8L D-TRONIC, 3.0 MPI ECT, 350 MAG MPI, 350 MAG MPI DTS MCM, 350 MAG MPI DTS MIE, 350 MAG MPI MCM, 350 MAG MPI MIE, 350 MAG TBI, 377 MAG MPI, 4.2L D-TRONIC, 4.3L MPI MCM, 4.3L TBI, 4.5L, 4.5L MPI MCM, 454 MAG MPI MCM, 454 MAG MPI MIE, 454 TBI, 496 MAG, 496 MAG DTS, 496 MAG HO, 496 MAG HO DTS, 5.0L MPI, 5.0L MPI DTS MCM, 5.0L MPI DTS MIE, 5.0L MPI MCM, 5.0L TBI, 5.7L MPI, 5.7L MPI Horizon, 5.7L MPI Tow Sport, 5.7L TBI MCM, 5.7L TBI MIE, 5.7L TBI REPOWER PLUS, 502 MAG MPI, 6.2L, 6.2L MPI, 6.2L MPI DTS MCM, 6.2L MPI DTS MIE, 6.2L MPI Horizon, 6.2L MPI MCM, 6.2L MPI MIE, 7.4L, 7.4L MPI, 7.4L TBI, 8.1L, 8.1L DTS, 8.1L HO, 8.1L HO DTS, 8.2L HO MPI, 8.2L MAG HO MPI, 8.2L MAG MPI, 8.2L MPI Horizon, 8.2L MPI MIE, BLACK SCORPION (5.7L), BLACK SCORPION (6.2L), Scorpion 350, Scorpion 377, 3.0L V6 (POWERED BY FPT), V10, V12, 6.7 L (POWERED BY FPT), MD 2.0-115, MD 2.0-130, MD 2.0-150, MD 2.0-170, MD 2.8-220, MD 4.2-270, MD 4.2-320, MD 4.2-350, QSD 2.0-115, QSD 2.0-130, QSD 2.0-150, QSD 2.0-170, QSD 2.8-220, QSD 4.2-270, QSD 4.2-320, QSD 4.2-350, TDI 3.0-230 (POWERED BY VW), TDI 3.0-260 (POWERED BY VW), TDI 4.2-335 (POWERED BY VW), TDI 4.2-370 (POWERED BY VW), QSD 2.0-115, QSD 2.0-130, QSD 2.0-150, QSD 2.0-170, QSD 2.8-220, QSD 4.2-270, QSD 4.2-320, QSD 4.2-350 Engines and other models;

2. The support modules include but no limited to Engines (DIESEL and Gasoline), Joystick, Lever and Helm Control Module, Lever Configuration, Service System, Thrust Vector Control Module, Injection system integration module and other modules
