Name: OBDSTAR ISCAN Pro Volvo Marine Scanner
Brand: OBDSTAR
SKU: MK25365
Price: 999 USD
Availability: InStock

OBDSTAR ISCAN Pro Volvo Marine Scanner

Write Review

$999.00 (€959.04)

Product Code:	MK25365
Categories	Diagnostic Tools
Manufacturer	OBDSTAR

In Stock

New Arrival

Product Specifications

Manufacturer	OBDSTAR
Condition	New
Weight	3250 g

OBDSTAR ISCAN Pro Volvo Marine Scanner

OBDSTAR ISCAN Pro Volvo Marine Scanner Description:

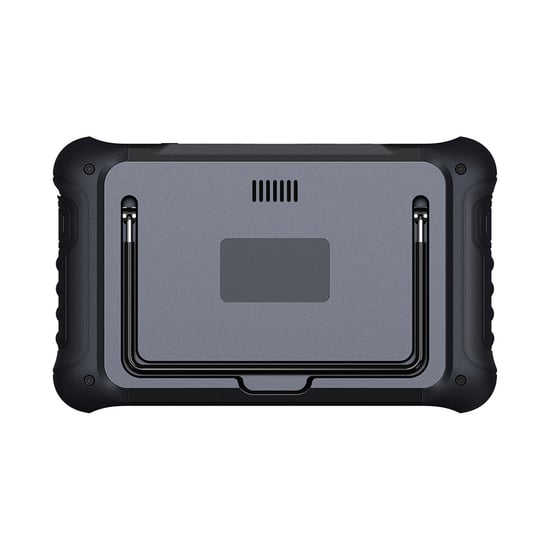

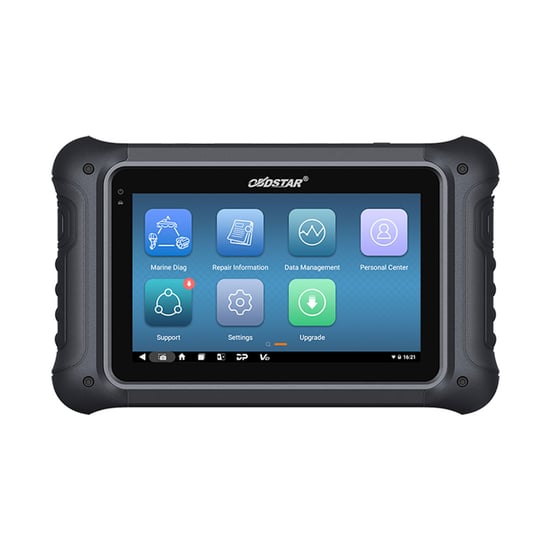

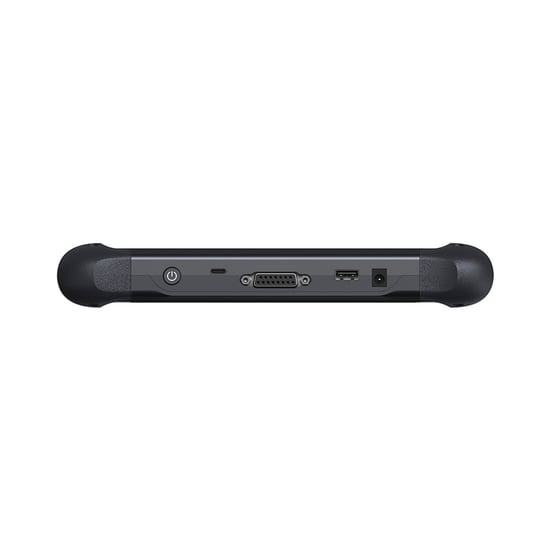

OBDSTAR ISCAN PRO VOLVO (MARINE) is a portable tablet which has super performance and industrial appearance design specialized for VOLVO. It is a new generation of intelligent marine diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 7.0-inch capacitive touch screen, brings customer professional diagnosis experience.

Diagnostic Tools From OBDSTAR with Product Number: MK25365
This Weight Product: 3250g

OBDSTAR ISCAN Pro Volvo Marine Scanner User Manual

OBDSTAR ISCAN Pro Volvo Marine Scanner Coverage

OBDSTAR ISCAN Pro Volvo Marine Scanner Specifications:

Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	3700mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
Storage capacity	16GB
LCD	7.0 inch
LCD resolution	1024*600
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃55℃ (14℉131℉)
Storage temperature	-20℃70℃ (-4℉158℉)
Weight	About 0.766kg
Dimension	243mm148mm36mm

OBDSTAR ISCAN Pro Volvo Marine Scanner Functions

1. Android 5.1.1 operation system;

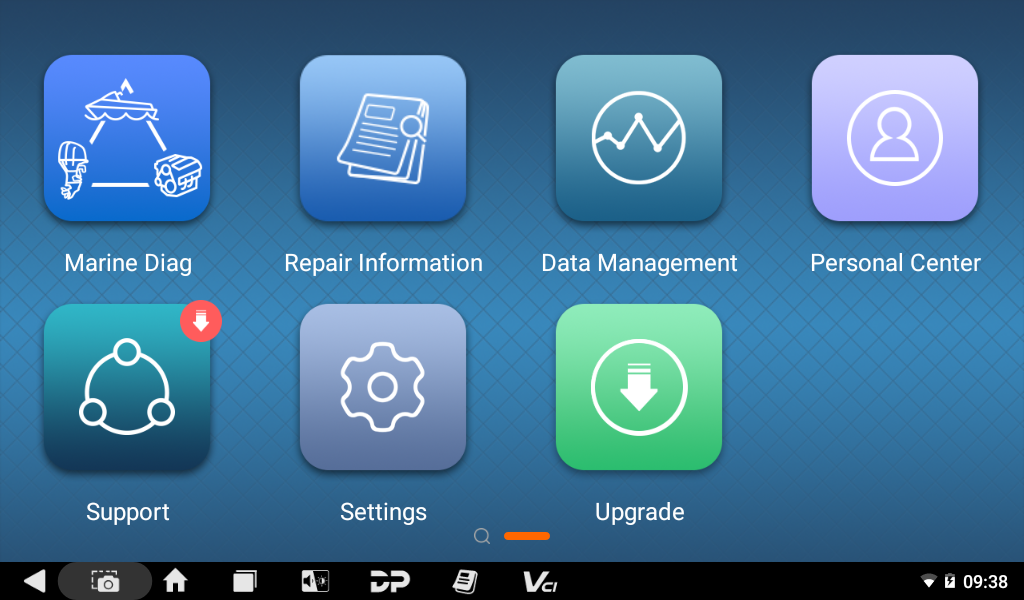

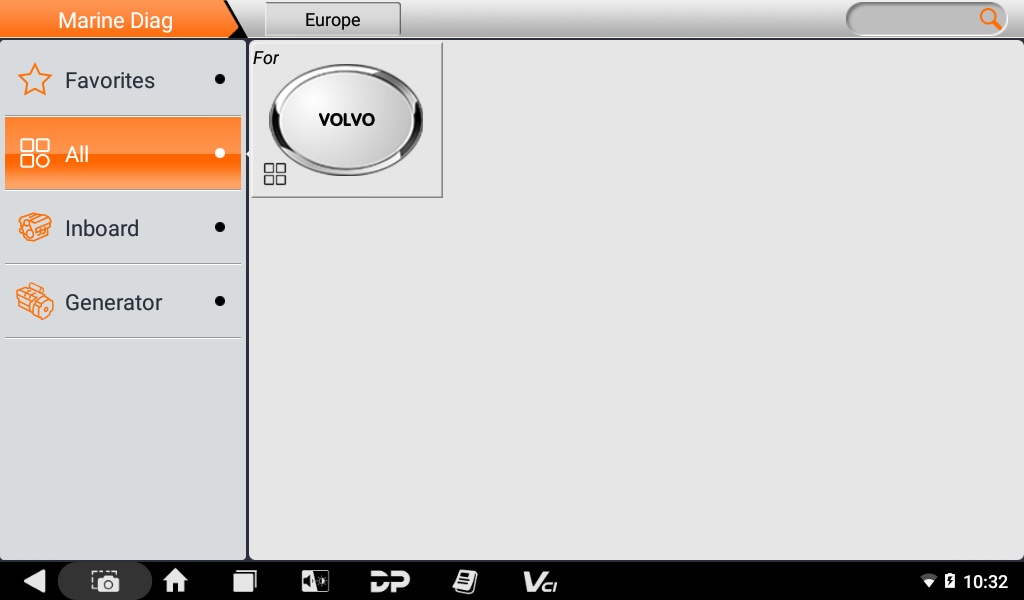

2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;

4. Menu arbitrary selection is more convenient and quicker;

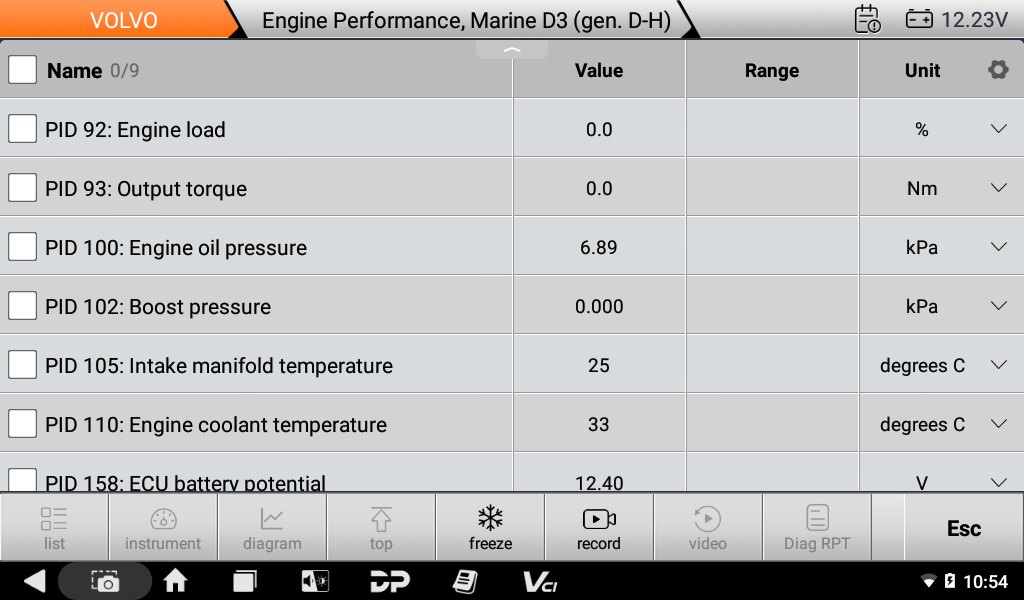

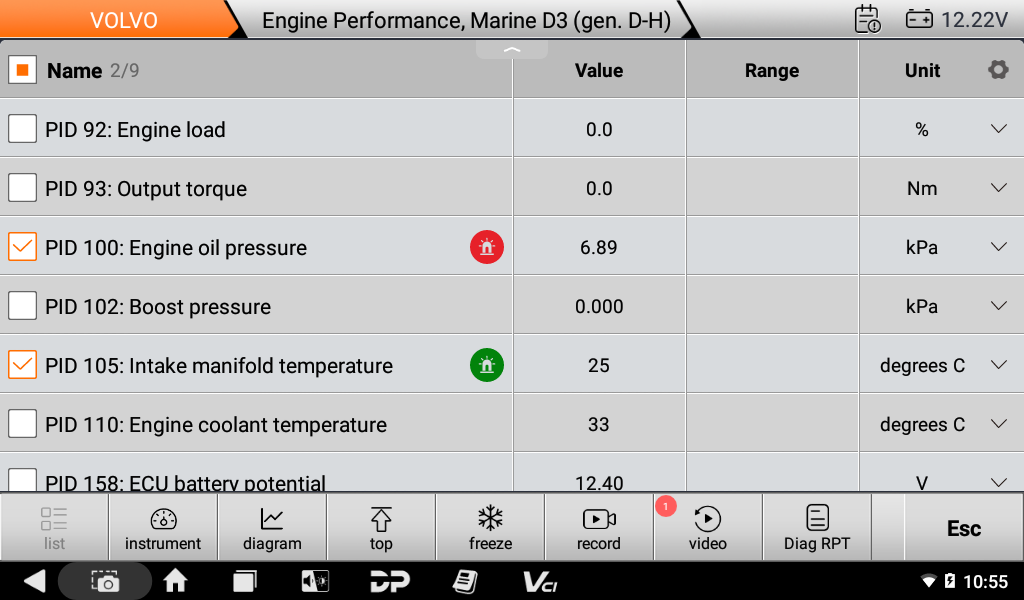

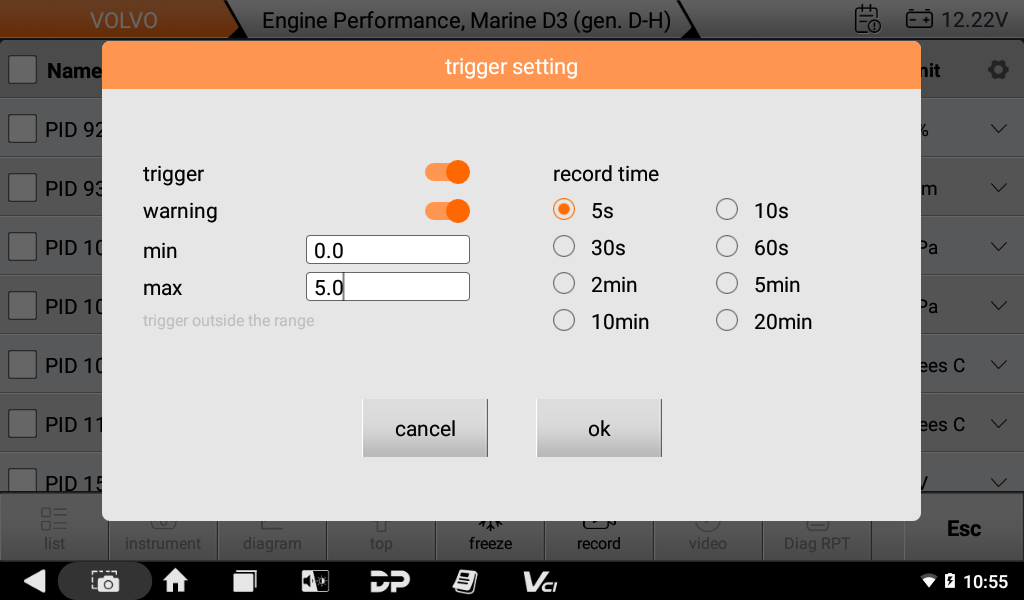

5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;

6. Wi-Fi connection to the internet, one-click software upgrade;

7. One-click remote function, OBDSTAR technical staff remote assistance.

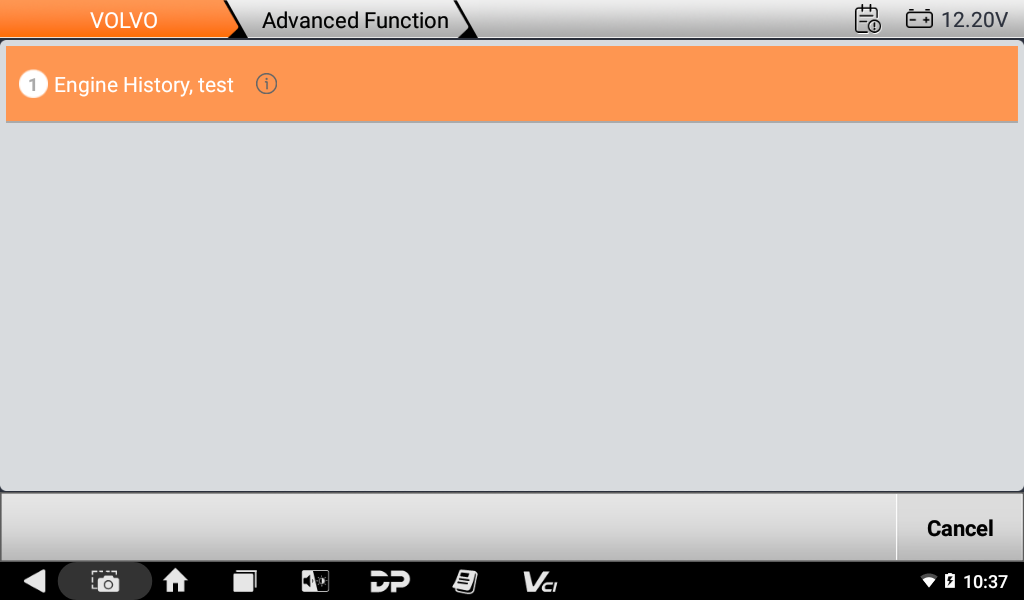

OBDSTAR ISCAN Pro Volvo Marine Scanner Advanced Function

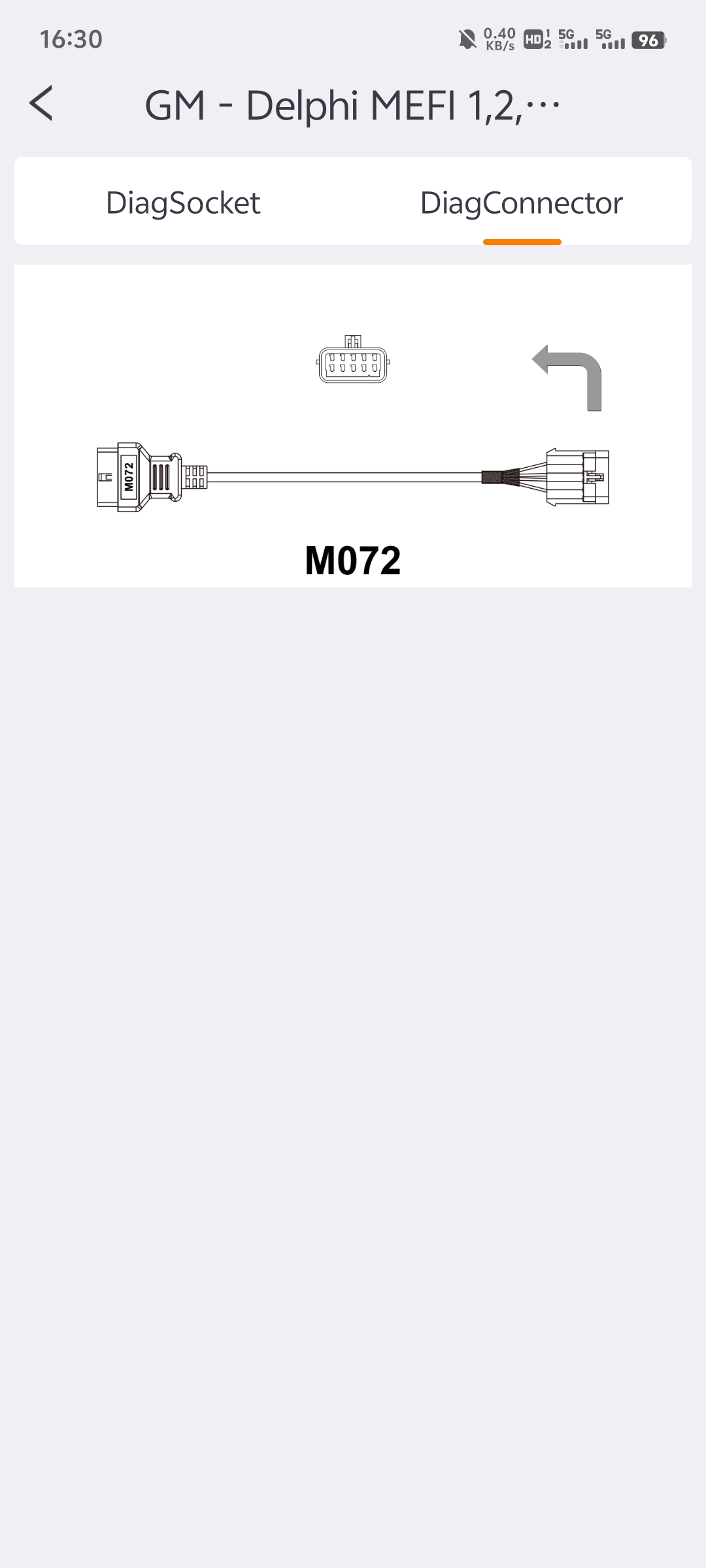

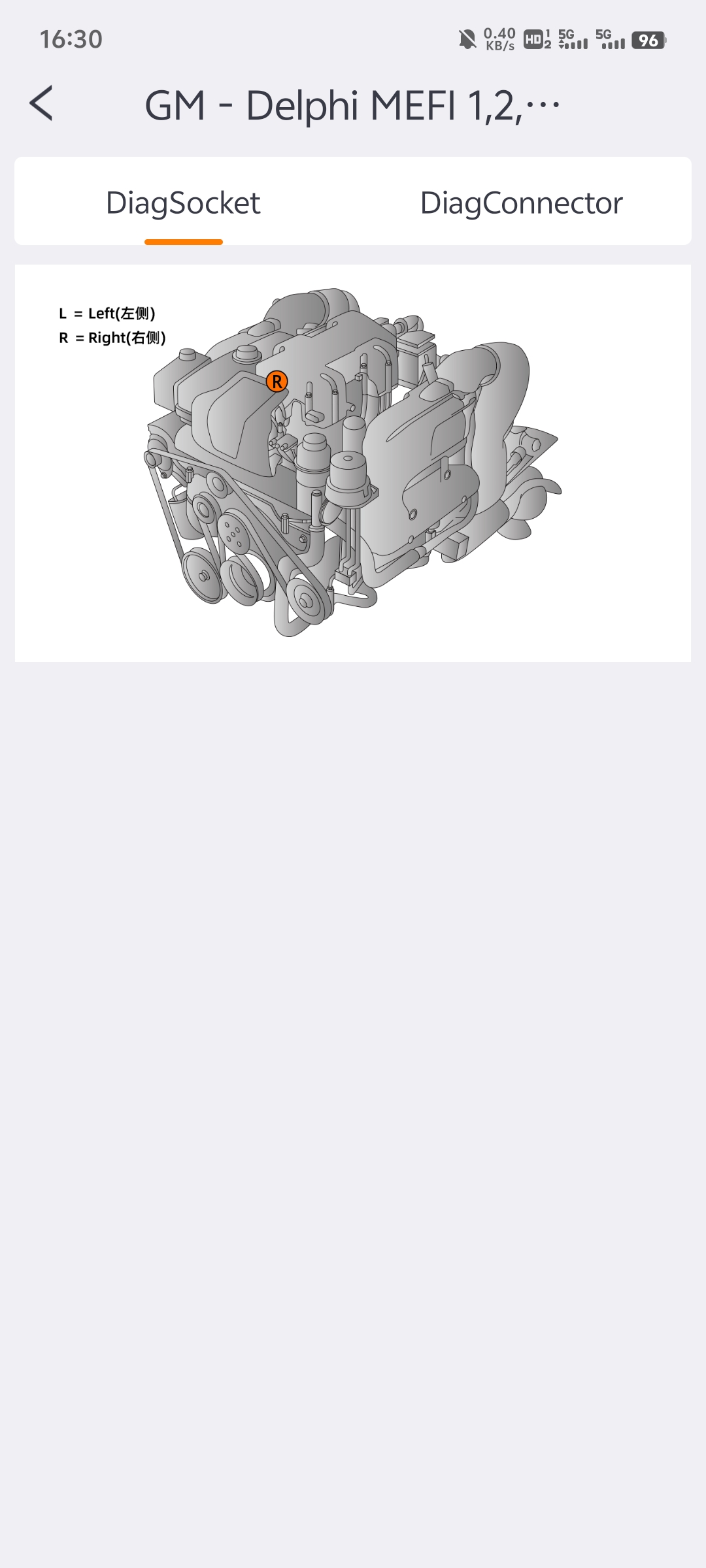

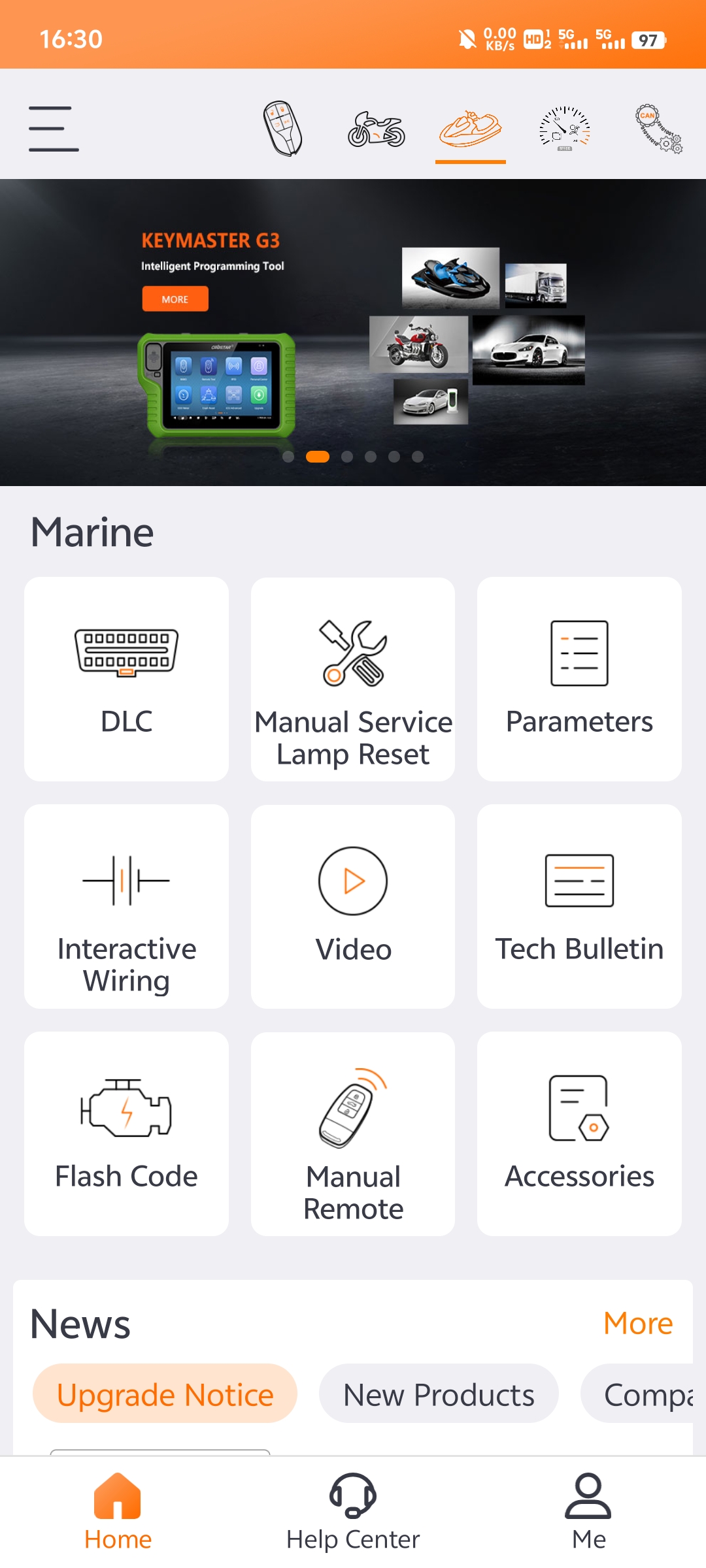

1. The OBDSTAR mobile APP integrates functions such as diag socket location, technical bulletin etc., working with ISCAN PRO to make marine diagnosis more accurately and efficiently;

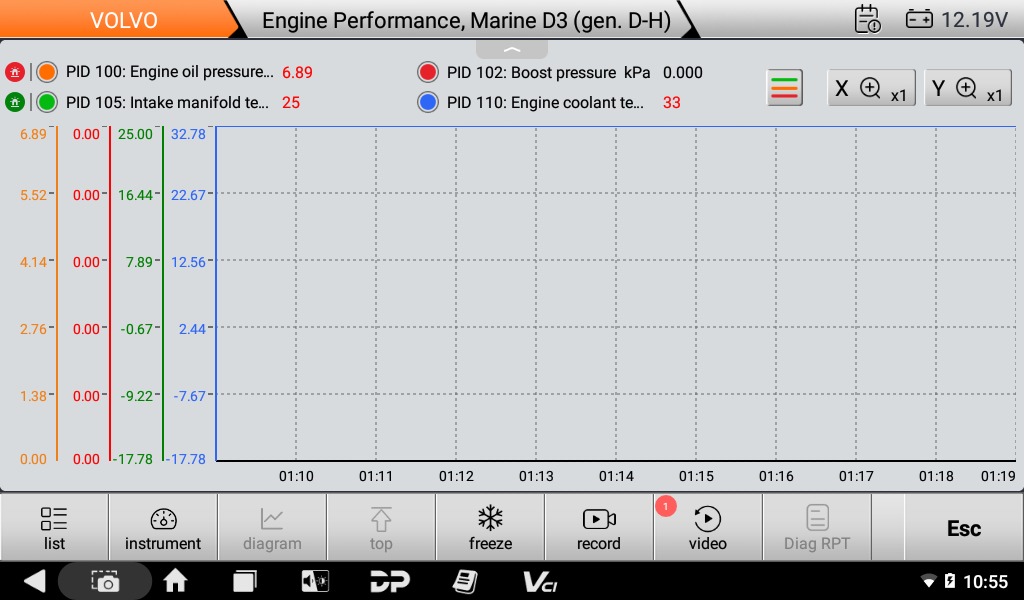

2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to analyze faults easily;

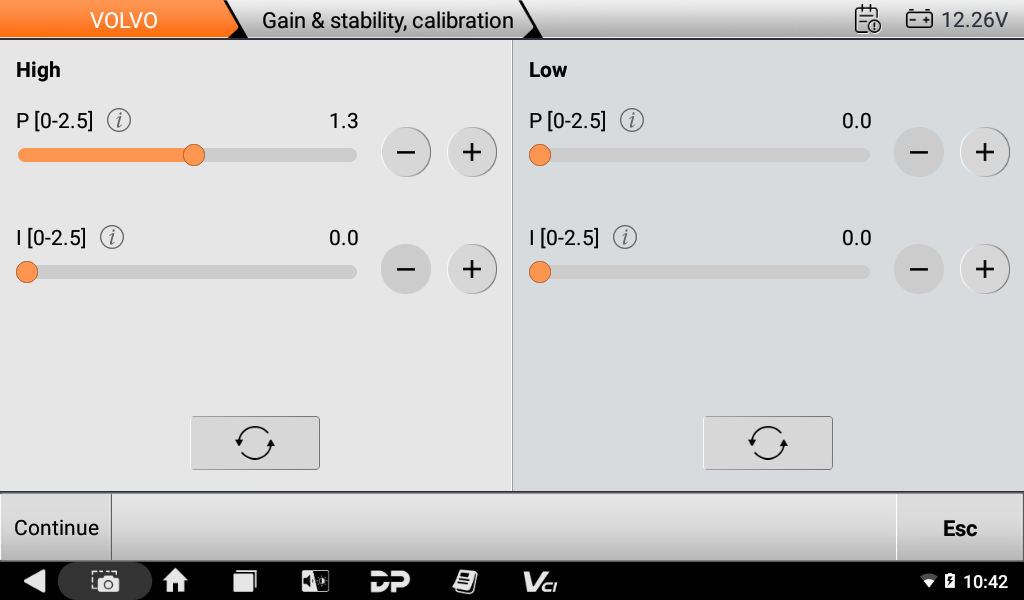

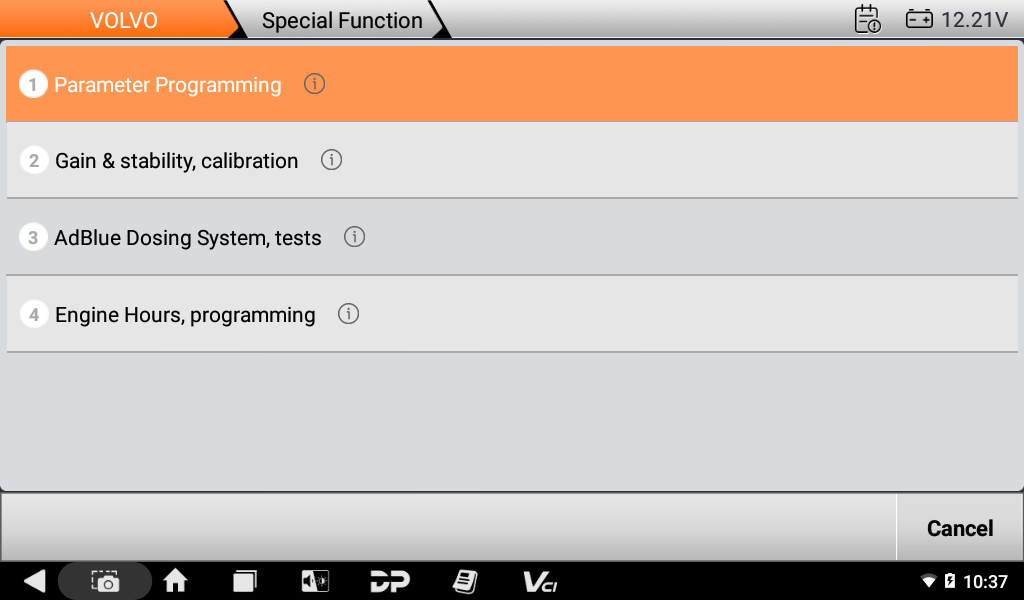

3. Support Parameter Programming, Station Configuration, Gain and Stability Calibration, ACP History test, Engine hours programming 1, Engine hours programming 2, Engine hours programming 3, Engine hours programming 4, AdBlue Dosing System tests, Engine Run-up test, Injectors shut off manual 1, Injectors shut off manual 2, Spark shut off test, Fuel pump relay test, Idle Air Control reset test, Throttle activation test, Cylinder Compression mode, Injector control test, Idle speed control test, Spark Fire test, O2 sensor test, Misfire reset test and other special functions.

4. Support DC24V input.
