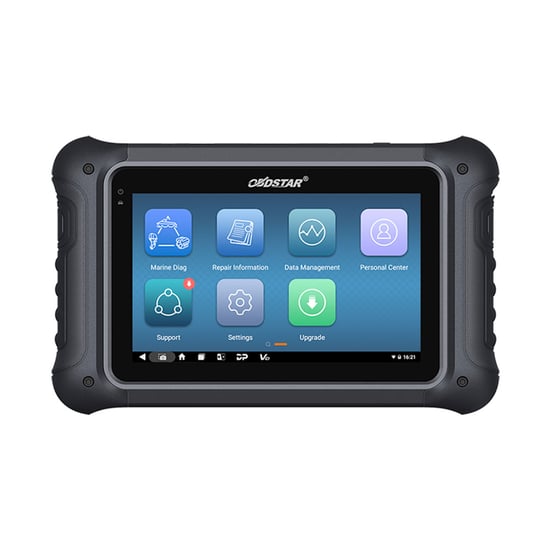

OBDSTAR ISCAN Pro YANMAR Marine Scanner
Product Description:

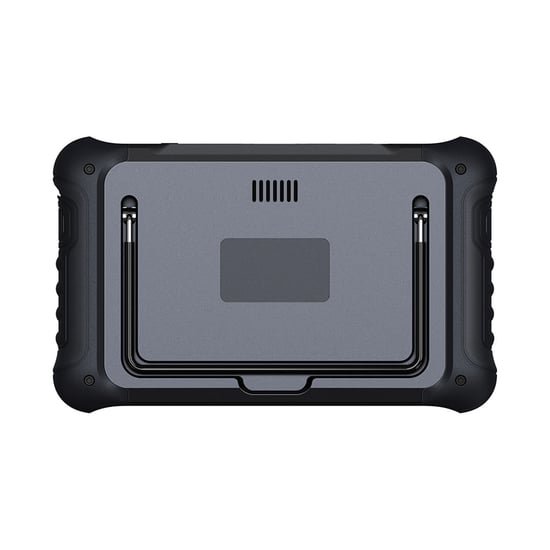

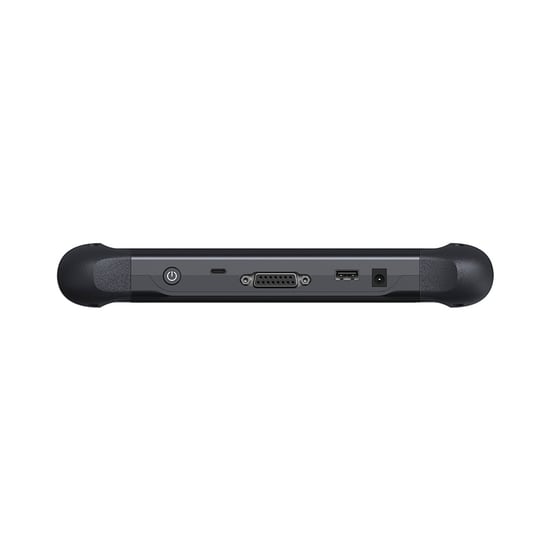

OBDSTAR ISCAN PRO YANMAR (MARINE) is a portable tablet which has super performance and industrial appearance design specialized for YANMAR. It is a new generation of intelligent marine diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 7.0-inch capacitive touch screen, brings customer professional diagnosis experience.
Diagnostic Tools From OBDSTAR with Product Number: MK25368
This Weight Product: 3400g
OBDSTAR ISCAN Pro YANMAR Marine Scanner User Manual
OBDSTAR ISCAN Pro YANMAR Marine Scanner Coverage
OBDSTAR ISCAN Pro YANMAR Marine Scanner Specifications:
|
Operation system
|
Android 5.1.1
|
|
CPU
|
RK3128 quad-core ARM cortex A7
|
|
Battery
|
3700mA, rechargeable polymer lithium battery
|
|
Extension memory card
|
32G micro SD (TF) card supported
|
|
Storage capacity
|
16GB
|
|
LCD
|
7.0 inch
|
|
LCD resolution
|
1024*600
|
|
Touch screen
|
Capacitive touch screen
|
| Wifi |
Supported |
|
Working temperature
|
-20℃55℃ (14℉131℉)
|
|
Storage temperature
|
-20℃70℃ (-4℉158℉)
|
|
Weight
|
About 0.766kg
|
|
Dimension
|
243mm*148mm*36mm |
OBDSTAR ISCAN Pro YANMAR Marine Scanner Functions
1. Android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.
OBDSTAR ISCAN Pro YANMAR Marine Scanner Advanced Function
1. The OBDSTAR mobile APP integrates functions such as diag socket location, technical bulletin etc., working with ISCAN PRO to make marine diagnosis more accurately and efficiently;
2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to analyze faults easily;
3. Support Service Reset, Idle Control and other special functions.
4. Support DC24V input.
OBDSTAR ISCAN Pro YANMAR Marine Scanner Diagnostic support series
Support 4BY2-150/150Z, 4BY2-180/180Z, 4BY3-150/150Z, 4BY3-180/180Z, 4JH110, 4JH45, 4JH57, 4JH80, 4LV150, 4LV170, 4LV195, 4LV230, 4LV250, 6BY2-220/220Z, 6BY2-260/260Z, 6BY3-220/220Z, 6BY3-260/260Z, 6LY3_ETA, 6LY3_ETP, 6LY3_STA, 6LY3_STB, 6LY3_STP, 6LY3_UTP, 8LV-320/320Z, 8LV-350/350Z, 8LV-370/370Z and other models.
Function Display-(From OBDSTAR Mobile App)

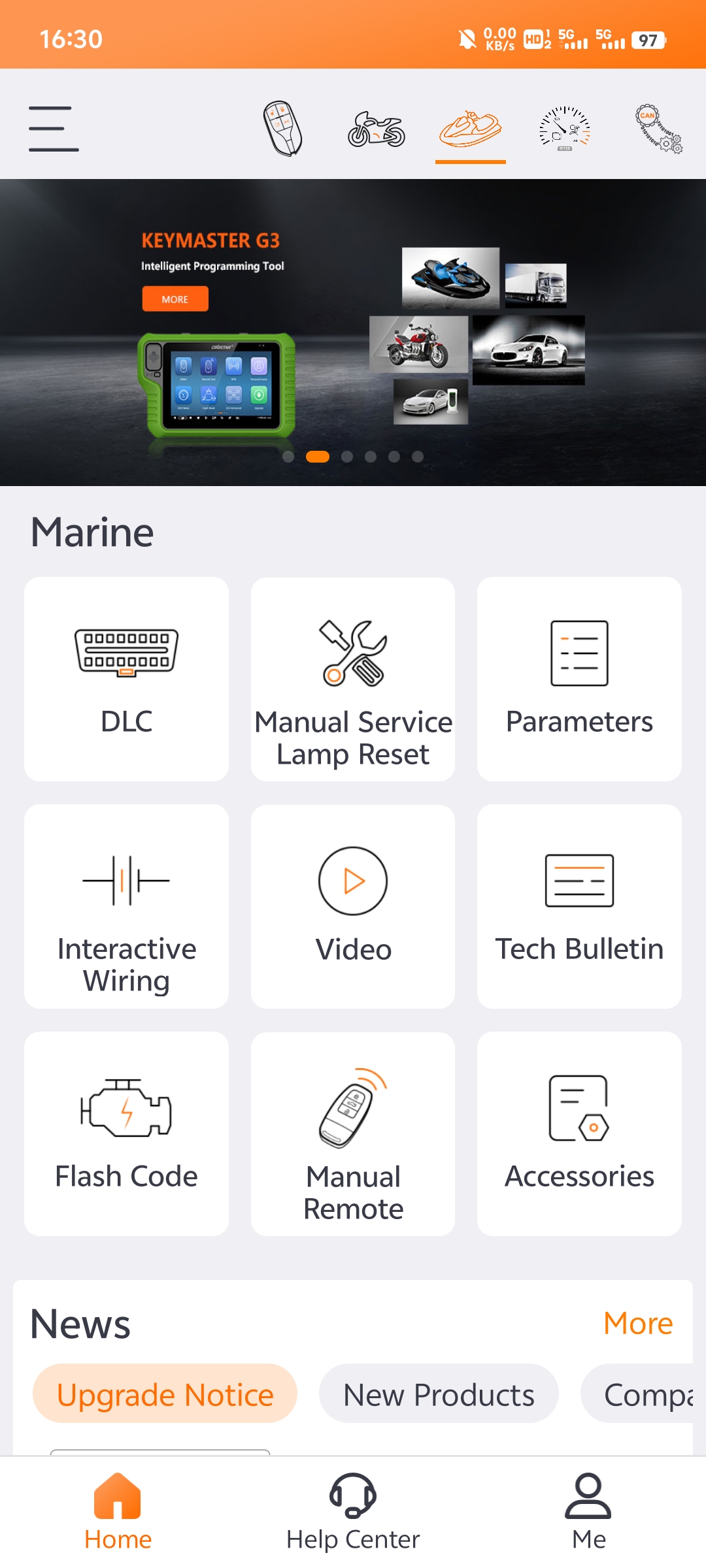

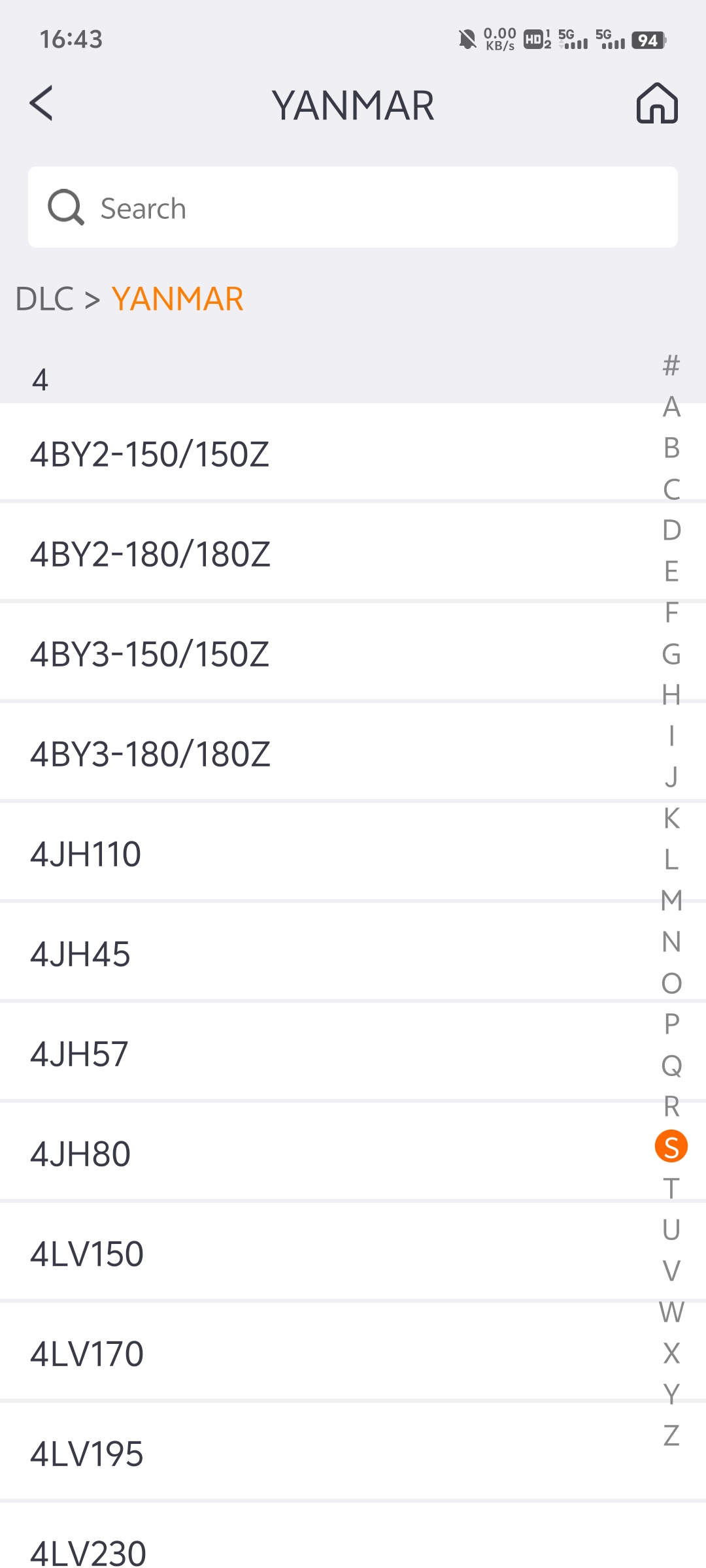

1) Main Page

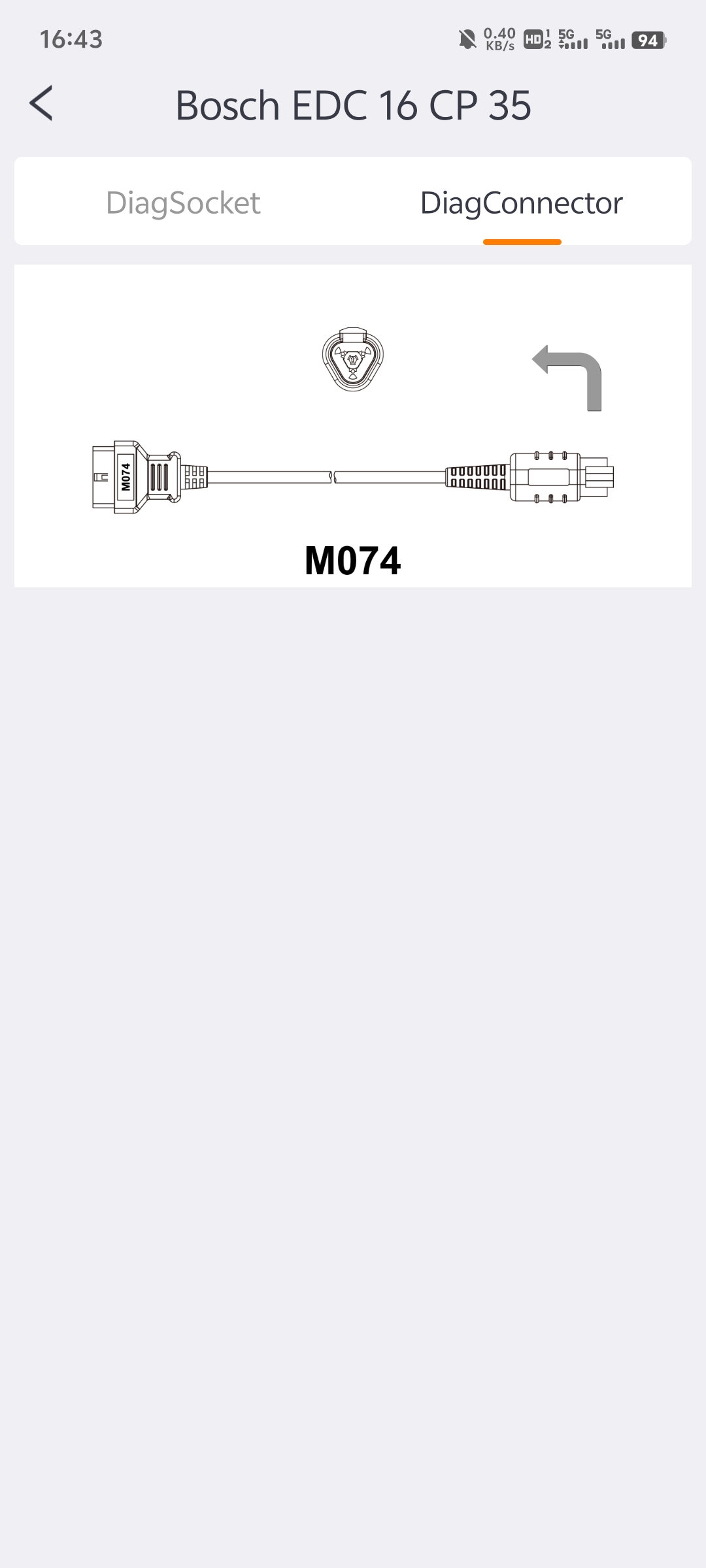

2) Diag Socket/Diag Connector Location

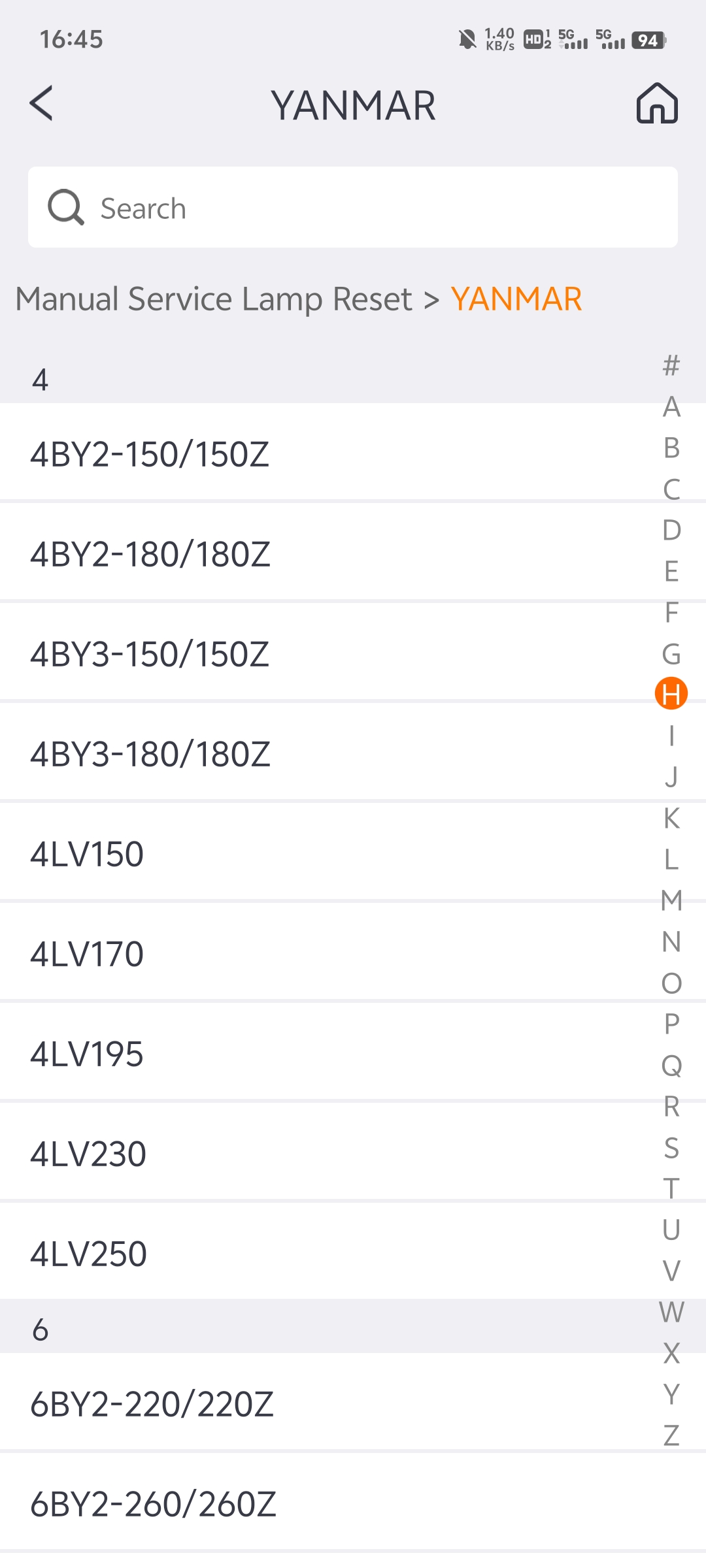

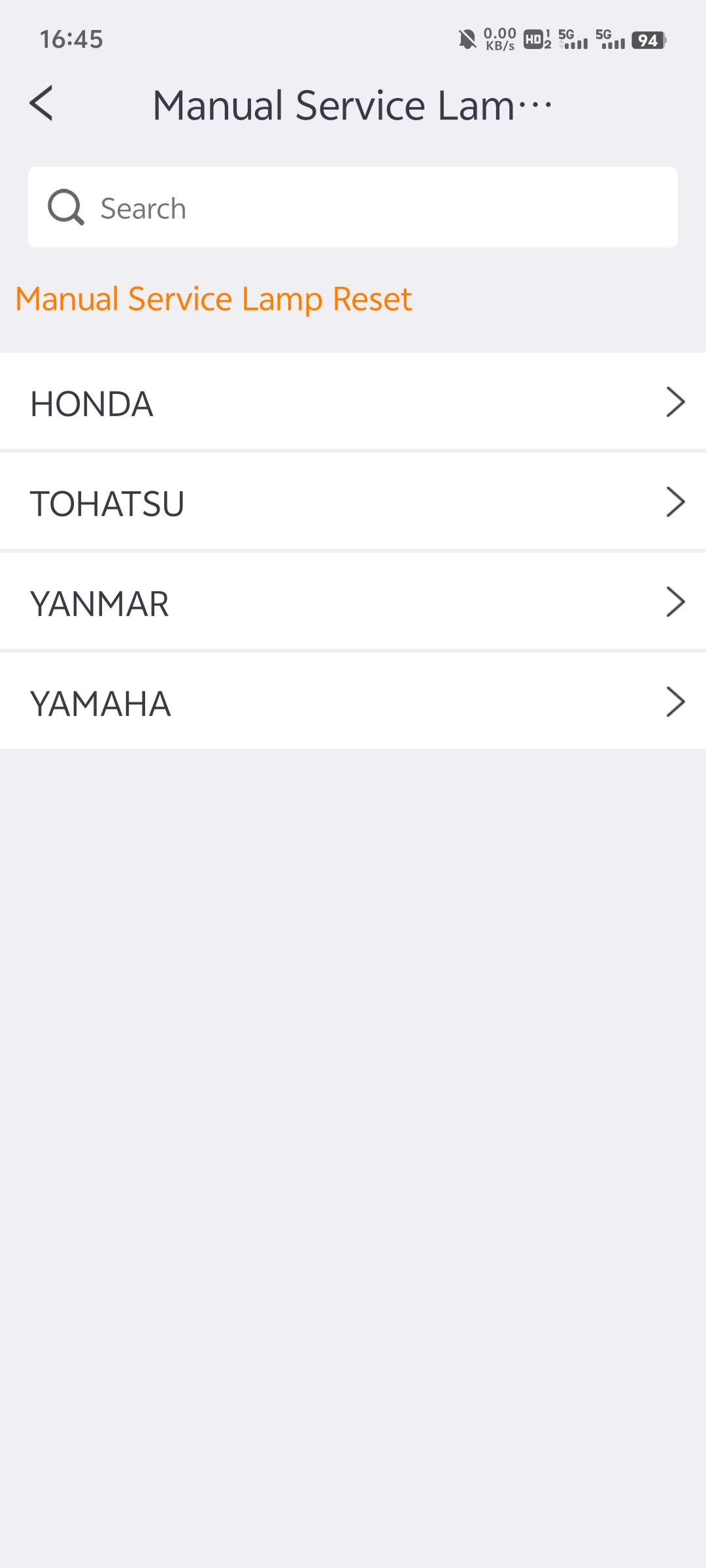

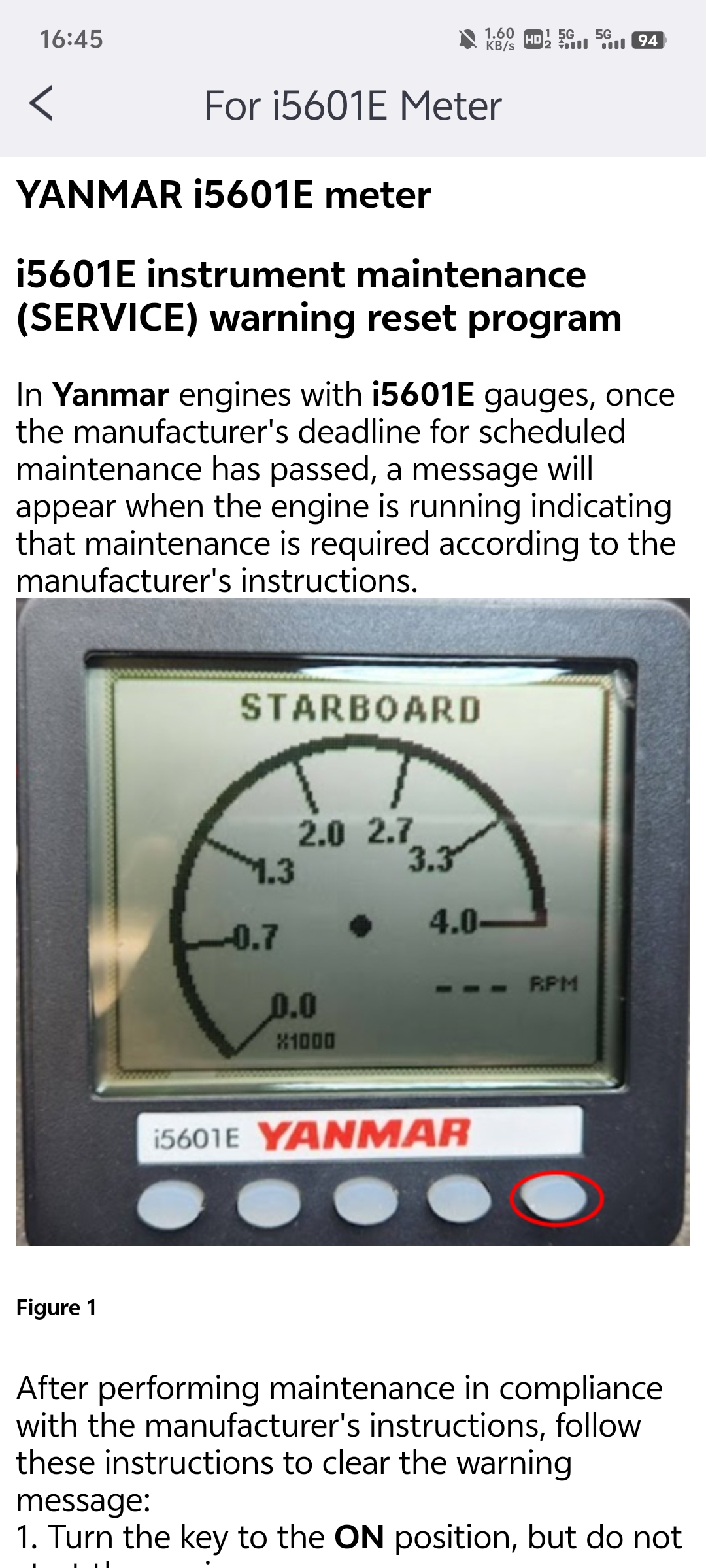

3) Manual Service Function(Service Lamp Reset)

Function Display-(From ISCAN PRO)

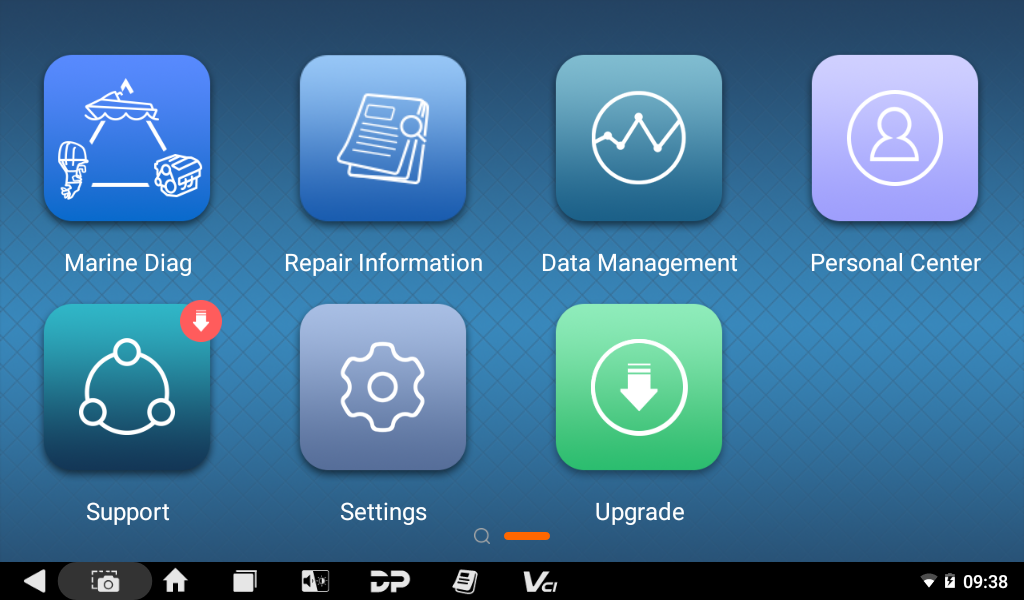

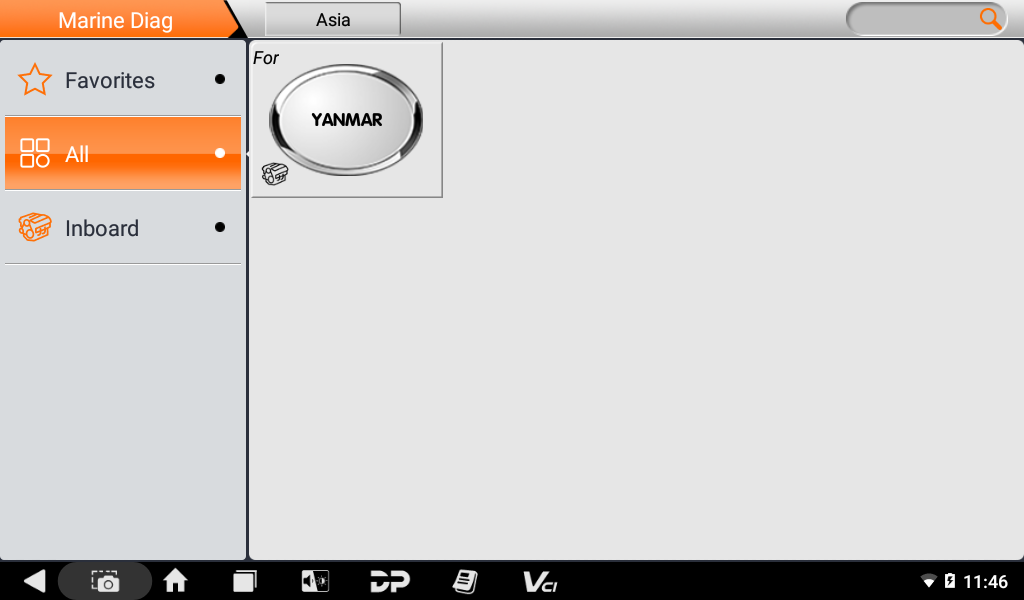

1) Main Page/Brand Supported

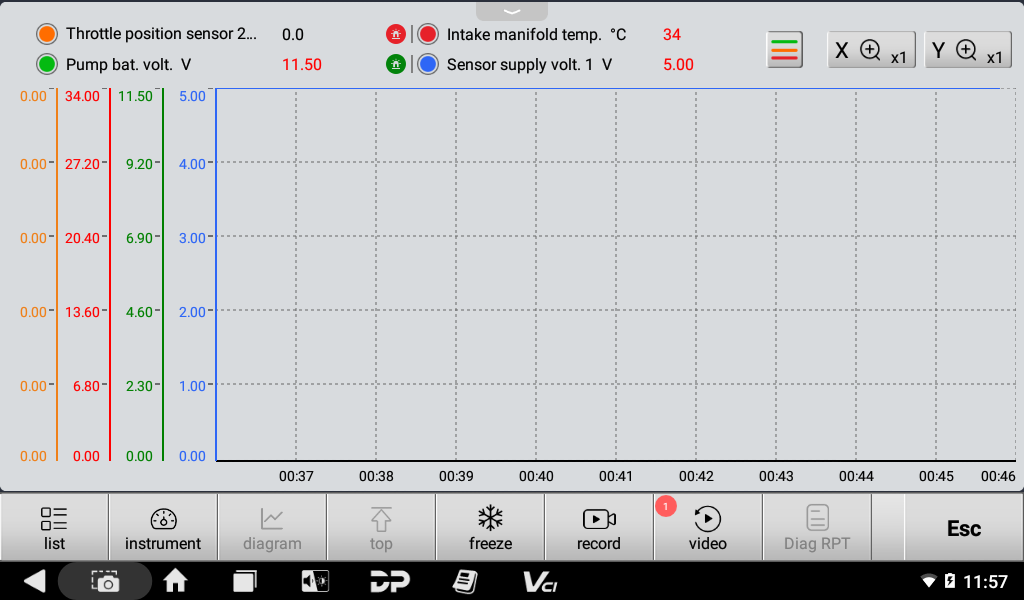

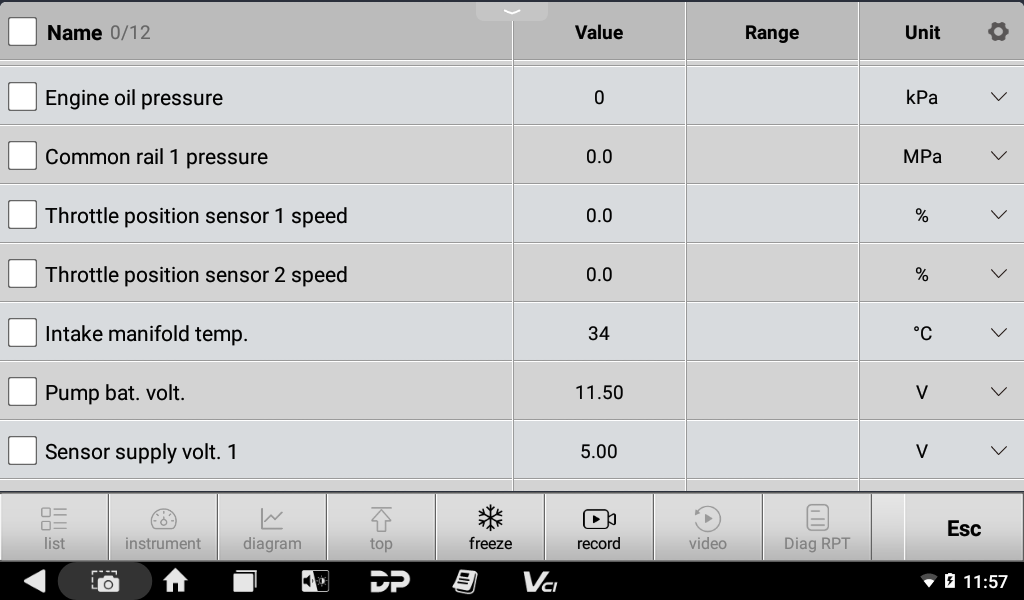

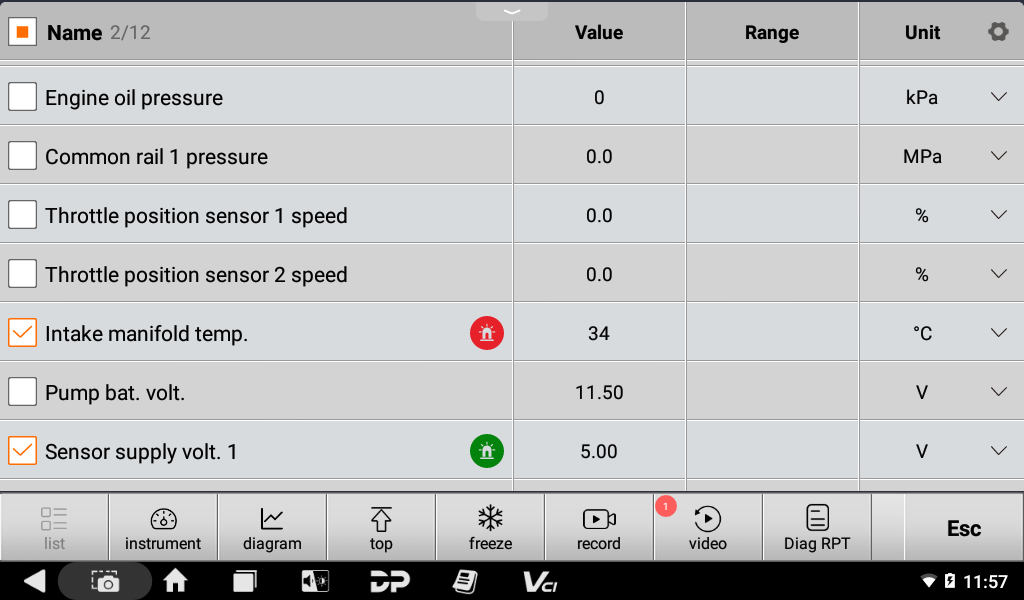

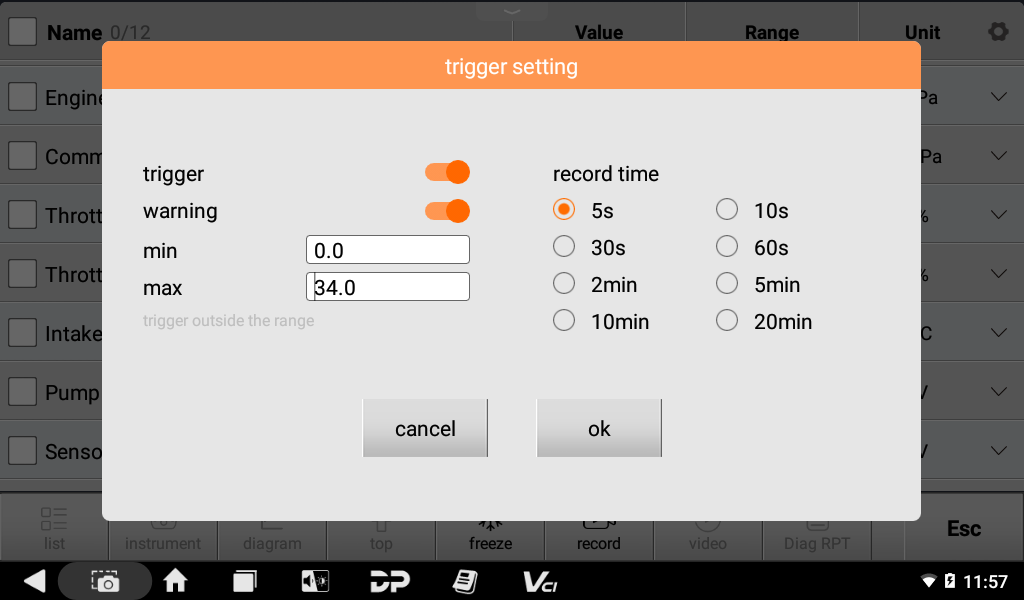

2) Data Flow Text/Waveform Diagram

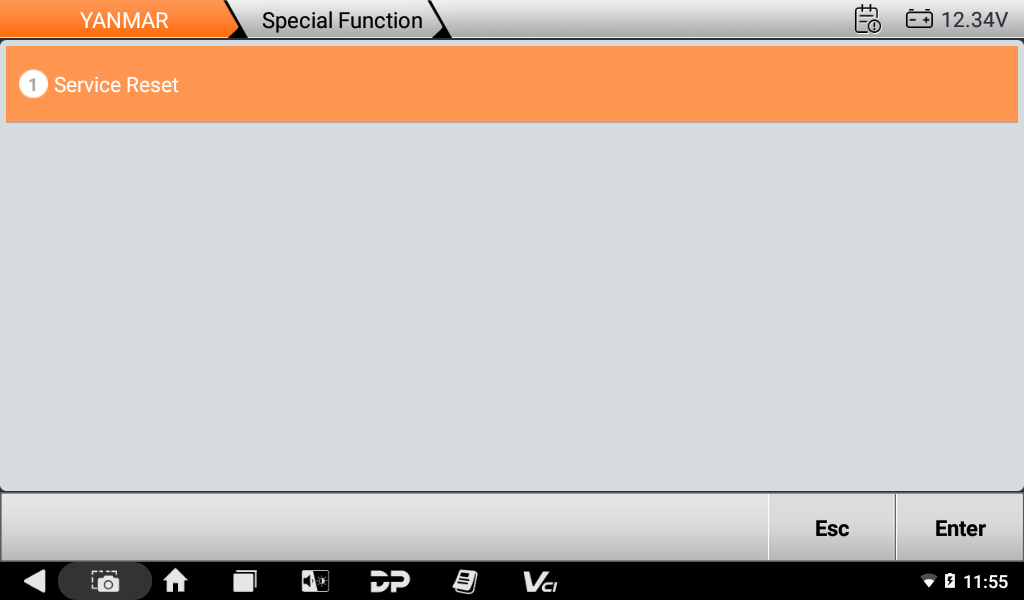

3) Special Functions

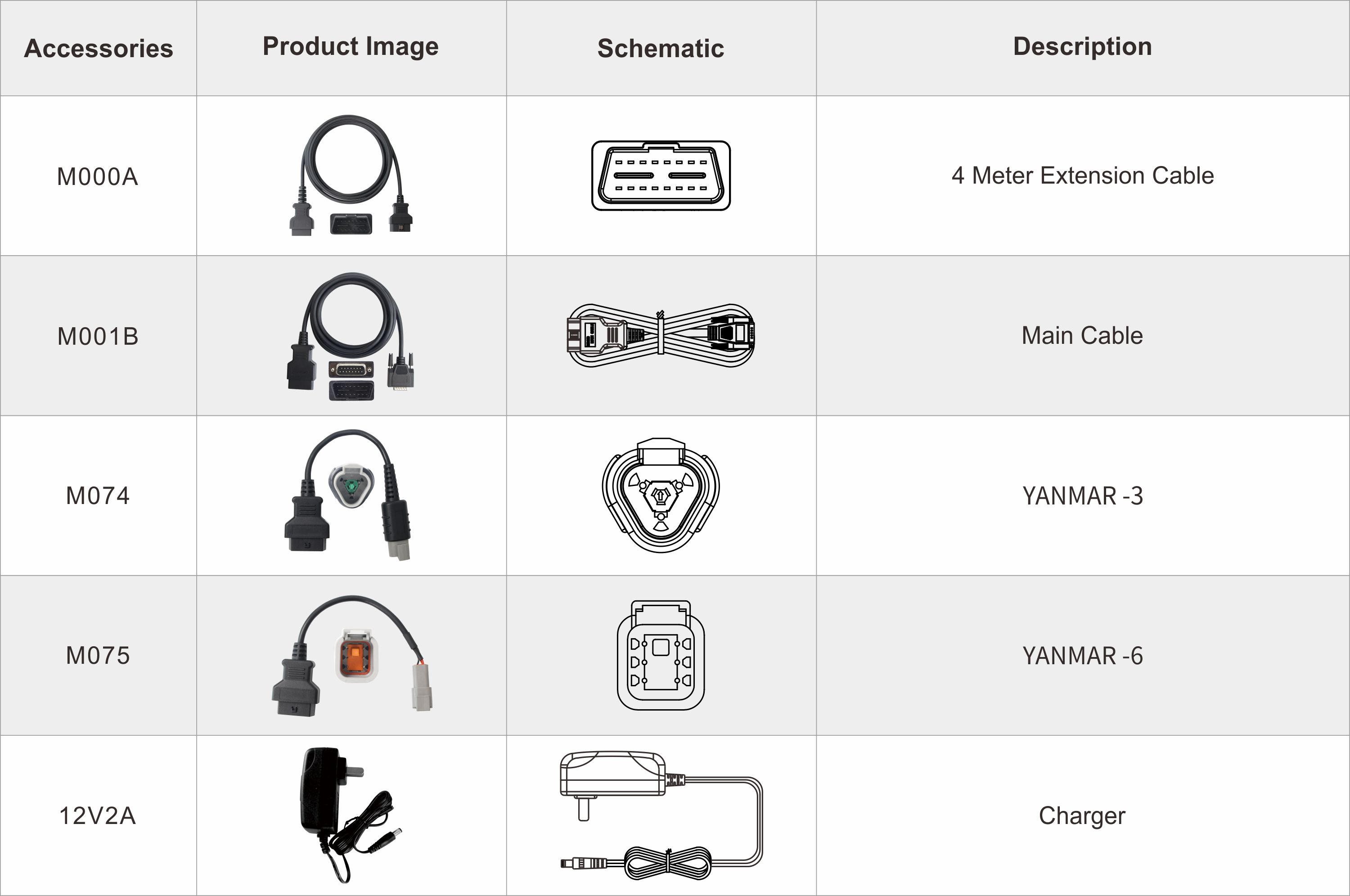

OBDSTAR ISCAN Pro YANMAR Marine Scanner Accessories
