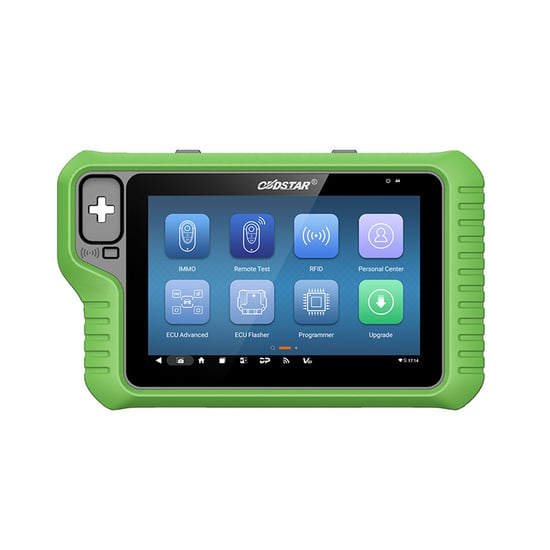

OBDSTAR KEY MASTER G3 Key Programmer A2 Full Software Package

OBDSTAR KEY MASTER G3 Key Programmer A2 Full Software Package

OBDSTAR KEY MASTER G3 Key Programmer A2 Full Software Package Description:

Key Programming Tools From OBDSTAR with Product Number: MKON438
This Weight Product: 7000g

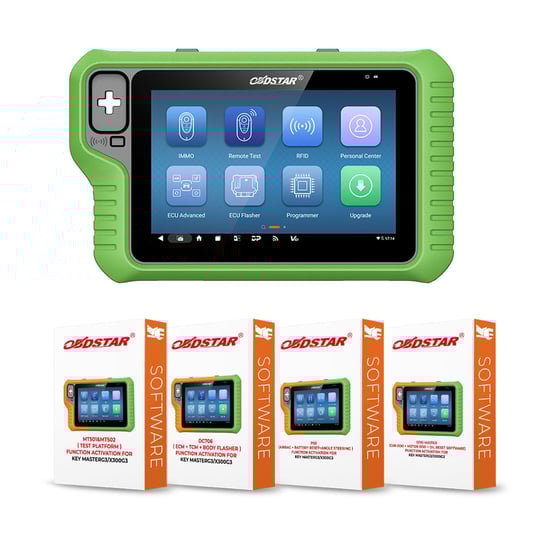

OBDSTAR KEY MASTER G3 Key Programmer A2 Full Software Package Included:

• OBDSTAR KEY MASTER G3 Key Programmer Package with Free Gift Motorcycle IMMO Accessories Kit
• Obdstar - MT501 & MT502 (Test Platform) Function Activation for Key Master G3 / X300G3
• Obdstar - DC706 (ECM + TCM + BODY Flasher) Function Activation for Key Master G3 / X300G3
• Obdstar - P50 (Airbag + Battery Reset + Angle Steering) Function Activation for Key Master G3 / X300G3
• Obdstar - Odo Master (Car Odo + Motor Odo + Oil Reset Software) Function Activation for Key Master G3 / X300G3

The G3 expands on the features and functionality of the OBDstar X300 DP Plus key programming series and will have the ability to add the functionality of the OBDstar Odomaster mileage correction, P50 airbag reset, MT series test platform and DC706 ECU ECM TCM BCM BSI cloning tool.

OBDSTAR KEY MASTER G3 Key Programmer Specification:

• Two Years free update online
• Update version of X300 DP Plus
• RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.
• Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID
• Comes with MP001 (replace P003/P003+ adapter) and P004 adapters in default
• Paid software activation service for Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform and the other functions are available. Turn device into a all-in-one tool.

OBDSTAR KEY MASTER G3 Key Programmer Support Functions:

• Programming IMMO(Keys)
• IMMO OFF
• Remote Test
• R/W EEPROM/MCU
• R/W Transponder
• Unlock ECU
• Make Dealer Keys
• ECU Advanced
• Make Start Keys
• OBDII
• Renew Key

OBDSTAR X300 Classic G3 Key Programmer Supported Vehicle types:

Car, HD, E-Car, MOTO, Marine (jet-ski)

OBDSTAR X300 Classic G3 Key Programmer Advanced Functions:

1. Support MOTO key progarmming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;

2. Support Marine key progarmming function for BRP, KAWASAKI, YAMAHA and others;

3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;

4. Support unlock ECU function for ALFA ROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;

5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;

6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;

7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6SM6 models.

OBDSTAR KEY MASTER G3 User Manual
OBDSTAR KEY MASTER G3 coverage

OBDSTAR KEY MASTER G3 vs OBDSTAR KEY MASTER DP PLUS

OBDSTAR KEY MASTER G3 Menu:

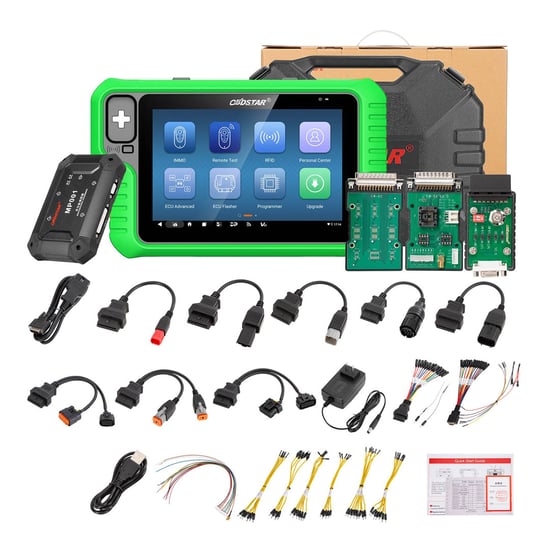

OBDSTAR KEY MASTER G3 Key Programmer Standard Package:

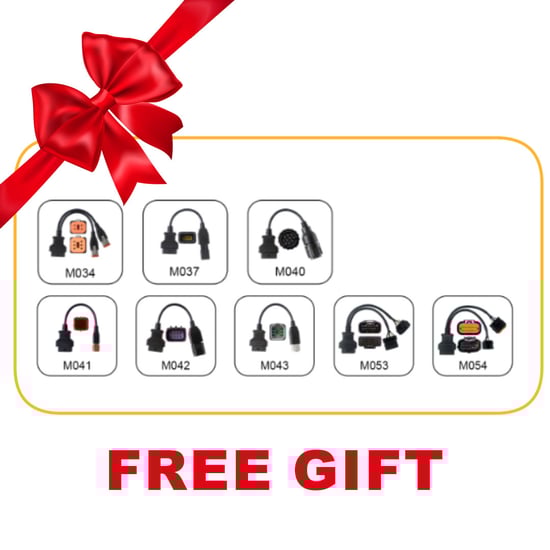

+ Free Gift Motorcycle IMMO Accessories Kit



OBDSTAR KEY MASTER G3 Key Programmer FAQs:

Q: Is OBDSTAR KEY MASTER G3 compatible with all the functions of X300 DP PLUS?

A: No, OBDSTAR KEY MASTER G3 mainly targeted at automotive electronics repairers or professional locksmiths, so it does not include the diagnostic and maintenance functions of X300 DP PLUS (except for Manual Service Lamp Reset), but it adds a lot of new special functions.

Q: Can I use the accessories of an old product I have previously purchased?

A: Yes, in order to save locksmith costs, X300 Classic G3 is compatible with the following adapters or cables that have been purchased by previous users:

1. P002 adapter, P003 adapter, Key Sim adapter;

2. CAN DIRECT KIT, TOYOTA-24/27/30 CABLE;3. NISSAN-40 BCM CABLE, NISSAN/ RENAULT 16+32 CABLE;

4. FCA 12+8 CABLE;

5. TOYOTA 8A cable, FORD all key lost cable.

Q: What is ECU Unlock function of OBDSTAR KEY MASTER G3?

A: The ECU Unlock fucntion is developed so that used ECU modules can be used in other identical vehicles. If you install a used ECU into another vehicle without unlocking it, it will report a fault and cannot be used normally.
