OBDSTAR MT200 Radio Decoding Tool by OBD or BENCH

OBDSTAR MT200 Radio Decoding Tool by OBD or BENCH

OBDSTAR MT200 Radio Decoding Tool Description:

Diagnostic Tools From OBDSTAR with Product Number: MK22164
This Weight Product: 1000g

OBDSTAR MT200 Radio Decoding Tool Specs:

Manufacturer: OBDSTAR
Condition: New

Please check the Supported list before buying:
OBDSTAR MT200 Supported List 2023-04-19

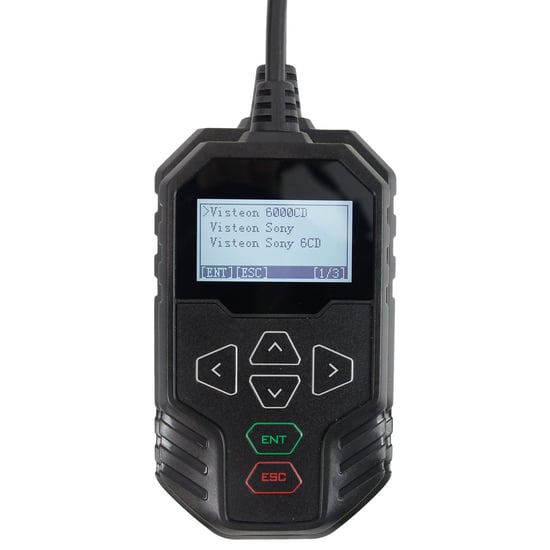

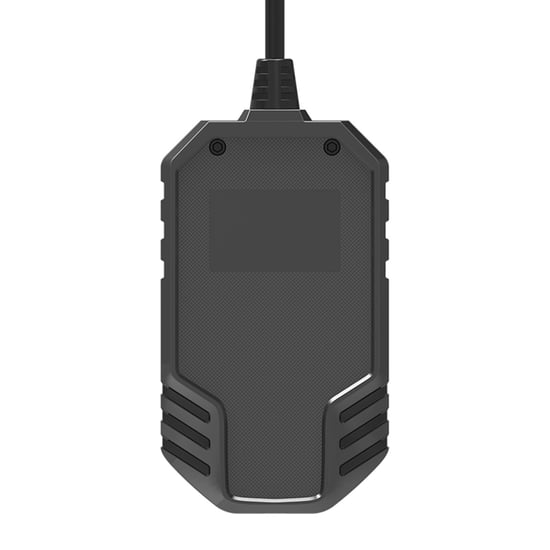

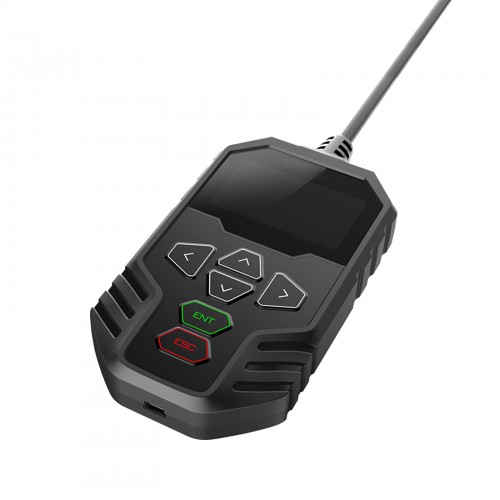

OBDSTAR MT200 Radio Decoding Tool is the latest handheld radio decoding tool developed by OBDSTAR, which supports Ford, VW, etc. All by OBD or BENCH, easy to operate.

OBDSTAR MT200 Radio Decoding Tool Functions

1. Easy and intuitive menus to quickly master the operation of the device;
2. Support Read EEPROM, Write EEPROM, Code Read, Code Change, Code Off and other functions;
3. All by OBD or BENCH;
4. The Pincode of Radio can be queried by OBDSTAR APP (according to the SN of Radio);
5. The device is portable and cost-effective;
6. Mini USB upgrade cable connects directly to computer for one-click upgrade.

1. MT200 Support models (OBD or BENCH)

Ford supported models:
TMS470AVF689APZA+24C16
TMS470R1VF48BPGEA+24C16
TMS470R1VF288PZA+24C16
NEC70F3357+24C16

Including but not limited to the following models or radio models:
Ford 1500 RDS Medialess, 6C1T-18C838-AH, TMS470AVF689
Ford 5000C Tape – KW2000, 6S61-18K876-AG, TMS470AVF689
Ford 5000C, 6S61-18K876-AF, TMS470AVF689
Ford 6000 CD Single CD – KW2000, 6S61-18C815-AF, TMS470AVF689
Ford 6000 CD Single CD – KW2000, 6S61-18C815-AG, TMS470AVF689
Ford 6000 CD Single CD – KW2000, 6S61-18C815-AH, TMS470AVF689
Ford 6000 CD, 6S61-14C044-AB, TMS470AVF689
Ford 6000 Single CD – GGDS, 6C1T-18C815-AH, TMS470AVF689
Ford 6000 Single CD – GGDS, 6M2T-18C815-AF, TMS470AVF689
Ford 6006 CDC, 6C1T-18C815-BH, TMS470AVF689

VW supported models:
Visteon RCD300;

SKODA supported models:
Visteon Audience;
Visteon Stream

2. MT200 Support models(through Radio's SN query)

1). Bind the device through OBDSTAR APP and use the Radio Pincode query function (through Radio's SN query) for free after binding;
2). The Radio Pincode query function in OBDSTAR APP supports ALFA ROMEO, BRAZIL CITROEN, BRAZIL FIAT, BRAZIL FORD, BRAZIL PEUGEOT, BRAZIL RENAULT, CHRYSLER, CLARION, DACIA DAF TRUCK, DODGE, ESN ECLIPSE, FIAT, FORD, HOLDEN TRUCK, IVECO TRUCK, JAGUAR, JEEP, LANCIA, LANDROVER, MACK TRUCK, MAN TRUCK, MASERRATI, MAZDA, RENAULT, RENAULT TRUCK, SCANIA TRUCK, TOYOTA, VOLVO TRUCK and other brands

OBDSTAR MT200 Radio Decoding Tool Specifications:


FAQ:
For better service experience, we've listed out frequently asked questions(FAQ) about MT200.

Q: I want the list of modules which can cover with tool？
A: You can download the coverage list from MT200 page on our website.

Q：Does it have the the anual subscribe fee？
A：Yes, the anual fee is 30 dollars.

Q: Does MT200 support all radio models OBD reading and modification?
A: All models support reading and modifying by OBD.

Q: Does MT200 support all all radio types BENCH reading and modification?
A: All models support reading, modifying and closing by BENCH.

Q: Under what circumstances do I need to short a 120 ohm resistor on the CANBUS communication cable?
A: When the FORD model is operated by BENCH on the workbench, a 120 ohm resistor needs to be shorted between CANH and CANL. See the product description for the specific shorting method!

Q: Under what circumstances is it not necessary to short the 120 ohm resistor on the CANBUS communication cable?
A: All OBD operations do not require external resistors, and VW and Skoda do not require resistors for BENCH operation on the workbench!

Q: Do I need to use other accessories for MT200?
A: No, all accessories come standard.

Q: Is there a wiring diagram and tips?
A: Our wiring diagram is very intuitive, you can check it through our product description page or through OBDSTAR APP.

Q: How to enquiry radio code for models not supported by MT200?
A: For the models not supported by MT200, you can inquiry it by OBDSTAR APP (free inquiry, but you need to bind MT200 device).

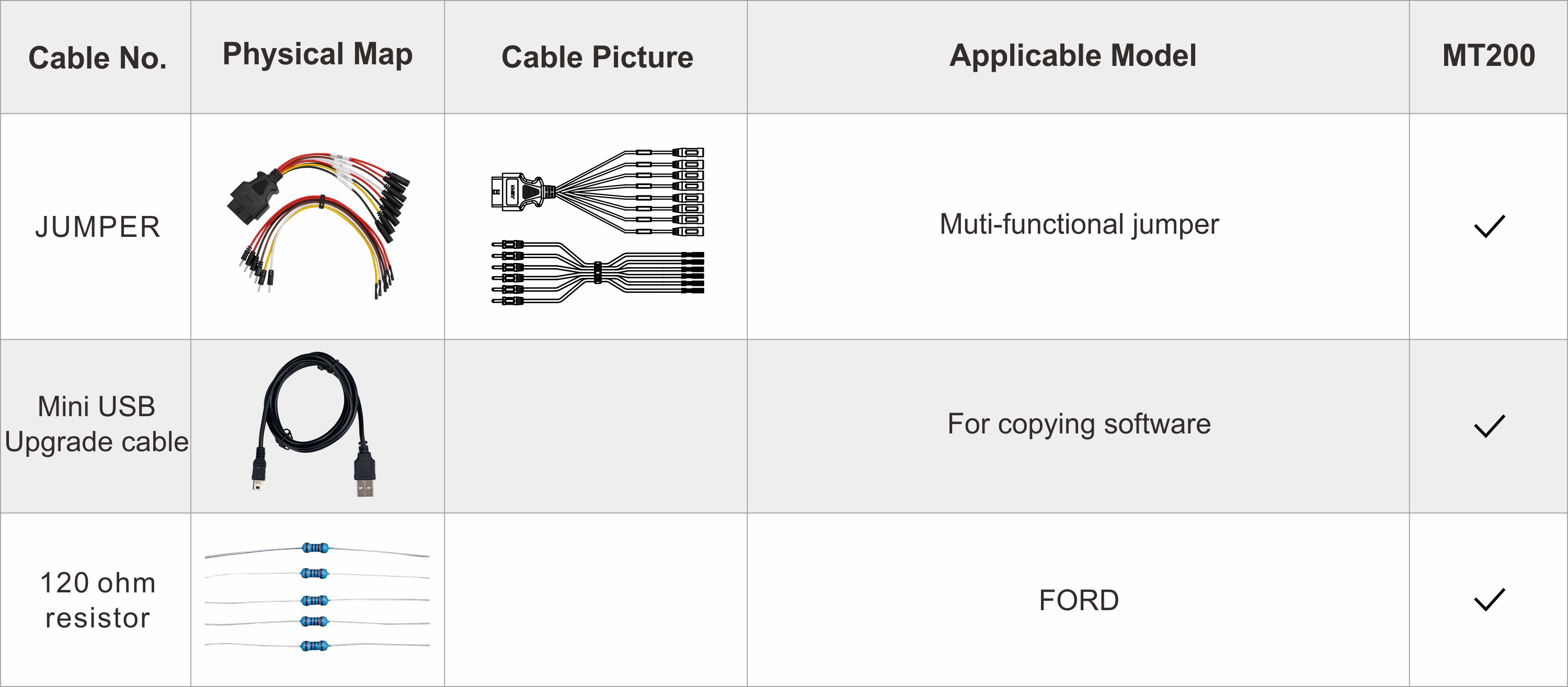

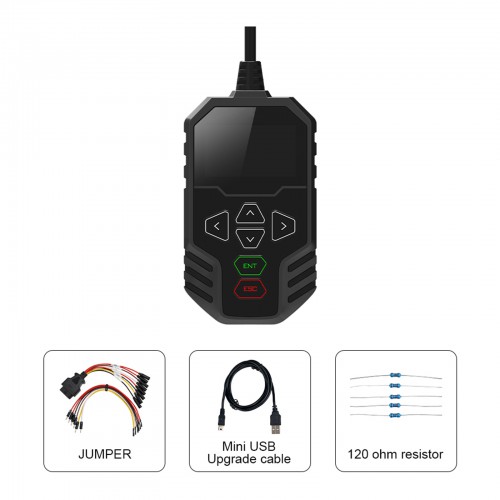

OBDSTAR MT200 Radio Decoding Tool Includes:

1 pcs x OBDSTAR MT200
1 pcs x Multi-jumper
1 pcs x Mini USB Cable
5 pcs x 120 ohm resistor
