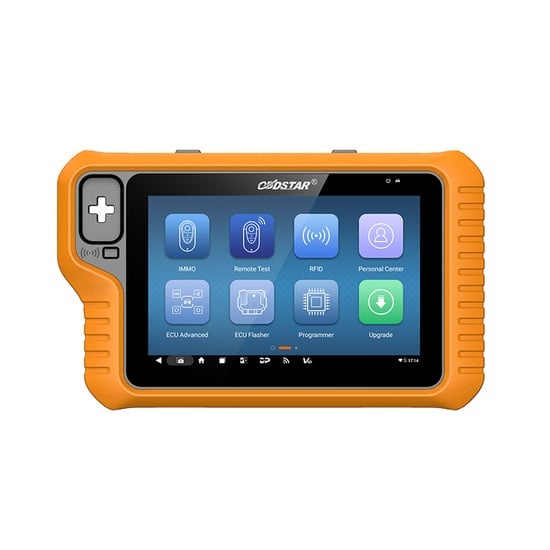

OBDSTAR X300 Classic G3 Key Programmer A2 Full Software Package with Free Gift Motorcycle IMMO Accessories Kit With 2 Year Free Update MKON440
OBDSTAR X300 Classic G3 Key Programmer A2 Full Software Package
OBDSTAR X300 Classic G3 Key Programmer A2 Full Software Package
OBDSTAR X300 Classic G3 Key Programmer A2 Full Software Package | MK3 -| thumbnail
New Bundle OBDSTAR X300 Classic G3 Key Programmer A2 Free Gift Motorcycle IMMO Accessories Kit & Full Software Package | Emirates Keys -| thumbnail
OBDSTAR X300 Classic G3 Key Programmer A2 Full Software Package - MKON440 - f-2 -| thumbnail

OBDSTAR X300 Classic G3 Key Programmer A2 Full Software Package

with Free Gift Motorcycle IMMO Accessories Kit

With 2 Year Free Update

Write Review
$3,199.00 Was $4,007.00 (Save $808) (€3,071.04)
Add to Wishlist
Product Code: MKON440
Categories Key Programming Tools
Manufacturer OBDSTAR
In StockIn Stock Offer %Offer %
Product Specifications
Manufacturer OBDSTAR
Condition New
Weight 7000 g

OBDSTAR X300 Classic G3 Key Programmer A2 Full Software Package

OBDSTAR X300 Classic G3 Key Programmer A2 Full Software Package Description:

New Bundle OBDSTAR X300 Classic G3 Key Programmer A2 Free Gift Motorcycle IMMO Accessories Kit & Full Software Package ( Test Platform Function Activation - ECM + TCM + BODY Flasher - Airbag + Battery Reset + Angle Steering - Car Odo + Motor Odo + Oil Reset Software )

Key Programming Tools From OBDSTAR with Product Number: MKON440
This Weight Product: 7000g

OBDSTAR X300 Classic G3 Key Programmer A2 Full Software Package Included:


The G3 expands on the features and functionality of the OBDstar X300 DP Plus key programming series and will have the ability to add the functionality of the OBDstar Odomaster mileage correction, P50 airbag reset, MT series test platform and DC706 ECU ECM TCM BCM BSI cloning tool.


OBDSTAR X300 Classic G3 Key Programmer Specification:



  • Two Years free update online
  • Update version of X300 DP Plus
  • RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.
  • Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID
  • Comes with MP001 (replace P003/P003+ adapter) and P004 adapters in default
  • Paid software activation service for Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform and the other functions are available. Turn device into a all-in-one tool.



OBDSTAR X300 Classic G3 Key Programmer Support Functions:

  • Programming IMMO(Keys)
  • IMMO OFF
  • Remote Test
  • R/W EEPROM/MCU
  • R/W Transponder
  • Unlock ECU
  • Make Dealer Keys
  • ECU Advanced
  • Make Start Keys
  • OBDII
  • Renew Key

OBDSTAR X300 Classic G3 Key Programmer Supported Vehicle types:

Car, HD, E-Car, MOTO, Marine (jet-ski)

OBDSTAR X300 Classic G3 Key Programmer Advanced Functions:

1. Support MOTO key progarmming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;

2. Support Marine key progarmming function for BRP, KAWASAKI, YAMAHA and others;

3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;

4. Support unlock ECU function for ALFA ROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;

5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;

6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;

7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6SM6 models.

OBDSTAR X300 Classic G3 User Manual
OBDSTAR X300 Classic G3 coverage

OBDSTAR KEY MASTER G3 vs OBDSTAR KEY MASTER DP PLUS

Parameter Feature KEY MASTER G3 Key Master DP Plus A Key Master DP Plus C
Specification Operation system Android 11 Android 5.1.1 Android 5.1.1
OTA ✓ × ×
Screen recording ✓ × ×
Wireless screen casting ✓ × ×
CPU Quad-core 64-bit Cortex-A55  2.0GHz Qual Core ARM Cortex A9 1.4GHz Qual Core ARM Cortex A9 1.4GHz
Storage capacity 4+64GB 1+32GB 1+32GB
LCD 8.0 inch fully laminated sunlight readable screen 8.0 inch 8.0 inch
LCD resolution 1280*800 1280*800 1280*800
Camera Rear camera 800W pixels, auto-focus Rear camera 500W pixels Rear camera 500W pixels
Bluetooth Bluetooth 5.0 × ×
External interfaces RJ-45 × ×
External interfaces HDMI✓ × ×
External interfaces TYPE-A,TYPE-C TYPE-A TYPE-A
WiFi Dual-band 2.4G/5GHZ 2.4G 2.4G
Accessory VCI STM32H723 STM32F407 STM32F407
CANFD built in✓ CANFD Adapter Required CANFD Adapter Required
DOIP built in✓ × ×
Fault Tolerant CAN built in✓ × ×
All other common protocol types All other common protocol types All other common protocol types
RFID Built in✓ P001 Required P001 Required
Remote Test Built in✓ RT100 Required RT100 Required
Renault Converter Built in✓ Renault Converter Required Renault Converter Required
Function Diagnosis × × √
OBD II √ √ √
Car IMMO √ √ √
Motorbike IMMO √ √ √
Heavy-Duty IMMO √ √ √
Marine (JET-SKI) Immobilizer Function √ × ×
E-Car IMMO √ × ×
RFID √ × ×
Make Key √ × ×
Unlock Smart Key √ × ×
Renew Key √ × √
Read/ Write EEPROM MCU √ √ √
ECU Advanced (Includes ECU Unlocking) √ × ×
Oil/ Service Reset × √ √
Other Service Function × × √
Remote Test × × √
ECU Flasher IMMO (IMMO OFF, ISN, IMMO Data) × × √
ECU Flasher (Clone) Paid Activation × √ Limited supported models, different with DC706 and G3
Car/ Motorbike Cluster Calibration Paid Activation × √
Airbag Reset Paid Activation × √
Test Platform Paid Activation × ×





X300 Classic G3 Menu:
obdstar key master g3 menu 1
obdstar key master g3 menu 2
obdstar key master g3 menu 3
obdstar key master g3 menu 4
obdstar key master g3 menu 5
obdstar key master g3 menu 6

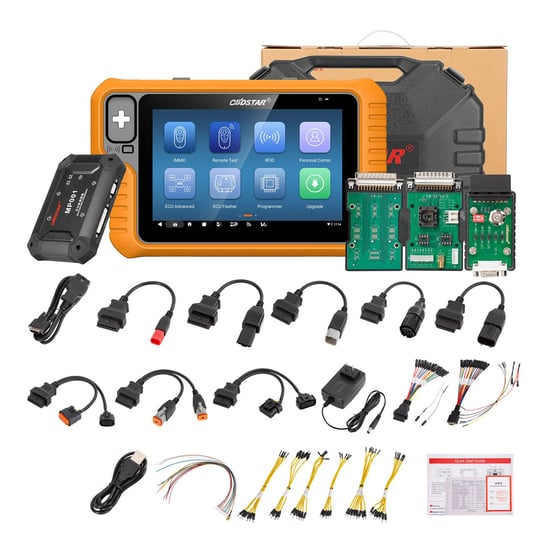

OBDSTAR X300 Classic G3 Key Programmer Standard Package:


obdstar key master g3 package 1

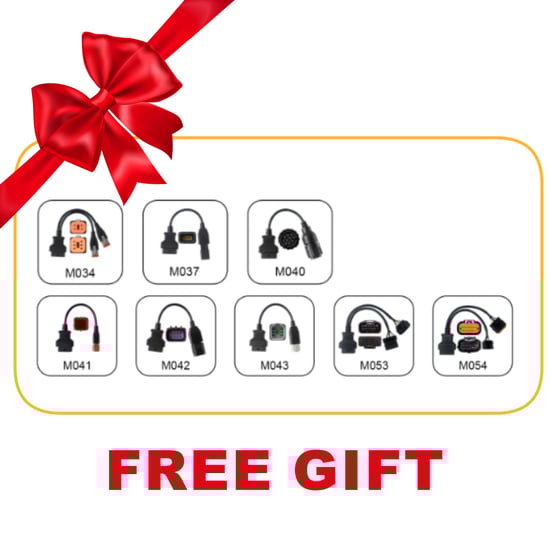

+ Free Gift

Motorcycle IMMO Accessories Kit



Key SIM Smart Key Emulator



OBDSTAR X300 Classic G3 Key Programmer FAQs:



Q: Is X300 Classic G3 compatible with all the functions of X300 DP PLUS?

A: No, X300 Classic G3 is mainly targeted at automotive electronics repairers or professional locksmiths, so it does not include the diagnostic and maintenance functions of X300 DP PLUS (except for Manual Service Lamp Reset), but it adds a lot of new special functions.



Q: Can I use the accessories of an old product I have previously purchased?

A: Yes, in order to save locksmith costs, X300 Classic G3 is compatible with the following adapters or cables that have been purchased by previous users:

1. P002 adapter, P003 adapter, Key Sim adapter;

2. CAN DIRECT KIT, TOYOTA-24/27/30 CABLE;3. NISSAN-40 BCM CABLE, NISSAN/ RENAULT 16+32 CABLE;

4. FCA 12+8 CABLE;

5. TOYOTA 8A cable, FORD all key lost cable.



Q: What is ECU Unlock function of X300 Classic G3?

A: The ECU Unlock fucntion is developed so that used ECU modules can be used in other identical vehicles. If you install a used ECU into another vehicle without unlocking it, it will report a fault and cannot be used normally.
