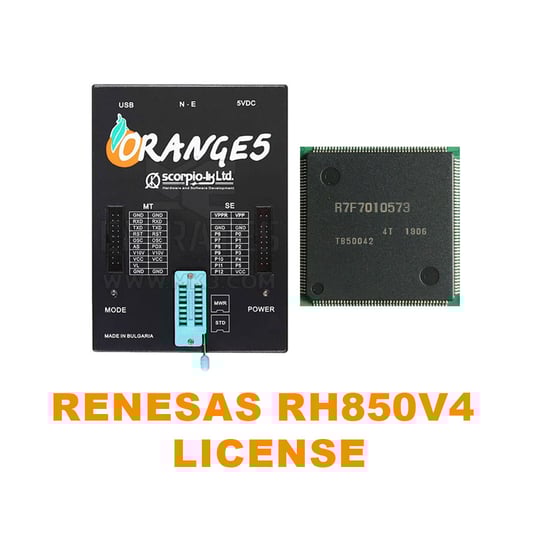

Orange5 Renesas RH850V4.3 License For Orange 5 Programmer Device

Orange5 Renesas RH850V4 License For Orange 5 Programmer Device

Product Description:

Software Activation with Product Number: MK2543

Update the software: Orange5 Update

; V4.3

; [+] F1K/D1x Write Data-Flash per 4 Bytes
; [+] More RH850 Core info
; [+] Set lock $3F $7F
; [+] CRC32
; [+] Blank Check
; [+] Blank Check Data-Flash F1K-x/D1x per 4 bytes
; [+] Read SSR information
; [+] Data-Flash (RC) size/offset R/E/W added
; [+] OCD password OCD.bin added

Read this before any operation with the Data-Flash AREA.

Data-Flash area has 3-state cells
1st state: 0 – Written as 0
2nd state: 1 – Written as 1
3rd state: z- Erased (non written)

Let’s pay attention to the state of Z, as the most frequently asked question.
When we read a file of Data-Flash and do a comparison with the current file,
then we will always have errors comparing some bytes or blocks (16 bytes), this is normal.

3rd state bytes marked as 0xEB.
EB mean Erased Byte.

Since 2020 new RH850 mcu marked without (R7F70) and signed like 10643 and equal to R7F7010643.

List of microcontrollers & update info:  RH850V4

A description of the RH850 is available at the link:   Description

Schemes with connections RH850 in the link:   Schematics RH850

Video:  Read Data-Flash per 4 bytes
