PCMtuner V1.27 ECU Programmer with 67 software Modules

PCMTUNER Highlights:

1. Free update. No subscription, no annual fee.
2. Master version, read and save data in Bin format, data is not encrypted.
4. Work offline, VR NEED online. Read/Write VR
5. All license for 67 modules are in smart usb dongle.

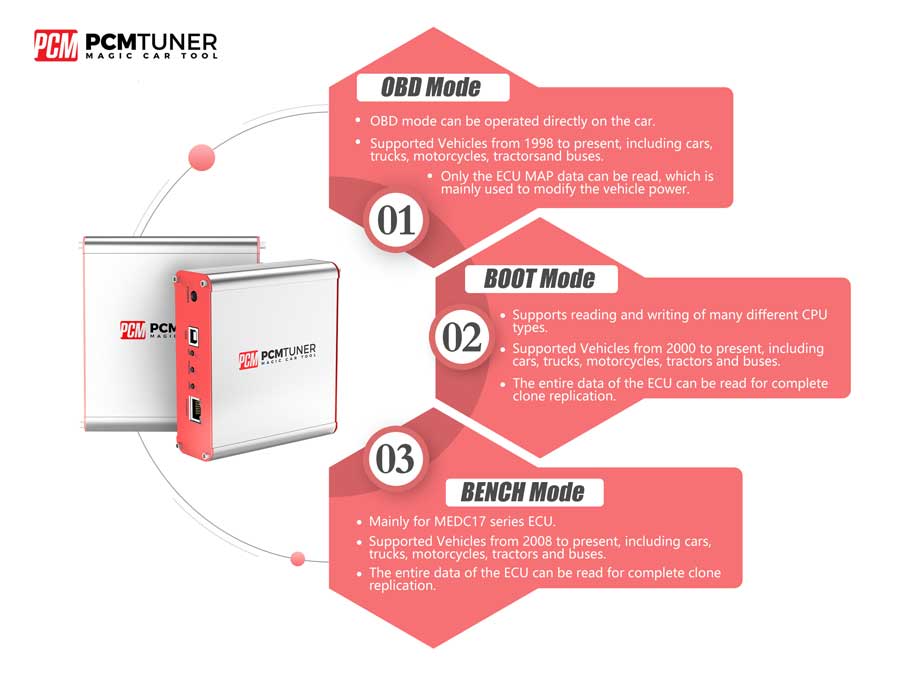

6. Read and write ECU data through OBD, BENCH, and BOOT modes.
7. With integrated scanmatik2. The smart dongle is compatible with the original scanmatik2 pro and Openport.

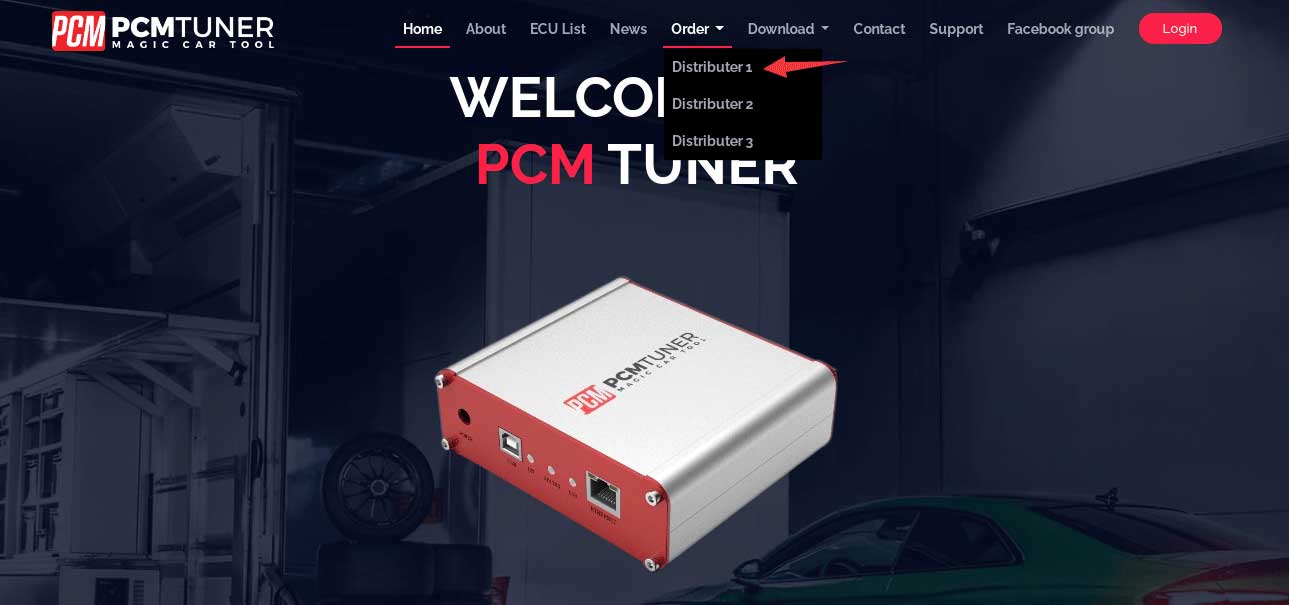

8. PCMtuner software free download from tuner-box.com
9. Pcmtuner Free Update Online. DON'T UPDATE PCMflash.
10. It is compatible with most applications that require a J2534 PassThru device (Techstream, Forscan, IDS, ODIS etc)
12. Adds MD1 MG1 EDC16 MED9.1 ECUs via Fetrotech Tool Plugin

MPM For American ECU TCU like GM, Chrysler, Ford
Fetrotech Tool For MG1 MD1 ECU, BENCH Read MED9 and EDC16, MEDC17 Series ECUs
GODIAG GT105 Plus GT107 For DSG Gearbox Data Read/Write
GODIAG OBD Breakout Cable  via OBD on Bench





What is PCMTuner ECU Chip Tuning Tool?

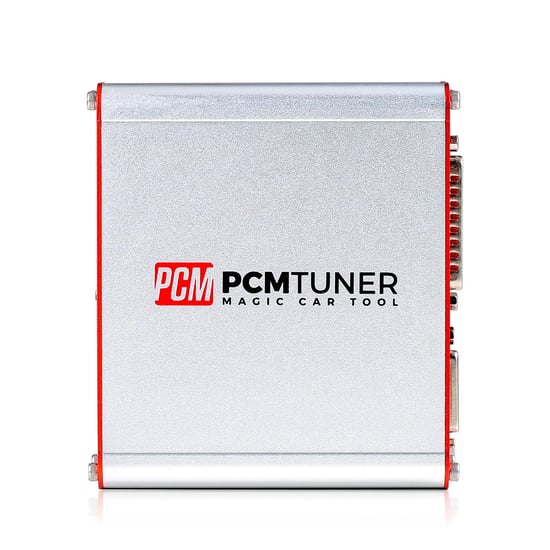

PCMtuner is a customized read-write device specially used for vehicle engine control system (ECU) and transmission control system (TCU). PCMtuner can read and write ECU via OBD, Bench, Boot, OBDvr modes. According to the data read out via PCMtuner tool, our engineers can provide customers stage1 stage2 stage3, popbangs ,gearbox data to adjust LC, sport display, immo off, dpf off, dtc off, vmax, swirl off, restoring ECU or TCU factory setting service (paid service).



Why to Choose PCM Tuner ECU Programmer?

1) Tuner desgin it, more suitable.
2) We know what tuner want.
3) Not onley for chiptuning but also for locksmith and ecu repairs worker.
4) Not noly just for read and write, but can supply more solution for you when youhave our tool.
5) We are from a tuner group, so we can give more support for all our legal user.




Notice:

1. Please do not use more than 14 volts, even if the ECU doesn't read it, using higher than this may damage your device, be sure to set the power supply before plugging in, 12 volts 2 amp.
2. Operating system: Win10, Win7. Strongly recommend installing PCMtuner on Windows 10 to get the best performance.
3. We have tested PCMTuner as J2534 Passthru for Techstream. You are free to test with Ford ids, Bmw ista, VW odis, Volvo dianostic etc. It is a bonus feature. We are not responsible for the damage.
4. Once change another laptop to install, need to provide S/N to activate software again or change another register email.


PCMTUNER Software Functions:

1. Read and write ECU data.
2. ECU clone.
3. ECU parameter adjustment
4. ECU maintenance engineering
5. Chip turing
6. Read ECU maps
7. Checksum correction
8. Read flash and ep files
9. Powertrain adjustment
10. Support online update
11. VR files supply
12. Pinout comewith
13. Helpdesk and tuner account
14. OBD2 reading
15. Cover-free wielding-free no disassembly data reading, greatly reduce the risk of destroying the ECU, bench mode.
16. Cover-opening data reading, boot mode

GPF/OPF Removal
DPF Removal
EGR Removal
DTC Removal
ADBlue Removal
HOT Start Fix
IMMO Removal
Readiness Calibration
Flaps / Swirl Removal
TVA Removal
Sport Displays Calibration
Cold Start Noise Reduction
Kickdown Deactivation
StartStop Disable
MAF Removal
Speed Limiter Removal
Torque Monitoring Disable
Burbles Activation
Popcorn Activation
EVAP Removal
Exhaust Flap Removal
SAP Removal
AGS Removal
BMS/BPCM
Lambda/O2 Removal
Launch Control
OBD Reading Protection
Boost Sensor Calibration
LC, AL and NLS for MED9.1
Checksum Fix

How to Activate PCMtuner and Get VR Account?

1. When you get the device, please download and install the software first.

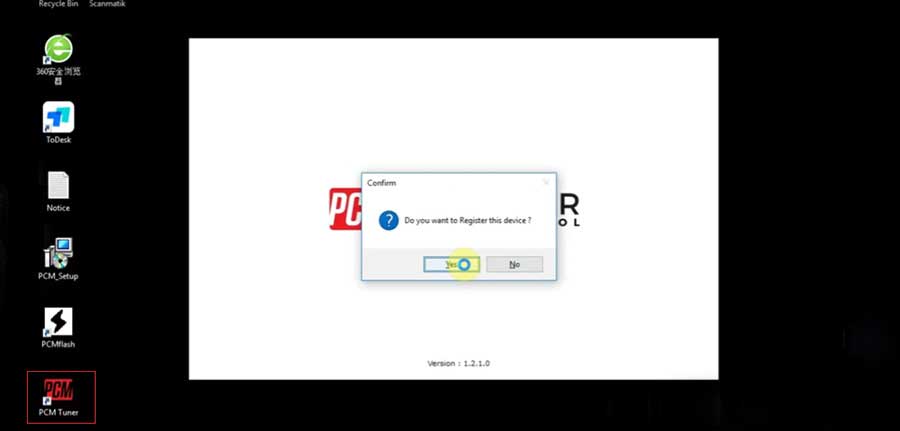

2. After installation, it will ask"Do you want to Register this device", please click "Yes", then follow the prompts information to register it.



3. After registration, please send us the email which you plan to register the device, Then we will activate your account.

1) support.vz-performance.com: User Name is your registered Email and Password is the PCMtuner Serial Number. This account will be used for tuner support. It has VR file and many damaos there.

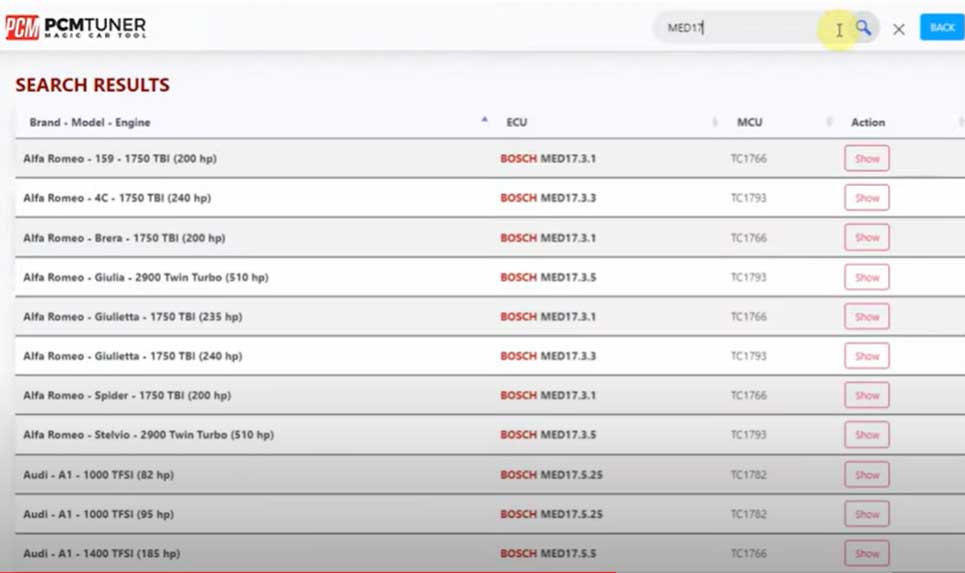

2) www.tuner-box.com: User Name is your registered Email and Password is the PCMtuner Serial Number. This account will be used for checking the support list of PCMtuner, creating ticket support tool user etc.


What can we do when we have this account ?

1) A lot of VR files online for you
2) Professinal tuner can donwload our WinOLS damaos, A2L, map package( as we all know, these data very expensive when you go to order, dont worrry, we do not charge our users any fee. )
3) Any others we can do for this account, of course, we have magic function for you if you can't tuning by yourself, no problem, what our tuner can help you do
for example:
* stage1 stage2 stage3
* popbangs
* Immo off
* BMW sportdisplay
* tuning gearbox , such as Luach control
* dtc off
* adblue off
* dpf off
* vmax
* 3 bar sensor map
* torque off
* MAF off
* map switch
* deactive or active sprot exhuast vavel
so many services we can do, but these are charge fee, of course, you can tune if you have knowledge about that.
4) Face to face our tuner, can give some guide for you on chip tuning


200 Newly-added Bosch MED/EDC17 Read/Write Protocols Without Opening the Cover

VAG Simos 12.1, 12.2
VAG Simos PCR2.1
FCA GPEC2, GPEC2A, GPEC4, GPEC4LM
Hyundai/KIA SIM2K-240, SIM2K-241,SIM2K-250, SIM2K-251, SIM2K-260, SIM2K-305, MT86
Ford/LR SID208 Flash read
Scania EMS S8 BAM. Just 3 point PCB connection into VIA holes. Can be connected without removing gel.
PSA SID208
MB SID307, SID310
Renault SID307, SID309, SID310
Porsche SDI21.x
Mitsubishi E6T83XXX, E6T32xxx
Isuzu Transtron SH72544R
Isuzu Transtron L4.3
Hino EDC7UC31
Hyundai, Greatwall DCM6.2AP

Coming Soon:

VAG Simos 18.1, 18.2
VAG Simos 18.10
FCA Marelli 8GMK/8GML, MJ9DF, 10GF
FAL Marelli MJ8DF/8F2, 8GMB/8GMC/8GMF/8GMW/8GSF/8GSW
BMW MSD80, MSV80, MSD81, MSD85.0/MSD85.4, MSD85.1/MSD85.3, MSD87.1/MSD87.2, MSV90


There are 2 types of update:
The first being the pcmtuner front end, which is currently on its 1.2.7.
The second of course is the actual pcm-flash application to read/write ECUs.
Current work is in regards to mg1/md1, edc16, med9, and rover, which are all under going development and testing.

Pcmtuner software can be updated online continuously.
Software program will show you an Update available when a new version comes out.

Two Ways to Update Old KTM Bench/ KTM 3 In 1 to PCMtuner:

1. You are offered to buy PCMtuner Dongle alone, to update your KTM BENCH1.2 or KTM 3 in 1 to get new functions of PCMtuner
2. You can send the old dongle of KTM BENCH1.2 or KTM 3 in 1 to us to exchange dongle of PCMtuner

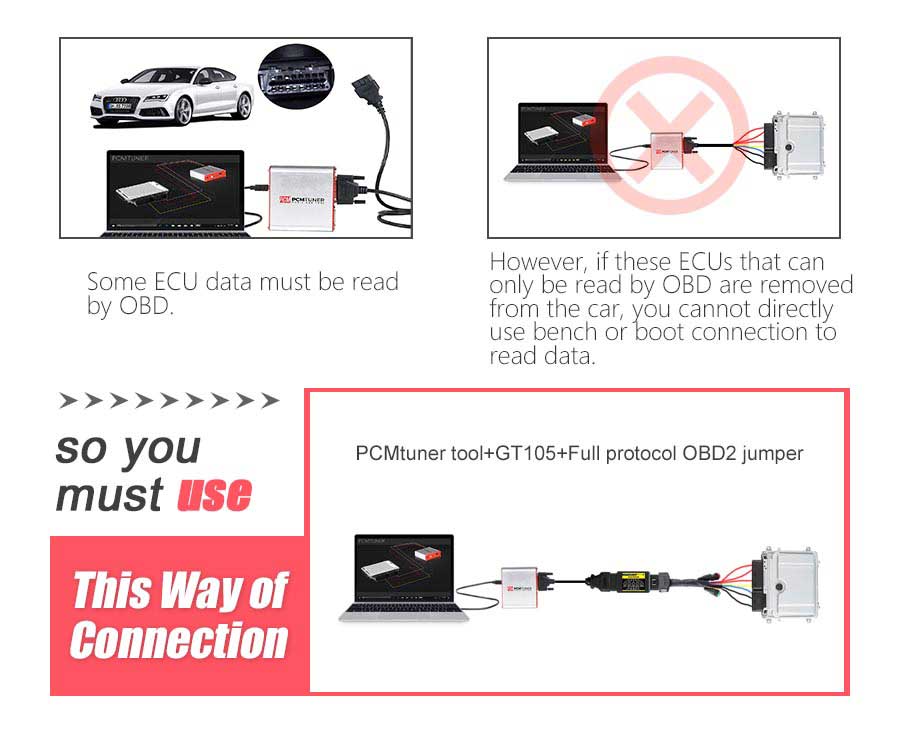

Some ECU must be read through OBD connection (common in modules 58, 53, 71). If you have removed these ECUs from car, you cannot directly read them on bench or boot mode.
You have to read these ECUs via OBD on bench mode. Connect pcmtuner ecu programmer with godiag gt105 breakout box and full protocol jumper cable.
