Texa DoIP NODE Multi-Brand Adapter D14110 MK25735
Texa DoIP NODE Multi-Brand Adapter
Texa DoIP NODE Multi-Brand Adapter

Texa DoIP NODE Multi-Brand Adapter

D14110

Write Review
$413.04 (€380.00)
Add to Wishlist
Product Code: MK25735
Categories Diagnostic Tools
Manufacturer Texa
In StockIn Stock New ArrivalNew Arrival
Product Specifications
Manufacturer Texa
Condition New
Weight 500 g

Texa DoIP NODE Multi-Brand Adapter D14110


Product Description:

New Texa DoIP NODE Adapter is the multi-brand adapter developed by TEXA, which allows carrying out high-speed DoIP

Diagnostic Tools From Texa with Product Number: MK25735
This Weight Product: 500g

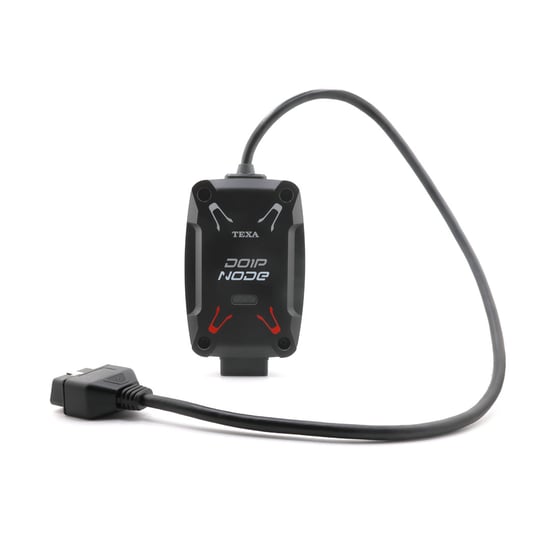

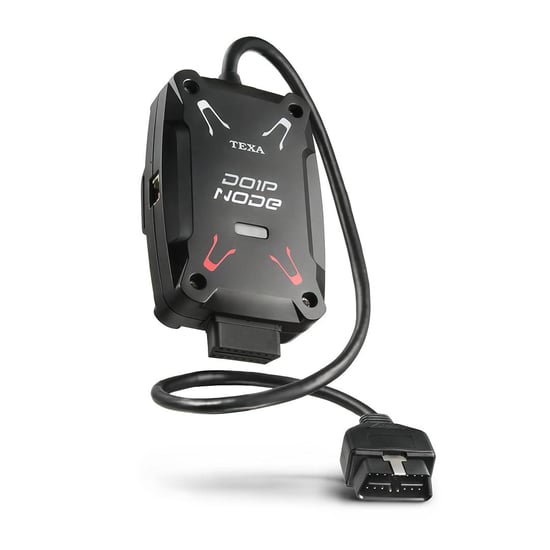

DoIP NODE is the multi-brand adapter developed by TEXA, which allows carrying out high-speed DoIP (Diagnosis Over Internet Protocol) diagnostic operations on vehicles equipped with an Ethernet communication BUS, a new architecture that manufacturers are beginning to implement along with the traditional CAN-BUS line.

The use of the DoIP NODE represents a great advantage for mechanics, as they do not have to replace the TEXA instrumentation they already own, but simply integrate its operation using it when the vehicle they are working on requires it.

Its reduced dimensions (90 mm x 135 mm x 34 mm) allow inserting it between the traditional OBD socket and the NAVIGATOR TXTs or Navigator NANO S interface and each time it identifies which protocol the vehicle uses.



IDC5 Software

The brain in TEXA’s diagnostics

The IDC5 software is complete, practical, intuitive and extremely quick to access communication with the vehicles.
It guides you through all the diagnostic phases, from the error identification to its solution.
Always in a practical, safe, professional way.



Technical Specifications



MANUFACTURER
TEXA S.p.A.

PRODUCT NAME
DoIP NODE

POWER SUPPLY
12 – 24 Vdc from the vehicle battery through the OBD socket

ABSORPTION
500 – 900 mA (12 – 24 Vdc)

WIRELESS PERIPHERAL DEVICES
WiFi IEEE 802.11 b/g/n 2.4 GHz

OPERATING FREQUENCY BAND
2400 ÷ 2483.5 MHz

MAXIMUN RADIO FREQUENCY POWER TRANSMITTED
10 dB

OPERATING TEMPERATURE
0 °C ÷ 50 °C

STORAGE TEMPERATURE
– 20 °C ÷ 60 °C

STORAGE AND OPERATION MOISTURE
10 % ÷ 80 % without condensation

DIAGNOSTIC CONNECTORS
• Male OBD x1
• Female OBD x1

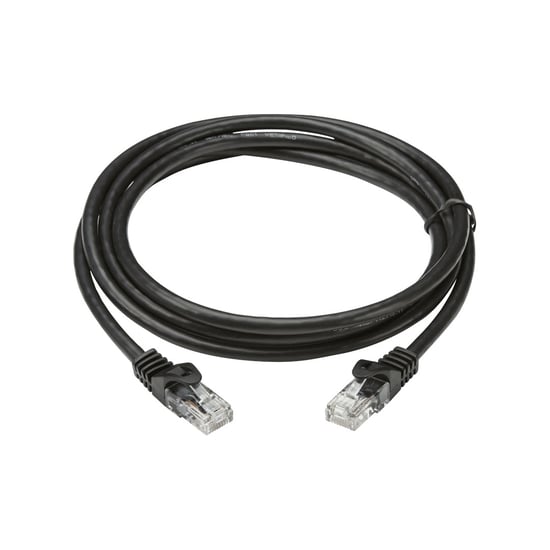

• RJ45 x1 (2000 mm unshielded cable)

FEMALE OBD ABSORPTION (output)
12 – 24 Vdc 500 mA max

RJ45 ABSORPTION (output)
3.7 Vdc 10 mA max

USER INTERFACE
3 bicolour LEDs
