Texa TTC Motorcycle Cam Belt Tension Tester D088A0 MK25737
Texa TTC Motorcycle Cam Belt Tension Tester
Texa TTC Motorcycle Cam Belt Tension Tester

Texa TTC Motorcycle Cam Belt Tension Tester

D088A0

Write Review
$402.17 (€370.00)
Add to Wishlist
Product Code: MK25737
Categories Diagnostic Tools
Manufacturer Texa
In StockIn Stock New ArrivalNew Arrival
Product Specifications
Manufacturer Texa
Condition New
Weight 500 g

Texa TTC Motorcycle Cam Belt Tension Tester


Product Description:

Texa TTC is a device that verifies the correct engine timing belt tensioning, engineered according to Ducati specifications and specifically devised for Ducati bikes

Diagnostic Tools From Texa with Product Number: MK25737
This Weight Product: 500g

TTC is a device that verifies the correct engine timing belt tensioning, engineered according to Ducati specifications and specifically devised for Ducati bikes.

Tensioning the timing belt correctly is a fundamental step in order to ensure reliability and safety: only with a measurement tool such as TTC a correct mounting is guaranteed, and an extremely professional service as well.

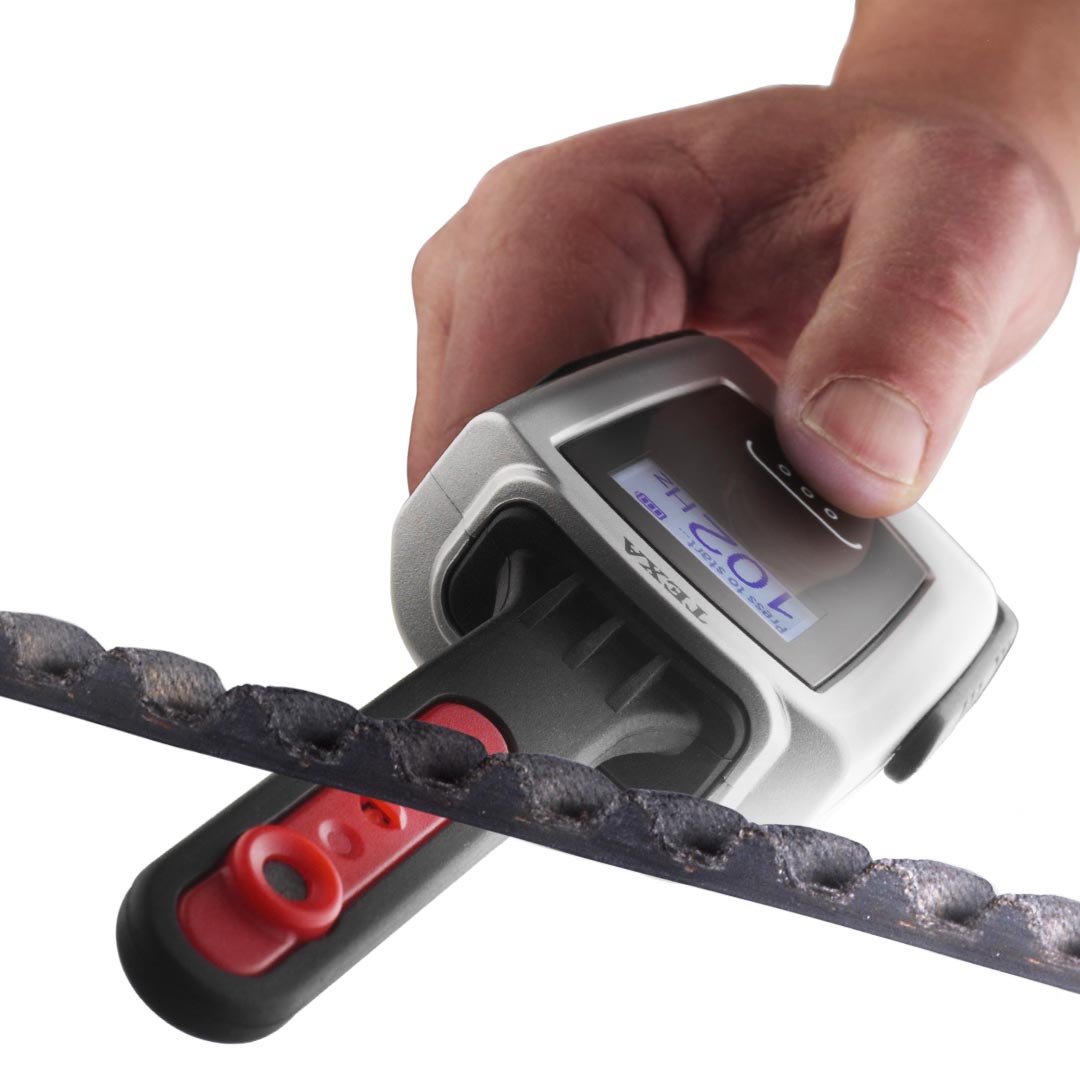

The tool operates the measurement by using a very sensitive microphone that analyses the resonance frequency.

Small, practical, fast

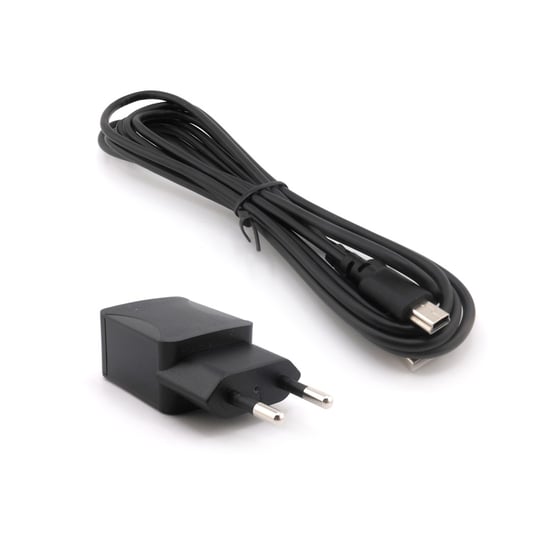

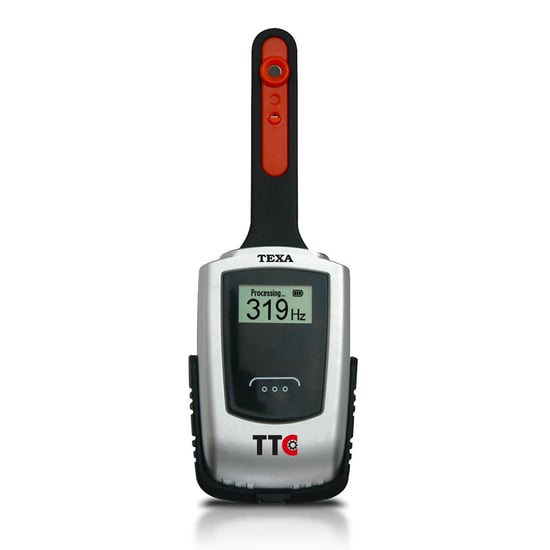

It is entirely wireless and self-powered by rechargeable batteries (battery charger supplied as standard). It requires no additional tools as it displays the test results directly on its graphic display, and emits a beep once the measurement is complete.

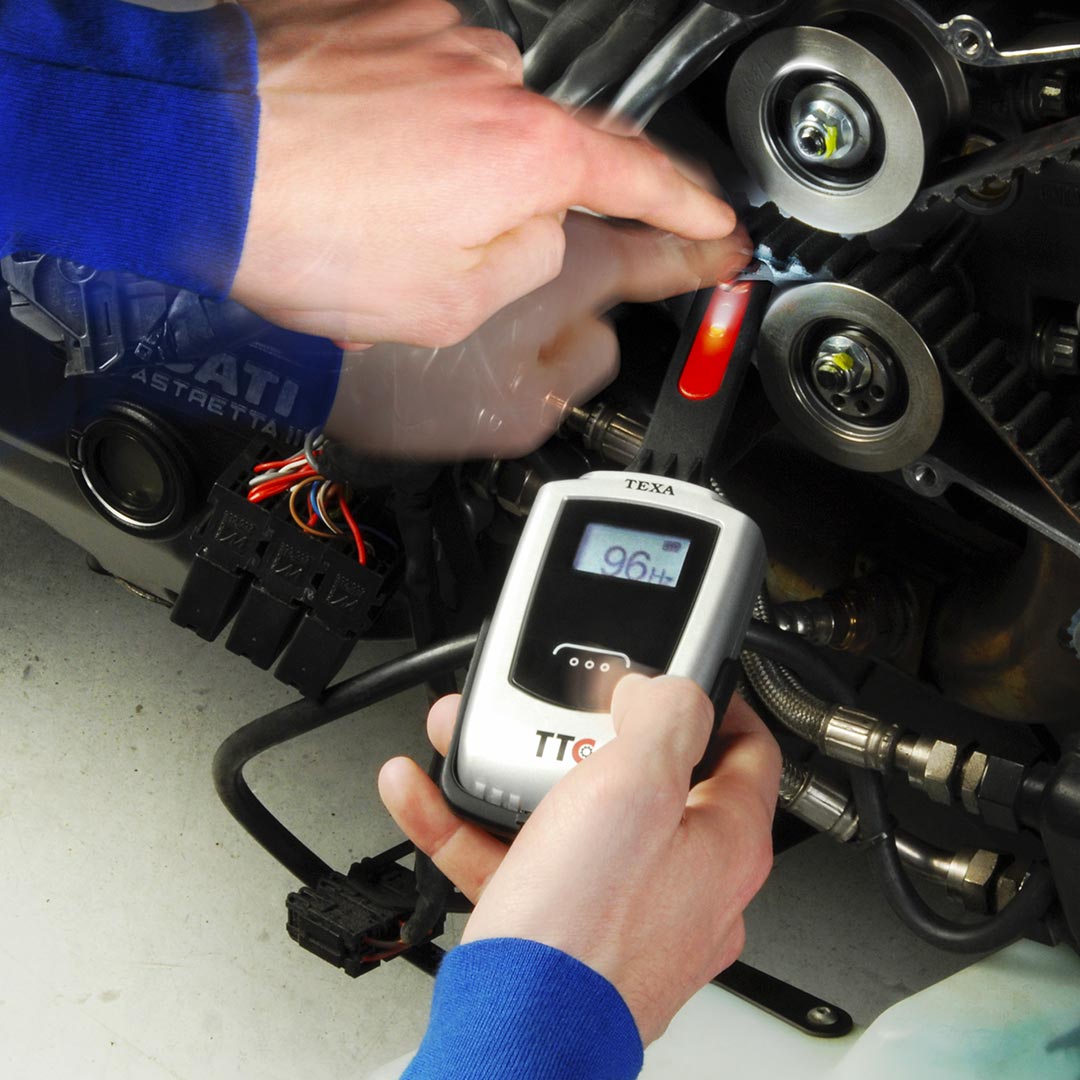

It’s light and small-dimensioned and combines high technology with exclusive handiness and comfort, enabling the mechanic workshop to carry out a correct and professional belt tensioning in a few seconds.

Technical Specifications



MICRO CONTROLLER
ARM 32 bit

DISPLAY
Backlit LCD

INTERNAL BATTERY
3.7 V 1000 ma/h li-io

RECHARGE
from USB port, max consumption 470 mA

RANGE
6 hours of continuous operation

RESOLUTION
3 Hz

ACCURACY
± 1,5 Hz

ENVIRONMENTAL
Operating temperature: – 10 °C ÷ 40 °C
Stocking temperatur: – 20 °C ÷ 60 °C
Temperature with battery under charge: 0 °C ÷ 45 °C

Storage and operation moisture: 10 % ÷ 80 % without condensation

DIMENSIONS
202,7×70,6×31,3 mm

WEIGHT
300 g
