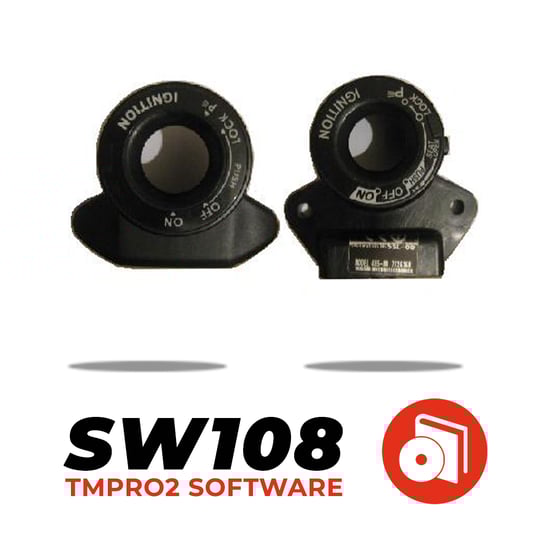

Tmpro SW 108 - Yamaha bikes immobox Moric type 2

Tmpro SW 108 - Yamaha bikes immobox Moric type 2

Product Description:

Software Activation From TMPRO with Product Number: MK8308

Specs:

Manufacturer: TMPro

This is new variant of Yamaha immobox, where there is no serial eeprom S29190.
On place, where you must find serial eeprom S29190, you find 16-pin chip TMS3705.
Keys ARE NOT in this chip TMS3705!
Memory device is MORIC MCU 30 pins SSOP package.
MORIC MCU in this immobox IS NOT POSSIBLE TO READ!
Programming of MORIC MCU is thru TMPro
Use Yamaha key or Texas Crypto – Silca 4D-60 – JMA TP06/TP19 transponder.
Written transponder is ready programmed to start bike.
Also you can set immobox to virgin state.
IMPORTANT NOTE:you can program ONE MASTER key and ONE SLAVE key.If you want more slave keys, program a slave key and clone it with software 65.For cloning Yamaha keys with software 65 JMA TPX cloner is not needed.
IMPORTANT NOTE:If you want to program MASTER key, you also MUST MAKE ECU VIRGIN, because programming of MASTER key will delete synchronisation IMMO-ECU.
Vehicles equipped with this unit:
Yamaha: R1, T-MAX, R6, BT1100, FJR, FZR, FZ1, FZ6, FZS, XT, XJR, XTR, XTX, XVX
