Tmpro SW 112 - Fiat-Lancia-PSA BSI Marelli type 3 MK18312
Tmpro SW 112 - Fiat-Lancia-PSA BSI Marelli type 3
Tmpro SW 112 - Fiat-Lancia-PSA BSI Marelli type 3

Tmpro SW 112 - Fiat-Lancia-PSA BSI Marelli type 3

Write Review
$182.29 Was $260.41 (Save $78.12) (€175.00)
Add to Wishlist
Product Code: MK18312
Categories Software Activation
Manufacturer TMPRO
In StockIn Stock Digital ProductDigital Product
Product Specifications
Manufacturer TMPro

Tmpro SW 112 - Fiat-Lancia-PSA BSI Marelli type 3

Product Description:

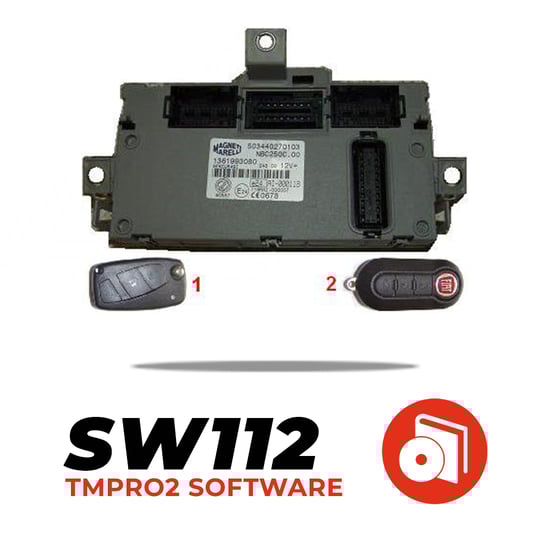

Software module 112 – Fiat, Lancia, PSA BSI Marelli type 3

Software Activation From TMPRO with Product Number: MK8312

Specs:

Manufacturer: TMPro

Fitments:

  • Fiat NA
  • PEUGEOT NA
  • Citroen NA
Memory device is serial eeprom 95c160 SSOP8 package.
Expected file size is 2048 bytes.
Use PCF7936 or Silca T14 – JMA TP12 or CN3 transponder or remote key.
IMPORTANT when you want to program remote key :open key and look on PCB.
You will find 2 SMD chips – PCF7946 (SMD 14 pins) and smaller SMD chip, which can be with 8, 10, or 16 pins.
If smaller SMD chip is with 10 or 16 pins, PROGRAM KEY AS TYPE 1.
If smaller SMD chip is with 8 pins, PROGRAM KEY AS TYPE 2.
IMPORTANT:if buttons of remote operate, but not work properly, for ex. button for locking opens trunk, this is NOT A TMPro SOFTWARE PROBLEM. Use other type remote.
Software shows 5-digit PIN code.
Written transponder is ready programmed to start the vehicle.
Vehicles equipped with this unit:
Fiat: Bravo(2007-), Ducato(2006-), Stilo(2007-), Punto(2007-), Idea(2008-)
Citroen: Jumper(2006-), Relay(2006-)
Peugeot: Boxer(2006-)
Lancia: Ypsilon(2007-), Musa(2007-)
