VF2 Flasher Original Complete Tooling Box ( Frame Adapters + Cable )

VF2 Flasher Original Complete Tooling Box ( Frame Adapters + Cable )

VF2 Flasher Original Complete Tooling Box Description:

Additional Adapter Cables From Green Technology Devices with Product Number: MK24604
This Weight Product: 775g

VF2 Flasher Original Complete Tooling Box Specs:

Manufacturer: Green Technology Devices
Condition: New

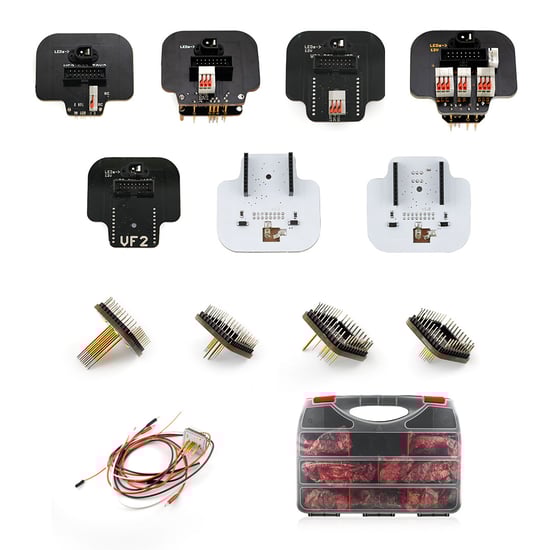

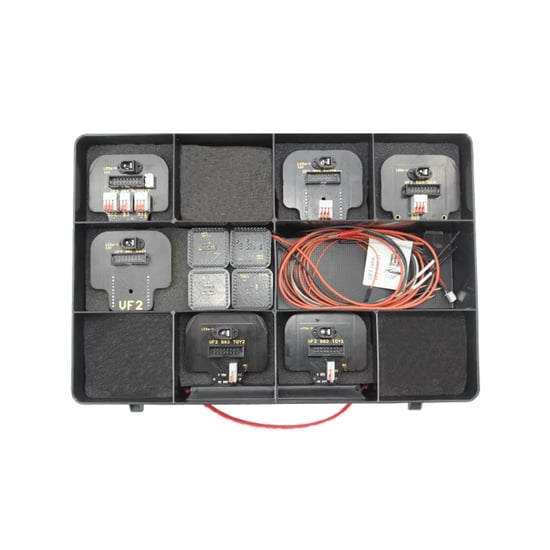

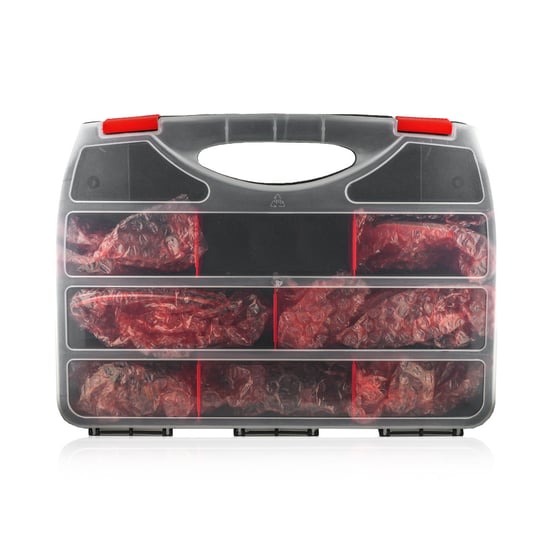

VF2 Flasher Original Complete Tooling Box Set includes:

• 1x Universal Frame Kit For Bosch M/EDC17 (Tricore Module)

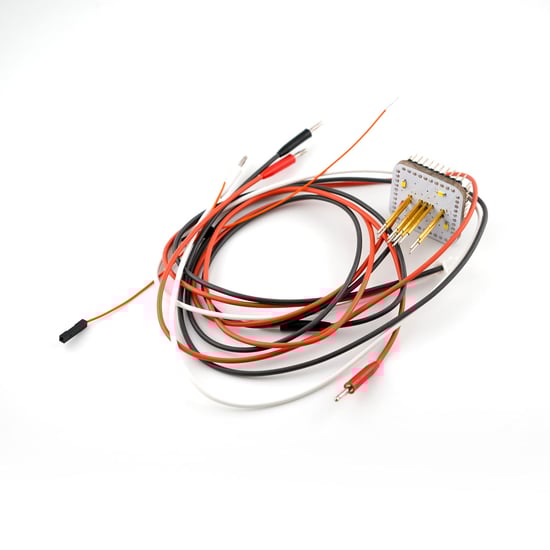

• 1x GPT/F-Series Cable (Tricore Module)

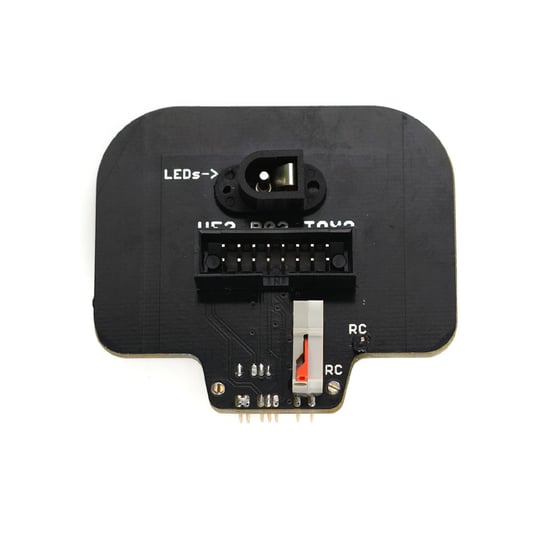

• 1x Toyota/Scion/Lexus frame adapter for ECUs with 10×2 debug header (NBD_76F module)
• 1x Toyota/Scion/Lexus frame adapter for ECUs with 13×2 debug header (NBD_76F module)

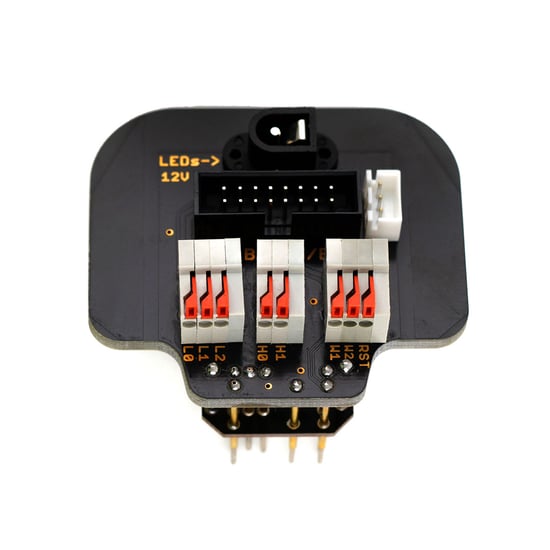

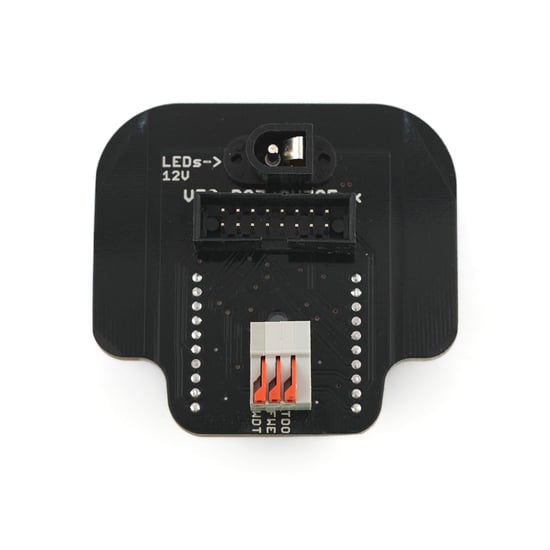

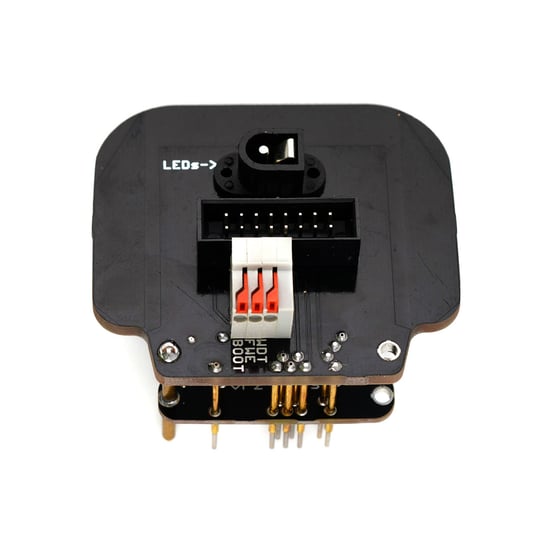

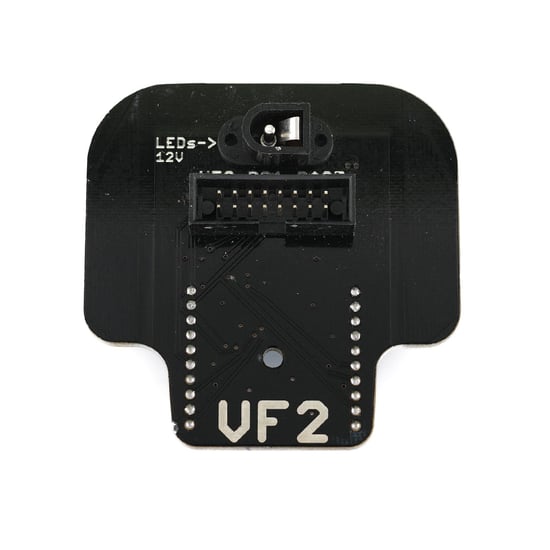

• 1x Universal frame adapter base board (BDM & JTAG)

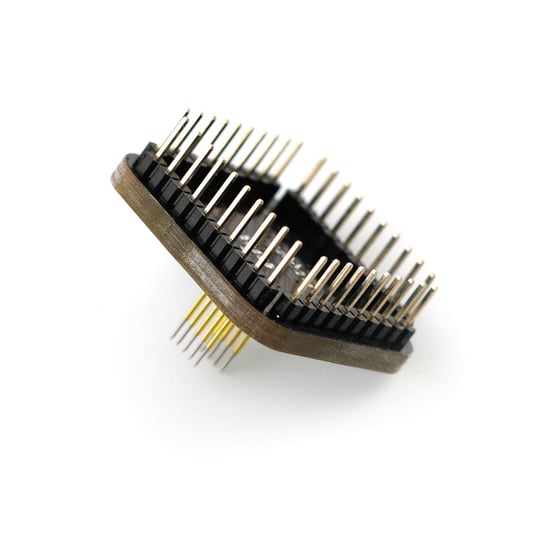

• 1x MED9/EDC16/EDC7 adapter for BDM/JTAG base board (BDM MPC5xx module)
• 1x Siemens/Marelli adapter for BDM/JTAG base board (BDM MPC5xx module)
• 1x Delphi/Motorola adapter for BDM/JTAG base board (BDM MPC5xx module)
• 1x Marelli JTAG adapter for BDM/JTAG base board(JTAG MPC5xxx module)
• 1x Frame adapter for Delphi DCM3.7 (SH725xx JTAG module)
• 1x ETAS frame adapter (SH725xx JTAG module)

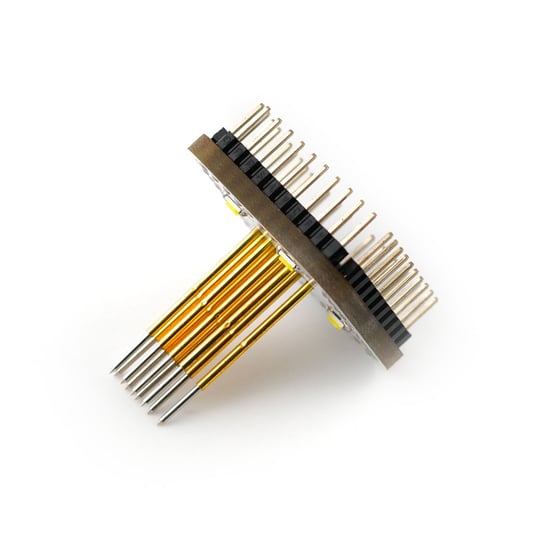

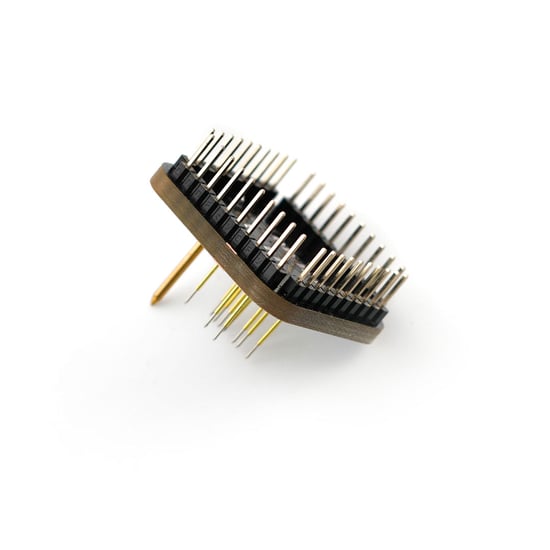

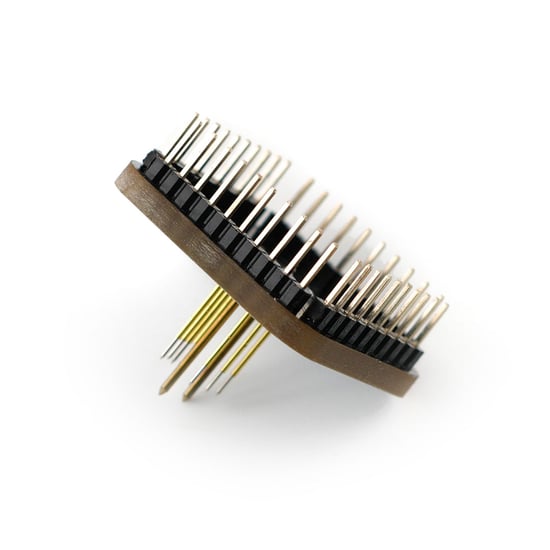

Lower adapters of the Universal frame adapter base board (BDM & JTAG) and the ETAS frame adapter (SH725xx JTAG module) can be rotated 0º, 90º,180º and 270º so that they better suit the different orientations of the debug port of the ECUs.

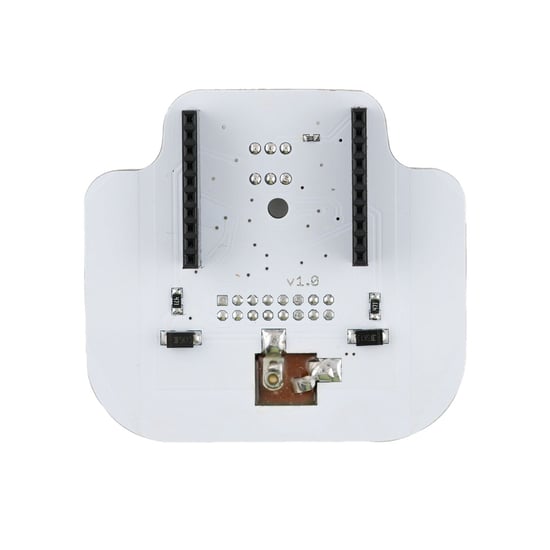

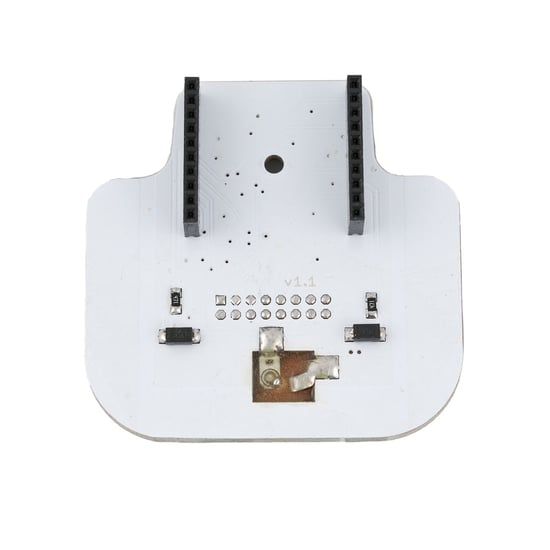

Special care taken to the visibility, LEDs selected not just for their brightness but also correct hue, our adapter PCBs are white underneath to better reflect light and contribute to a crisper view of the working area.

(To be used with the VF2 Flasher, suitable for standard 64mm wide frames, positioning frame not included)
