X-Tool X100PAD Elite2 Professional Key Programmer

X100PAD Elite2 Professional Key Programmer

X100PAD Elite2 Professional Key Programmer Description:

Key Programming Tools From X-Tool with Product Number: MK25328
This Weight Product: 4500g

X100PAD Elite2 Professional Key Programmer User Manual

X100PAD Elite 2 is a professional tablet key programmer which not only provides customers with key programming, but also supplies advanced special functions. X100PAD Elite2 can perform: Key programming,oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset etc.

● An excellent choice for locksmiths worldwide.
● Support key programming for over 90% of vehicles on the market.
● Can match keys in both add key and all keys lost situations.
● Read and modify immobilizer data, obtains PIN codes by various methods.
● Register new ECU/BCM/dashboard when modules need to be replaced.
● Include diagnostic functions to solve fault codes after the programming process.
● Contains 30+ special functions to assist with vehicle maintenance.

X100PAD Elite2 Professional Key Programmer Parameters:

• Operating System：Android 10.0
• Communication Method：Wi-Fi / Wireless
• Processor：Quad-core processor 1.5GHz
• Memory：4G RAM, 64G ROM
• Display：8.0-inch touch screen with 1024×768 resolution
• Connectivity：USB Type-C / WIFI 2.4/5G
• Sensors：Gravity Accelerometer, Ambient Light Sensor
• Auto Input/Output：Microphone, Speaker
• Battery：5000mAh, 7.3V lithium-polymer battery
• Working Voltage：9-36V
• Operating Temperature：-10 to 50℃
• Storage Temperature：-40 to 60℃
• Humidity：<90%
• Protocol compatibility：CANFD, DOIP, PWM

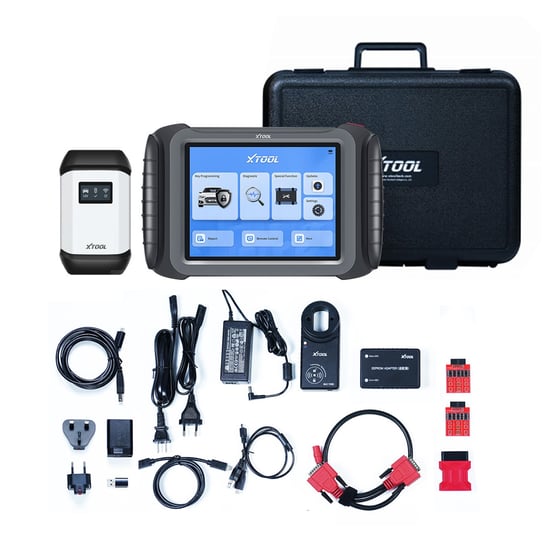

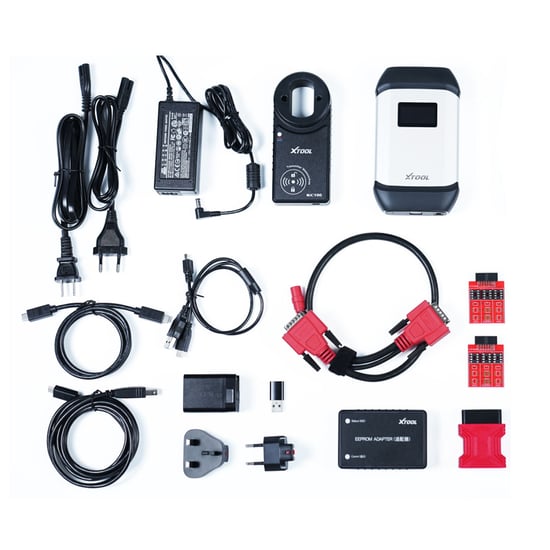

X100PAD Elite2 Professional Key Programmer Packing List:

Accessories

• Certificate of Quality
• Packing List
• Color Carton
• Tool Case
• Quick Guide

Cables & Adapters

• Power Supply Charger Adapter EU
• Type-C to Type-B Cable
• DB15 Main Cable
• Micro USB to Type A/C Adapter (Connect to KC100)
• Type-C to Type-C Charger Cable
• DC Power Cable EU
• Power Supply Charger Adapter UK
• DC Power Charger
• DC Power Cable US
• Power Supply Charger US

Main Units

• VCI Box
• Tablet
• EEPROM PCBA
• KC100 Key Programmer
• EEPROM Adapter

Test Connectors

• OBDⅡ-16

X100PAD Elite2 Professional Key Programmer Compare Similar:

	X100PADS	InPlus IK618E	X100PAD Elite2
Hardware
Processor	Quad-core processor 1.5GHz	Quad-core processor 1.5GHz	Quad-core processor 1.5GHz
OS	Android 10.0	Android 10.0	Android 10.0
Storage (RAM+ROM)	2+64G	2+64G	4+64G
Display	7 inch 1024*600	7 inch 1024*600	8 inch 1024*768
Camera	8MP rear	N	8MP rear
Connectivity	USB Type-C VGA	USB Type-C VGA	USB Type-C
Battery	2500mAh, 7.2V	2500mAh, 7.2V	5000mAh, 7.3V
WiFi	Y	Y	Y
Software
IMMO Functions	Y	Y	Y
OBD Key Programming	Y	Y	Y
EEPROM Modifications	Y	Y	Y
Bench programming	N	N	Y
Remote testing	N	N	Y/ Need M600+603
VW 4/5/MQB	Y/ Offline	Y/ Offline	Y/ Offline
GM key programming w/ CAN FD	Y/ Pin Required	Y/ Pin Required	Y/ Pin Required
BMW CAS1-4/FEM&BDC Ford Pincode Bypass	Y	Y	Y
Chrysler Pincode Bypass	Y	Y	Y
2018+ FCA SGW Bypass	Y/ Cable Needed	Y/ Cable Needed	Y/ Cable Needed
Read pin (Chrysler, VPW)	Y	Y	Y
Hyundai 4A key reading	Y	Y	Y
15-18 Land Rover/Jaguar key programming via OBD	Y/ KC501	Y/ Need KC501/M600 partly	Y/ Need KC501/M600 partly
Mercedes FBS3 AKL	Y/ KC501	Y/ Need Adaptor+KC501	Y/ Need KC501/M600
BMW ECU replacement & Read ISN by bench	N/ Partly	N/ Partly	Y/ Partly
2019+ Nissan Sentra programming	Y/ Cable needed	Y/ Cable needed	Y/ Cable needed
VW Read PIN by bench & OBD	Y/ Partly	Y/ Partly	Y/ Partly
2018+ Toyota smart key AKL	Y/ SK1	Y/ Need Anytoyo SK1	Y/ Need Anytoyo SK1
Renault Kwid/Logan programming	Y	Y	Y
Toyota 8A blade key AKL	Y/ KC100,M822	Y/ Need Adaptor,KC100/KS-1	Y/ Need Adaptor,KC100/KS-1
2020 Ford PIN bypass	Y	Y	Y
Mitsubishi ID47 AKL	Y	Y	Y
Full system diagnosis	Y/ Read+Clear DTC ,Live Data	Y	Y
Service Resets	36	36	34
Compatible Module
OBDI Connector	Y	Y	N
OBDII Connector	Y	Y	Y
EEPROM Adapter	Y	Y	Y
KC501	Optional	Optional	Optional
KC100	Optional	Y	Y
