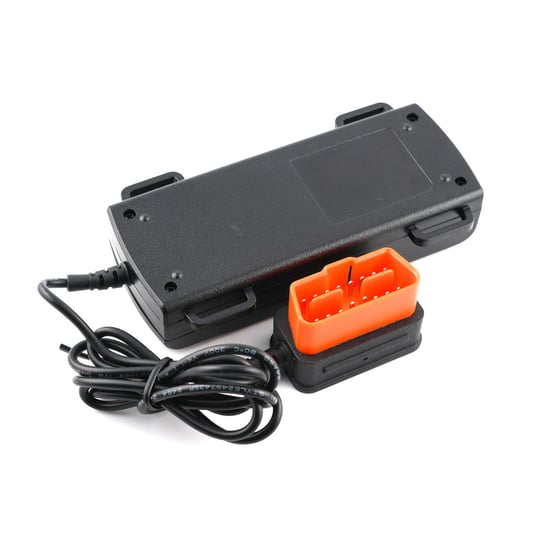

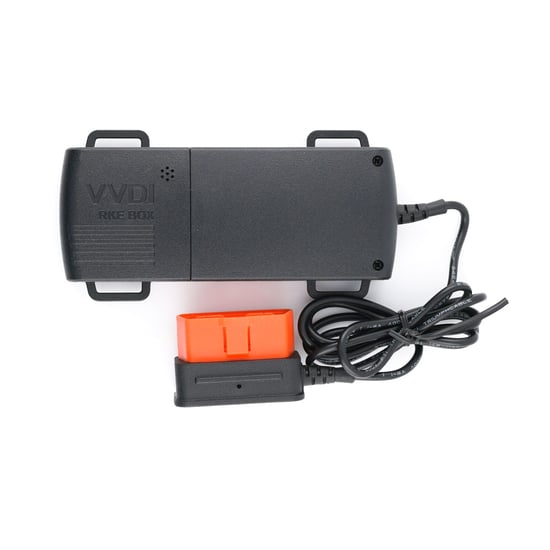

Xhorse VVDI RKE BOX Remote Control Switching Box

Xhorse VVDI RKE BOX is applied at the following aspects:

1. To change the original straight remote control to folding remote
2. No method or apparatus temporarily to add a new remote control
3. Temporary replacement because of the original out of stock
4. Only one remote for the original car (such as the Chinese, Besturn, etc.)
5. To seek low-cost remote control instead of the expensive original one
Note: at least one original remote control for use of the kit


1. Wiring description:

Remove the circuit boards in the original remote control, and connect to the main unit as the right picture shows (connect the white wire to buttons, red to the positive, black to the negative)

Note: 3 kinds of remote button: 2-feet, 4-feet and 5 feet buttons

4-feet and 5-feet buttons: no direction distinction, but it must be soldered at the diagonals

2-feet buttons: no direction distinction, and respectively solder the two feet


original remote control

positive

negative

remote wiring diagram






Press SET button on the Host box (in the internal hole at the side of unit), then the buzzer beep twice, to go into the matching state

Press any button on the new remote for a while until the buzzer beep continuously. Key matching is completed.

Repeat the previous two steps to add another new key.

Note:

Up to six keys to match for one Host box; the key matching will fail if more

In the matching state, the buzzer beeps once if the key cannot be detected for more than 10 seconds, and then automatically exit the matching state to go into the normal working state.



Press SET button for a while until the buzzer beep continuously. All the keys matched previously are cleared and return to factory state

Note:

If the key is lost or not to use, you can erase all the keys and then re-add all lost keys to ensure safety.
