Xtool X100 PAD Elite SE Version Professional Tablet Key Programming Device

X100pad Elite Registered Trademark Of Shenzhen Xtooltech Co., Ltd Applying To X100pad Elite Smart Automotive Diagnosis Platform.

Note: This Device is same as the Normal Elite Version, just without KC100 Adaptor.

X100pad Elite Auto Key Programmer

Appearance

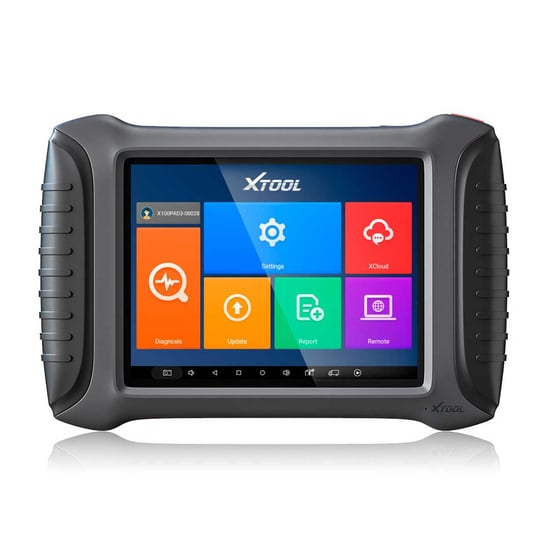

Front View

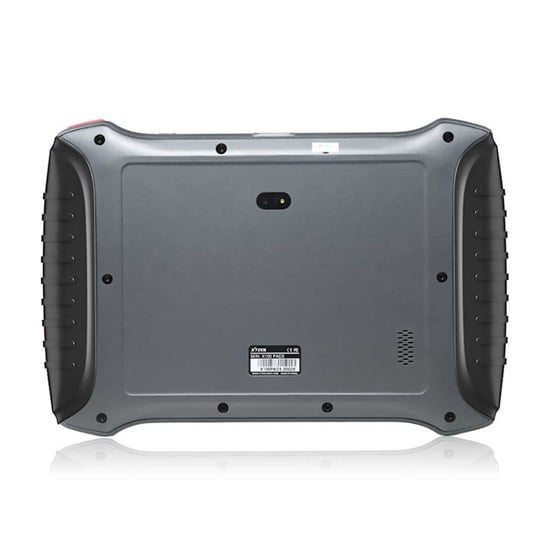

Back View

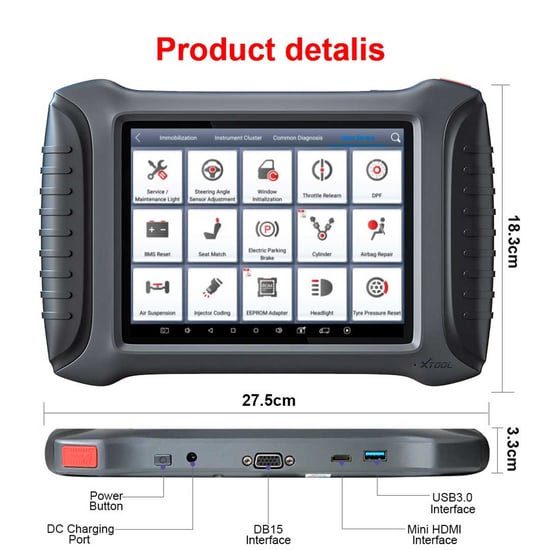

The Layout Of The X100pad Elite Tablet

Top View Of X100pad Elite Tablet

Side View Of X100pad Elite Tablet

X100pad Elite Technical Parameters

Operating System: Android
Processor: Quad-core 1.6ghz Processor
Memory: 2g Ram, 64g Flash
Display: 8-inch IPS Lcd With 1024x768p Resolution
Tp: 8-inch Multi-point Touchscreen
Camera: Rear Camera, 5.0 Megapixel With Flashlight
Sensors: Gravity Sensor, Ambient Light Sensor
Audio Input/Output: Microphone, Dual Speakers, 3-band 3.5mm Stereo/standard Headset Jack
Power And Battery: 12v
Power Voltage: 29.6w
Power Consumption: -20to50℃(-4to126℉)
Operating Temperature: 4000mah, 7.4v Lithium-polymer Battery
Humidity: 90%
Dimension(L×w×h): 240×177×30mm

X100pad Elite Activation

Vehicle Connection Diagnosis

A. Activate X100pad Elite Tablet
B. Connect Cables And X100pad Elite In Following Order:
C. Turn On The Ignition And Tap On X100pad Elite Application To Check Vehicles. (Shown As Follows)

Special Function And Diagnosis

Menu Options

Read Ecu

This Function Is Employed To Read Ecu Version Information, Which Is That The Equivalent Of
“System Identification” Or “System Information” In Some Electronic Control Systems.
This Will Allow You To Read Ecu Related Software And Hardware Versions, Models And Production Date Of Diesel, Part Number, Etc. Shown Below:

Read Dtcs

Select Read Fault Codes To Read The Difficulty Codes Stored Within The Ecu.
The Screen Will Show The Difficulty Codes And Their Definition, Shown Below:

Settings

By Selecting Settings Users Can Set The Language, Unit, And Other System-related Options.
Languages: Select The Language.

Xcloud (English Version Is Coming Soon)

All The Auto Maintenance Technicians Who Use Our Products Can't Only Search The Upkeep Information That We Placed On Our Cloud Service Platform Conveniently
And Mix The Diagnosis Result To Question, And Communicate With Other XTool Users In Our Forum
But Also Can Access Various Online Databases Of Maintenance And Diagnostic Skills And Vehicle Maintenance Plans.

Update

X100pad Elite Updates Directly Via The Web Using WIFI Or Wired Connection.
To Access The Update Application Open The X100pad Elite Application And Click On Update, Shown Below.

Report

The Report Is Employed For Viewing And Printing The Saved Files, Like Live Data,
Trouble Codes, Or Pictures Generated Within The Process Of Diagnosis,
Users Can Also View A Record Of Which Cars Are Previously Tested.
It Includes Three Parts:
Pdf Files, Pictures, And Data Playback.

Are All The Screen Capture Files Saved Within The Diagnosis Process?

Remote

If Users Encounter Problems And Aren't Ready To Solve Them, They Will Open This Application And Invite Remote Assistance.
How To Get Remote Assistance From XTool Technical Assistance Center:
A. Open X100pad Elite
B. Click Remote And Open The Team Viewer Interface. Generate And Display Device Id.
C. Your Partner Also Will Got To Download And Install Team Viewer.
D. Inform Your Partner Of Your Team Viewer Id And Password To Enable Them To Start Remote Access Of The X100pad Elite.
